EaglePower X8 KV110 12S-14S 14.5KG Thrust Brushless Motor for 10L 16L Agriculture Drone

EaglePower X8 KV110 12S-14S 14.5KG Thrust Brushless Motor for 10L 16L Agriculture Drone

EaglePower

$109.00 USD
$109.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

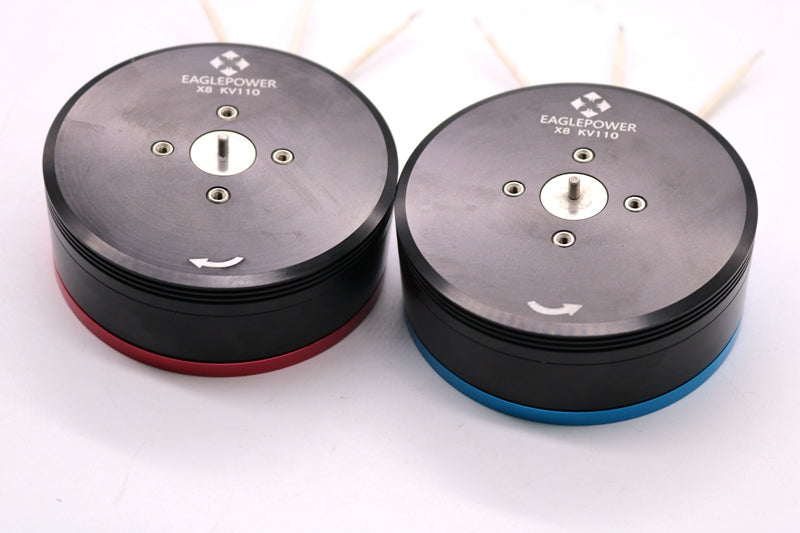

The EaglePower X8 KV110 is a high-performance brushless motor designed for 12S–14S (44.4V–51.8V) UAV power systems. With a max thrust of 14.5kg using a 12S LiPo battery and UP3212 folding propeller, it is ideal for 10L–16L agriculture drones, offering powerful and stable propulsion. Weighing just 573g, it provides excellent efficiency and cooling for demanding missions such as spraying, aerial mapping, and remote sensing.

Specifications

Parameter Value
Model X8 KV110
Configuration (N/P) 36N42P
Motor Size Φ91.7 × 36 mm
Weight 573 g
Battery 12S–14S LiPo
No-load Current 1.4A @ 24V
Max Continuous Current 51.3A (12S + UP3212 propeller)
Max Continuous Power 2482W
Max Thrust 14500g (14.5kg)
Internal Resistance 62.5 mΩ
Spindle Diameter 15 mm
Stator Mounting Hole 4×M4 @ Φ40 mm
Rotor Mounting Hole 4×M3 @ Φ31 mm

Thrust Test Data (X8 KV110 with 12S LiPo & UP3212 Propeller)

Thrust (g) Current (A) RPM Power (W) Efficiency (g/W) Torque (N·m)
1000 0.75 900 36.3 27.5482 0.3852
2000 2.29 1260 110.836 18.0447 0.8401
4000 6.8 1850 329.12 12.1536 1.7433
6000 12.9 2233 624.36 9.6098 2.6702
7000 16.9 2404 817.96 8.5593 3.2431
8000 20.8 2586 1006.72 7.9466 3.7178
9000 24.7 2735 1195.48 7.5284 4.1735
10000 28.9 2902 1390.68 7.1924 4.6076
11000 33.2 3068 1647.46 6.6761 5.0666
12000 40.5 3202 1960.2 6.1224 5.5271
13000 46.6 3300 2255.44 5.7643 5.8631
14500 51.29 3440 2482.44 5.8410 6.8916

📌 Note: Recommended takeoff weight per motor is 6500–7500g. All test values at 100% throttle.

Key Features

  • 12S–14S high voltage support (44.4V–51.8V)

  • Up to 14.5kg max thrust with UP3212 folding propeller

  • Compact and lightweight at only 573g

  • Excellent thrust-to-weight ratio for 10L/16L agriculture drones

  • Durable build with precise CNC machining

  • Low internal resistance for higher efficiency

  • Compatible with EP-80A ESC and folding carbon propellers
