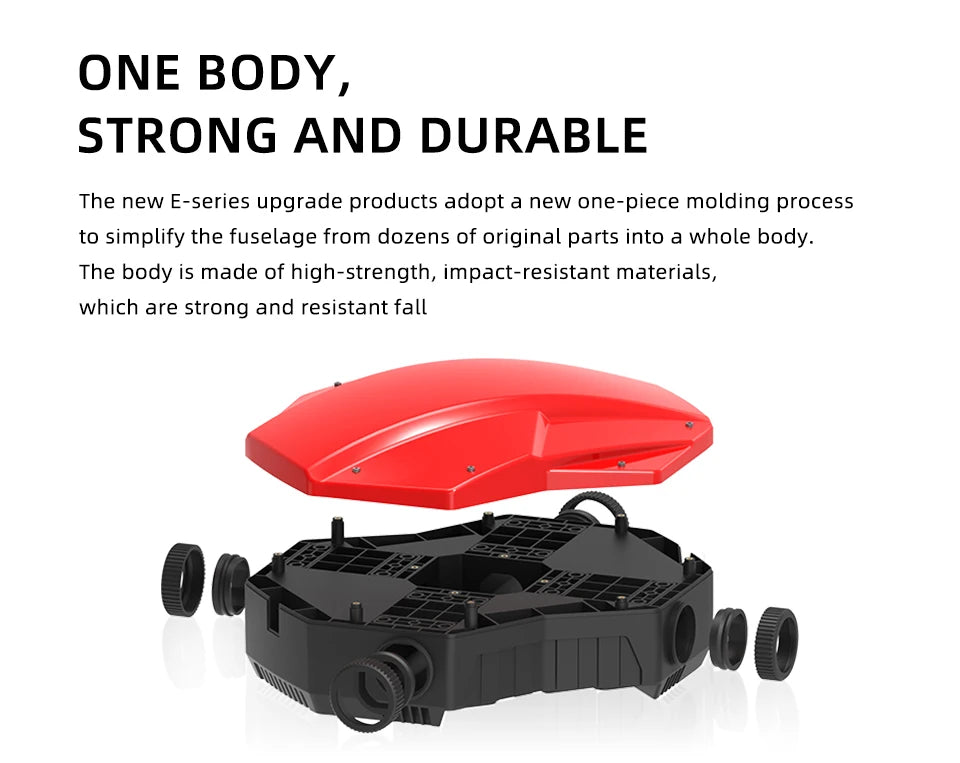

Frame:

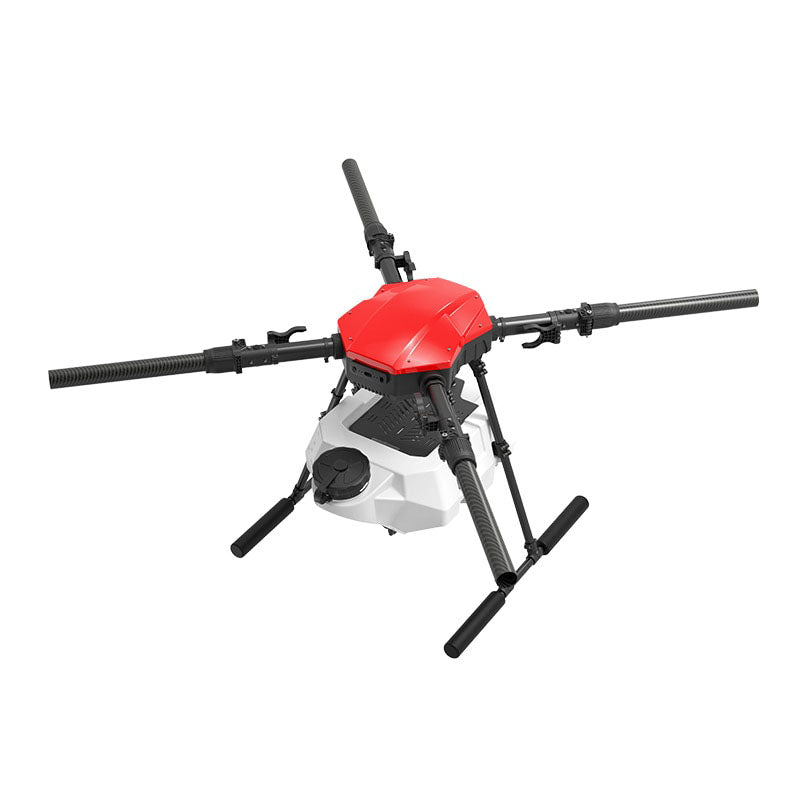

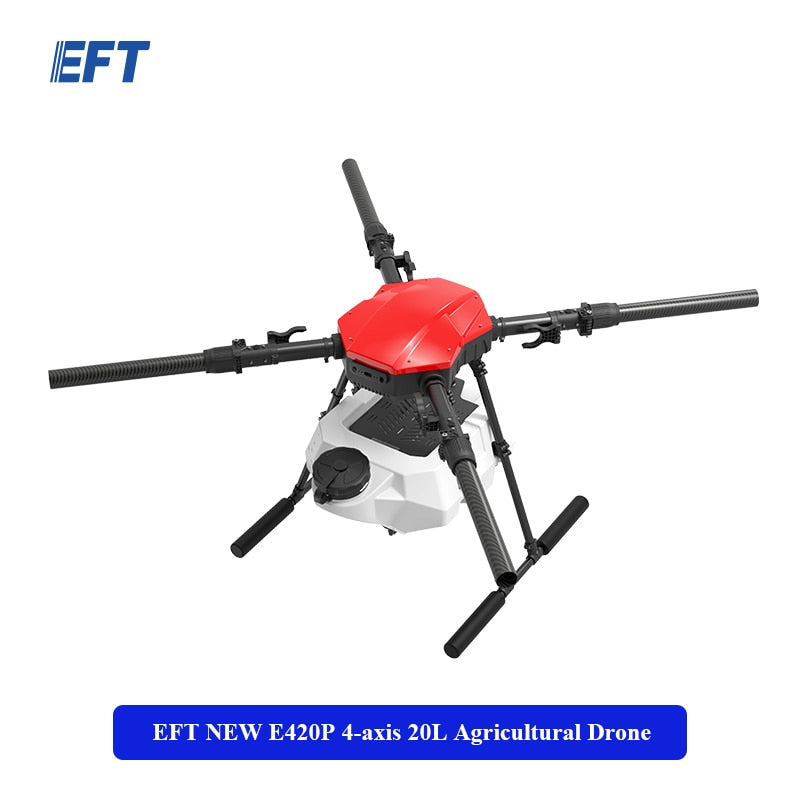

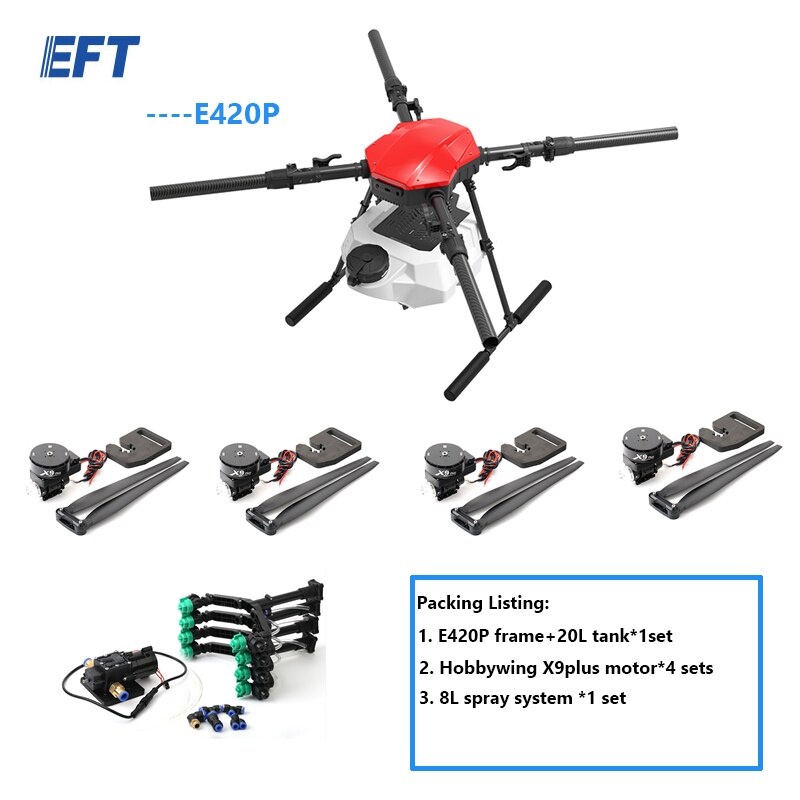

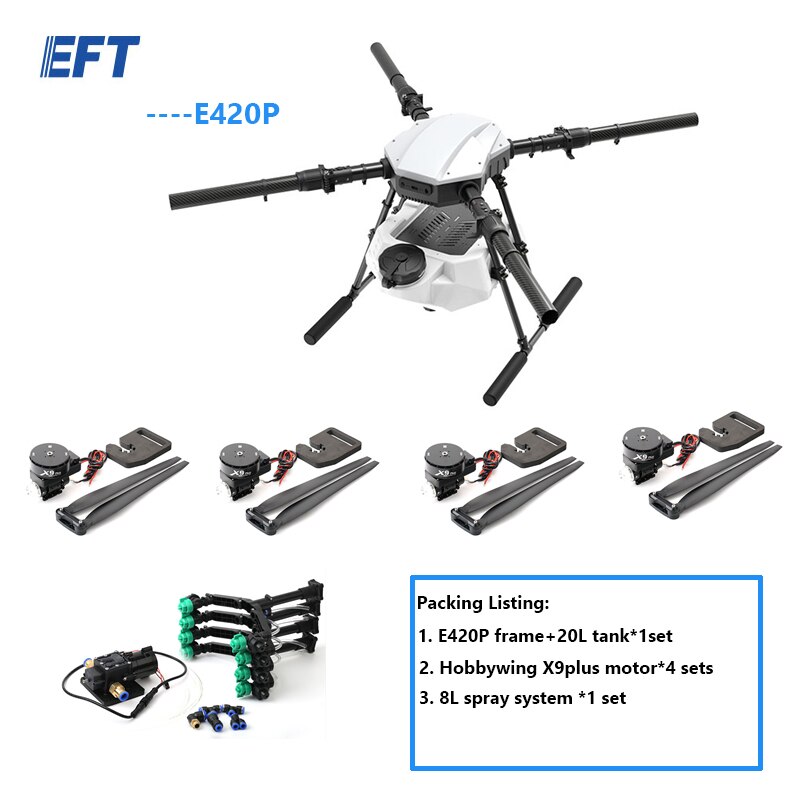

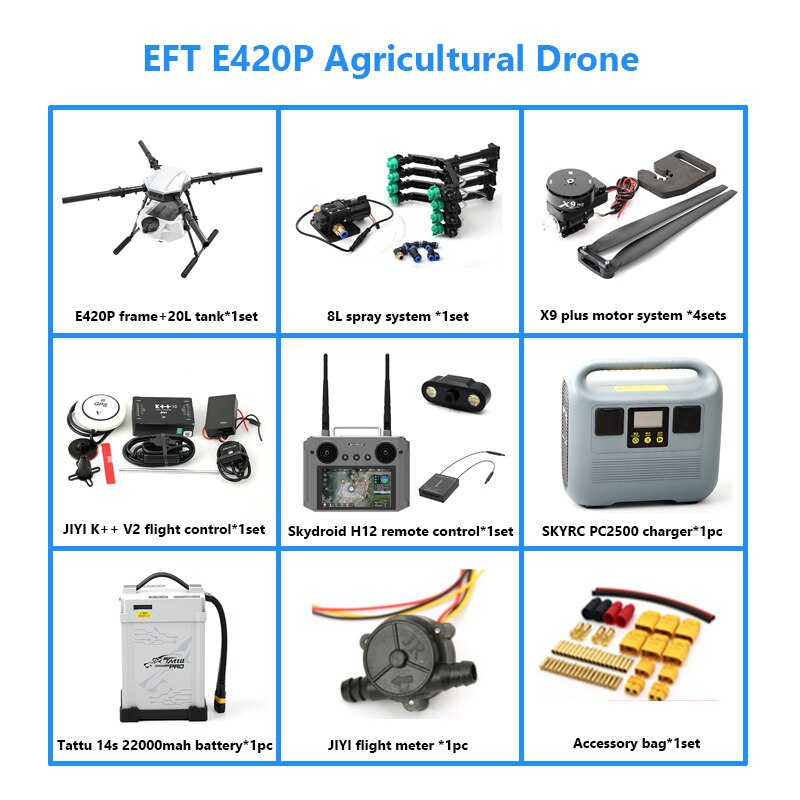

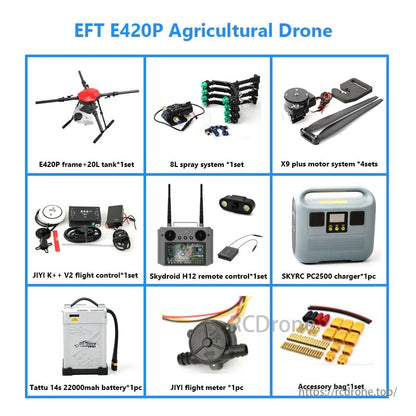

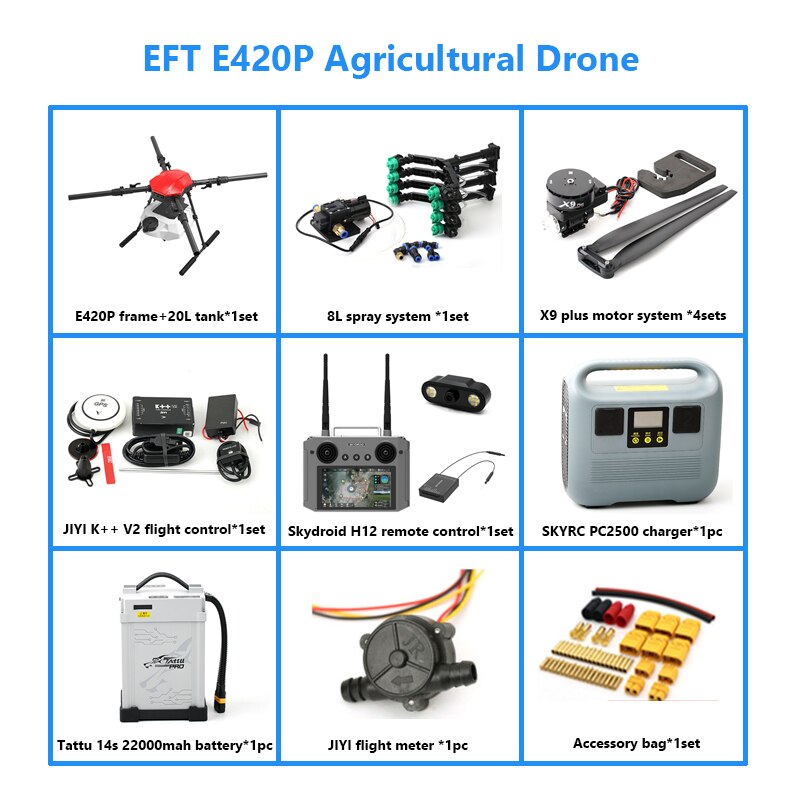

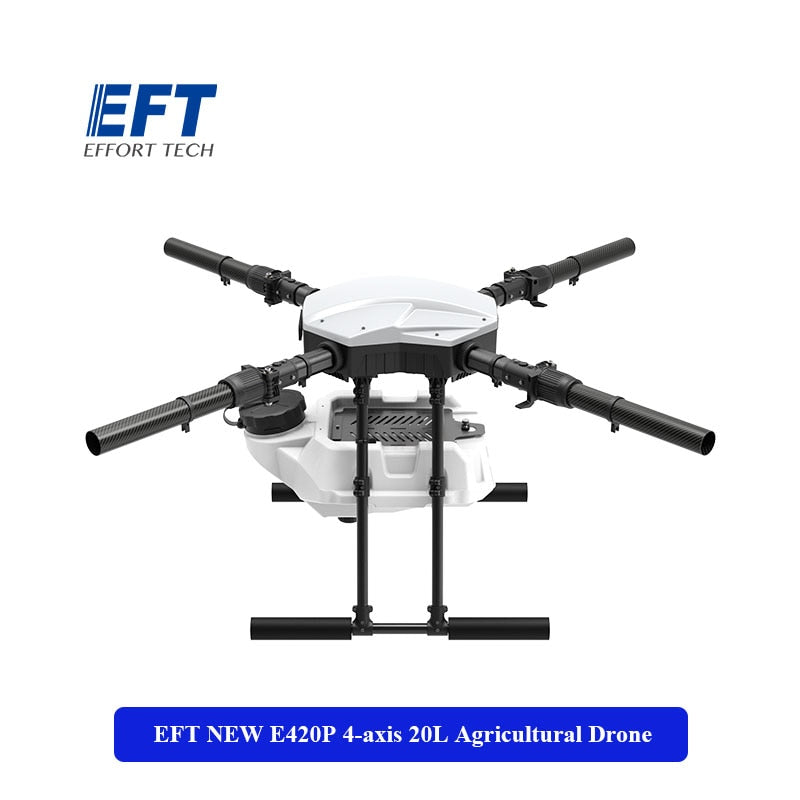

EFT E420P Drone Frame

Wheelbase ：1462mm
Expanded size: 1954*1954*663mm
Folding size: 713*713*663mm
Tank capacity ：22L
Frame weight ： 6.55kg
Color: red/ white

Tank Capacity

Power System

Hobbywing X9 plus Power System

Max. Thrust: 26.5kg/Axis (53.6V, Sea Level)

Recommended Takeoff Weight: 11-13kg/Axis (53.6V, Sea Level)

Recommended Lipo Battery :14S(LiPo)

Operating Temperature: -20 ~ 50℃

Combo Weight: 1774g

Waterproof Rating: IPX7

Motor Specs:

KV Rating: 100KV

Stator Size: 96x20mm

Bearing: Bearings imported from Japan

ESC Specs:

PWM Input Signal Level: 3.3V/5V(Compactable)

Throttle Signal Frequency: 50-500HZ

Operating Pulse Width: 1050-1950us

Max. Input Votage: 60.9V

Max. Input Current: 120A

BEC: No

Propeller Size: 36x120 inch

 Sprayer System

 Y Spray Extend the High-pressure nozzle

Hobbywing 8L Brushless Water Pump:

Operating voltage: 12-14S (DC44-60.9V)
Working current: <2A
Weight: 685g
water inlet diameter: 10.5mm
water outlet diameter : 6.5mm
Amount power: 60W
Opening flow: 8L/min
Size: 140*95*70mm
Working pressure: 0.5Mpa
Protection level: IP67
Fixed PWM throttle stroke: 110-1940US

Flight Controller

JIYI K++ Flight Controller

Flight characteristics
Hovering accuracy: horizontal direction ±1.5 m; vertical direction ±0.5 m
Maximum tilt angle: 30°
Maximum yaw speed: 150°/ sec
SBUS receiver Maximum vertical speed: 6 m / s
Wind resistance: continuous wind: 4
Gust: Level 5

Hardware specification
Weight:
Total net weight: 321g
FC: 87g
PMU: 41g
PMU2 (UPS): 44g

Size
FC: 72.6mm × 48.0mm × 22.8mm
PMU: 53.4mm × 34.4mmx14.5mm
PMU2 (UPS): 53.4mm × 34.4mmx14.5mm
GPS: 62*14.3mm
LED: 24*24*8mm

 Remote Controller & Video Transmission

 Skydroid H12 Remote Controller

Camera Resolution : 1920x1080

Transmitter Specification:

Model: H12

Channels: 12

Working Voltage: 4.2V

Frequency: 2.400 - 2.483GHZ

Frequency Hopping: Newest FHSS

Update Way: App Update Online

Receiver Specification:

Model: R12

Channels: 12

Working Voltage: 4.5-5.5V

Working Current: 140MA@5V

Weight:14g

Tattu 14S 22000mah Battery

Minimum Capacity: 22000mAh
Configuration: 14S1P /51.8V
Discharge Rate: 25C
Net Weight(±20g): 8500g
Dimensions: 279mm x 236mm x 91mm

SKYRC PC2500

Size and Weight
Housing Material: Plastic (Flame Retardant PC+ABS)
Size: 294mmx139mmx282mm
Weight: 5.6Kg
Power Supply: AC Input: 100-240V
Charging Power:
AC220V：2500W
AC120V：1200W
Battery
Type：Lithium Battery
LiPo Battery Cells： 12S/14S
LiHV Battery Cells：12S
Charge/Discharge
AC 220V
Fast Charge Current: max. 45A single channel
Slow Charge Current: max. 20A single channel; max. 45A multi channels in total
AC 120V
Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total

Storage Discharge Power
Main Port: 75W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)

Max Charge Output Power
AC220V Output Power: 2500W
AC120V Output Power: 1200W

Discharge Power：60W
Charging Mode：Fast Charge, Slow, Storage

Working and Storage
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%

Flow accuracy: (0.2-6L/min) ±10%
Working water pressure: 0.1-0.35MPa
Interface outer diameter: 8-10mm (inserted inner diameter 8mm hose)
Operating voltage: DC5-24V (rated 5V)
Signal output: NPN pulse signal
Electrical access DC5V/10ma condition: output high level DC4.5V or more, low level DC0.5V or less
Response time: 0.2S (seconds)
Pulse characteristics: F = (23 * Q) ± 10% Q = L / min
Wiring method: red positive, black negative, yellow signal output
Lead length: 25CM (3P terminal XH2.54)
