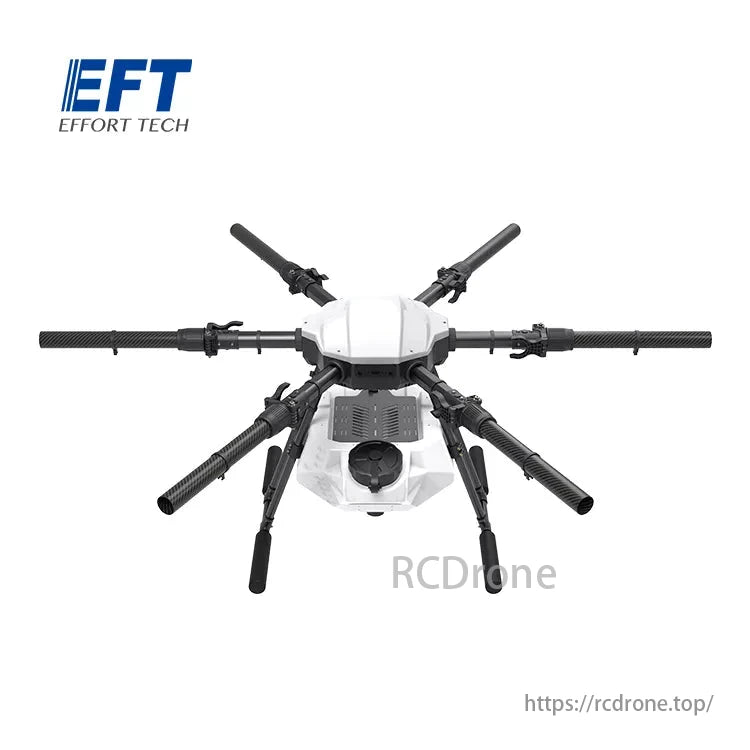

EFT E616P 16L 6-Axis Agriculture Drone Parameters
Wheelbase
|
1648mm
|
Tank capacity
|
16L
|
Frame weight
|
7.5KG
|
Full load weight
|
35KG
|
Recommended motor
|
X8 + 30INCH propeller
|
Expand size
|
2428*2428*600mm
|
Folded size
|
1102*970*600 mm
|
No Load
|
21 minutes and 30 seconds
|
Fully Load
|
9 minutes and 10 seconds
|
Package Included:
EFT E616P 6 Axis 16L Agriculture Drone frame x 1
16L water tank x 1
Other components can be freely selected, please contact our staff:
Hobbywing X8 propulsion System for drones x 6 (3CW+3CCW)
JIYI K3A pro Flight Controller x 1(or JIYI K++ flight controller x1)
Skydroid T12 Remote Controller x 1
Camera x1
Accessories Bag x 1
Flow meter x1
EFT E616P 16L 6-Axis Agriculture Drone Details
The E616P product features a robust, single-body design with a strong cross-folding structure that ensures a fully waterproof construction. Additionally, it includes an integrated 8-channel power supply, which allows for expansion of the tank inlet. The drone also comes equipped with a detachable camera mount and wiring.
The package dimensions for this product are 71mm x 440mm x 210mm, and it includes main body accessories from Effort-Tech.com, featuring their 16L tank with EFT electronic components.
EFT E616P 16L 6-Axis Agriculture Drone Review
The E616P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.
The E616P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.
Digonal Wheelbase: 1362mm
Folding Dimensions: 648x671x628mm
Unfolded Dimensions: 1844x1844x628mm
Arm Diameter: 40mm
Payload: 16L
Frame Weight: 6.5kg
Frame with power equipement: about 15kg
Take off weight: 37kg
Power source: Battery
Power Connector: AS150U
Operation temperature:10~50℃
EFT E616P 16L Agriculture Drone Installation Guide Video
