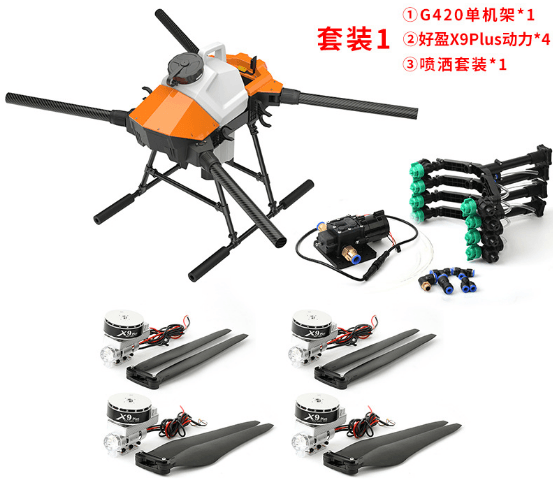

Kit 1 Package includes:

Kit 4 Package includes:

EFT G420 20L 4-Axis Agriculture Drone Specification

EFT G420 20L Agriculture Drone Installation Guide

EFT G420 20L 4-Axis Agriculture Drone Details

Multifunctional Efficiency: Swap between Spray Spread and Spraying Systems Quickly

Compact Design: Unique Cross-Folding Structure for Easy Transportation

Customizable Power Options: Choose from Two Battery Schemes to Suit Your Needs

Robust Frame Design: Integrated Construction for Enhanced Strength and Durability

Water-Resistant Design: IP65 Rated Frame for Protection Against Dust and Water

EFT's latest 2021 GX series drone for agriculture has released, the GX series aircraft is based on the same body and there are 4 types of the models: G420, G620,G626 and G630.



Item Model	G420	G620	G626	G630
Axis	4 Axis	6 Axis	6 Axis	6 Axis
Tank Capacity	20L	20L	26L	30L
Wheelbase	2028mm	2028mm	2028mm	2028mm
Suggest Powe Combo	Hobbywing X9 Plus+36" Propeller	Hobbywing X9+34" Propeller	Hobbywing X9 Plus+36" Propeller	Hobbywing X9 Plus+36" Propeller

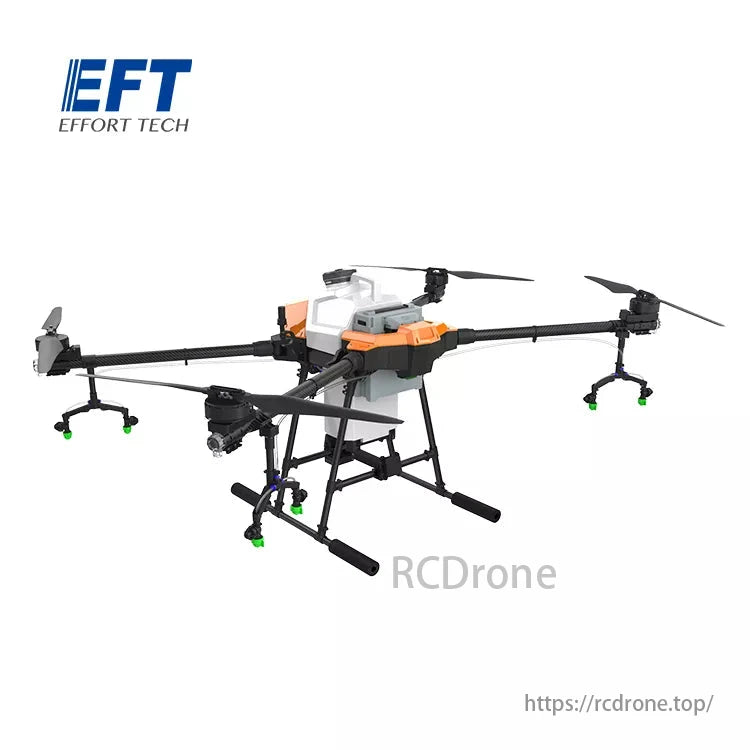

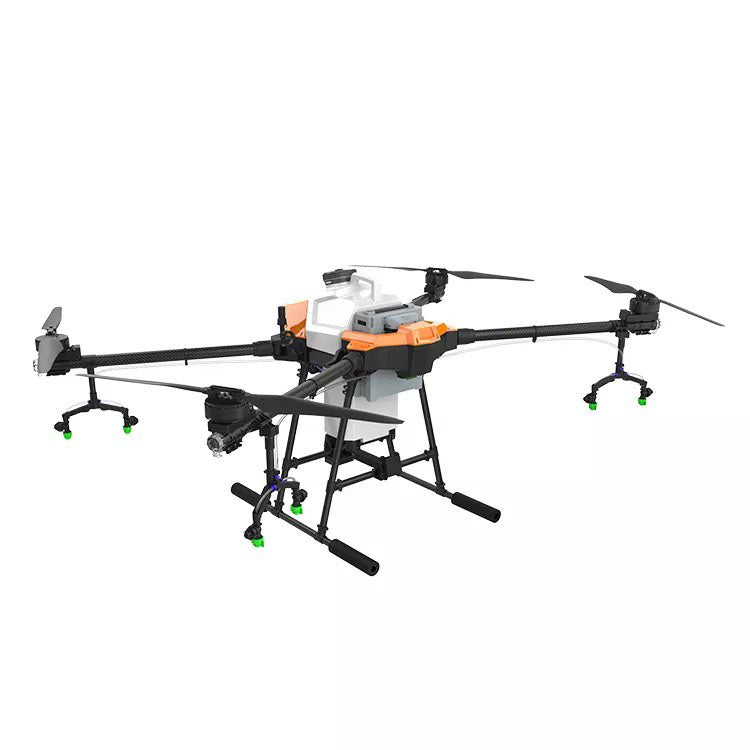

EFT G420 is one 20L high capacity platform specially designed for agriculture applications. The effective capacity of the drone is 20L. The drone adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. The frame kit or the Frame with the power combo is compatible with the mainstream flight controllers in the market, such as the JIYI K++, JIYI K3A Pro, Topgun, Hex Cube, PIX flight controller and etc.

Specifications:
Item Brand: EFT
Item Model: G420
Wheelbase: 2038mm
Size (Unfolded): 2665 x 1974 x 868mm
Size (Folded): 1192 x 623 x 868mm
Tank Capacty: 20L
Frame Weight: 11kg
Frame+Power System Weight: 18kg
Frame+Power+Spraying system weight: 19.5kg
Non-Load take-off Weight: 28.2kg
Full take-off Weight: 48.5kg

Flying time test:
Non-Load Flying Time: 22 minutes 17 seconds  (48V)
Full-load Flying Time: 7 minutes (47V)

Note: During the test, we use the Tattu 14S 22000mah battery, hobbywing X9 Plus power combo.

Main Features:
Integral Frame
The frame is integrally formed, with a simplified structure, strong strength, and good durability and reliability.

Crossfolding Method
The arms of the G616 are folded in a staggered way, minisize the folding size, more convenient for transportation.

Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.

Two battery solutions
There are two power plugs reserved for the drone. One is with the QS9L plug for the normal smart battery. And the other is specially designed for Tattu V3.0 Quick-remove batteries.

Comprehensive Packaging: G420 Frame Includes Three Boxes with Detailed Dimensions
