EFT Z30 30L Agriculture Drone - 4 axis 30KG 30L Agricultural UAV large capacity pesticide spraying aircraft Automatic seeding for spraying fruit trees

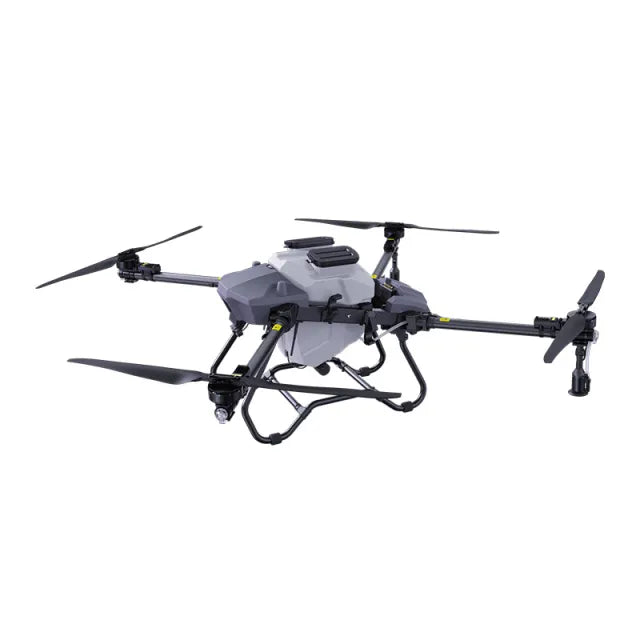

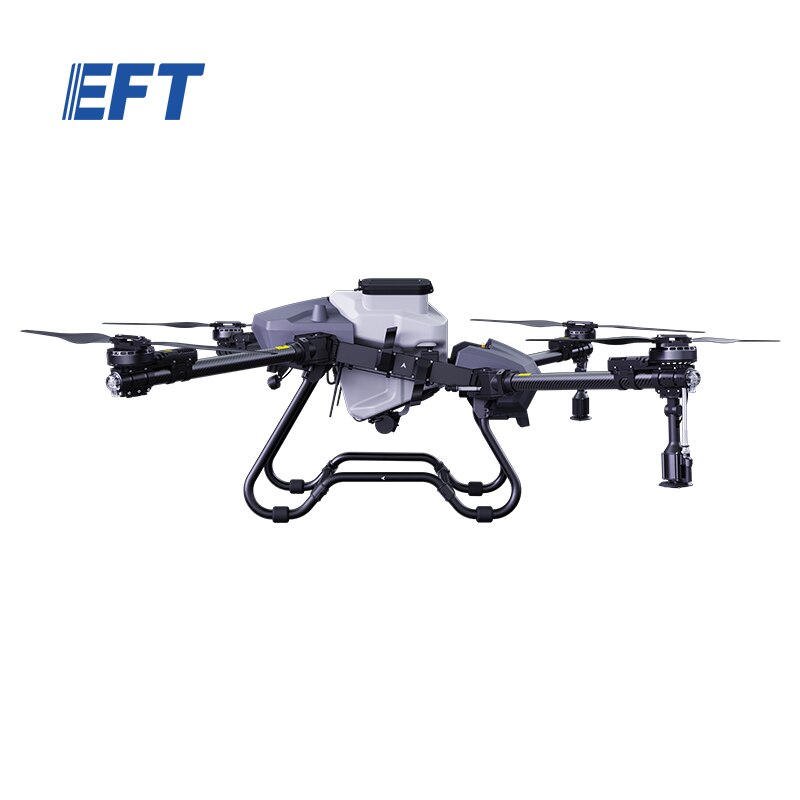

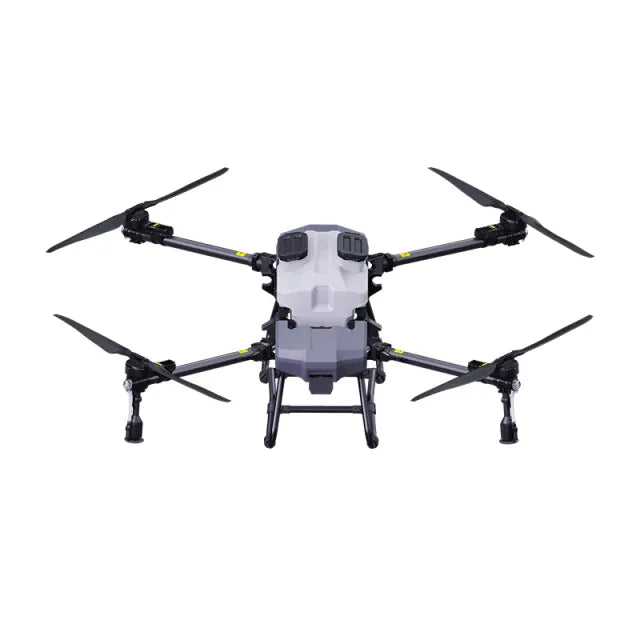

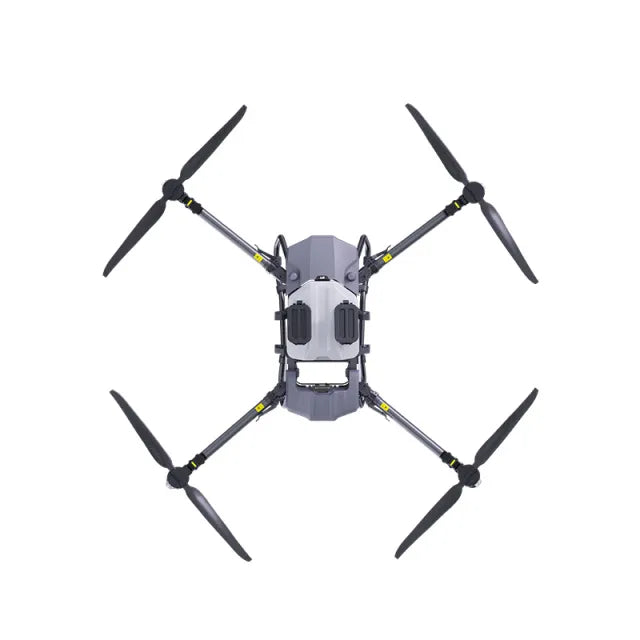

EFT Z30 Agriculture Drone

EFT just released the Z series heavy payload agriculture drones, 30kg capacity payload Z30 and 50kg capacity payload Z50 agriculture drones. The Z30/Z50 series agriculture drone adopts new truss structure with better strength and durability. Z-shaped folding structure makes it small in folded size, easy to transport.

The flight controller system adopts group modular design, convenient to install without cumbersome wiring.With ultrasonic flow-meter, high precision weighing module and other parts,you can get the real-time disply of remaining liquid information.  Original creation of water-cooled centrifugal nozzle effectively reduce the working temperature, extend the working life. The waterproof level of the whole drone reaches IP67, the EFT Z30 and Z50 can be widely used in various fields.

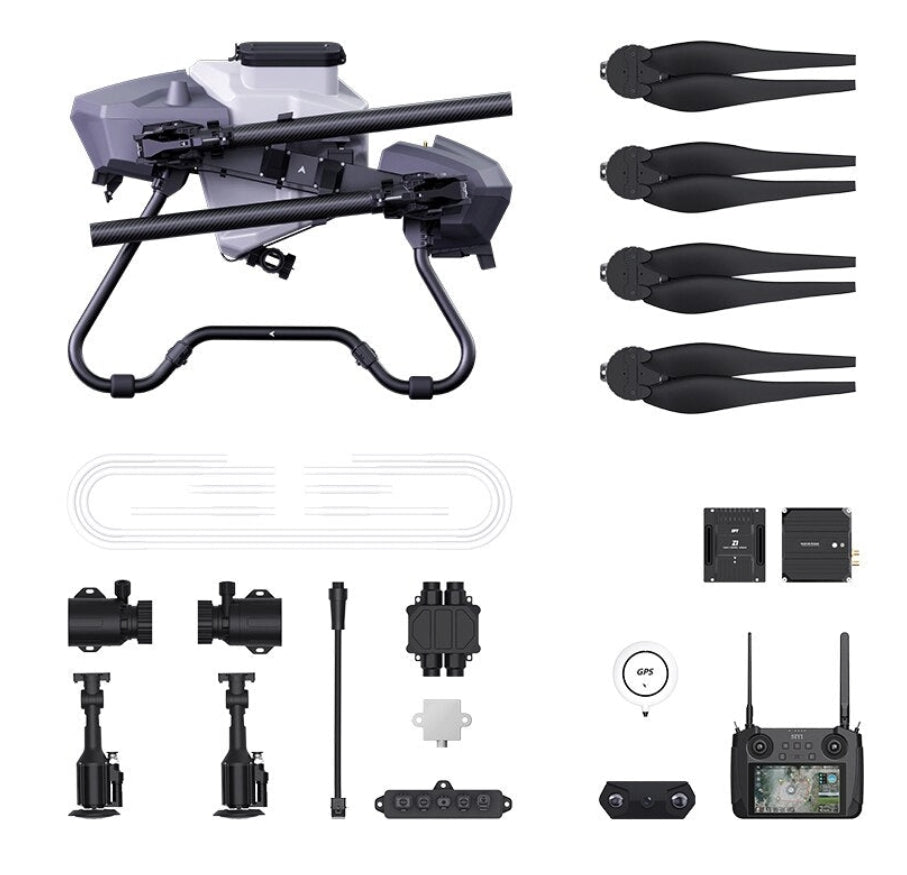

Package Included:

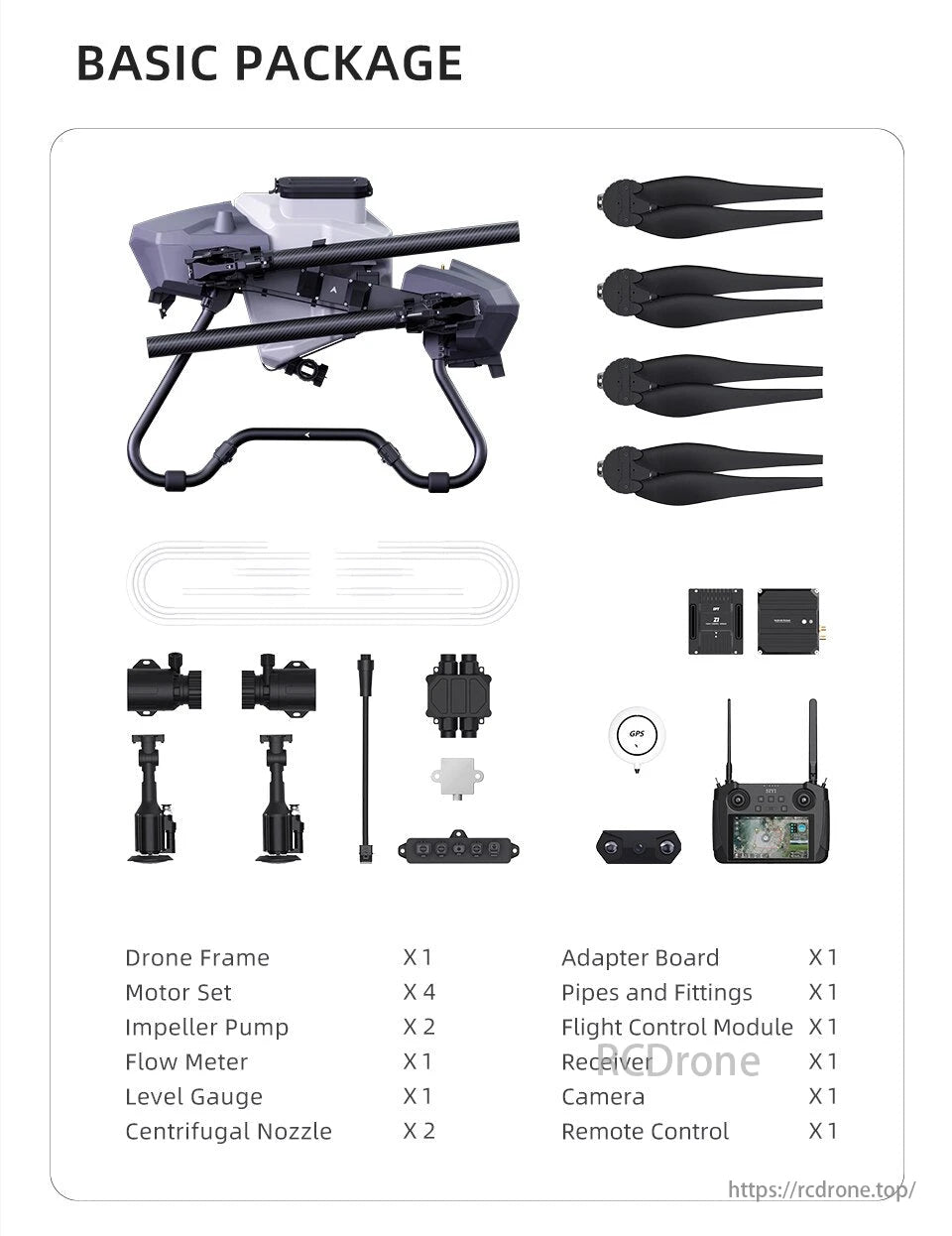

Basic Set:
Z30 Agriculture drone frame kit x 1
Power system x 4
Water pump x 2
Flow meter x 1
Level Gauge x1
Centrifugal nozzle x 2
Adapter Board x 1
Pipes and Fittings x 1
Flight controller x 1
Receiver module x 1
Camera x 1
Remote Control x 1

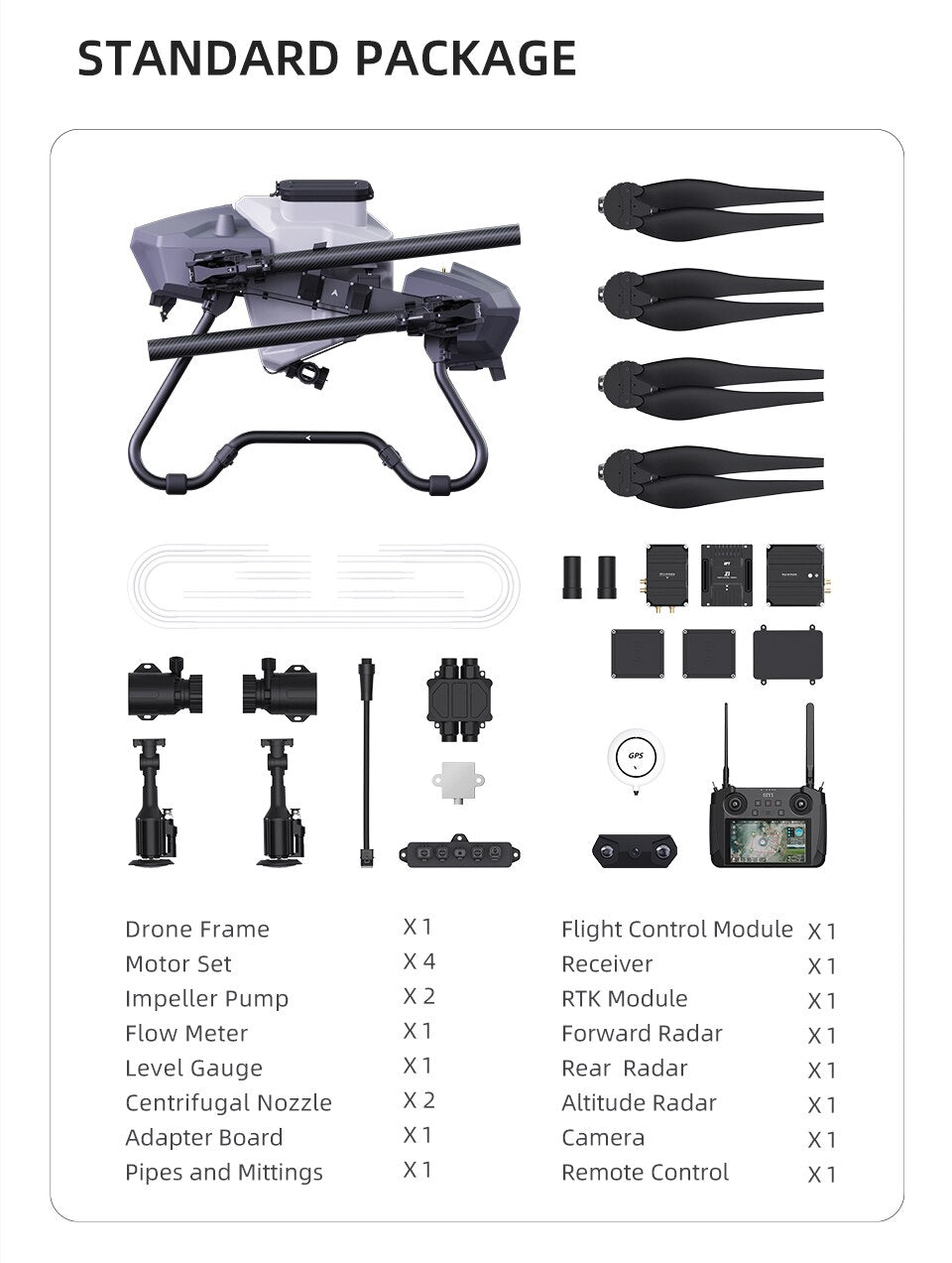

Standard Set:
Z30 Agriculture drone frame kit x 1
Power system x 4
Water pump x 2
Flow meter x 1
Level Gauge x1
Centrifugal nozzle x 2
Adapter Board x 1
Pipes and Mittings x 1
Flight controller x 1
Receiver module x 1
Camera x 1
Remote Control x 1
RTK module x 1
Forward Rader x1
Rear obstacle radar x 1
Altitude radar x 1

Drone System: Z30
Unloaded Spraying drone weight (without batteries): 29.8kg
Unloaded Spraying drone weight(with batteries): 40kg
Unloaded Spreading drone weight (without battery) : 30.5kg
Unloaded Spreading drone weight(without battery)：40.7kg
Max Take-off weight: 70kg
↑ ( The weight parameters vary by ±1kg according to the final product configuration.)
Wheelbase: 2025mm
Expand Size
Spraying drone：2435*2541*752mm
Spreading drone：2435*2541*774mm

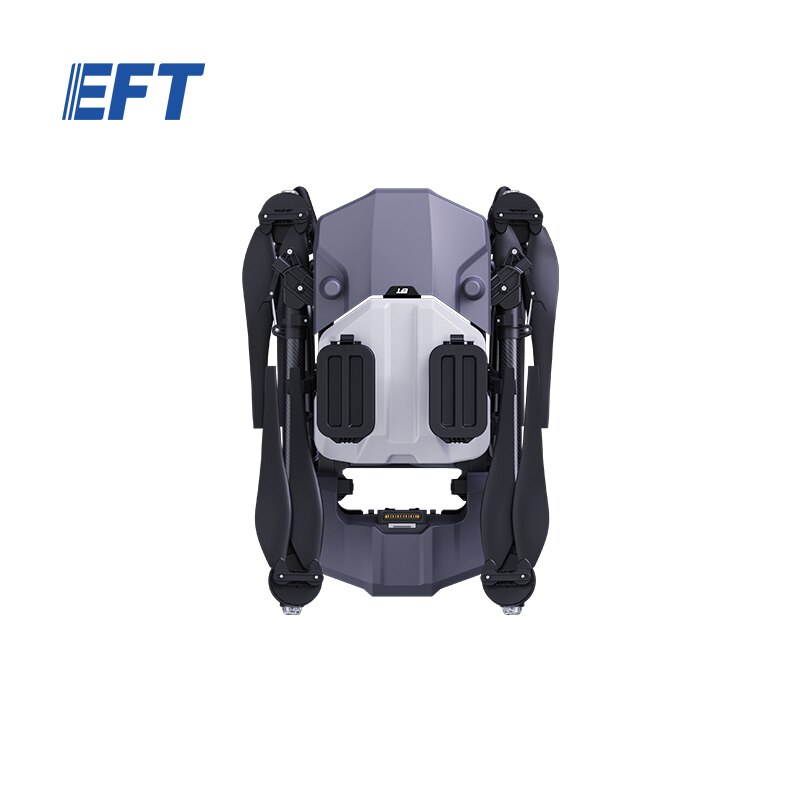

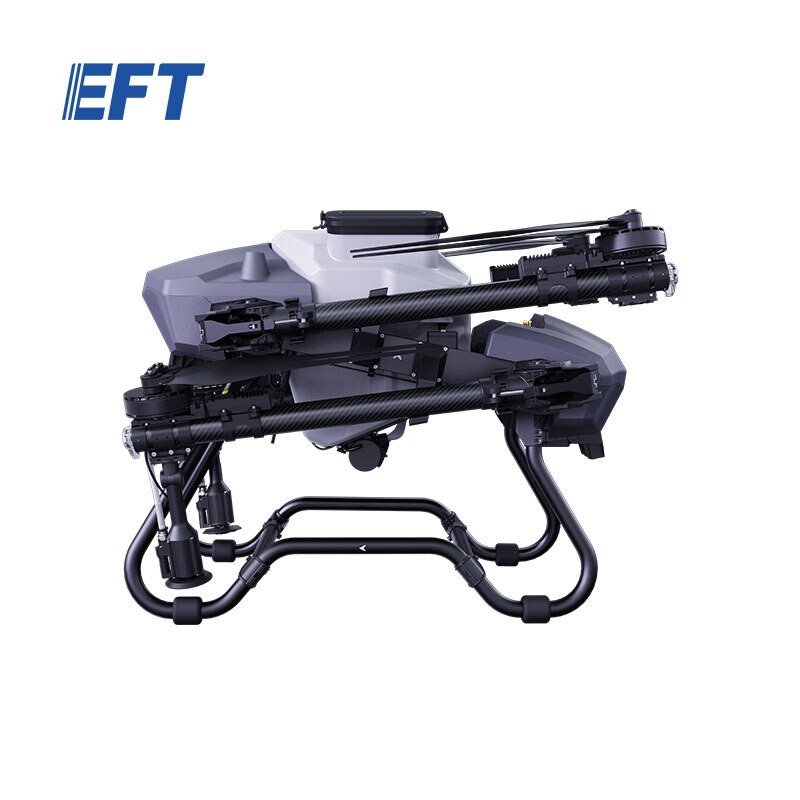

Folded size
Spraying drone：979*684*752mm
Spreading drone：979*684*774mm
No-load hovering time: 17.5min（Test by14S 30000mah）
Full load hovering time: 7.5min（Test by 14S 30000mah）
Working temperature：0-40℃

SPRAYING SYSTEM
Spaying tank：30L
Water Pump：Volt：12-18S Power：30W*2 Max flow：8L/min*2
Nozzle：Vollt：12-18S Power：500W*2 Atomized particle size：50-500μm
Spray width：4-8m

SPREADING SYSTEM
Spreading tank：50L
Max load：30kg
Applicable granule：0.5-6mm dry solids
Spread width：8-12m

MOTOR SYSTEM
Model：11115
Volt：14S
KV：95kv
Maximum power：7350W
Constant power：Constant Power
Propeller size：43inch

FLIGHT CONTROL
Operating Voltage：12-80V
Working temperature：-10~60℃
RTK：Horizontal ±0.1m，Vertical ±0.1m
GPS：Horizontal ±1.5m，Vertical ±0.5m
Wind resistance level：Sustained wind：level 4，Gust：level 5

REMOTE CONTROL
Resolution：1080*1920
display screen：5.5inch
Working time：12h
Charging time：5h（20W）
Control distance：3km(3mHeight without shelter)
Weight：850g

RECOMMENDED BATTERY
Volt: 14S
Capacity: 30000mah
Weight: 10kg

EFT Z30 Agriculture Drone User Manual PDF

EFT Z30 Agriculture Drone Assembly Instruction Manual PDF

Note:
1. Only the standard version comes with RTK Module and radars.
2. Battery for the drone is not included. The whole package is not assembled and tuned, customers need to assemble and tune the settings.

Main Features:
EFT Z30/Z50 Agriculture drone frame adopts a new truss structure with better strength and durability.

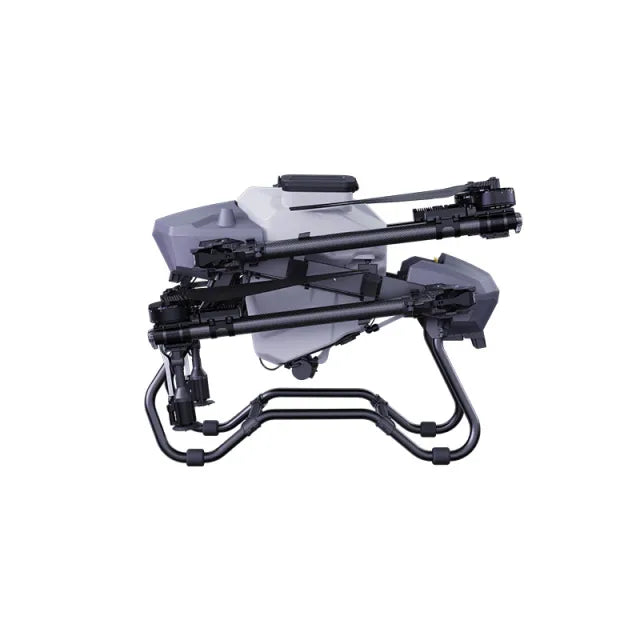

Z-shaped folding structure--Small folding size, more convenient to transport.

The newly upgraded arm locking structure is easy to operate, firm and reliable.

Super large bilateral liquid inlet--Adding pesticides is smoother, and the liquid does not leak.

Snap-in fuselage--Tool-free disassembly.

High front and low tail design, the flight resistance is smaller.

With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.

High-precision weighing module, real-time display of remaining liquid information.

Early warning of failure information.

Group modular design of flight control system.Convenient installation without cumbersome wiring

Newly Upgraded Spraying System
Equipped with bilateral large diameter impeller pump
With ultrasonic flow-meter,the sensor and liquid medicine are separated and detected.No fear of corrosion, stable and reliable.
Original creation water-cooled centrifugal nozzle, which effectively reduce the working temperature, extend the working life. Delicate droplet particles and large atomization radius.

Precise Spreading
Integrated liquid container assembly can change to spreading system quickly. Simple and efficient operation, large feeding port, double the feeding efficiency,
The bow-shaped tripod design can effectively avoid the collision of the broadcasting particles, and the weight of the remaining material can be detected to achieve precise broadcasting.

The waterproof level of the whole drone reaches IP67.
The whole machine is upgraded waterproof from the inside to the outside, the main board of the power supply is potted as a whole, the plug is replaced with a waterproof terminal, and the core module is independently waterproof.

Same structure, convenient maintenance
The Z30 and Z50 adopt the same platform architecture design, more than 95% of the parts are the same, and the spare parts are easier to prepare. Greatly reduce maintenance costs and improve production efficiency.
