ELF 88mm Micro Quadcopter - 1104 7500KV 2-3S Motor Flytower Mini F4 Noxe V3 Flight control 35A 4in1 ESC for FPV Mini Frame

ELF 88mm Micro Quadcopter - 1104 7500KV 2-3S Motor Flytower Mini F4 Noxe V3 Flight control 35A 4in1 ESC for FPV Mini Frame

RCDrone

$49.75 USD
$74.63 USD $49.75 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

158 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

is_customized: Yes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Grinded

Technical parameters: Value 2

Remote Control Peripherals/Devices: Receivers

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Connectors/Wiring

Origin: Mainland China

Model Number: ELF 88mm

Material: Carbon Fiber

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Color: As picture shows

Brand Name: Readytosky

ELF 88mm Micro Quadcopter, readytosky is a professional FPV RC Module accessories company . we will

readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

ELF 88mm Micro Quadcopter, Suitable for mini flight controller with 20mm hole pitch .

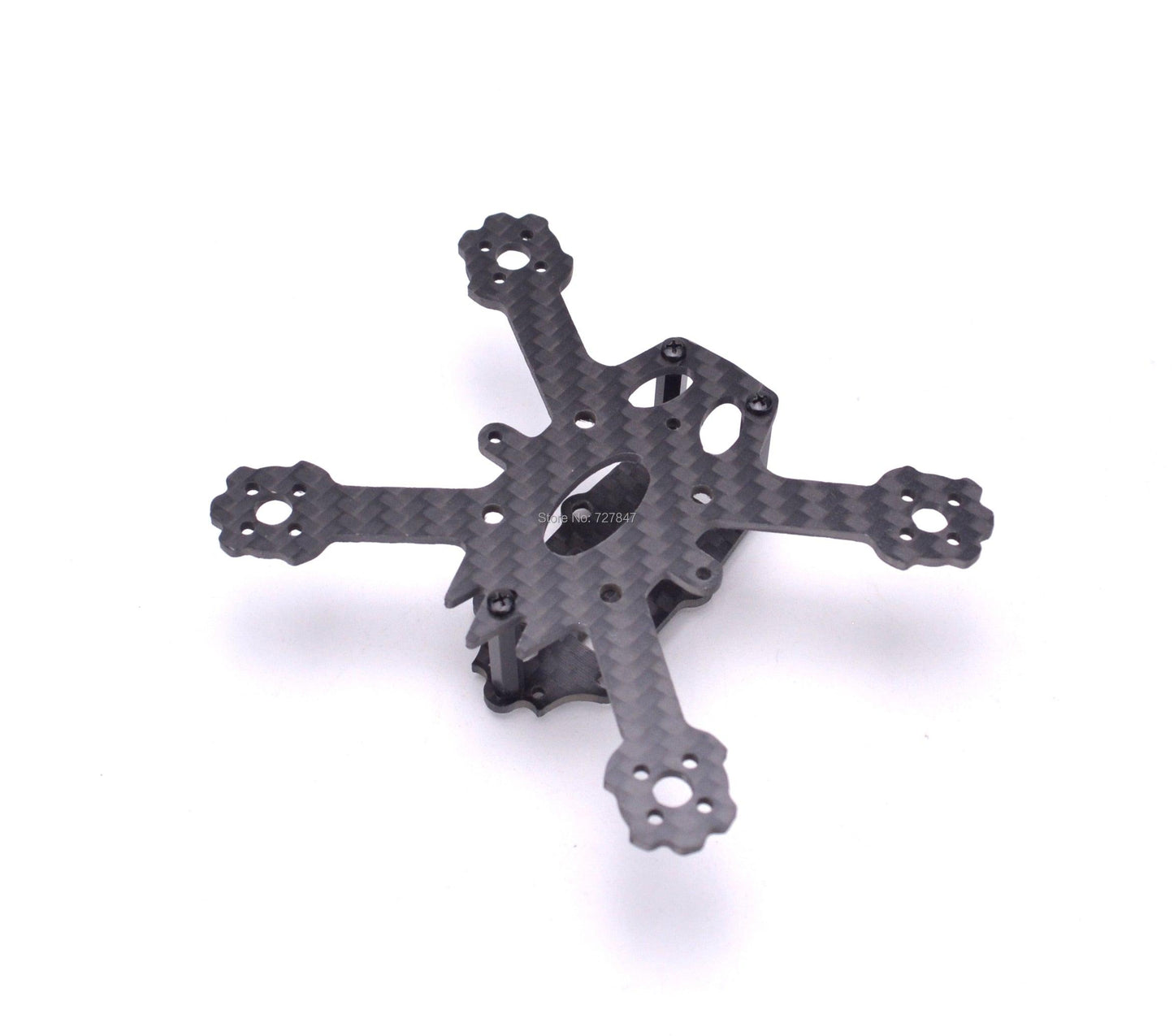

ELF 88mm FPV Racing Frame
Wheelbase: 88mm
Material: 3K carbon fiber
Bottom board: 2mm
Upper board: 1.5mm

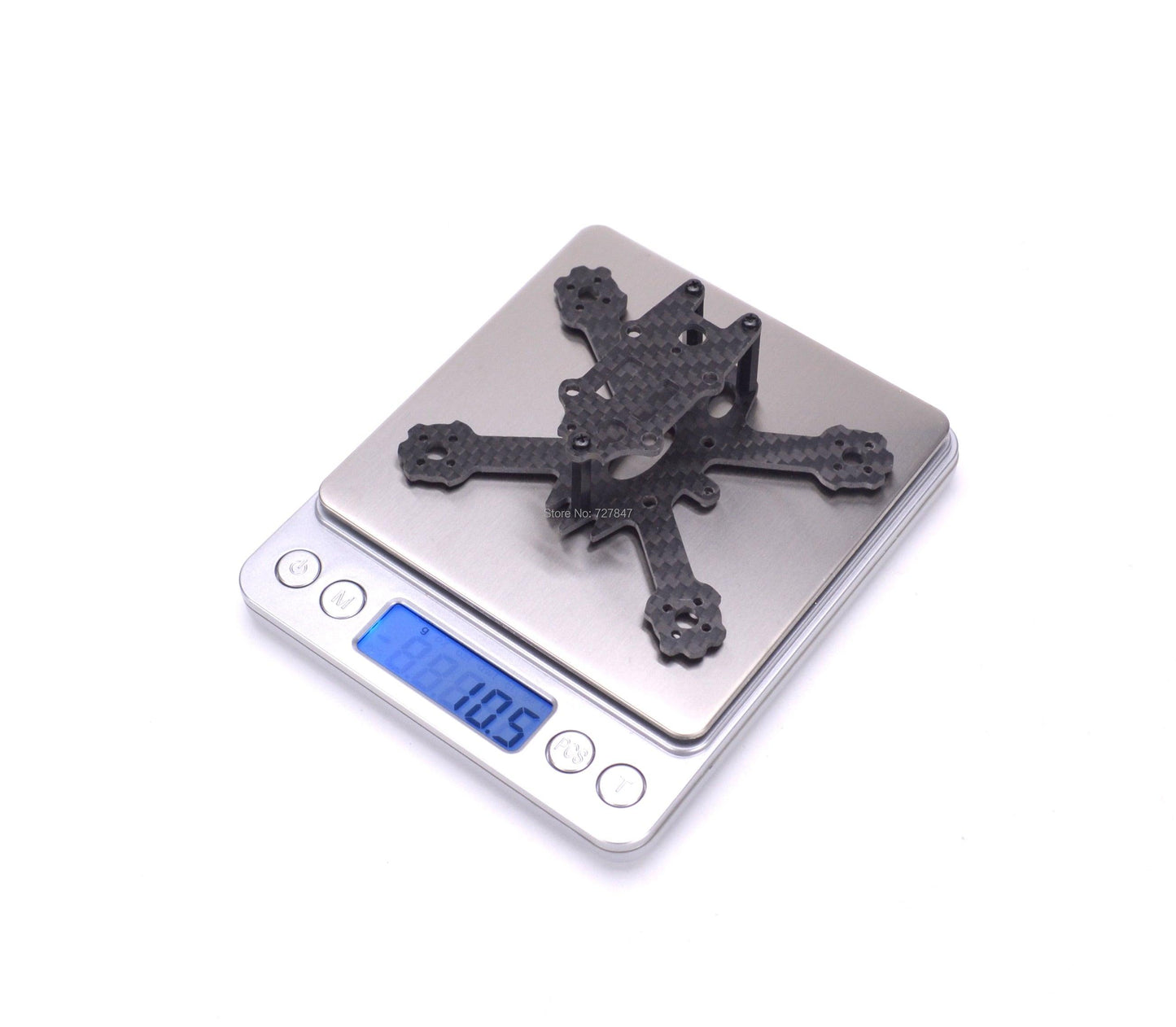

Weight: about 10g
Features:
Mini racing drone, just palm-sized, no trouble in racing indoor and outdoor.
Suitable for mini flight controller with 20mm hole pitch, reserve 3mm hole pitch, 2-3mm screw hole are both ok.
The version is Kit version without any electric devices.
Recommended configuration:
Flight Controller: mini F3 or F4 flytower board
Motor: 1103 or 1104 motor as in my store showed
Props: Max 2 inch  2030 propeller

35A ESC 400mW VTX 2-5S Mini Stack for RC Drone FPV Racing Freestyle Toothpick Tinywhoop Cinewhoop

Product parameters
■ Small cyclone separator BLS U 35AV2.1 2-5S 4-in-1 electronic stability control system
The newly developed BLHELI_ S 35A V2.14 in 1 miniature electronic stability control
High system integration, greatly reduced than standard size, excellent performance, support 6S,
The target is J-H-3025. Support DSHOT, MULTISHOT, ONESHOT, etc.,
The pad is half-expanded, saving space and being durable. feature:
■ EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power
Noise; electronic stability control system with BLHELI_ firmware
Support 2-6S voltage input, 4PWM input
Compact size 31 * 31MM, ultra light 6.1G
Support ONESHOT125, ONESHOT42, MULTISHOT,
DSHOT150, DSHOT300, DSHOT600
Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-5SLIPO
Mounting holes: 20X20 MM, M2
Target: J-H-30 JH-25
Conventional: 25 amps
Peak: 35 amps
Size: 31 * 31MM (including power cushion)
Mounting hole: 20 * 20MM
ELF 88mm Micro Quadcopter, F4 NOXE V3 F411 Flight Controller 5V 10V BEC OSELF 88mm Micro Quadcopter, BLHELI_ S 35AV2.1 2-5S 4-in-1 miniature electronic stability controlF4 NOXE V3 F411 Flight Controller 5V 10V BEC OSD Baro BlackBox 2-6S LIPO JHEMCU 20X20mm for FPV Freestyle Drones Frame DIY Parts



Brand (trade name): JHEMCU


Model: F4 NOXE V3


Main control (MCU): STM32F411CEU6/100 MHz


Sensor: BMI 270/Gyro/Accel


Video Overlay (OSD): AT7456E


Barometer (Baro): Yes (Deluxe version only)


Black Box (Black Box): 16MB (Deluxe Edition only)


Input voltage: Input voltage: 2S-6S (7.4V-26V)


5V-BEC: 5V/2.5A ± 0.1V


10V-BEC: 10V/2A+0.1V


Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBU, IBU, DS M2, DS MX


HD interface: yes


UART: UART 1, UART 2


LIC: IIC1


LED strip: yes


Buzzer (buzzer): support 5V active


ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,


Dail 150, Dail 300, Dail 600


USB: Micro USB


Current terminal] (current port): yes


Voltage sensor (voltage sensor): Yes


Dfu button (dfu button): Yes


Firmware (Firmware): Betaflight_4.3.0 JHEF 411.HEX


Size: 27*27*5mm


Mounting hole: 20*20*3mm


Weight (weight): 4.3g



ELF 88mm Micro Quadcopter, the pad is half-expanded, saving space and being durable . the padELF 88mm Micro Quadcopter, and 0302 Full version Lite version JHEMCU With Blackbox No Blackbox Bar

and 0302 Full version Lite version JHEMCU With Blackbox No Blackbox Baro Baro 359,228

ELF 88mm Micro Quadcopter, BLHELI_ S 35AV2.1 2-5S 4-in-1 miniature electronic stability control

ELF 88mm Micro Quadcopter, BLHELI_ S 35AV2.1 2-5S 4-in-1 miniature electronic stability control

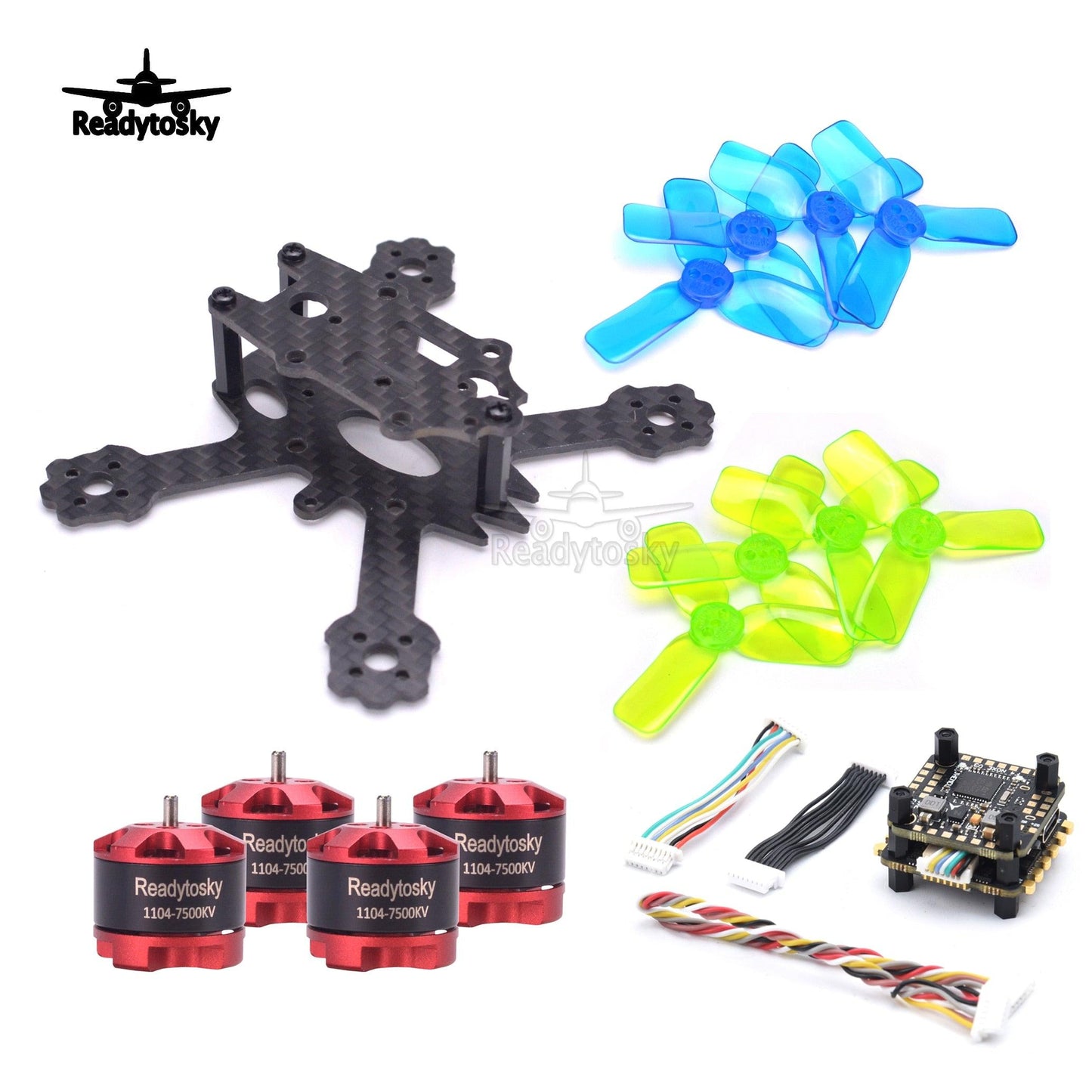

ELF 88mm Micro Quadcopter, READYTSSKY |Package Included

1 x ELF 88mm Frame kit  (just a frame kit, not assembled)
4 x 1104 7500KV Motor ( 2 kinds of motor logo send at random)
1 x Flytower Mini F4 Noxe V3 Acro or Deluxe with 35A 4in1 ESC (Send it as your choice)
4 Pairs 2030 propeller

ELF 88mm Micro Quadcopter, the pad is half-expanded, saving space and being durable . the pad



ELF 88mm Micro Quadcopter, Readlytopky Readyto Readytosky 1104-750d 1104-7500K

Readlytopky Readyto Readytosky 1104-750d 1104-7500KV DOr%dytogky Readilytopky Readlytogy Readyto .

ELF 88mm Micro Quadcopter, Readytosky ELF 88mm FPV Racing Frame Wheelbase: 88 ELF 88mm Micro Quadcopter, Kit version without any electric devices .ELF 88mm Micro Quadcopter, BLHELI_ S 35AV2.1 2-5S 4-in-1 miniature electronic stability controlELF 88mm Micro Quadcopter, Kit version without any electric devices .


ELF 88mm Micro Quadcopter, Readytosky ELF 88mm FPV Racing Frame Wheelbase: 88 ELF 88mm Micro Quadcopter, Suitable for mini flight controller with 20mm hole pitch .ELF 88mm Micro Quadcopter, F4 NOXE V3 F411 Flight Controller 5V 10V BEC OSELF 88mm Micro Quadcopter
