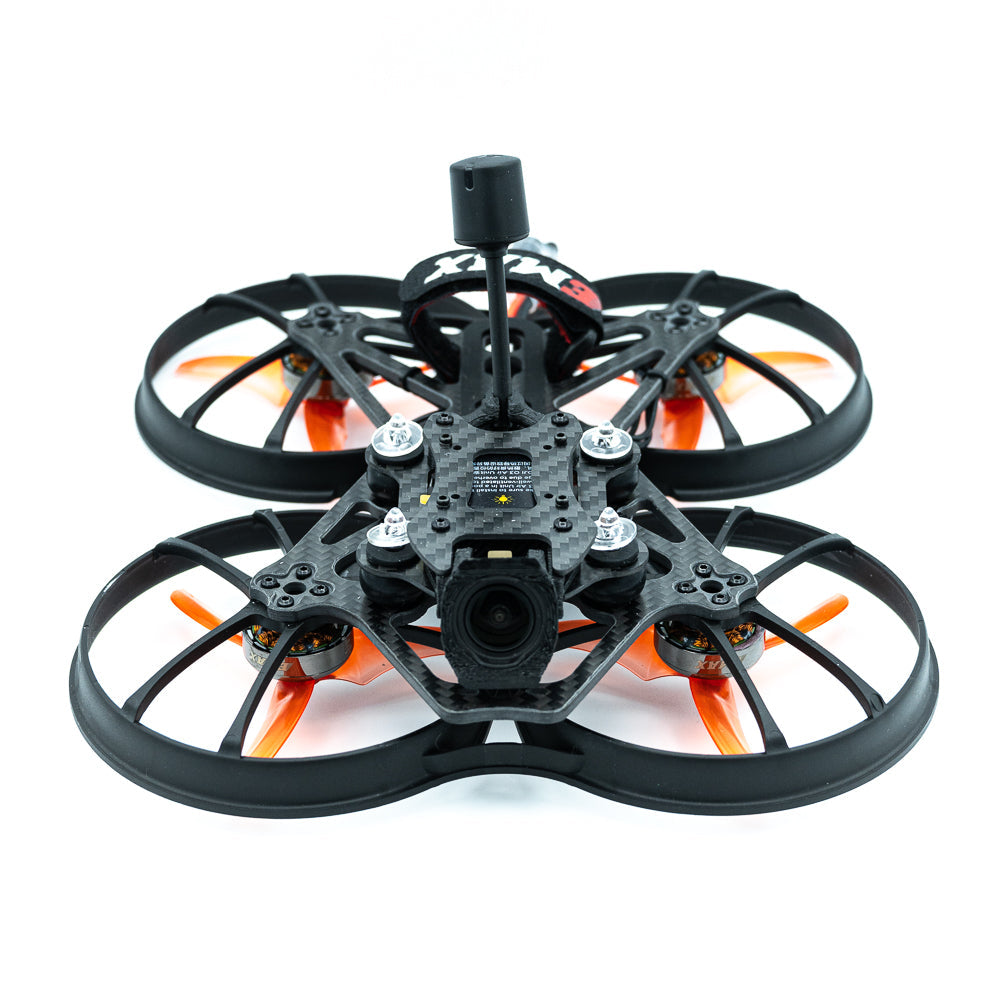

• EMAX Cinehawk HD 3.5 Inch FPV cinewhoop drone front view with ducted prop guards and camera

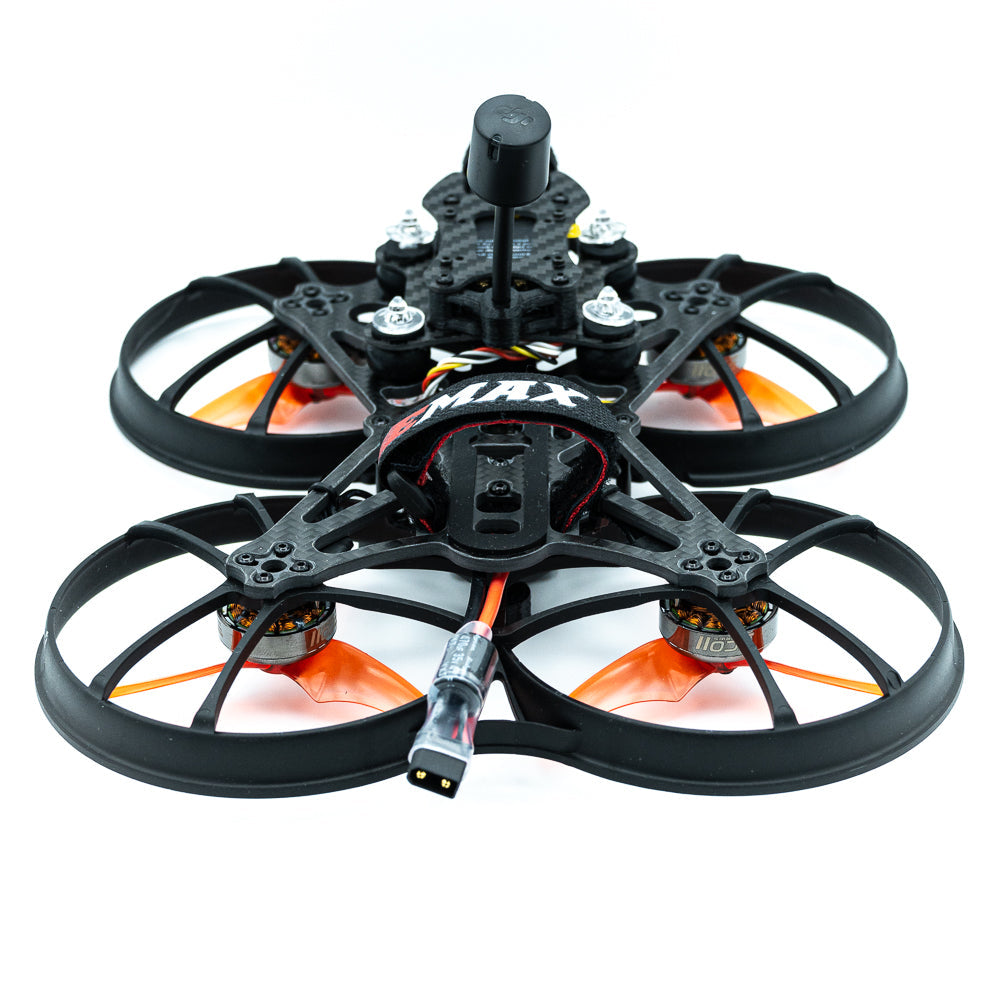

  • EMAX Cinehawk HD 3.5 Inch FPV rear angle showing battery strap and power lead connector

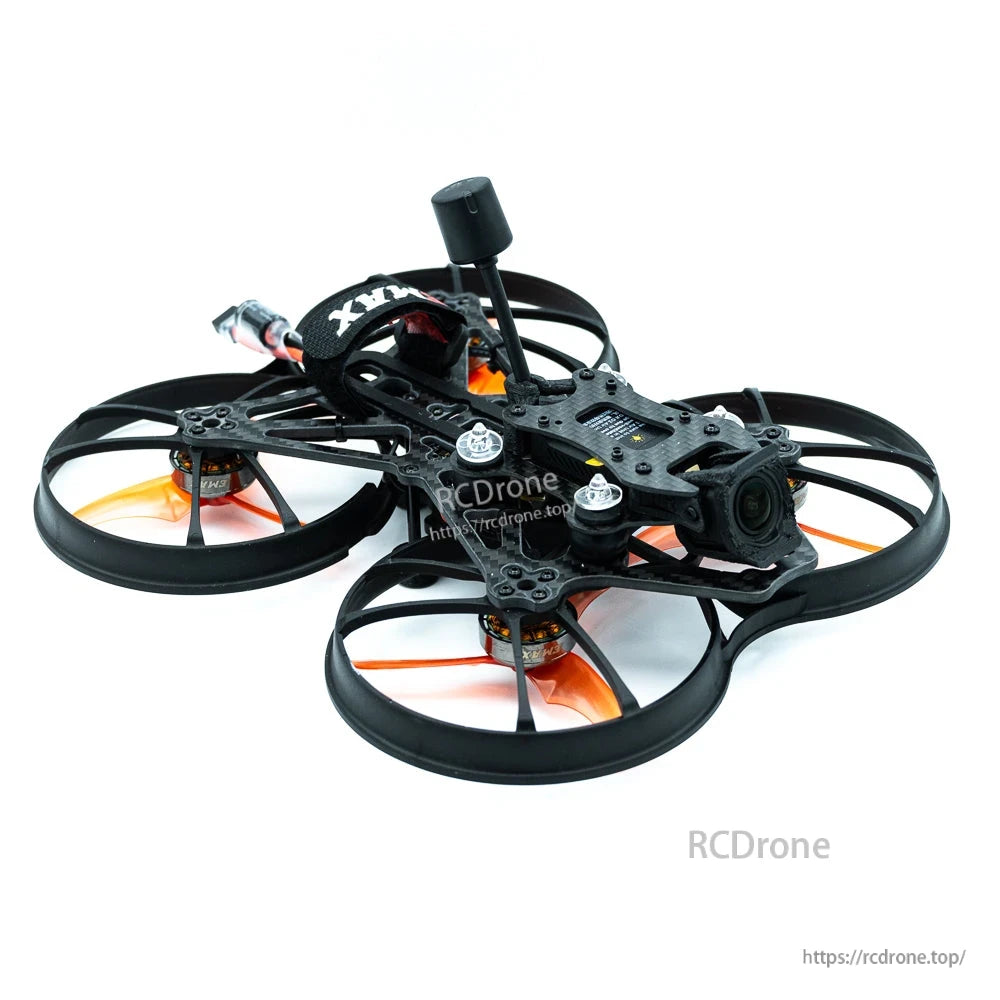

  • Angled side view of ducted FPV drone showing front camera mount, antenna mast, and frame

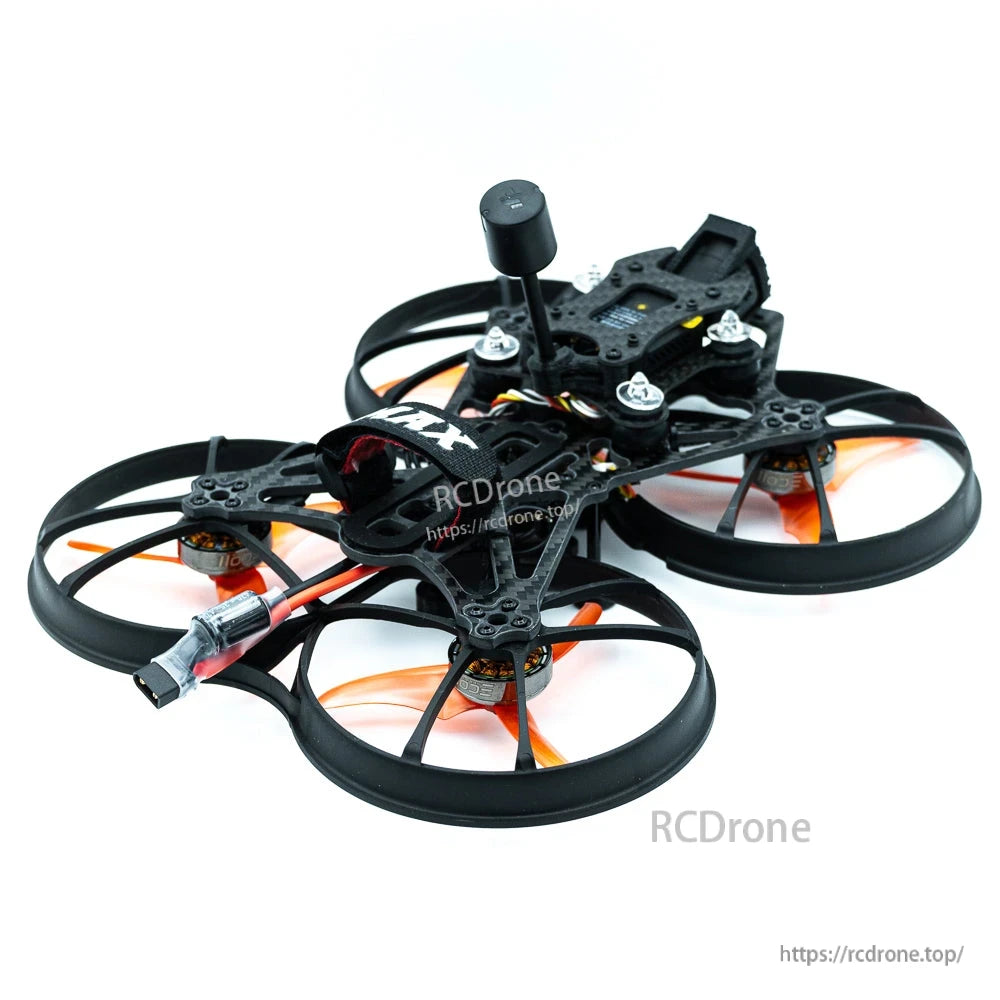

  • Low side view of cinewhoop drone showing prop ducts, standoffs, and rear power lead

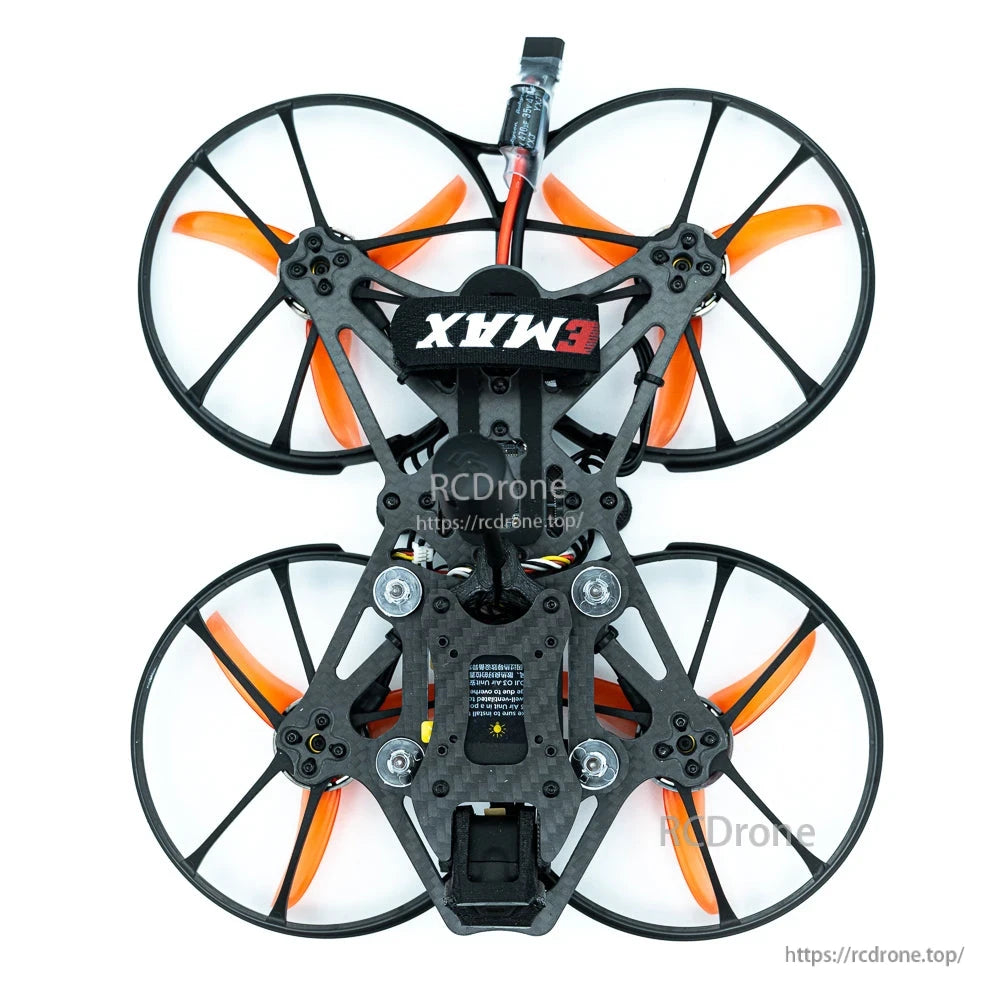

  • Top-down view of EMAX Cinehawk HD 3.5 Inch FPV showing duct layout, strap, and frame plate
  • Partially obscured drone image with gray overlay; only edge of prop duct and antenna visible

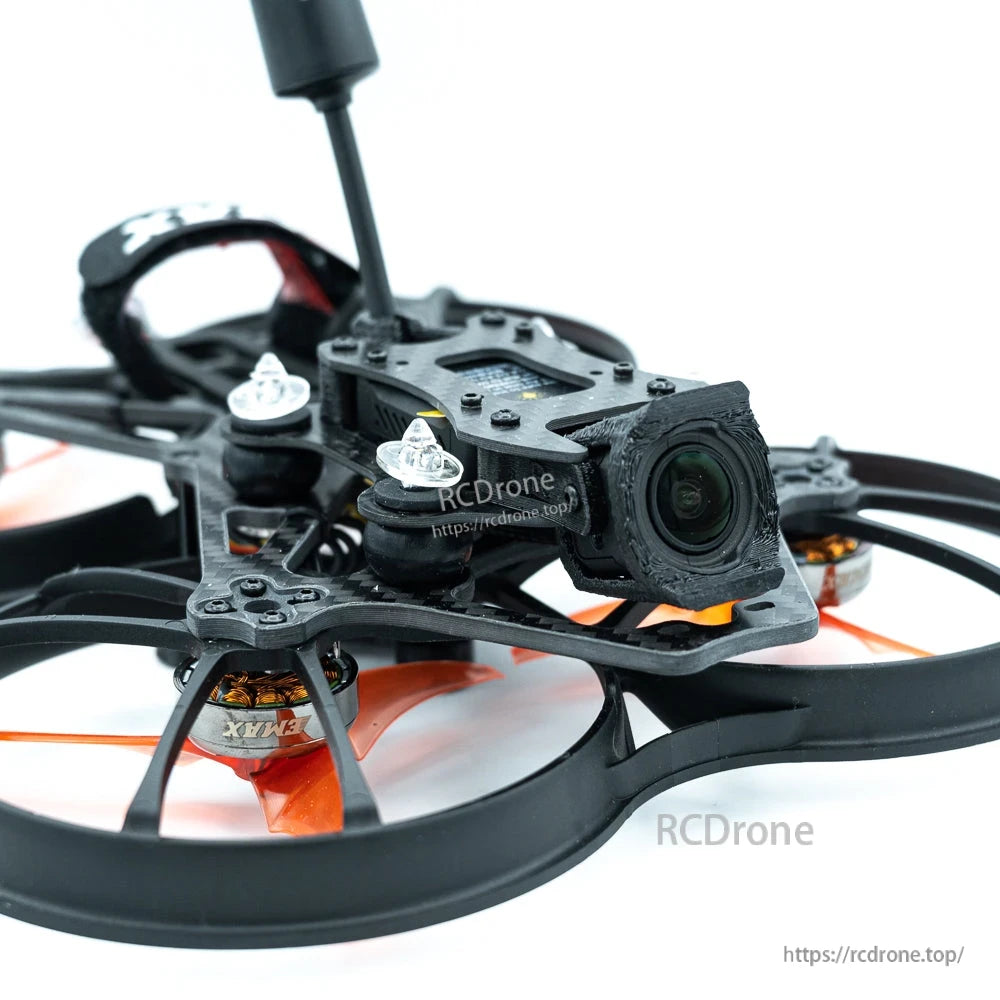

  • Close-up of front FPV camera lens and carbon frame inside ducted prop guard

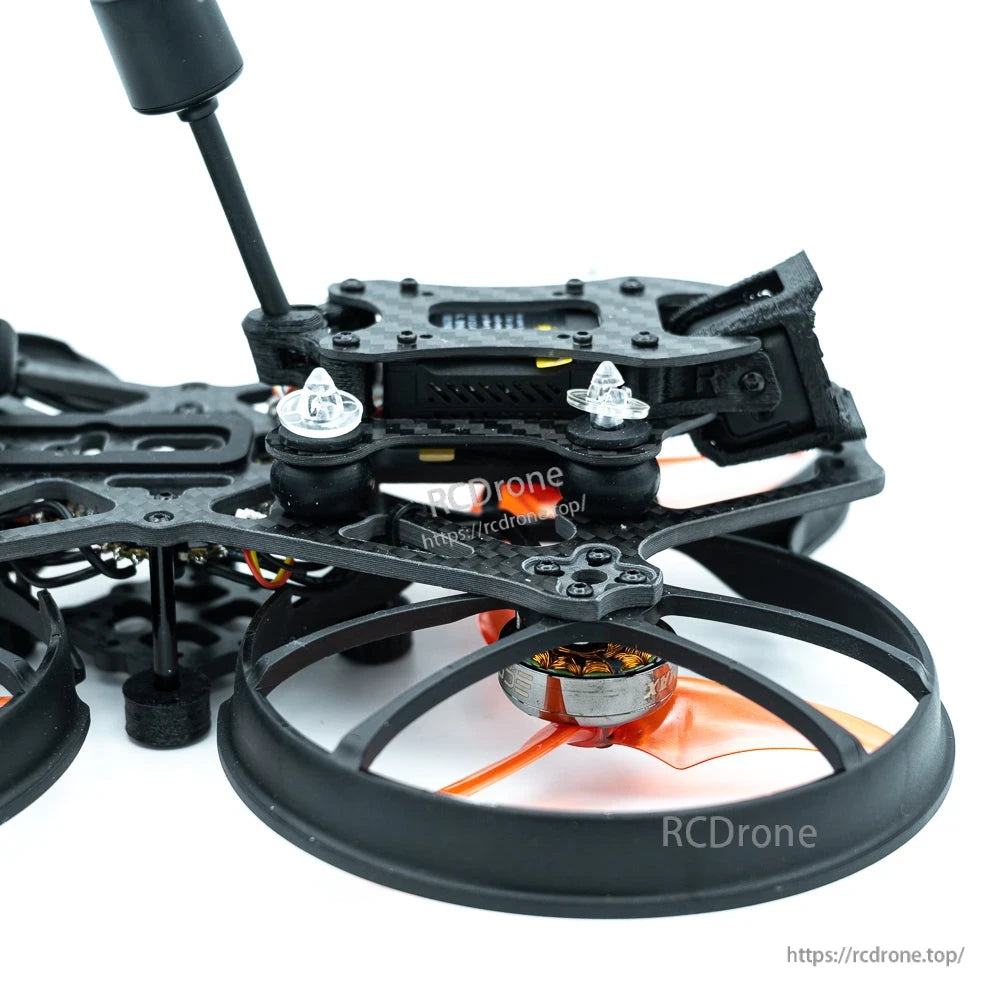

  • Side close-up showing stacked electronics tray, rubber standoffs, and front prop duct

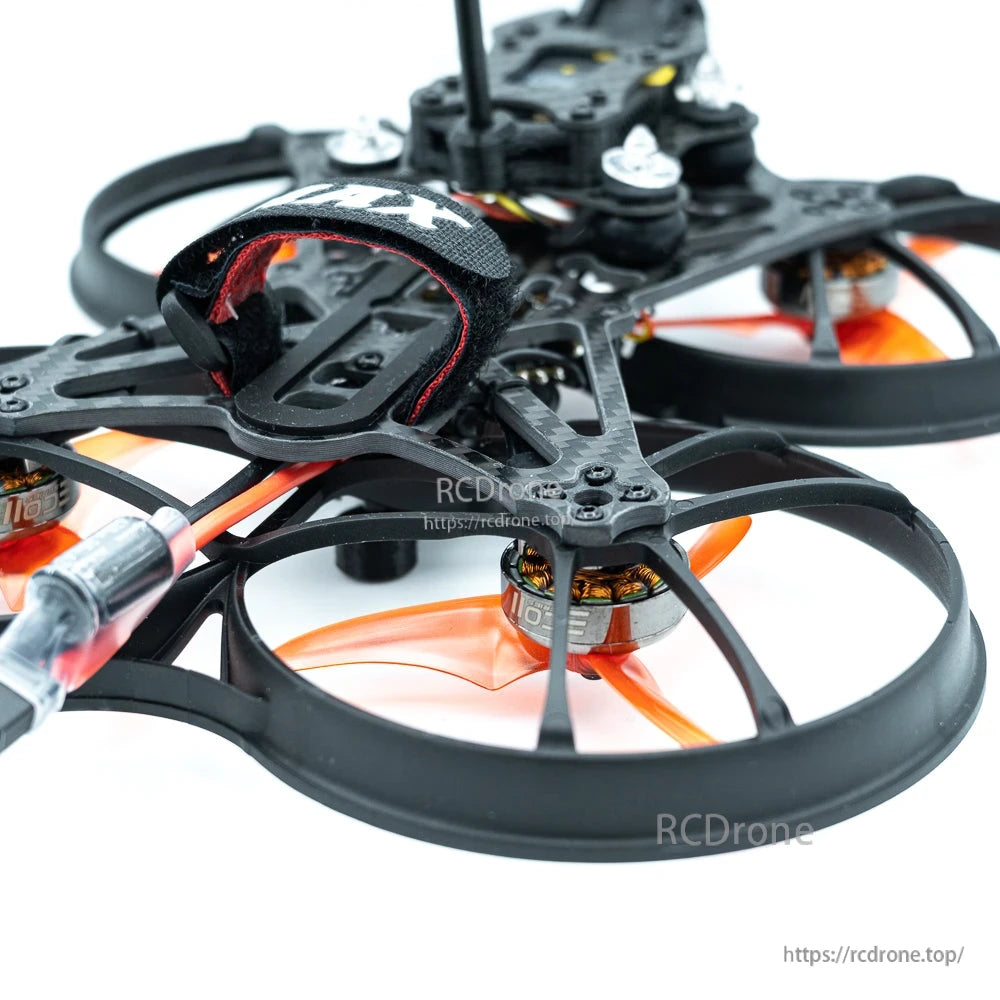

  • Close-up of battery strap mount area and front prop duct with orange tri-blade prop

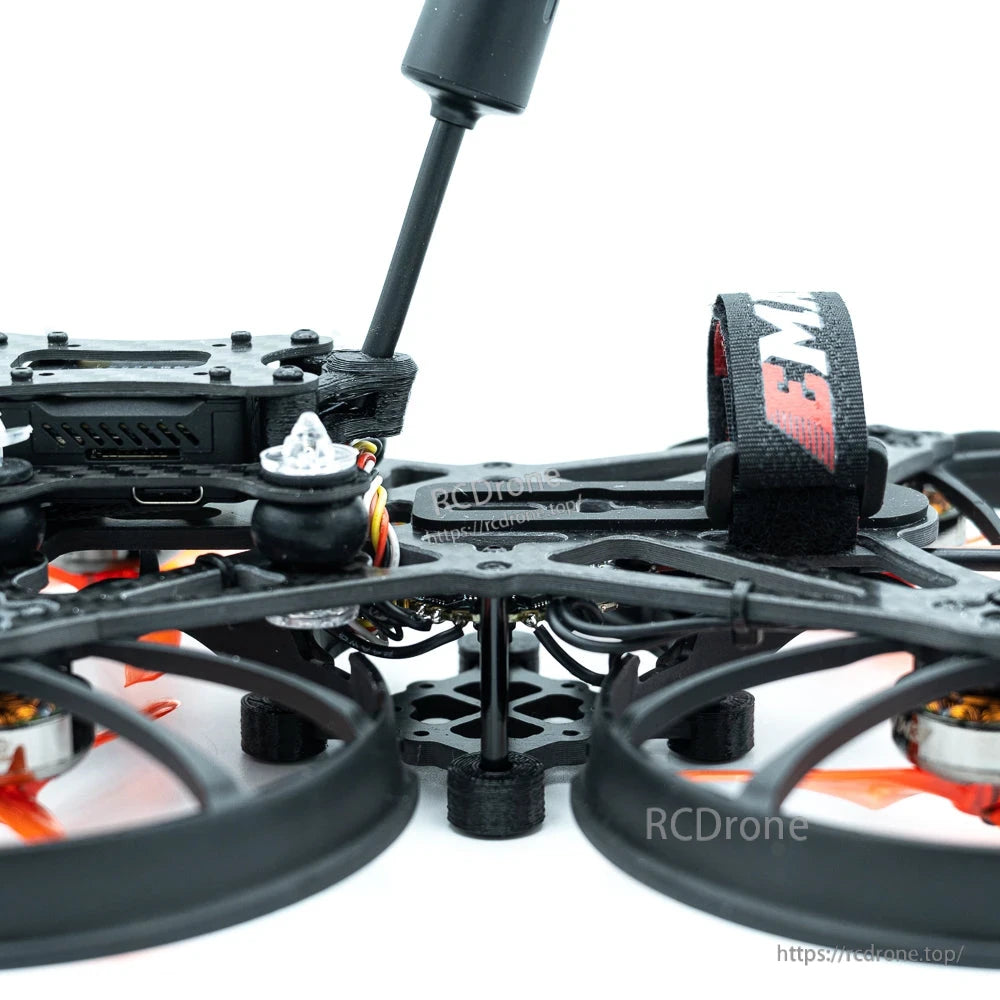

  • Low profile side view showing antenna mast, battery strap, and landing standoffs under frame

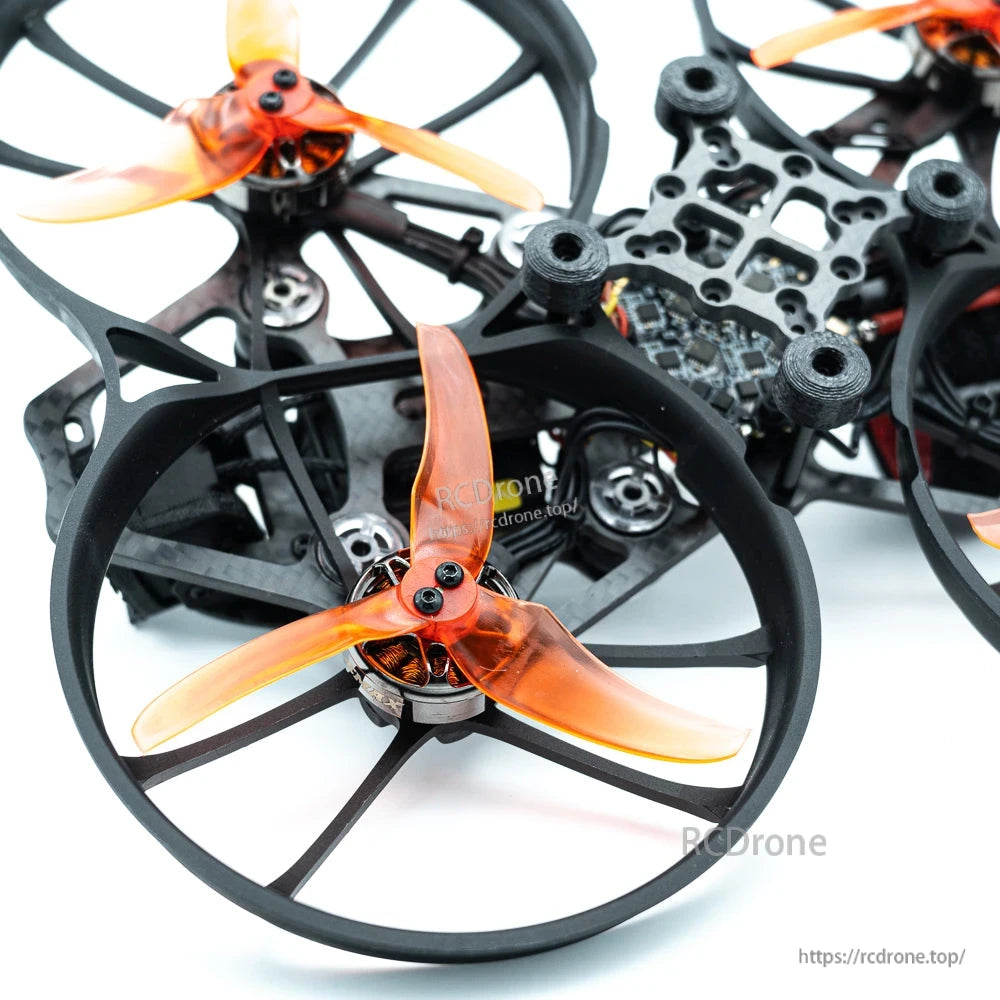

  • Close-up of orange tri-blade propellers and motors inside circular duct guards

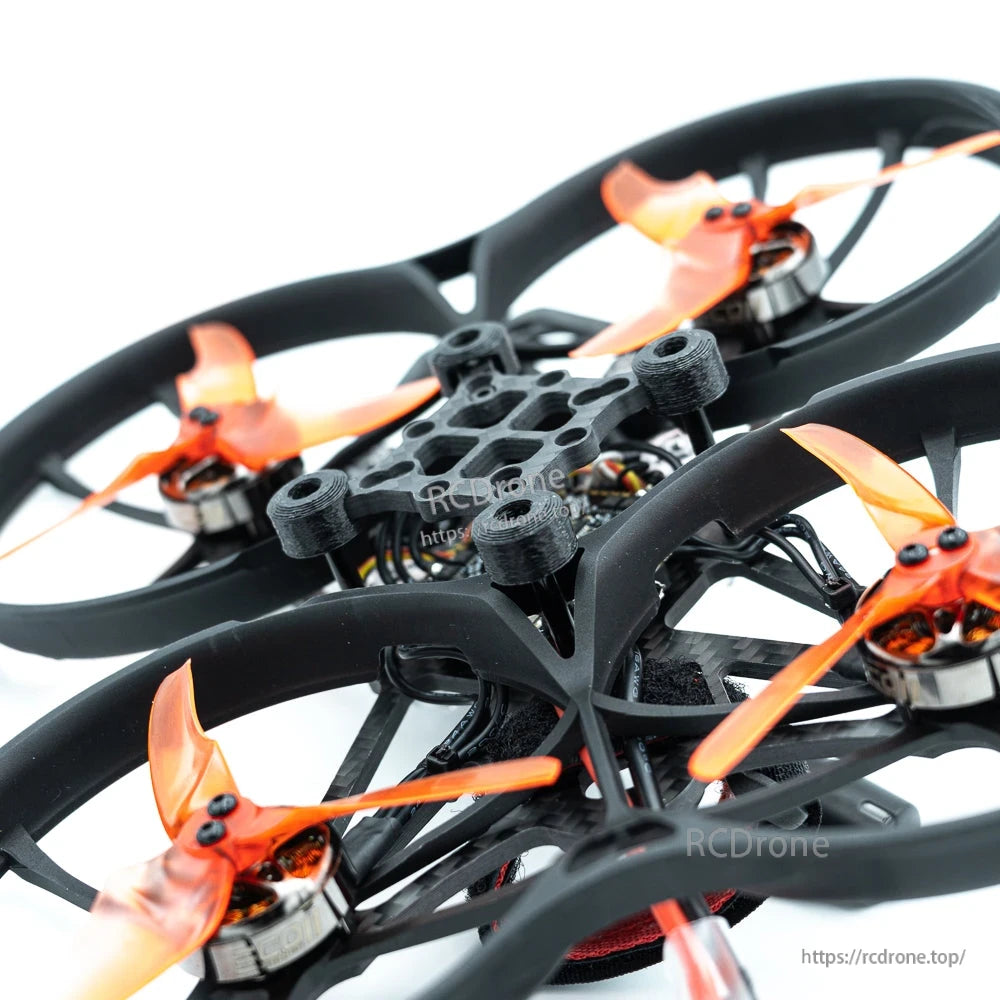

  • Top close-up of duct guards and orange propellers with central frame and wiring visible
1 12

EMAX Cinehawk HD 3.5 Inch FPV Drone BNF, DJI O3 Air Unit, ELRS 2.4G RX, 4S, 151mm, 2004 3000KV

EMAX Cinehawk HD 3.5 Inch FPV Drone BNF, DJI O3 Air Unit, ELRS 2.4G RX, 4S, 151mm, 2004 3000KV

Emax

$489.02 USD
$489.02 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Style
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The EMAX Cinehawk HD is a 3.5 inch FPV drone platform designed for cinema-focused flying and DJI O3 Air Unit digital FPV, offered as BNF ELRS or BNF On board RX (receiver type depends on the selected version). It features internal 4K video support through the DJI O3 Air Unit, with DJI RockSteady video stabilization for smoother footage.

Key Features

  • Cinema-focused FPV drone design
  • DJI O3 Air Unit for camera and VTX (digital video transmission)
  • Aircraft grade carbon fiber frame design for durability and serviceability/modularity
  • Powered by high performance brushless 2004 motors (ECOII-2004 3000KV specified)
  • Open-source flight control ecosystem based upon Betaflight
  • ELRS open source radio system design intent to work with a wide range of compatible controllers (ELRS 2.4G receiver specified)

Specifications

Model CINEHAWK (3.5 Inch)
Diagonal wheelbase (without propeller) 151mm
Maximum size of drone (without propeller) L*W*H = 221*193*65mm
Drone weight (without battery) 236 ±2g
Motor ECOII-2004 (3000KV)
Propeller Avan 3.5*2.8*3
Battery 4S (battery needs to be purchased by yourself)
Main board EMAX F411 AIO (F4, 4 IN 1 25A electric regulator (8-bit) integrated board)
Receiver EMAX ELRS 2.4G RX
Camera O3 Air Unit
Antenna/VTX O3 Air Unit

Applications

  • Cinematic FPV video capture with DJI O3 digital FPV system
  • Customizable builds and tuning using Betaflight ecosystem

For setup assistance and after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Videos

Details

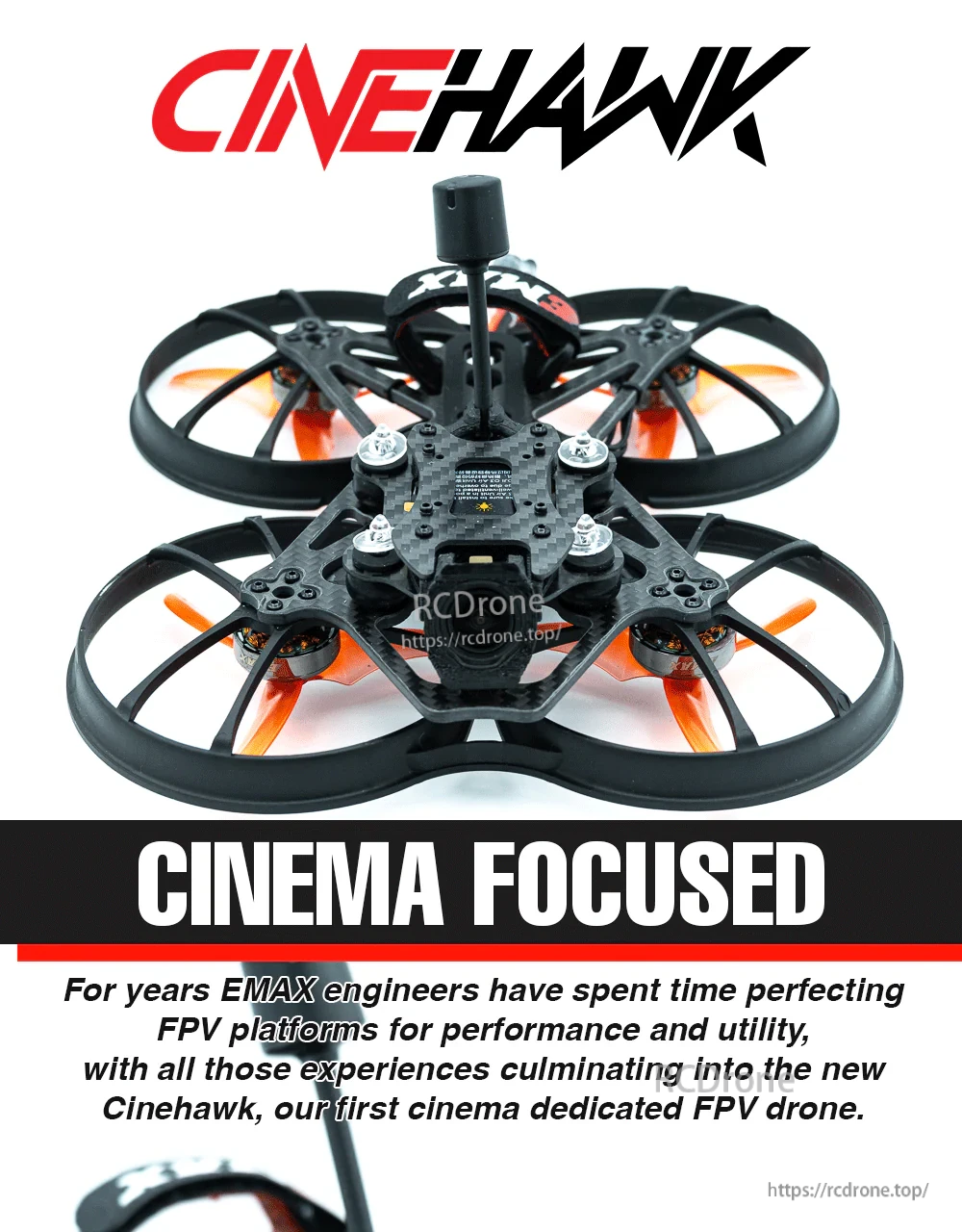

EMAX Cinehawk HD 3.5 Inch FPV cinewhoop drone with ducted 3.5-inch props and top antenna

Designed as a cinema-focused 3.5-inch platform, Cinehawk HD pairs ducted prop protection with a durable carbon frame.

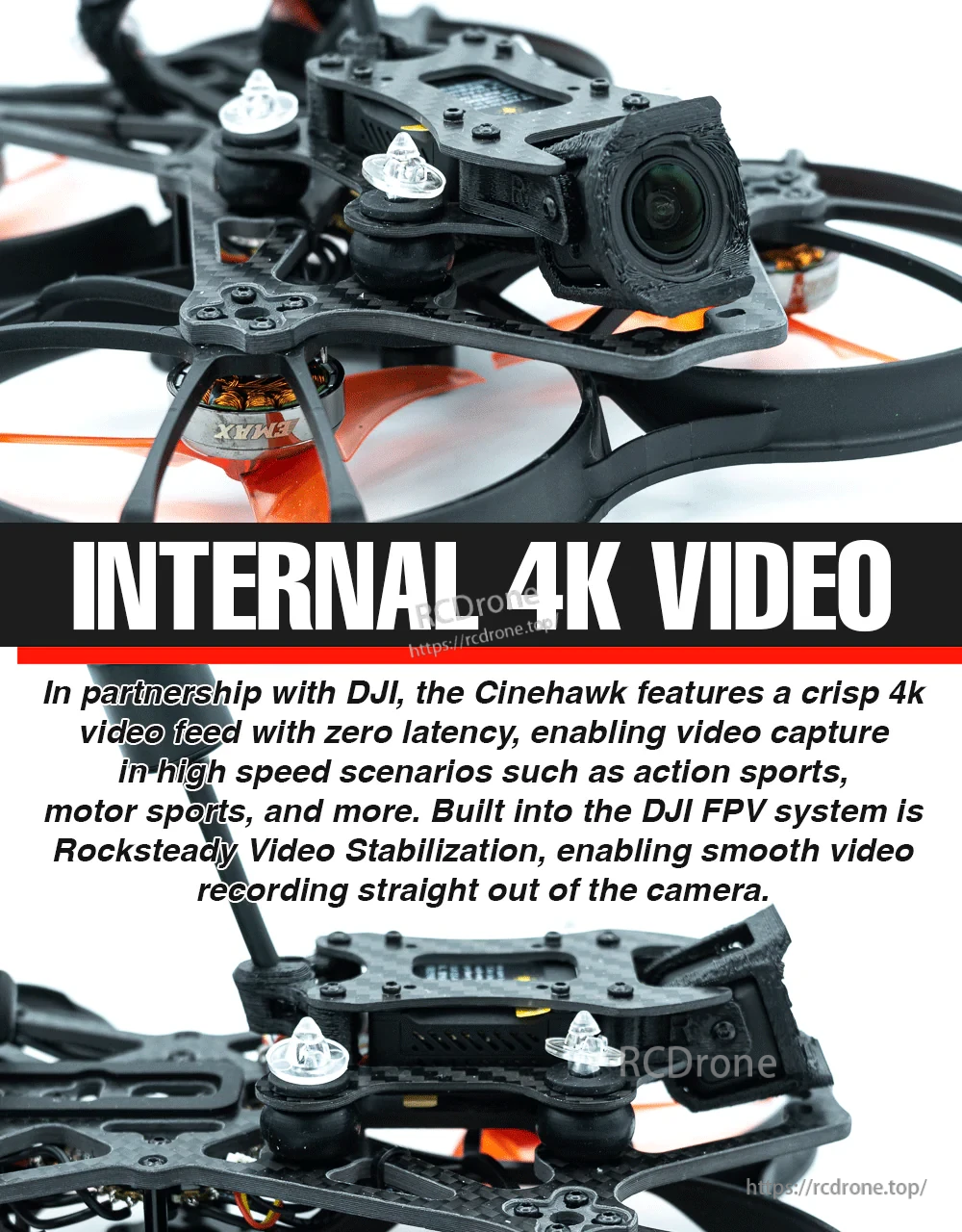

Close-up of DJI O3 Air Unit camera mount on Cinehawk HD for internal 4K digital FPV recording

The DJI O3 Air Unit setup supports internal 4K capture with RockSteady stabilization for smoother footage.

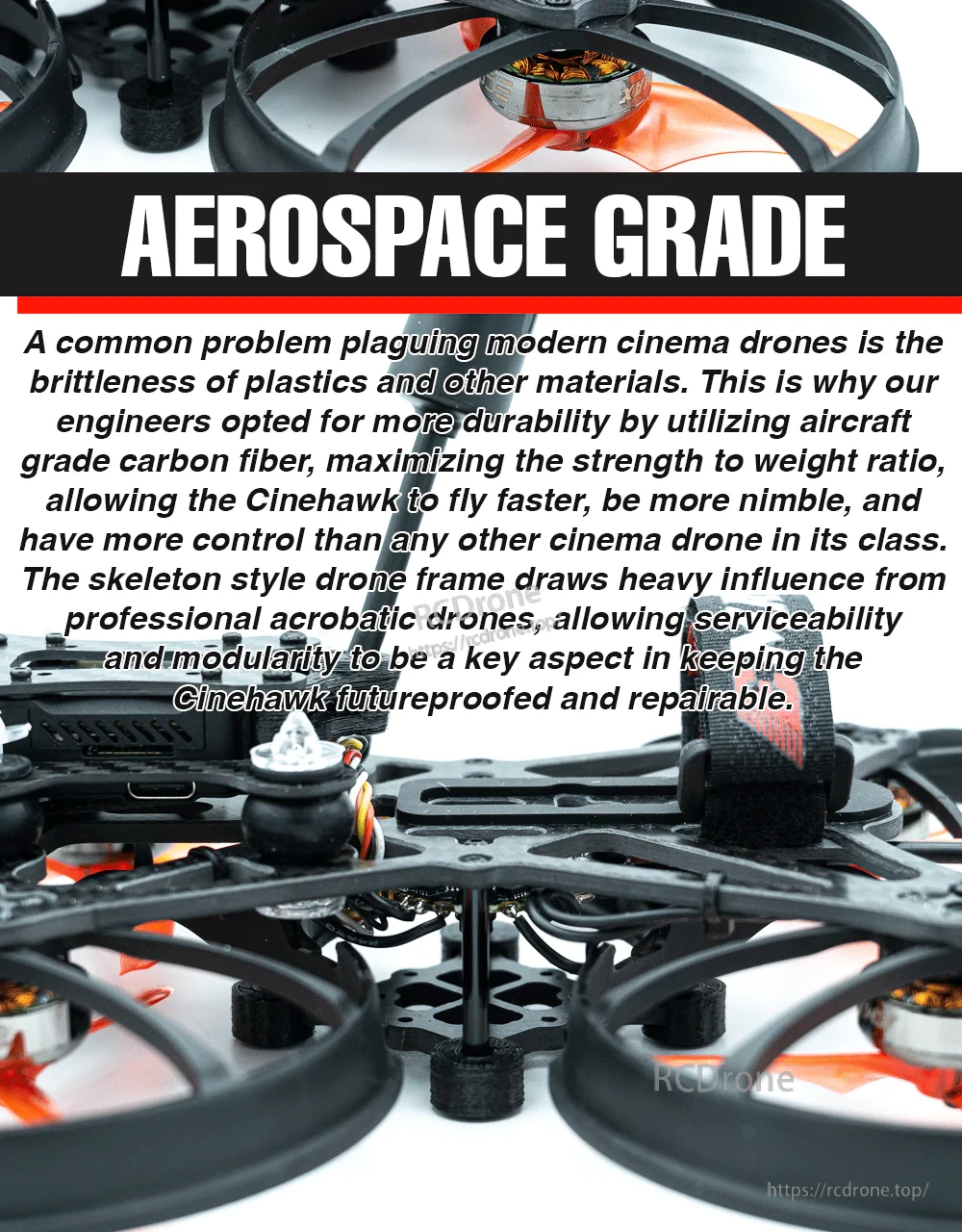

Carbon fiber frame and duct layout on the Cinehawk HD, highlighting serviceable, modular cinewhoop design

Aircraft‑grade carbon fiber construction helps keep the build rigid while staying easy to service and tune.

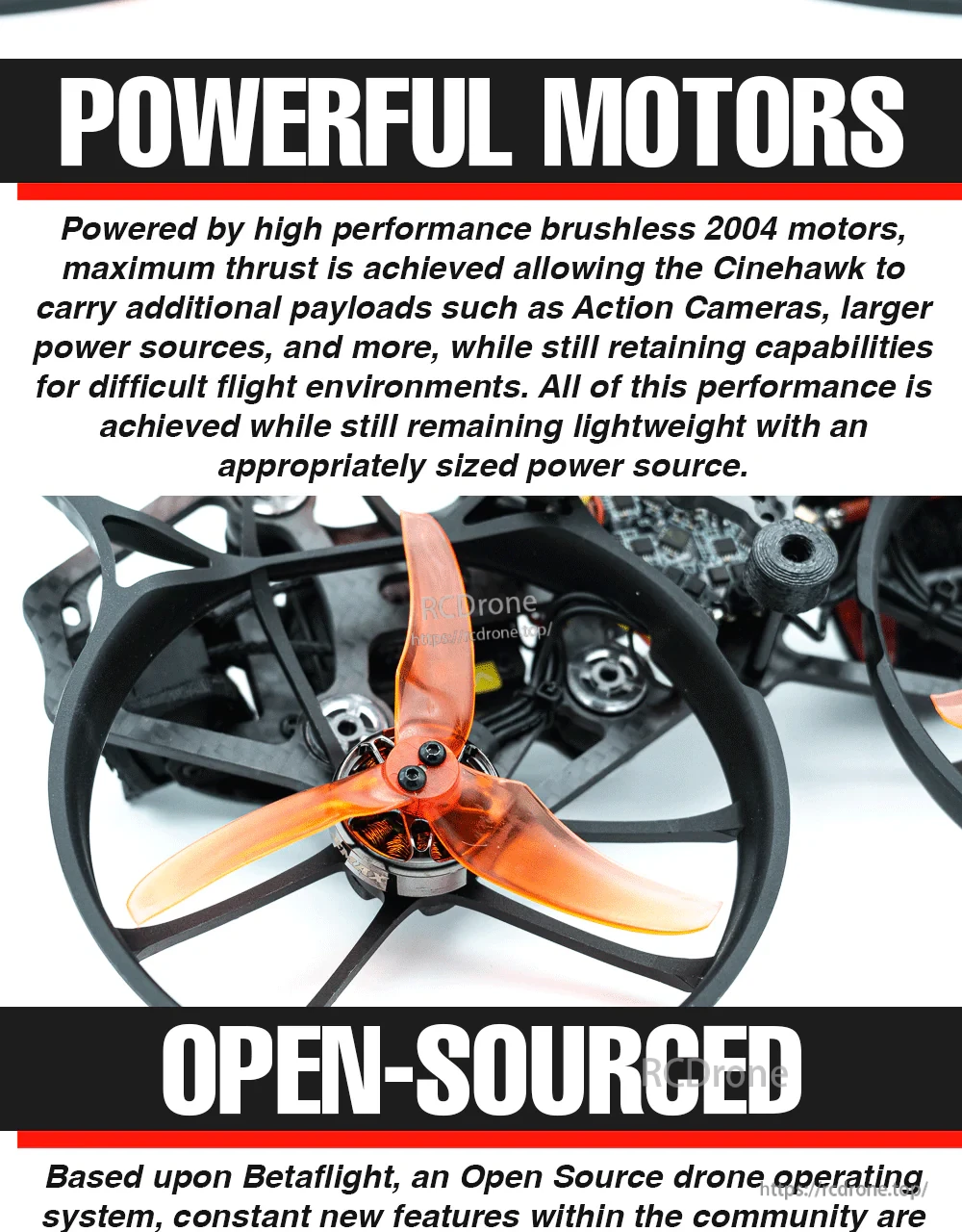

2004 brushless motor and Avan 3.5-inch tri-blade prop detail on EMAX Cinehawk HD drone

High-performance 2004 motors deliver responsive throttle control for cinematic lines and confident recovery.

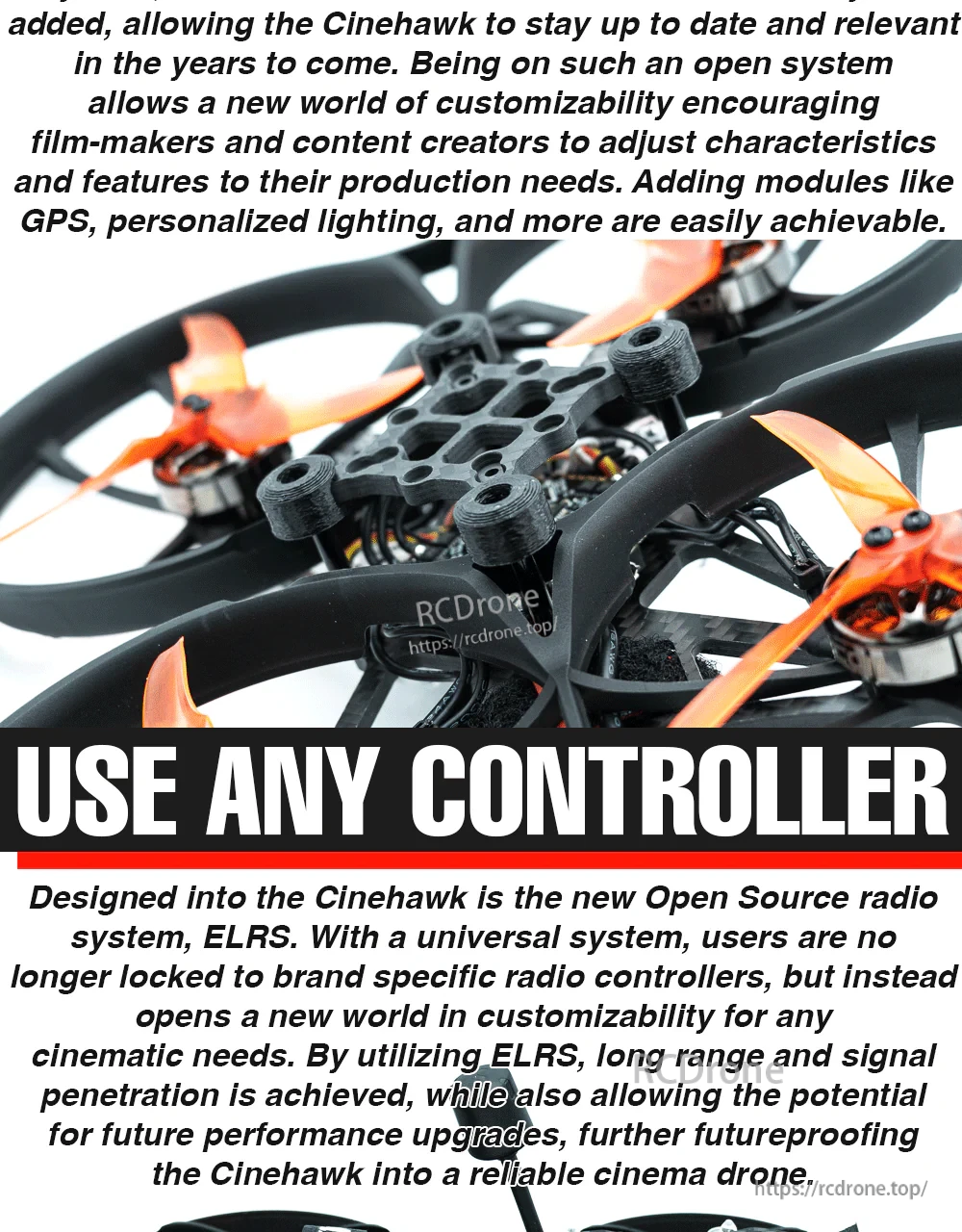

Top plate and ducted prop layout with “Use Any Controller” ELRS messaging for Cinehawk HD FPV drone

ELRS radio support is built in for reliable control with a wide range of compatible transmitters.

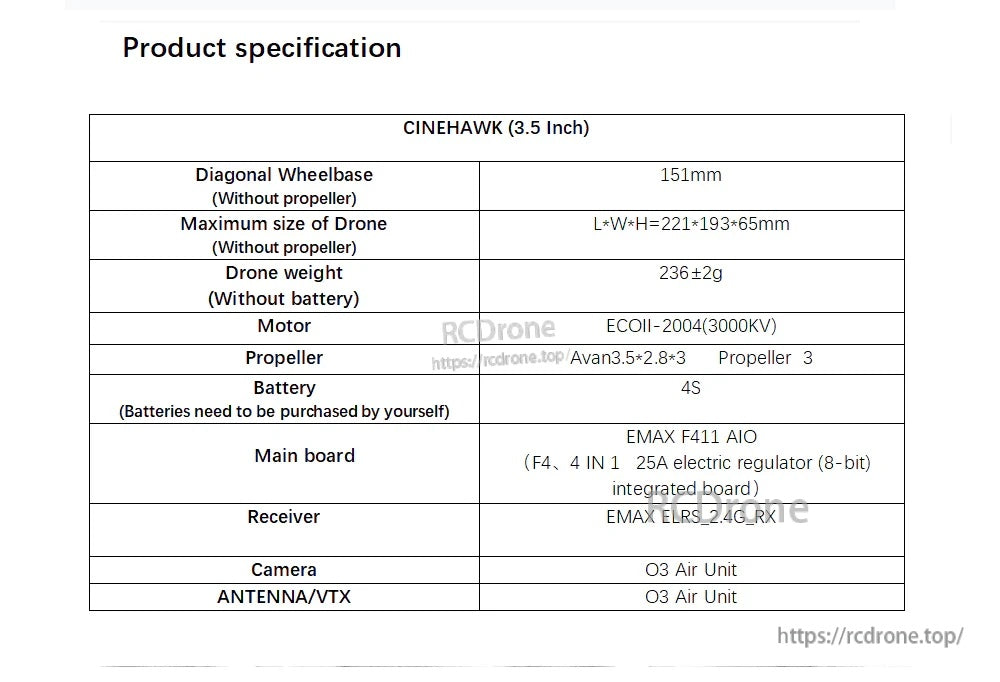

Cinehawk HD cinewhoop body with “FPV Freedom” banner and sample action scene for cinematic flyingCinehawk (3.5 inch) product specification table listing wheelbase, size, weight, motor, battery, and O3 Air Unit
