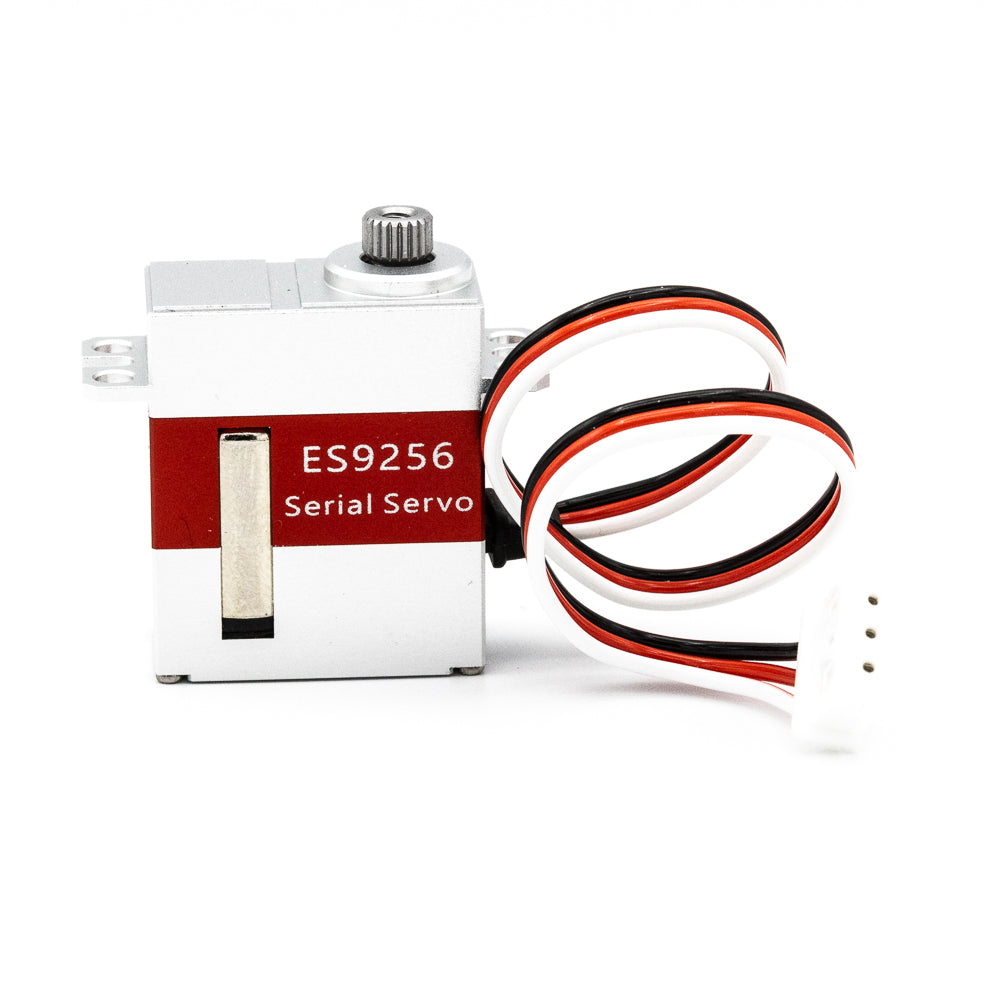

• EMAX ES9256HV digital serial servo, side view with ES9256 label and 3-wire lead connector

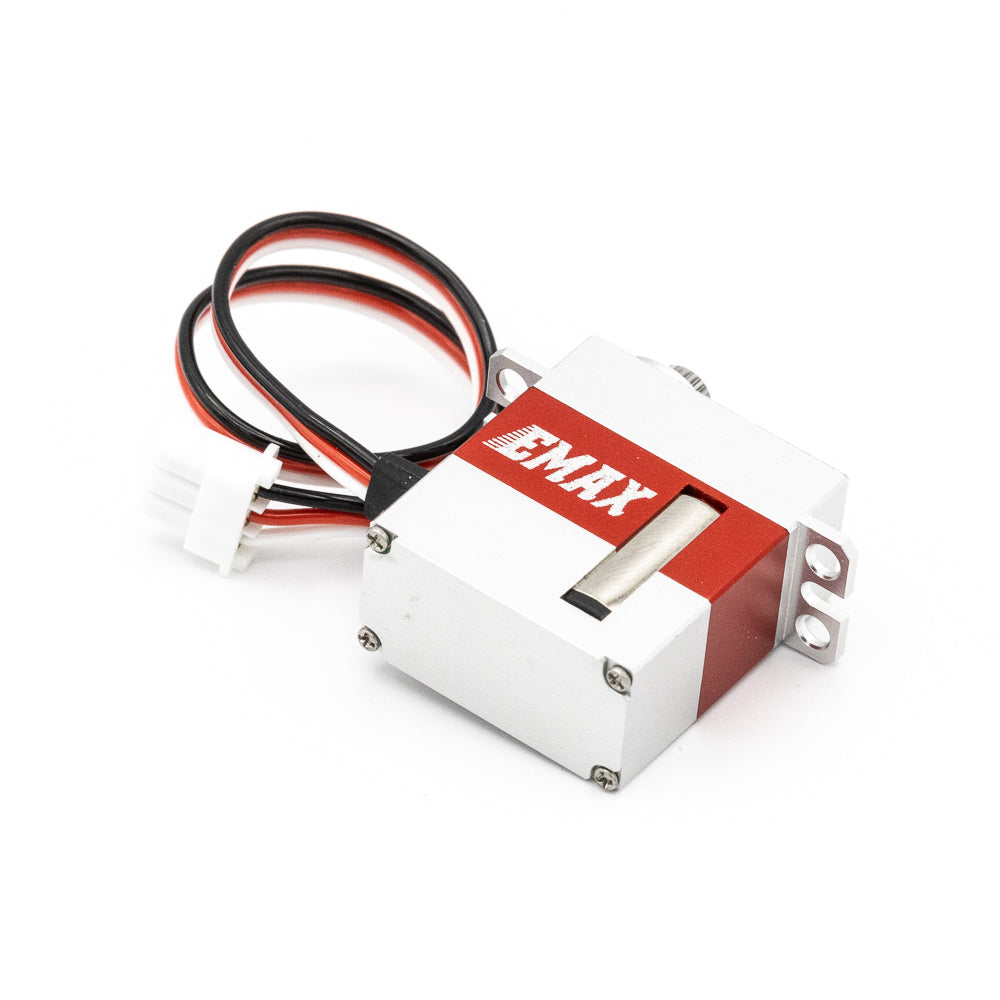

  • EMAX ES9256HV servo angled top view showing aluminum case, mounting tabs, and cable lead

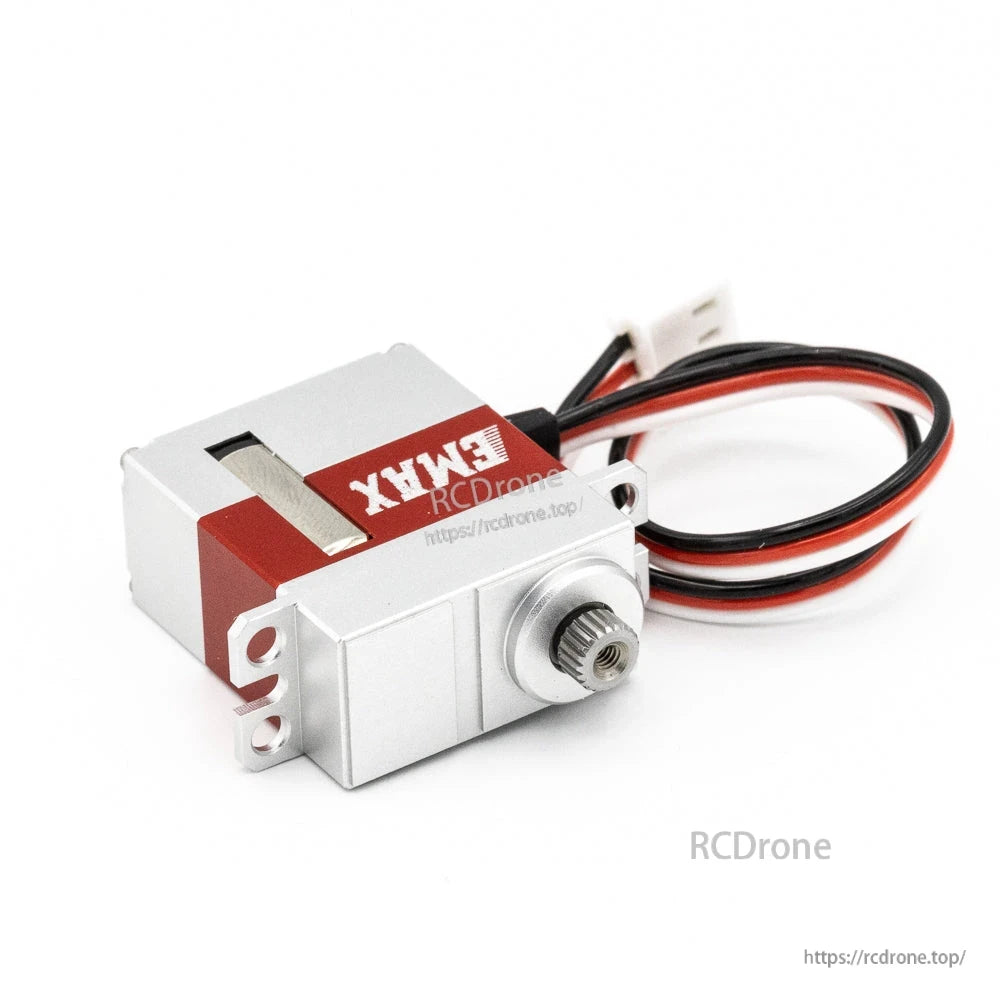

  • EMAX ES9256HV serial servo front view with output shaft spline and mounting ears visible

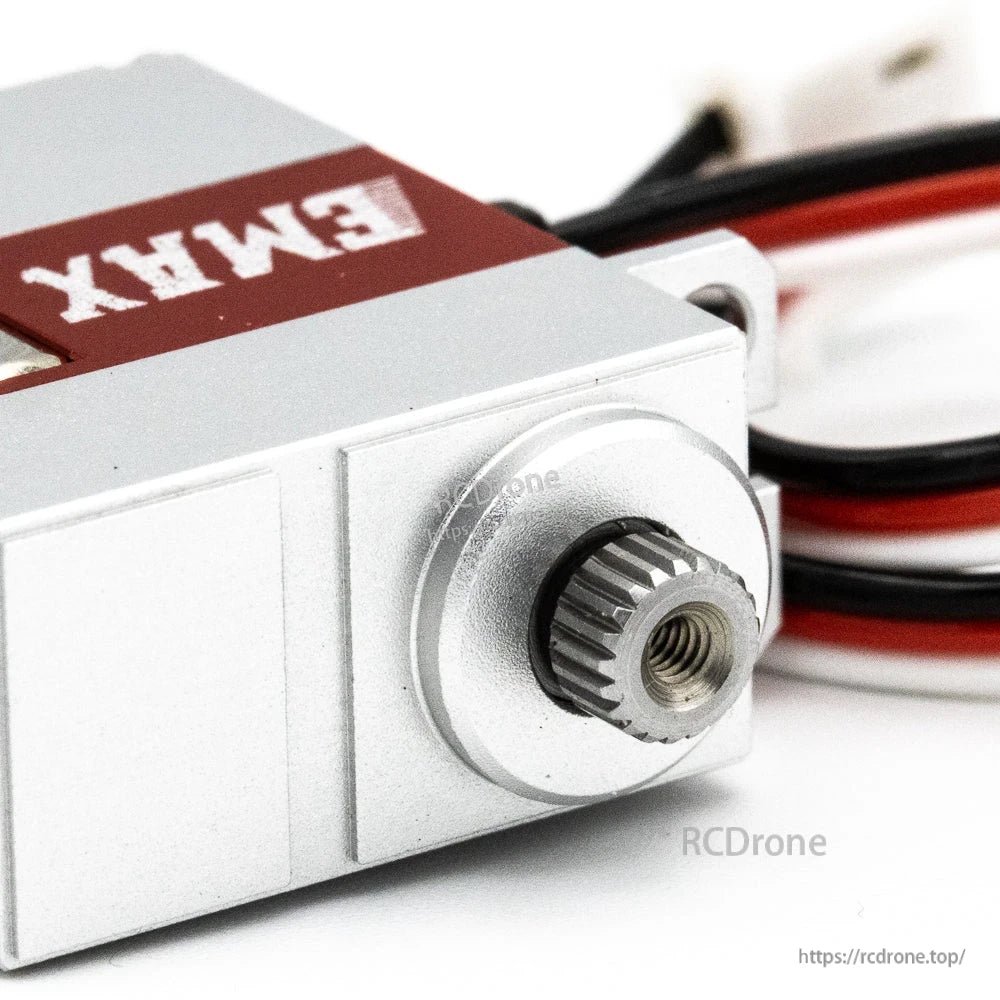

  • Close-up of servo output shaft and metal spline on aluminum case

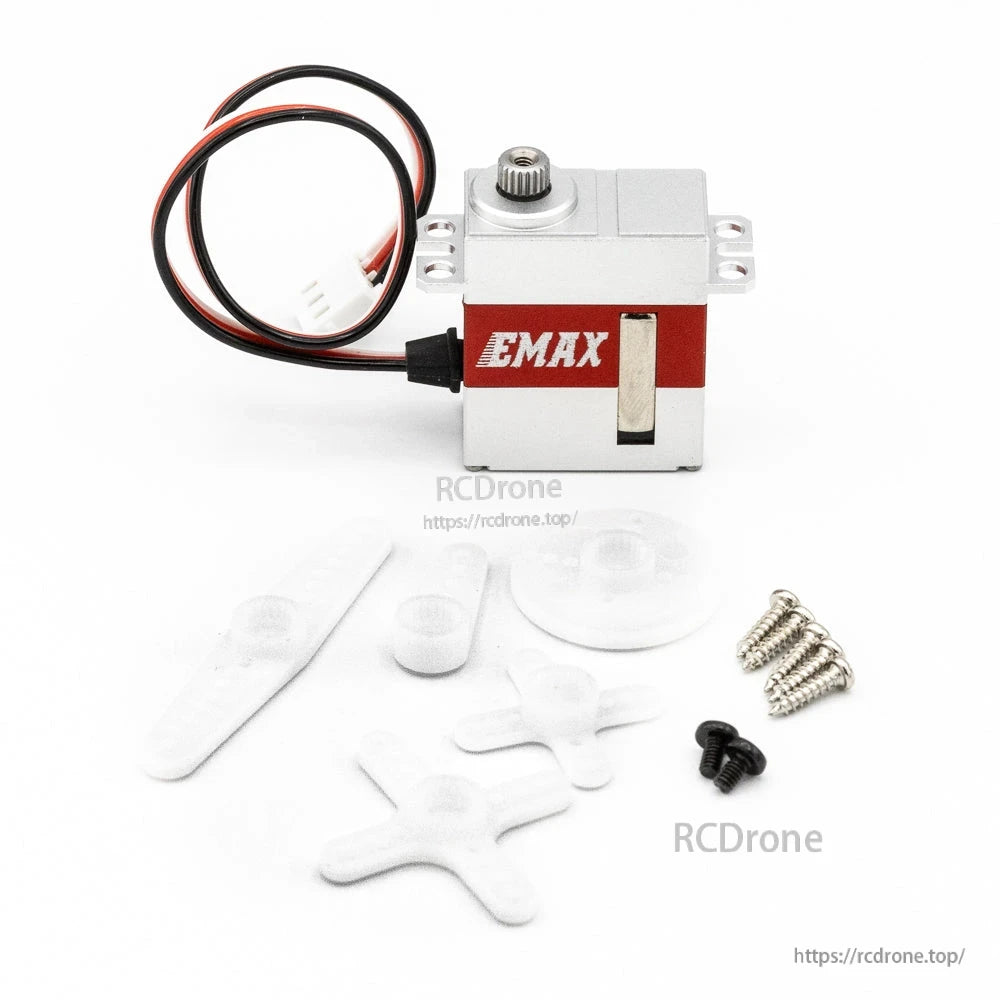

  • Servo kit layout with EMAX servo plus white servo horns, round disc, and mounting screws

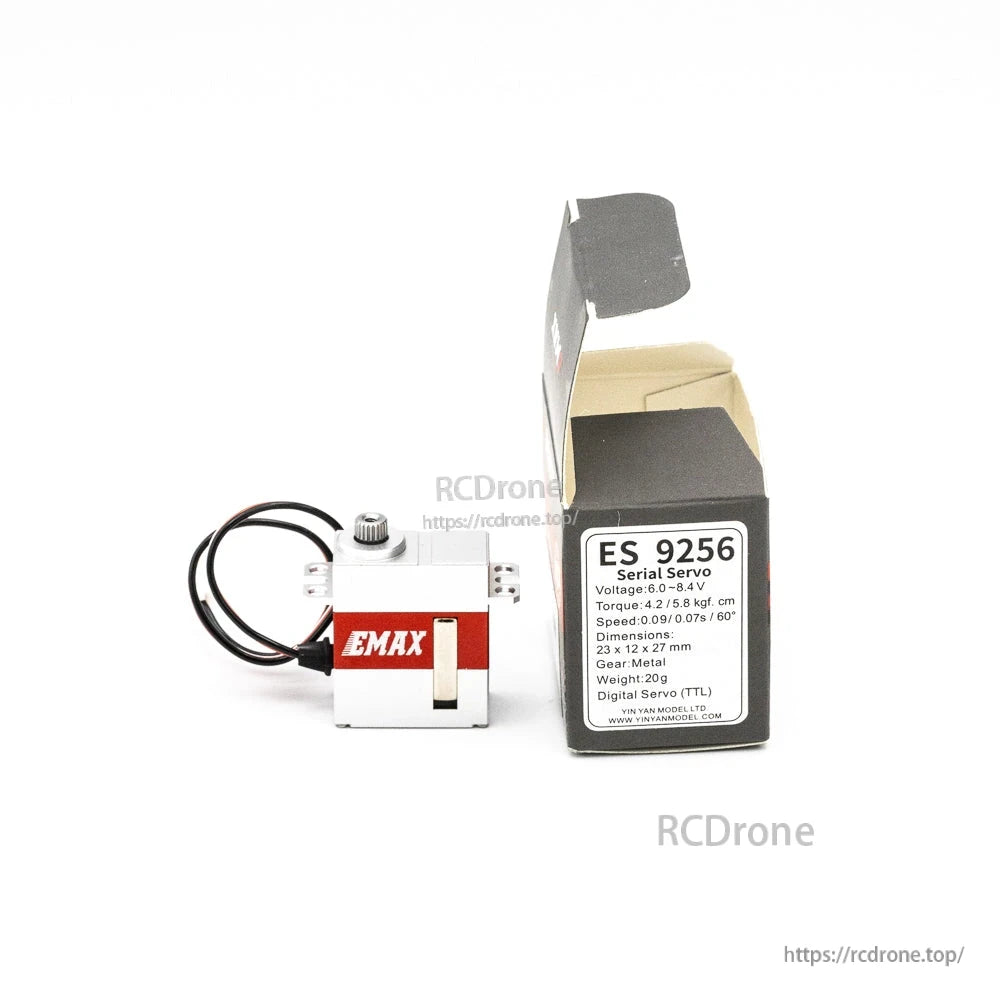

  • ES9256 retail box and servo shown together, with specification label on packaging

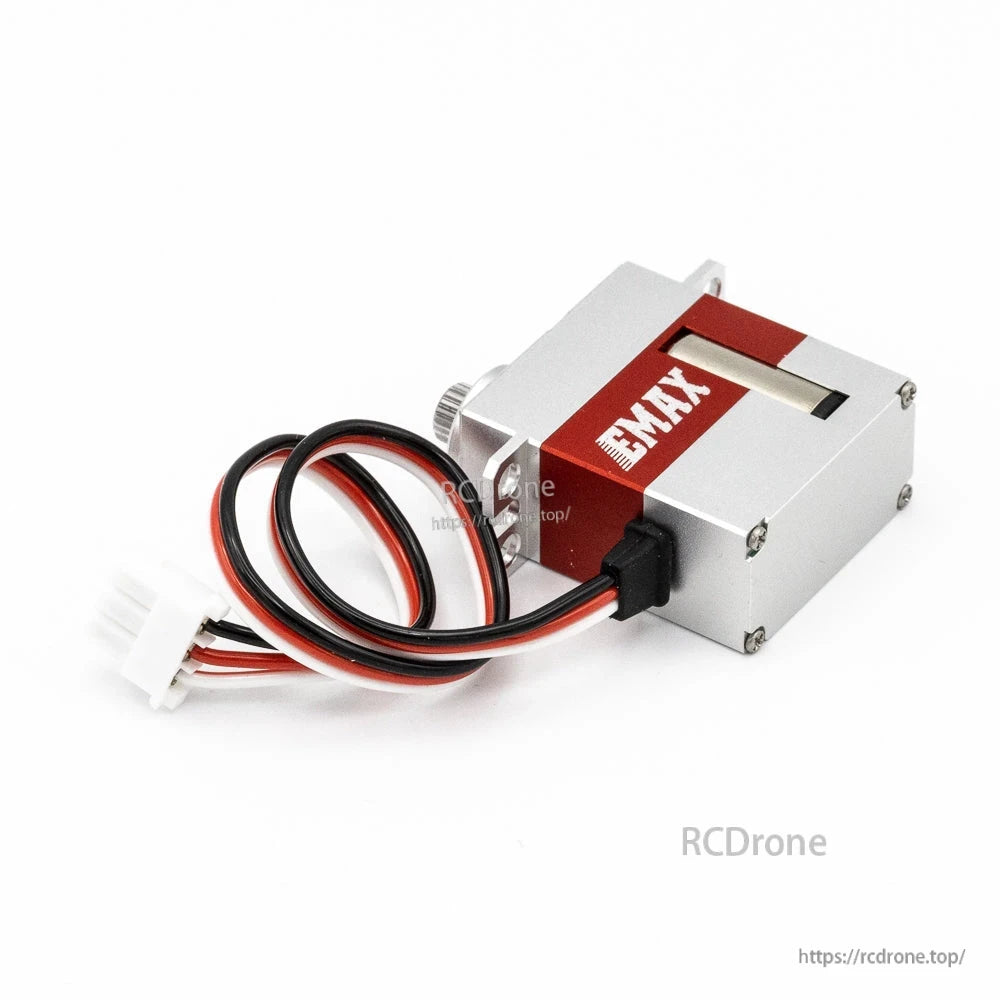

  • Rear/side angle of servo showing cable strain relief and four case screws

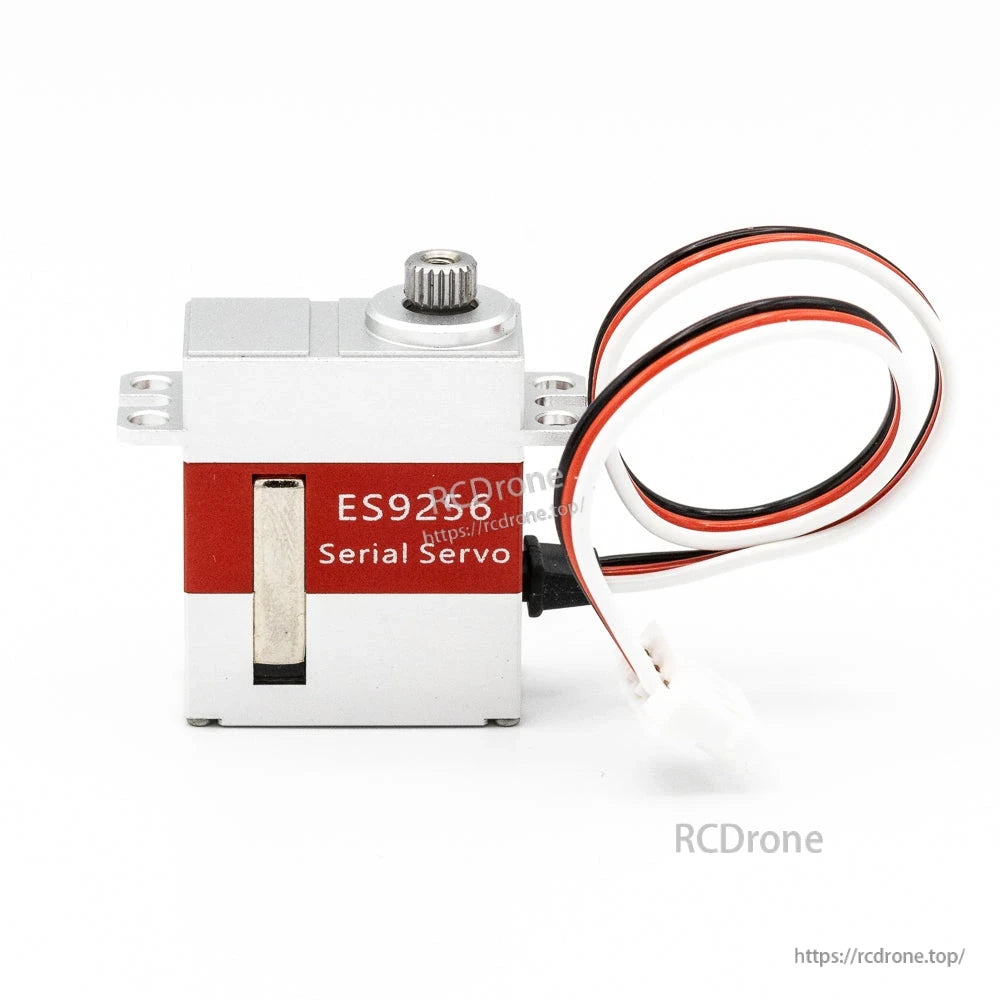

  • Side profile with ES9256 Serial Servo marking and 3-wire lead routed forward
  • Close-up of ES9256 box label listing voltage, torque, speed, dimensions, and TTL digital servo

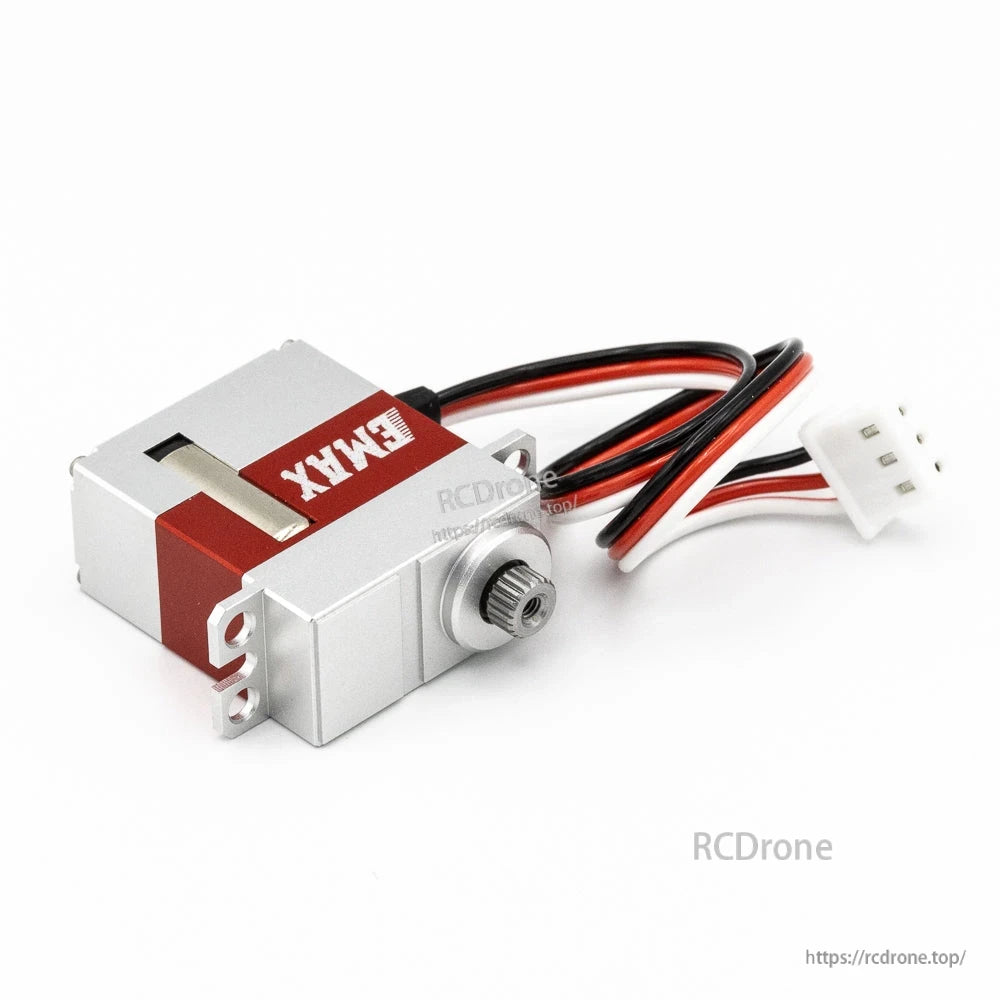

  • Angled front view emphasizing output shaft end and attached 3-wire connector lead

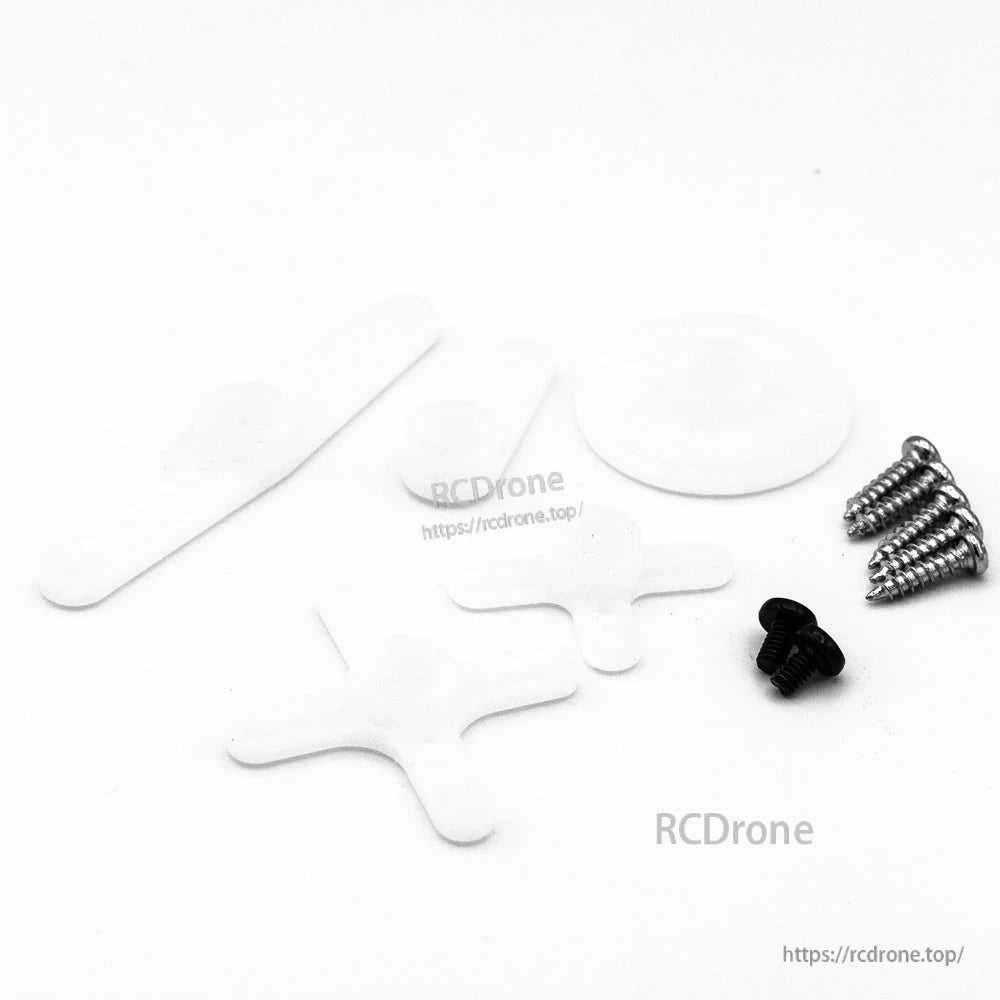

  • Included servo horn set and mounting screws: long arm, round disc, cross horns, and hardware

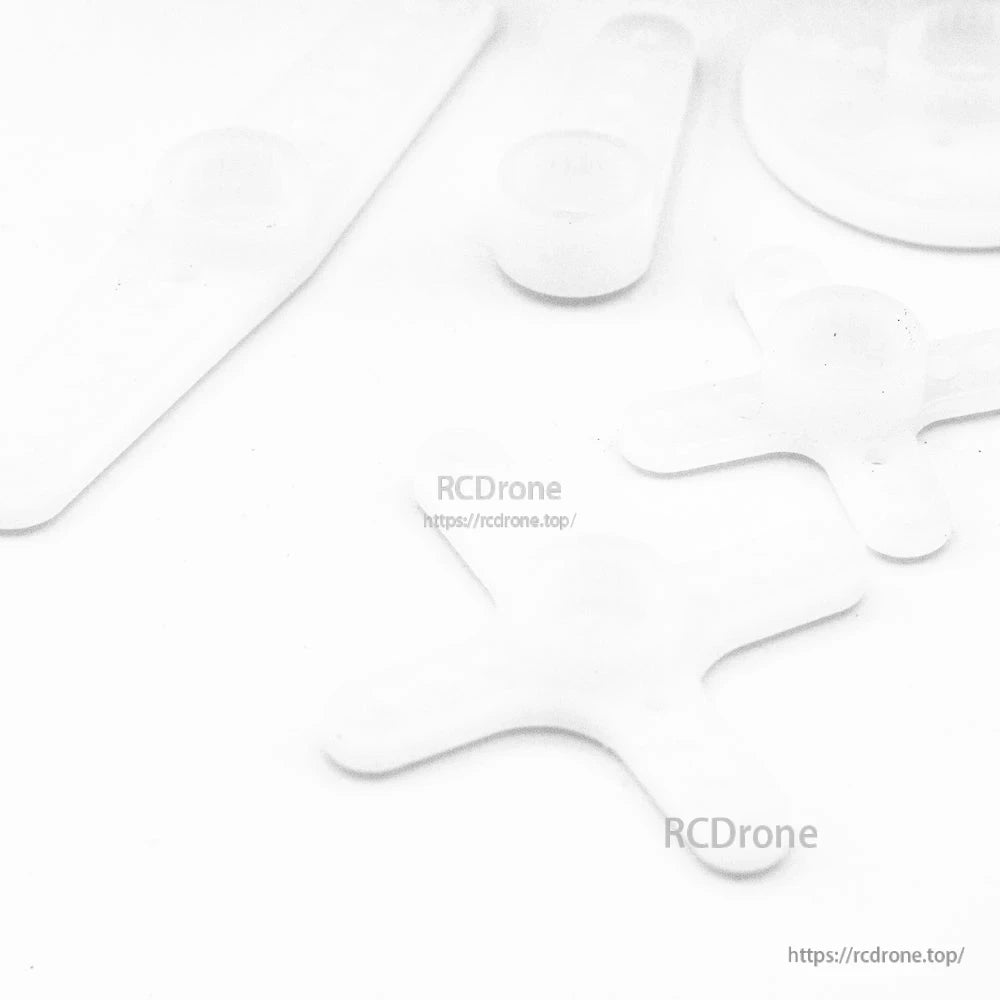

  • Close-up of white plastic servo horns included in the set

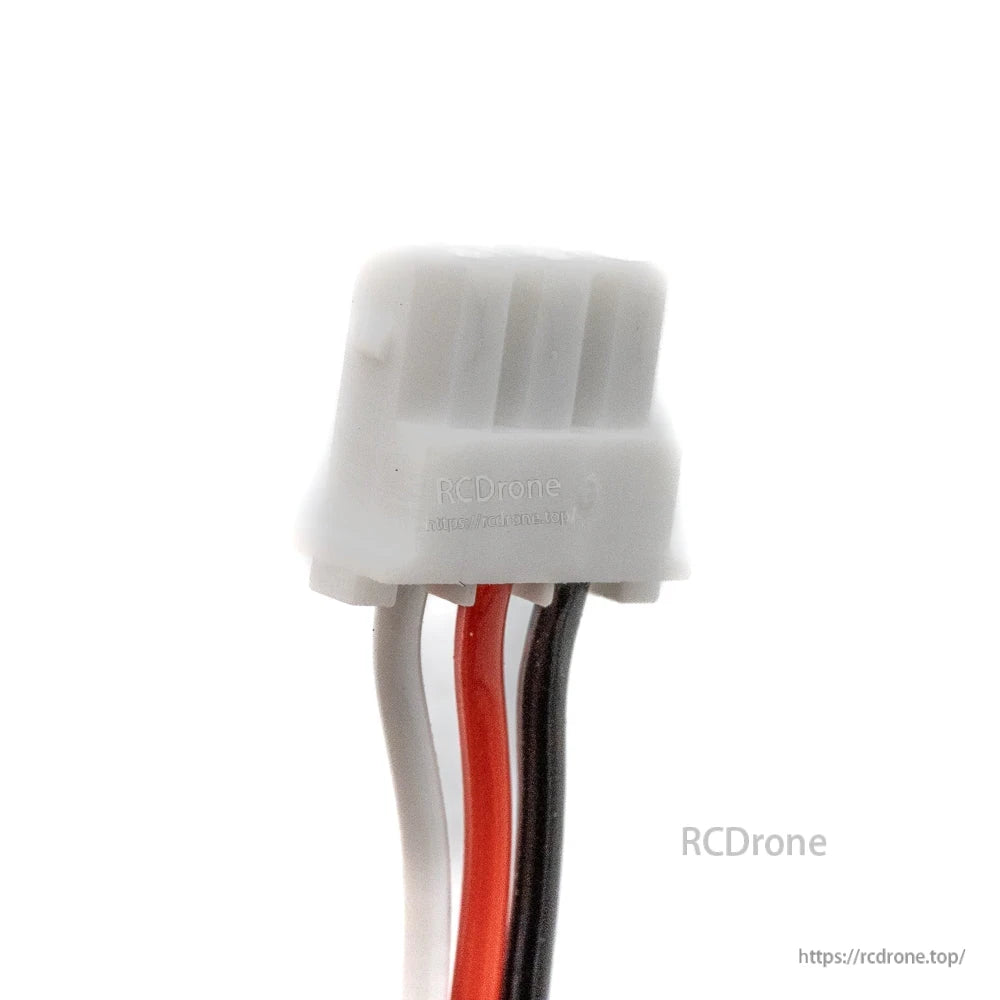

  • Close-up of white 3-pin connector on red, black, and white servo lead wires

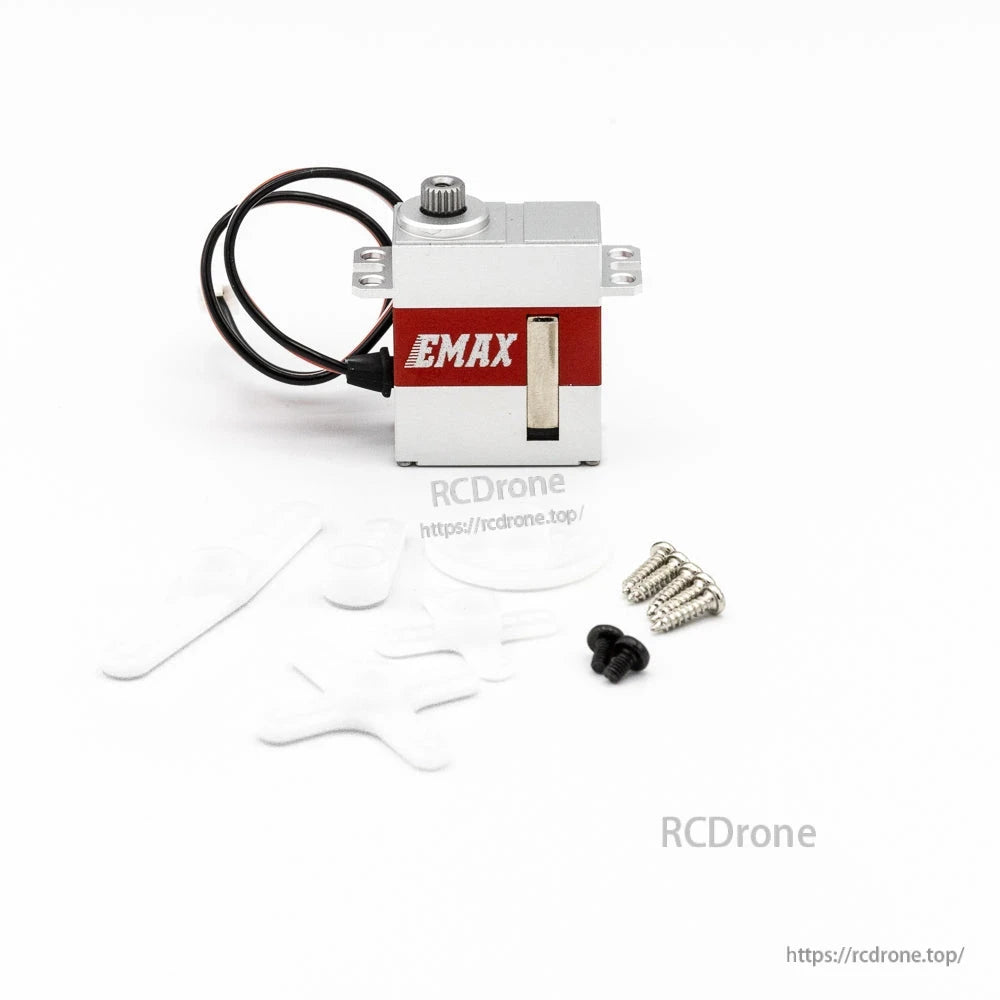

  • Servo with accessory horns and screws arranged in front on white background

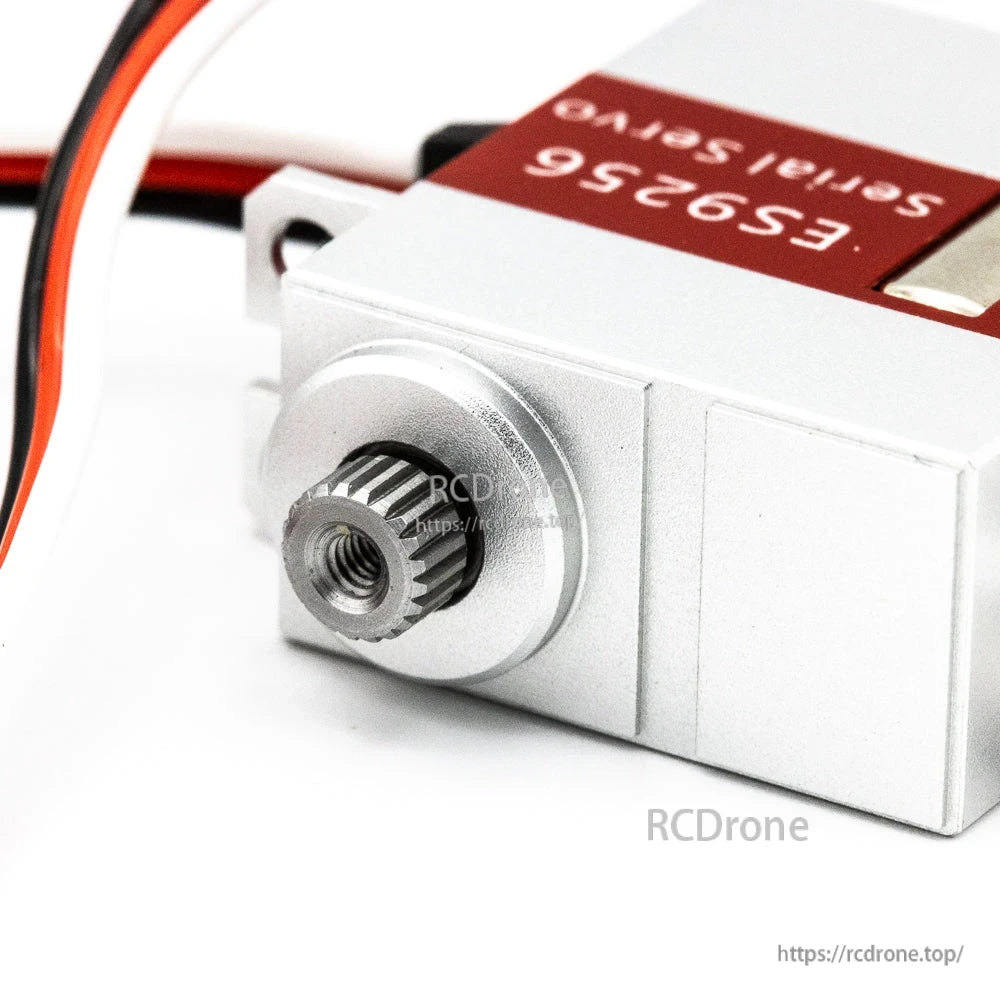

  • Macro view of servo output spline and threaded shaft center

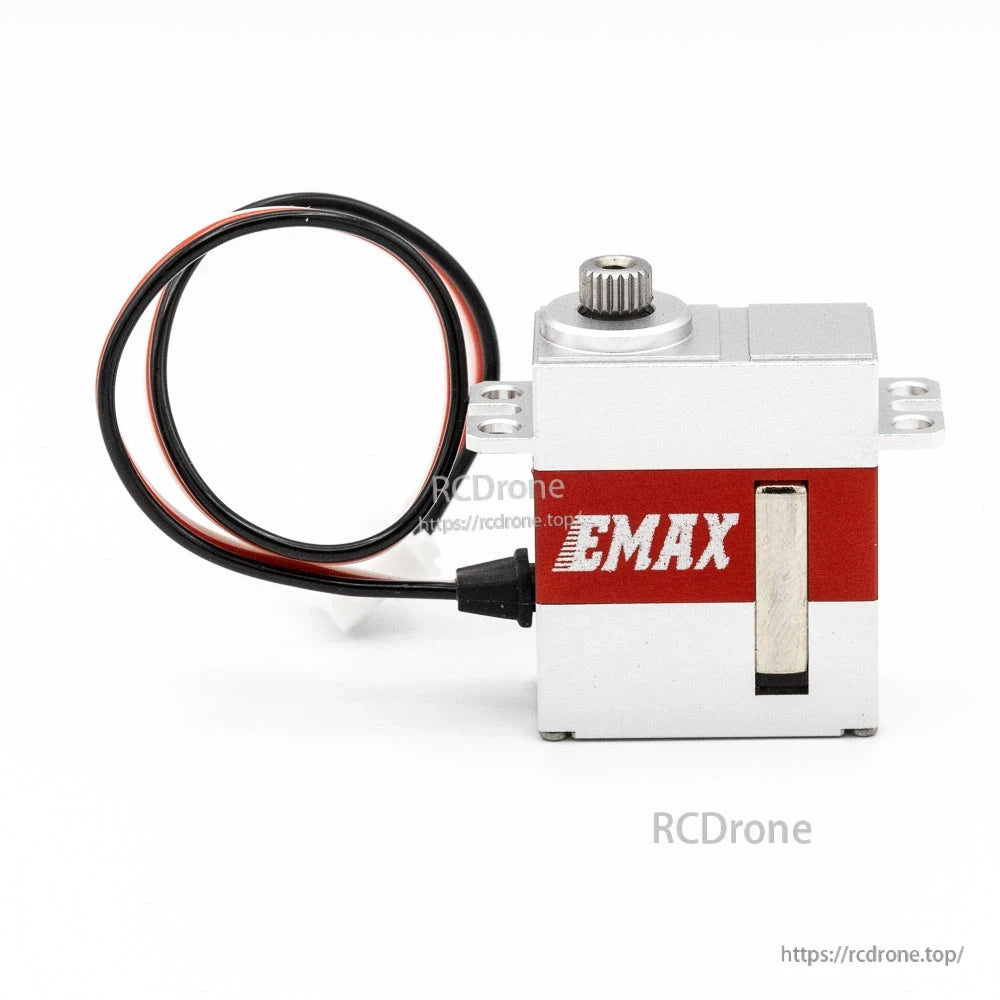

  • EMAX logo side view of servo with cable looped behind and mounting tabs visible

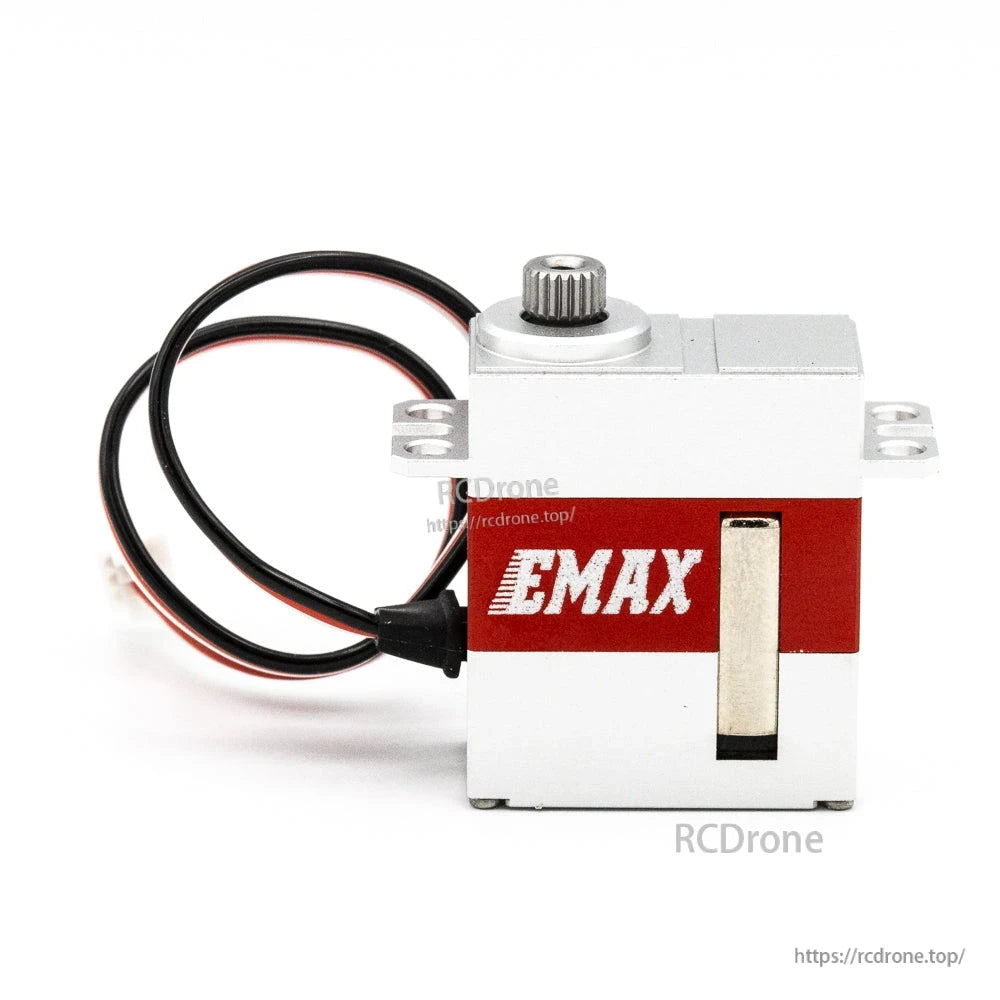

  • Front-facing side view with EMAX logo stripe, top output shaft, and mounting tabs
1 17

EMAX ES9256HV Digital Serial Servo Metal Gear 23T 2BB, TTL 360° Continuous Rotation for Robots & RC Planes

EMAX ES9256HV Digital Serial Servo Metal Gear 23T 2BB, TTL 360° Continuous Rotation for Robots & RC Planes

Emax

$69.47 USD
$69.47 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The EMAX ES9256HV is a digital serial servo with Serial Communication (TTL) control, designed for 360° continuous rotation in robotics and fixed-wing RC model applications. It features metal gears, a 23T output spline, and dual ball bearings (2BB) for durable drivetrain support.

Key Features

  • Serial Communication (TTL) control system
  • 360° extreme angle / continuous rotation capability
  • Metal gear drivetrain
  • 23T output spline (flower head)
  • 2BB (dual ball bearing)

Specifications

Working Environment

Storage temperature range -20 C to 60 C
Operating temperature range -10 C to 50 C

Electrical Specification (Function of the Performance)

Item 6.0V 7.4V 8.4V
Operating speed (at no load) 0.09 sec/60 0.08 sec/60 0.07 sec/60
Running current (at no load) 260mA Max 320mA Max 380mA Max
Stall torque 4.2kg.cm Max 5.2kg.cm Max 5.8kg.cm Max
Maximum current 1.6A Max 1.9A Max 2.1A Max
Idle current 18.6mA

Mechanical Specification

Weight 20 0.5 g
Connector wire gauge 5264
Connector wire length 160 5mm (W/O Connector)
Output spline (flower head) 23T
Bearing 2BB
Gear type metal gear
Extreme angle 360

Control Specification

Control system Serial Communication (TTL)
Operating travel 90 3 (when 35327,34600); 180 3 (when 35839,33791)
Neutral position 34815
Rotating direction Counter Clockwise
Pulse width range 32767+ (0-4096)
Maximum travel 0-360 (32767+ (0-4096))

Dimensions & Drawing Notes (Units: mm)

Output spline diameter
