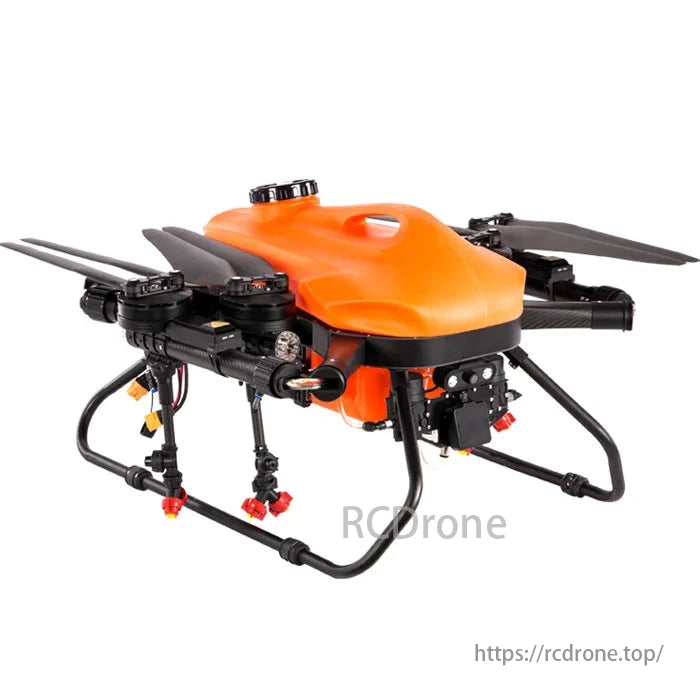

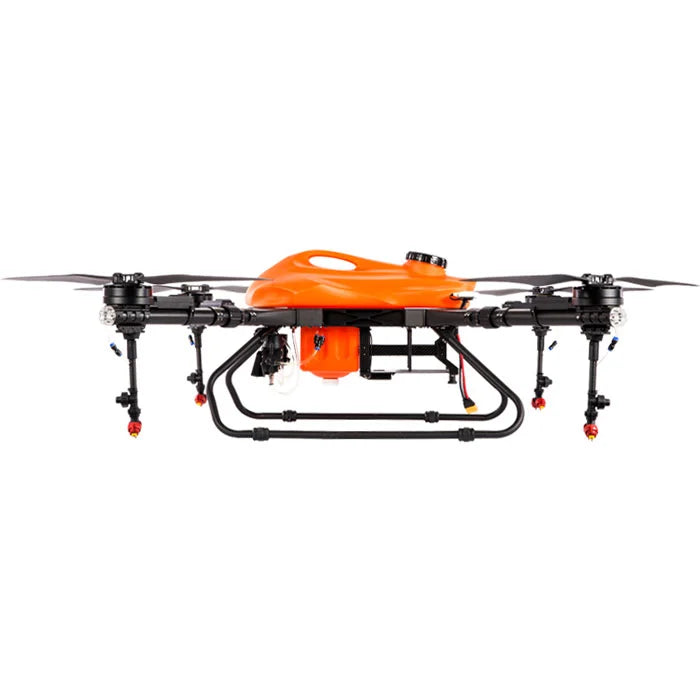

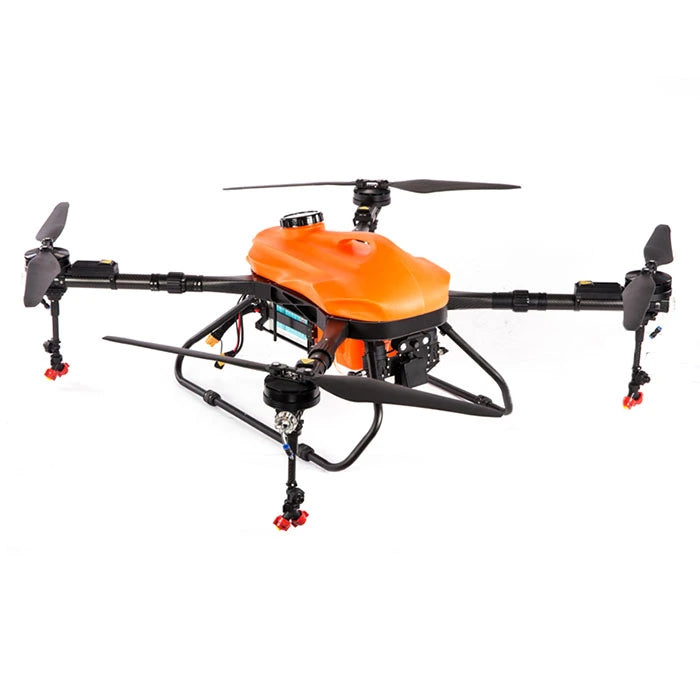

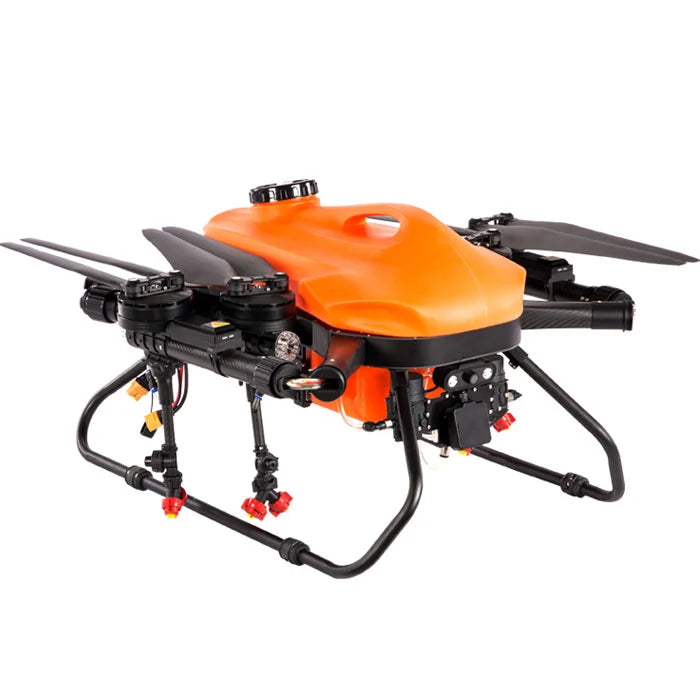

F16 16L Agriculture Drone - 4 Axis 16L Quick Release Tank Crop Spreader RTF Spraying Drone With ARRIS A40 propulsion system, Jiyi K++ FC, Fpv Camera, Radar , SKydroid H12 Radio

Specifications

Digotal wheelbase: 1500mm
Size: 720x780x490mm (folded)
         1165x1175x490mm ( unfolded)
Frame weight: about 14.3kg (battery not included)
                       about 20.5kg (with battery)
Take off weight: 37kg
Hovering time: 20 minutes (take off weight--20.5kg)
                       10 minutes (take off weight--37kg)
Battery: 12s 44.4V 22000mah
Working area: 16-20 acres each flight
Working time: 8 to 12 minutes each flight
Water tank capacity: 16L
Water tank weight: 1.5kg

Spraying system:
Pressure nozzle: dual nozzle
Nozzle model: VP11002
Pump flow rate: 3.5/L
Working voltage: 44.4V
Spraying width: 4-6m

Battery: 12S 44.4V 22000mah (optional)
Charging Port : AS150U

Package Included

F16 Axis 16L agriculture drone frame x 1
Spraying system x 1
ARRIS A40 propulsion system x 4 (2CW+2CCW)
Jiyi K++ Flight Controller with Radar Combo x 1
Skydroid H12 Remote Control x 1
Tattu 12S 22000mah Intelligent Battery x 2   (Optional)
Skyrc PC1500 Dual channel 12S battery charger x 1 (Optional)

F16 16L Agriculture Drone Description

Fully symmetrical quadrotor

F16 adopts a fully symmetrical four-axis layout scheme and quick release tank.

Integrated fuselage design

The F16 fuselage structure is made of carbon fiber and aluminum alloy.

The strength is stable and reliable, while reducing the overall weight.

Way carbon fiber tube, efficient lifting arm strength and accuracy.

The arm is purchased with a foldable design, which is convenient for transfer and transportation.

Wisdom eyes escort Perception of obstacles

F16 front real-time camera FOV 120° wide-angle viewing angle, remote viewing angle to observe the situation ahead. Equipped with dual high-brightness LED lighting, convenient for night work. Perceive obstacle module, predict obstacles ahead. Double escort your flight defense operations.

Wrap around folding

The wrap around folding structure can minimize the volume of the fuselage after folding, which is convenient for transportation and transition.

F16 adopts a brand-new modularized quick-plug design structure, with a 16L pluggable water tank.
The F16 4 Axis drone is true "X" symmetrical wide body structure design, the center of gravity is still concentrated, reducing the shaking of the liquid during the operation.

The square carbon fiber tube can effectively enhance the strength and accuracy of the arm. The arm is foldable, which is convenient for transfer and transportation.

The fuselage structure adopts the combination of carbon fiber and aluminum alloy, the strength is stable and reliable, and the overall weight is reduced.

F16 comes with FPV camera with FOV 120° lens, you can monitor the situation ahead from the radio in the real time. With two 8W consumption navigation lights, it is more safe to peration at night.  With the obstacle radar, it can measure the relative distance between the drone and the obstacle in front of the flight, so as to avoid the obstacle effectively.

Skydroid H12 1080P Digital Video Data Transmission Transmitter Long Range Remote Control for RC Drone Agriculture Drones
Skydroid H12 2.4Ghz long range radio with 5.5 inch high brightness screen is great for rc drones, rc robots, industrial applications equipements. With the  FHSS spread spectrum technology, the full range of the Skydroid H12 can reach 5 to 30km. It has clear image, low delay, long range, strong anti-interference and other features. So it can be widely used on agriculture drones, FPV sevurity, fire protection, electric power, surveying and mapping robots, border defense, etc.

As a new generation of flagship flight control system, k++ combines the advantages of the classic flight control K3A, and strengthens the compatibility and multi-redundancy scheme to form a redundant redundancy control system with superior performance and strong reliability.

Equipped with exclusive agricultural App ground station, precise and convenient control
Personalized app tailored for agricultural sprayer drones, it can provide arbitrary polygon route for unregulated terrain, autonomous operation and improve work efficiency. It has a route memory function and can calculate the spray area, which helps the operator to grasp the dosage more accurately.
