Flashhobby BE1806 1400KV 2300KV 2700KV Brushless Motor for 2–4S RC FPV Racing Drone Multirotor Airplane Fixed-Wing

Overview

The Flashhobby BE1806 Brushless Motor is a high-efficiency power solution for FPV racing drones, multirotors, and fixed-wing RC airplanes. Available in 1400KV, 2300KV, and 2700KV, the BE1806 offers a wide range of thrust and responsiveness tailored for different flying styles—from endurance cruising to high-speed freestyle.

Each motor supports 2–4S LiPo input, compatible with 4–6 inch propellers, and recommended for 10A–20A ESCs. Whether you're building a lightweight FPV drone or upgrading a fixed-wing aircraft, BE1806 delivers solid performance at an affordable price.

Motor Variants & Specifications

Key Features

• 3 KV options for various flying styles: endurance, racing, freestyle

• Compatible with 2–4S LiPo systems

• High thrust-to-weight performance

• Supports a wide range of 4–6 inch propellers

• Lightweight and durable design, ideal for DIY RC builds

Package Includes

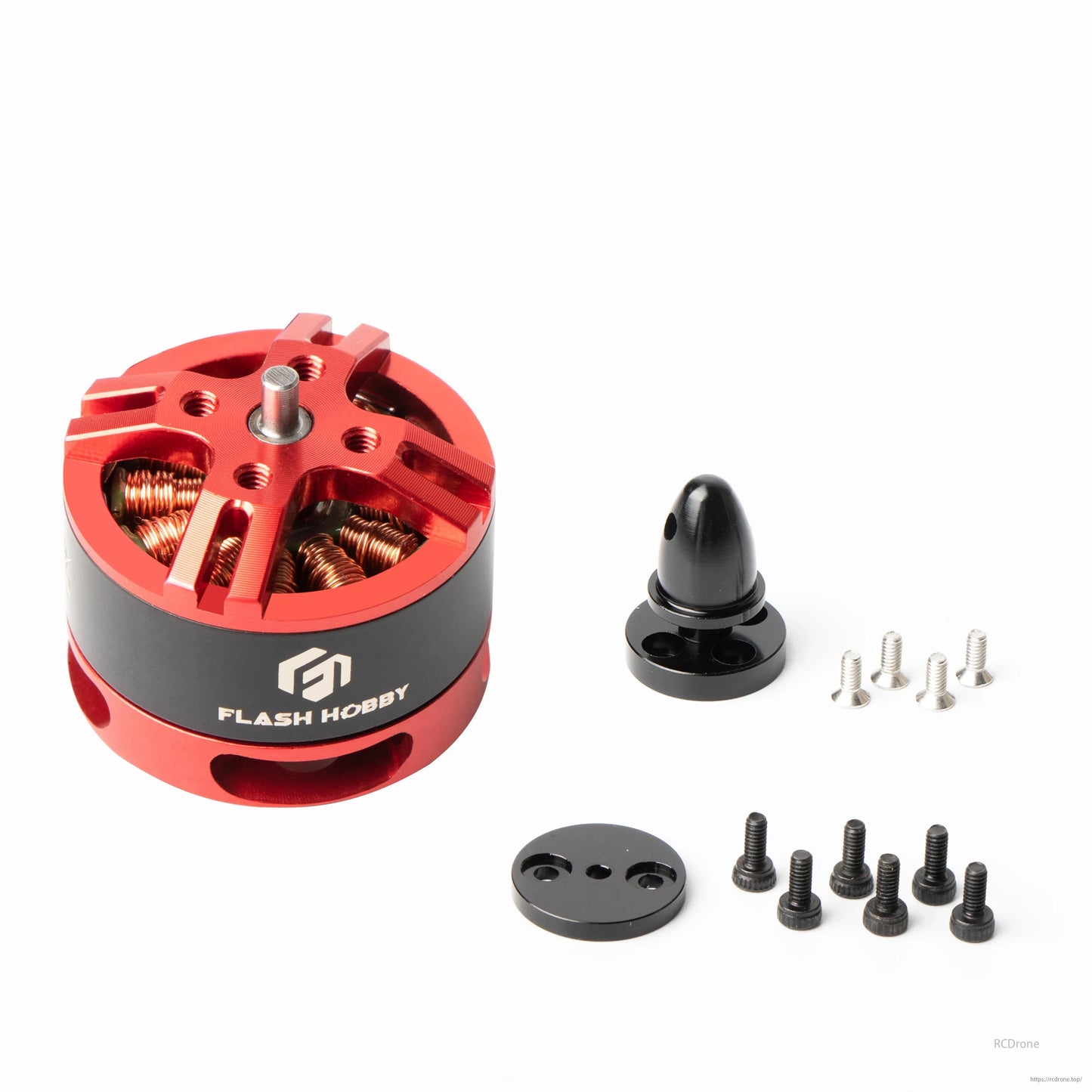

• 1 × Flashhobby BE1806 Brushless Motor (Choose KV: 1400 / 2300 / 2700)

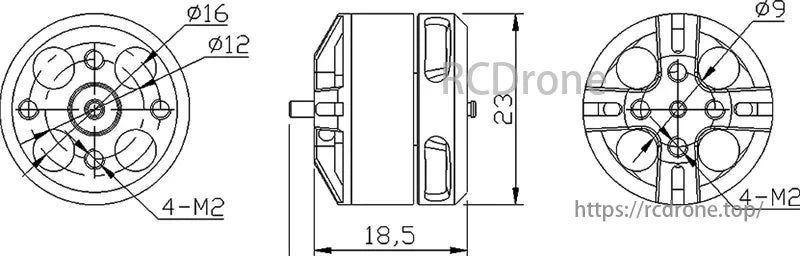

Motor Drawing:



TEST DATAS:





ltem NO.		NO LOAD		ON LOAD				LOAD TYPE
	VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	EEP	Battery/prop
	V	A	rpm	A	g	W	%
BE1806 1400KV	7.4	0.3	10560	1.8	121	13.3	9.1	LiPoх2/6X2
				2.8	188	20.7	9.1	LiPoх2/7X2.4
	11.1	0.3	15850	3.4	250	37.7	6.6	LiPoх3/6X2
				5.1	351	56.6	6.2	LiPoх3/7X2.4
	14.8	0.4	21130	4.2	335	62.2	5.4	LiPoх4/5X3
				5.4	440	79.9	5.5	LiPoх4/6X2
BE1806 2300KV	7.4	0.6	17060	6.5	390	48.1	8.1	LiPoх2/6X2
				7.6	521	56.2	9.3	LiPoх2/7X2.4
	11.1	0.6	25590	6.5	390	72.2	5.4	LiPoх3/5X3
				7.6	521	84.4	6.2	LiPoх3/6X2
BE1806 2700KV	11.1	0.7	11.1	2	100	22.2	4.5	LiPoх3/3545T
				4.7	200	52.2	3.8
				6.6	260	73.3	3.5
				1.9	100	21.1	4.7	LiPoх3/4045T
				4.5	200	50.0	4.0
				10.9	380	121.0	3.1
				2.8	200	31.1	6.4	LiPoх3/5045T
				7.3	400	81.0	4.9
				16.8	690	186.5	3.7
	14.8	0.8	14.8	1.6	100	23.7	4.2	LiPoх4/3545T
				3.7	200	54.8	3.7
				9.7	430	143.6	3.0
				3.7	200	54.8	3.7	LiPoх4/4045T
				9.4	400	139.1	2.9
				15.5	570	229.4	2.5
				2.8	200	41.4	4.8	LiPoх4/5045T
				7.3	400	108.0	3.7
				16.8	690	248.6	2.8

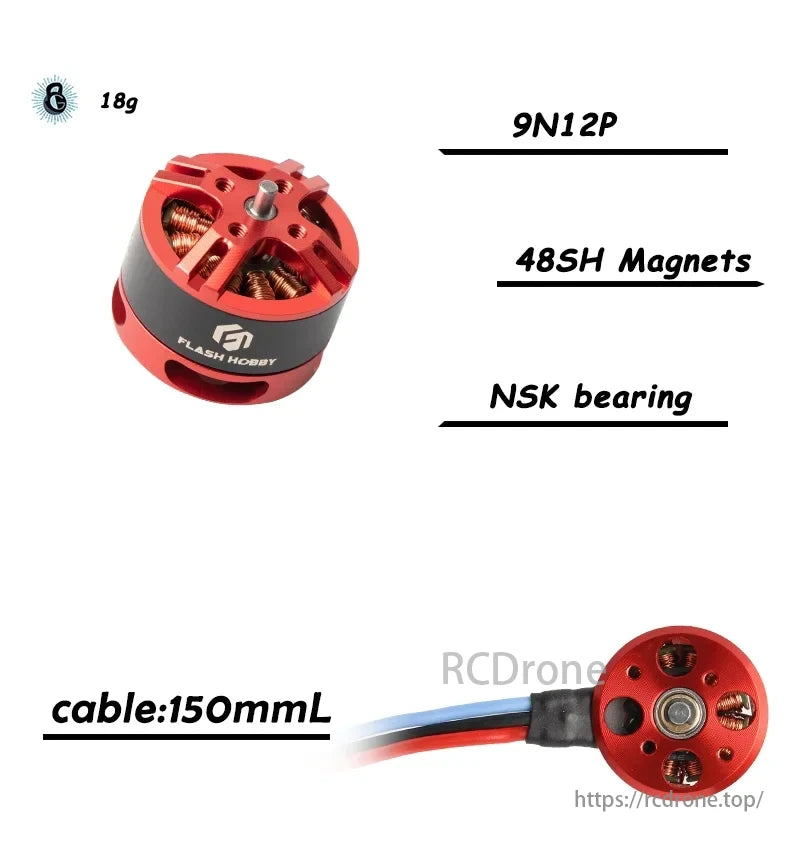

BE1806 Brushless Motor: 18g, 9N12P, 48SH Magnets, NSK bearing, cable: 150mmL. Compact, high-performance design for optimal efficiency.

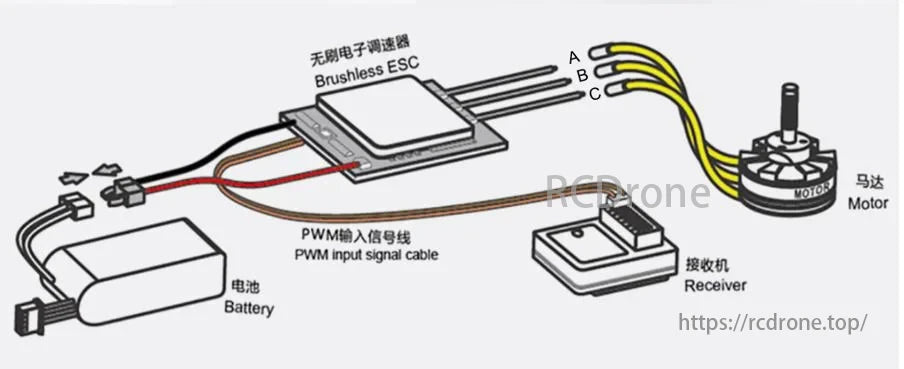

Connected instruction:

Brushless ESC connects battery, receiver via PWM cable to motor.
