FlyColor Raptor Mini Tower TR20 F722 45A 60A Stack for FPV Drone

FlyColor Raptor Mini Tower TR20 F722 45A 60A Stack for FPV Drone

FlyColor

$129.00 USD
$129.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The FlyColor Raptor Mini Tower TR20 Stack is an advanced 20x20mm flight control and ESC system designed for high-performance FPV drones. It features the STM32F722 high-performance MCU and supports 3–6S LiPo batteries. This stack is available in two ESC configurations: 45A and 60A, with burst currents of 55A and 70A respectively for 10 seconds. Weighing only 23g, it integrates an F7 flight controller and 4-in-1 ESC, making it ideal for lightweight, high-thrust builds.

Key Features

  • High-performance MCU: Equipped with STM32F722 Cortex MCU for powerful processing.

  • Dual VTX & LED Pads: Convenient layout for flexible peripheral connections.

  • PWM Frequency up to 128KHz: Ensures smooth and responsive throttle control.

  • 20x20mm Mounting Holes: Compact footprint saves space and supports tight builds.

  • No BEC Design: Clean power setup compatible with external regulators.

  • Lightweight Construction: Only 23g, perfect for agile FPV racers and freestyle drones.

  • Anti-interference PCB: Precision circuit layout for stable flight performance.

Specifications

Parameter TR20 60A Version TR20-45A Version
Battery Support 3–6S LiPo 3–6S LiPo
Continuous Current 60A 45A
Burst Current (10S) 70A 55A
BEC No BEC No BEC
Weight 23g 23g

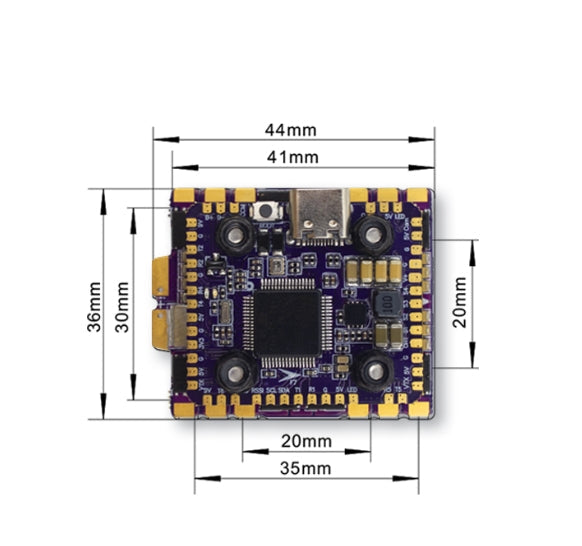

Size 44x36mm 44x36mm
Firmware Flycolor_Raptor_5 Flycolor_Raptor_5
Typical Application FPV Drones FPV Drones

Additional Information

  • Flight Controller Output (Vout): 3.3V / 5V / 9V selectable

  • Mounting Holes: 20x20mm, M3

  • Processor Frequency: Up to 64MHz (STM32G0), and up to 216MHz (STM32F722)

  • Use Case: Freestyle and racing drones requiring compact yet robust electronics

Details

FlyColor Raptor Mini FPV Drone, It has a weight of 23g and combines an F7 flight controller with a 4-in-1 ESC, suitable for lightweight builds.

FlyColor Raptor Mini FPV Drone, The Raptor 5 Mini Tower is a multi-rotor flight controller featuring an STM32G0 MCU, 64 MHz frequency, 128K PWM, and dual VTX/LED pads for efficient and smooth operation.

Raptor 5 Mini Tower: Multi-rotor flight control system with STM32G0 MCU, 64 MHz frequency, 128K PWM, dual VTX/LED pads for smooth operation and convenience.

FlyColor Raptor Mini FPV Drone, The FlyColor Raptor Mini Tower TR20 F722 features advanced circuitry and strong anti-interference capabilities.

FlyColor Raptor Mini Tower TR20 F722 has advanced circuitry and strong anti-interference.

FlyColor Raptor Mini FPV Drone, FlyColor Raptor Mini Tower TR20 F722 features dual VTX pads for easy selection.

FlyColor Raptor Mini Tower TR20 F722 with dual VTX pads for convenient selection.

FlyColor Raptor Mini FPV Drone, Compact FPV drone component with 20*20mm install holes, lightweight design, dual VTX pads, and high-performance STM32F722 MCU for efficiency.

Install holes 20*20mm, lightweight design, dual VTX pads for convenience, high-performance STM32F722 MCU. Compact, efficient FPV drone component.

FlyColor Raptor Mini FPV Drone, FlyColor Raptor Mini Tower TR20 F722 supports 3-6S LiPo, delivers 45A/60A continuous and 55A/70A burst current, features 3.3V/5V/9V outputs, weighs 23g, measures 44x36mm, includes M3 mounting holes.

FlyColor Raptor Mini Tower TR20 F722 supports 3-6S LiPo, 45A/60A continuous current, 55A/70A burst, 44x36mm size, 23g weight, with 3.3V/5V/9V outputs and M3 install holes.

FlyColor Raptor Mini FPV Drone, The FlyColor Raptor Mini Tower TR20 F722 45A 60A Stack features a high-performance STM32F722 MCU for reliable FPV drone flight control.

FlyColor Raptor Mini Tower TR20 F722 45A 60A Stack offers high-performance MCU, Cortex STM32F722, for robust FPV drone flight control.

FlyColor Raptor Mini FPV Drone, FlyColor Raptor Mini Tower TR20 and TR20-45A FPV drone specs: support 3-6S batteries, 60A/70A and 45A/55A currents, 23g, 44x36mm, Flycolor_Raptor_5 firmware, no BEC. Ideal for high-performance FPV power management.

FlyColor Raptor Mini Tower TR20 and TR20-45A specifications for FPV drones. Models support 3-6S batteries. TR20 has a continuous current of 60A, burst current of 70A, while TR20-45A offers 45A and 55A respectively. Both weigh 23g, measure 44x36mm, and use Flycolor_Raptor_5 firmware. Neither includes BEC. Ideal for FPV applications, these stacks provide robust power management solutions for high-performance drones.
