FlyColor Raptor5 G071 20A 35A 45A 50A 3–6S FPV ESC with STM32G071 MCU and BLHeli-S Firmware

Overview

The FlyColor Raptor5 G071 Series ESCs are compact, high-performance brushless ESCs designed for FPV racing drones. Supporting 3–6S LiPo input, this series includes 20A, 35A, 45A, and 50A models, all integrated with the STM32G071 32-bit Cortex MCU running at up to 64MHz—25% faster than previous generations. With FlyColor Raptor 5 firmware, these ESCs offer high RPM response, support for DShot, ProShot, Oneshot, Multishot signals, and feature noise-reducing twisted-pair silicone cables for stable signal transmission. Lightweight and efficient, they are ideal for high-speed multirotor FPV builds.

Key Features

• Wide Voltage Support: Compatible with 3S to 6S LiPo batteries across all variants.

• High-Performance MCU: ARM Cortex STM32G071, 64MHz clock speed for faster processing and precise control.

• Firmware: Preloaded with Flycolor Raptor 5 (BLHeli-S-based) for smooth and silent motor control.

• Signal Compatibility: Supports PWM (1–2ms), Oneshot125 (125–250μs), Oneshot42 (41.7–83.3μs), and Multishot (5–25μs); auto-detection on power-up.

• Signal Stability: Silicone twisted-pair signal cable reduces crosstalk and enhances flight stability.

• Mini Size, Lightweight: From only 6.5g with compact size (29x14x6mm for 20A/35A, 33x16x6mm for 45A/50A).

Specifications

Wiring Diagram

The ESC connects between your battery and motor, with signal input from the receiver via a flight controller. Ensure all solder joints are insulated with heat shrink.

• Input: Battery (3–6S)

• Output: Brushless motor

• Signal: PWM, DShot, etc. via twisted signal cable

Applications

Perfect for FPV racing drones, freestyle builds, and lightweight quadcopters requiring compact and responsive ESCs. Compatible with Betaflight, cleanflight, and other major FC systems.

Details

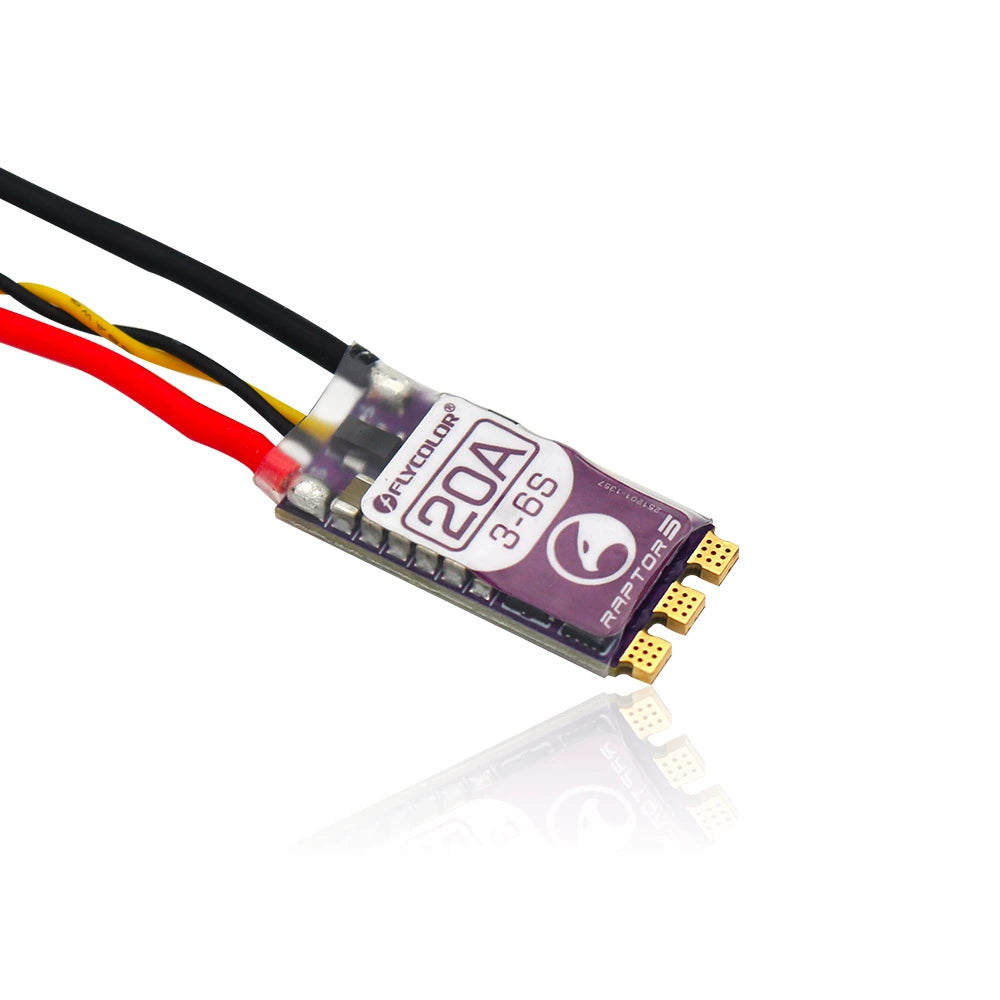

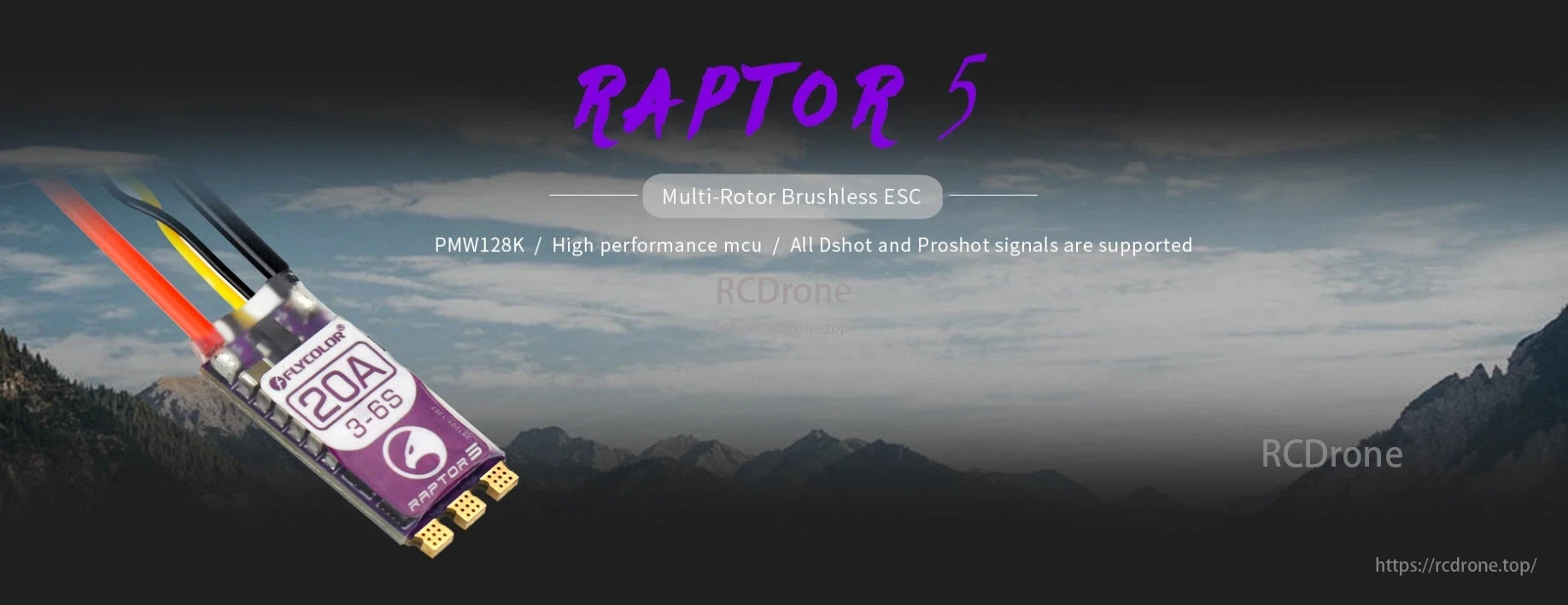

FlyColor Raptor5 FPV ESC, 20A 3-6S, multi-rotor brushless, PMW128K MCU, supports Dshot and Proshot signals.

FlyColor Raptor5 G071 ESC with ARM 32-bit Cortex MCU STM32G071, up to 64 MHz, 25% faster than previous generation.

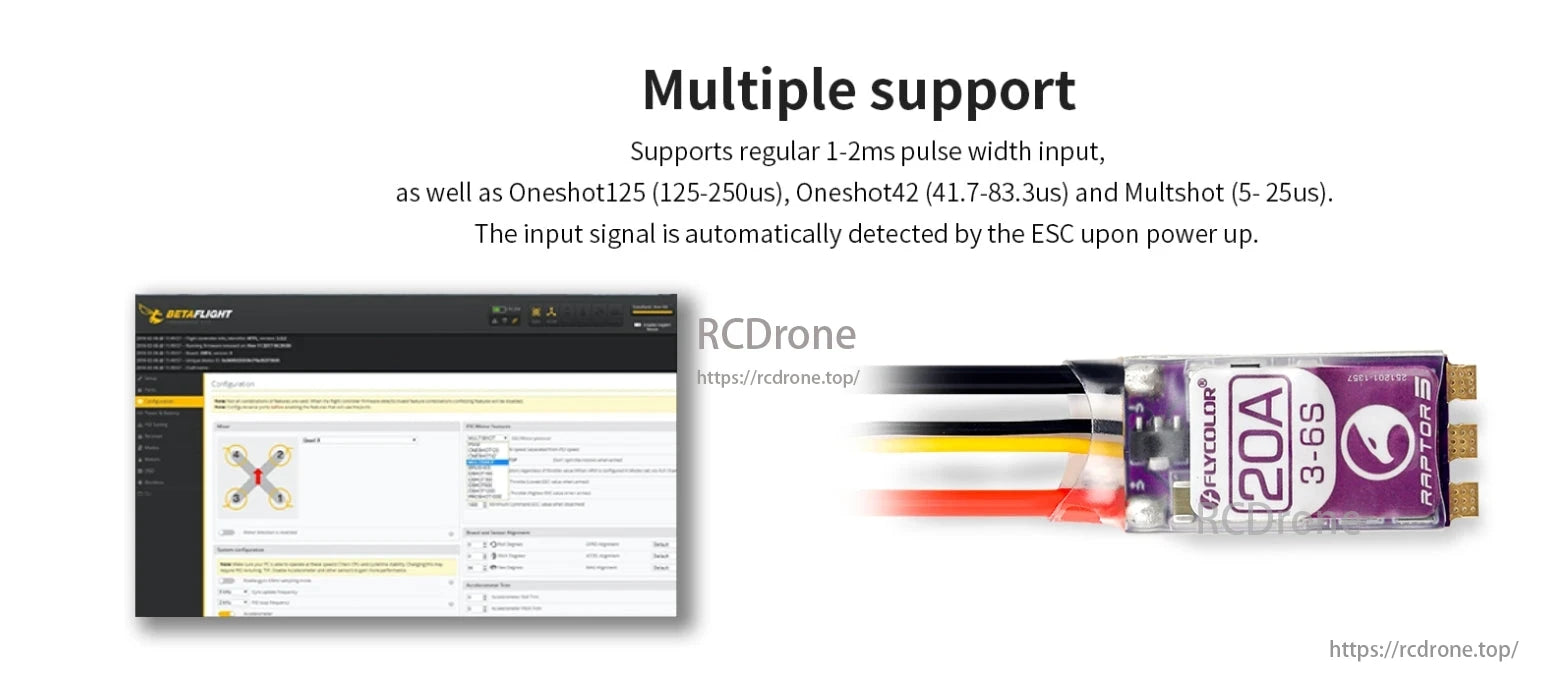

FlyColor Raptor5 FPV ESC supports 1-2ms pulse width, Oneshot125, Oneshot42, and Multishot. Automatic signal detection upon power up. 20A capacity, 3-6S battery support.

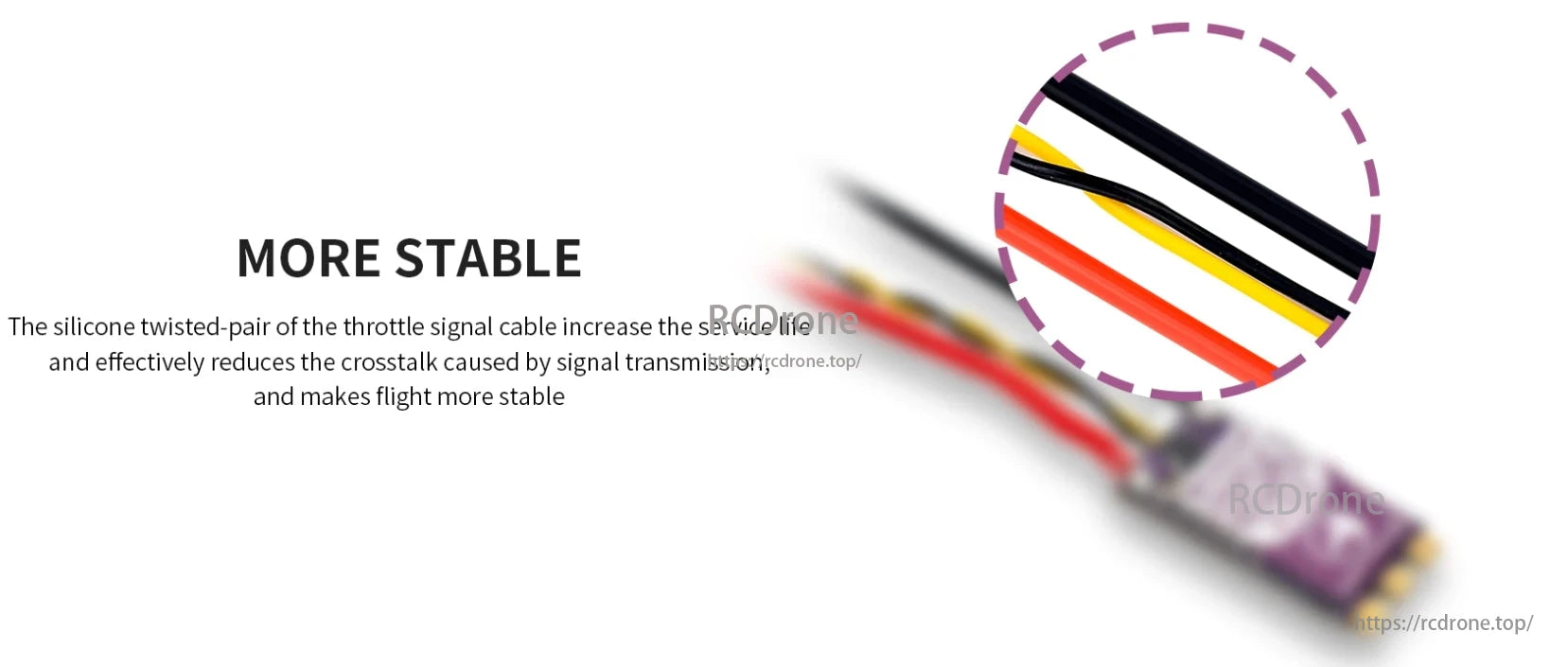

Silicone twisted-pair throttle signal cable enhances stability, reduces crosstalk.

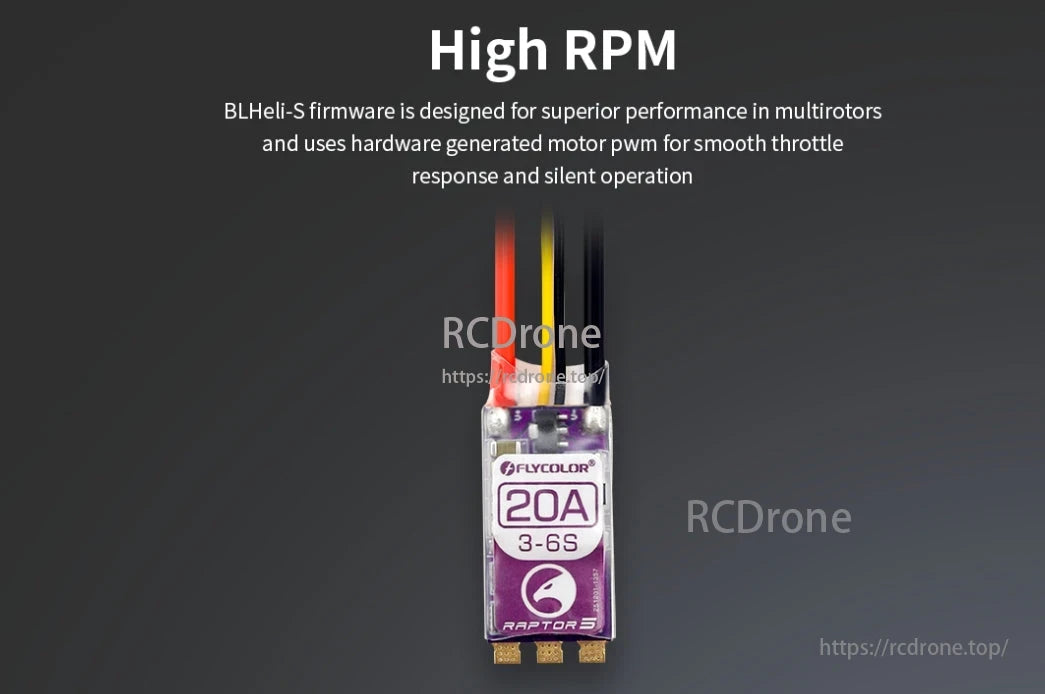

FlyColor Raptor5 FPV ESC, 20A, 3-6S. High RPM, BLHeli-S firmware for smooth throttle response and silent operation.

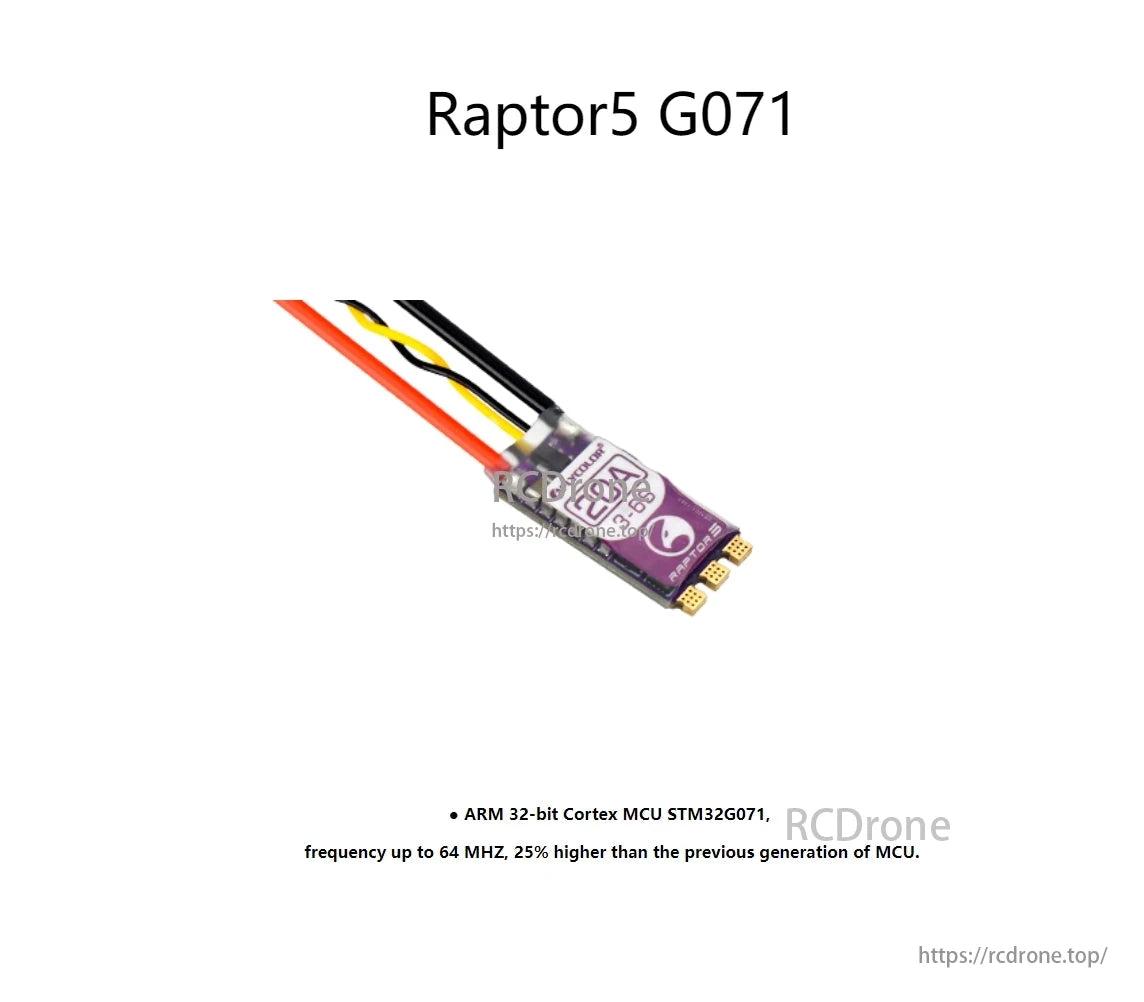

FlyColor Raptor5 FPV ESC uses high-performance ARM 32-bit Cortex MCU STM32G071, runs up to 64 MHz, 25% faster.

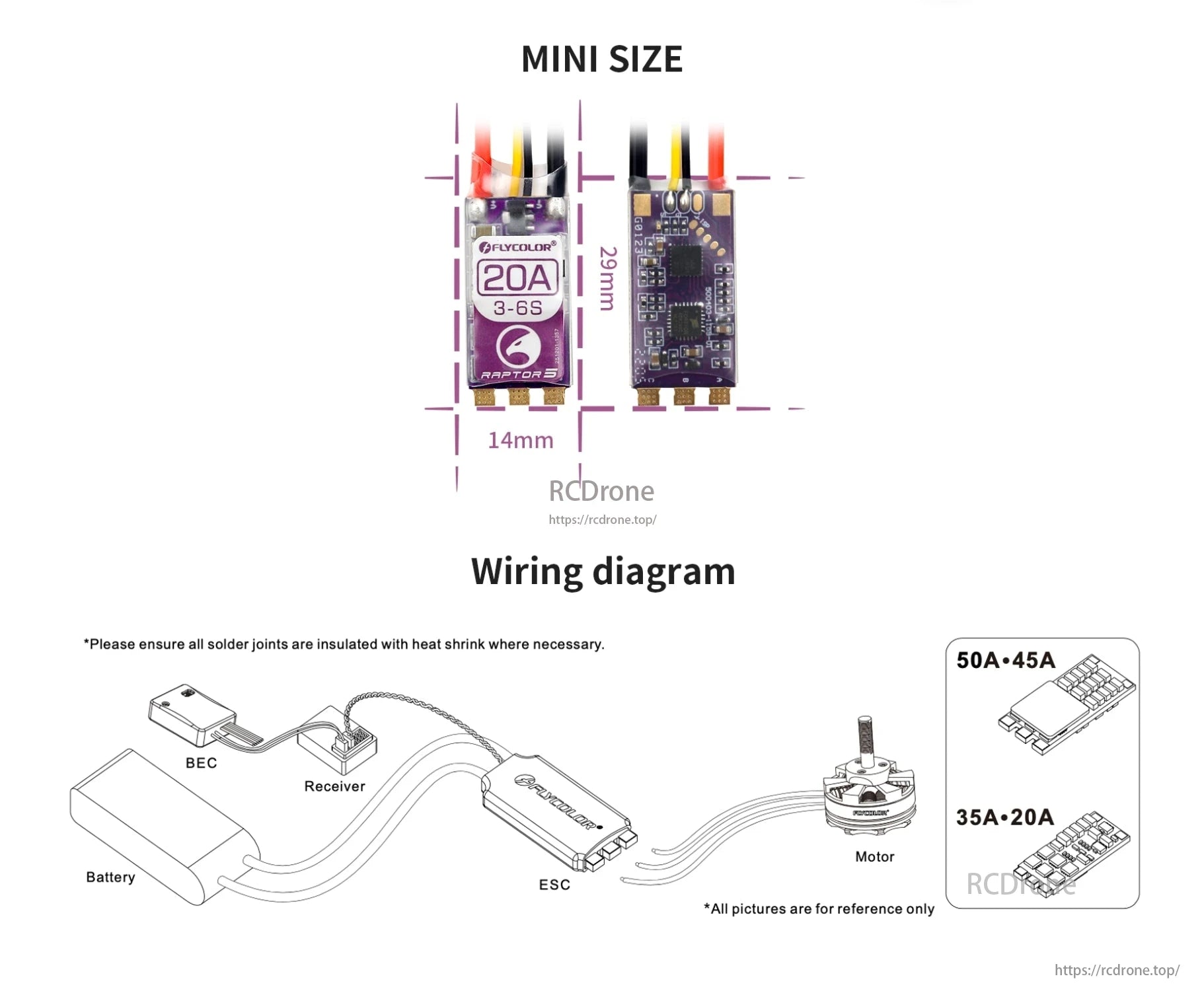

FlyColor Raptor5 FPV ESC, mini size 20A 3-6S, dimensions 14mm x 29mm. Wiring diagram includes battery, BEC, receiver, ESC, and motor connections.

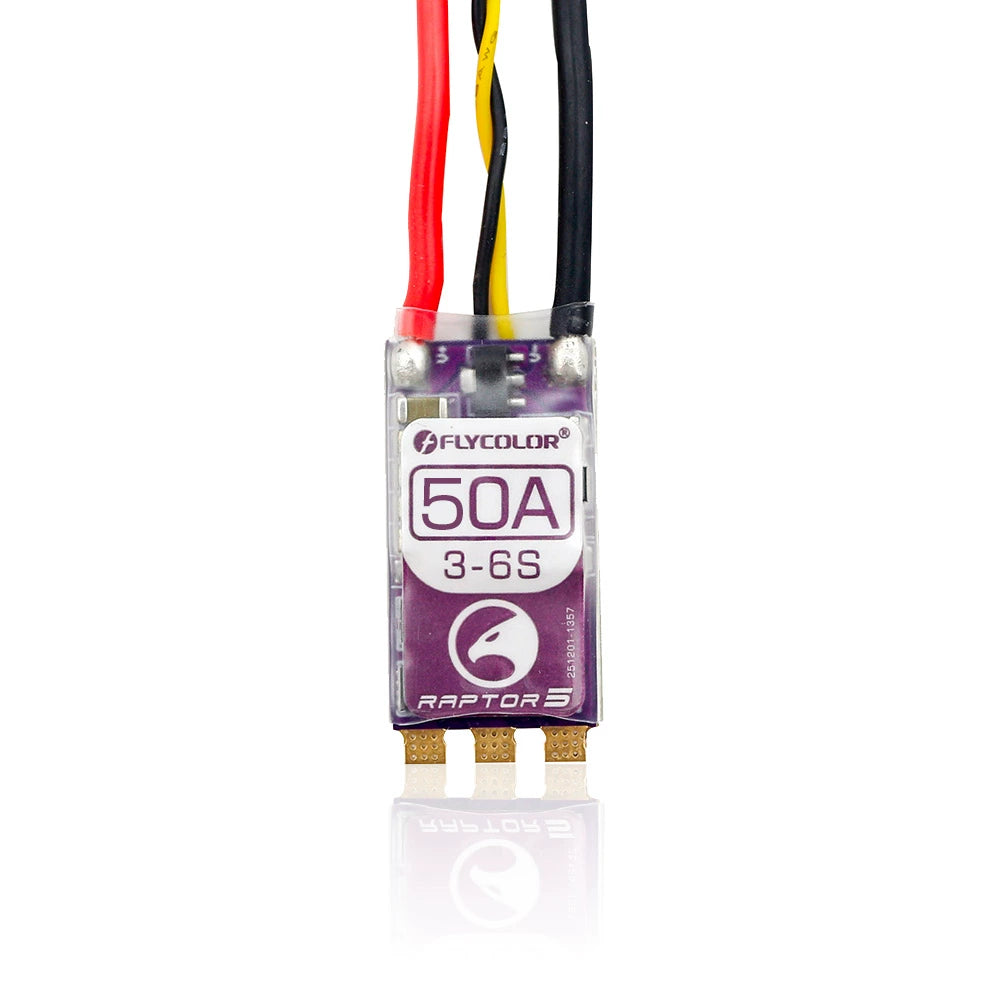

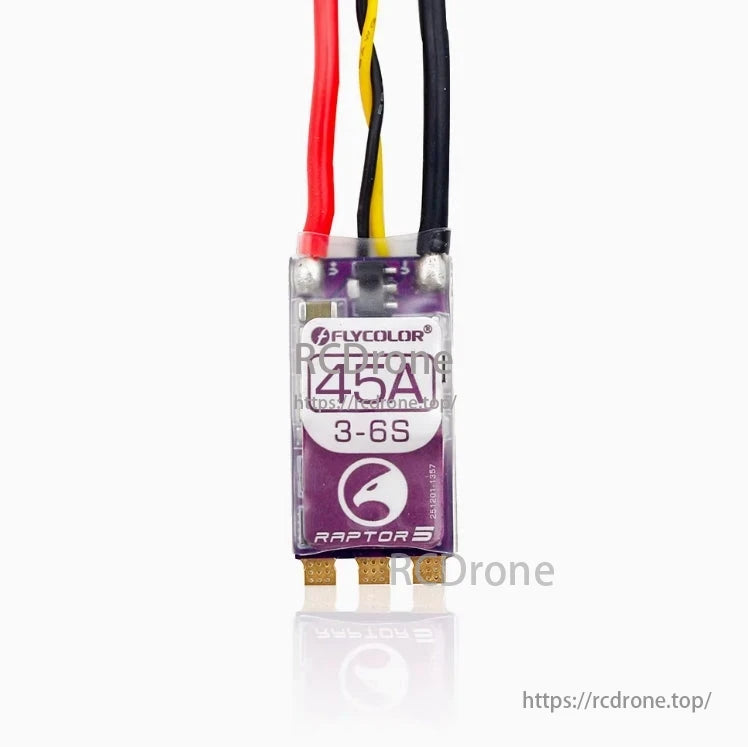

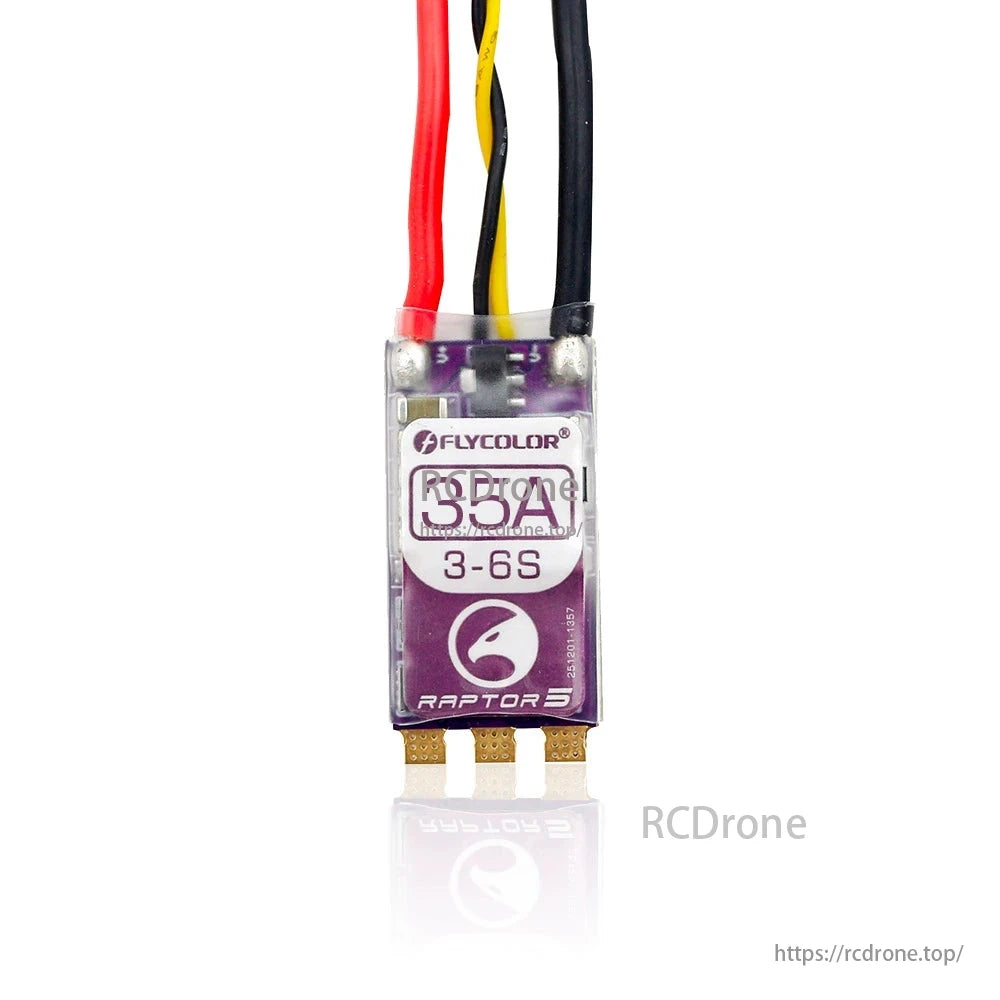

FlyColor Raptor5 FPV ESC models: 20A, 35A, 45A, 50A. Supports 3-6S battery, varying burst currents, weights, and sizes. Firmware: Flycolor_Raptor_5; typical application: FPV.
