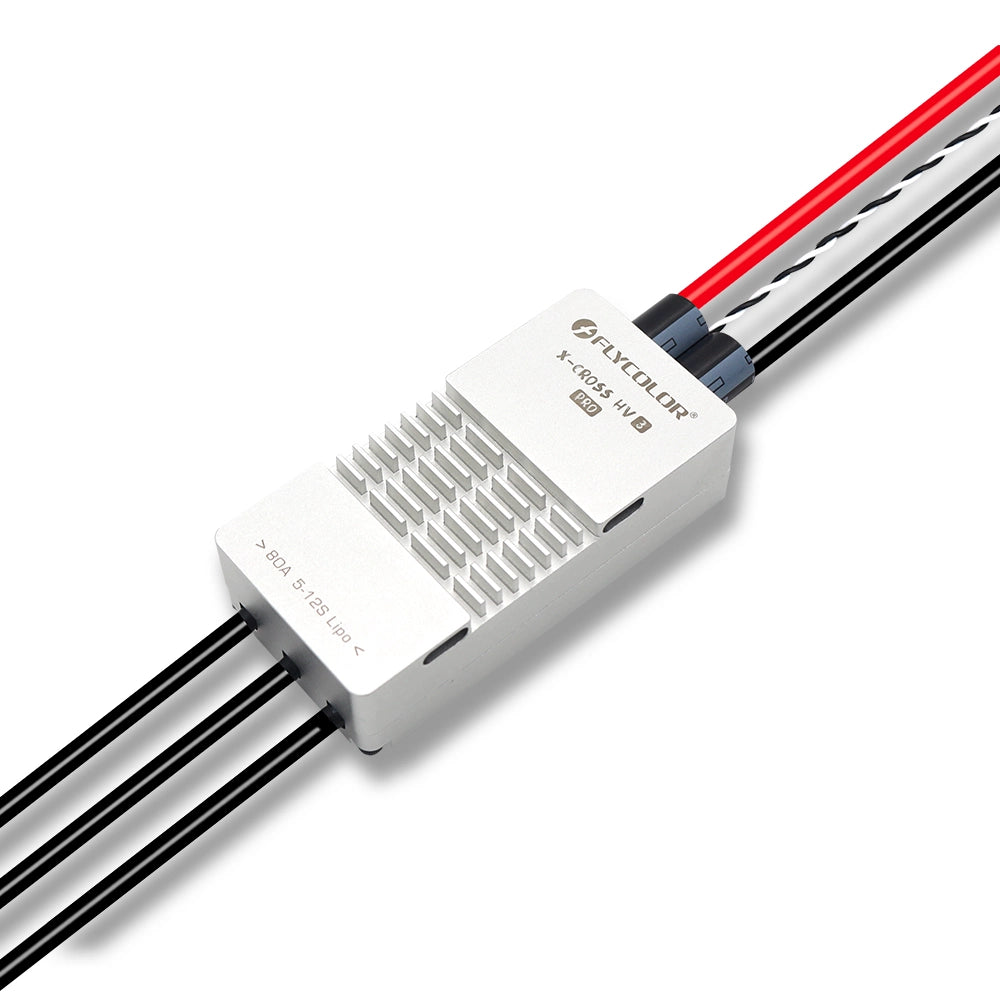

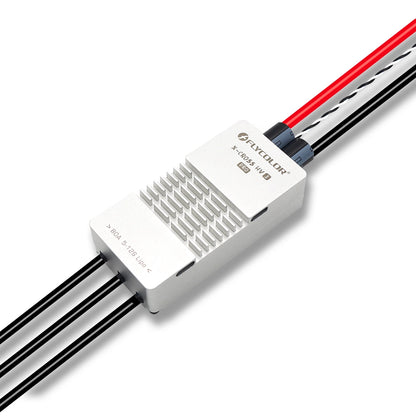

FlyColor X-Cross HV 3 Pro 80A 200A 5-12S ESC for Drone - DShot & BLHeli_32 Supported

Overview

The FlyColor X-Cross HV 3 Pro ESC series is designed for high-performance drones, offering 80A and 200A variants to suit different power requirements. Compatible with 5-12S LiPo batteries, these ESCs support advanced protocols including DShot and BLHeli-32 firmware. The robust all-aluminum casing ensures superior heat dissipation, while comprehensive protection features enhance safety and reliability in demanding flight environments.

• Input Voltage: 5–12S LiPo

• Continuous Current: 80A / 200A

• Burst Current (10s): 100A / 230A

• Firmware: FlyColor_X_Cross_HV3 (BLHeli-32)

• Material: Full aluminum shell for effective thermal management

• Application: Multi-rotor drones, FPV, and industrial UAVs

---

Key Features

✅ Multiple Protection Mechanisms

• Temperature protection

• Current protection

• Stall protection

• Low RPM power protection

• Low voltage protection

🧩 Independent Circuit Design

Control and power circuits use independent PCB layouts for improved reliability and better signal separation.

📶 Protocol Support

Supports standard 1–2ms PWM signals, as well as:

• Oneshot125 / Oneshot42 / Multishot

• DShot & ProShot series

Perfect for flight controllers that demand high-speed communication.

🌀 Superior Heat Dissipation

• Full aluminum heat sink enclosure

• Effectively reduces temperature rise under high loads

• Ensures long-term ESC durability in extreme conditions

---

Technical Specifications

📌 Model Comparison Table

---

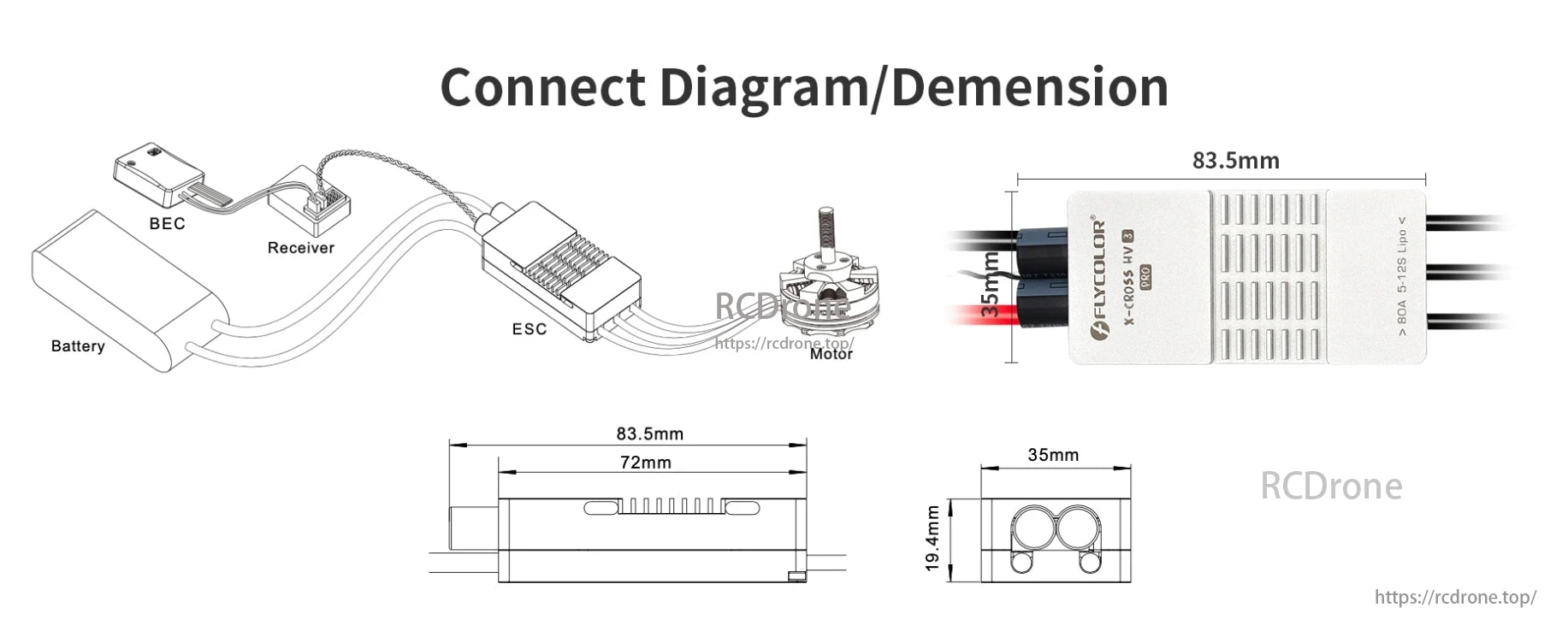

Wiring & Dimensions

The ESC includes standard connections for:

• Battery → BEC

• Receiver → ESC Signal

• ESC → Brushless Motor

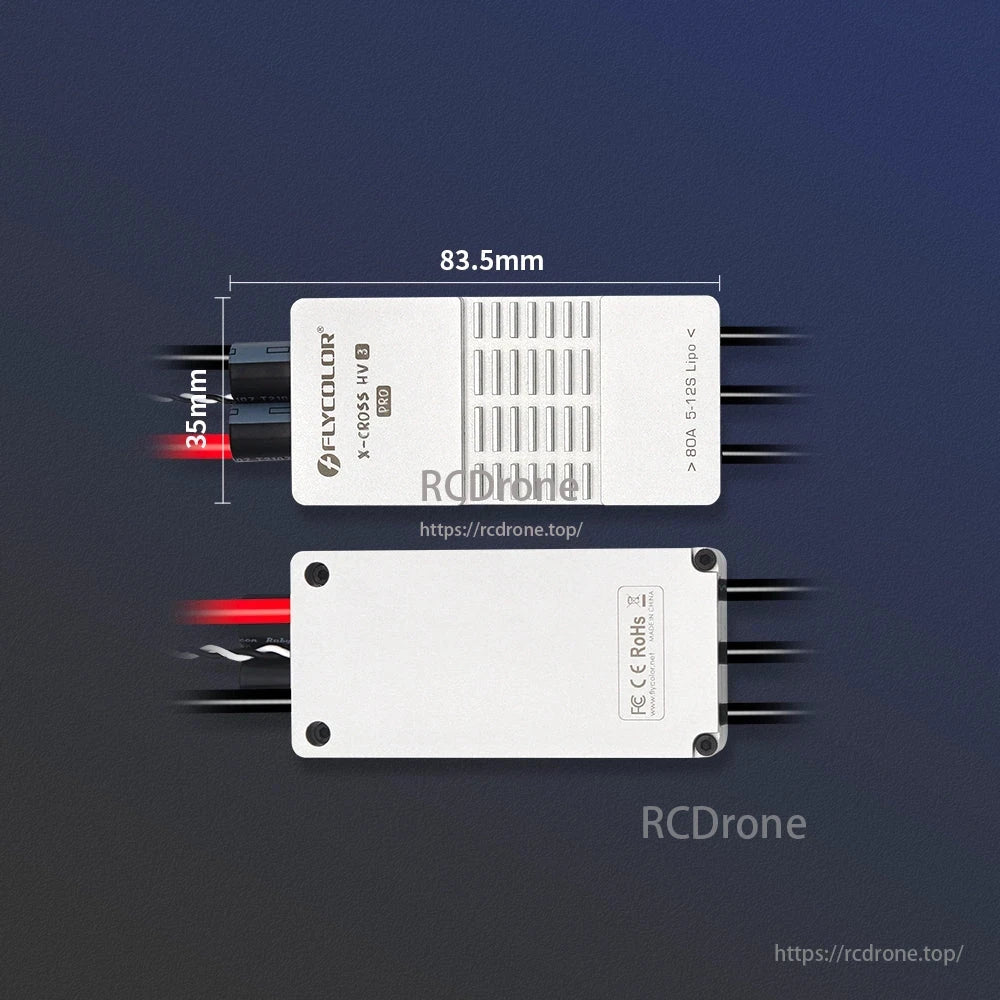

Detailed dimensions and layout are shown in the connection diagram to ensure accurate installation.

Details

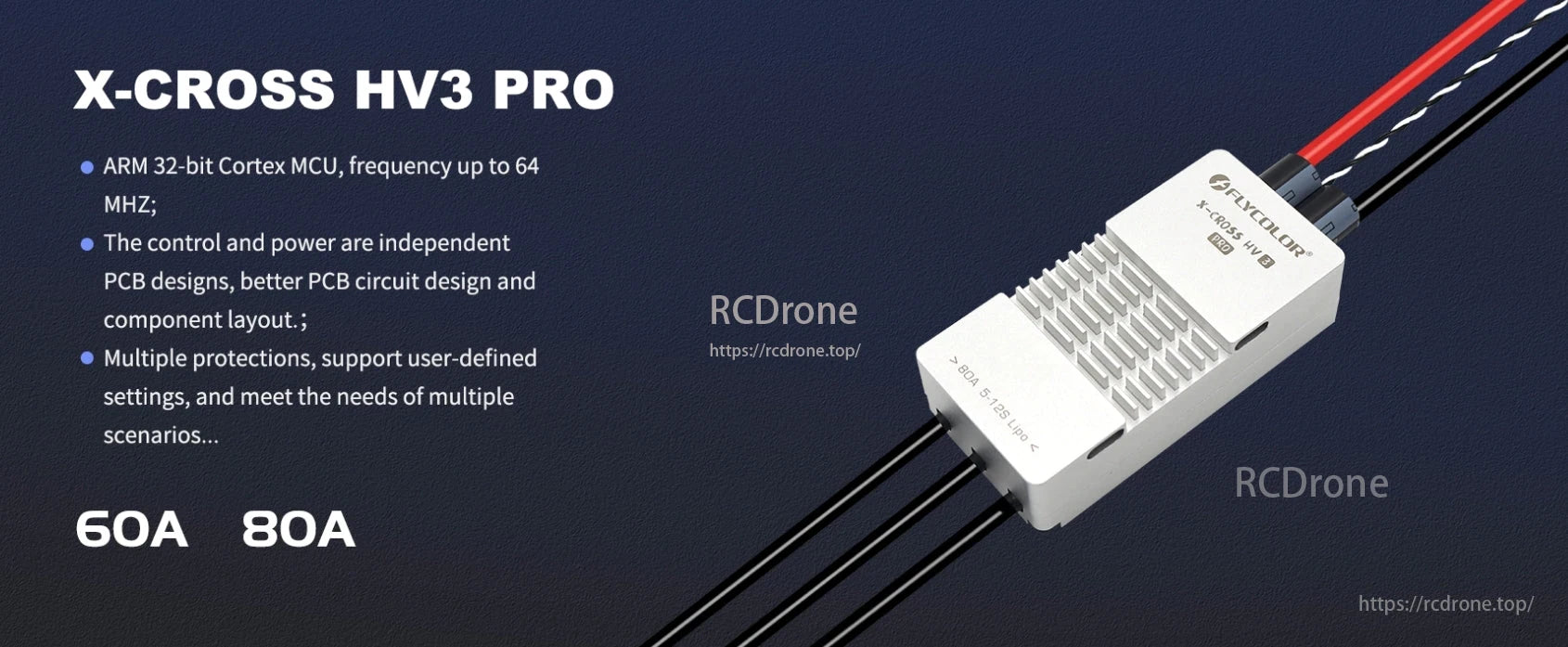

FlyColor X-Cross HV3 Pro ESC has ARM 32-bit MCU, up to 64 MHz, separate control and power PCBs, multiple protections, customizable settings, supports 60A and 80A.

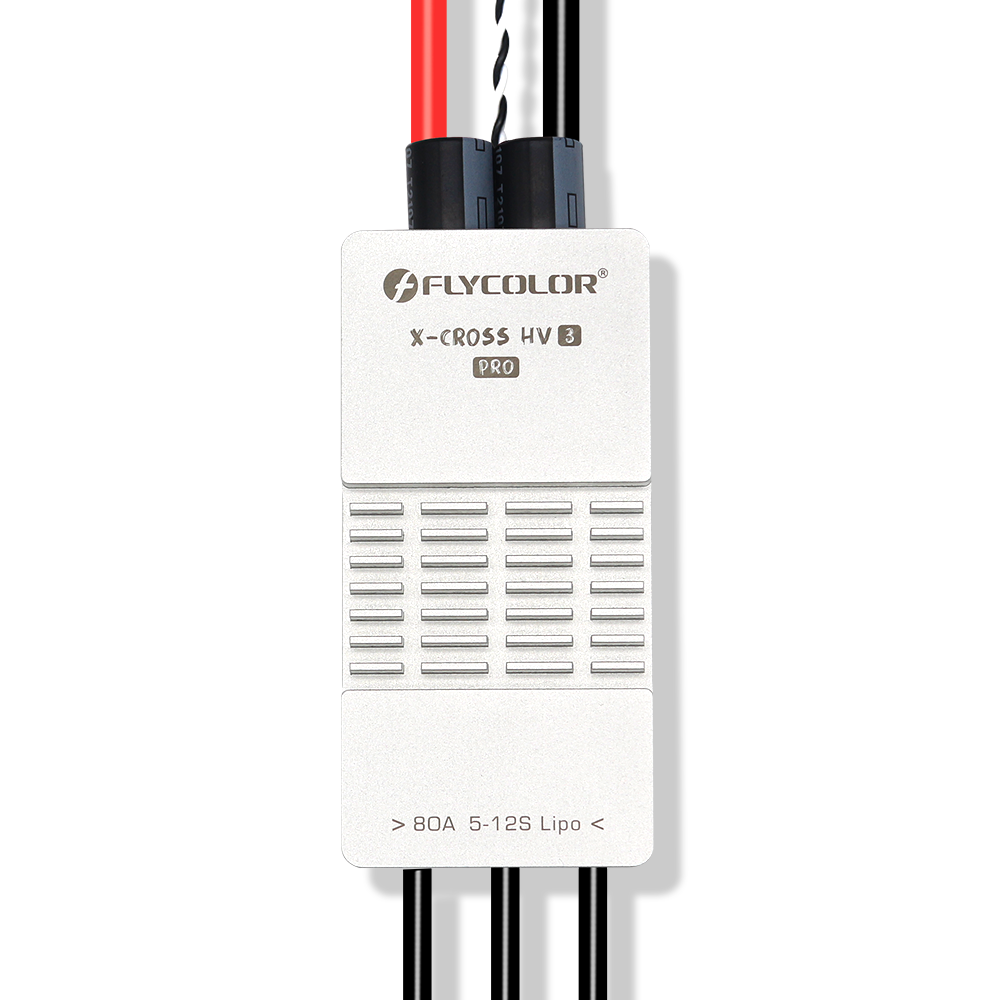

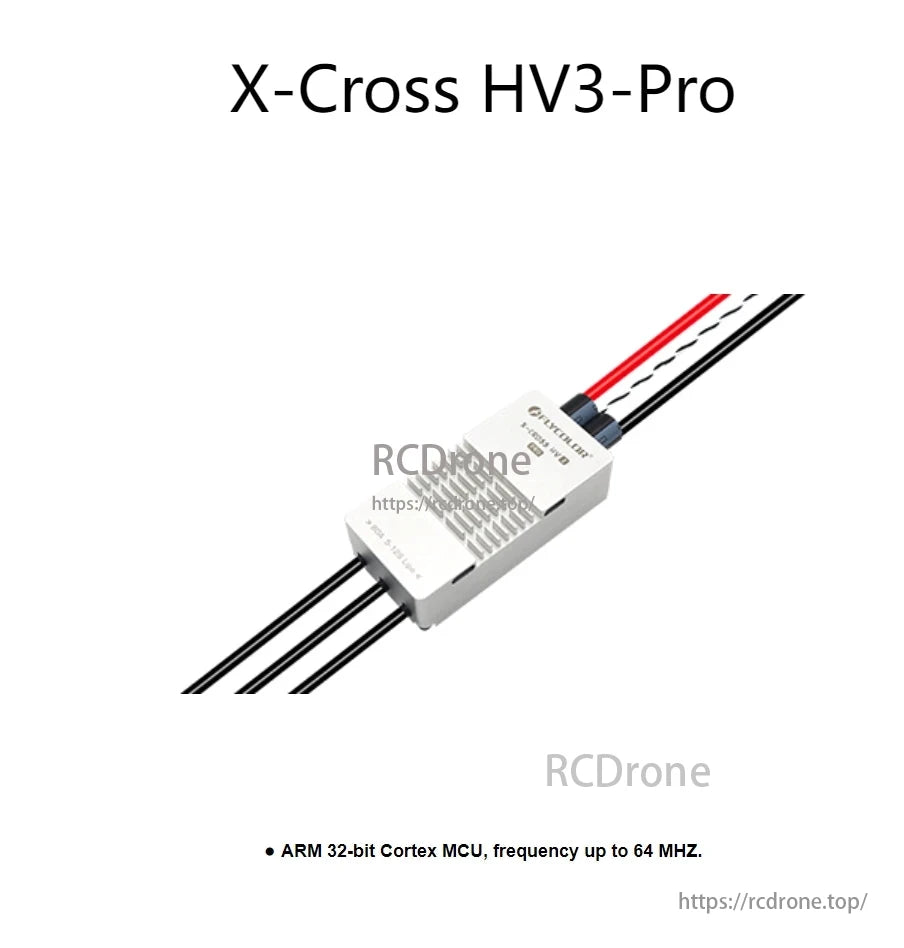

FlyColor X-Cross HV3-Pro ESC, 80A-200A, 5-12S. ARM 32-bit Cortex MCU, up to 64 MHz frequency. Compact design with cooling fins and multi-colored wires.

Multiple protection includes temperature, current, low RPM power, stall, and low voltage. Circuit design uses independent PCB for control and power, improving layout. Supports 1-2ms pulse width, OneShot125, OneShot42, Multishot, Dshot, and ProShot signals. All-aluminum covers enhance heat dissipation, slowing temperature rise. This ESC delivers strong performance with advanced safety and connectivity.

FlyColor X-Cross HV 3 Pro ESC offers multiple protections: temperature, current, low RPM power, stall, and low voltage. Supports 5-12S Lipo.

FlyColor X-Cross HV 3 Pro ESC supports multiple protocols, including regular 1-2ms pulse width, Oneshot, Multishot, Dshot, and Proshot signals.

FlyColor X-Cross HV 3 Pro ESC with aluminum heat sinks for efficient cooling.

FlyColor X-Cross HV 3 Pro ESC connects battery, BEC, receiver, motor.
