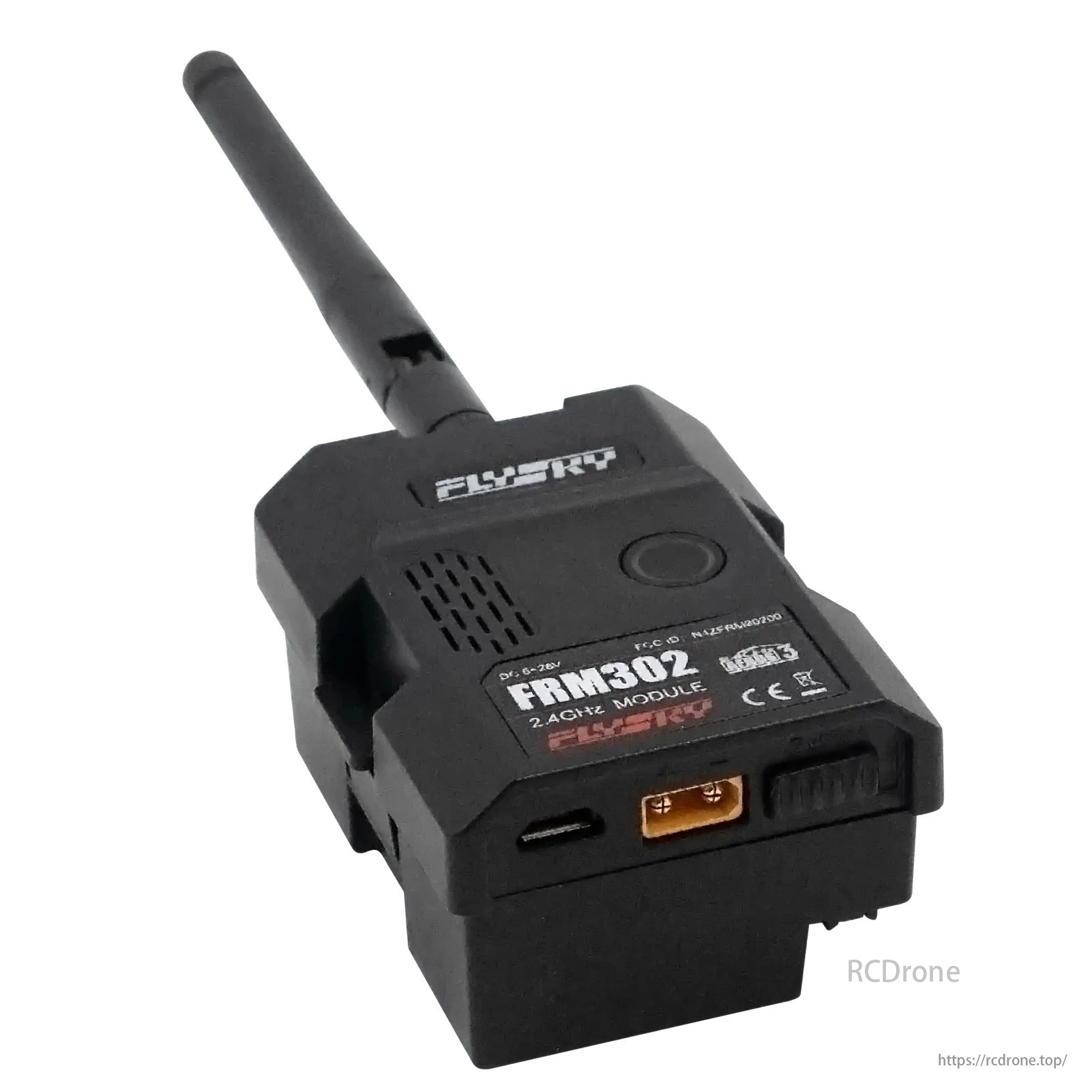

Flysky FRM302 2.4GHz AFHDS 3 Transmitter Module PPM/UART Data Port for Flysky PL18 FS-TH9X NV14 Transmitter RC FPV Racing Drone

Flysky FRM302 2.4GHz AFHDS 3 Transmitter Module PPM/UART Data Port for Flysky PL18 FS-TH9X NV14 Transmitter RC FPV Racing Drone

Flysky

Regular price $99.72 USD
Regular price $129.63 USD Sale price $99.72 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

107 orders in last 30 days

Default Title

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

Flysky FRM302  SPECIFICATIONS

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Other

Size: 64.2 * 48.5 * 33mm

For Vehicle Type: Airplanes

Certification: NONE

Upgrade Parts/Accessories: Other

Remote Control Peripherals/Devices: Other

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: for FPV Racing Drone

Four-wheel Drive Attributes: Assemblage

http://kfdown.a.aliimg.com/kf/HTB1gqJ1IXXXXXczXXXXq6xXFXXXB/224531527/HTB1gqJ1IXXXXXczXXXXq6xXFXXXB.jpg

The FRM302 is a reliable, low latency, long-range 2.4GHz RF module with a range of up to 50km(use with the flysky maple antenna) and designed for UAV applications.

Features:
- The FRM302 is Flysky's newest generation of 2.4GHz RF modules for UAV, aerial photography, and competition. With more power than ever, the FRM302 has a range of up to 50km(use with the flysky maple antenna).
- High gain RF components, coupled with Flysky's latest generation of an intelligent wireless protocol, AFHDS3, which has a built-in chip with higher sensitivity and a higher gain, enable the module to cut through interference easily while maintaining high transmission rates, especially when compared to 900MHz counterparts.
- The FRM302 achieves high-speed data transmission (2.4GHz), low latency (<10ms, UART), precise response even with weak signal strength, and active evasion of co-channel interference in long-distance and multi-obstacle use cases.
- Supports a wide range of input voltages (5-28V) and different battery connectors; RGB LED indicator ring around the button (Blue, Yellow, Green, Red); Change FRM302 settings with the touch of a button.
- Built-in fan, automatic cooling adjustment function, if the chip temperature rise above 45℃ the built-in fan will start, it will stop again once the temperature drops below 45℃.
- The FTr16s FPV receiver, the FTr10, and all other AFHDS3 receivers are compatible. Support PPM and serial communication with failsafe also available in PPM mode.

Specification:
Product Model: FRM302
Built for: PL18, FS-TH9X, NV14
Wireless frequency: 2.4GHz
Transmission power: <30dBm
Wireless protocol: AFHDS 3
Range: > 35km
Delay: <10ms (UART mode)
Antenna type: external single antenna
Power: 5-28V
Data port: PPM / UART
Temperature range: -10 ℃ ~+ 60 ℃
Humidity range: 20% -95%
Online Update: Yes
Size: 64.2 * 48.5 * 33mm
Weight: 73.3g

Package Information:
Package size: 141*98*40mm
Package Weight: 130g
Package list: 1 x FRM302 Module

Notice:
* DISCLAIMER: THE FACTORY PRESET TRANSMISSION POWER OF THIS PRODUCT IS < 20DBM. PLEASE ADJUST IT IN ACCORDANCE YOUR LOCAL LAWS. THE CONSEQUENCES OF DAMAGE CAUSED BY IMPROPER ADJUSTMENTS SHALL BE BORNE BY THE USER.
* THE ENVIRONMENT MAY CAUSE VARIATIONS IN PERFORMANCE.



http://kfdown.a.aliimg.com/kf/HTB1ed4GIXXXXXadXVXXq6xXFXXXT/224531527/HTB1ed4GIXXXXXadXVXXq6xXFXXXT.jpg
