FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)

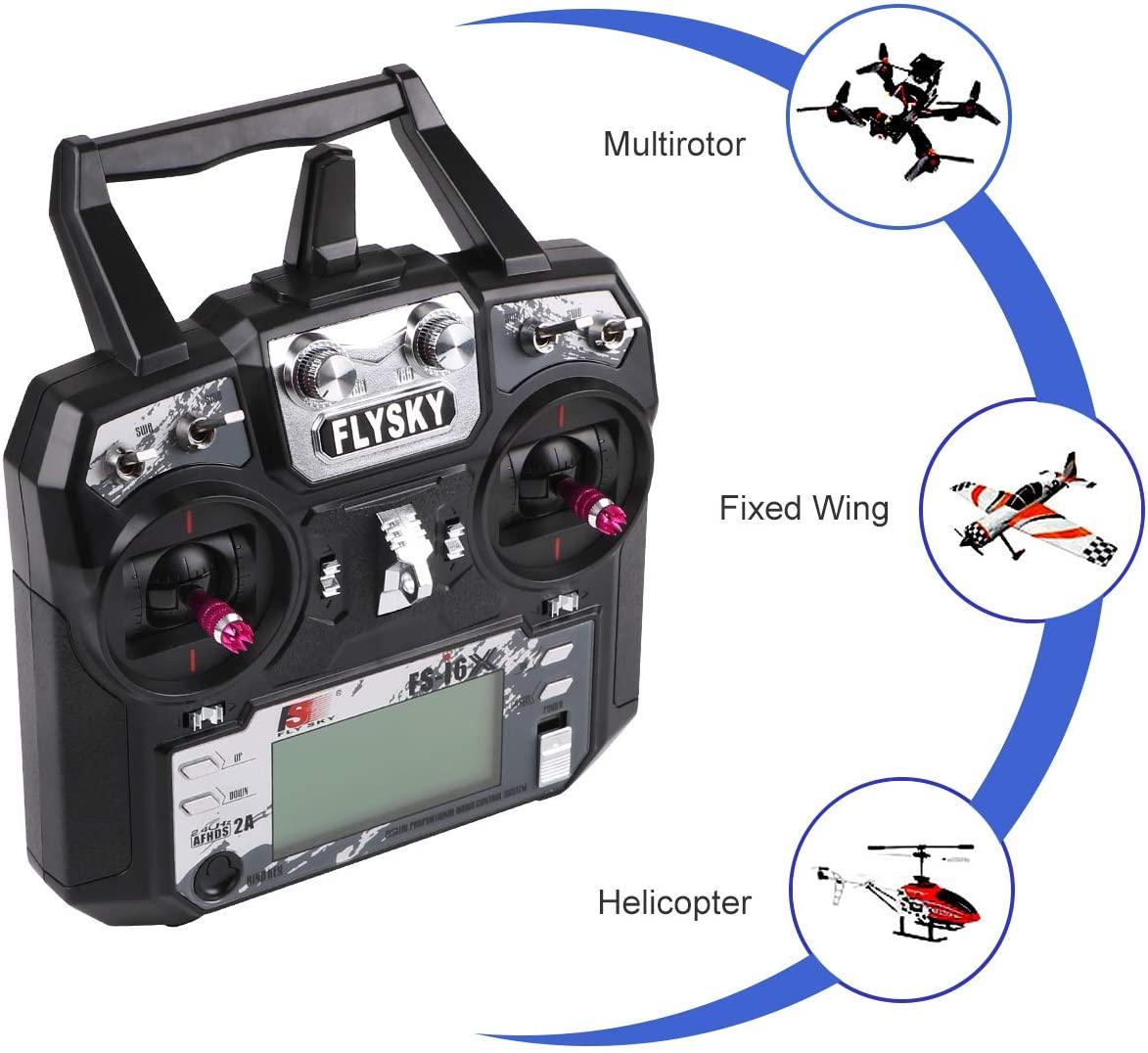

Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: andlt; 20dBm
RF Channel: 135
Bandwidth: 500KHz

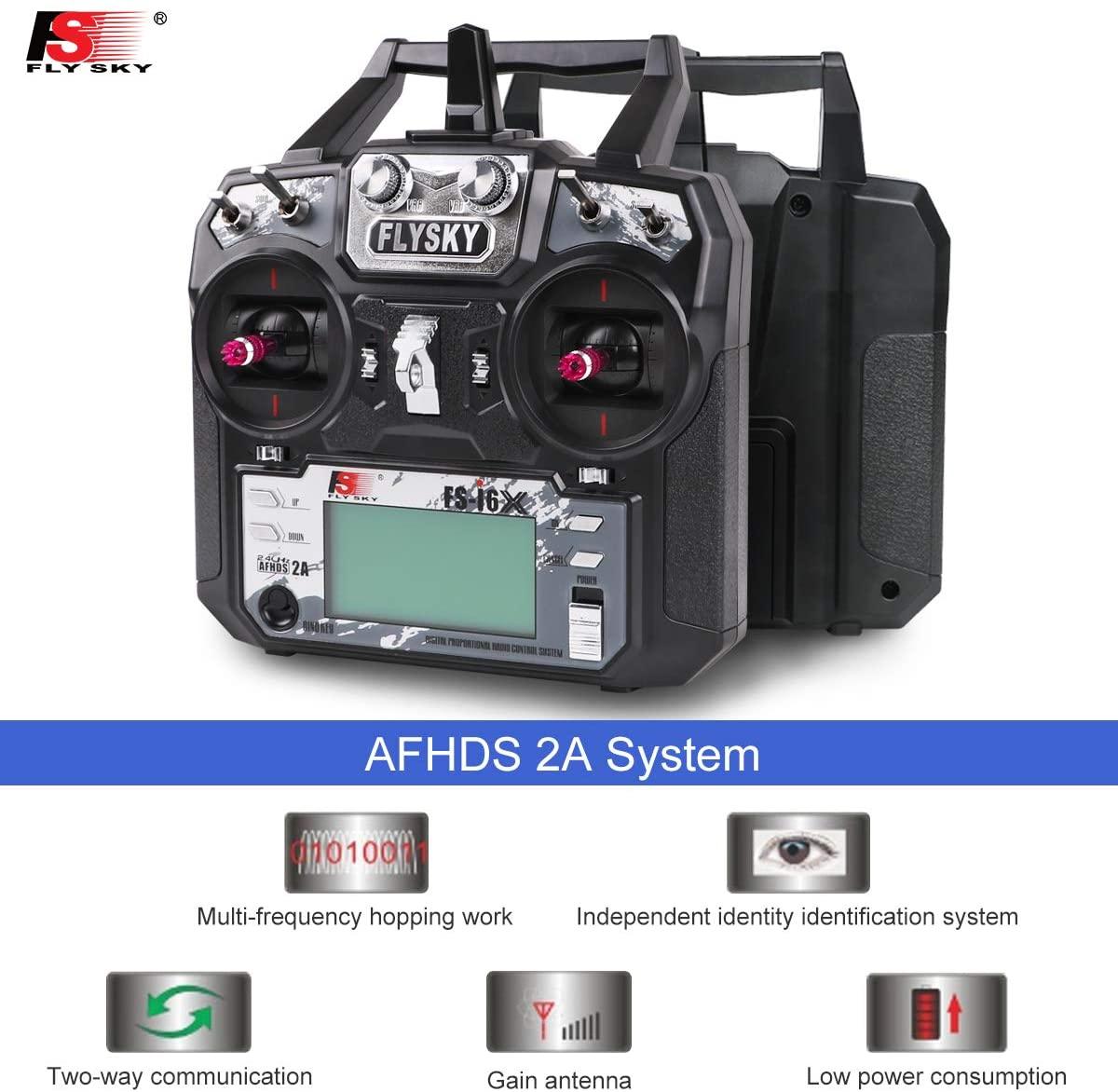

2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: andlt; 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

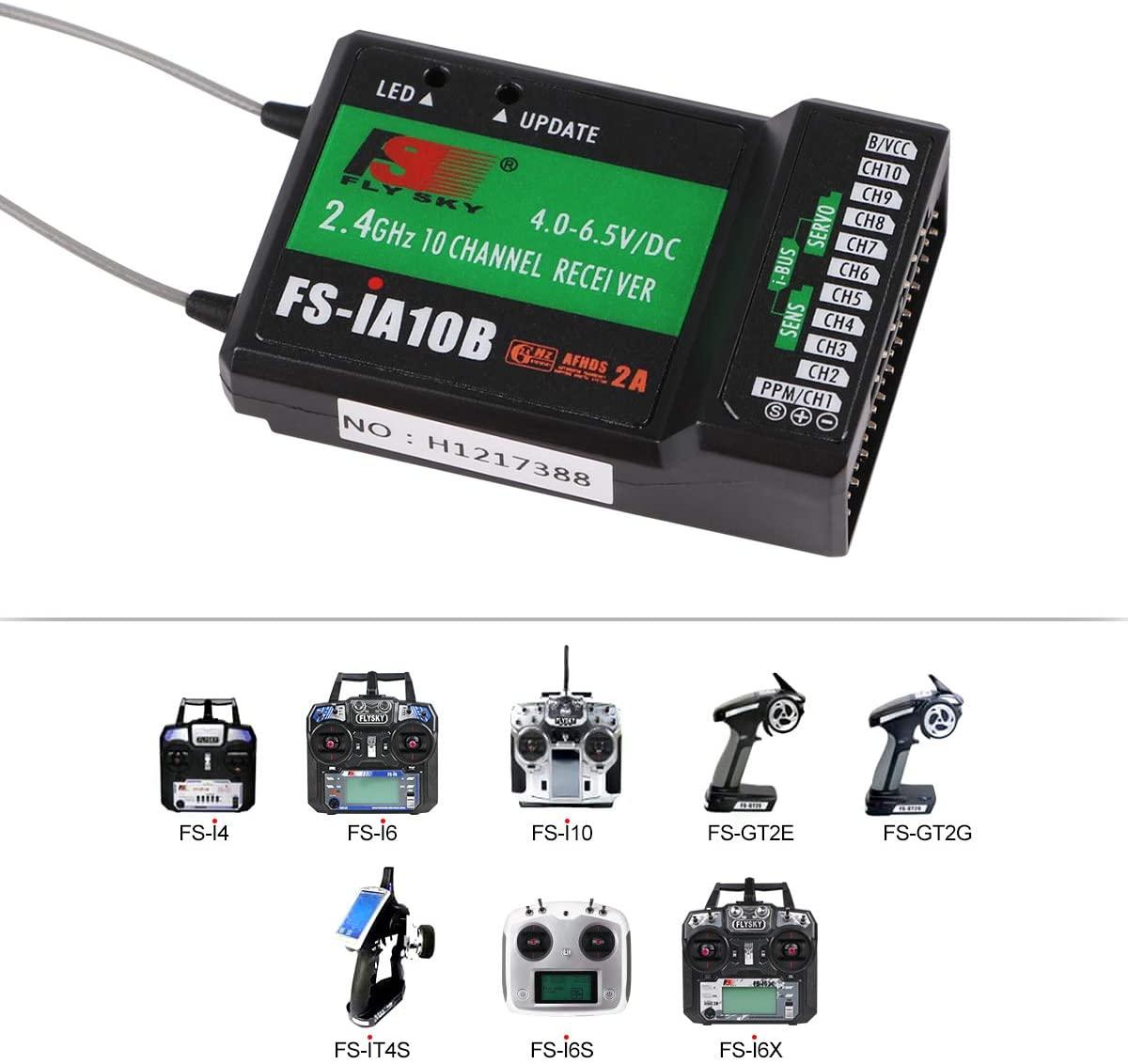

FS-iA10B Receiver Description:
Item Name: FS-iA10B
Channel: 10
Frequency Range: 2.4055--2.475GHZ
Band Width Number: 140
Transmitting Power: le; 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 19.3g
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Package Including
1 * Flysky i6X transmitter
1 * Flysky iA10B receiver

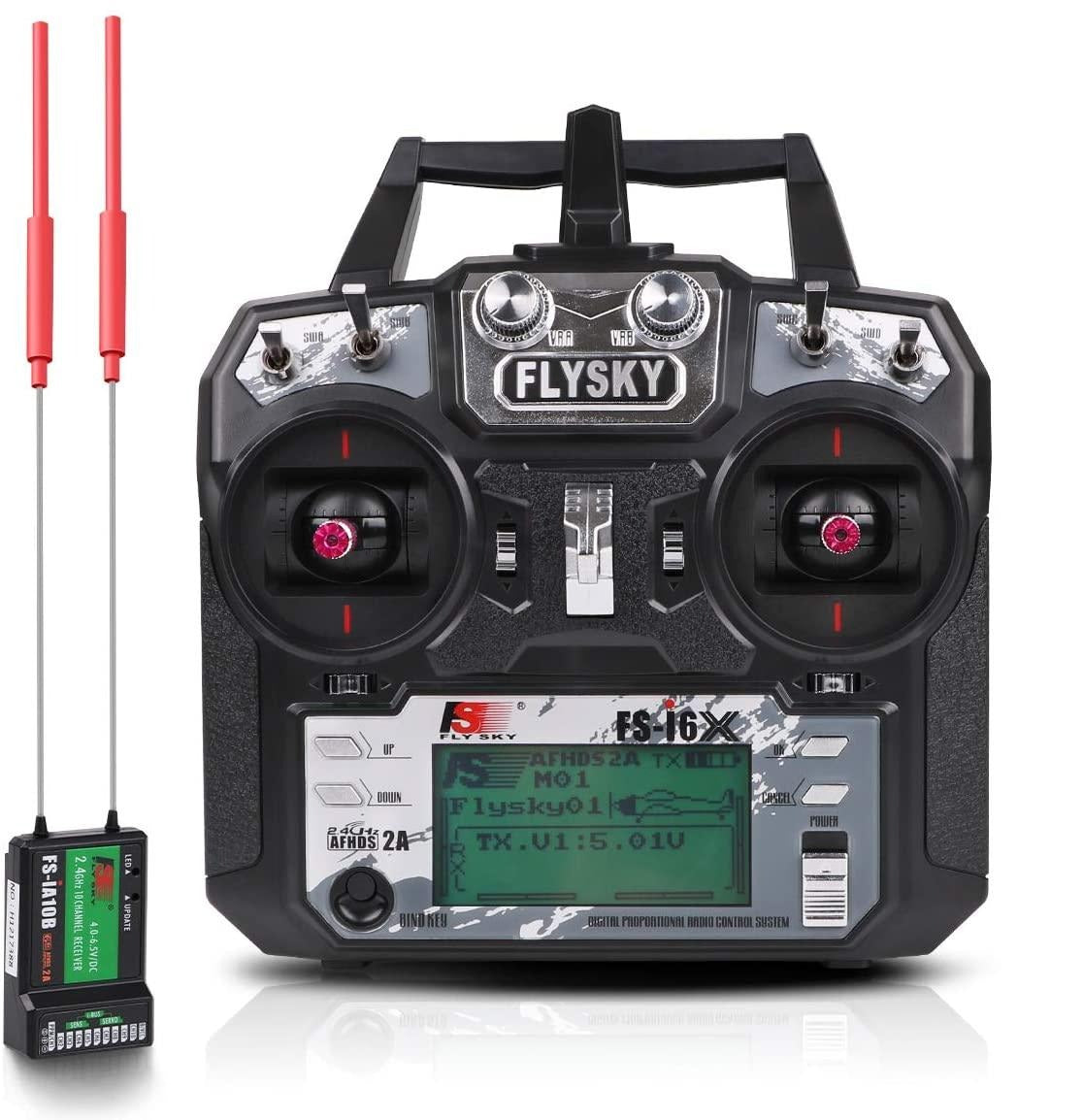

Flysky FS-i6X 10CH Radio Transmitter Details

Mode-2 (With iA6B) VGA Hp Flyskyo1 ' (7is24 TX U1:5.010 1 8 DgItIL FOFOnILQNAL FnuIU [FONIAOL USIEN 3 [beubop]

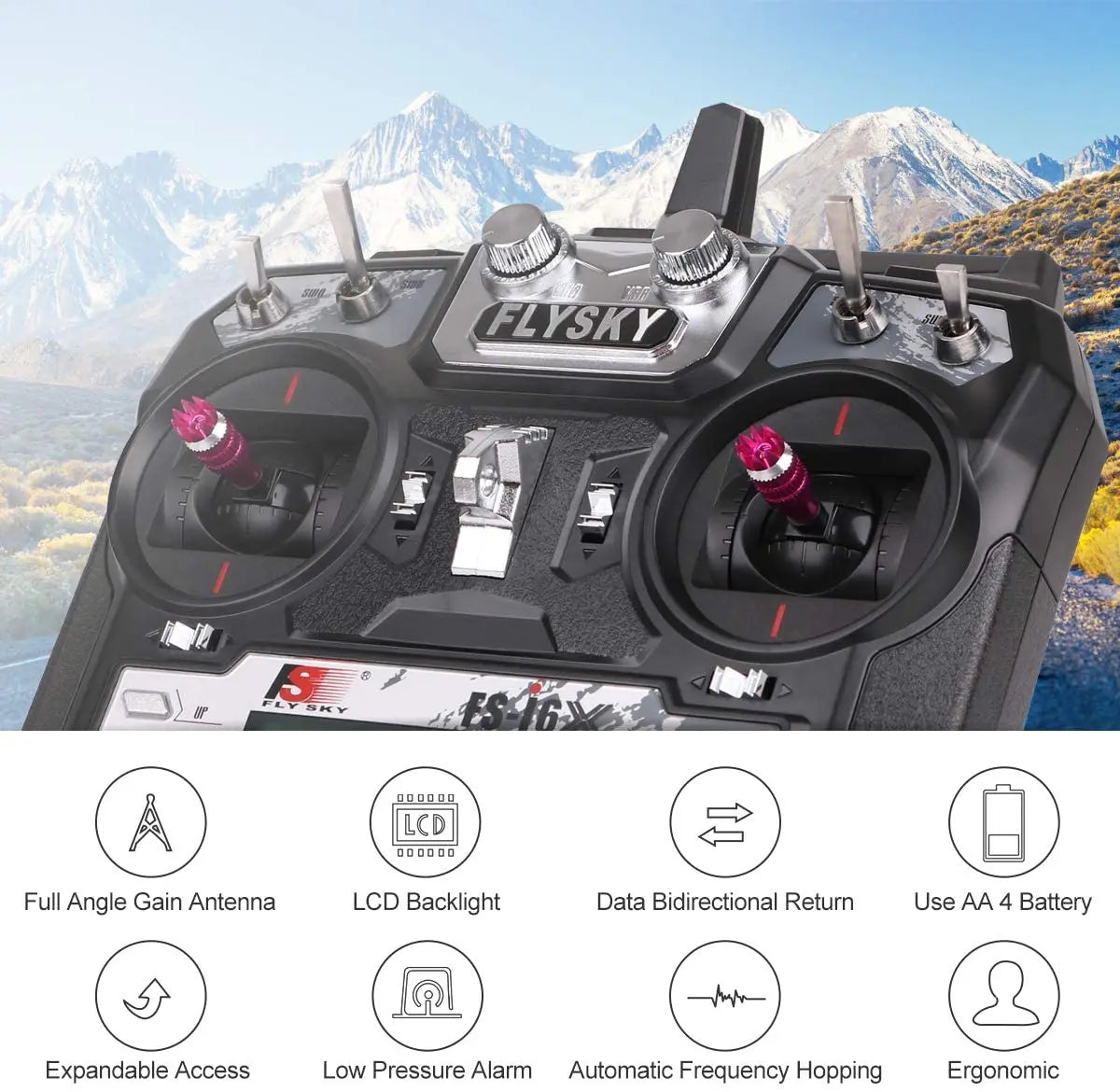

GLYSKY @@@Q @ Full Angle Gain Antenna LCD Backlight Data Bidirectional Return Use AA 4 Battery Expandable Access Low Pressure Alarm Automatic Frequency Hopping Ergonomic .

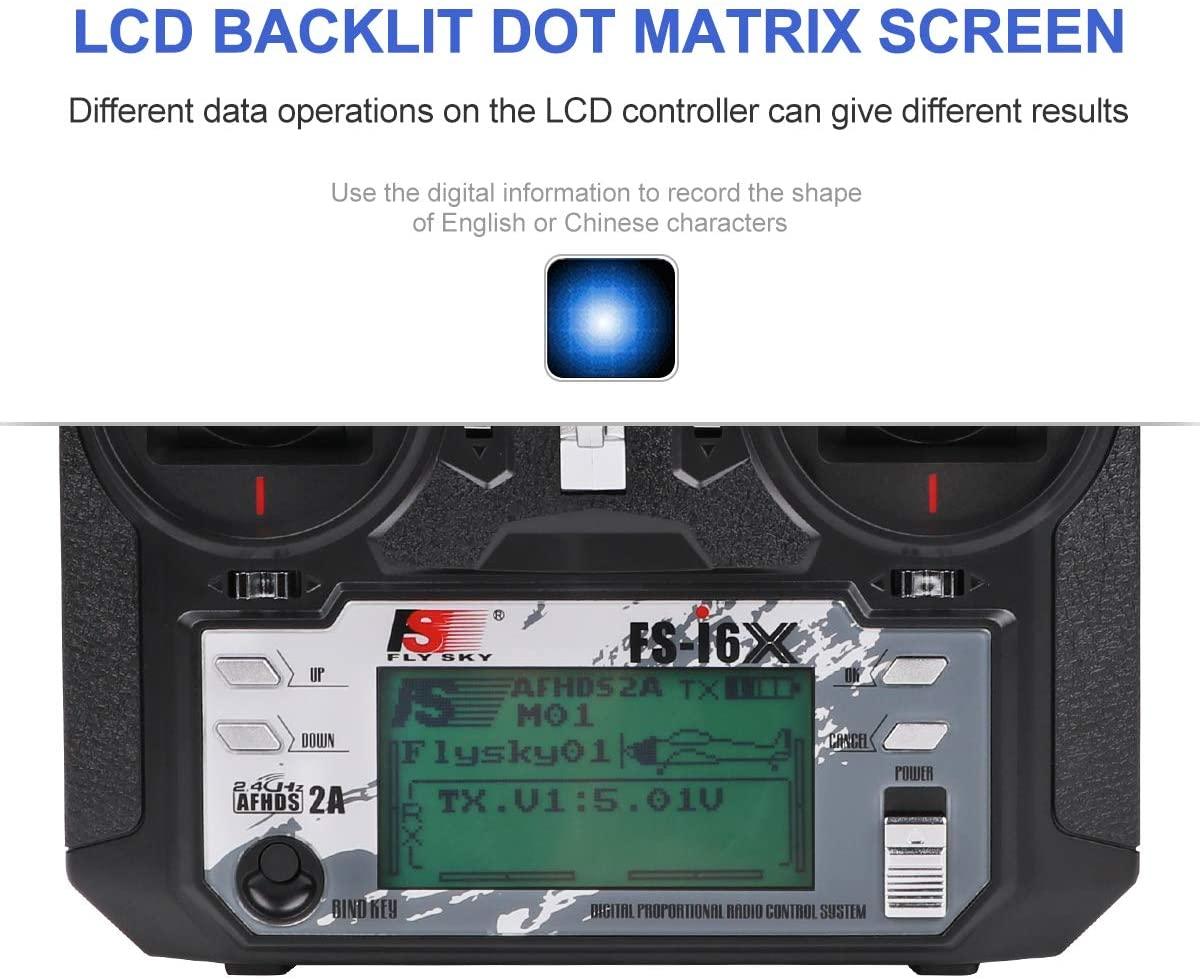

LCD BACKLIT DOT MATRIX SCREEN Different data operations on the LCD controller can give different results .

CH9 2 CH8 10 CH7 CH6 CHS CHa 2a [ VER FS-IA1OB 8 ICH3 AchdS CH2 [PPWICH No H1217388]

Product Specifications: Channels (CH): 10; Mode: AFHDS 2A; Compatible with Flysky FS-IA10B Receiver; Frequency: 2.4GHz; Part Number: H1217388.

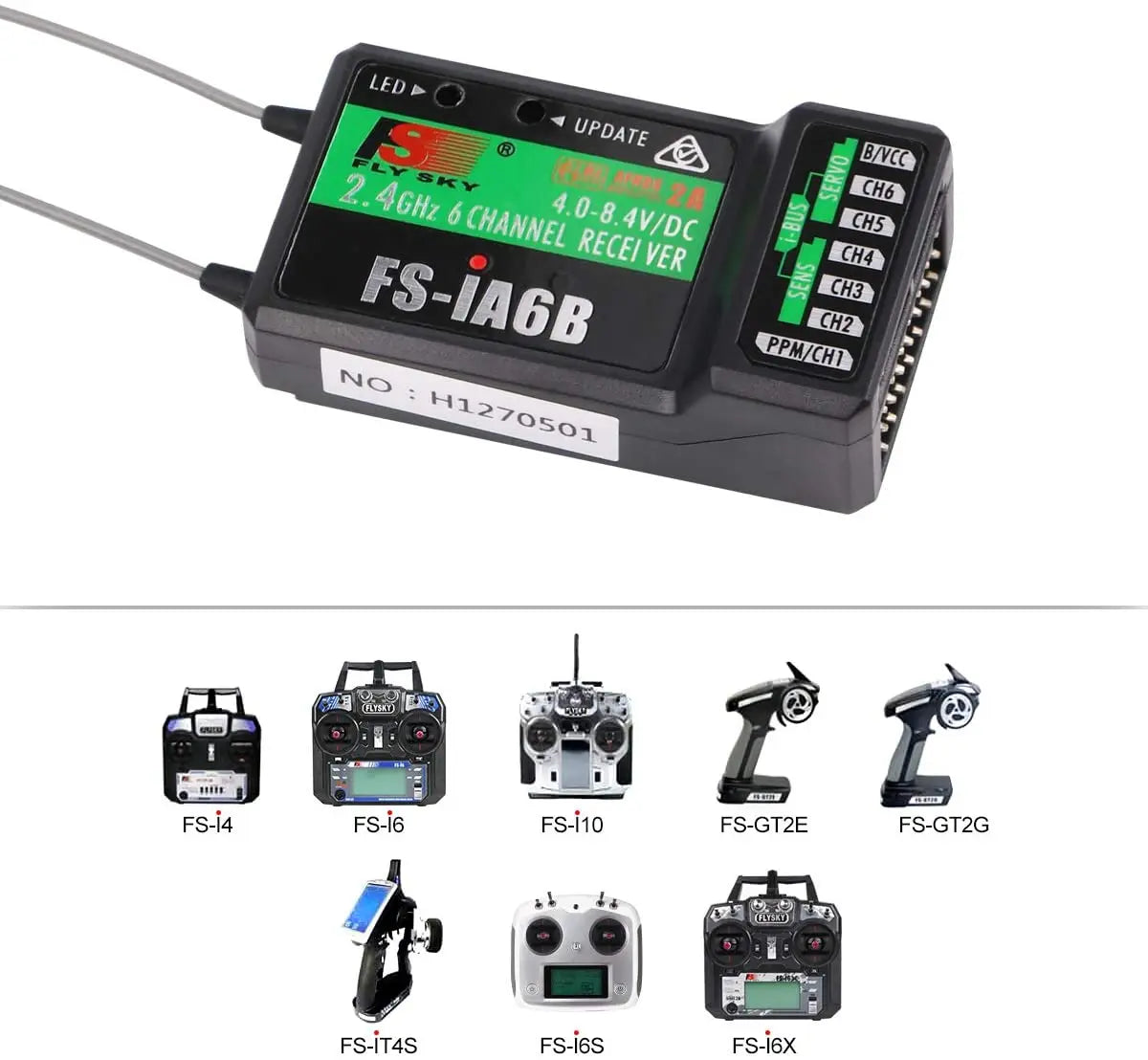

CHB (GLYEKD) FS-j4 FS i6 FS-10 fs-i10 f-iT4S FS-6s FS6x LED UPDATE BNG LcH6 AGHz_ 4.0-8. 2 ChANNEL AV/dc lcH5 RECEIVER ChA FSIA6B 9 CH2 PPWCH No H1270501
