Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Remote Controller with FS-iA6B Receiver for RC Models
Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Remote Controller with FS-iA6B Receiver for RC Models
Flysky
Couldn't load pickup availability
Option Guide (Model)
- Mode2 Left Throttle: Throttle stick on left, USA Hand
- Mode1 Right Throttle: Throttle stick on right, Japanese Hand
Overview

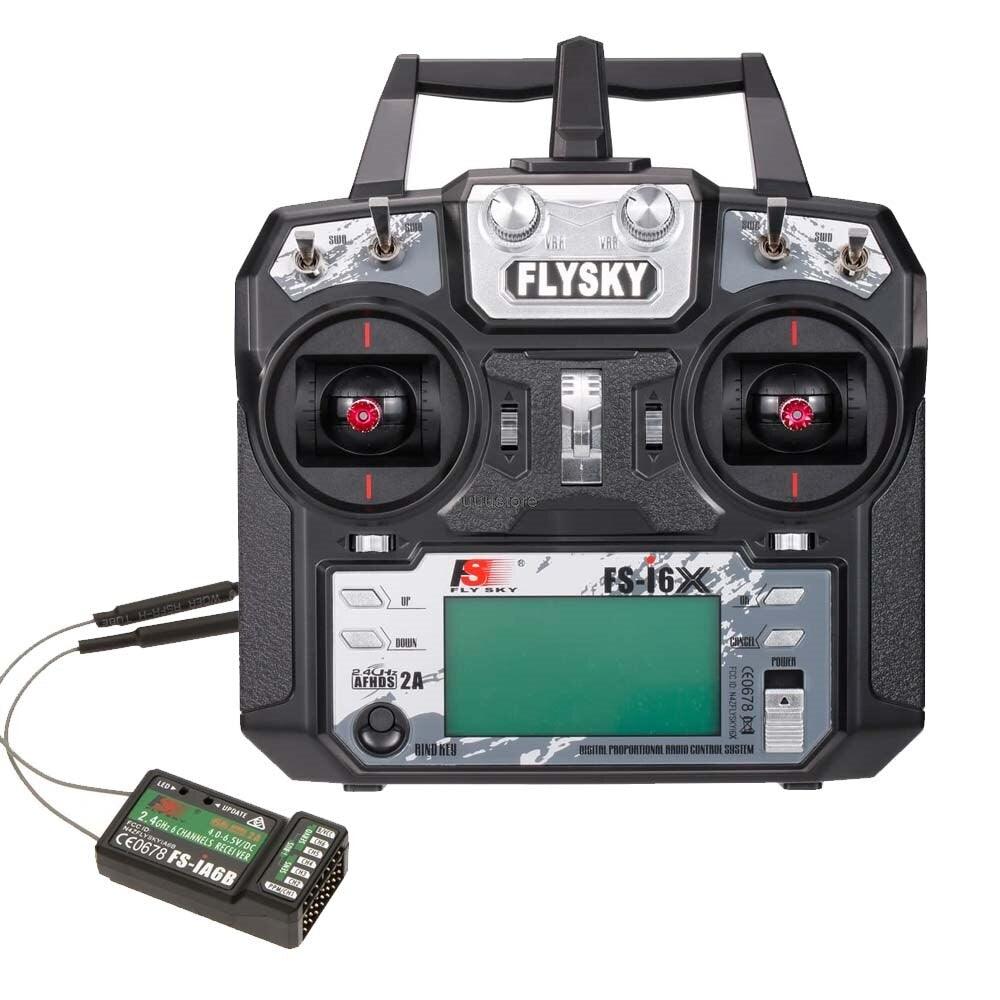

The Flysky FS-i6X Remote Controller with FS-iA6B receiver is a 2.4GHz, 6-channel AFHDS 2A digital proportional computerized RC system developed for radio control models, including helicopter and fixed-wing airplane setups. It supports Mode1 Right Throttle and Mode2 Left Throttle layouts to match pilot preference.
This listing covers the Flysky FS-i6X remote controller set configured by the mode options shown above.
Key Features
- AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology for anti-interference performance, low power consumption, and reliable receiver sensitivity
- Multi-channel hopping frequency: hops between 16 channels (32 for Japanese and Korean version)
- Unique ID recognition system to help prevent interference between transmitter/receiver pairs
- Sensor data support (temperature, altitude and more types of sensors), servo calibration, and i-BUS support
- Firmware upgrades available to expand the channel
- Dot matrix backlit LCD screen (STN transflective display; white backlight)
- Dual antenna (dual-gain antenna described for more stable signal transmission)
- FS-iA6B receiver supports i-BUS port and data acquisition port
Specifications

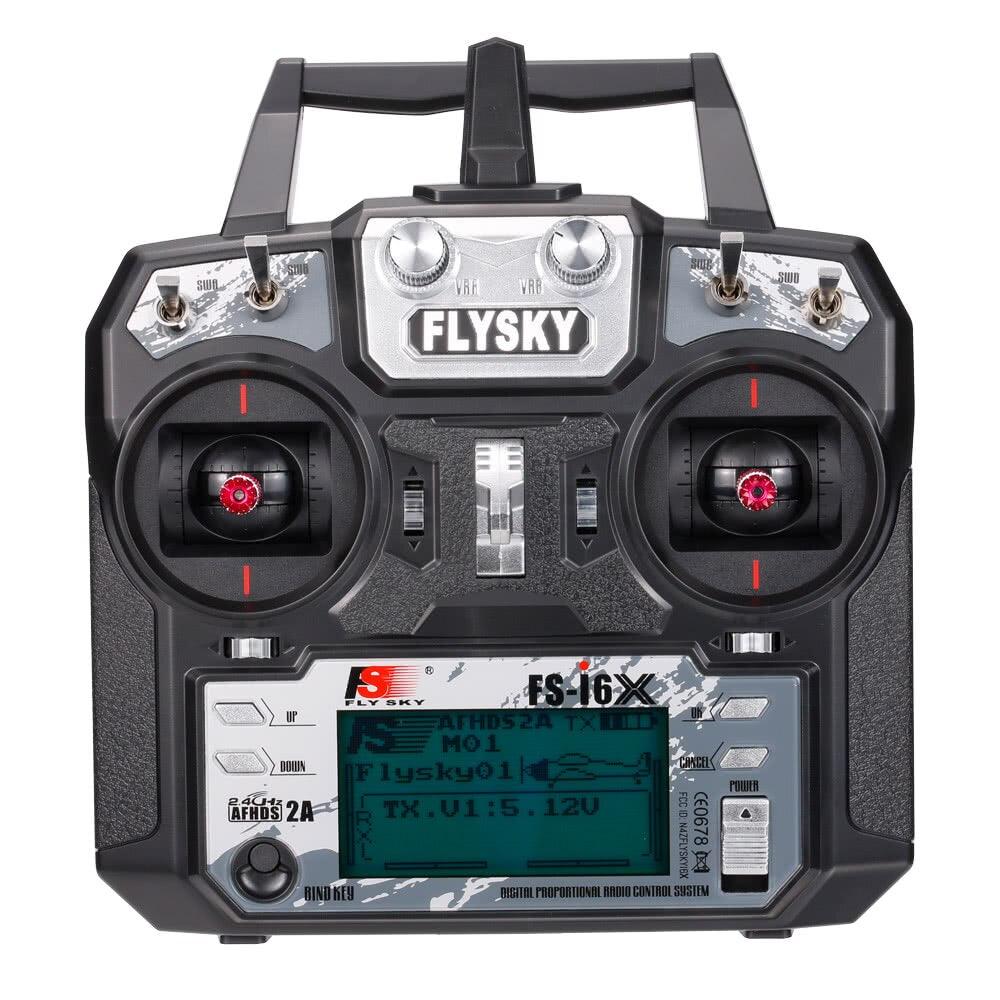

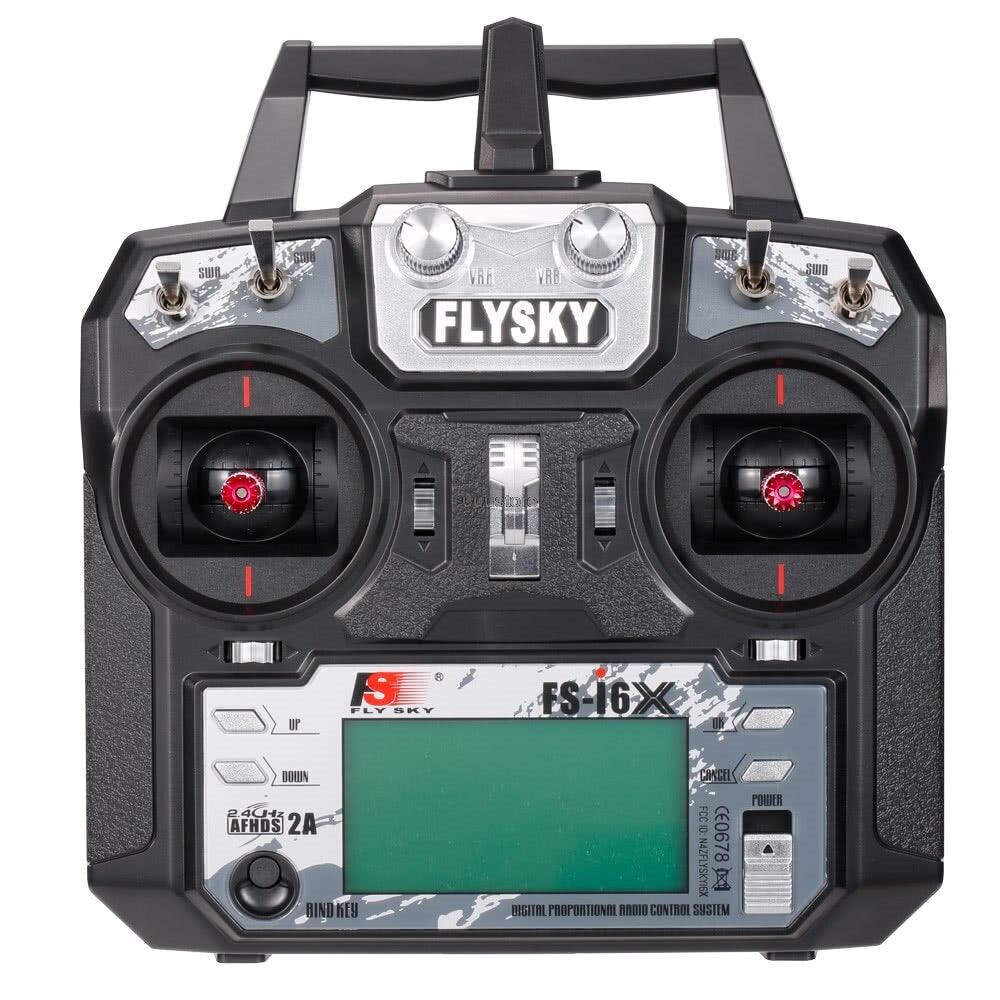

FS-i6X Transmitter (Remote Controller)
| Channels | 6-10 (default 6) |
| Model type | Fixed-Wing / Glider / Helicopter |
| RF range | 2.408-2.475GHz |
| RF power | <20dBm |
| RF channel | 135 |
| Bandwidth | 500KHz |
| 2.4GHz system | AFHDS 2A / AFHDS |
| Modulation type | GFSK |
| Stick resolution | 4096 |
| Low voltage warning | <4.2V |
| DSC port | PS/2 Port |
| Chargeable | No |
| Antenna length | 26mm (Dual Antenna) |
| Weight | About 400g |

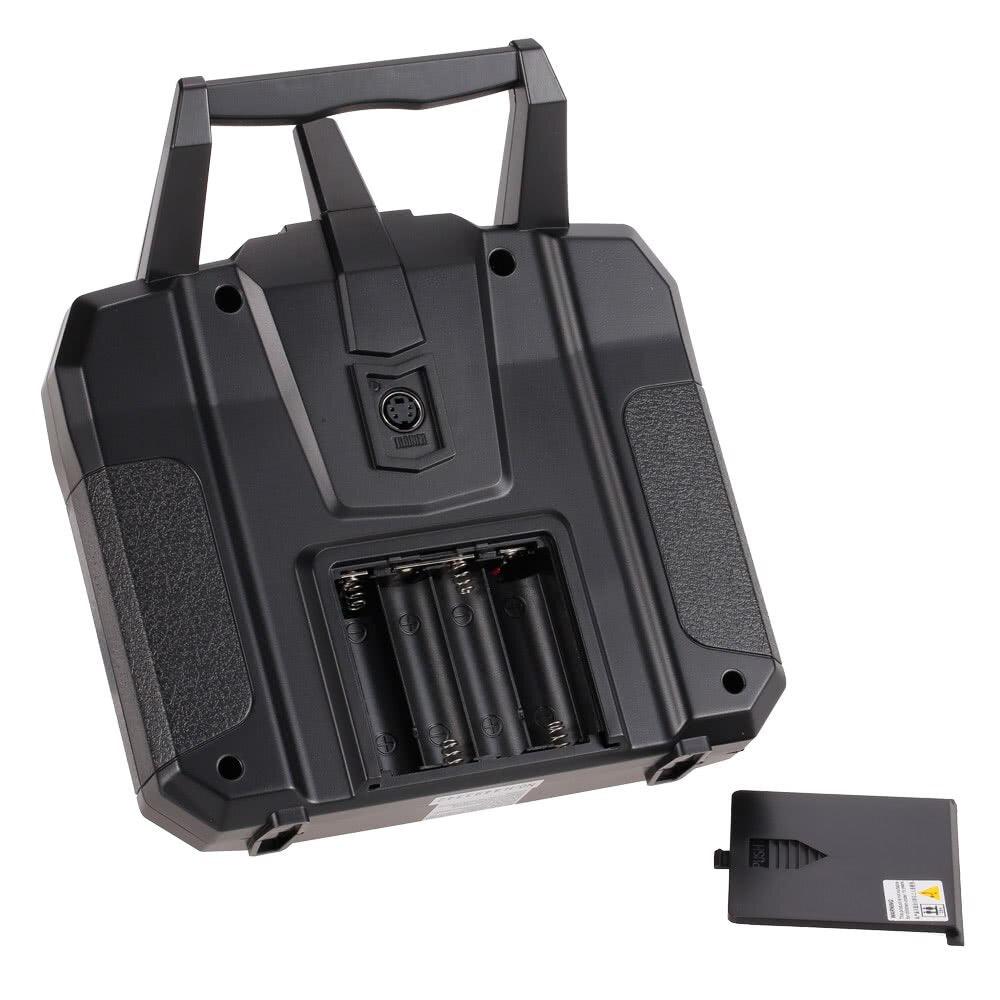

| Power | 4 * AA battery (not included) |
| Display | STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlight |
| Size | 190 * 174 * 89mm |
| On-Line Update | Yes |
| Color | Black |
| Certificate | CE0678, FCC ID: N4ZFLYSKYI6X |

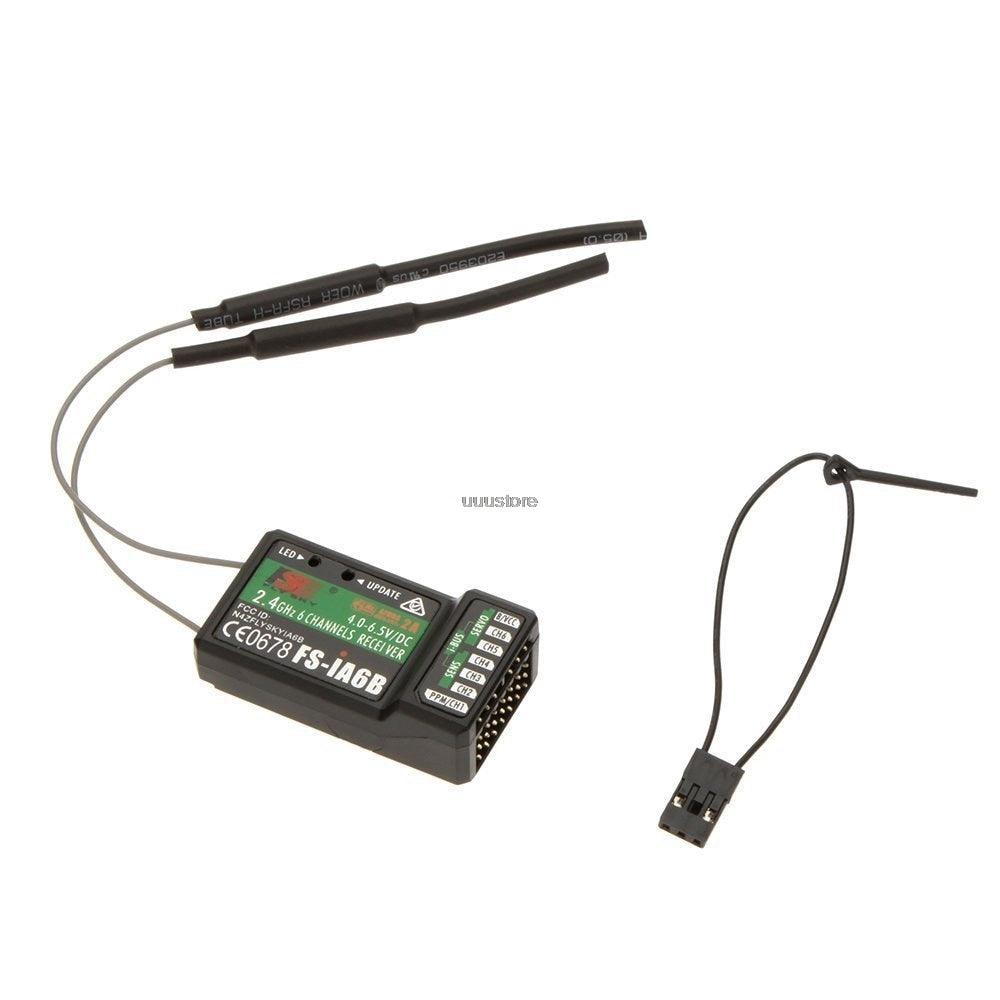

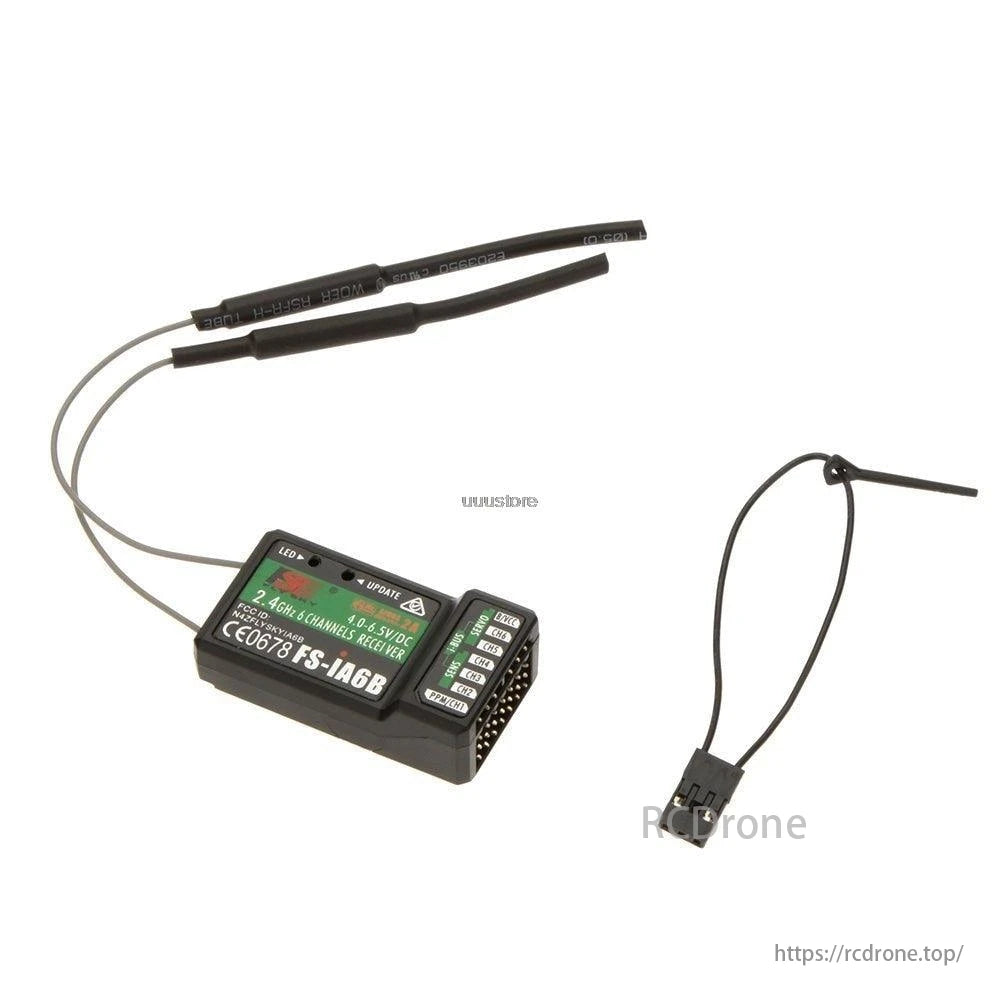

FS-iA6B Receiver
| Channels | 6 |
| Model type | Airplane / Glider / Helicopter |
| RF range | 2.4055-2.475GHz |
| RF channel | 140 |
| RF receiver sensitivity | -105dBm |
| Bandwidth | 500KHz |
| 2.4GHz system | AFHDS 2A |
| Modulation type | GFSK |
| Power | 4.0-6.5V DC |
| Compatible transmitter | FS-i6X, FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G |
| Antenna length | 26mm (Dual Antenna) |
| Weight | 16.3g |
| Size | 47 * 26.2 * 15mm |
| i-BUS port | Yes |
| Data acquisition port | Yes |
Package Information
| Package size | 23.2 * 20.8 * 10.5cm / 9.13 * 8.18 * 4.13in |
| Package weight | 666g / 1.47lb |
| Packaging | Gift box package |
What's Included
- Mode2 Left Throttle: FS-i6X Remote Controller, FS-iA6B receiver, Bind Plug, Manual
- Mode1 Right Throttle: FS-i6X Remote Controller, FS-iA6B receiver, Bind Plug, Manual
Applications
- RC airplane (fixed-wing), glider, and helicopter models
- RC systems using i-BUS and supported external sensor modules (temperature, altitude, and more types of sensors)
For setup or compatibility questions, contact https://rcdrone.top/ or email support@rcdrone.top.
Details

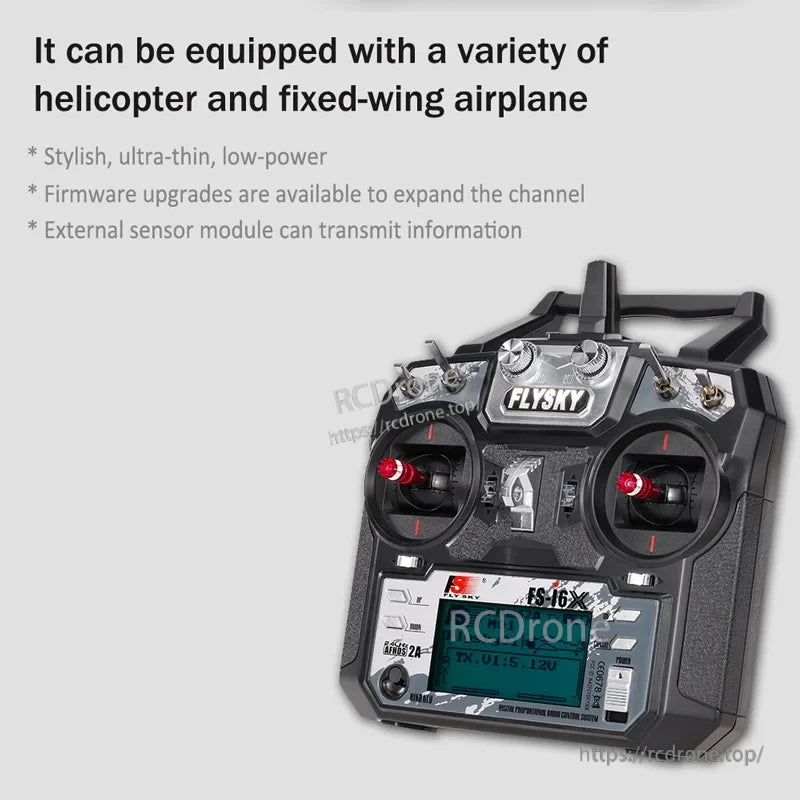

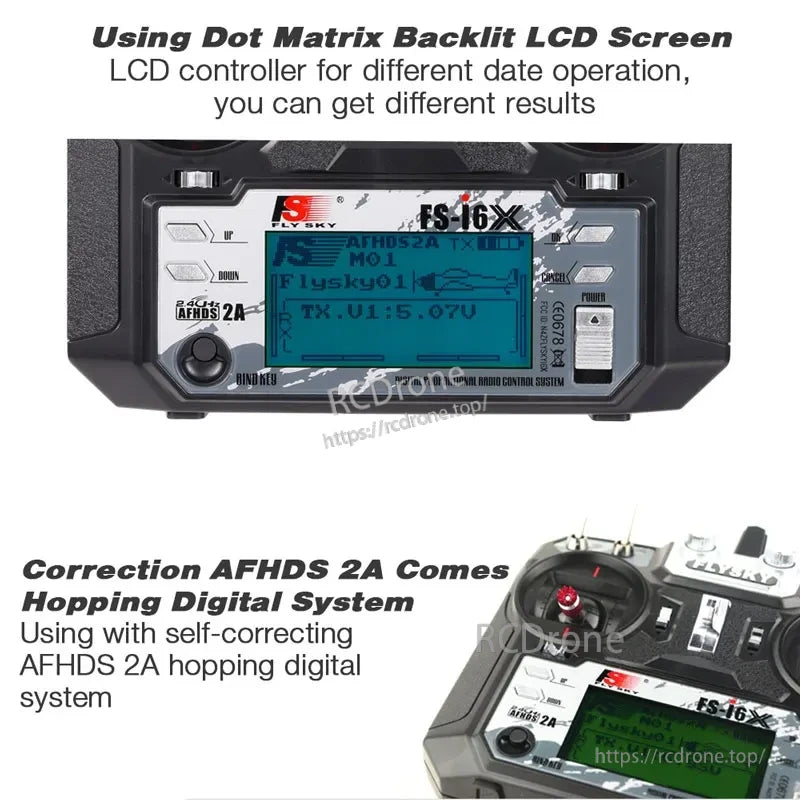

AFHDS 2A technology with a clear backlit LCD makes the FS-i6X a versatile radio for helicopters and fixed-wing setups.

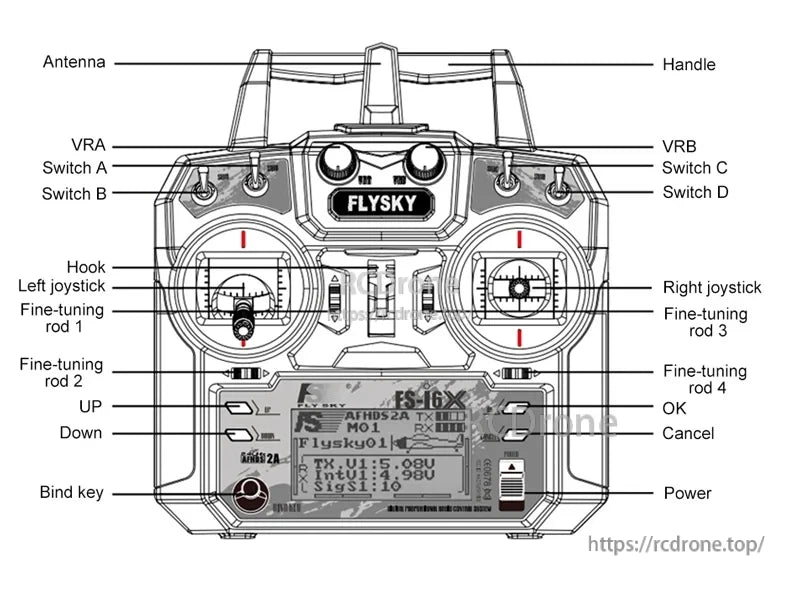

The dot-matrix LCD and dedicated keys keep model settings and adjustments easy to navigate at the field.

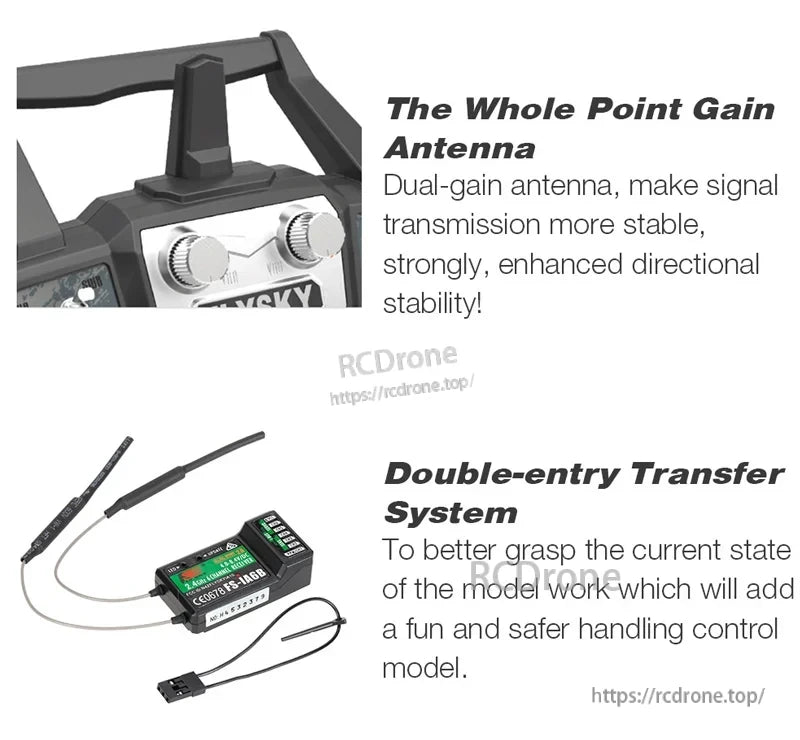

A dual-antenna design helps maintain stable signal, paired with the compact FS-iA6B receiver for 6-channel builds.
Choose Mode 1 (right throttle) or Mode 2 (left throttle) to match your preferred stick layout.
