FLYSKY FS-i6X I6X AFHDS 2A RC Transmitter with X6B IA IA6B IA10B Receiver 10CH 2.4GHz for Aairplane Helicopter FPV Racing Drones

FLYSKY FS-i6X I6X AFHDS 2A RC Transmitter with X6B IA IA6B IA10B Receiver 10CH 2.4GHz for Aairplane Helicopter FPV Racing Drones

Flysky

Regular price $92.16 USD
Regular price $138.24 USD Sale price $92.16 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

96 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Other

Tool Supplies: Other

Technical parameters: Value 2

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Plastic Type: ABS

Origin: Mainland China

Model Number: FS-i6X

Material: Plastic

Four-wheel Drive Attributes: Other

For Vehicle Type: Helicopters

Brand Name: abay

Mode1 stand for Right Hand Throttle
Mode2 stand for Left Hand Throttle

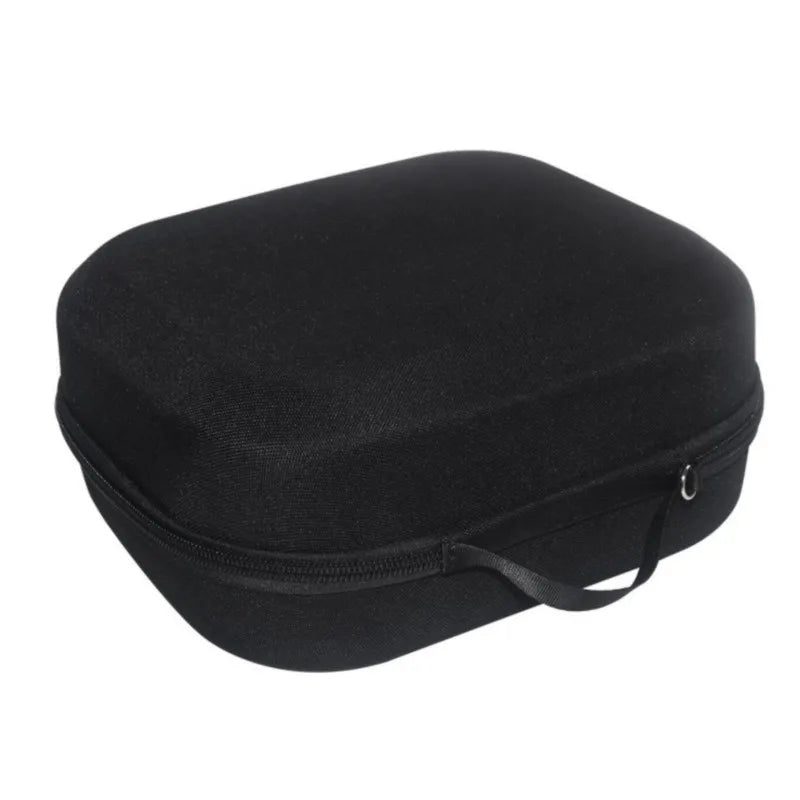

Note:if you choose the handbag version, the remote will in the handbag, comes without the flysly paper color box.


Description:
Brand Name:FlySky
FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)

Mode: mode 1 is right throttle hand(throttle stick on the right side), mode 2 is left throttle hand (throttle stick on the left side)

Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Mode: Mode 1(right hand throttle), mode 2(left hand throttle)
Note: Only i6x means the package comes without receiver, only i6x transmitter. This transmitter comes wtih 6 channels, it need to modify by yourself if you wanna it be 10 channel.

Features:
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.
Unique ID Recgnition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

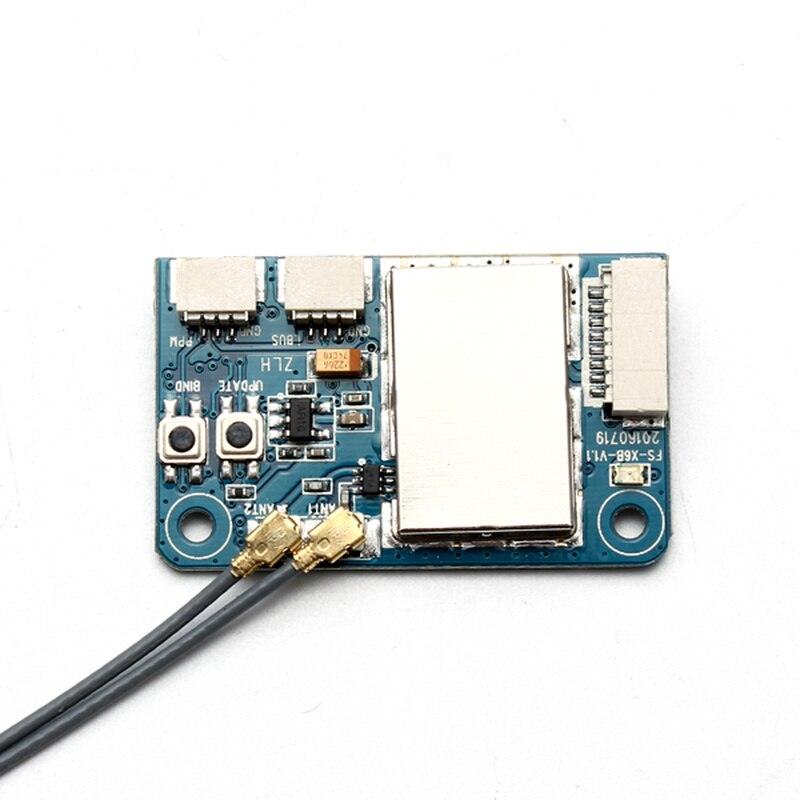

X6B i-BUS Specifications:
Brand Name: Flysky
Item: X6B i-BUS Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00



FS-X14S supports PPM/i-bus/S.BUS data output, suitable for AFHDS 2A system remote controller, easy to bind and very fast link-up, quick and extremely stable in performance. Ultra-small size and ultra-light weight, effectively save space and reduce item's weight-bearing.

Specifications:
Brand Name: Flysky
Item Name: FS-X14S
Brand Name: Flysky
Channels: 14 Channels
RF standard: AFHDS 2A
Model type: Racing Drone
Display: LED indicator
Channel latency: less 20ms
Date output: PPM/i-bus/S.BUS
Frequency: 2.4G
Power: 3.5-8.4V
Weight: 1.2g
Size: 22 * 12 * 5mm
Compatible with

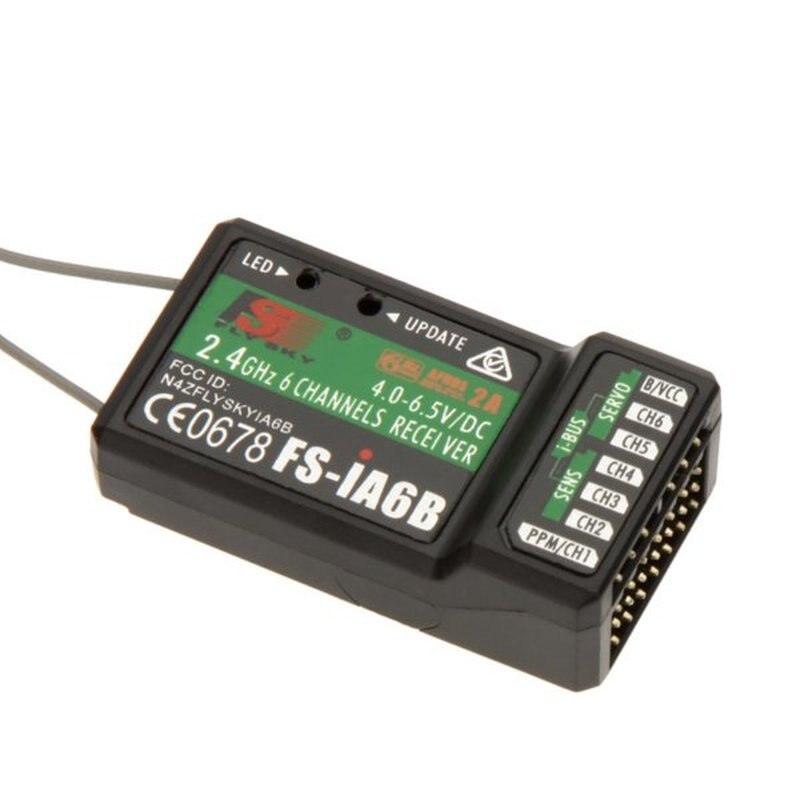

FS-IA6B Specifications:

Item Name: IA6B
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 14.9g
Antenna lenght: 26mm
Size: 47.4*262.2*15 mm
Certificate: CE ,FCC






Package Included:

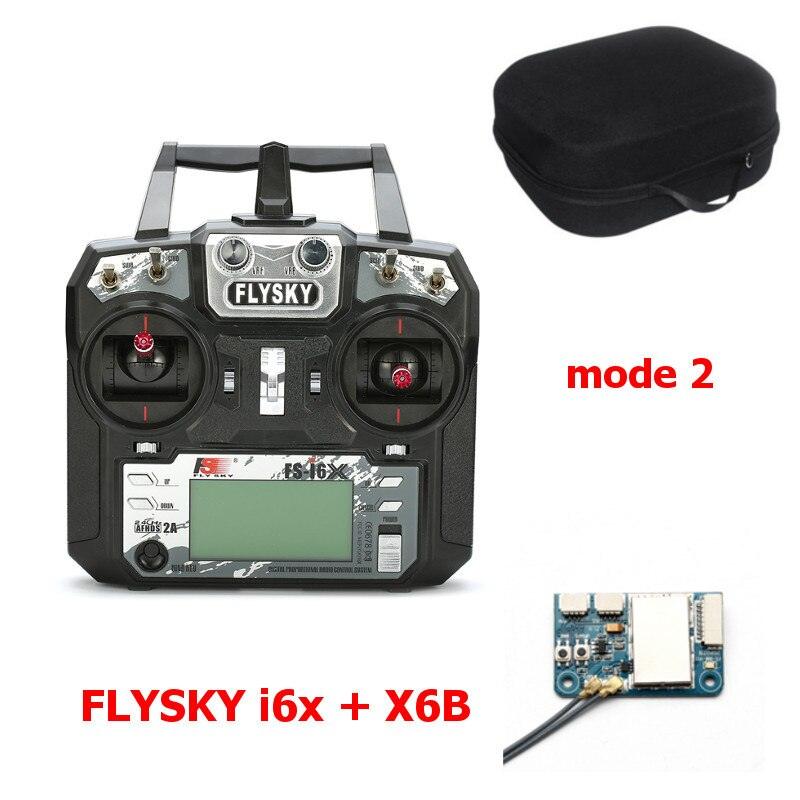

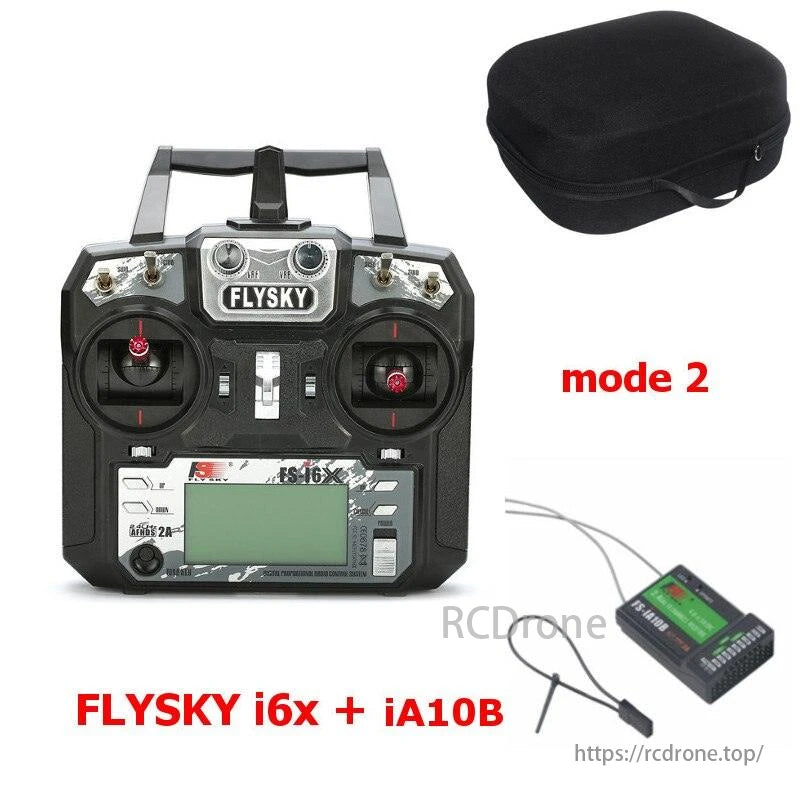

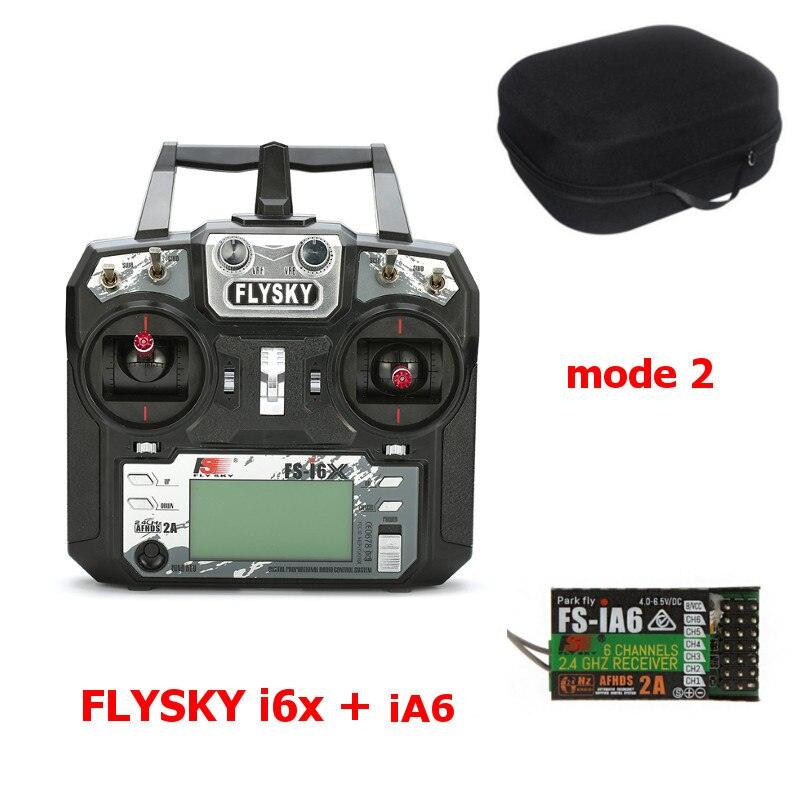

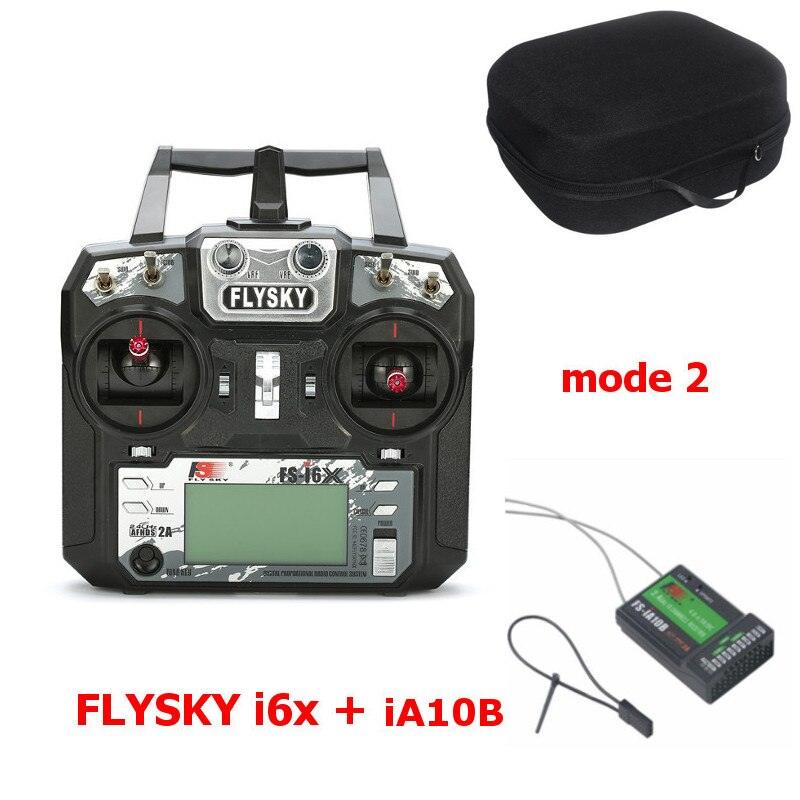

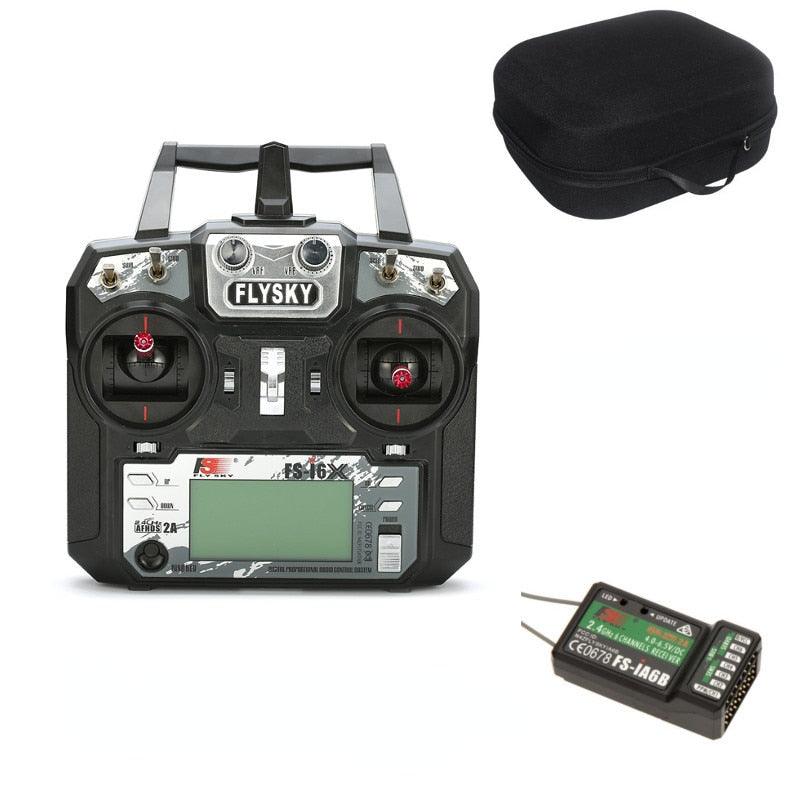

1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A Remote (you can choose the receiver version by yourself)







FLYSKY @fms24  EgiieL h,once transmitter and receiver have been paired, they will only communicate with each other . this,Flysky FS-i6X 10CH 2.4GHz AFHDS 2A,Unique ID Recgnition System Each transmitter and receiver has its own unique ID .,this transmitter comes wtih 6 channels, it need to modify by yourself if,each transmitter is capable of receiving data from temperature, altitude and many other types of sensors ,Unique ID Recgnition System Each transmitter and receiver has its own unique ID .,each transmitter is capable of receiving data from temperature, altitude and many other types of sensors ,low power consumption system consumes as little as one tenth the power of a standard,each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce,

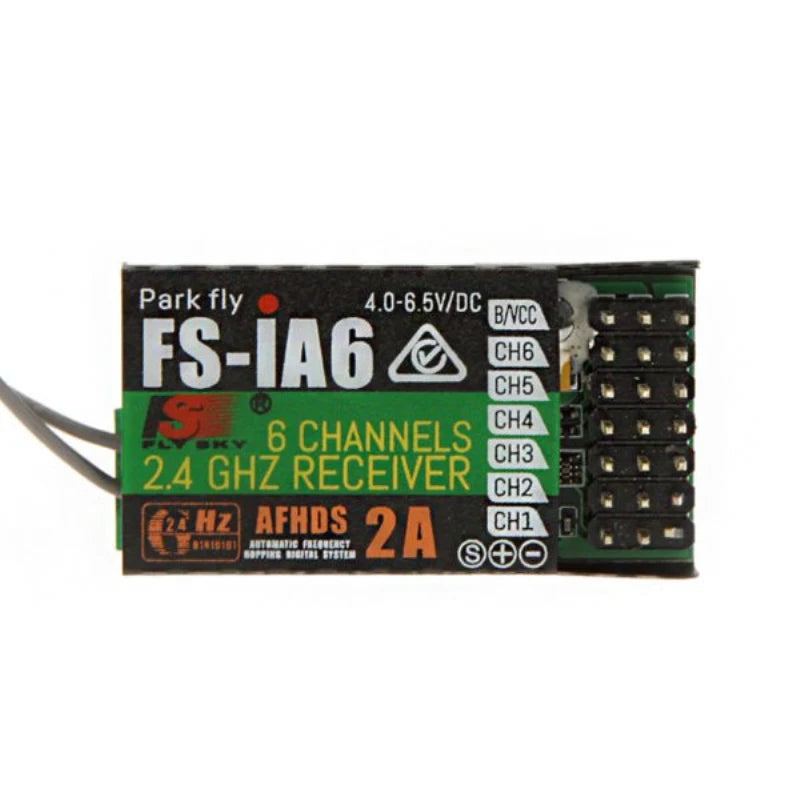

AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation)low power consumption system consumes as little as one tenth the power of a standardPark fly 4.0-6.SV/DC @NCA FS-IA6 CH

Park fly 4.0-6.SV/DC @NCA FS-IA6 CH6 CHS CHA 6 CHANNELS CH3 24 GHZ RECEIVER CH2 7a H2 AFHDS 2A CH

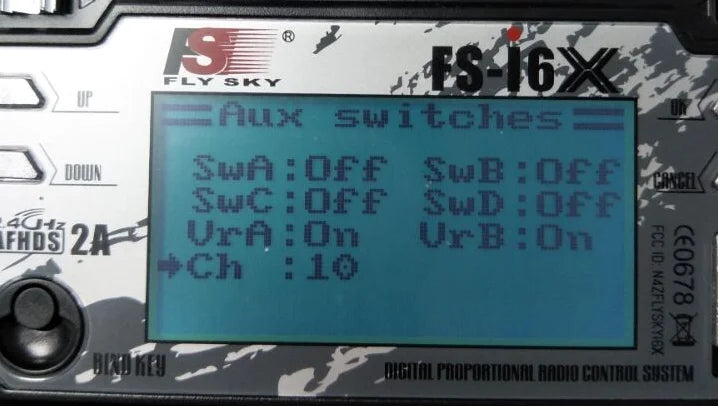

How to make i6x be 10CH:

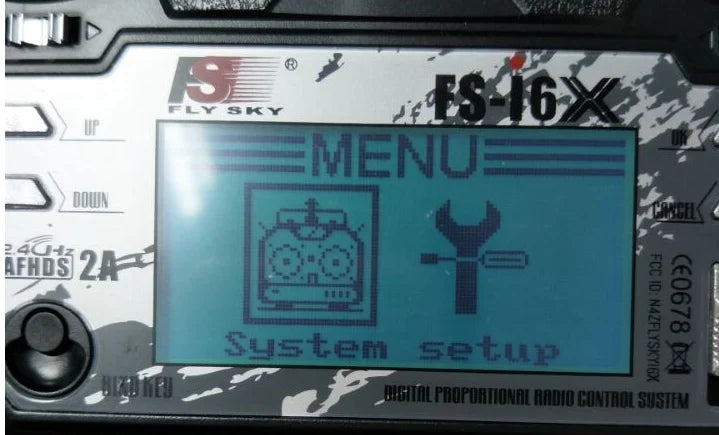

FLYSKY FS-i6

Menu settings for system setup: 4.94 GHz, transmit power: 2 systems, throttle sensitivity: 0-3, dual mode control: AADLO, controller sensitivity: S1.

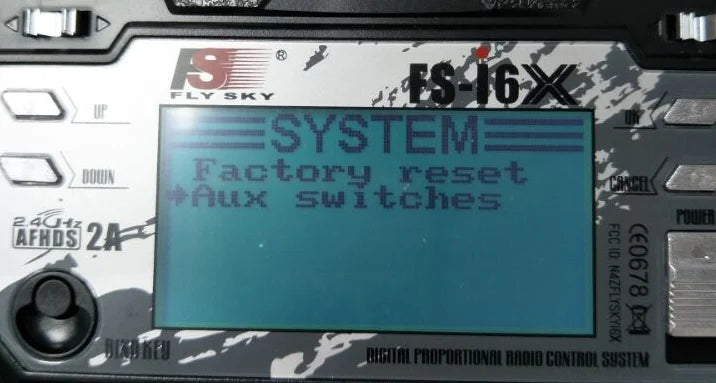

Factory reset Aux Switcnes 660621 3 3 1 QUGUOL

System settings: Factory reset, Aux switch mode: 6.6021, Throttle sensitivity: 3-3-1, Quad stabilizer: On, Flight mode: Normal, Auto hold: On.

DUGHLFAOFOAULONAL @ADLOCONUnOLSUSIE


system bandwidth ranges from 2.408GHz to 2.475GHz .
