Features:
Digital proportional radio control system.
The RX SET(receiver setting) menu provides a number of function setting menus to allow you to set up the receiver system in all aspects.
User-friendly design for each operation and handling.
With lightweight and portable size, it is easy and convenient to carry and use.
Ergonomics, comfortable hand feel, not easy to sweat.

Specifications:
Brand: FLYSKY
Product Model: FS-ST8
Channels: 8-10
Adaptive Receiver: FS-SR8 ( Adapts Receiver with ANT Protocol )
Model Type: Helicopters, Gliders, Delta-wing Airplanes, Multicopters, Engineering vehicles, Robots, Cars or Boats, etc.
RF: 2.4GHz ISM
Maximum Power: < 20dBm (e.i.r.p.) (EU)
2.4GHz Protocol: ANT
Distance: >1000m(Air distance without interference)
Channel Resolution: 4096
Battery: 1.5AA*4 / 2S Lipo(JST)
Charging Interface: NO
Data Output: PWM/PPM/i-BUS/S.BUS
Low Voltage Warning: AA battery: <4.2V/ Lipo battery: <7.2V
Antenna Type: Built-in double antennas
Display: 128*64 LCD (Black and white Dot Matrix Screen)
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
Languages: Chinese, English
Online Update: Yes
Color: Black

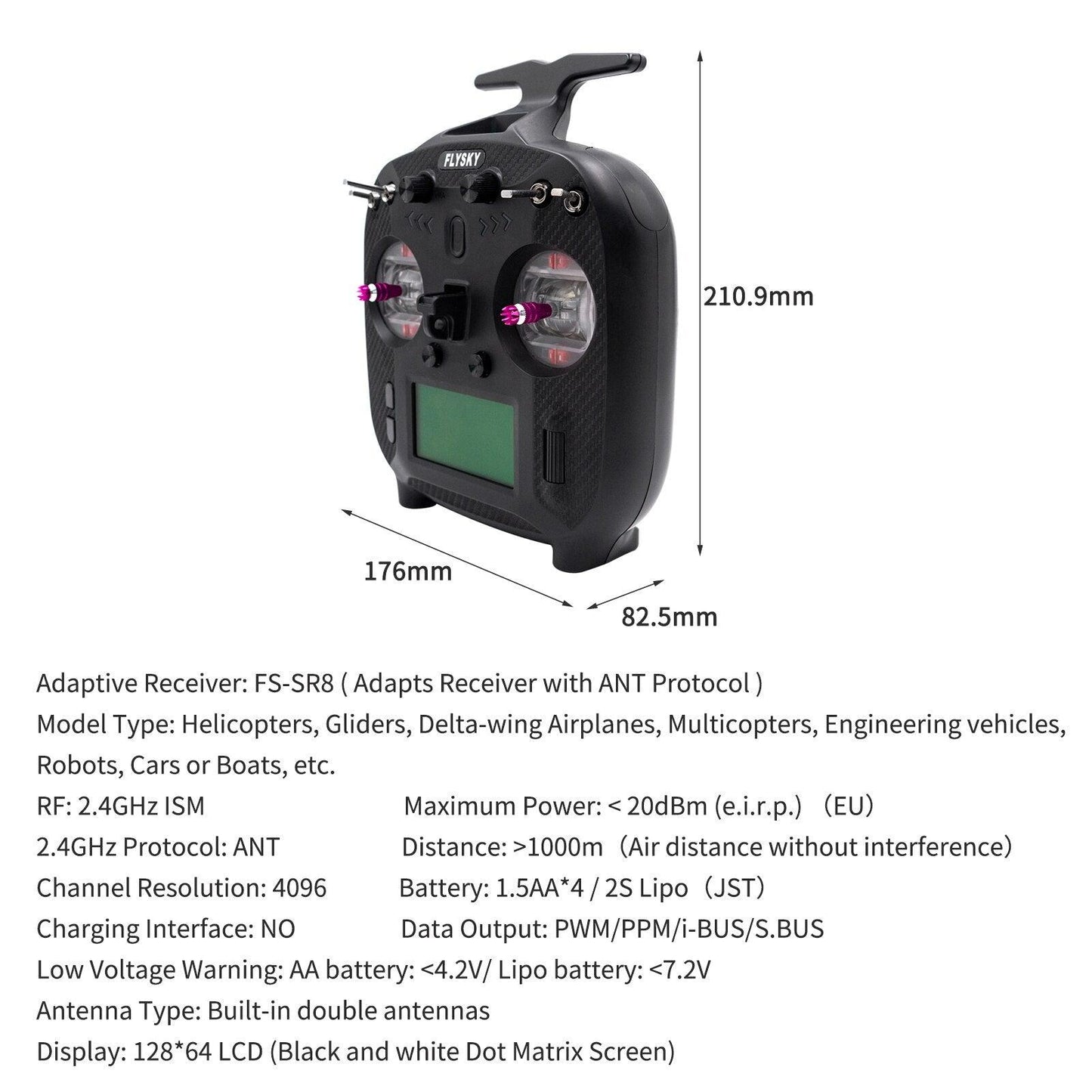

Size: 176*210.9*82.5mm
Weight: 420g

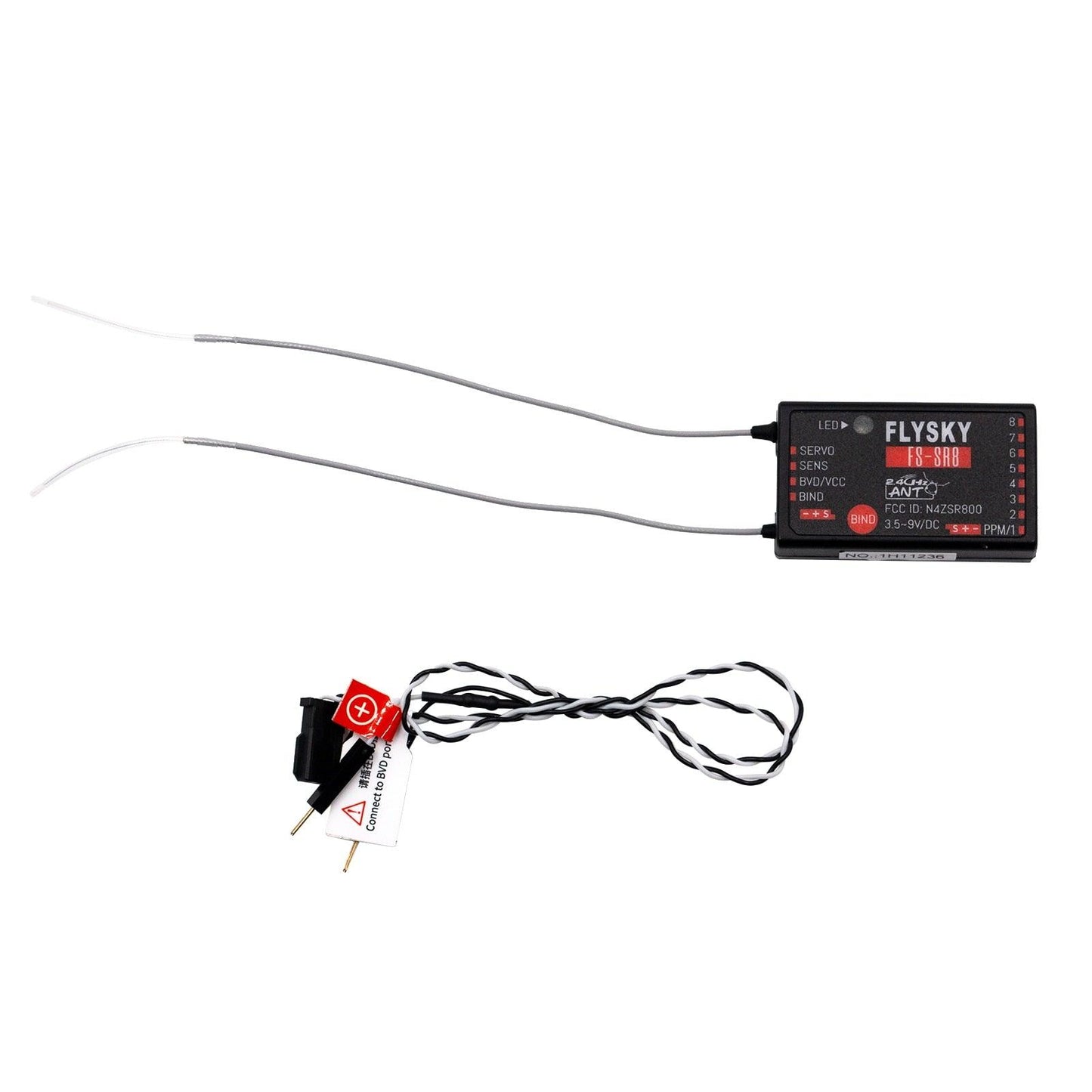

Product Model: FS-SR8
Adaptive Transmitter: FS-ST8 (Adapts Transmitter with ANT Protocol )
Adaptive Models: Helicopters, Gliders, Delta-wing airplanes, Multicopters, Engineering Vehicles, Robots, Cars or Boats, etc.
Numbers of Channel: 8
Maximum Power: < 20dBm (e.i.r.p.) (EU)
RF: 2.4GHz ISM
2.4GHz Protocol: ANT
Distance: >1000m (Air Distance without Interference)
Antenna Type: Two Antennas
Input Power: 3.5~9V/DC
Data Output: PWM/PPM/i-BUS/S.BUS
Online Update: Yes
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%

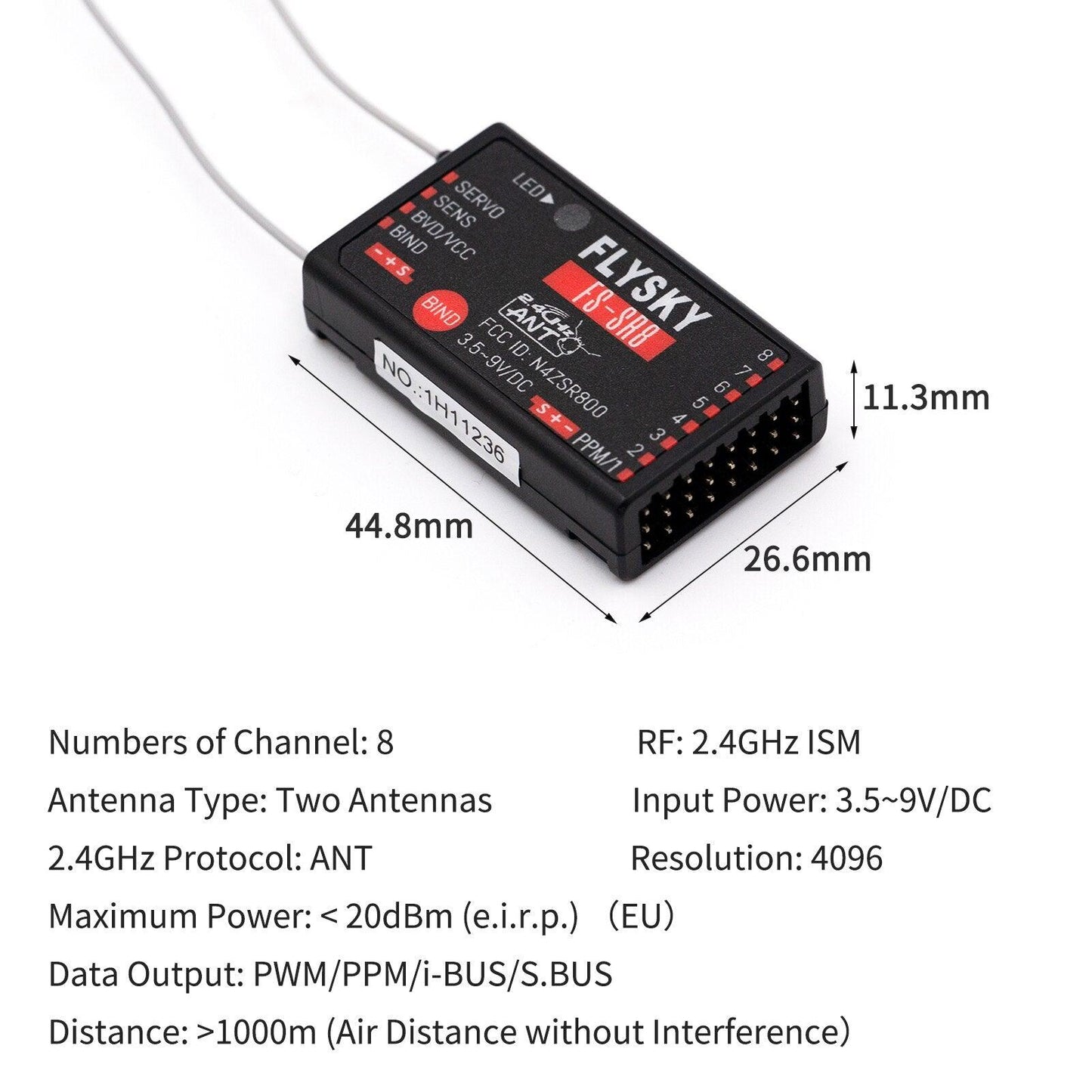

Size: 44.8*26.6*11.3mm

Package Information:
Package Size: 23.5*25.5*9.5cm
Package Weight: 661g
Gift Box Packaging

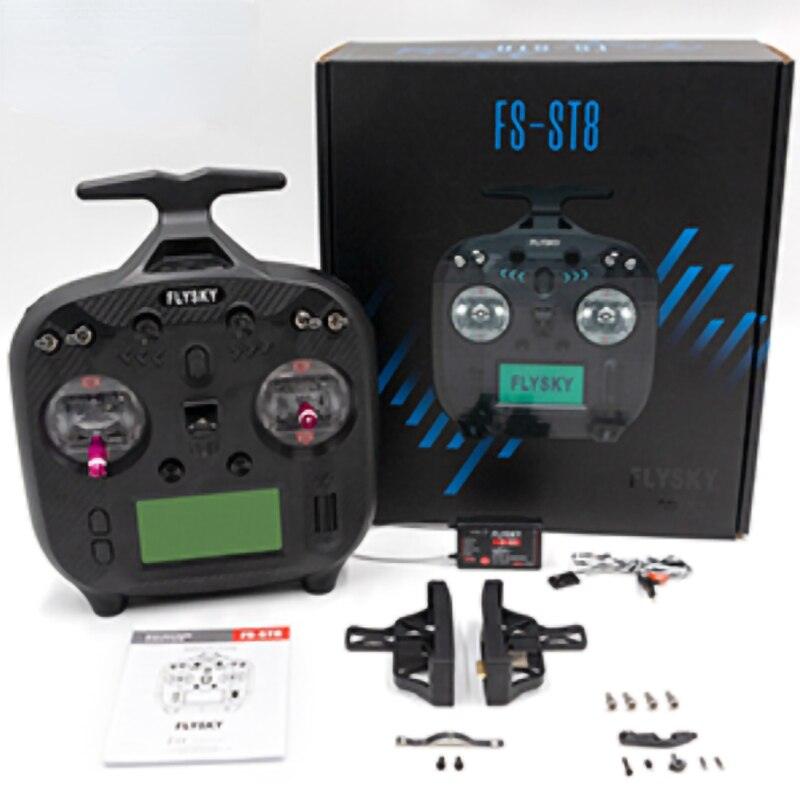

Package List:
1* Transmitter
1* Receiver
2* User Manual

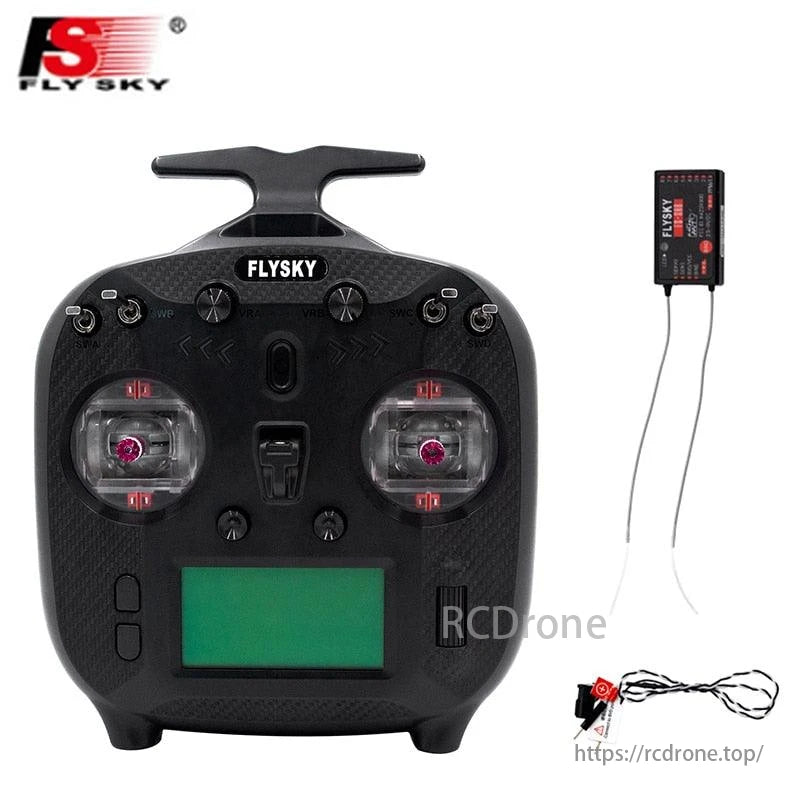

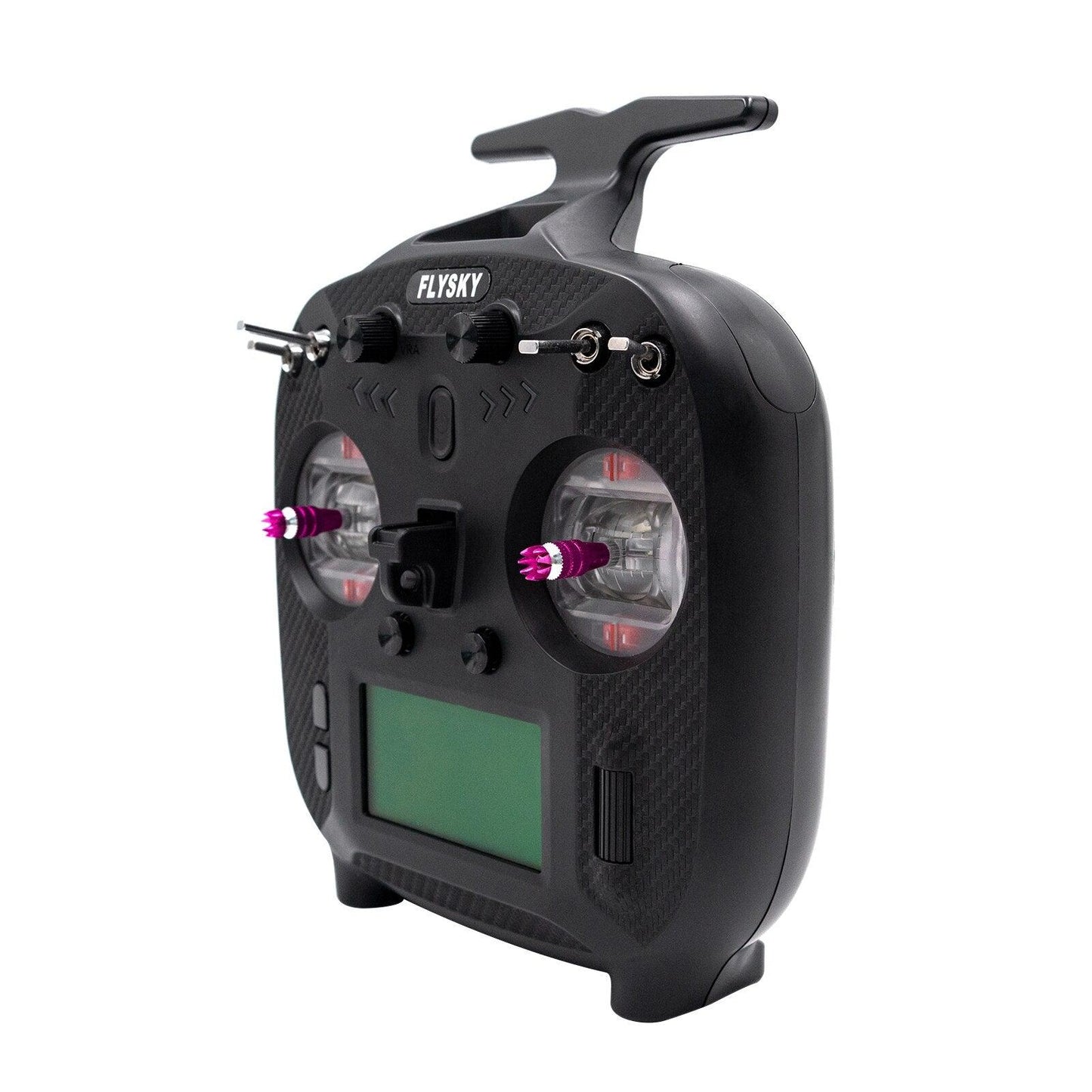

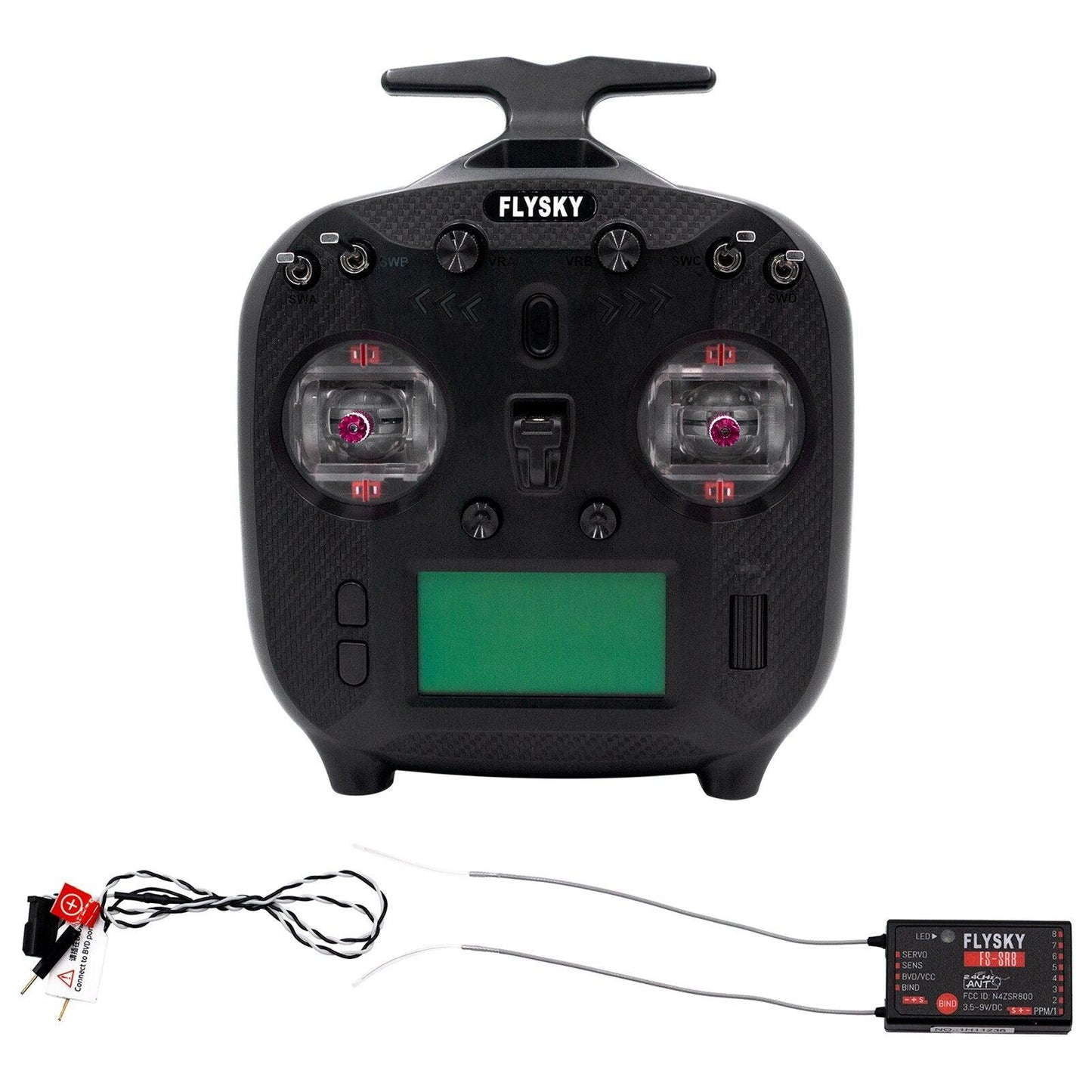

Flysky FS-ST8 Transmitter Description

(10] [12] (9] 013] (20] [21 (2 [8] [14] [] [15] [6) (16] [19] EX [1] Display [9] SWB position Switch [17] 13/14 Trim Button [2] ExIT Button[10] VRA Knob (18) VRB Knob (20) Trainer Jack [5] Neck Strap Hook [13] SWXC Three-position Switch [2IJ A Preserved Hole for Antenna [

The menu displays information on signal strength and transmitter voltage, with a receiver voltage reading of 6V. The icons displayed indicate that certain functions are enabled, including lock mode, flight mode, throttle hold (55°F), and GPS.

Radio Frequency: 2.4 GHz, ISM (Industrial, Scientific, and Medical) antenna type: dual antennas, Protocol: ANT, Resolution: 4096, Maximum Power: 20 dBm.

LED indicator: FlySky. Servos: 7 in total. Sensors: 6. FS-SRB module. Voltage/Current: 5V BVD/VCC. Automatic Telemetry System (ATS) version 3 binding. FCC ID: N4ZSR8OO, with a binding frequency of 2.4 GHz and V/O current setting. Additionally, the system supports PPM/I protocol (1211 seconds), IC protocol (45144143), and has a maximum output current of 12V 8A 1I. The product also features a high-precision encoder with an accuracy of M7 and a resolution of [18].

FLYSKY Vibration function 20 sets of model data USB simulator Support firmware Bilingual in English and Chinese Stick mode replacement 4096 resolution Support FlySky Assistant 3.0 Function customization of Free 'settings ofadjustable switches, knobs, and keys: ratio, throttle curve; and so on No; Support for settings of the receiver Back transmission of RSSI, output signals such as PPM, PWM, BVD voltage; other telemetry Iqg ibus, and sbus: information .

FlySky's BTR DIY (Do It Yourself) feature enables users to freely customize their transmitter. Additionally, an external antenna hole is reserved, allowing users to independently upgrade their external antenna for improved performance.

The standard version allows users to upgrade their transmitter by purchasing accessories for features such as return-to-center wheels and keys (key1 and key2) on the back panel. The XT30 interface hole is reserved on the battery cover, which supports JST battery interfaces and can accommodate 2S lithium batteries.

The CEVO4 feature set enables users to implement various functions, including wheel and key control on a mobile phone holder. This feature includes power supply management, track models for back and forward movement, and allows for easy firmware updates (version 5) via camera or picture transmission. The external antenna provides setback throttle control, while the assembly base throttle control offers three-segment audio modification capabilities. Additionally, the pressure plate accessory allows for coach interface connectivity and enables users to upgrade their transmitter, allowing for seamless connections between devices.

Introducing the new Flysky 'Paladin' EV Radio System, featuring the high-channel receiver set PL18, as showcased in our official video: 'Breaking away from the past'. This innovative system represents a significant leap forward in RC technology.

The Flysky FS-ST8 transmitter requires 4 x 1300mAh AA NiMH batteries, which provide up to 10 hours of operation. Alternatively, Type-C power supply can also be used to charge the transmitter.

The FS-ST8 transmitter features an innovative design, with a whale tail antenna that provides a highly recognizable FLYSKY logo. The model's transparent assembly base is illuminated by a brilliant ambient light, making it a colorful addition to any RC setup. The Type-C interface also features a simple five-way trim for easy adjustments. Additionally, the battery level indicator shows 213% OFF, and the LED lights display color, brightness, and key information.

The standard edition F8-ST8 transmitter from Flysky has been upgraded to the F8-STb model, offering improved performance and features.

Comparison of FS-ST8 transmitter versions: Standard Edition vs. Upgraded Edition. Key differences include: TX amount (1), assembly base type (standard or bearing), and shoulder return-to-center wheel installation.
