SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Other
Tool Supplies: Other
Technical parameters: Value 10
Size: as show
Remote Control Peripherals/Devices: Other
Recommend Age: 7-12y,12+y,18+
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: FS-i6
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: abay
Description:
Brand Name:FlySky

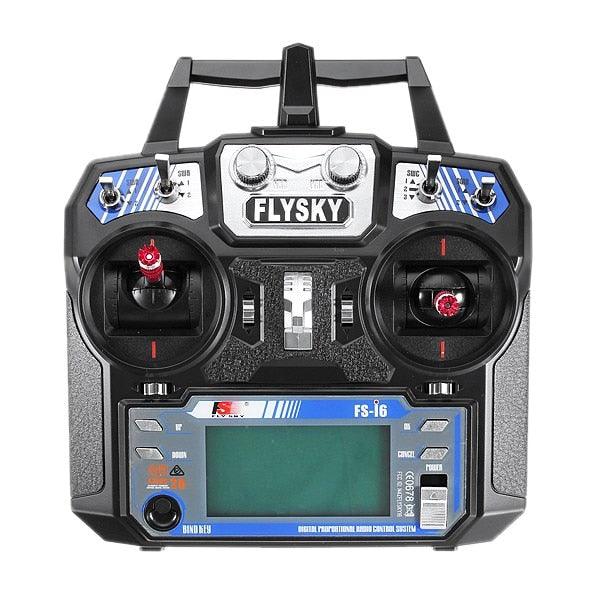

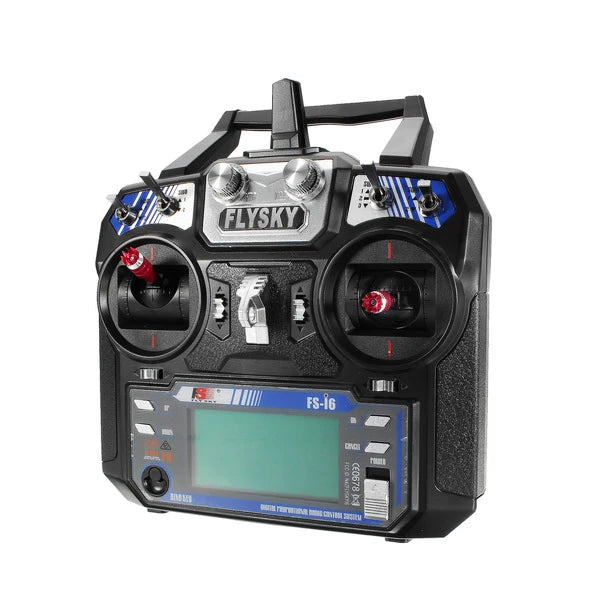

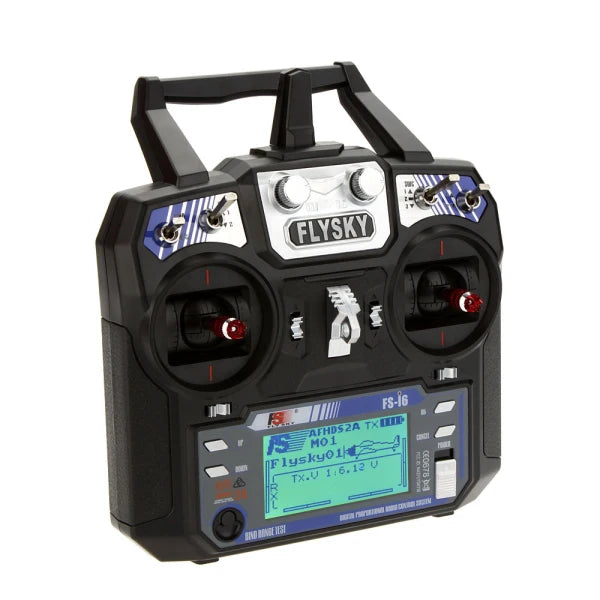

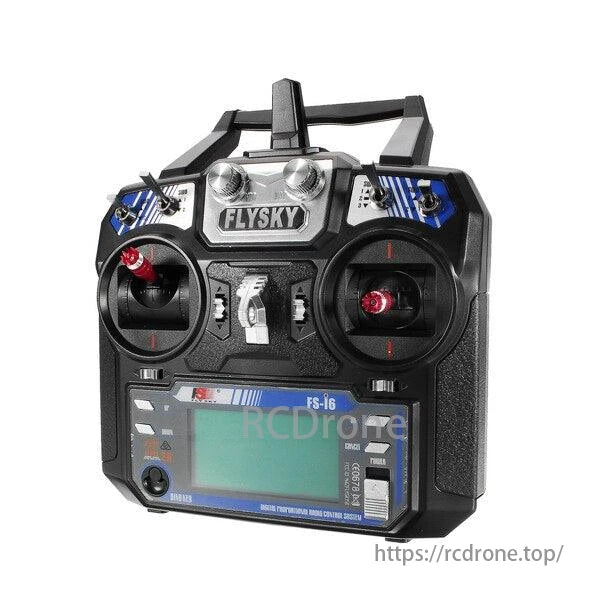

Item Name: FS-i6 transmitter
Type: Mode 1 with color box, Mode 2 with color box,Mode 1 without color box,Mode 2 without color box (optional)
Channels: 6 Channels
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
B a n dwidth: 500KHz
B a n d: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: Less than 4.2V

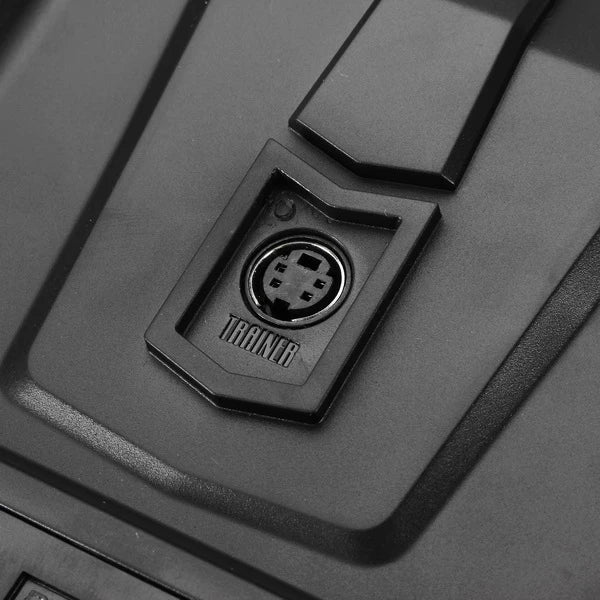

DSC Port: PS2
Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Package Weight: 628g
Transmitter Size: 174x89x190mm
Package Size: 23.5x21.2x10.6cm

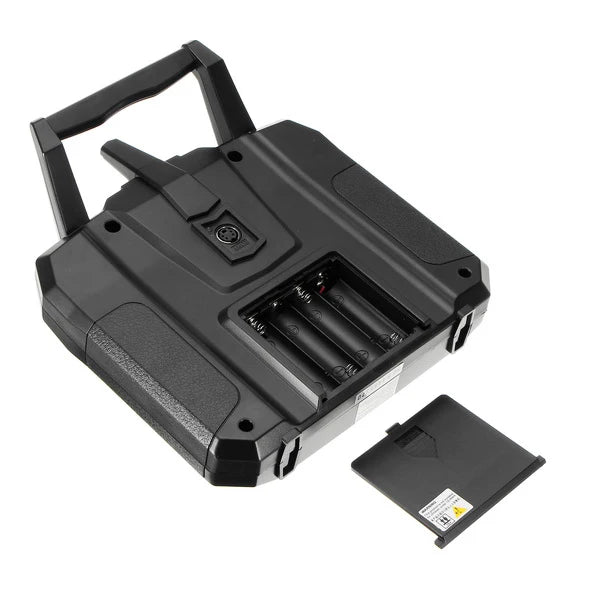

Power: 6V 1.5AA*4 (Not Included)
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update: Yes
Color: Black
Certificate: CE0678,FCC
Model Memories: 20
Control Range: 500m
Features:
Works in the frequency range of 2.405 to 2.475GHz.This b a n d has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency b a n d . Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission.
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

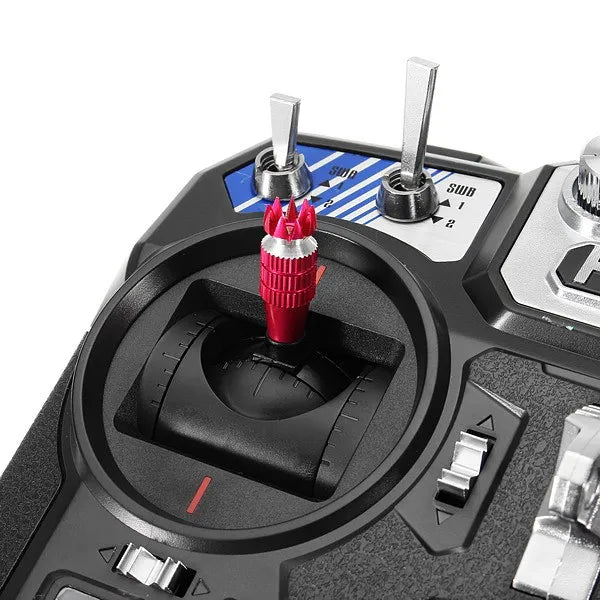

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

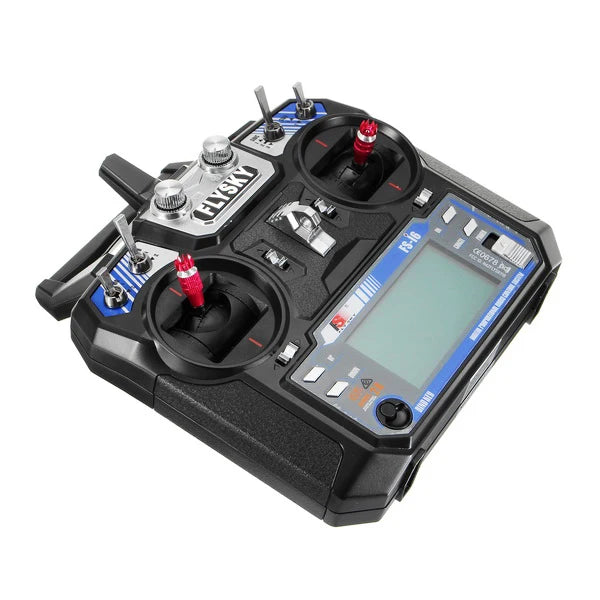

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
Related Accessories Sold On Our Site(Not Included):
FS-iA6 Receiver
FS-iA6B Receiver
Firmware Updating Data Cable
Simulator Cable
Trainer Cable
Xiaomi Rainbow AA Battery
English Manual,Please contact us
Package Included:
1 x Flysky FS-i6 transmitte
