Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

GOKU GM1O Pro V3 GPS w/ name . 7.2g 4.5g 2.2g 4pins Pad Connector sh1.O 6pins seat Ish1.0 Apins Seat (Need to solder)

Set the UBLOX/NMEA protocol GPS GPS for navigation and telemetry . remember to configure a Serial Port (via Ports tab) when using GPS feature.

the GPS Rescue wIII not be avallable Maximum altitude (meters) 200 Descent distance ( meters) 100 Minimum distance t0 home (merers)

Description
Brand: FLYWOO

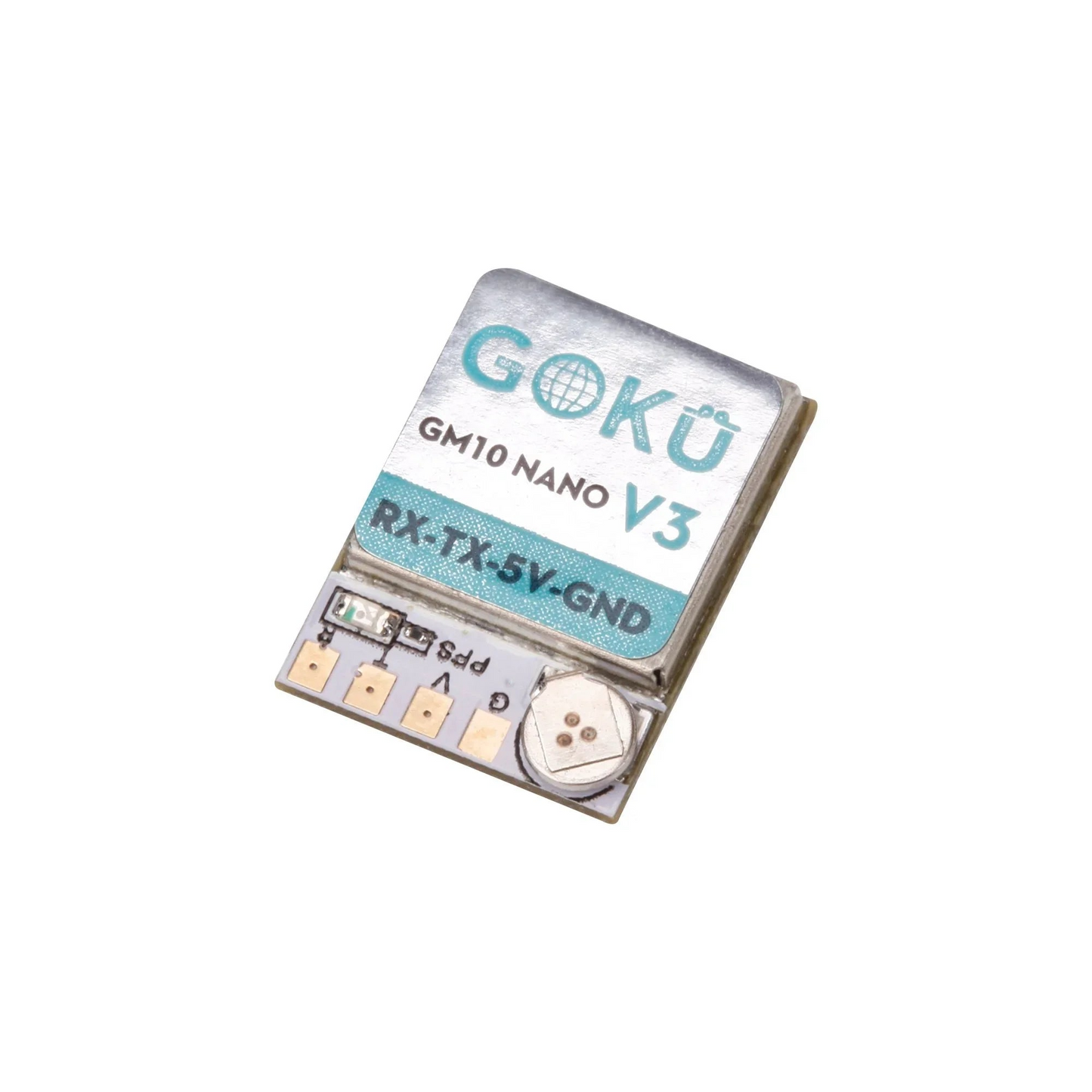

Model: GM10 NANO V3 GPS

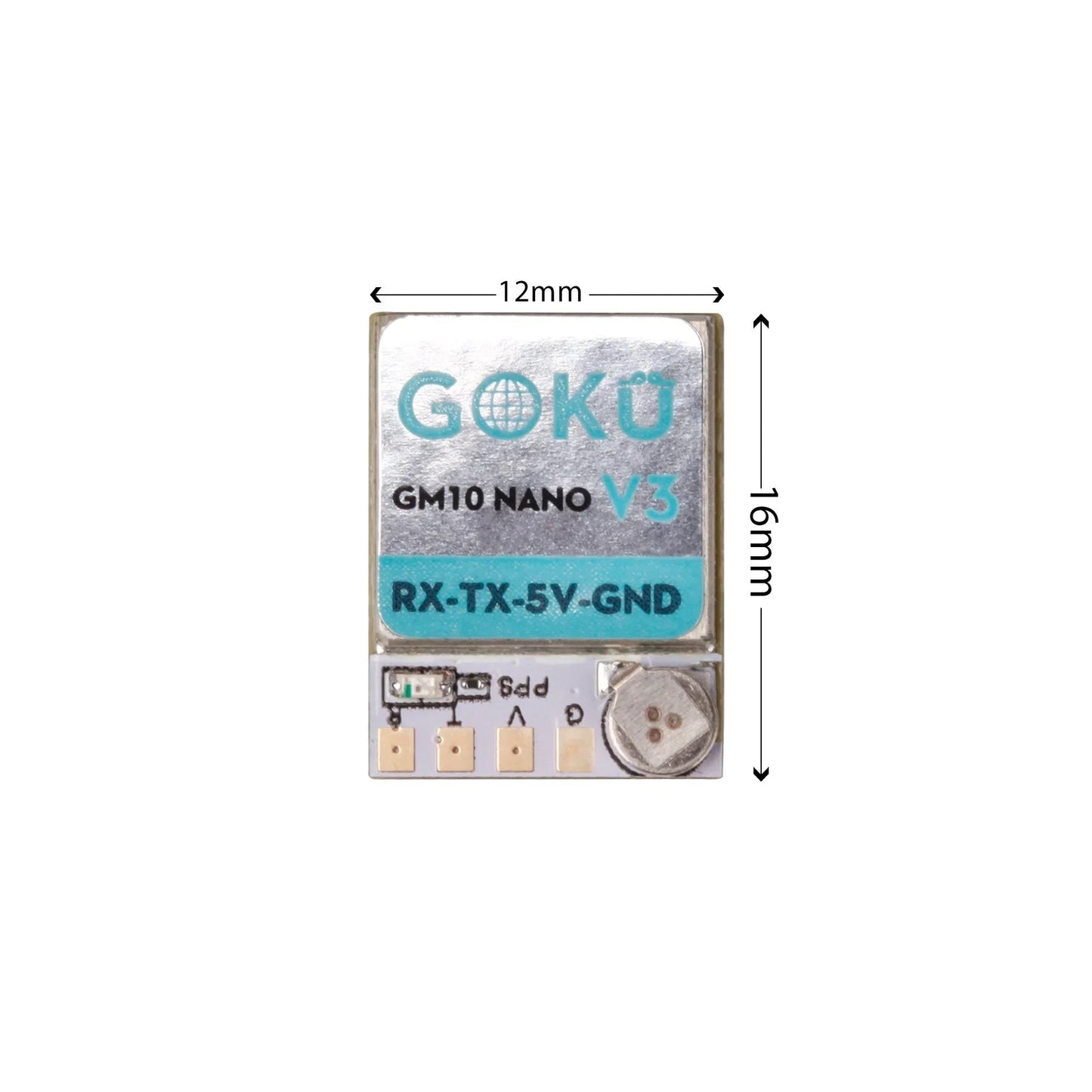

Dimension :12mm*16mm*4.5mm

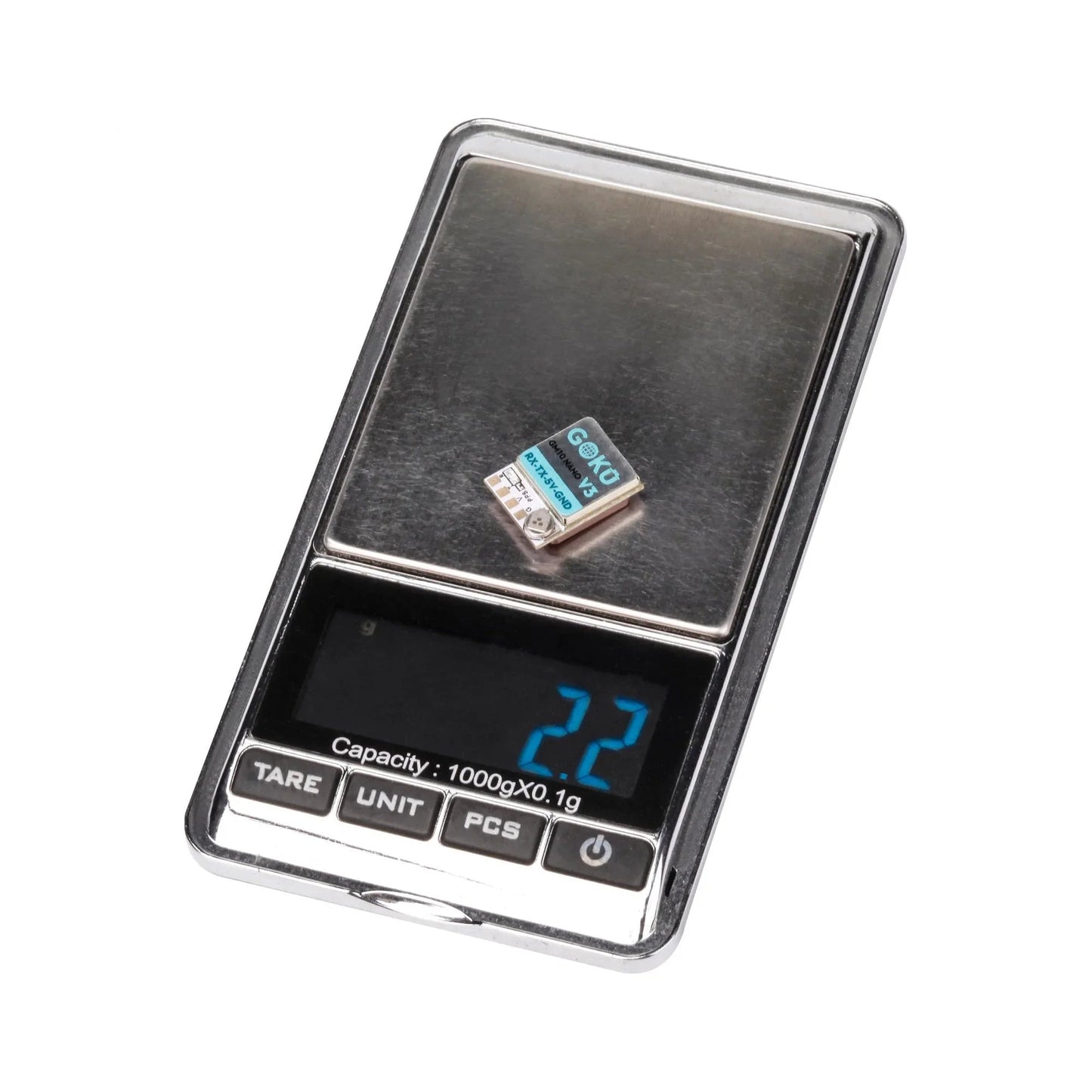

Weight : 2.2g
Connector : 4pins Pad

Features:
GPS Module,Three Module
4pins Pad，ultra light weight

Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage ：3.3-5V
Operating temp :　-40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
The Module’s Pins: RX TX 3.3-5V GND

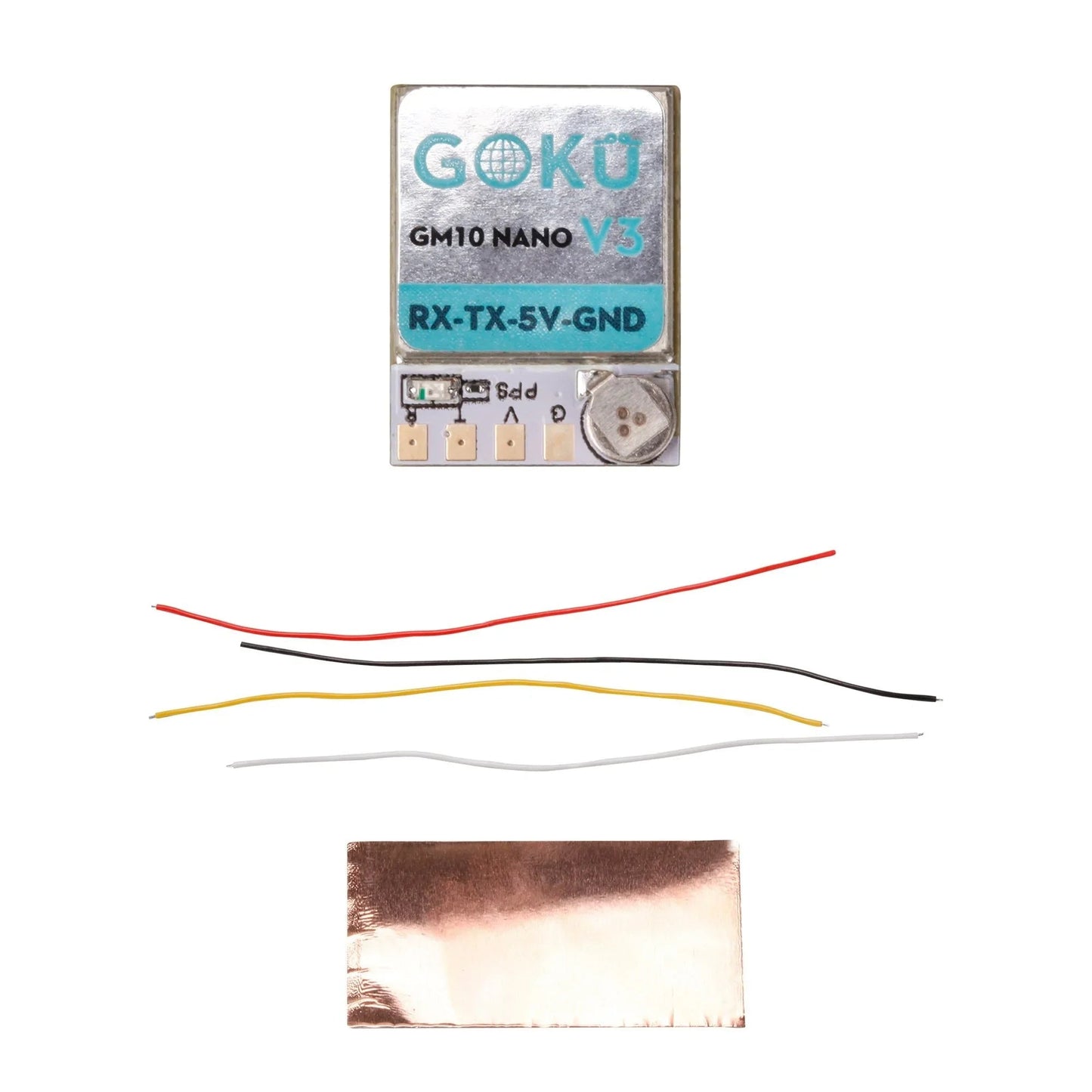

Includes
1x GM10 NANO V3 GPS
1x 100mm Cable
1x Copper Foil
