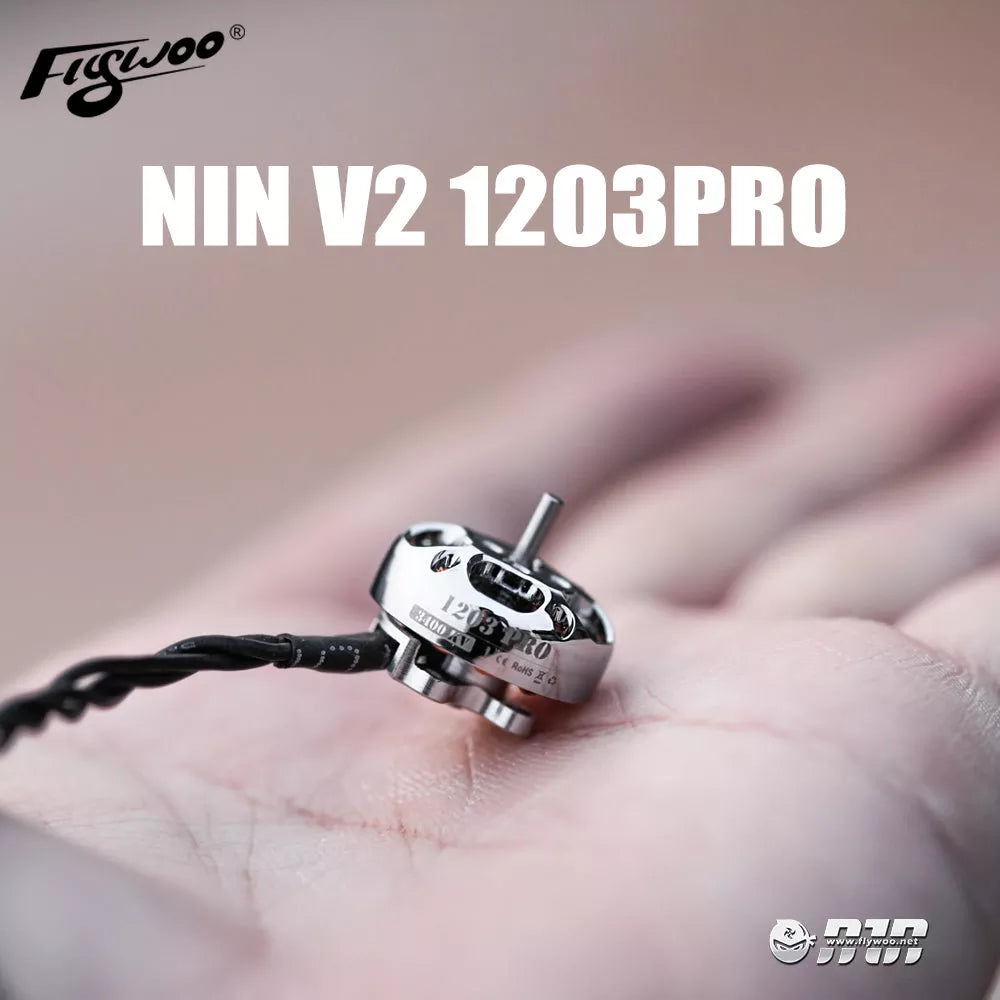

NIN V2 1203PRO was the ultra reliable high performance micro drone motor .  Using the  high grade unibell design , and the best  electroplating process that looks clean and aggressive at the same time.  The sturdy structure and high-quality materials make it performs like a beast, you"ll have your mind blown!

Best suited for cinewhoop, micro rippers or any 2''3'' freestyle and racing builds

Features

• Power efficiency becomes higher, experience more flight time

• The high grade unibell design , and the best electroplating process

• Standard mounting pattern at the bottom, adapt to all frames on the market

• Adopt a curved magnet structure to achieve more smooth and silent

Recommended Parts

• Battery:
  Explorer 450 mAh HV 4s 75C Lipo Battery
  Explorer 300 mAh HV 4s 75C Lipo Battery


• Frame:
  Firefly Baby Quad 1.6'' Frame kit
  Firefly Hex Nano 1.6'' Frame kit

Specifications

KV: 3400KV

• Configu-ration :9N12P

• Stator Diamter : 12mm

• Stator Length : 3mm

• Shaft Diameter :1.5mm

• Motor Dimension(Dia.*Len) : Φ16.2*9.9mm

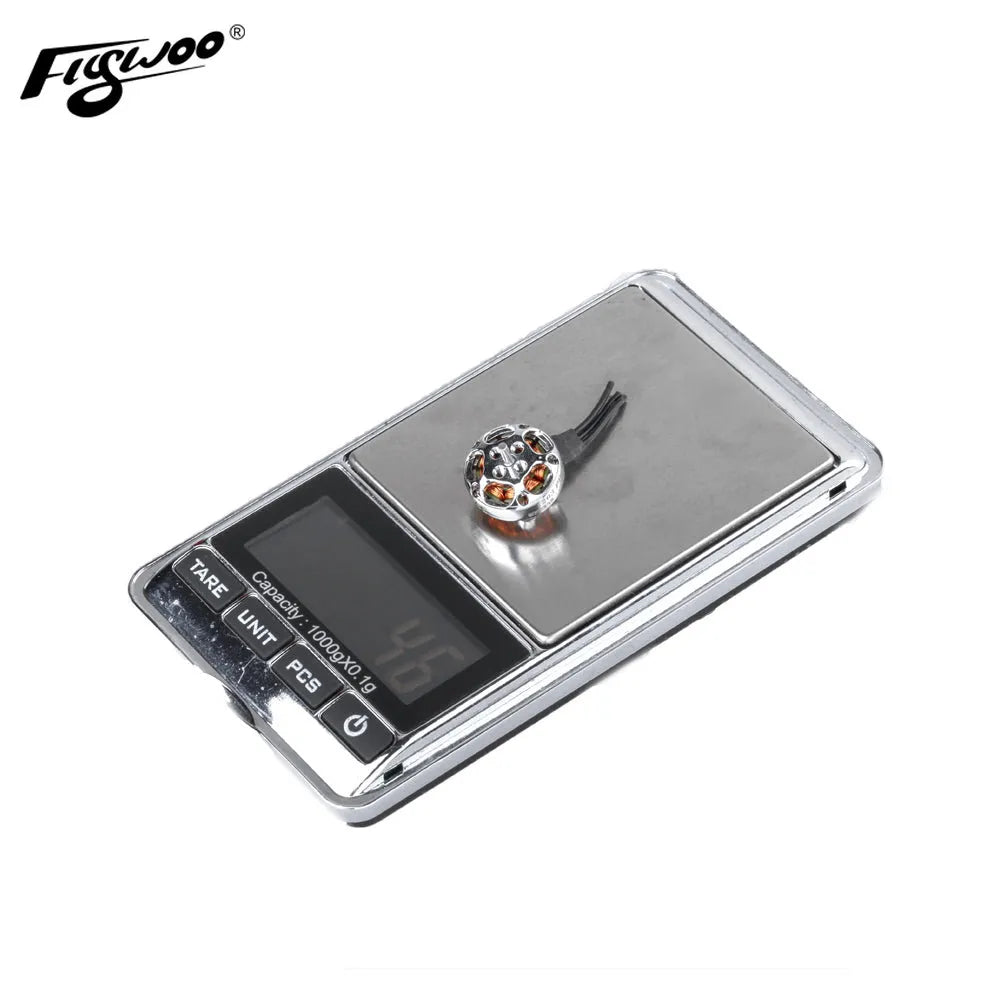

• Weight(g) : 4.7(3cm wire)

• Idle current(10) : @10V(A) :  0.3

• No.of Cells(Lipo) : 3~4S

• Max Continuous Power(W) 3S : 92

• Internal Resistance : 700mΩ

• Max Current(3S) : 6.2A

• Max.Effciency Current : (0.6-1.2A)>85%

•

KV: 5500KV

• Configu-ration :9N12P

• Stator Diamter : 12mm

• Stator Length : 3mm

• Shaft Diameter :1.5mm

• Motor Dimension(Dia.*Len) : Φ16.2*9.9mm

• Weight(g) : 4.7(3cm wire)

• Idle current(10) : @10V(A) :  0.7

• No.of Cells(Lipo) : 3~4S

• Max Continuous Power(W) 3S : 96.2

• Internal Resistance : 350mΩ

• Max Current(3S) : 6.5A

• Max.Effciency Current : (0.5-1.6A)>84%
