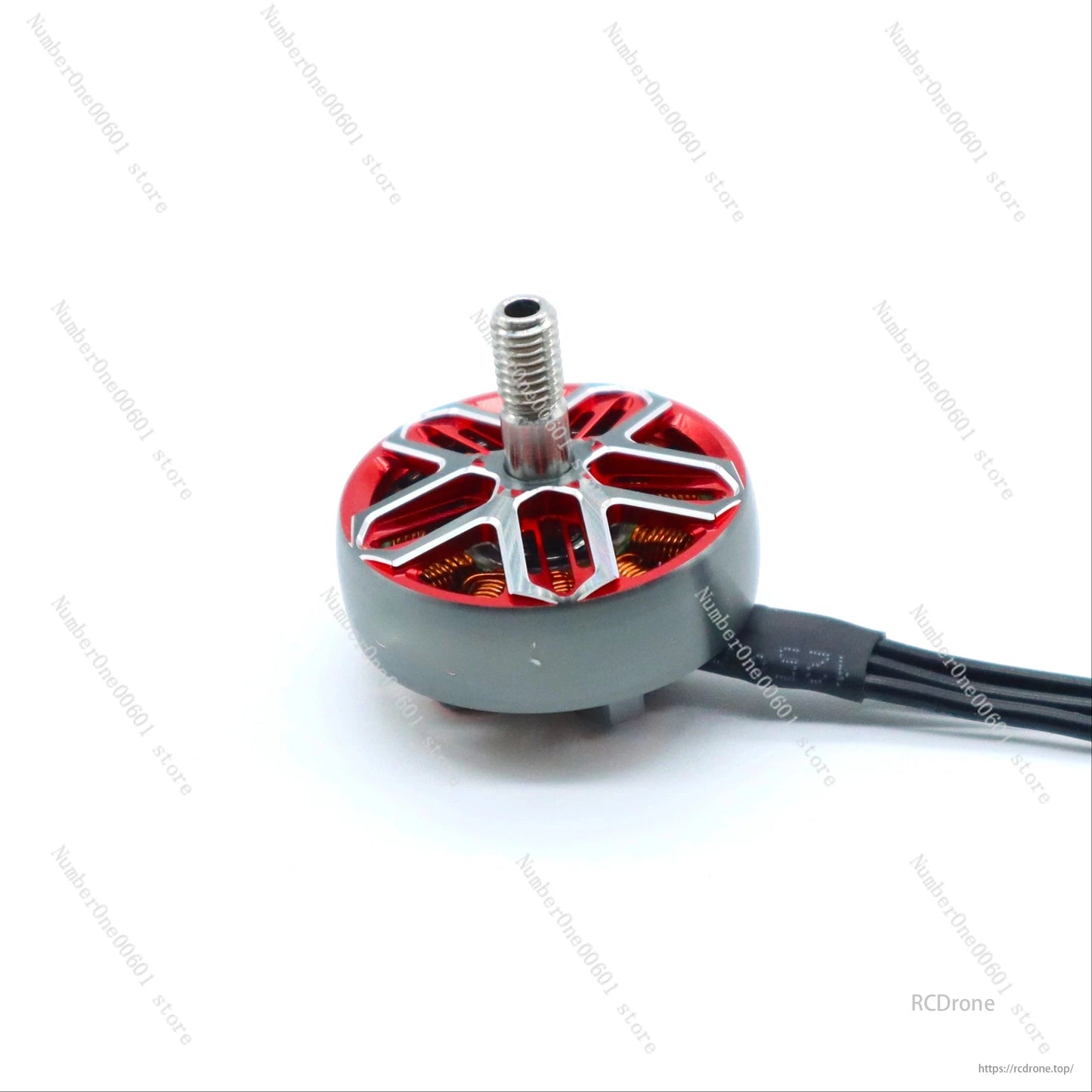

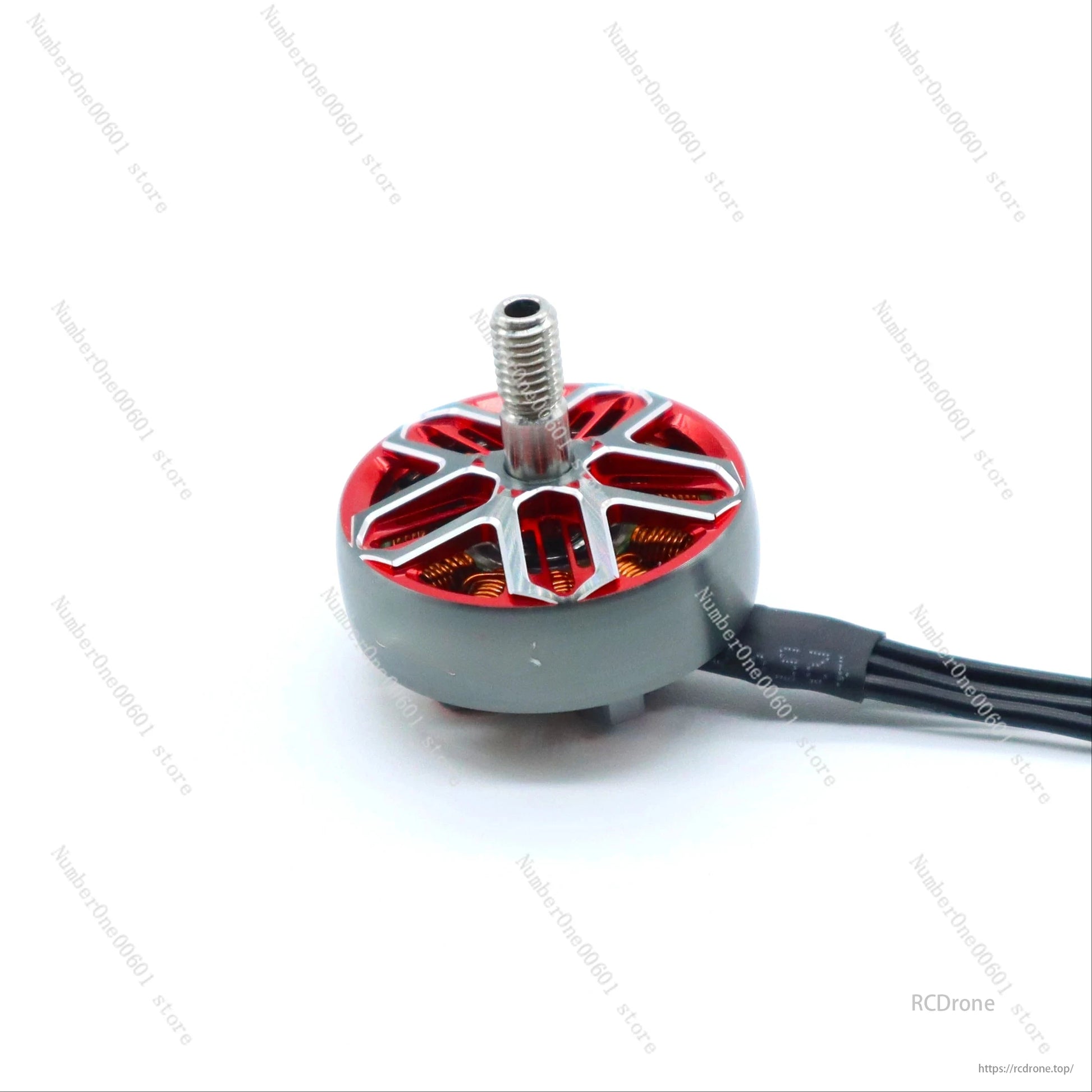

Wing Series 2505.5 1500KV 6S Brushless Motor for 6 Inch FPV Long Endurance & Crossover Drones

Overview

The Wing 2505.5 1500KV Brushless Motor is specially designed for 6-inch long endurance FPV drones and crossover frame builds. It offers high thrust, quiet operation, and remarkable heat resistance, making it ideal for pilots focused on long flight times, stability, and efficiency under 6S setups.

Featuring a high-temperature 240°C enameled wire, N52 magnets, and titanium alloy shaft and bearings, the motor balances power and reliability for extended sessions in the air.

Key Features

• 1500KV tuned for 6S power systems, ideal for long endurance

• Titanium alloy shaft and bearings for lightweight durability

• 240°C enamel-coated wire for heat resistance and sustained output

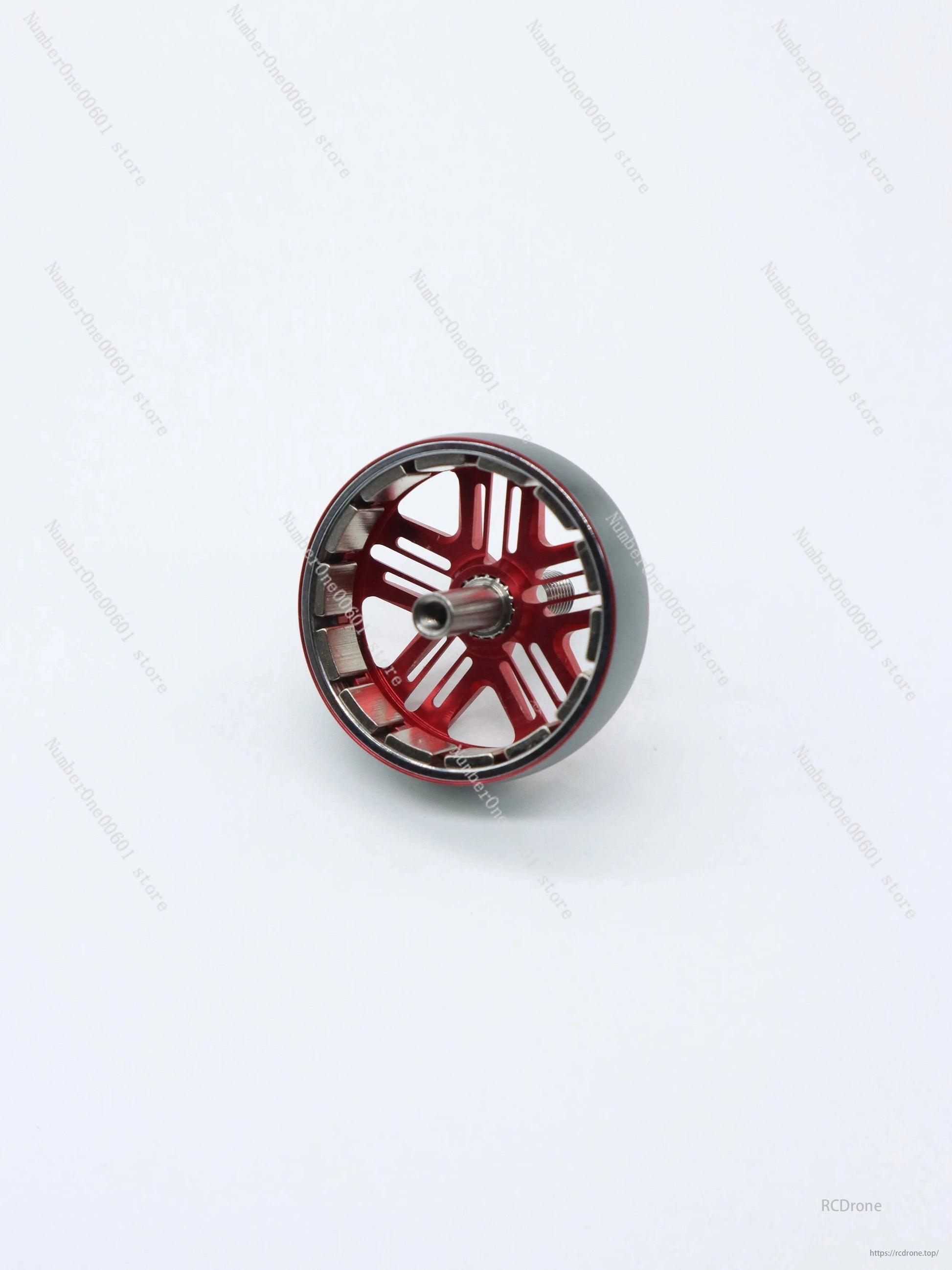

• Integrated rotor with N52 magnetic steel for high efficiency

• Smooth, quiet structure with silicone 20AWG wire

• Supports a wide range of 6-inch propeller types

Specifications

What’s Included

• 1 × Wing 2505.5 Motor (1500KV)

• 1 × M3-4mm screw

• 5 × M3-9mm screws

• 1 × M5 nut

• 1 × Rubber ring

• 1 × Metal washer

Application

Best suited for:

• 6-inch FPV long-range drones

• Long-endurance block frame platforms

• Freestyle crossover airframes

Recommended Setup

• Battery: 6S LiPo, 1100–1800mAh

• Propellers:

  • 6145 (2-blade / 3-blade) for balanced efficiency

  • 7035SR (3-blade) for higher thrust

  • Best results: Up to 1800g thrust @ 6S with 7035SR

• ESC: 35A–45A BLHeli_32 or BLHeli_S for optimal performance

Tested thrust up to 1801g @ 32A, delivering over 700W with HQ 7035SR on 6S.

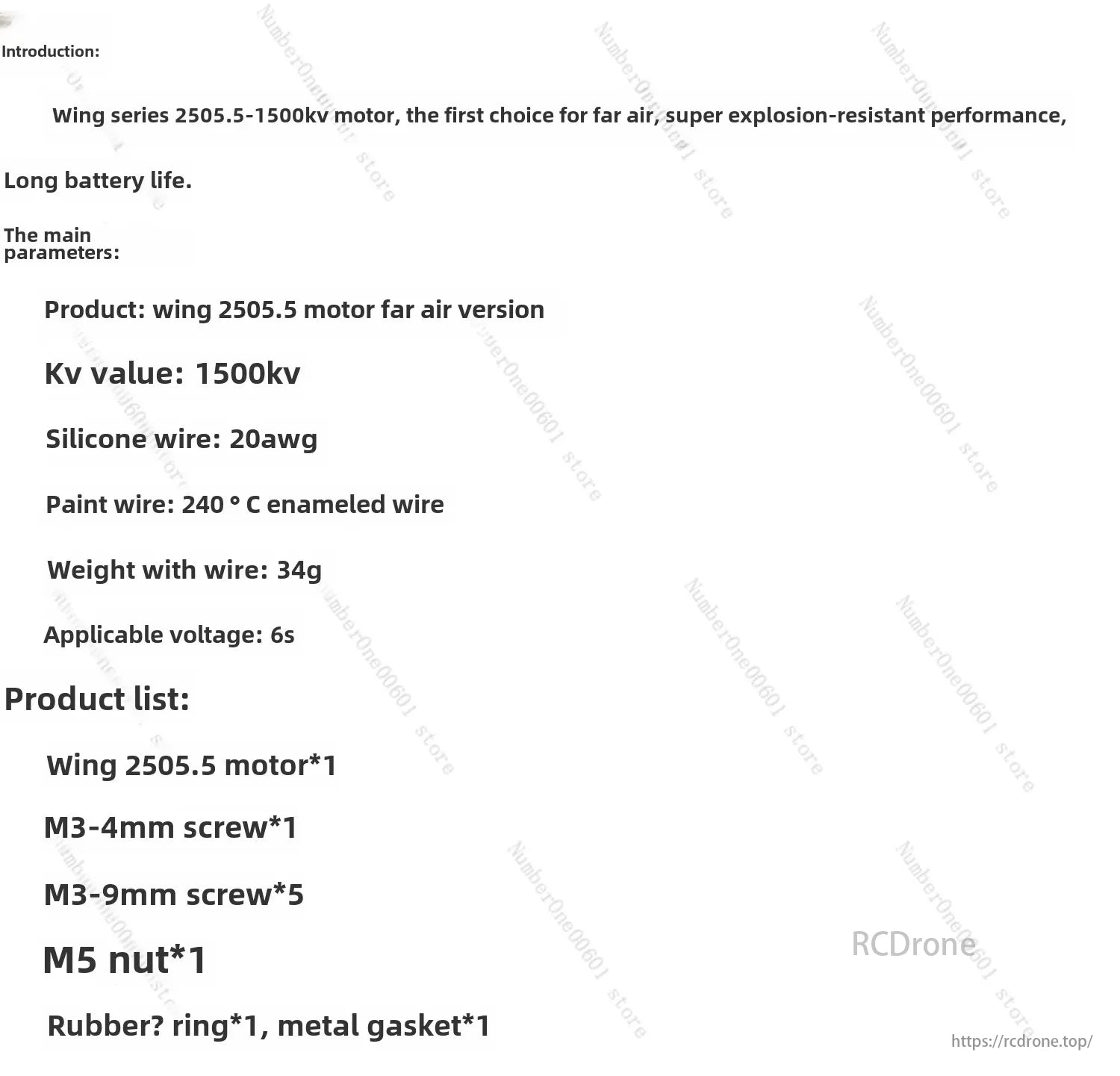

Wing 2505.5-1500KV motor, ideal for far air use. Features include super explosion-resistant performance, long battery life, 20AWG silicone wire, 240°C enameled paint wire, and a weight of 34g with wire. Applicable voltage: 6S.

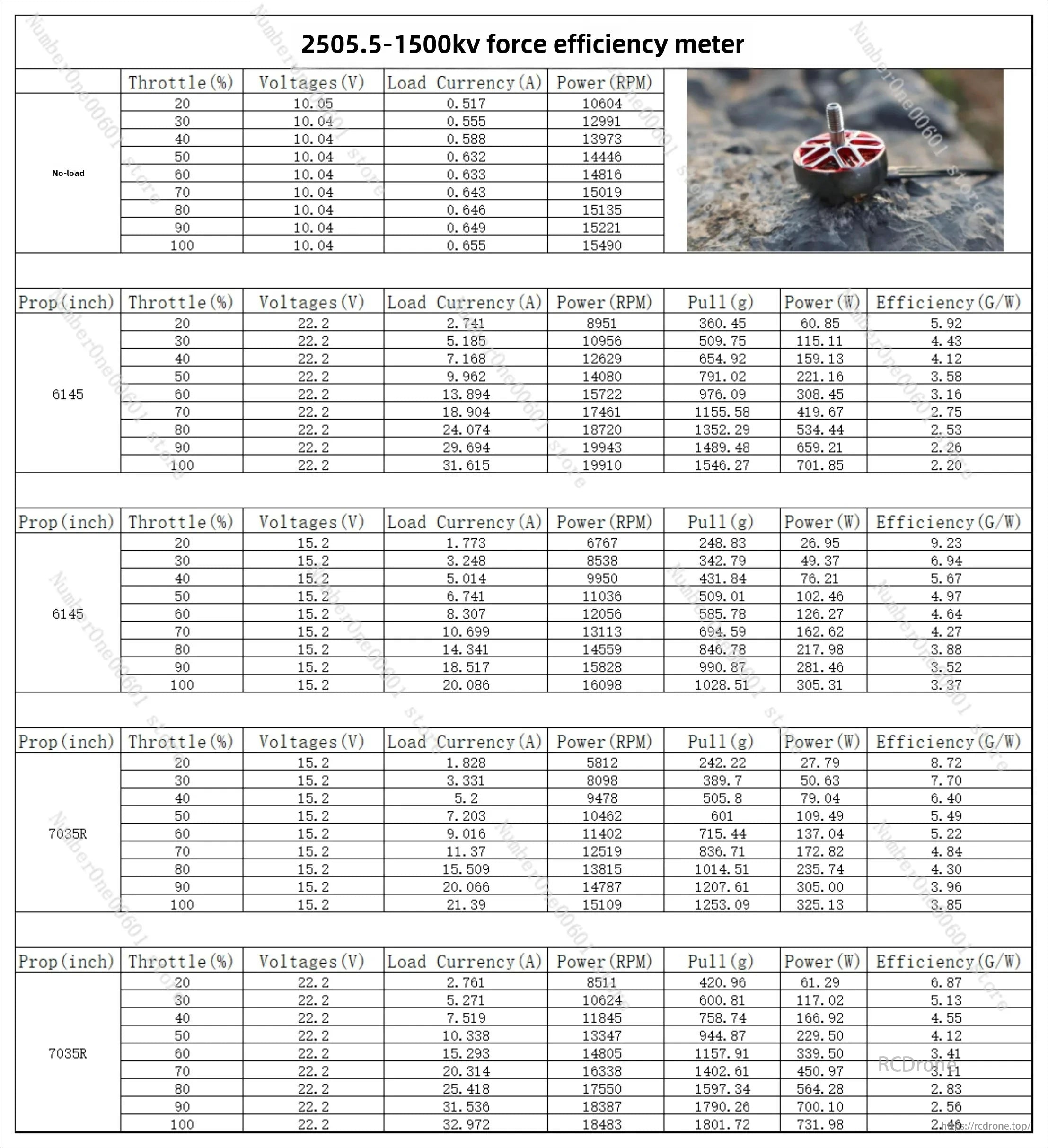

Force efficiency meter data for no-load, 6145 and 7035R props at various throttle percentages, including voltages, currents, RPM, pull, power, and efficiency values.

Cool and elegant, quiet and elegant. Freedom and yearning. Let navigation be full of ritual every time.

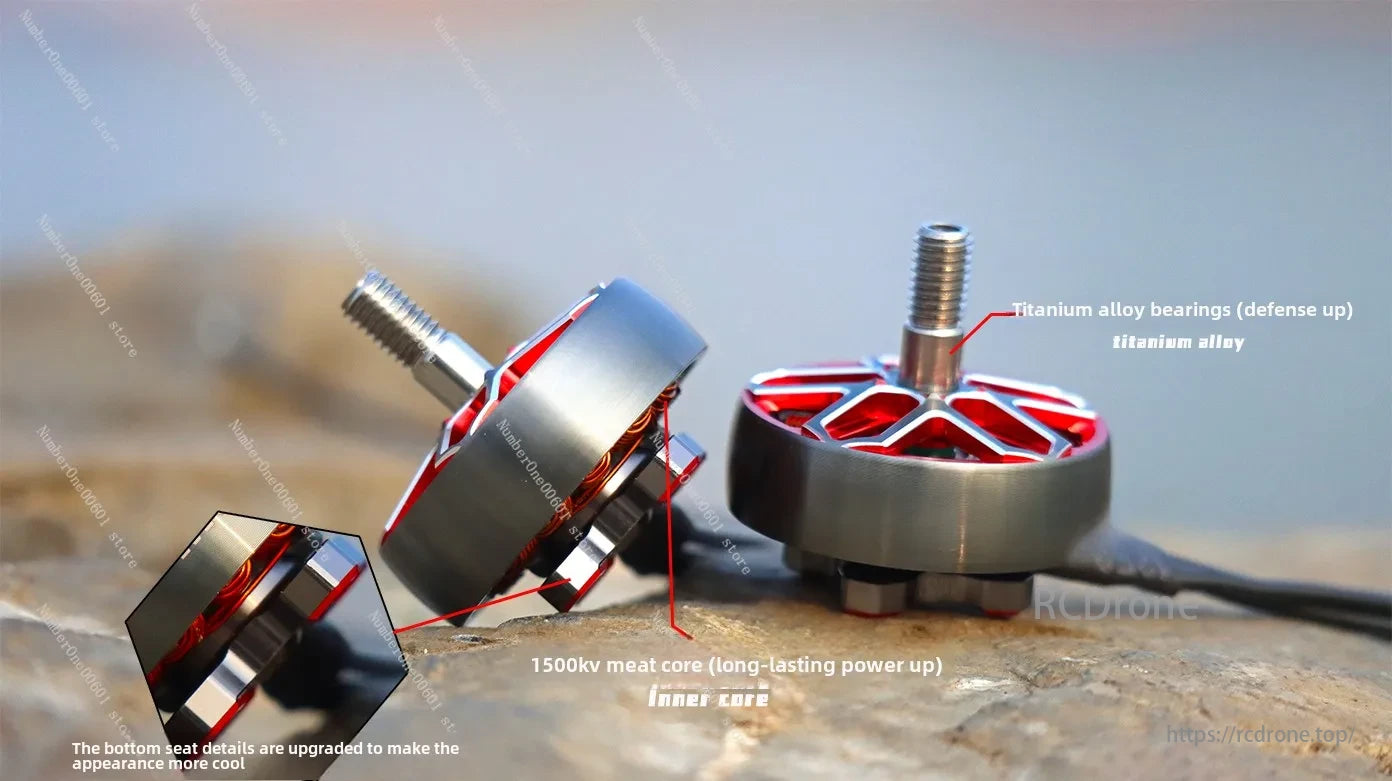

Wing Series 2505.5 1500KV 6S Brushless Motor with titanium bearings, powerful 1500kv core, and upgraded bottom seat details.

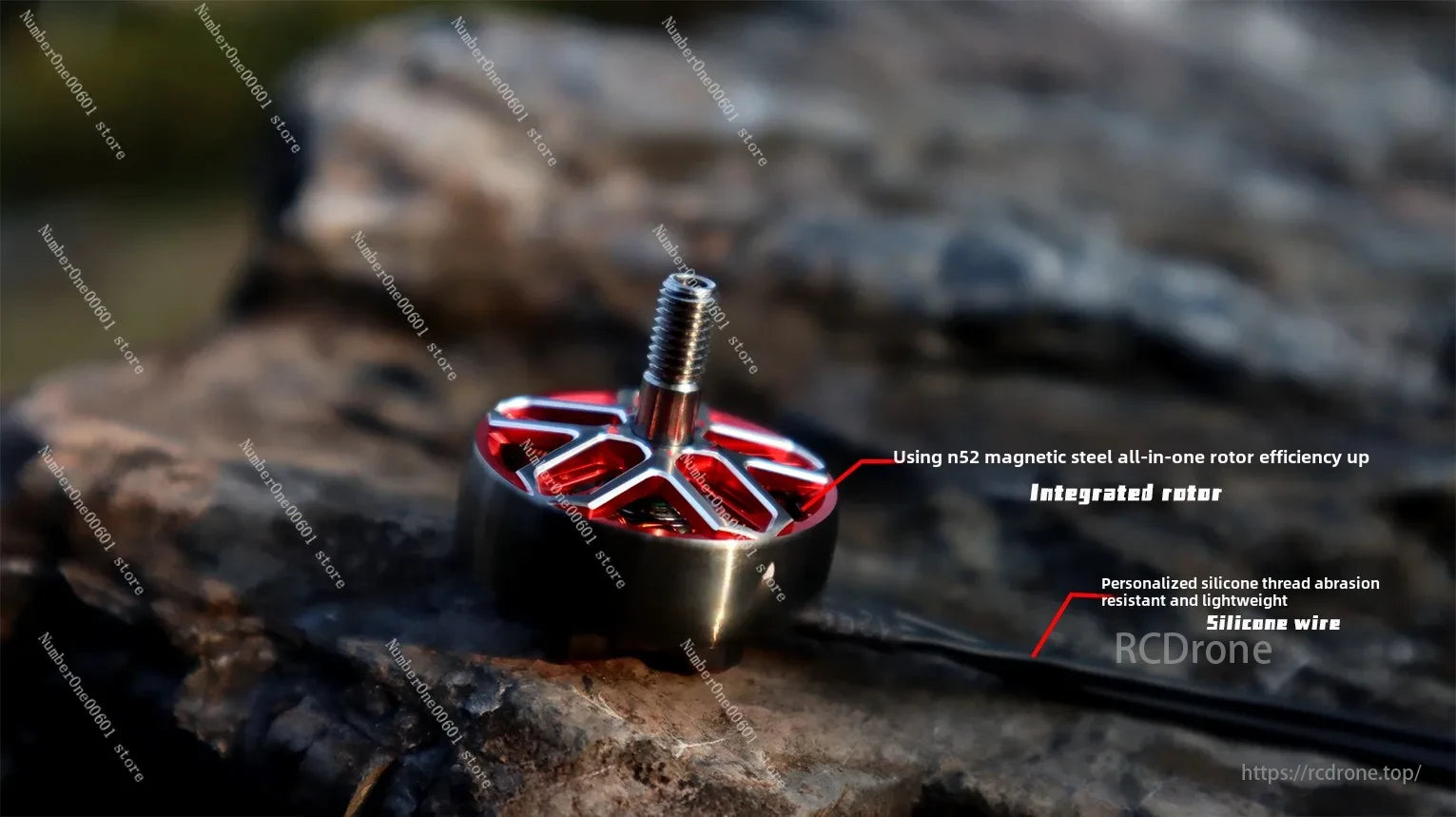

Wing Series 2505.5 1500KV 6S Brushless Motor with n52 magnetic steel, integrated design, and silicone wire for durability and lightweight performance.
