Foxeer Aura LR10 10inch FPV Frame SPECIFICATIONS
Brand Name: Foxeer
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Long Range Frame
Size: AN
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: 10inch Frame
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Assembly Category
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: Foxeer Aura 10" LR
Four-wheel Drive Attributes: Motors
Wheelbase: Bottom Plate
Brand Name: Foxeer
Foxeer Aura 10" LR 10 inch Long Range Frame 440mm T700 Carbon with Silky Coating Analog/O3/HDZero/Vista LR10 Drone
Material Toray T700 carbon
Wheelbase 440mm
Middle Mouting Hole 30.5x30.5mm
Rear Mouting Hole 20x20/25.5*25.5/30.5x30.5mm
Camera Size 19x19/20x20mm
Supported System O3/Analog/Vista/Walksnail/HDZero
Weight 390g (Excluded TPU)
Packing List
7mm Arm 19mm Mounting - 4
3mm Top Plate - 1
3mm Middle Plate - 1
5mm Balance Pole - 2
3mm Bottom Plate - 1
2mm Front Holder - 1
2mm Rear Holder - 1
2mm Side Plate - 2
3 Hole SMA Antenna Mount - 1
Action Cam Mount - 1
Rx/250 GPS Mount - 1
DJI O3 Mount - 1
Battery Anti-slip Mat -1
Aluminum Column M3*Φ5*22 - 4
Aluminum Column M3*Φ5*32 - 6
M5 Nut - 1
M5*20 Screw - 1
300*20mm Strap - 2

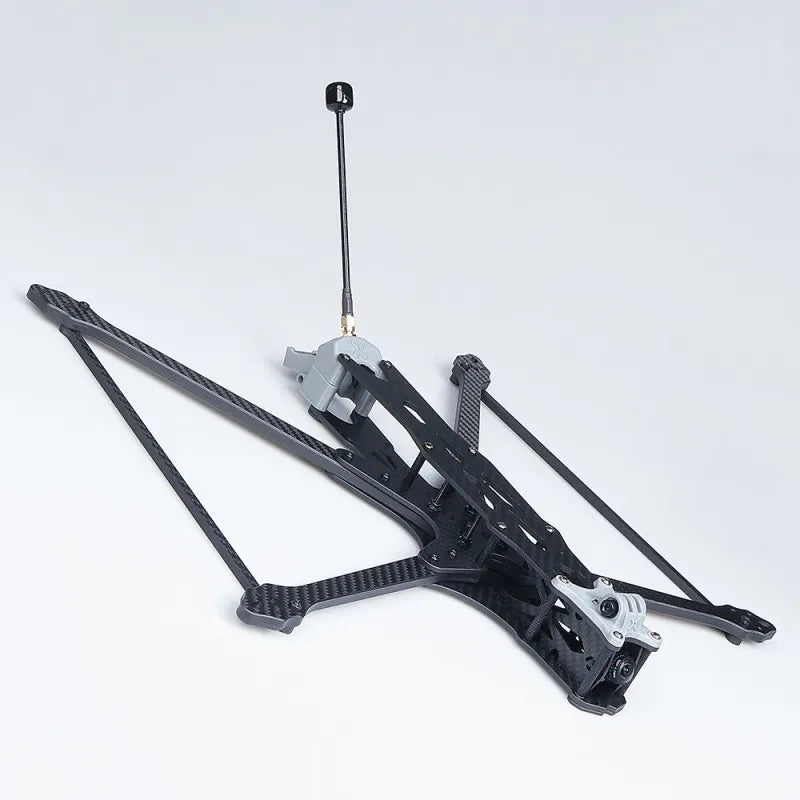

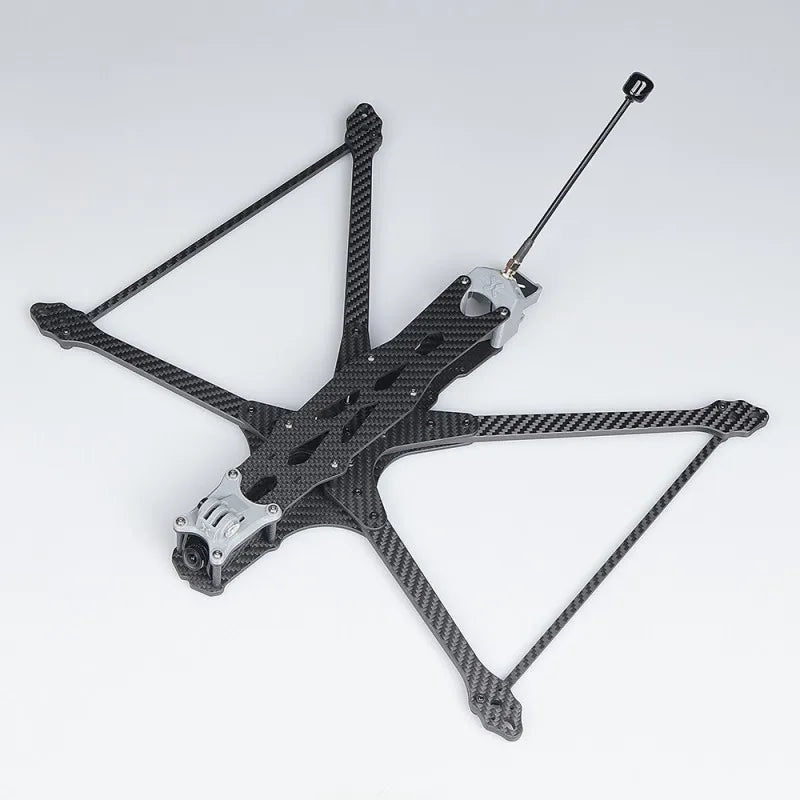

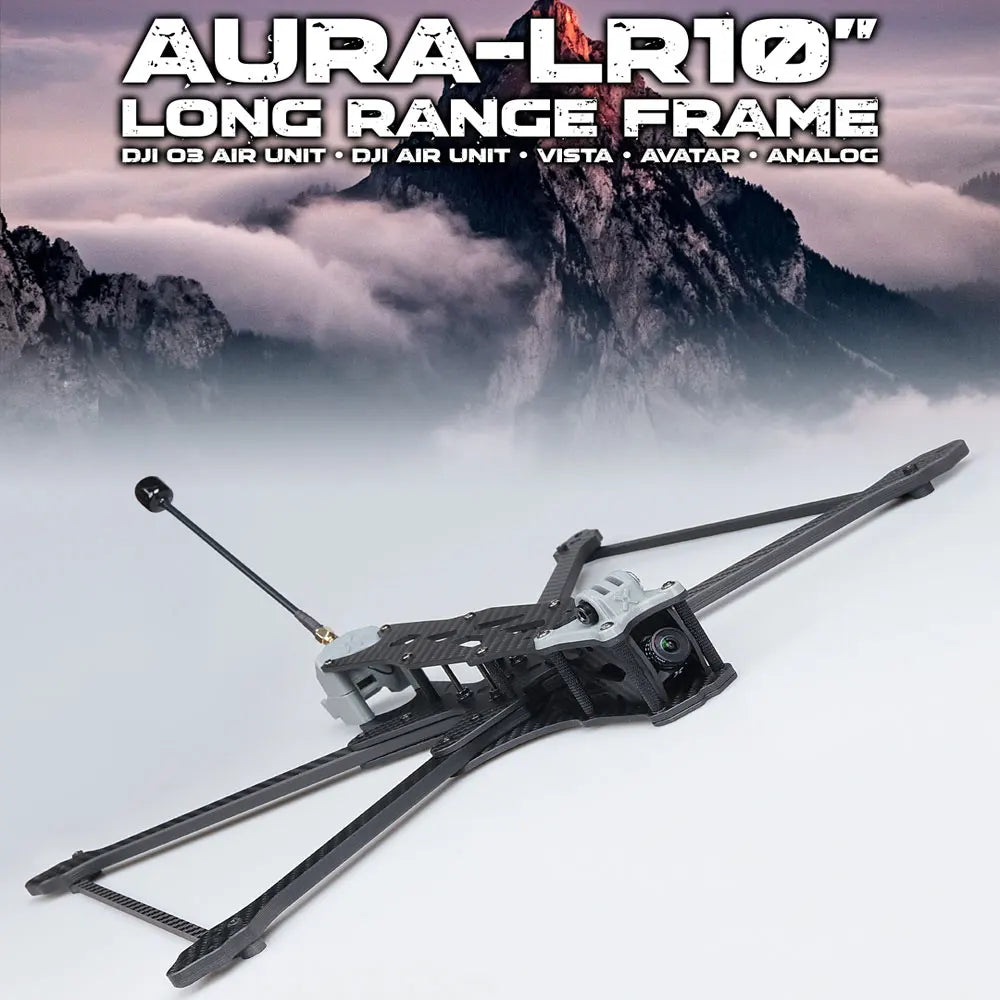

Foxeer Aura LR10 10inch FPV Frame, 440mm T700 Carbon with Silky Coating. Designed for Analog/O3/HDZero/Vista LR10 Drone. The frame features a durable and lightweight design, made from high-quality T700 carbon fiber with silky coating for reduced friction and improved durability.
