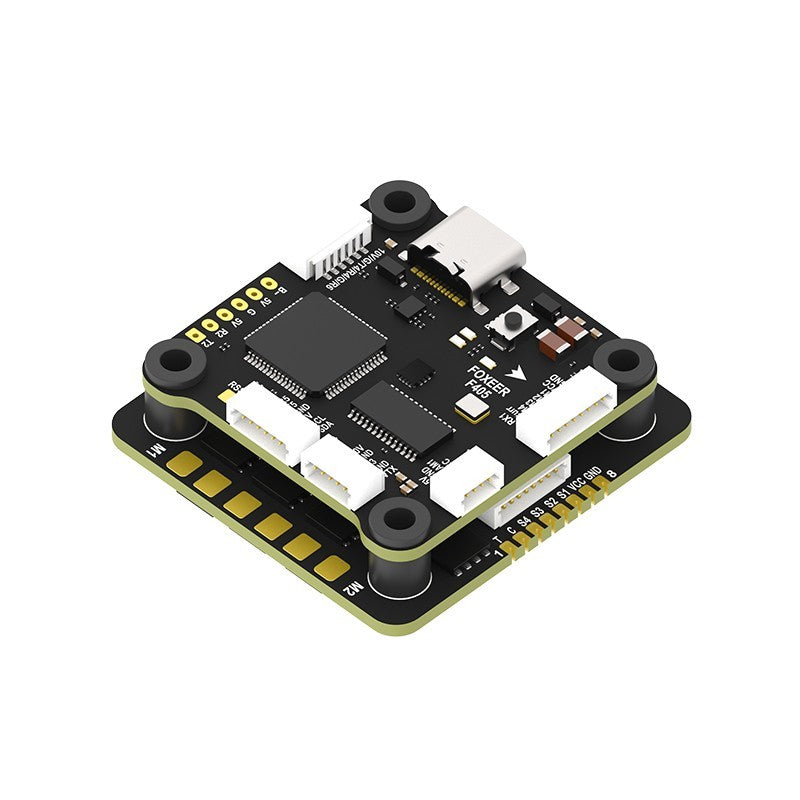

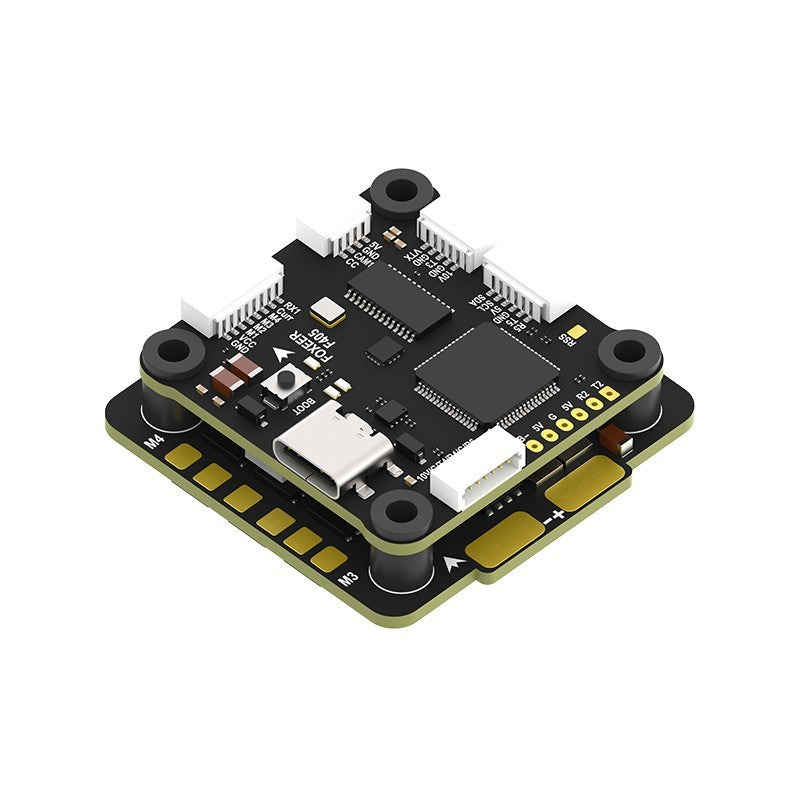

Foxeer F405 V2 Reaper 55A 8S Stack Overview
The Foxeer F405 V2 (Plug) Flight Controller and Reaper 55A ESC 8S Stack offer a powerful and versatile solution, specifically designed for FPV racing and high-performance drones. This combo includes a 6-set UART interface, supports 4-8S LiPo batteries, and is compatible with DJI, GPS/Compass, VTX, and more peripherals. It features 16M Flash memory for logging flight data, while the ESC provides 55A continuous current and 80A burst current to handle high-load flight operations. Built to endure, this stack operates within a wide temperature and humidity range, ensuring stability and durability in challenging environments.

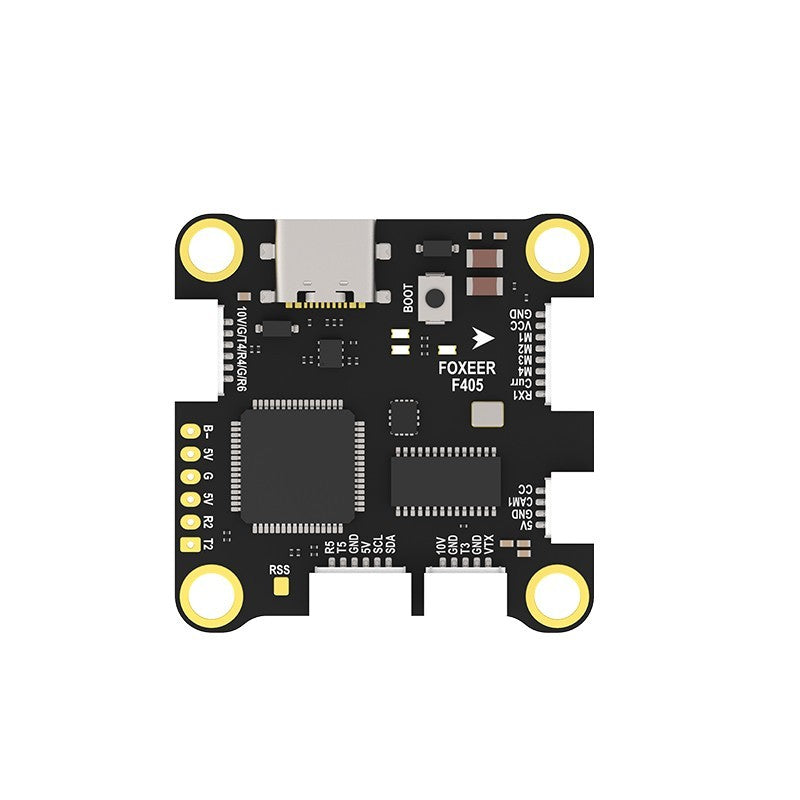

Foxeer F405 V2(Plug) Specifications
| Model | Foxeer F405 V2(Plug) Flight Controller |
| CPU | STM32F405RGT6 |
| Gyro | ICM42688-P |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | DC5V/3A; 10V/3A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 6 Set |
| Connector | DJI; GPS/Compass; 2 Camera Switch; VTX |
| ESC Telemetry | RX1 |
| X8 | Supported |
| ADC | X3 |
| PWM | 1CH |
| Buzzer | YES |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| Fireware | FOXEERF405V2(BetaFlight); F405V2(Ardupilot) |
| Size | 37X37mm |
| Mounting Hole | 30.5*30.5mm,Φ4mm |
| Weight(g) | 8.4g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |

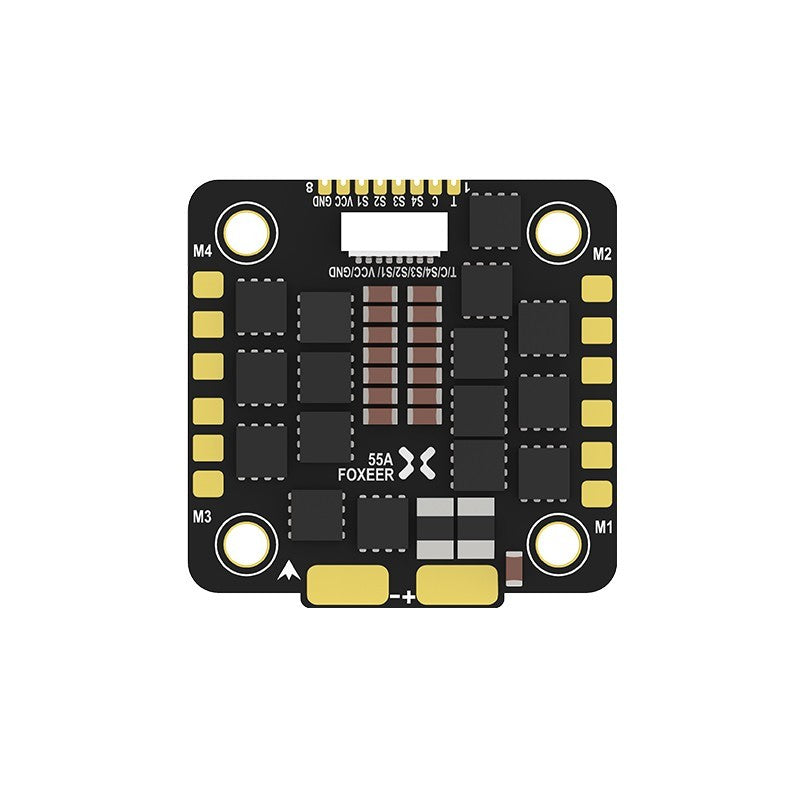

Foxeer Reaper 55A ESC Specifications
| Model | Foxeer Reaper 55A ESC |
| Firmware | FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9 |
| Continuous /Burst Current | 55A*4 / 80A*4 |
| Input Voltage | DC 9V~36V (3-8S Lipo) |
| BEC | No |
| Telemetry | Supported |
| ESC Programming | BLHeli32 |
| Current Scaling | 70 |
| Input Signal | DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc. |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Mounting Hole | 30.5X30.5mm,Φ4mm/M3 |
| Dimension | 42.5x42x5.5mm |
| Weight | 14.6g |
Package Includes:
- 1x Foxeer F405 V2 (Plug) Flight Controller.
- 1x Foxeer Reaper 55A ESC.
- 8x M3*8mm silicone grommets for secure mounting.
- 1x capacitor for stable power delivery.
- 5x M3 nylon nuts for assembly.
- 1x 120mm camera cable for video connection.
- 1x 90mm DJI cable for digital systems.
- 1x 120mm GPS/Compass cable for navigation systems.
- 1x FC-ESC cable for seamless connection between the FC and ESC.
- 1x 90mm VTx cable for video transmission.
- 1x XT60 cable for power supply.
