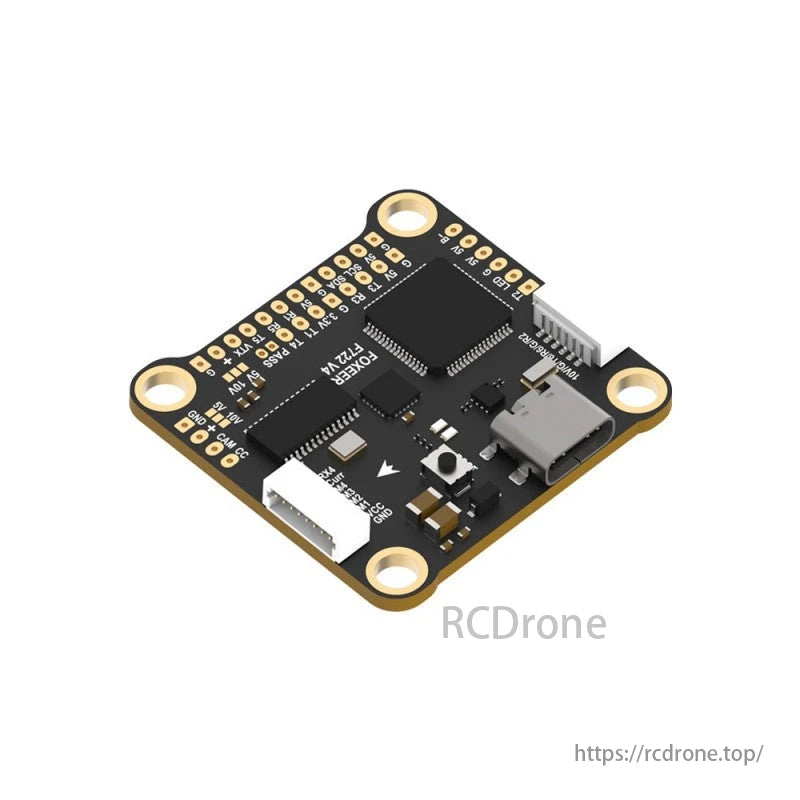

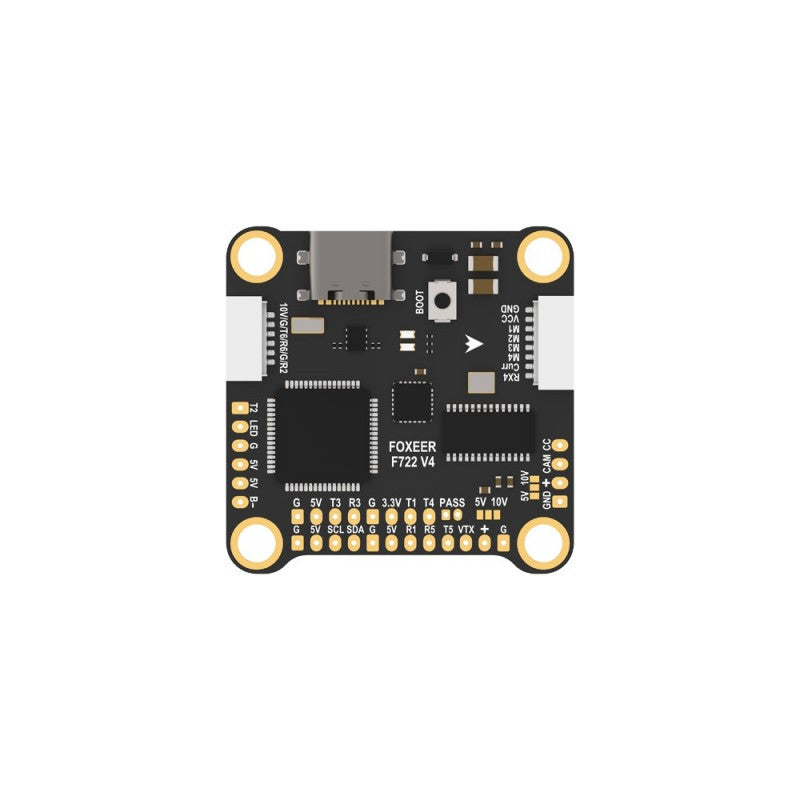

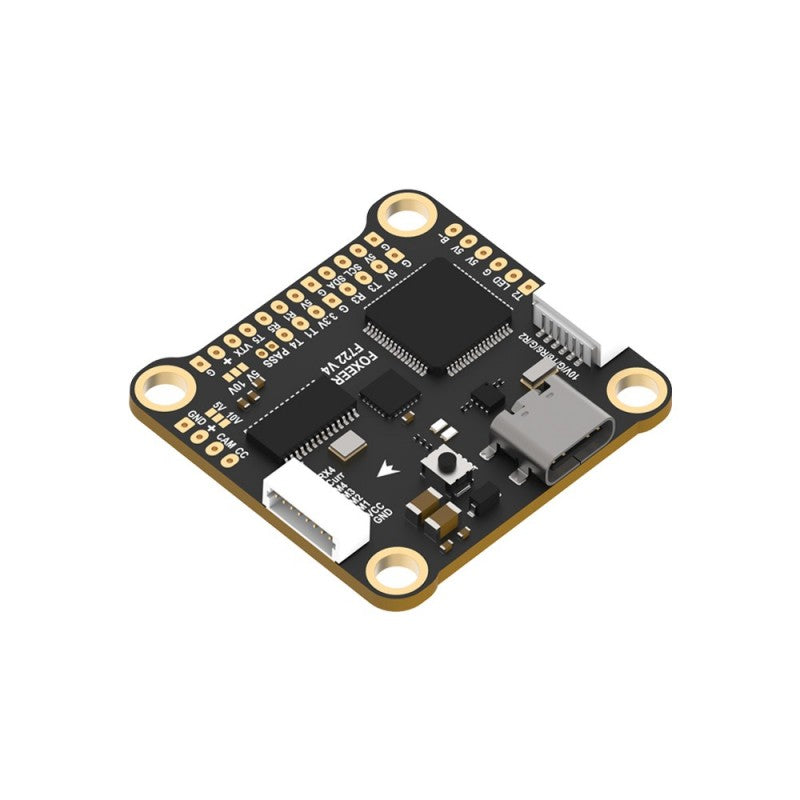

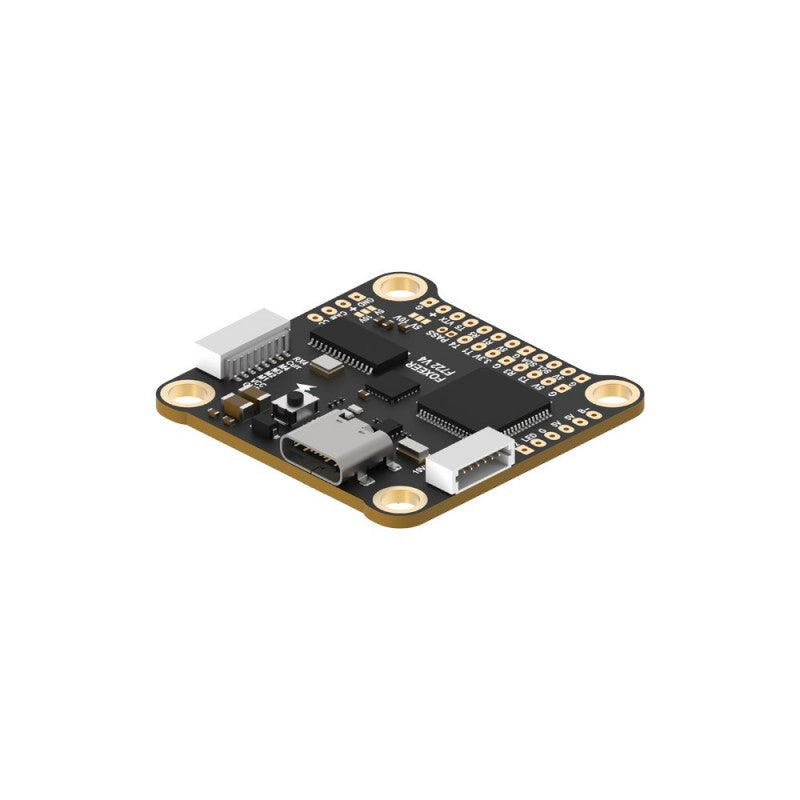

Foxeer F722 V4 MPU6000 FC 8S Dual BEC Barometer X8 Flight Controller

Foxeer F722 V4 MPU6000 Flight Controller Overview

The Foxeer F722 V4 MPU6000 FC 8S Dual BEC Barometer X8 Flight Controller is a high-performance flight controller designed for demanding FPV pilots and drone enthusiasts. Equipped with the STM32F722RET6 CPU, MPU6000 gyro, and DPS310 barometer, this controller provides precise flight control, stability, and accurate altitude data. Supporting 4-8S LiPo batteries, it is ideal for high-performance drone applications, with dual BEC outputs ensuring reliable power distribution to servos, VTX, and other peripherals. The Foxeer F722 V4 is tailored for X8 configurations (with CLI setup), making it suitable for complex drones requiring additional control.

Foxeer F722 V4 MPU6000 Features:

• Advanced Flight Control: Powered by the STM32F722RET6 CPU and MPU6000 gyro for precise and stable flight performance.
• Accurate Altitude Readings: The DPS310 barometer provides reliable and precise altitude data, enhancing drone navigation and control.
• Dual BEC Outputs: With DC5V/2A and DC10V/2A outputs, this flight controller ensures stable power supply to external components like VTX and servos.
• Comprehensive Connectivity: Includes 5 UART ports and RX4 ESC telemetry for seamless integration with DJI/HDZero, smart audio, and additional peripherals.
• Real-Time Data: The integrated BF OSD (Betaflight On-Screen Display) allows for real-time flight data monitoring on the screen.
• Durable and Lightweight: Weighing only 7.7g, the compact 37x37mm size fits most drone builds with 30.5x30.5mm mounting holes (Φ4mm).
• X8 Configuration Support: Optimized for X8 drone setups, configurable via CLI commands, making it highly versatile for large or complex builds.
• Flexible Firmware Support: Compatible with Betaflight firmware (FOXEERF722V4), providing flexibility for different flight styles and configurations.
• Operational Stability: Designed to withstand temperatures from -20°C to +55°C and humidity levels from 20-95%, ensuring stable performance in a variety of environments.

Foxeer F722 V4 MPU6000  Flight Controller Specifications

Foxeer F722 V4 Flight Controller features MPU6000, FC, and 8S Dual BEC Barometer X8. It has a high-speed rate of 32KHz and 32KB FLASH. The controller supports Plug-and-Play with Foxeer cameras for direct remote control. Additionally, it can connect to DJI Vista HD and Zero GND modules.
