Foxtech Loong 170 VTOL - 15KM 2KG Payload 100 Minutes 1700mm Wingspan Airplane

Foxtech Loong 170 VTOL Drone Overview

The Foxtech Loong 170 VTOL Drone is a versatile, high-performance unmanned aerial vehicle designed for mapping and inspection tasks. With a wingspan of 1700 mm, a maximum flying speed of 26 m/s, a flight time of up to 100 minutes, a maximum takeoff weight of 4.5 kg (including battery), and a transmission range of 15 km, this drone offers exceptional speed, endurance, and ease of use, making it an ideal choice for various professional applications.

Foxtech Loong 170 VTOL Specifications

What's Include

1) ARF power kit

1 x Loong 170 VTOL Body;

1 x Power System;

1 x Transport Box;

2) RTF kit

1 x ARF Power Kit;

1 x V5+ Flight Controller;

1 x GPS Module;

1 x Remote Controller;

1 x Battery;

1 x Charger;

3) Inspection kit

1 x RTF Kit;

1 x EH10 optoelectronic pod;

4) Surveying kit

1 x RTF Kit;

1 x Map02 mapping camera;

Foxtech Loong 170 VTOL Key Features

1. High Speed and Long Endurance:

   • The Loong 170 can achieve a maximum flying speed of 26 m/s and supports up to 100 minutes of flight time, making it an ideal choice for extensive mapping missions.

2. Sturdy & Durable Material:

   • Constructed from EPP material, the Loong 170 boasts a high strength-to-weight ratio, impact resistance, thermal insulation, and water and chemical resistance, making the drone both lighter and stronger. The basic empty weight of the Loong 170 is only 2 kg.

3. Unique Swing & Lock Tail Wing Design:

   • This innovative design allows for one-handed mounting, simplifying the setup process and improving operational efficiency. The tail wing and fuselage are securely locked with a buckle, and storing the drone is as simple as pushing down on the spring head to fold it.

4. Handy & High-efficiency Propulsion System:

   • The drone uses a propeller self-tightening technology, enhancing operational efficiency. The propellers tighten as the motor operates due to the opposing direction of the motor and thread. For storage, only the front two propellers need to be removed, and no tools are required for this process.

5. Modular Structure:

   • Featuring a modular design, the two front wings are mounted via carbon fiber tubes and secured with a buckle. This allows for quick assembly, taking less than 3 minutes by a single operator.

6. For Mapping & Inspection:

   • The Loong 170 is equipped with an MK15 15km long-range radio controller and supports various mapping cameras such as MAP-02, MAP-A7R, and MAP-A7R2. This enables the drone to produce high-quality photos even at high flying speeds.

7. Advanced Sensors and Modules:

   • The drone includes an exterior-mounted ESC for heat dissipation, a high-precision GPS module, a wing-mounted airspeed sensor, and security locks on the wings to ensure stability and safety during flights.

8. Transmission Range:

   • The Loong 170 offers a 15 km transmission range, providing extensive coverage for large-scale mapping and inspection operations.

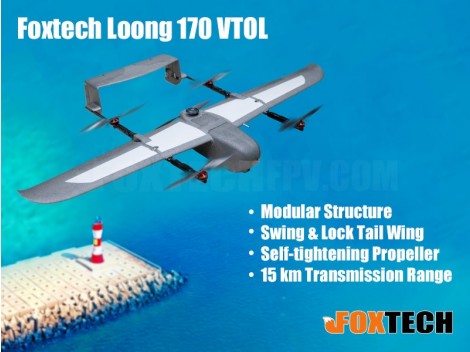

Highlights

• Swing & Lock Tail Wing: Enables easy and secure setup with one-handed operation.
• Self-tightening Propeller: Enhances efficiency and security during flight.
• Modular Structure: Simplifies assembly and disassembly, making it portable and user-friendly.
• 15 km Transmission Range: Ensures long-range control and extensive operational reach.

The Foxtech Loong 170 VTOL Drone is an exceptional tool for professional mapping and inspection tasks, offering unparalleled performance, durability, and ease of use. Whether for surveying large areas or conducting detailed inspections, the Loong 170 is equipped to meet the demanding needs of various industries.

Equipped with exterior-mounted ESC for heat dissipation, high-precision GPS module, wing-mounted airspeed sensor, and security lock on wings.

Handy high-efficiency propulsion system features quick-mount design and propeller self-tightening technology for easy installation and storage, making it a convenient option.

Equipped with mapping cameras like MAP-02, MAP-AZR, and MAP-A7R2, the Loong 170 VTOL airplane can capture high-quality photos at high speeds.

Equipped with 15km transmission range and CUAV VS+ NEO V2 Pro technology for seamless remote control.

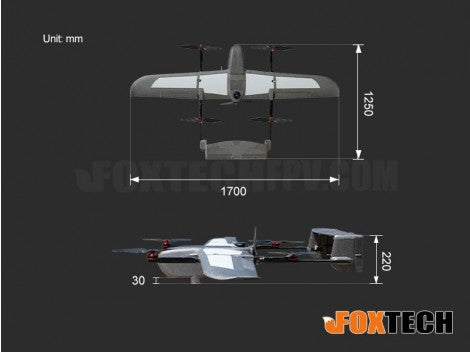

Fly with Foxtech Loong 170 VTOL, featuring a 1700mm wingspan, cruising speed of 16-26m/s, and max takeoff weight of 4.5kg; suitable for indoor or outdoor use.
