Upgrade to high-quality brushless PTZ control panel, chips are original chip, increase the supply anti-reverse polarity protection, counter-power to prevent customers from unintentional indirect cause significant damage

Original sensor chip, better accuracy, and change the sensor interface, the connection is more solid, easy to loose, iic error does not occur;
Upgrade the roof, increasing the head hook hole, easy to use PTZ hook
You can use the remote real-time control of pitch and roll angle
Extended function: to set flip, installed on fixed wing;
                   Handheld PTZ can be changed; (user to modify, we does not provide technical support)
                   Can be upgraded to three PTZ (user to modify, we does not provide technical support)

Specifications:

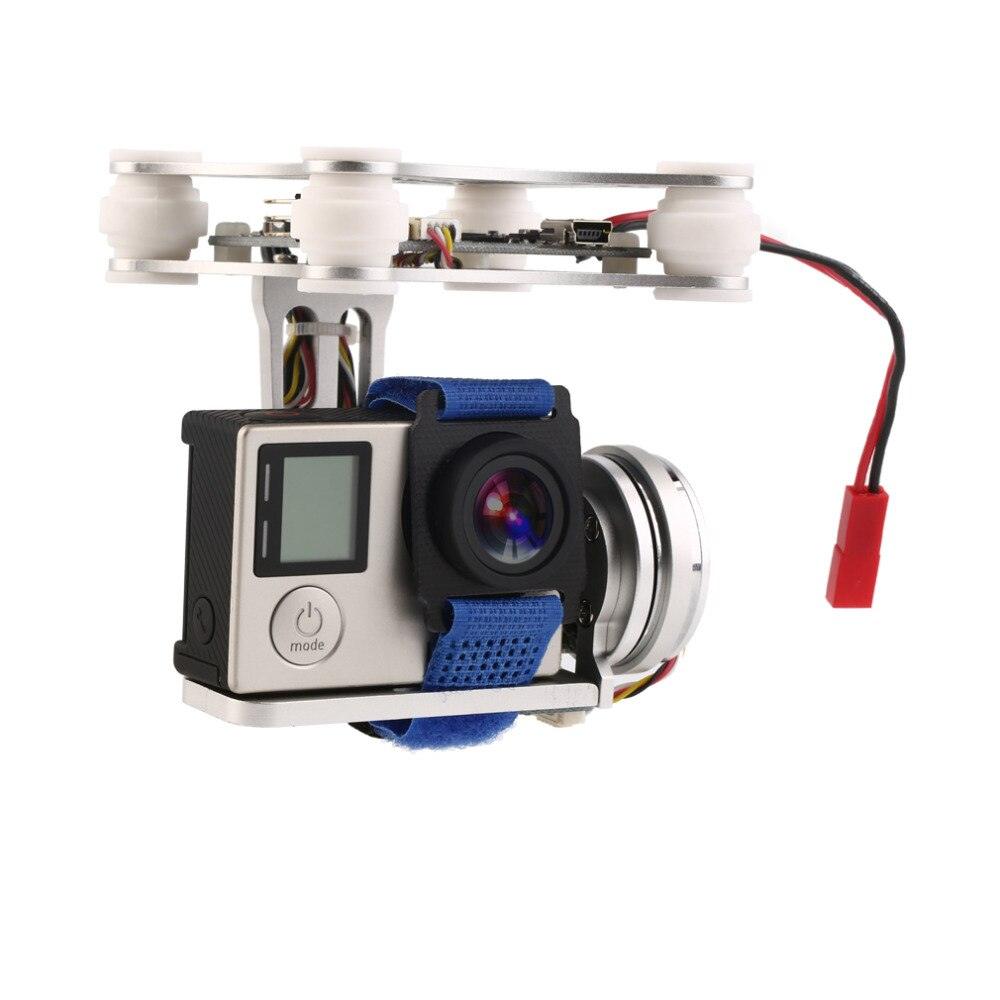

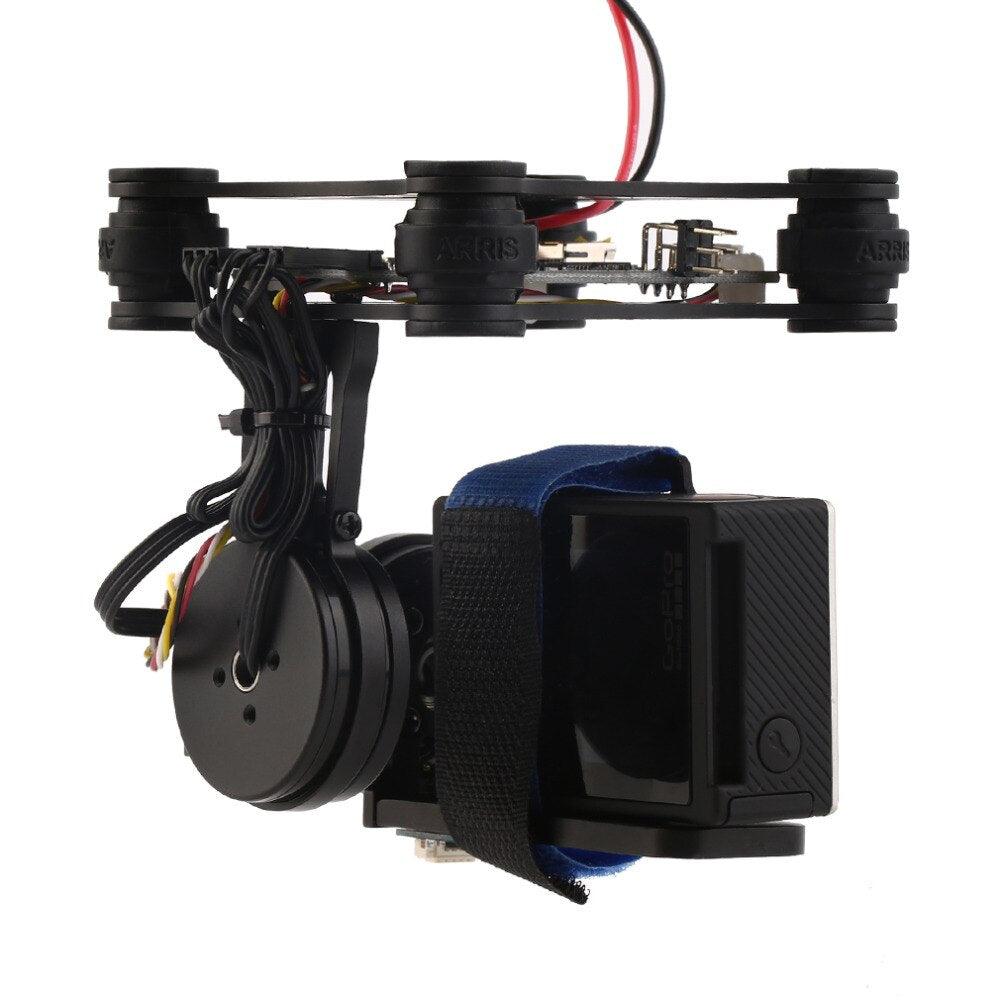

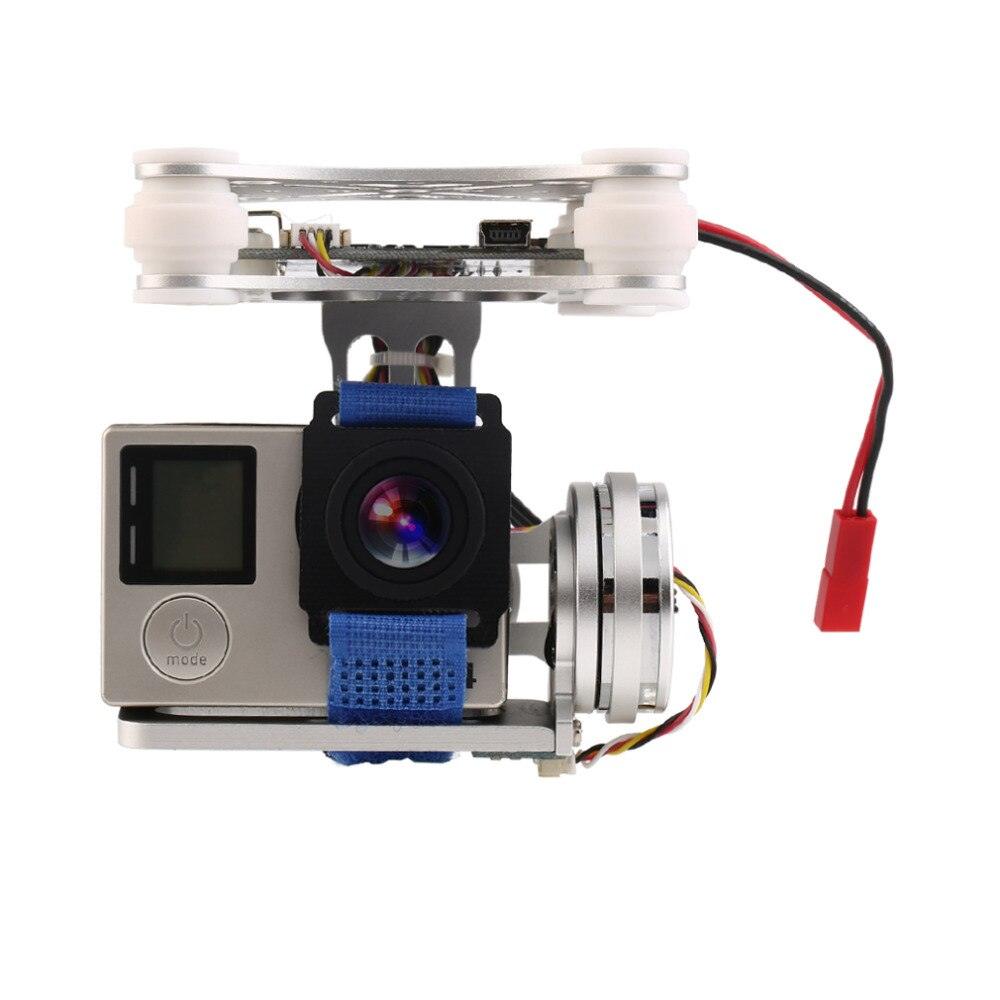

Name: CNC metal brushless gimbal
Material: CNC Aluminium alloy
Motor: Model 2208 kv80 Brushless motor
Control Panel: BGC3.0 Brushless control panel
Software: BGC2.2
Strap: for Gopro camera strap
Compatible camera: for GOPRO 3 3+ 4
Battery plug type: JST plug / XH-2.54 plug
Voltage: 12V/3cell Lipo battery
Compatible model: for DJI phantom I, II and other DIY drones
Color: black Silver
Size: 80 x 80 x 80mm
Package size: 125 x 125 x 105mm

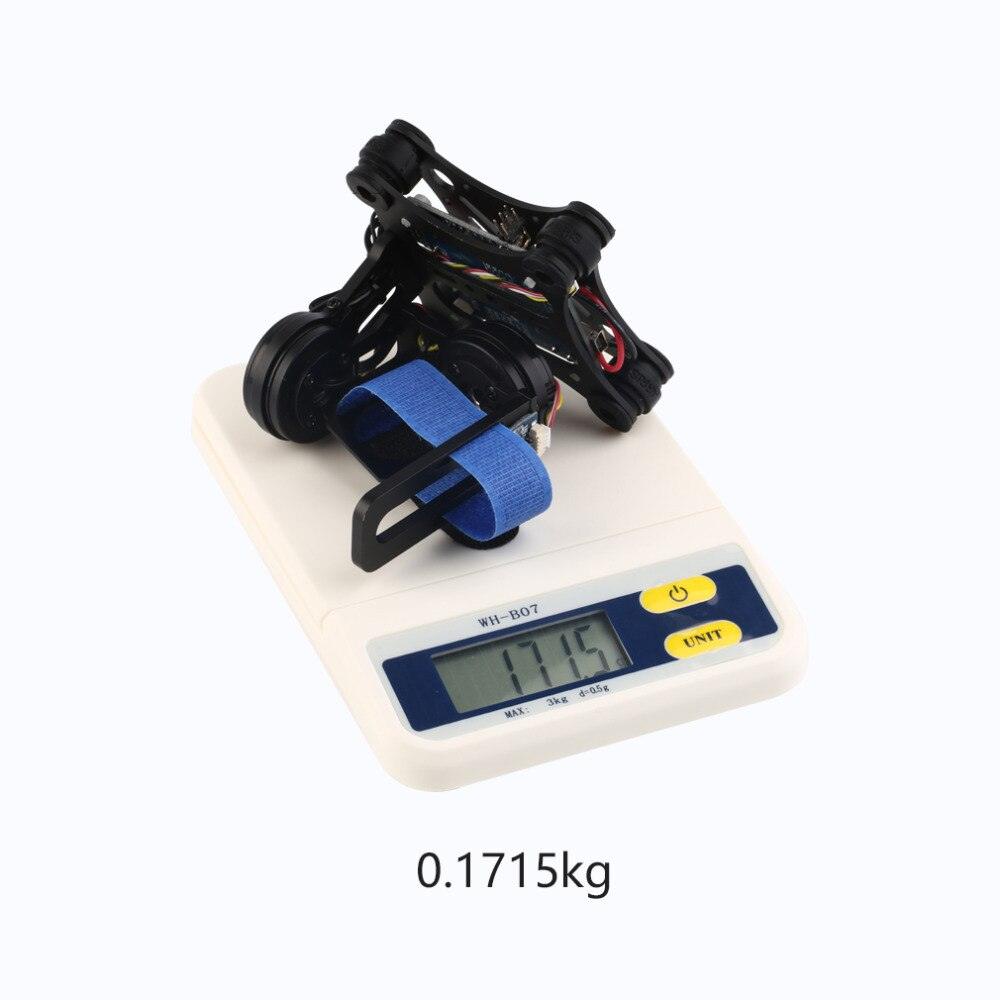

Net weight: 170g
Pacakge weight: 210g

Notes:
1. Recommended power supply for the gimbal is 12V. (3cell lipo battery)
2. The gopro camera must fasten on the gimbal. (Not any loose, this is very important)
3. Adjust the gopro camera left or right, let the camera almost at level.
4. Please do not power on the gimbal until the Gopro camera is fixed on the gimbal.

How to install:
1. Remove the damping balls, open the top cover of the mounting plate.
2. Install the top cover of the mounting plate to the bottom of the DJI phantom.
3. Install the damping balls.
4. Install your GOPRO camera,and fasten it with straps


Package included:
1 x brushless PTZ control panel(with some screws)
1 x cable
1 x blue Camera Ties
