Mini 3.0-Inch 5.8GHz 40CH FPV Goggles, IPS LCD 480*320, Dual RP-SMA Antennas, 3.7V 1200mAh
Mini 3.0-Inch 5.8GHz 40CH FPV Goggles, IPS LCD 480*320, Dual RP-SMA Antennas, 3.7V 1200mAh
DarwinFPV
Regular price
$107.19 USD
Regular price
Sale price
$107.19 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
These FPV Goggles feature a mini 3.0-inch display and a built-in 5.8GHz 40CH FPV receiver for real-time video return. They support key search frequency and 40-port automatic search, and use a dual-antenna design to help maintain stable reception.
Key Features
- Mini 3.0-inch IPS LCD monitor for clear viewing
- Built-in 5.8GHz 40CH receiver with auto-search (searches for the strongest signal)
- Dual antenna ports (2 x RP-SMA male)
- Micro USB charging (DC5V)
- AV jack for external video signal input or internal AV signal output
- Small size, light weight, and low power consumption
For product and setup support, contact support@rcdrone.top or visit https://rcdrone.top/.
Specifications
| LCD screen size | 3.0 Inch |
| Resolution | 480*320 |
| Display ratio | 16:9 |
| View angle | 6 o'clock |
| Brightness | 500cd/m (high brightness backlight LED) |
| Video delay | Video time-delay less than 20ms |
| Lens | 4X Fresnel Lens; 92% transparent rate; no distort of light |
| Antenna interface | 2 X RP-SMA male |
| USB | To charge the battery |
| AV jack | External video signals input or internals AV signal output |
| Languages | English and Chinese |
| Power adapter | DC5V/1A (USB interface) |
| Battery | 3.7V/1200mAh (description also states 3.7V 1200mA) |
| Working time | Each full charge revive around 2.5hr working time |
| Device operating current | 300~330mA at 3.7~4.2V |
| Max charge current | 500mA |
| Dimensions | 13.5cm * 13.2cm * 6.5cm |
| Weight | 180g (with headband, not included antennas) |

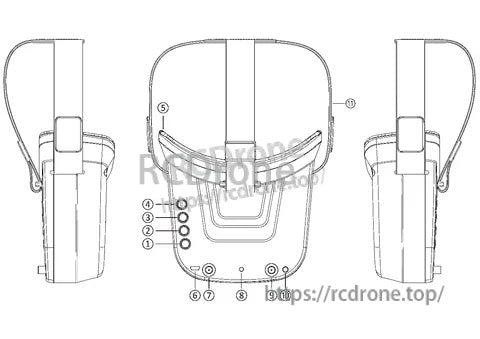

Button Instructions
- ① Menu mode (short press); Turn on/off (press for more than 3 seconds)
- ② Short press to automatically search (automatically search for the channel with the strongest signal)
- ③ Short press to change band (A-B-E-F-R)
- ④ Short press to change channels (1-2-3-4-5-6-7-8)
- ⑤ Eye socket (eye protection for more comfortable wearing)
- ⑥ Micro USB charging port (only support DC5V)
- ⑦ Antenna port A: RP-SMA
- ⑧ Charging indicator (red light on when charging; light off when fully charged)
- ⑨ Antenna port B: RP-SMA
- ⑩ AV jack

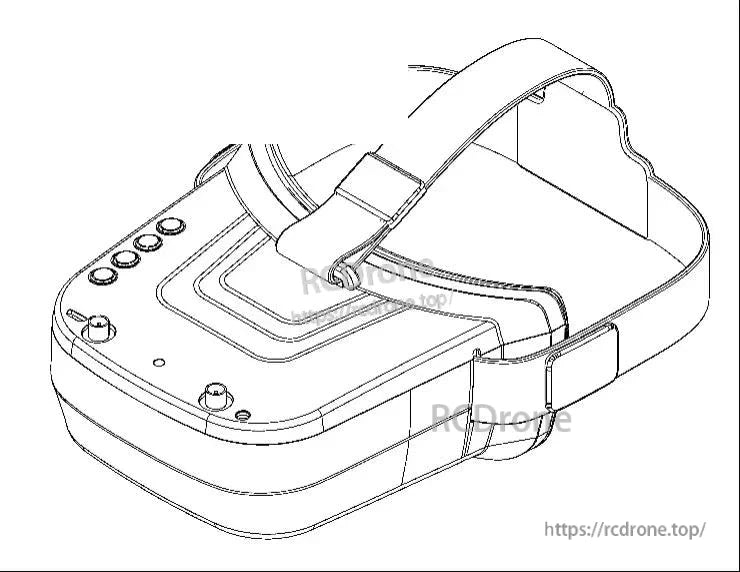

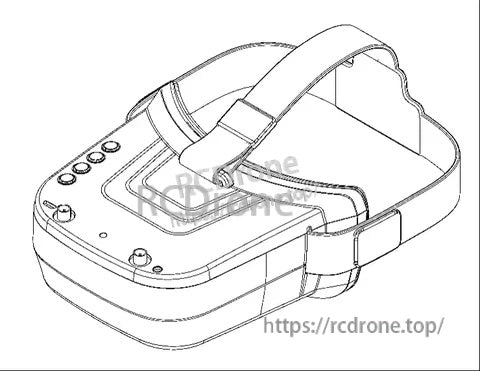

Compact FPV goggle design pairs a 3.0-inch screen with onboard controls for quick channel and menu changes.
Details
Ports and buttons are placed along the front edge for dual-antenna reception, charging, and AV input/output.
