FPV Optical fiber image transmission module for Drone, FC/UPC Single‑Mode, 20–40 km, CVBS/HDMI, SBUS/CRSF, 5–26V

Overview

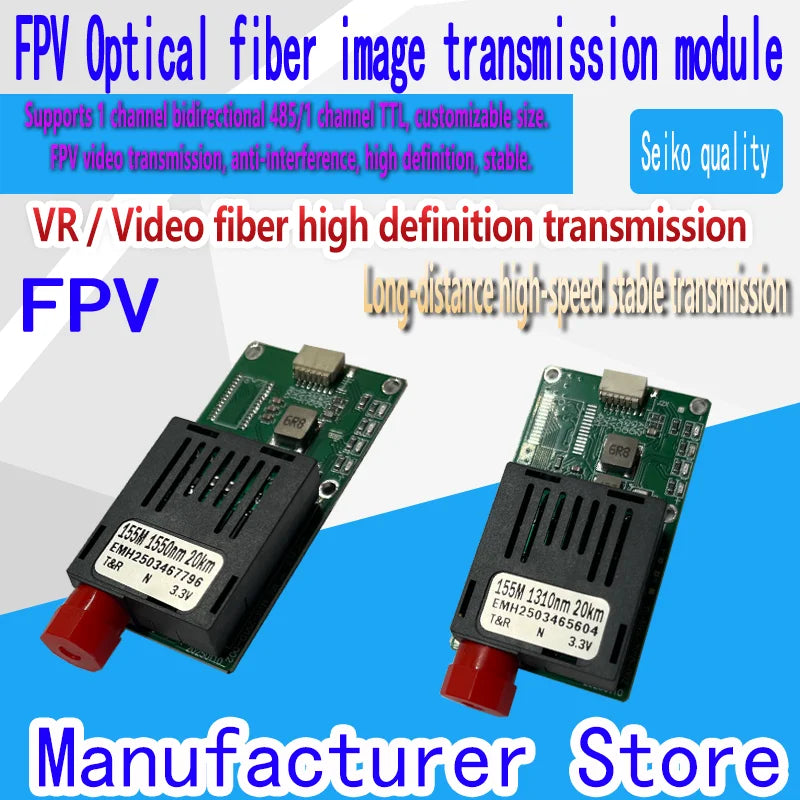

This FPV Optical fiber image transmission module is designed for Fiber Optic Drone applications, providing wired video and control-signal transport over single-mode fiber. The module operates without any wireless function and uses an FC/UPC optical interface, enabling stable, interference-resistant FPV links for drones and ground stations.

Key Features

• Wired FPV via single-mode optical fiber; no wireless function.
• TX (Sky terminal) at 1310 nm and RX (Ground terminal) at 1550 nm (as shown).

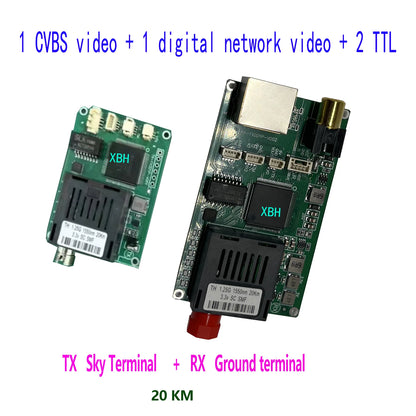

• Configurable video/control combinations displayed: 2× CVBS + 2× SBUS (TTL); 1× CVBS + 1× digital network video + 2× TTL (SBUS); HDMI video + 1× SBUS (TTL).
• Supports SBUS and CRSF control signals over TTL (as shown).
• Ground terminal ports shown: RJ45 network port and RCA CVBS video output; fiber interface marked FC.
• Power supply: 5–26V input; GND/AV/TX/RX pin headers indicated.
• Compact module: approximately L 50 × W 29 × H 15; weight about 0.1KG.
• Customization available per images (video interface: BNC/RJ45/pin header; fiber interface: SC/FC/LC optional).

Specifications

Applications

• FPV drones requiring long-distance, anti-interference video and control-signal transmission via optical fiber.
• Tethered UAV setups with ground displays (TV/monitor) or VR headsets.
• Use with flight controllers and remote control systems supporting SBUS/CRSF over TTL.

Details

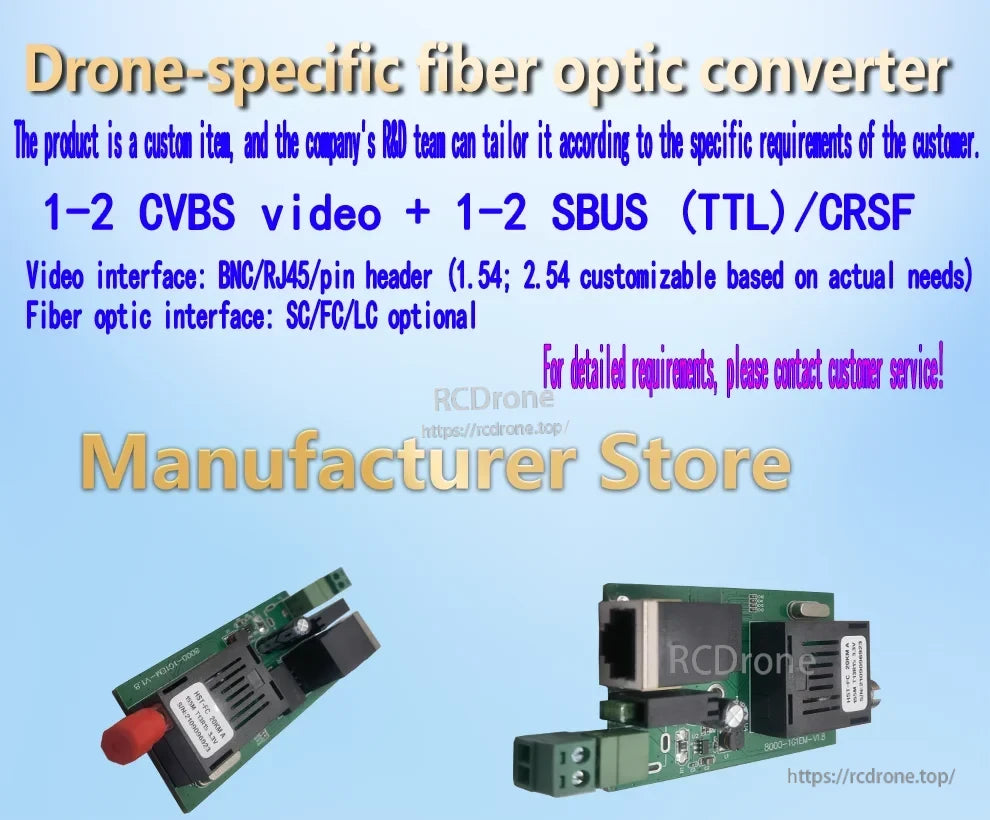

Fiber optic converter for drones with 1-2 CVBS video, 1-2 SBUS/CRSF, BNC/RJ45/pin header interfaces, SC/FC/LC fiber options. Customizable by R&D team. Contact customer service for details. (39 words)

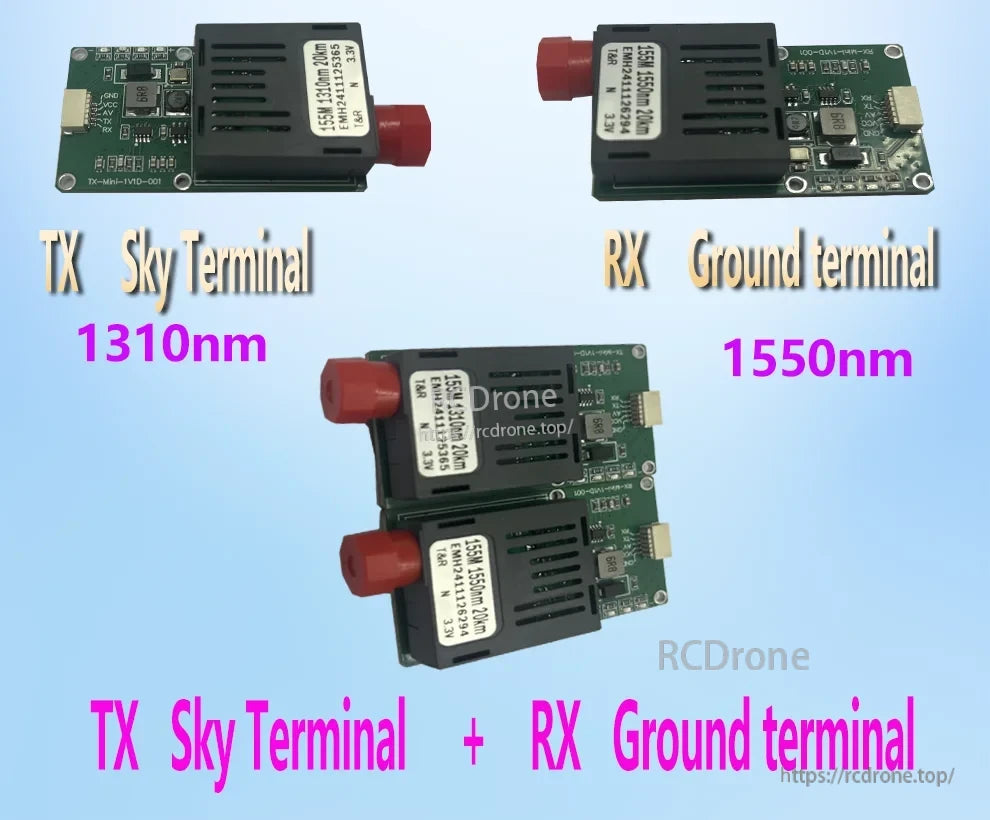

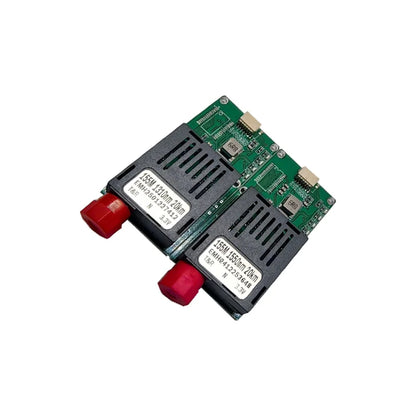

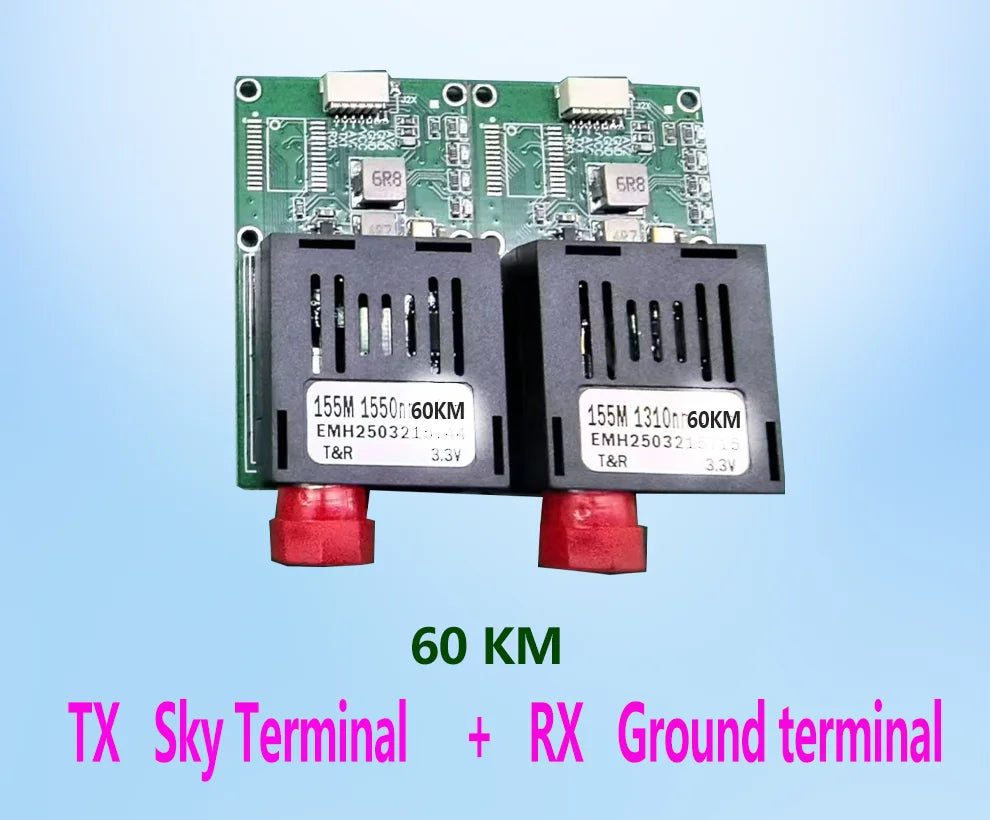

Drone optical fiber modules: TX Sky Terminal 1310nm, RX Ground Terminal 1550nm. Includes dual wavelength units for sky and ground communication, labeled with technical specs and serial numbers.

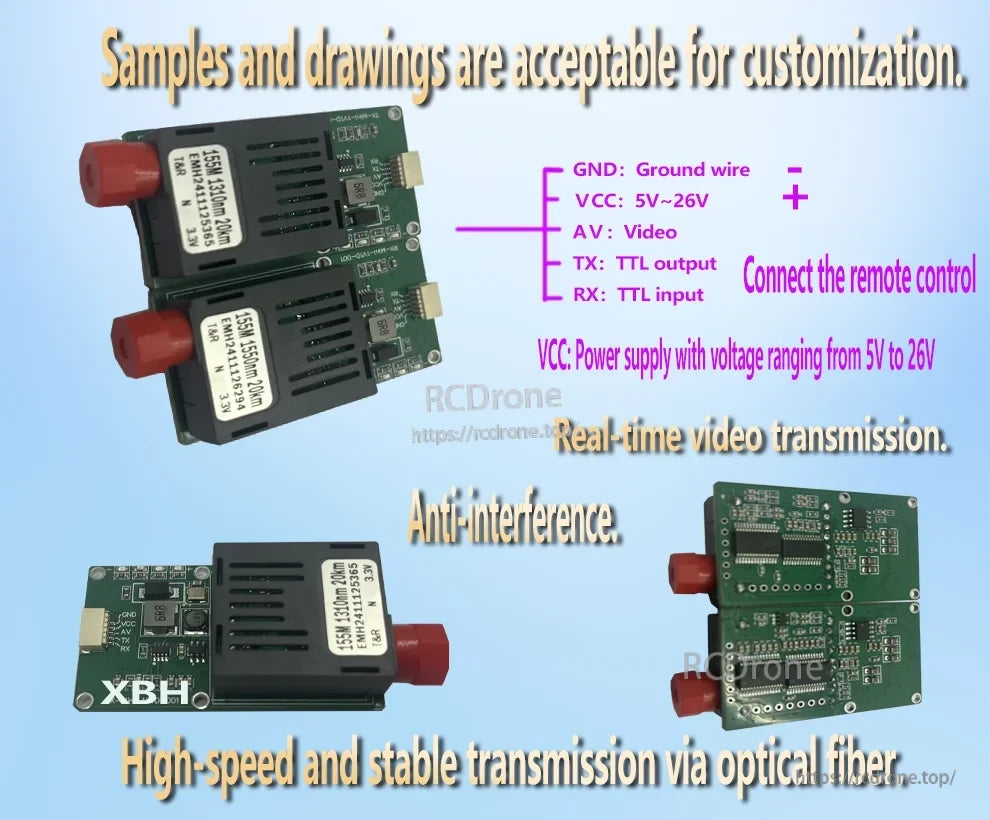

Fiber optic module for drones enables real-time video transmission, 5V–26V power support, anti-interference, high-speed stable data transfer, TTL I/O, and ground connections. Customization available.

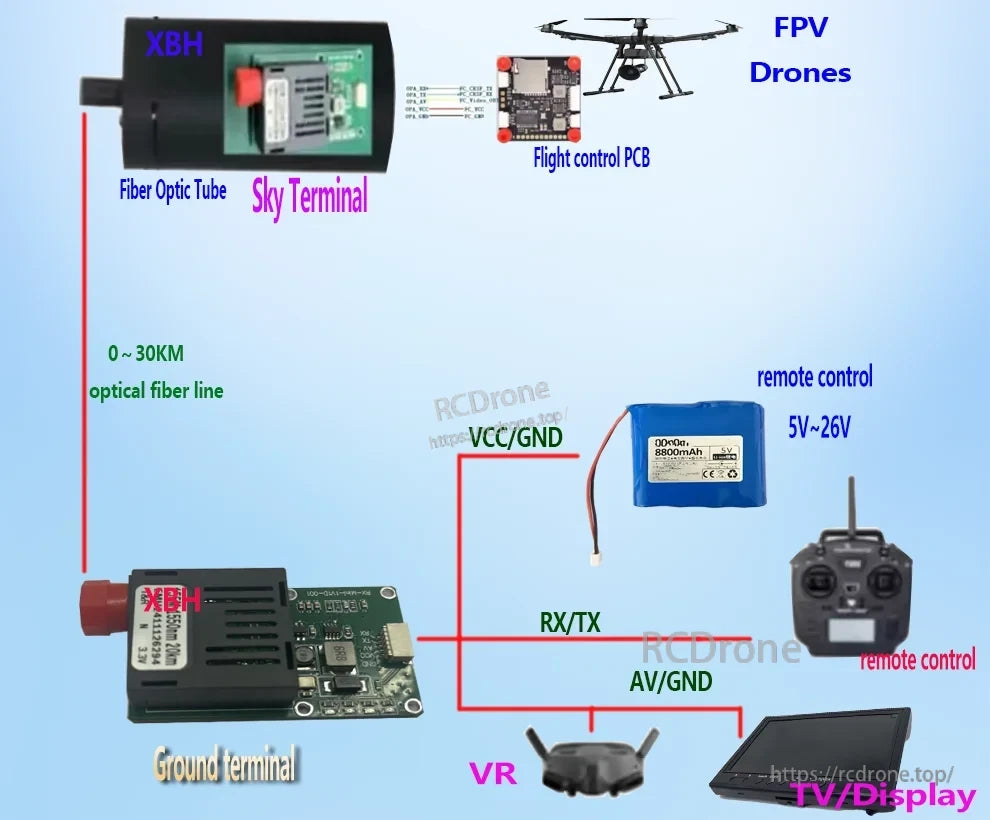

Drone optical fiber system with sky and ground terminals, supporting 0–30km transmission. Includes flight control PCB, remote control, VR headset, TV/display, and battery. Connects via fiber optic tube, VCC/GND, RX/TX, AV/GND.

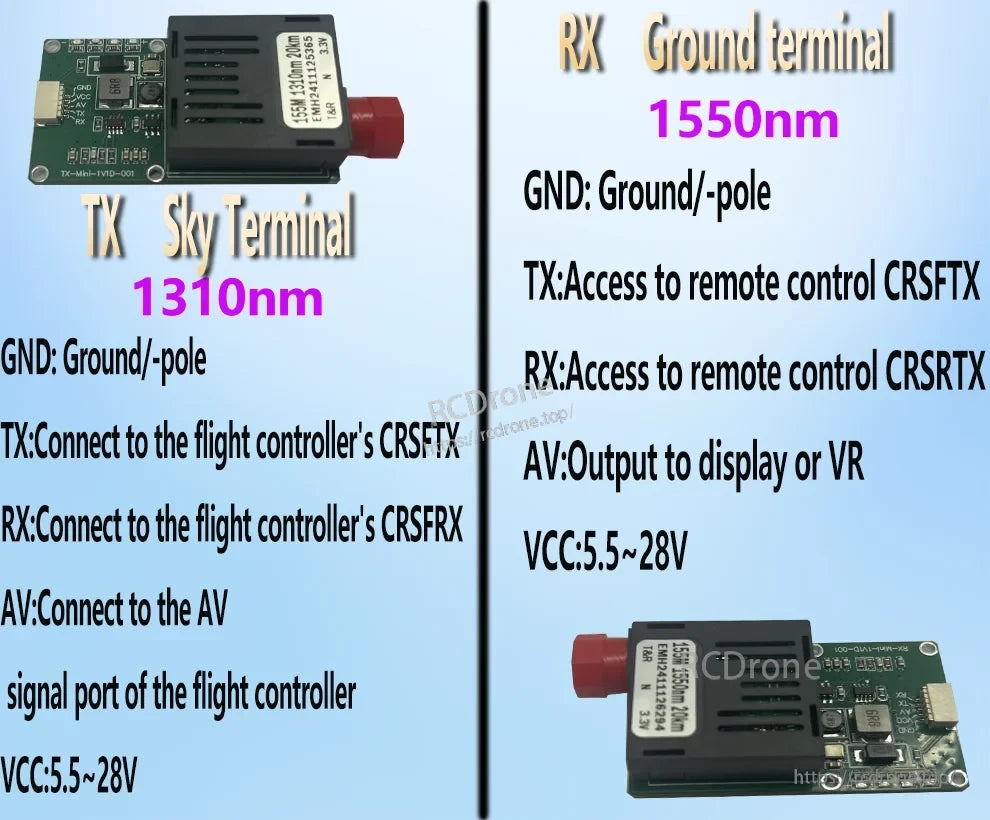

Drone optical fiber module with TX Sky Terminal (1310nm) and RX Ground Terminal (1550nm). Features include GND, TX, RX, AV, and VCC connections for flight controller and display. Voltage range: 5.5~28V.

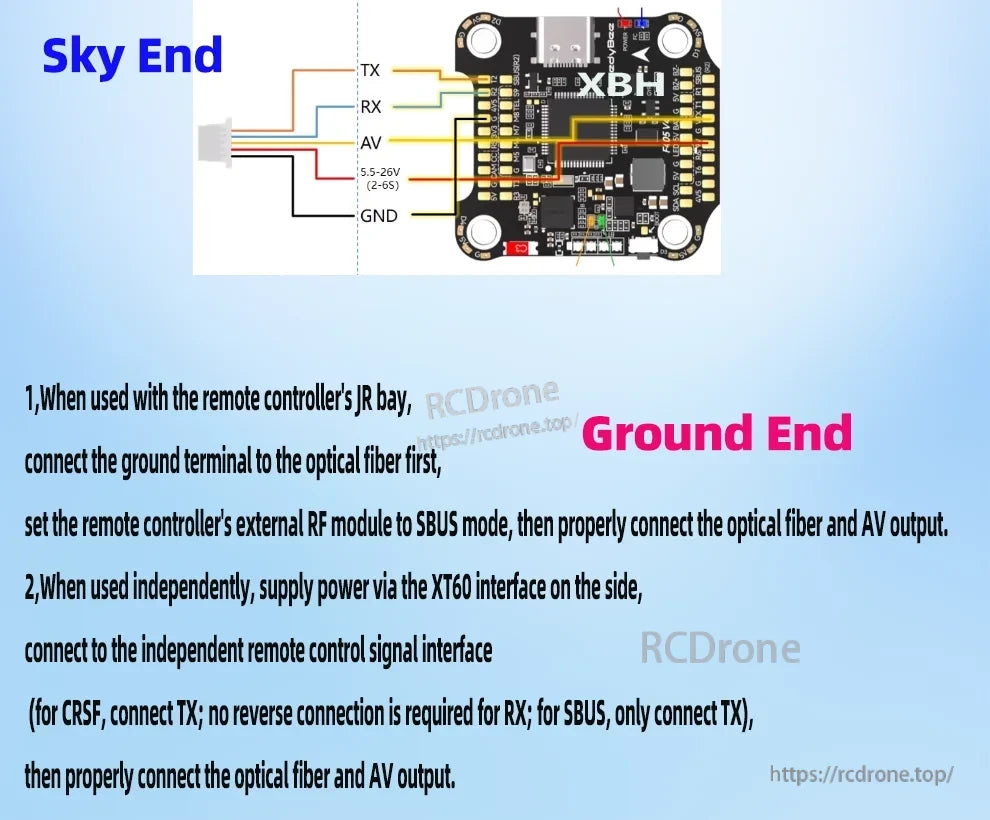

Drone optical fiber module connection guide: Sky and ground end wiring, JR bay setup with SBUS mode, independent use via XT60 interface, CRSF/SBUS signal connections, optical fiber and AV output links.

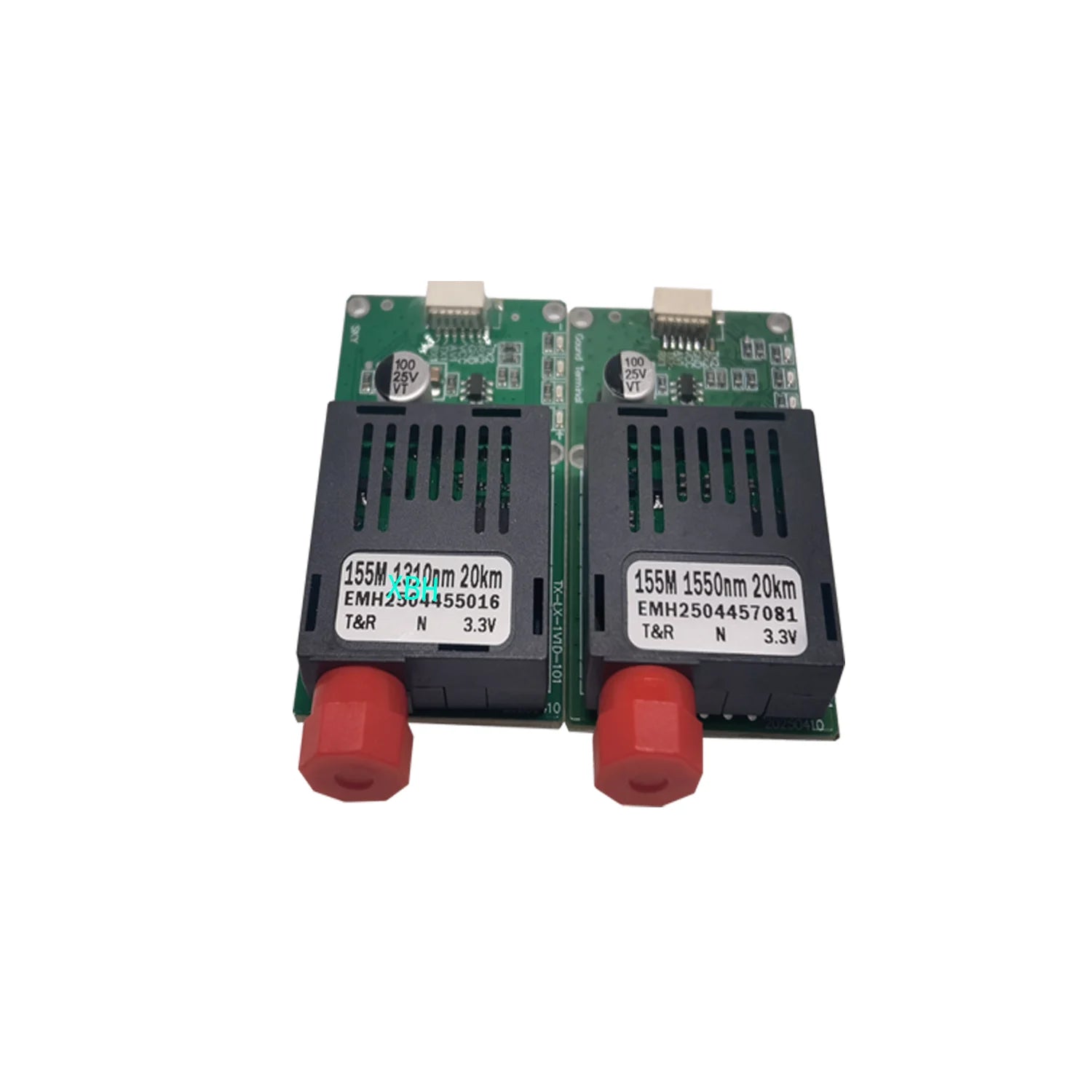

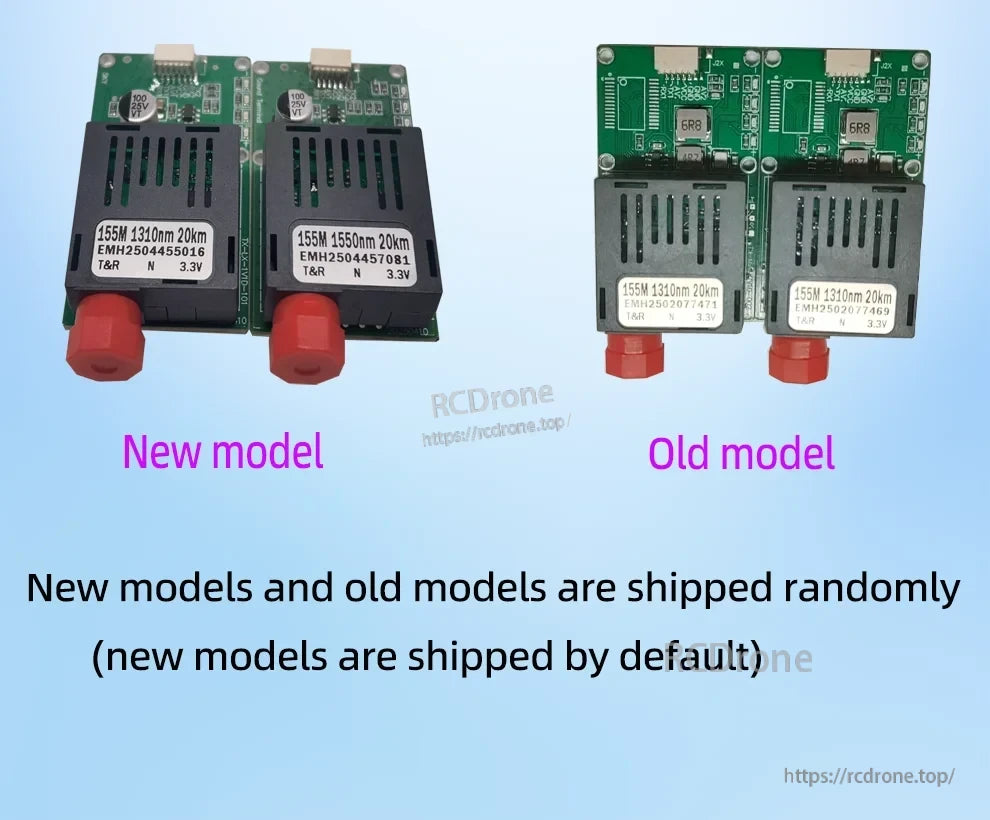

Two optical fiber module versions—new and old—are shown with green circuit boards, black heat sinks, and red connectors. Labels list specs: 155M, 1310nm/1550nm, 20km range, and 3.3V power. Serial numbers such as EMH2504455016 and EMH2504457081 are visible. The new model ships by default, but either may be sent randomly. Components include T&R, N, and voltage indicators. Product variation occurs in shipments—models differ slightly in design but perform identically. Customers should expect either version without prior notice. Both support the same network standards and are interchangeable in use. No performance difference exists between the two. This ensures flexibility in fulfillment while maintaining reliability and compatibility across installations.

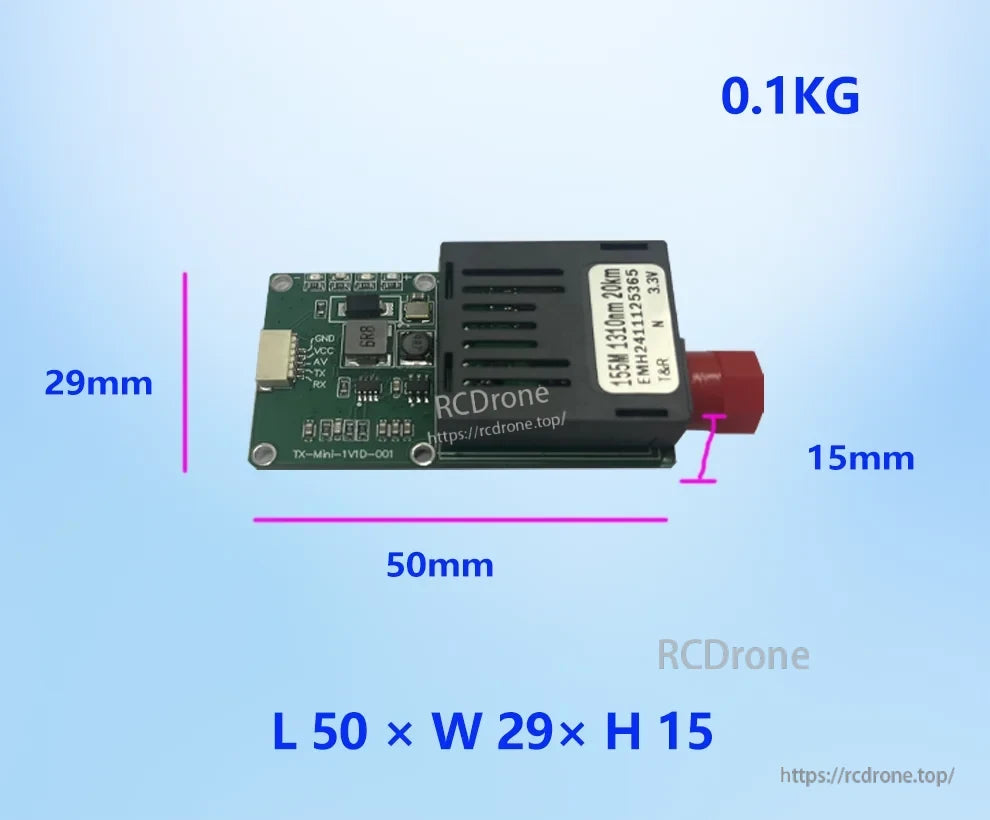

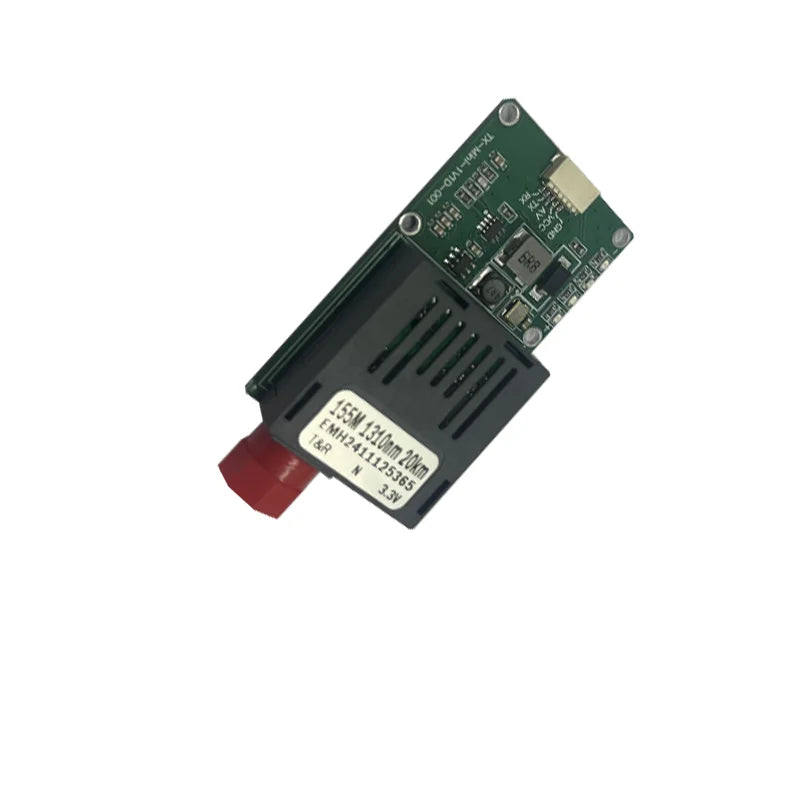

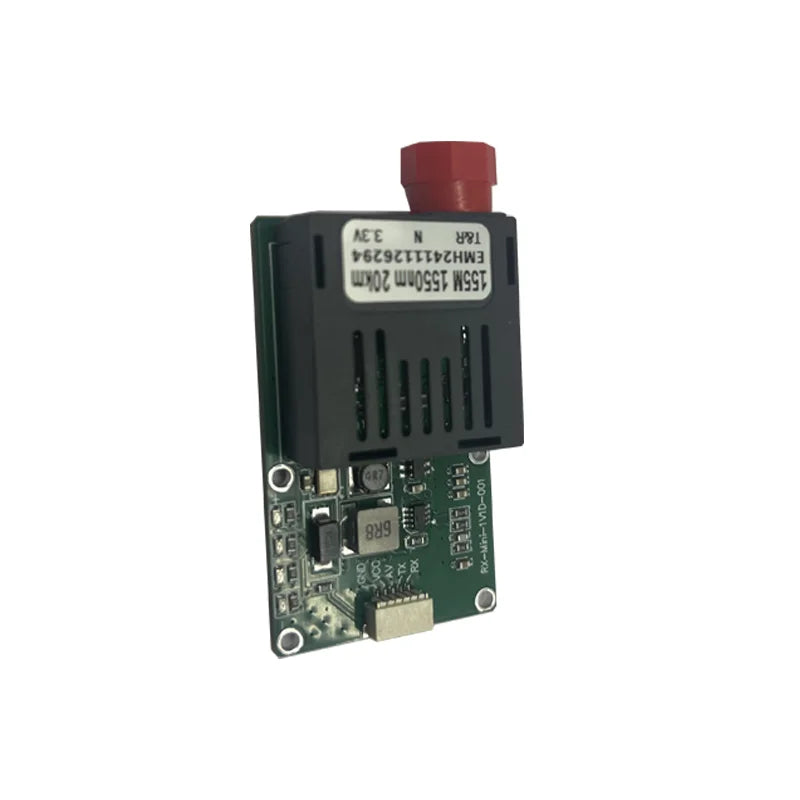

Drone optical fiber module, 50x29x15mm, 0.1kg, 155M 1310nm 20km, TX-mini-1V1D-001

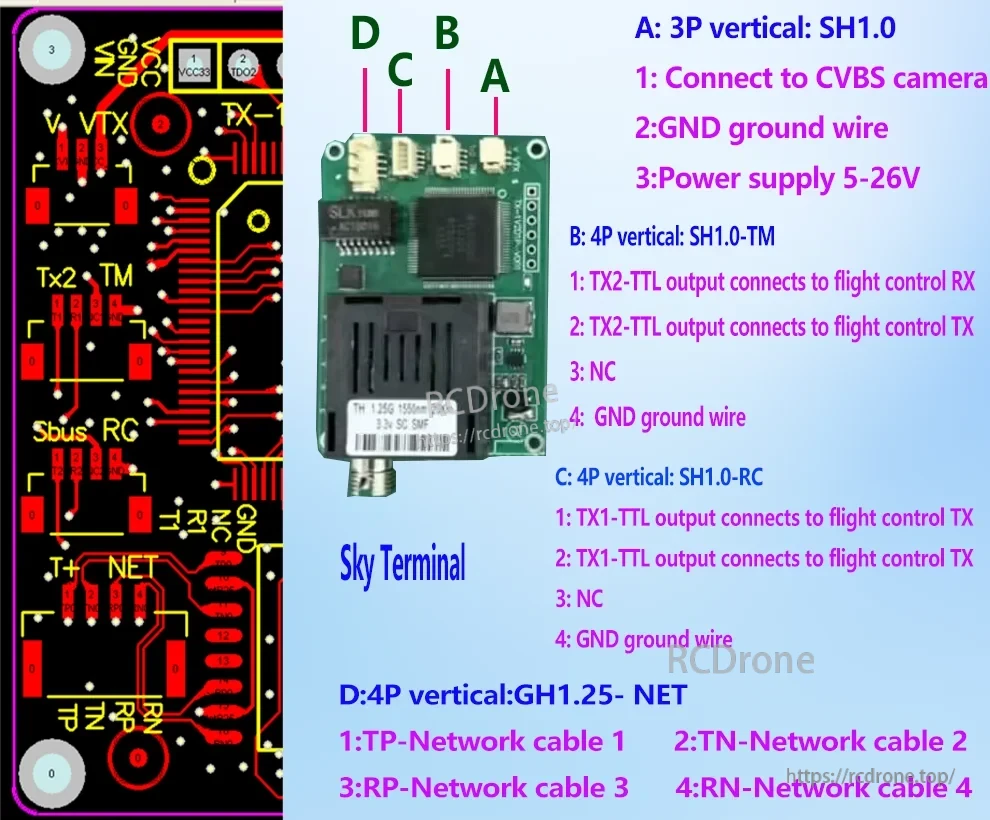

Sky Terminal optical fiber module with SH1.0, SH1.0-TM, SH1.0-RC, and GH1.25-NET connectors. Includes CVBS camera, flight control TX/RX, GND, power supply, and network cable connections for drone communication and video transmission.

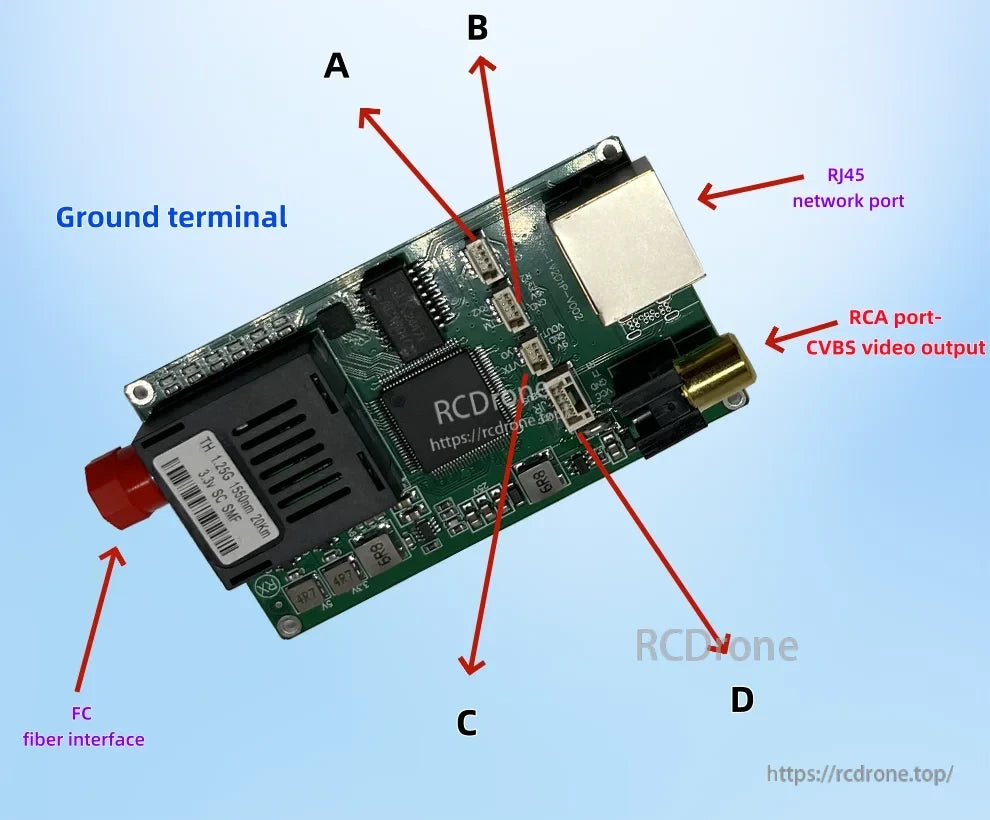

Fiber optic module with network, video, and ground connections

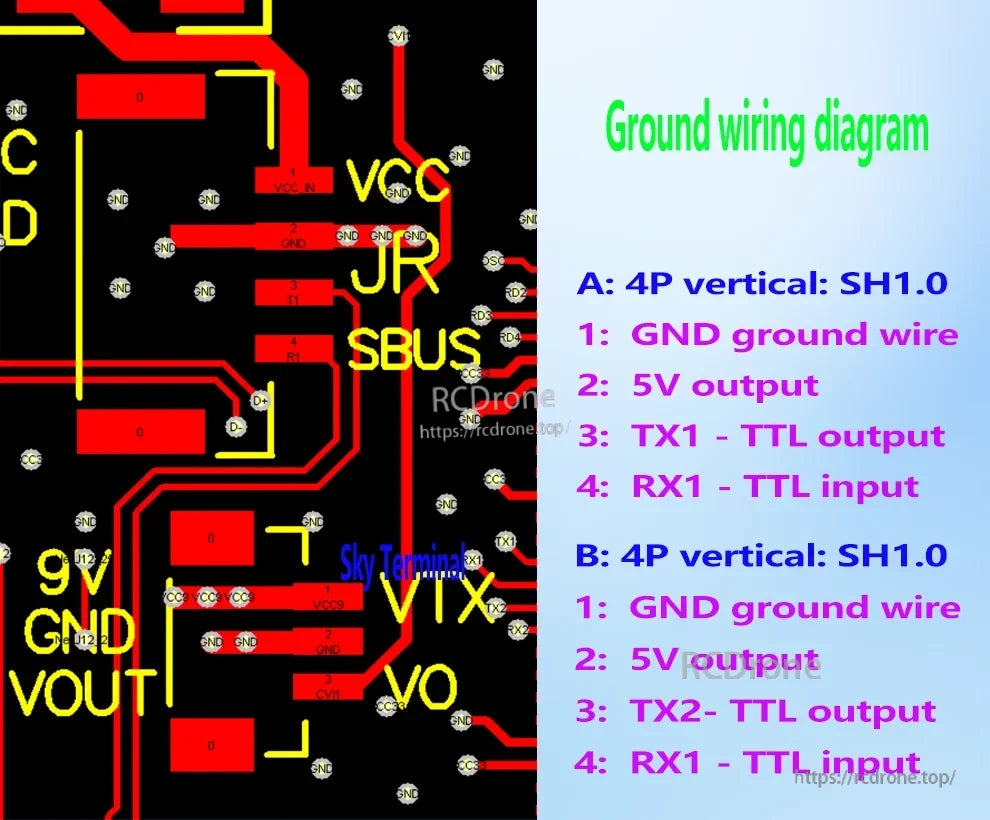

Ground wiring diagram for a drone optical fiber module. Includes two 4P vertical SH1.0 connectors: Connector A has GND, 5V output, TX1-TTL output, and RX1-TTL input; Connector B has GND, 5V output, TX2-TTL output, and RX1-TTL input. Labels indicate VCC, GND, VOUT, 9V, VIX, VO, JR SBUS, Sky Terminal, and various signal paths. Red and yellow traces represent circuit connections on a black background with component designations.

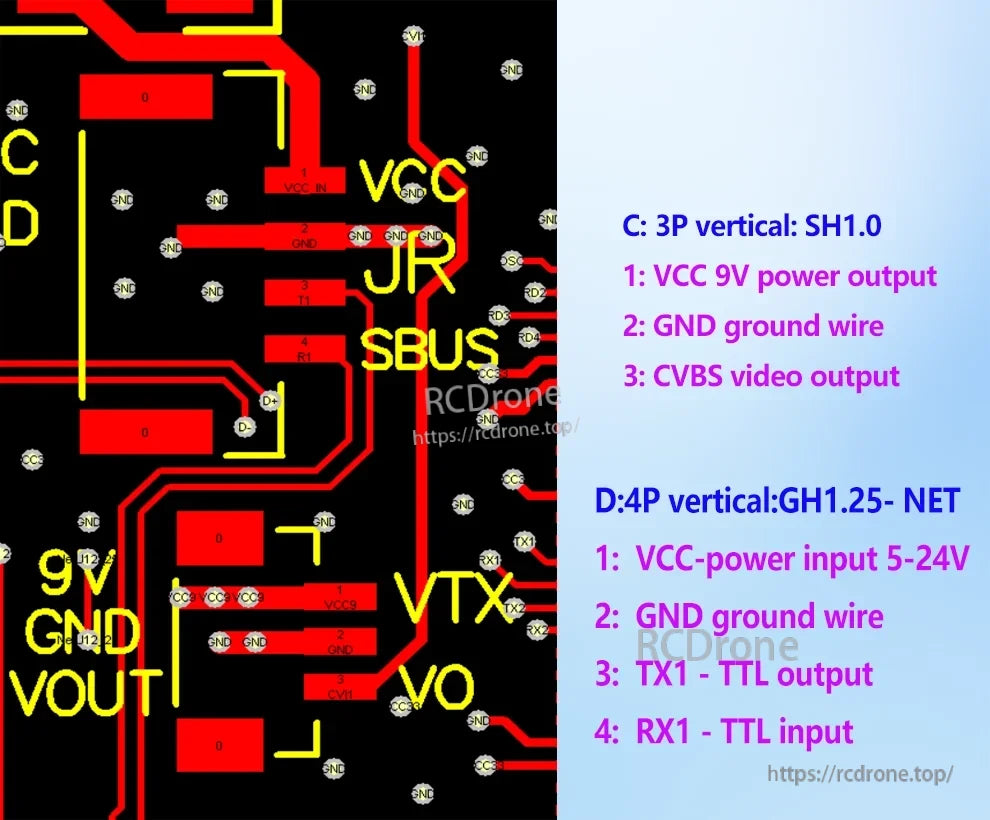

Drone optical fiber module with 3P and 4P connectors. C: VCC 9V, GND, CVBS output. D: VCC 5-24V, GND, TX1 TTL output, RX1 TTL input. Labels include VCC, GND, VOUT, VTX, VO, SBus, JR.

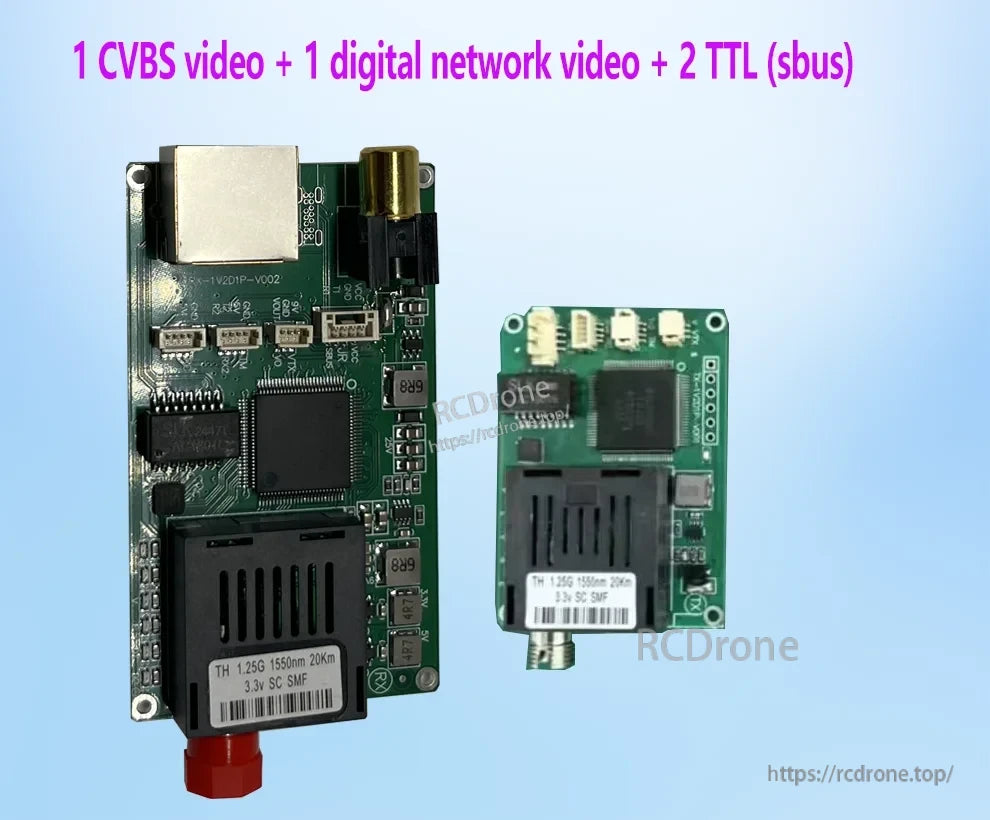

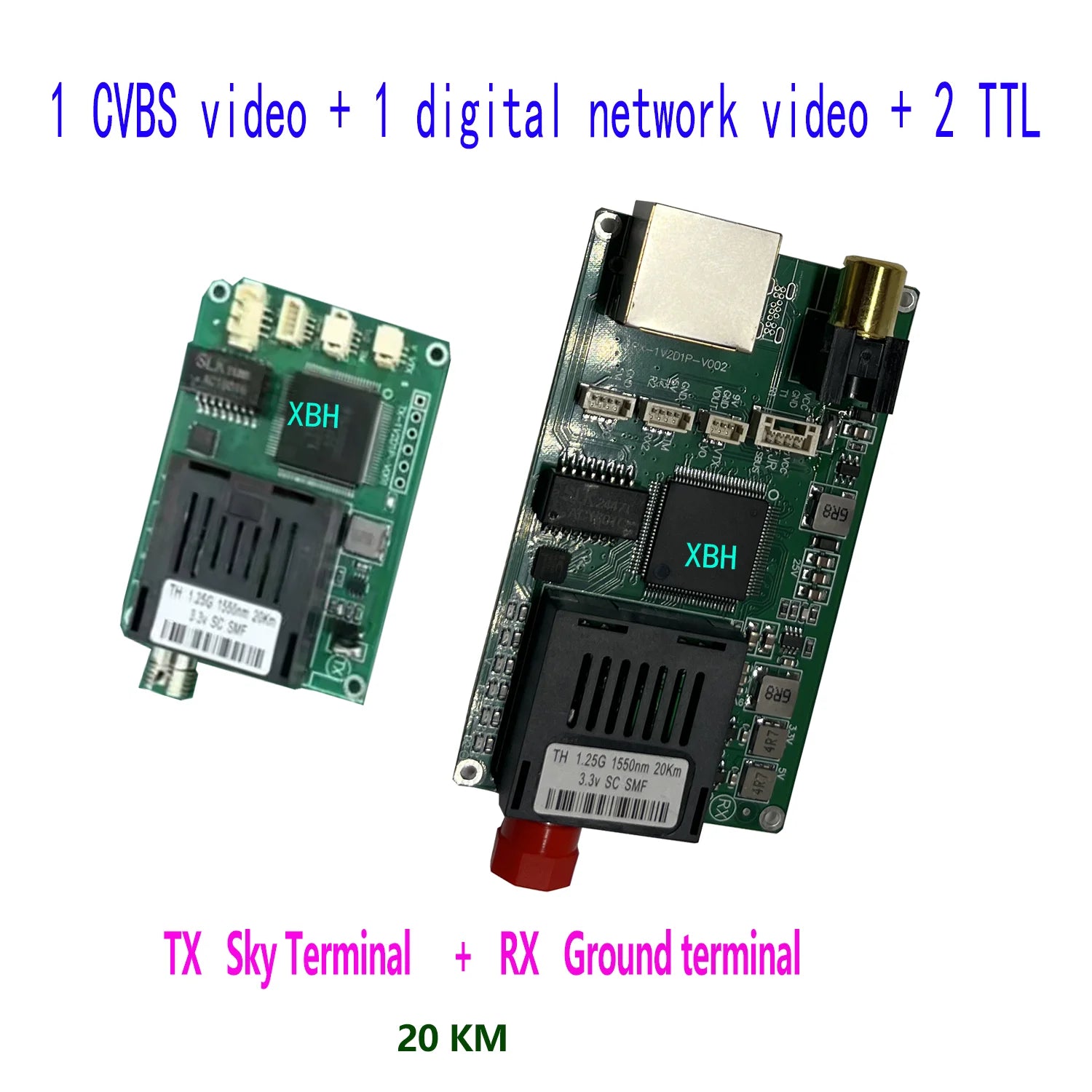

CVBS video, digital network video, TTL sbus, optical fiber module, 1.25G 1550nm 20Km, 3.3v SC SMF

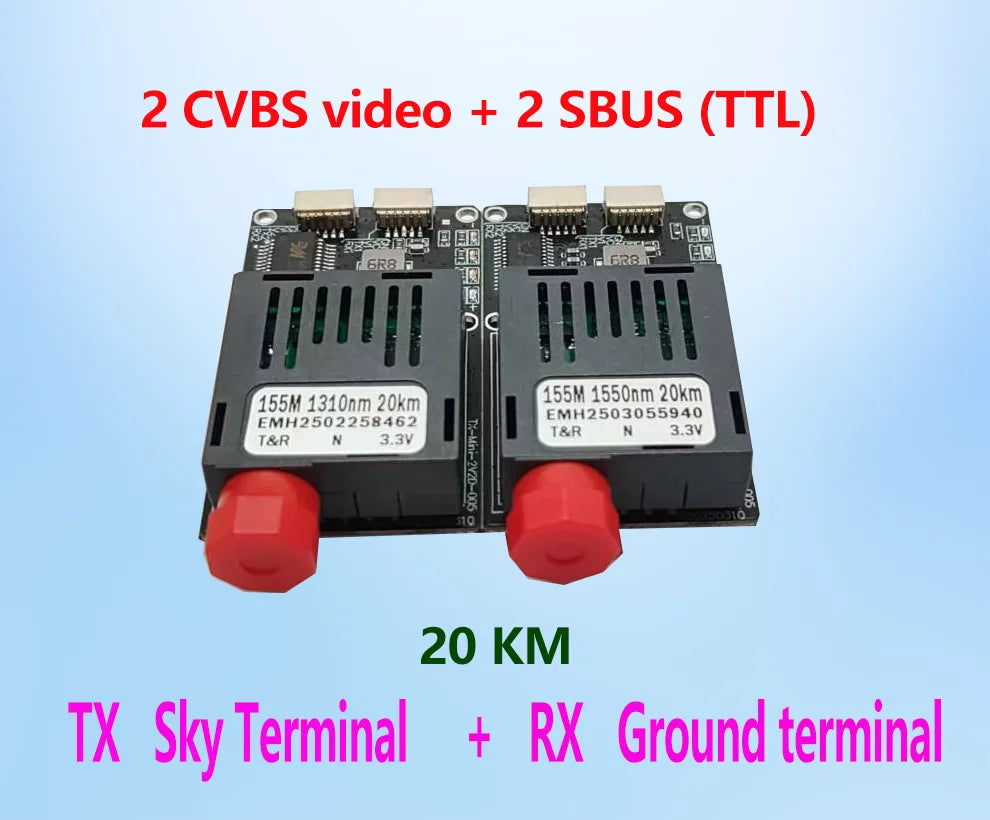

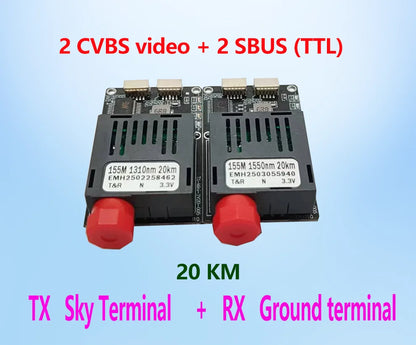

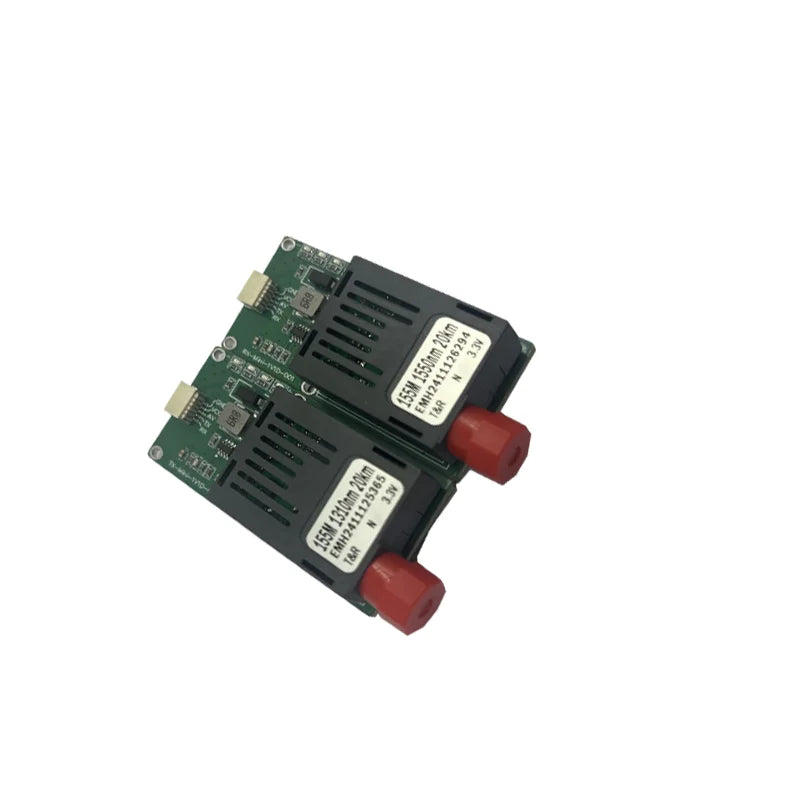

2 CVBS video + 2 SBUS (TTL), 20 KM, TX Sky Terminal + RX Ground Terminal, 155M 1310nm/1550nm, 20km, T&R N 3.3V

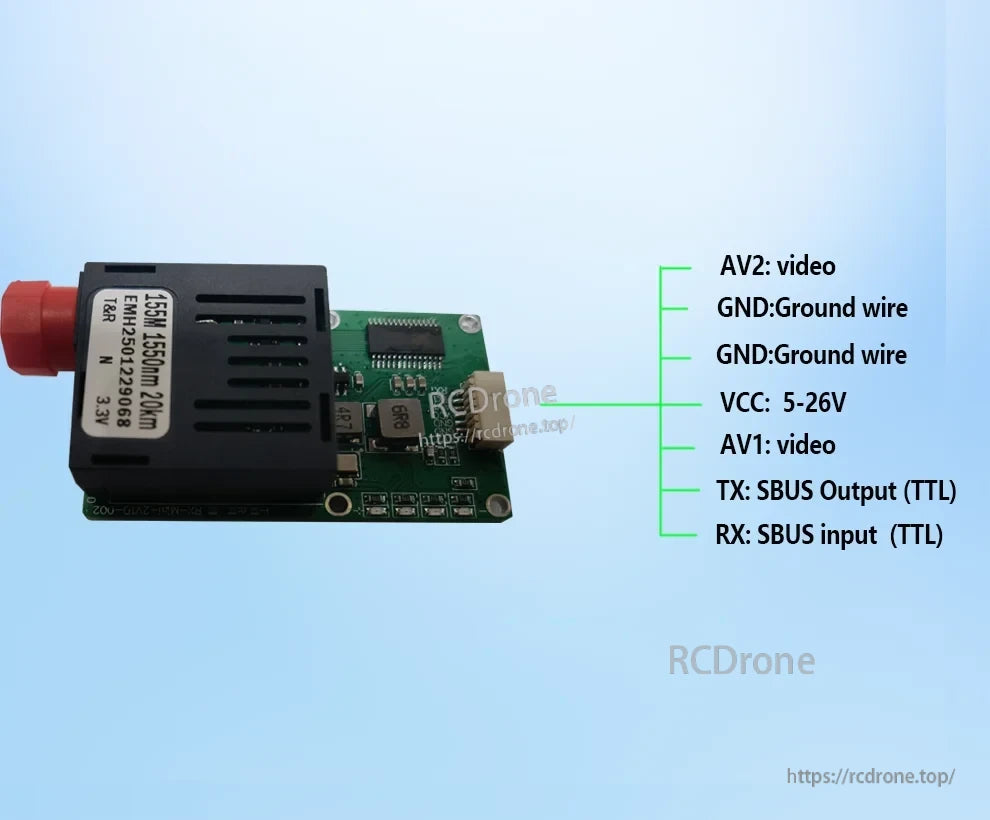

Drone optical fiber module with video, ground, power, and SBUS TTL input/output pins labeled.

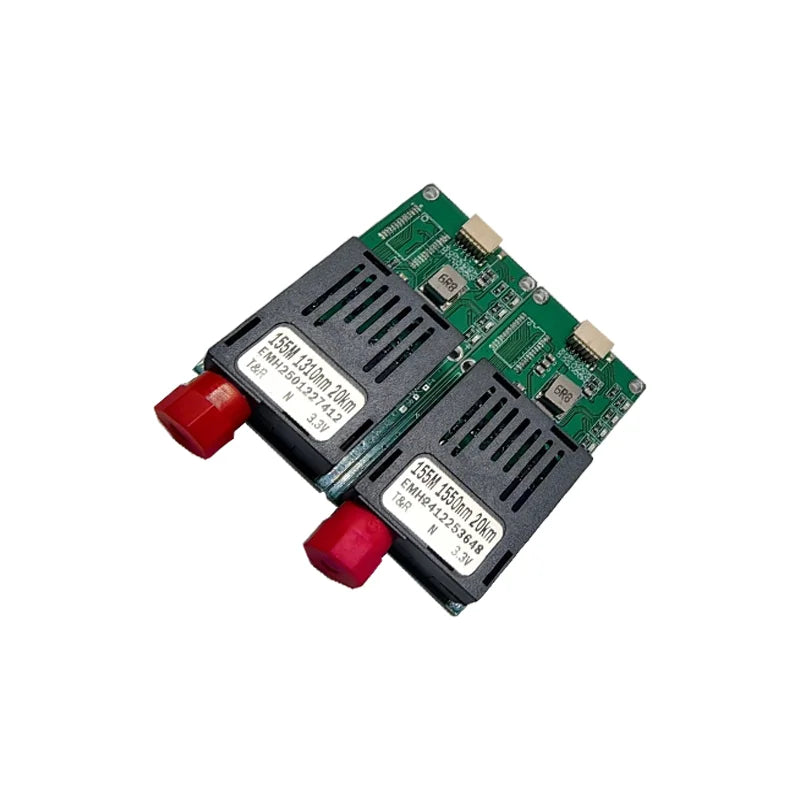

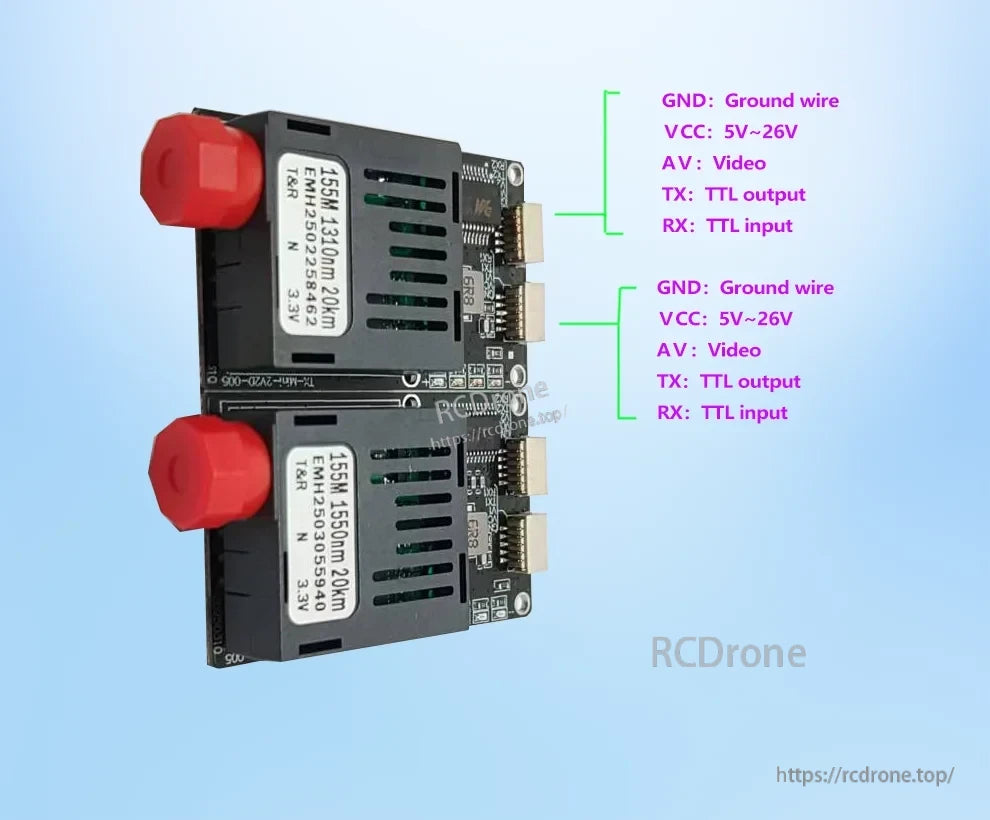

Drone optical fiber module with 155M, 1310nm and 1550nm wavelengths, 20km range, 3.3V operation, featuring GND, VCC 5V~26V, AV video, TX TTL output, RX TTL input connections.

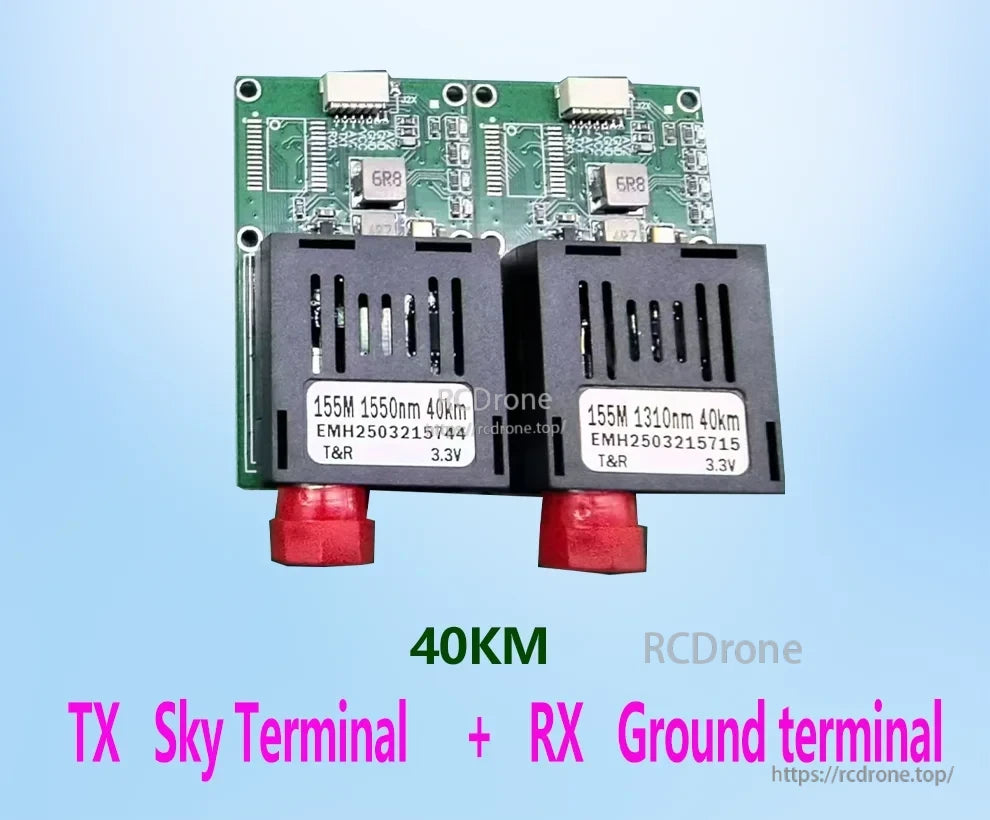

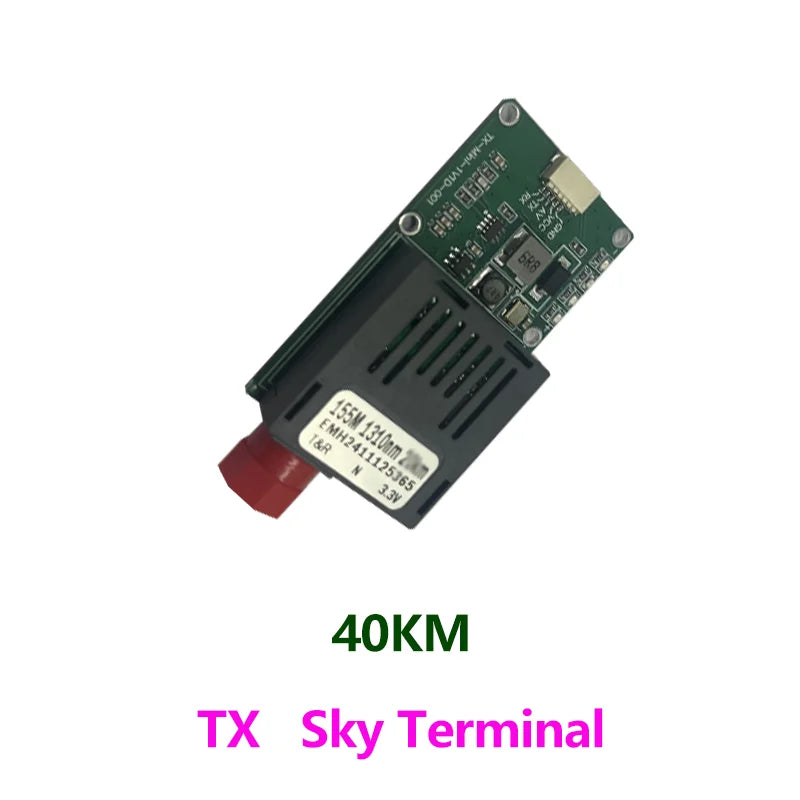

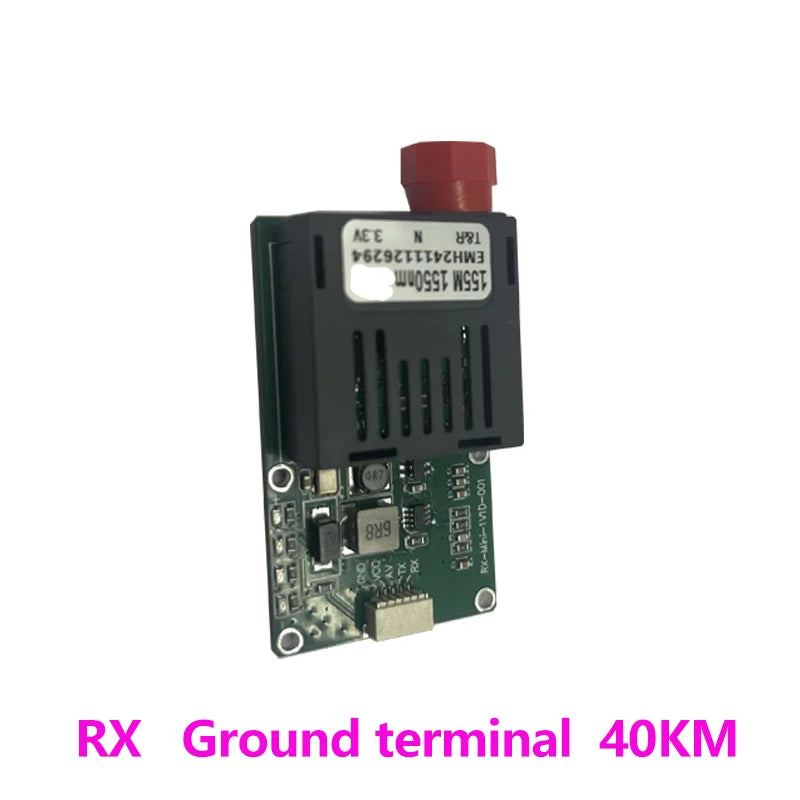

40KM TX Sky Terminal and RX Ground Terminal, 155M 1550nm/1310nm, EMH2503215744/15715, 3.3V, T&R

1.25G 1550nm 20km optical fiber module, T&R, 3.3V, EMH2502309436, XHN, SFP interface, green circuit board, red cap.

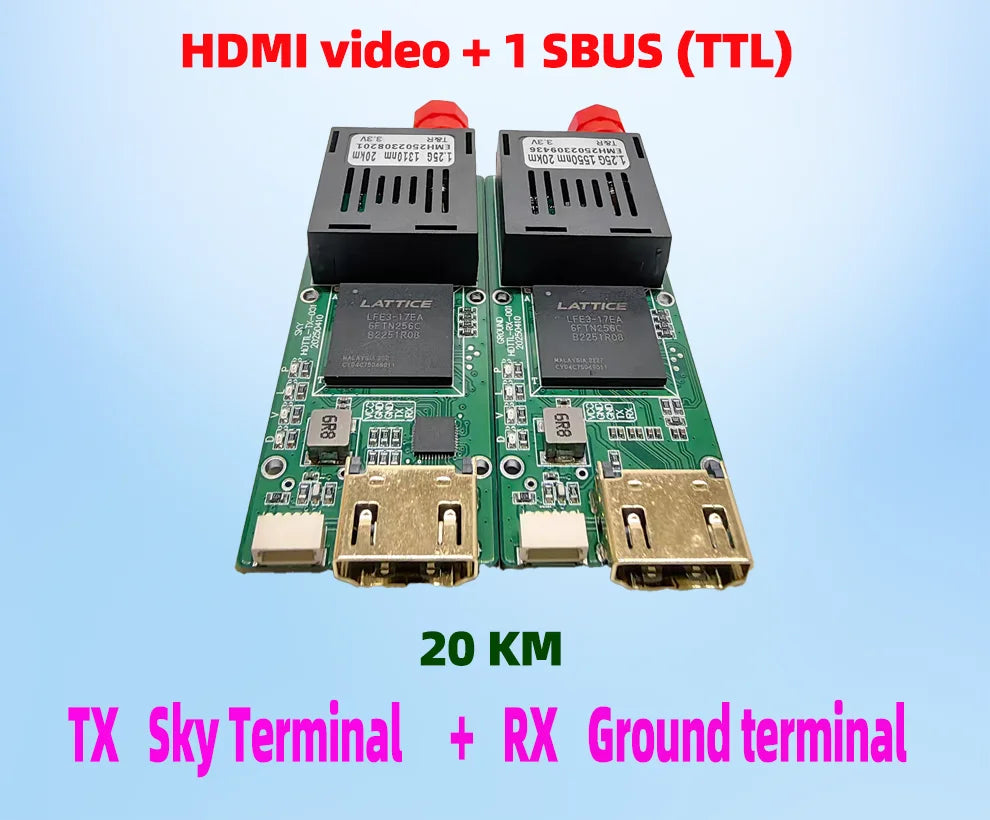

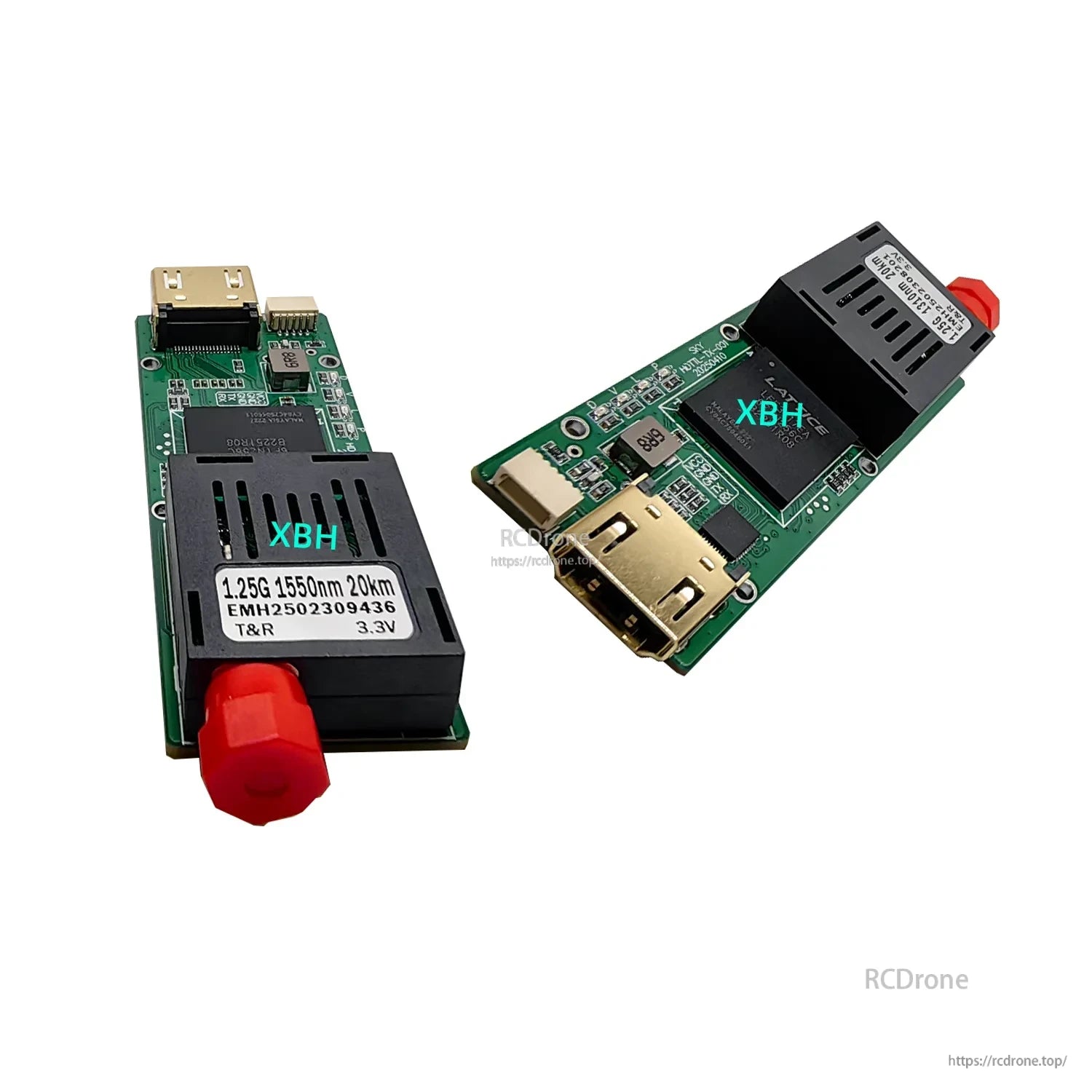

HDMI video + 1 SBUS (TTL) transmission over 20 KM. Includes TX Sky Terminal and RX Ground terminal. Features Lattice FPGA chips, optical modules, and HDMI connectors for long-distance drone communication.

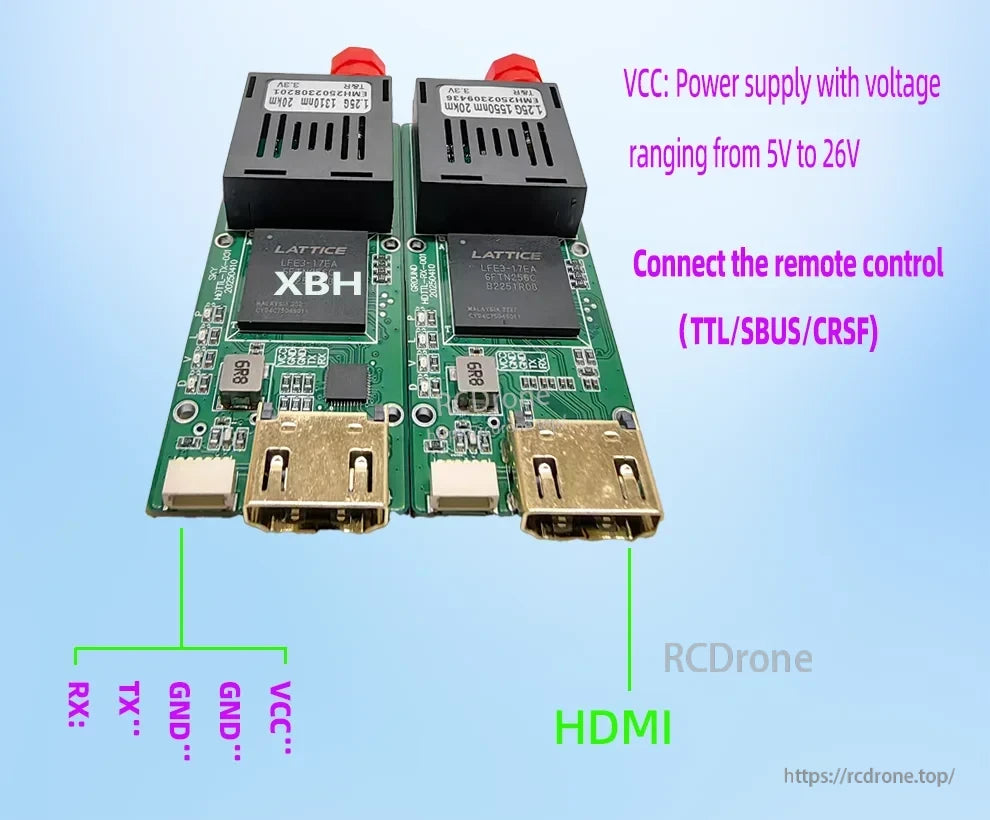

Dual Lattice XBH chips and HDMI ports enable high-speed data transfer in this drone optical fiber module. Powered by 5V to 26V via VCC, it supports TTL/SBUS/CRSF for remote control connectivity. Features TX, RX, GND, and VCC pins for efficient signal transmission. Built on a compact green PCB with gold-plated connectors, it ensures durability and reliable performance. Ideal for advanced drone systems needing stable, fast communication.
