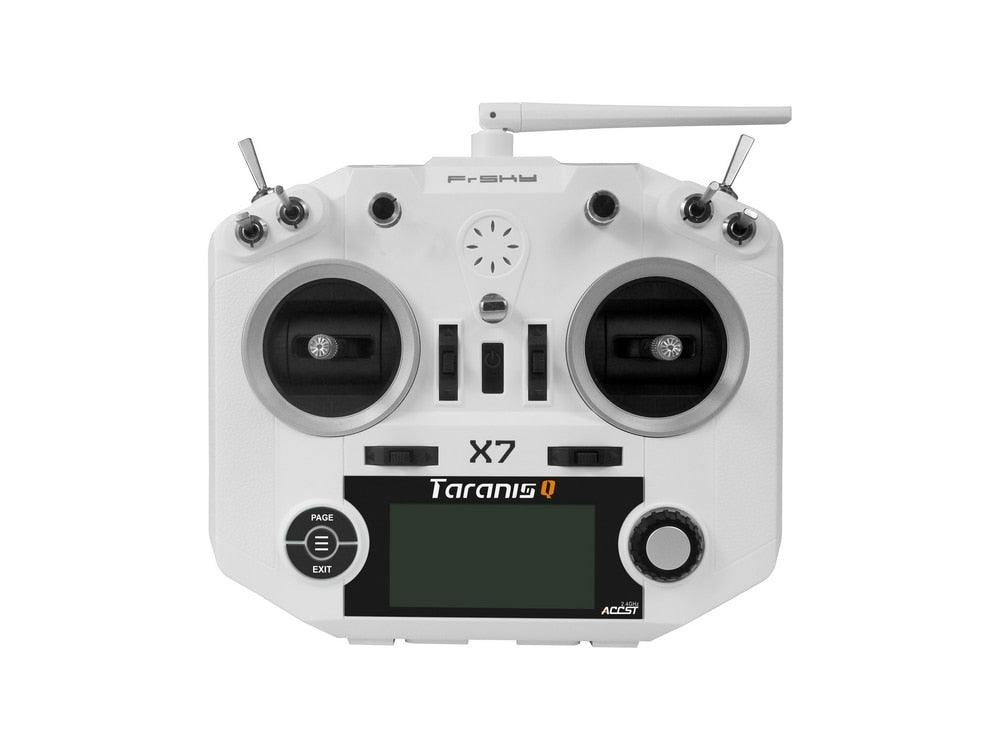

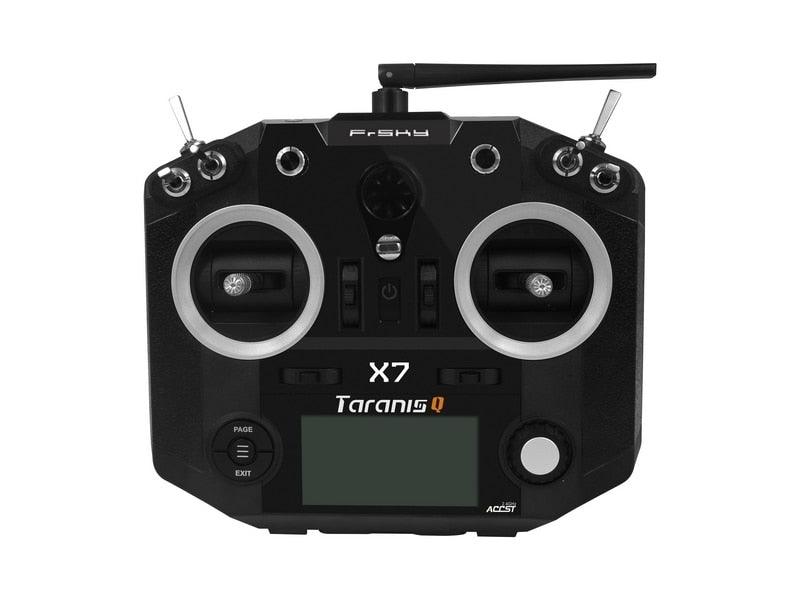

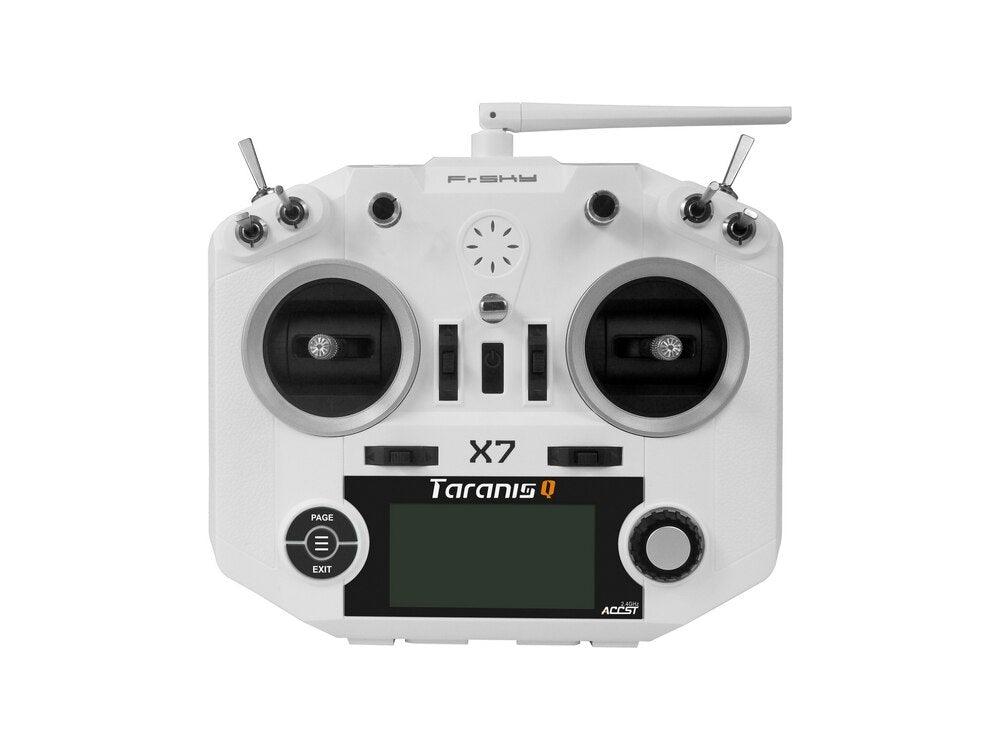

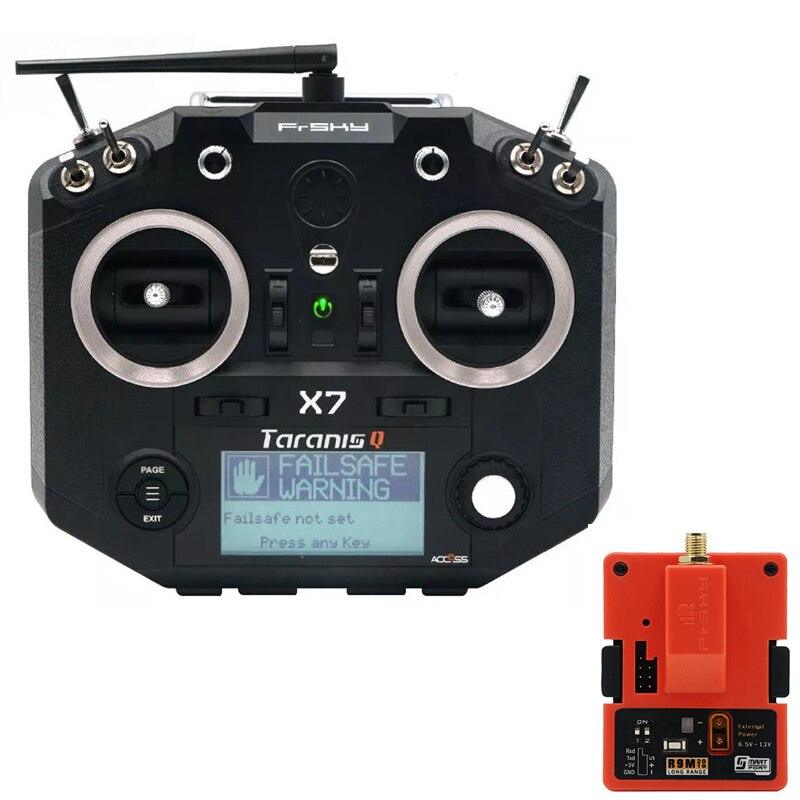

FrSky ACCESS Taranis Q X7 QX7 2.4GHz 16CH Transmitter For RC Multicopter FRSKY X7

FrSky ACCESS Taranis Q X7 QX7 2.4GHz 16CH Transmitter For RC Multicopter FRSKY X7

RCDrone

Regular price $165.01 USD
Regular price $231.02 USD Sale price $165.01 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

49 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

FrSky ACCESS Taranis Q X7 QX7 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,18+

RC Parts & Accs: Transmitters

Origin: Mainland China

Material: Composite Material


Brand Name: FrSky

Item Name: Q X7 ACCESS Transmitter with R9M Module

Dimension: 202.2*189.4*96 mm

Weight: 1000g (without battery)
Model: Mode2
Version: FCC-(NON-EU), LBT-(EU) Version

Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels

Operating Voltage Range: 6.5V~8.4V

Operating Current: 160mA@7.2V typ

Operating Temperature: -10℃~60℃ (14℉~140℉)

Backlight LCD resolution: 128*64

Smart Port, Micro SD card slot, Mini USB Port and DSC Port

FEATURES:

Ergonomic and compact design

Open source operating system

Installed with ACCESS protocol

High-speed module digital interface

Supports spectrum analyzer function

Supports wired training function

Haptic vibration alerts and voice speech outputs

Easily accessible battery compartment

(*Batteries not included, adaptive with replaceable 18650 Li-ion batteries)

R9M 2019 Module:

OVERVIEW:

Specification:

Feature :

FrSky R9M 2019 telemetry module. FrSky R9M 2019 radio control system is FrSky long range system which works in 900MHz. The R9M 2019 module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below.

Brand Name: FrSky

Item Name: R9M 2019 900MHz Module

Vin Voltage Range: DC 6.5V~13V

External Power Supply: DC 6.5V~13V

Telemetry Interface: Smart Port

Upgrade Interface: Smart Port

ACCESS Protocol

RF Operating Frequency: 868MHz/915MHz

Compatibility R9 ACCESS series and TD series

- Long range, low latency and high precision RC system

- Telemetry (25mW) /No Telemetry (500mW/200mW) mode

- Smart Port enabled and support telemetry data transmission

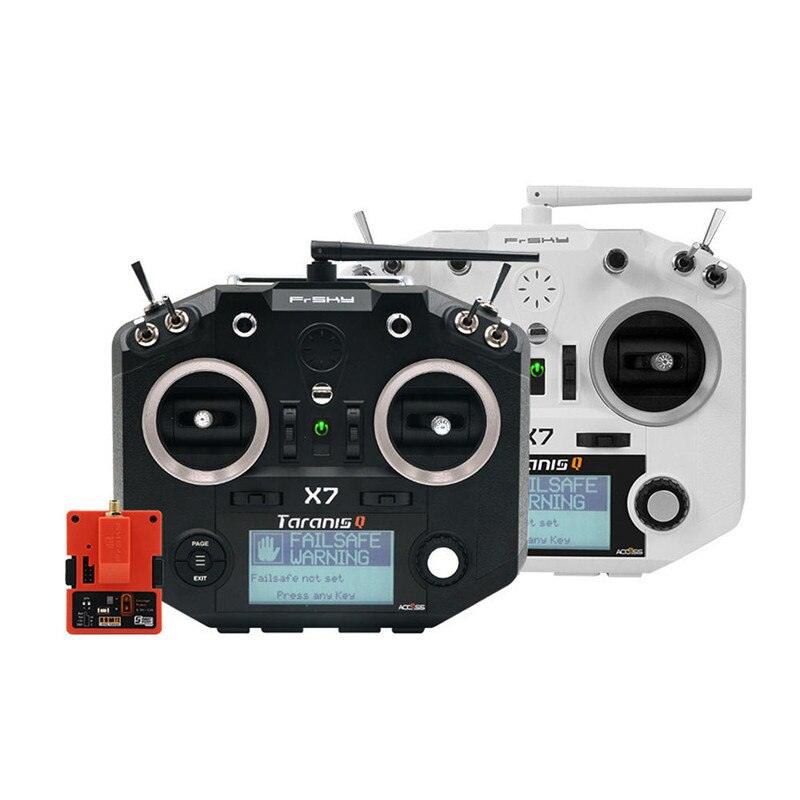

Package Include:

1 x Q X7 ACCESS Transmitter

1 x R9M 2019 Module




FrSky ACCESS Taranis

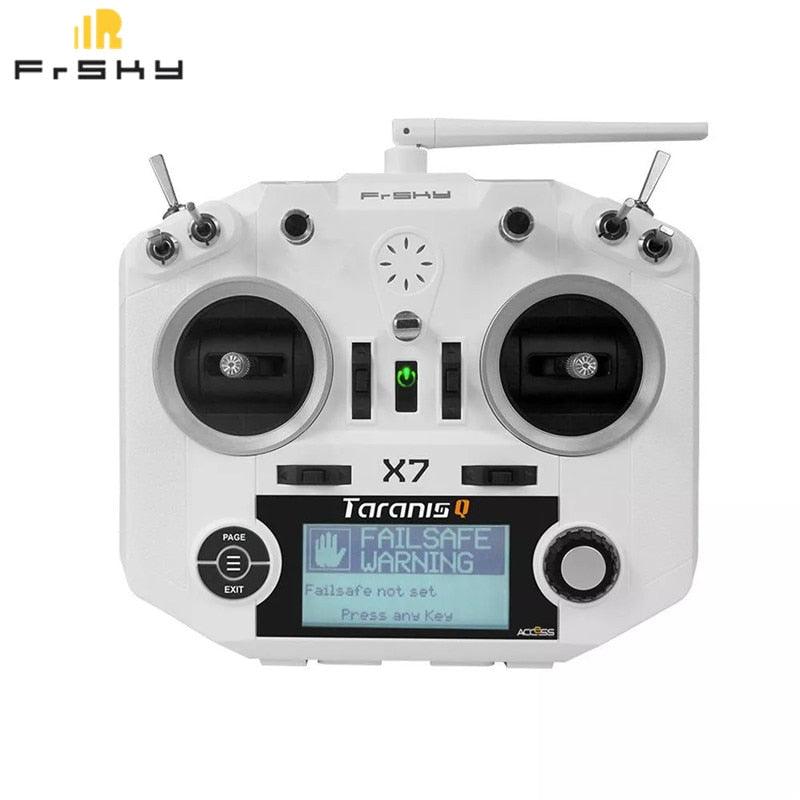

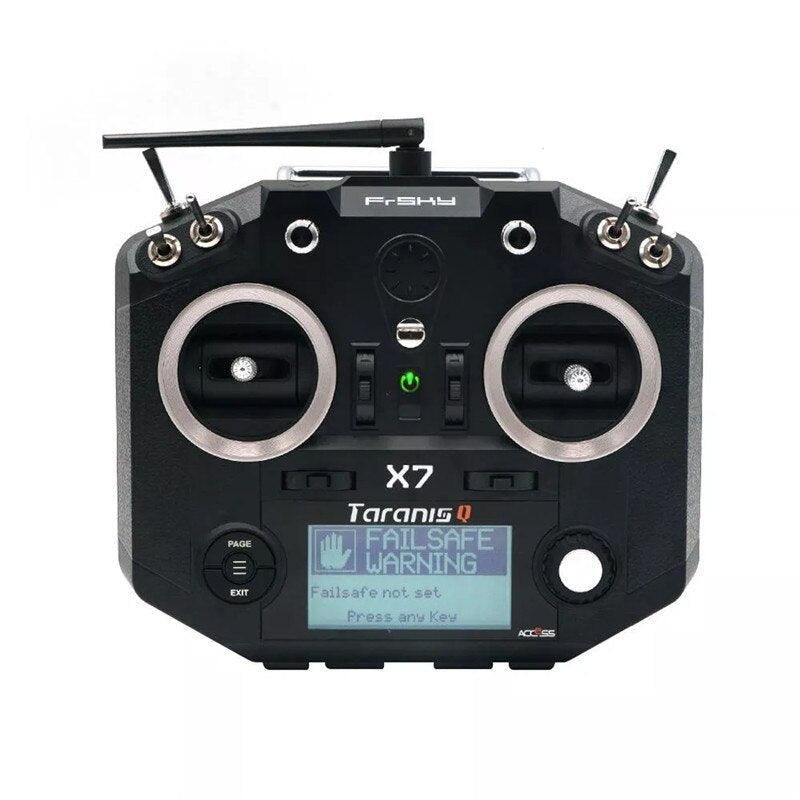

FFSSKNI 7 nig Q WCSAFE X7 RNING Taranis 0861 FAILSAFE anbked WARNING Failiafenot $66 Pness ana Keu


FcSKX X7 TaranigQ PAGE FAILSAFE WARN
€ X7 TaranigQ Page DarNiNGE ExIT Failsate
this 16 channel radio has smooth ball bearing gimbals . it is loaded with
the latest powerful radio system from FrSky, the Taranis Q X7

FRSKY Q X7 Specs
Note;Newest version not have a battery holder for small battery ,you can directly use one battery to supply the power
FrSky R9M 2019 radio control system works in 900MHz .

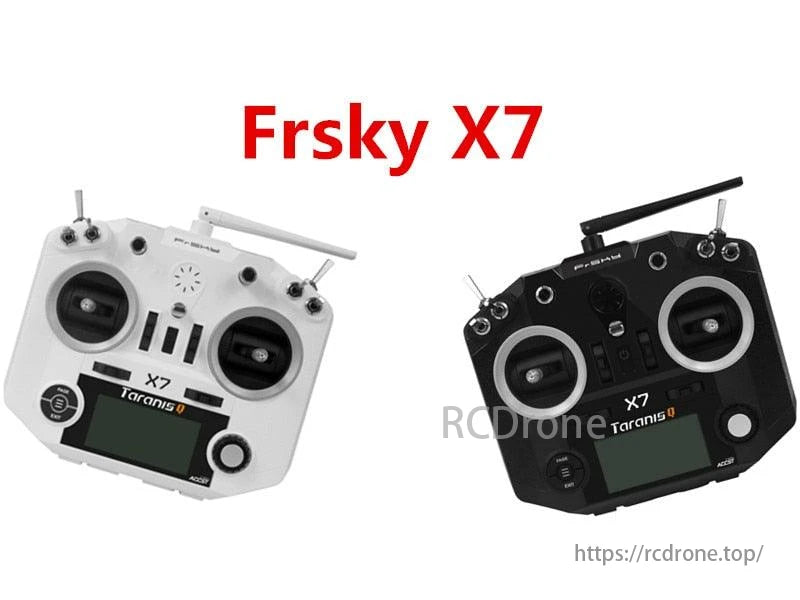

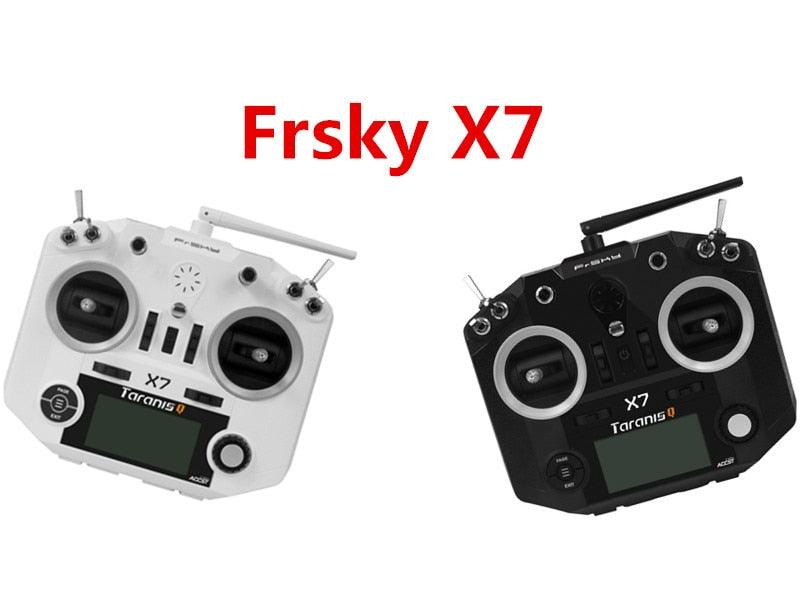

This is the latest powerful radio system from FrSky, the Taranis Q X7. This is a lightweight feature packed reliable system and it comes in black or white color scheme. The radio includes a Haptic Vibration Feedback System which provides an alternative feedback system to the voice and sound alert warnings. This 16 channel radio has smooth ball bearing gimbals and is loaded with six switches and two knobs. It runs on OpenTX and files can be shared with the popular X9D Plus. The MicroSD card slot offers unlimited model memory options , it also has a USB port for upgrades and to connect to a PC for adjusting settings. Both sticks come with spring loaded return to center sticks, this makes changing from mode 1 to mode 2 extremely easy to set through the menu and the stick can quickly be set to a stationary throttle by unscrewing four screws and removing a spring.

One of the best features of the Taranis Q X7 is its full telemetry capability, as well as RSSI signal strength feedback. Wheel and center enter button makes navigating the backlit menu easy and precise. Equipped with an audio jack output and trainer port as well. And of course a module bay for use with JR-type modules that can be used with other protocol receivers and with the use of a FrSky XJT module. This radio can support up to 32-channels. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for precision flying. Overall this Radio has the features of more expensive transmitters at an unprecedented value.

Specifications:   Download the Manual
Model Name: Taranis Q X7
Operating Voltage Range: 6~15V (2S, 3S Lipos are acceptable)
Operating Current: 210mA maximum (both RF module and backlit are on)
Operating Temperature: -10~45℃
Backlight LCD Screen: 128*64 outdoor readable LCD
Model Memories: 60 (extendable by SD card)
Compatibility: FrSky X series, D series and V8-II series receivers (plus other receivers if an external module is used)


Features:
 Quad Ball Bearing Gimbals
 Receiver Match
Audio Speech Outputs (values, alarms, settings, etc.)
 Antenna Status Detection and adjustment
Real-time Flight Data Logging
Receiver Signal Strength Indicator (RSSI) Alerts
Super Low Latency
Smart Port Supported
Vibration Alerts
Model configuration files compatible with TARANIS X9D Plus

Note: It is the self-centering throttle mode.The throttle stick is always in the neutral position.
            It is the FCC version.
Note: It comes without battery and Receiver


Package Included:
1 x Taranis Q X7
1 x Manual
1 x Neck strap
