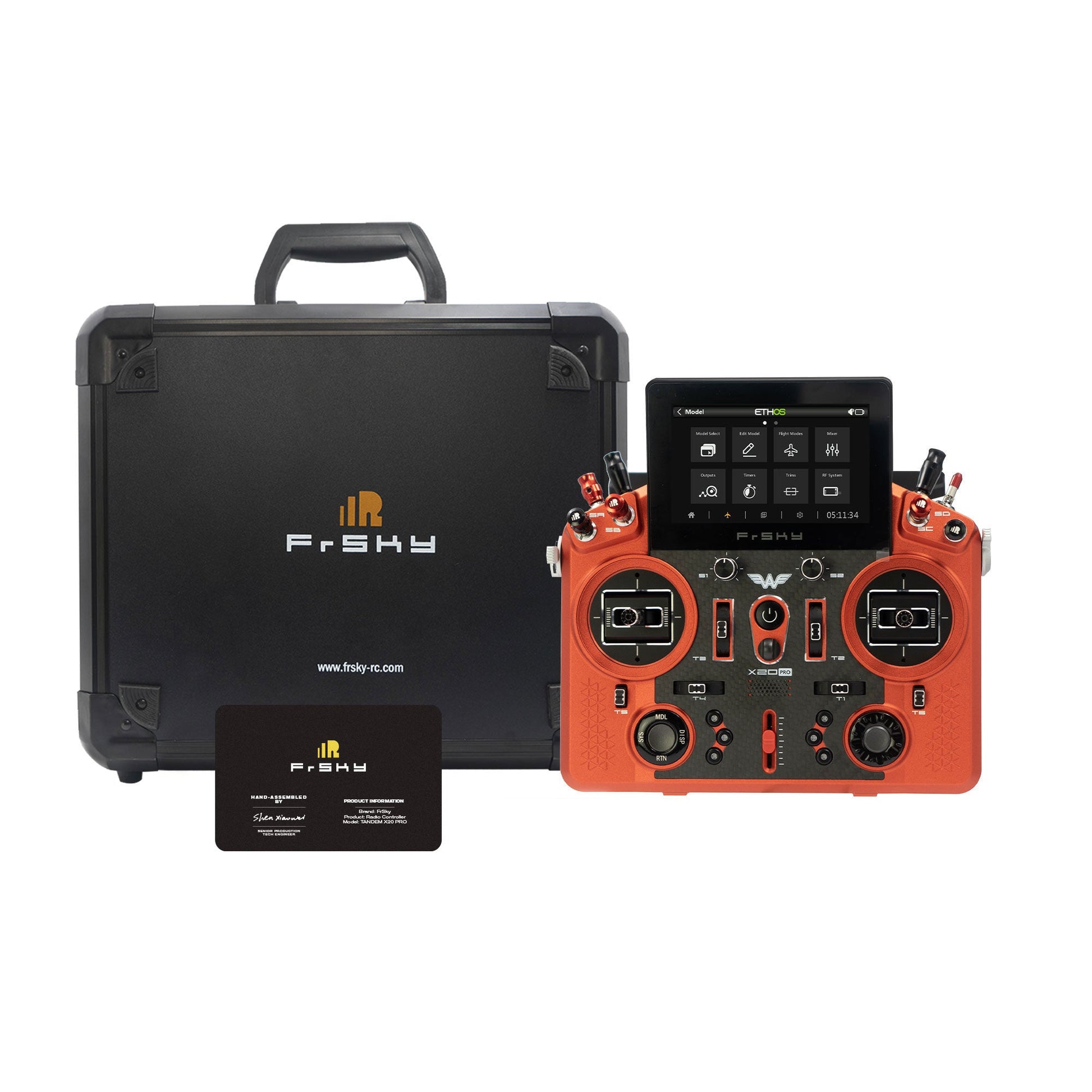

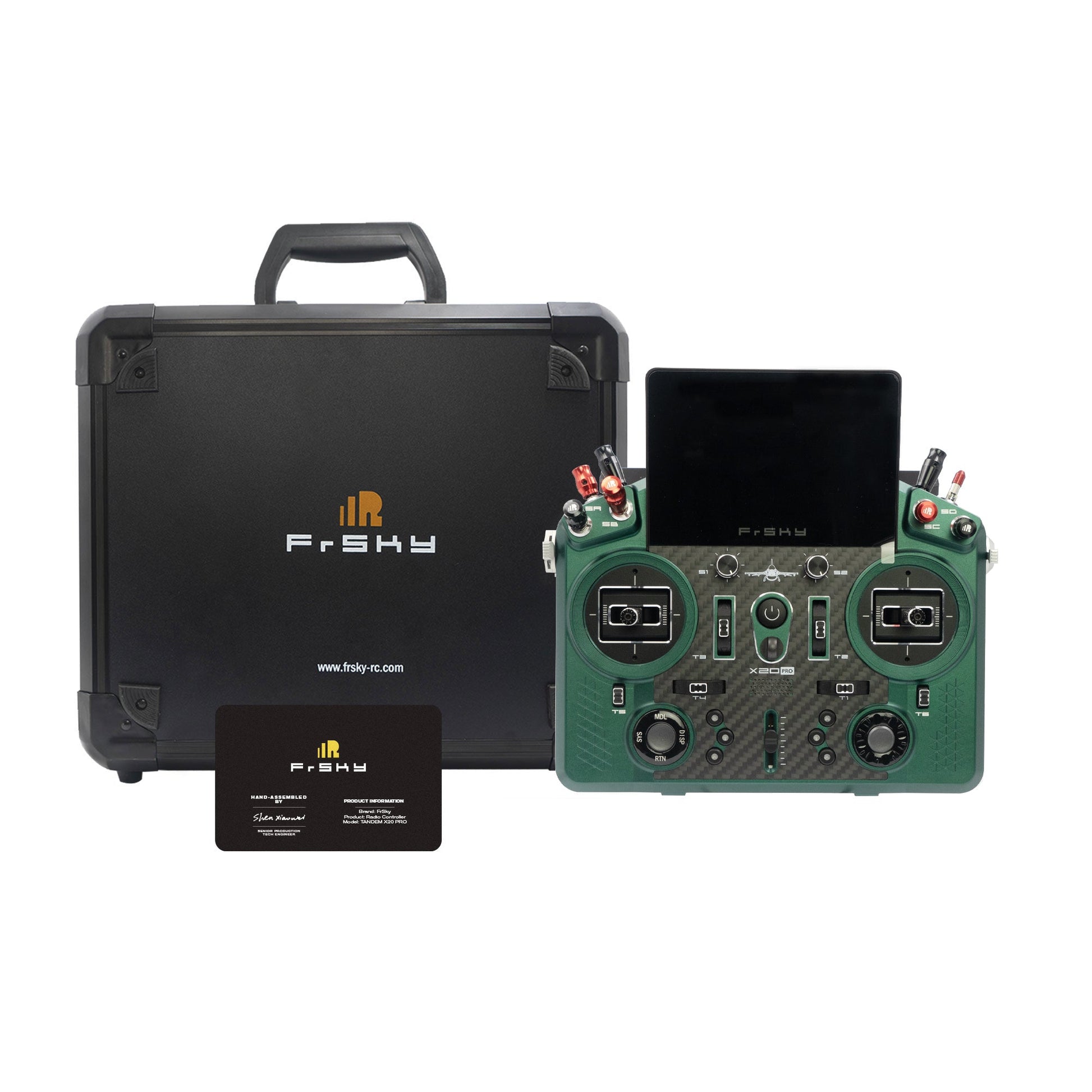

FrSky Tandem X20 PRO AeroWing Edition Dual Band Transmitter (TD-ISRM PRO) 900M/2.4G LoRa, 24CH

Overview

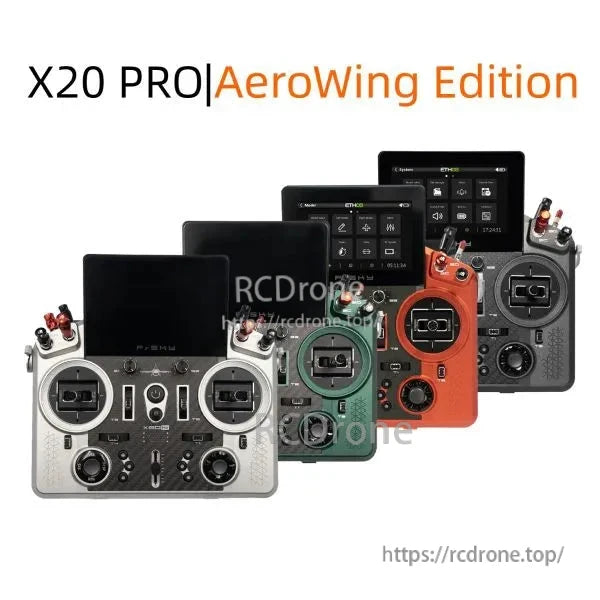

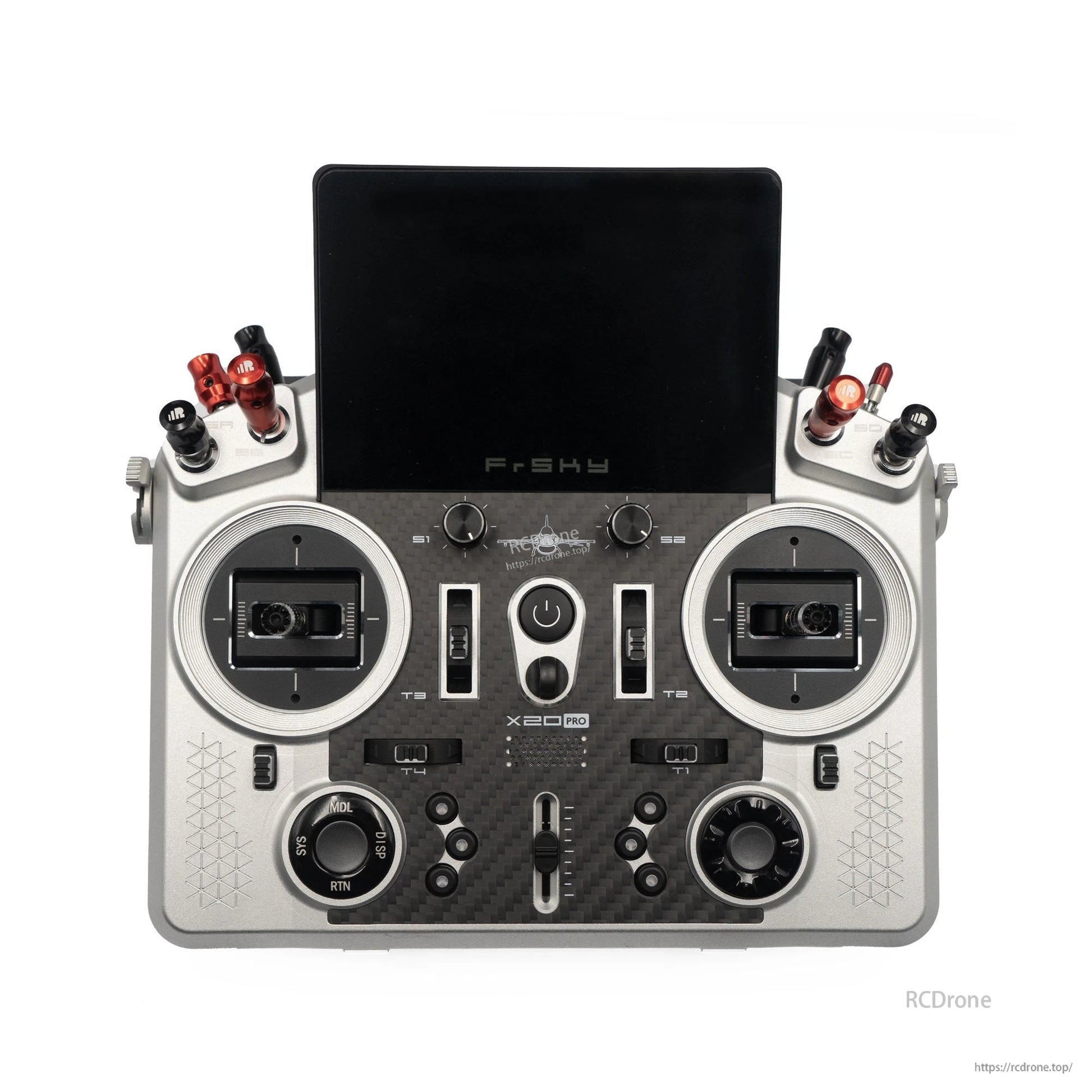

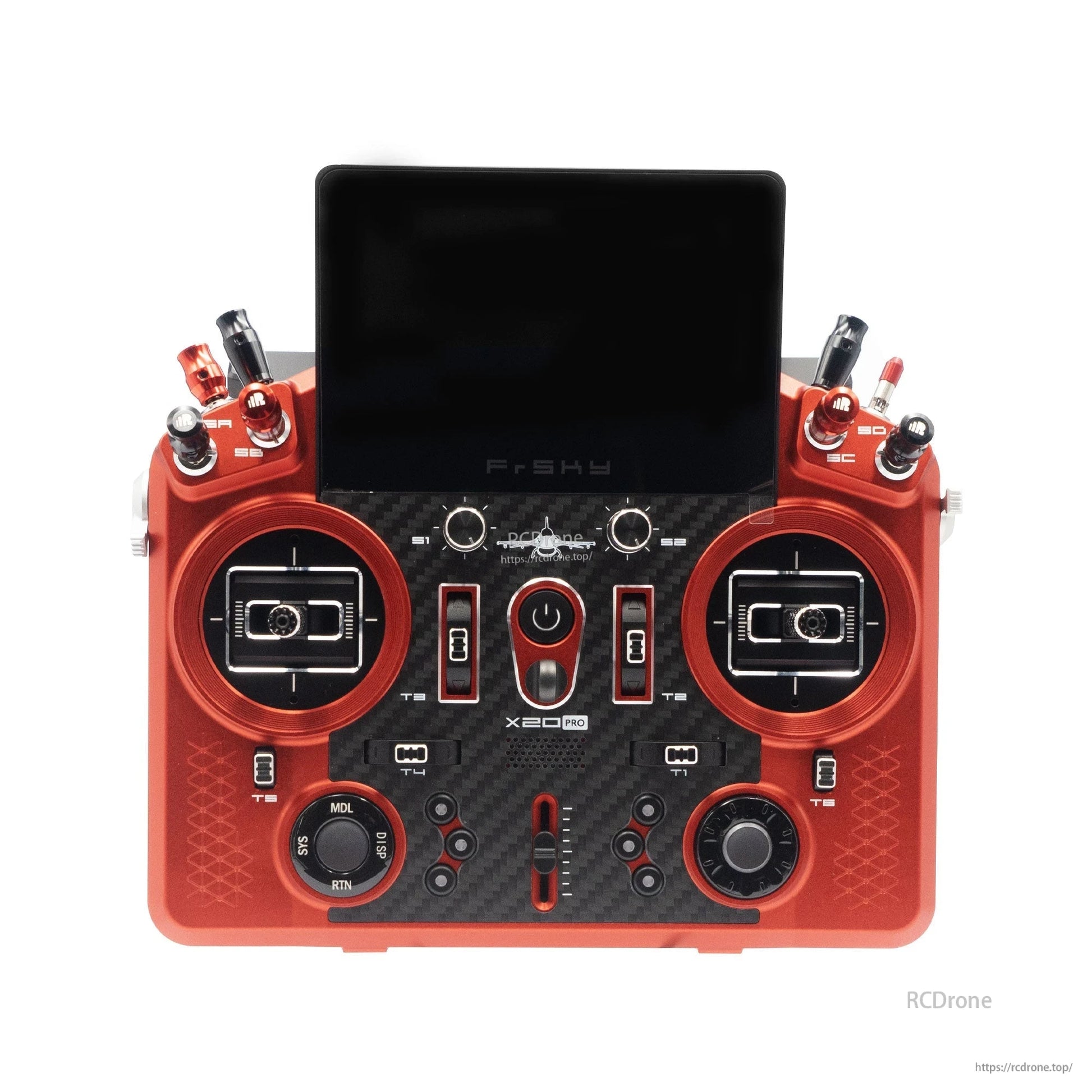

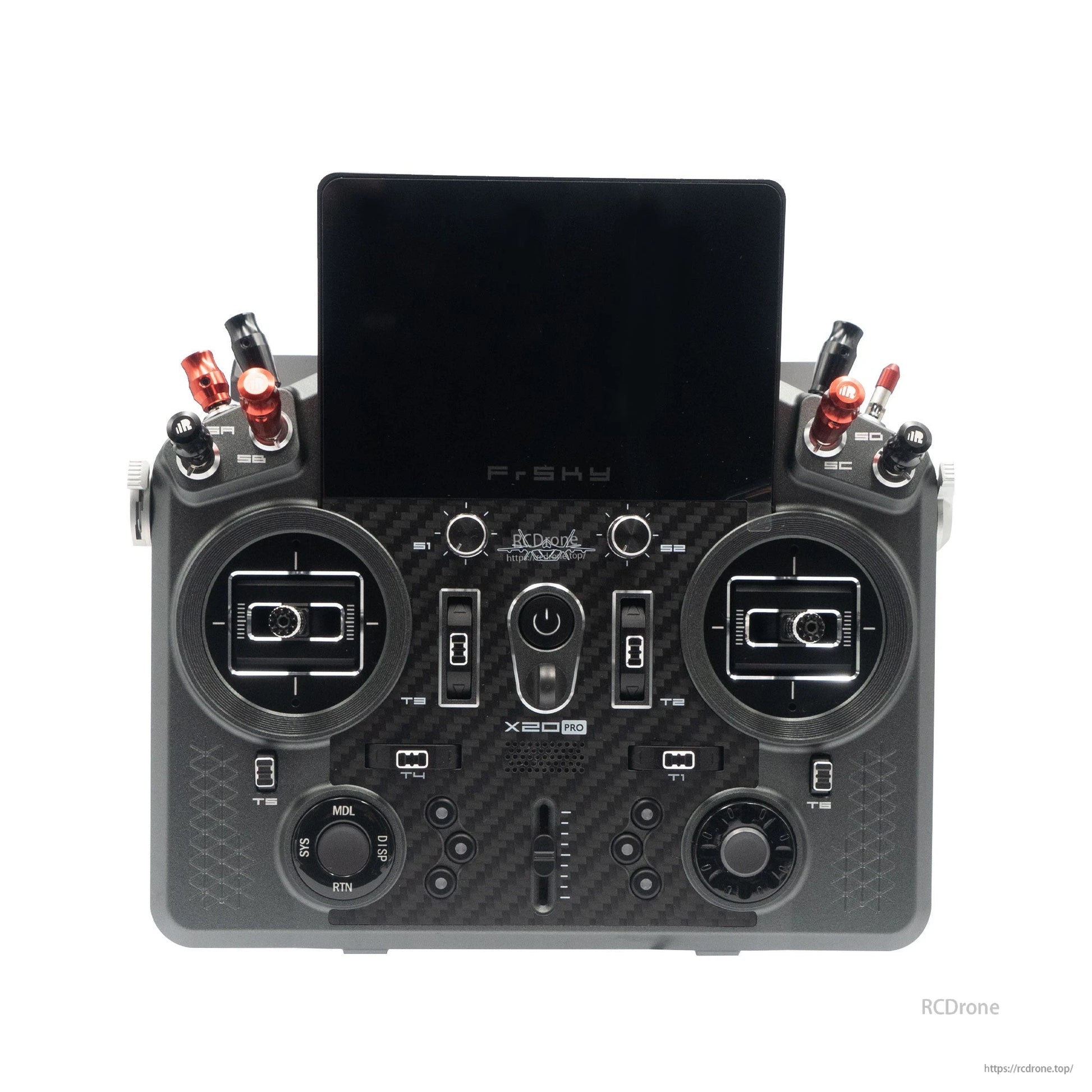

The FrSky TANDEM X20 PRO AeroWing Edition is a dual band transmitter designed for RC pilots using ACCST D16, ACCESS, TD, and TW receivers. This AeroWing Edition focuses on enhanced gimbal feedback, adjustable MC20R gimbals, upgraded sliders and switches, and improved antenna hardware for demanding outdoor flying conditions.

Key Features

• Dual-side haptic gimbal feedback: Left/right gimbal vibration can operate independently; vibration feedback can be enabled/disabled via a switch.

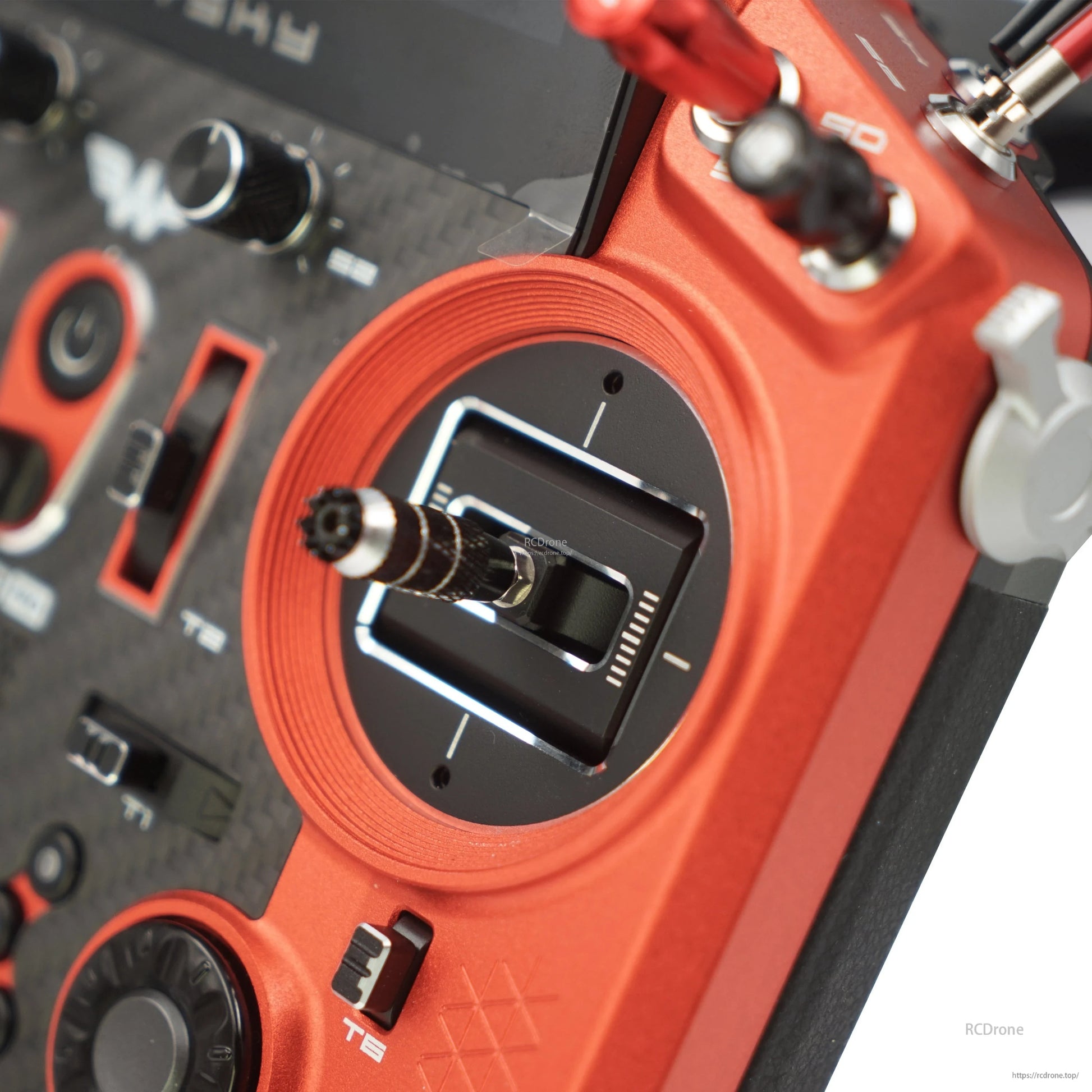

• Easy travel-adjustable MC20R gimbals: Adjustable travel position with any desired degree between 45° to 60°; includes an 8° rotatable panel. Adjustment can be made via the gimbal panel adjustment hole using a screwdriver (no radio casing disassembly required).
• Dual-band internal RF module: Built-in TD-ISRM Pro dual-band internal RF module with supported modes:
  • 900M LoRa / 2.4G LoRa Dual Band TD Pro Mode
  • 900M / 2.4G Dual Band TD Mode
  • Dual 2.4G TW Mode
  • ACCESS 2.4G & ACCESS R9 Modes
  • 2.4G ACCST D16 Mode
• Telemetry with low-latency, long-range control

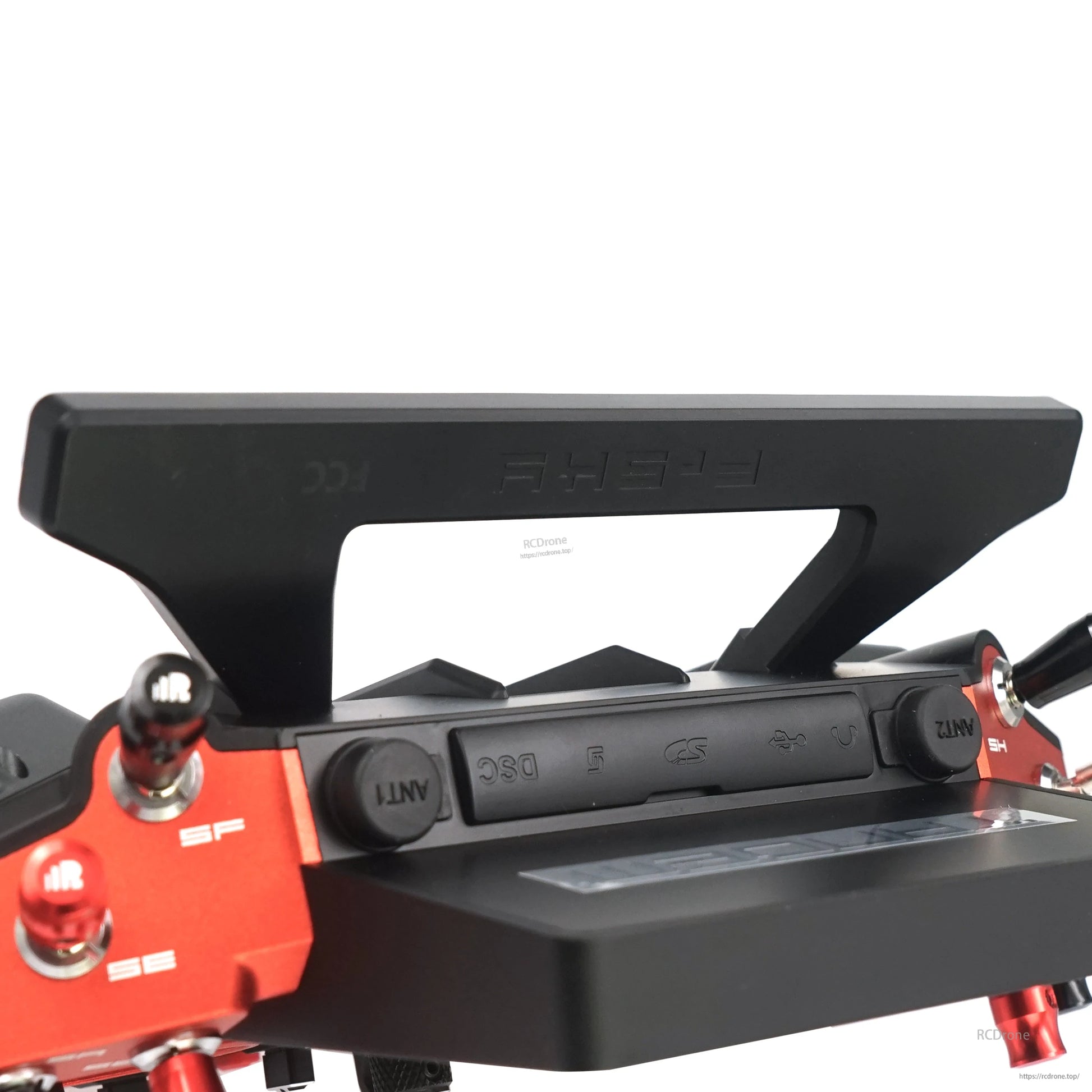

• Upgraded robust antenna handle

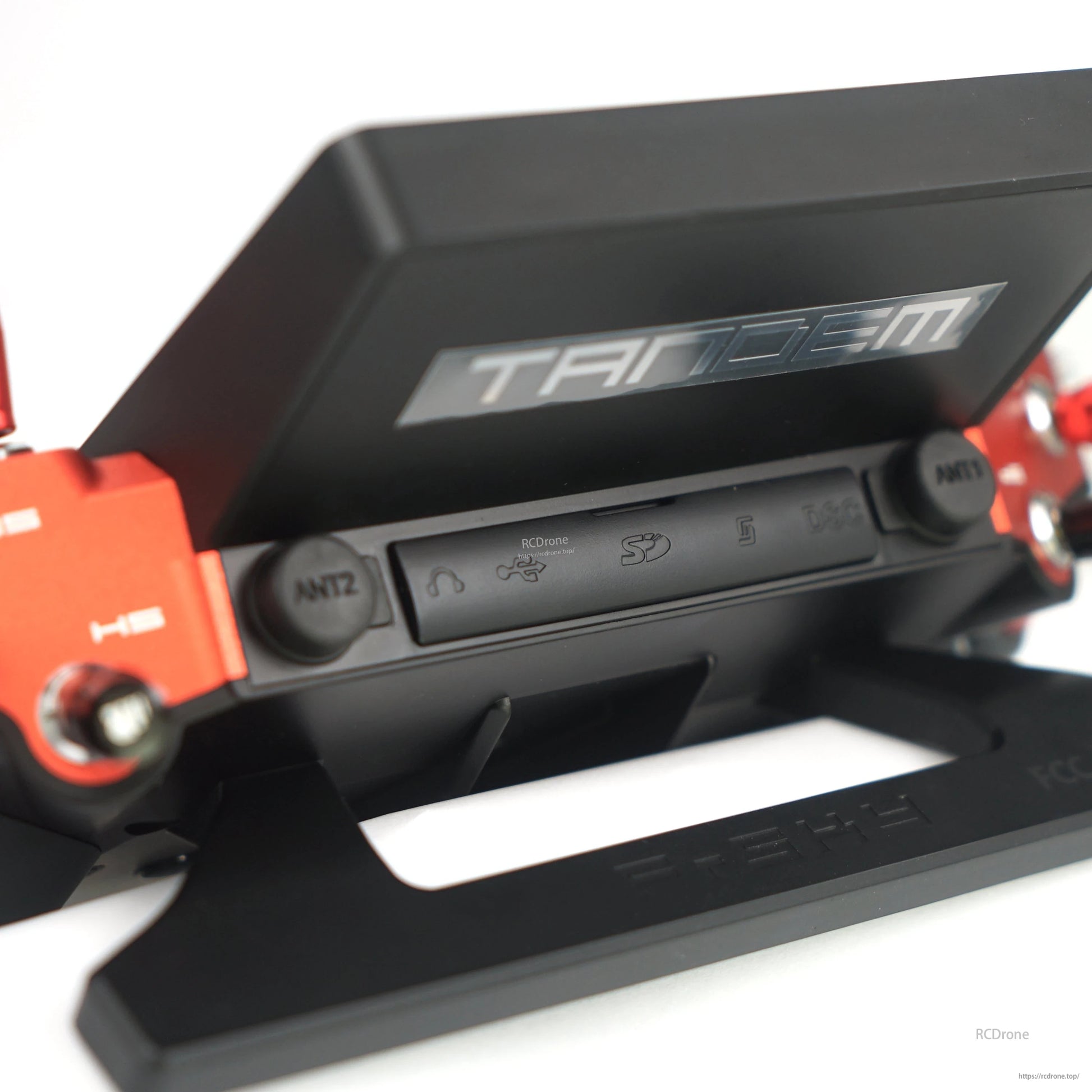

• 2.4G/900M external antenna connectors (LoRa mode)
• Sliders (CNC-machined): Multi-position CNC flaps slider (left lever) and angle-adjustable CNC extended slider (right lever). Additional slider options (e.g., self-centering slider lever) are planned for specific applications.

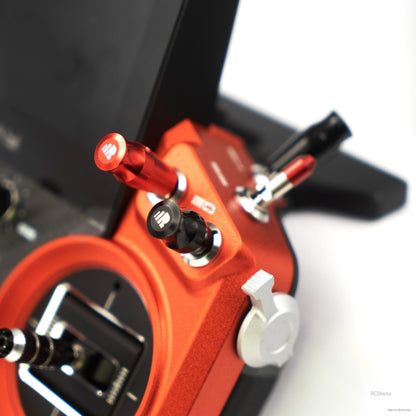

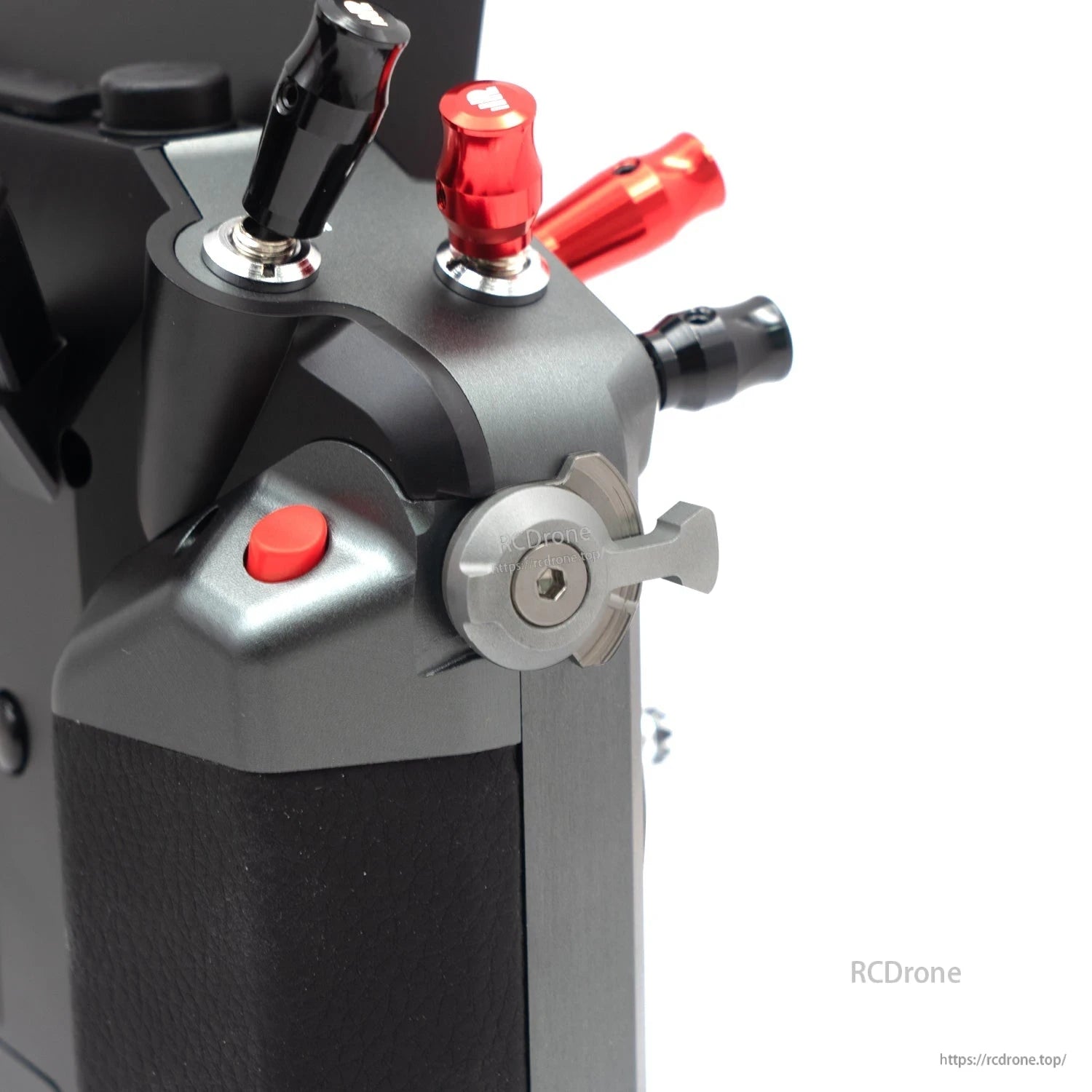

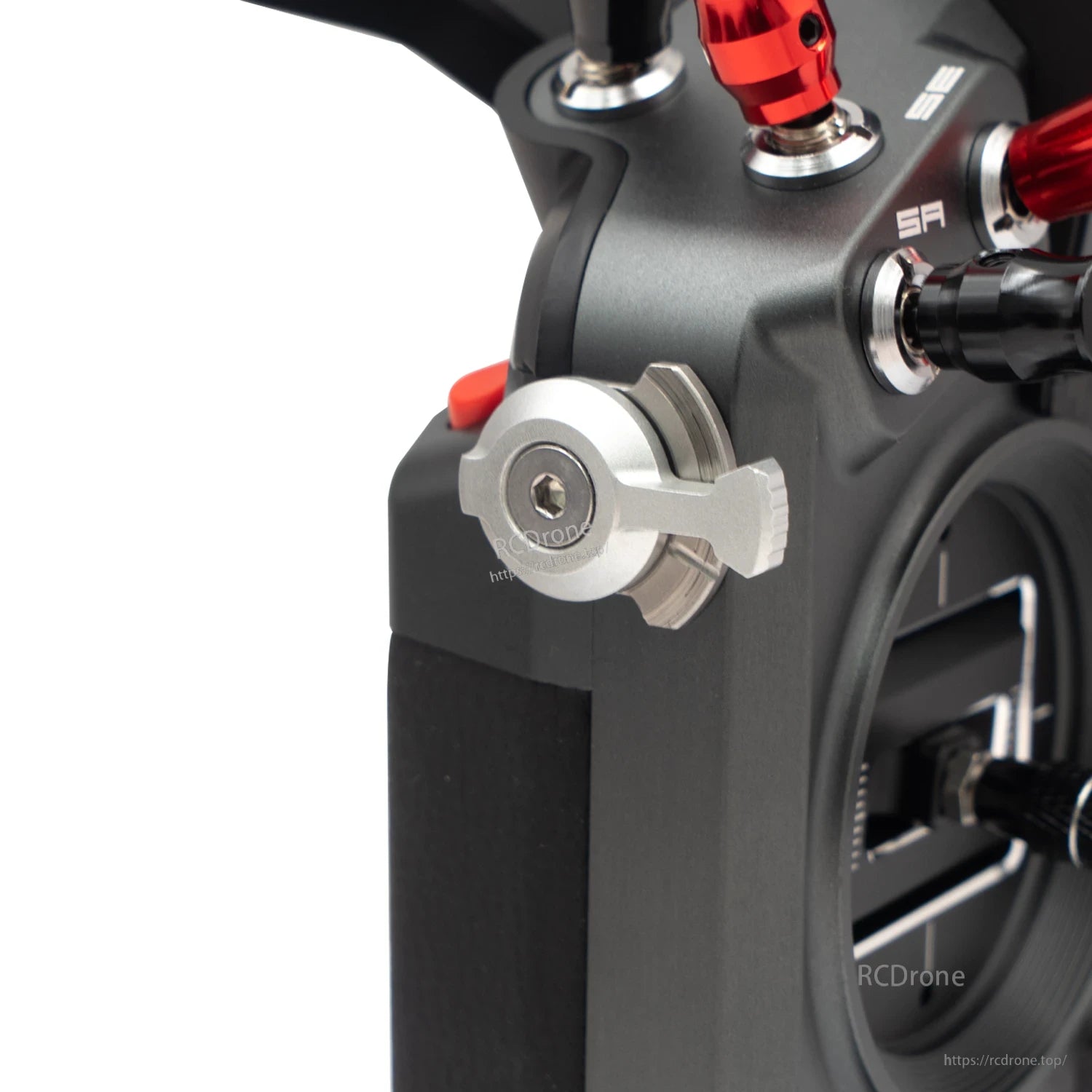

• Self-locking controls: 2 self-locking shoulder buttons and 1 self-locking shoulder switch; AW version includes a 2-position self-locking switch (usable as a regular 2-position switch, with locking capability for added operational safety).

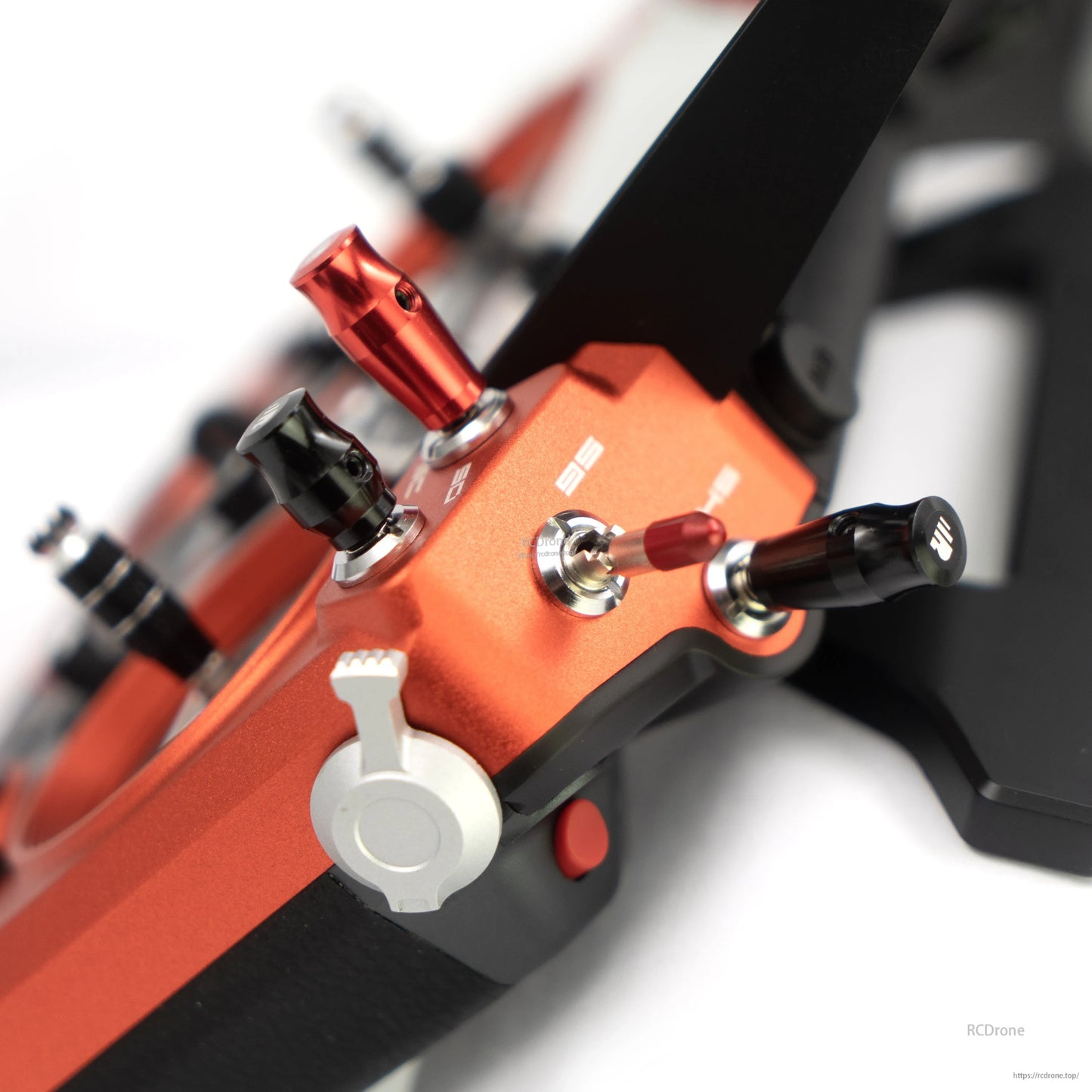

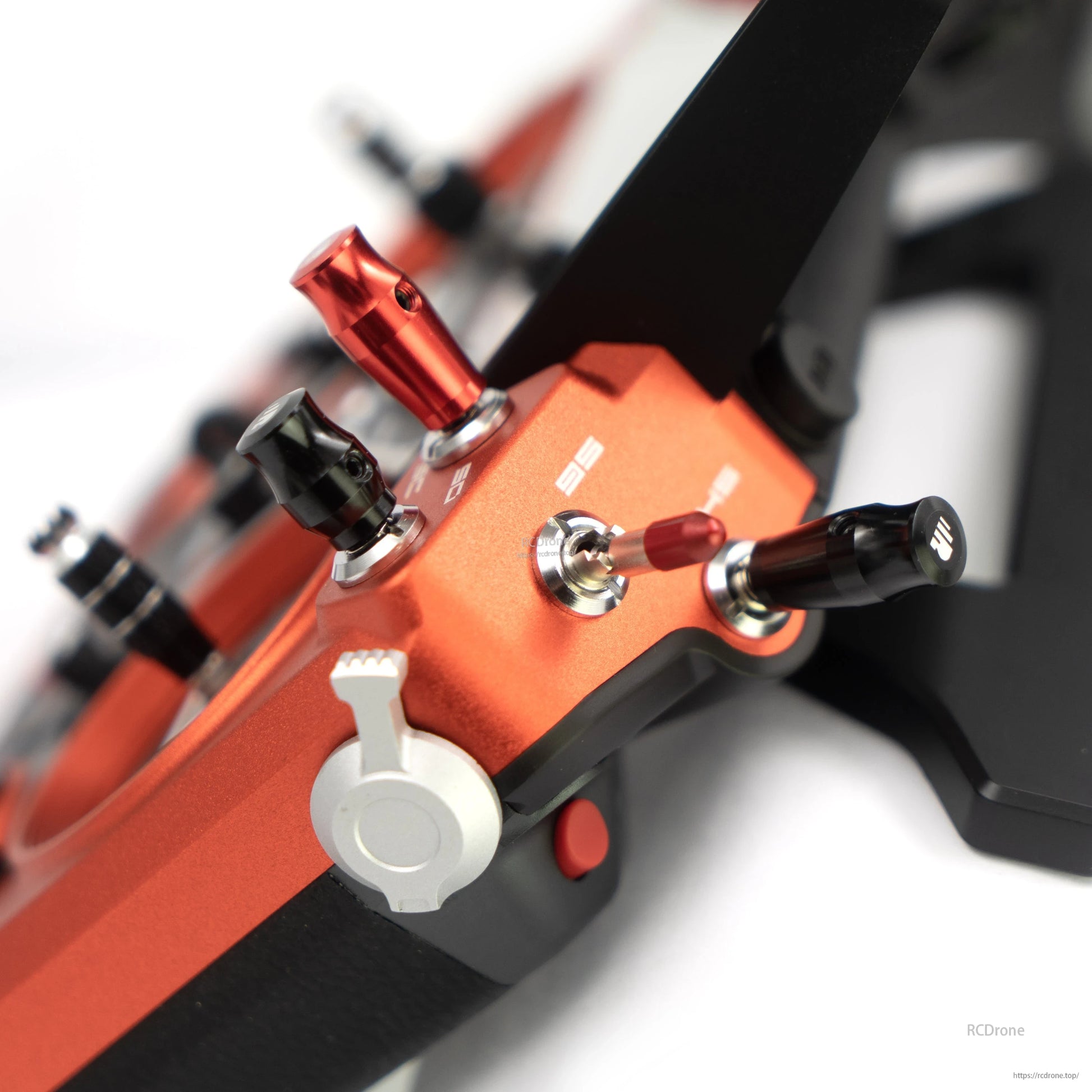

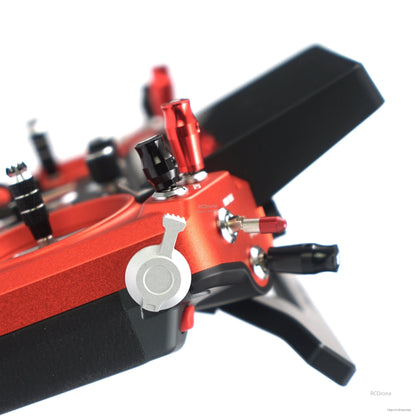

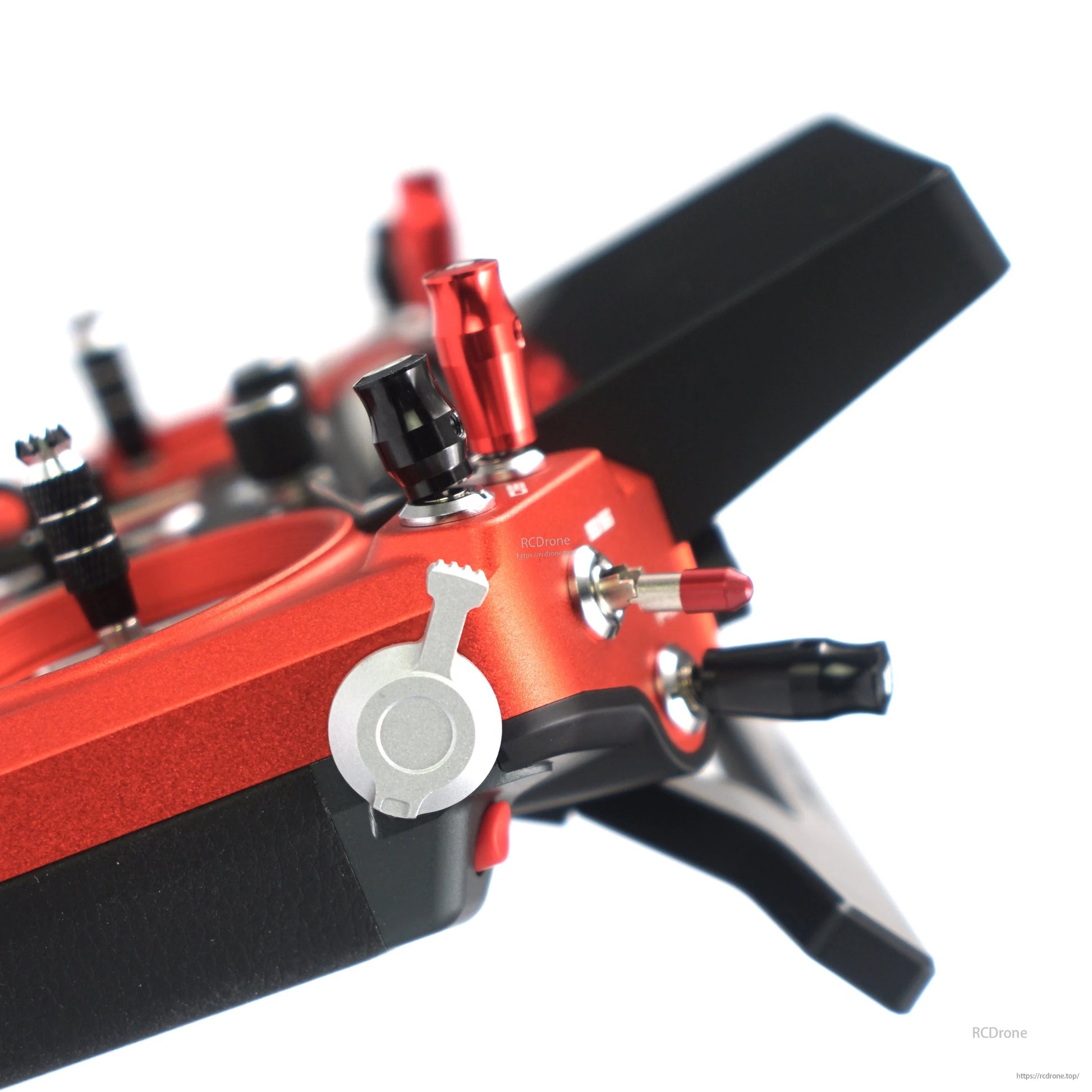

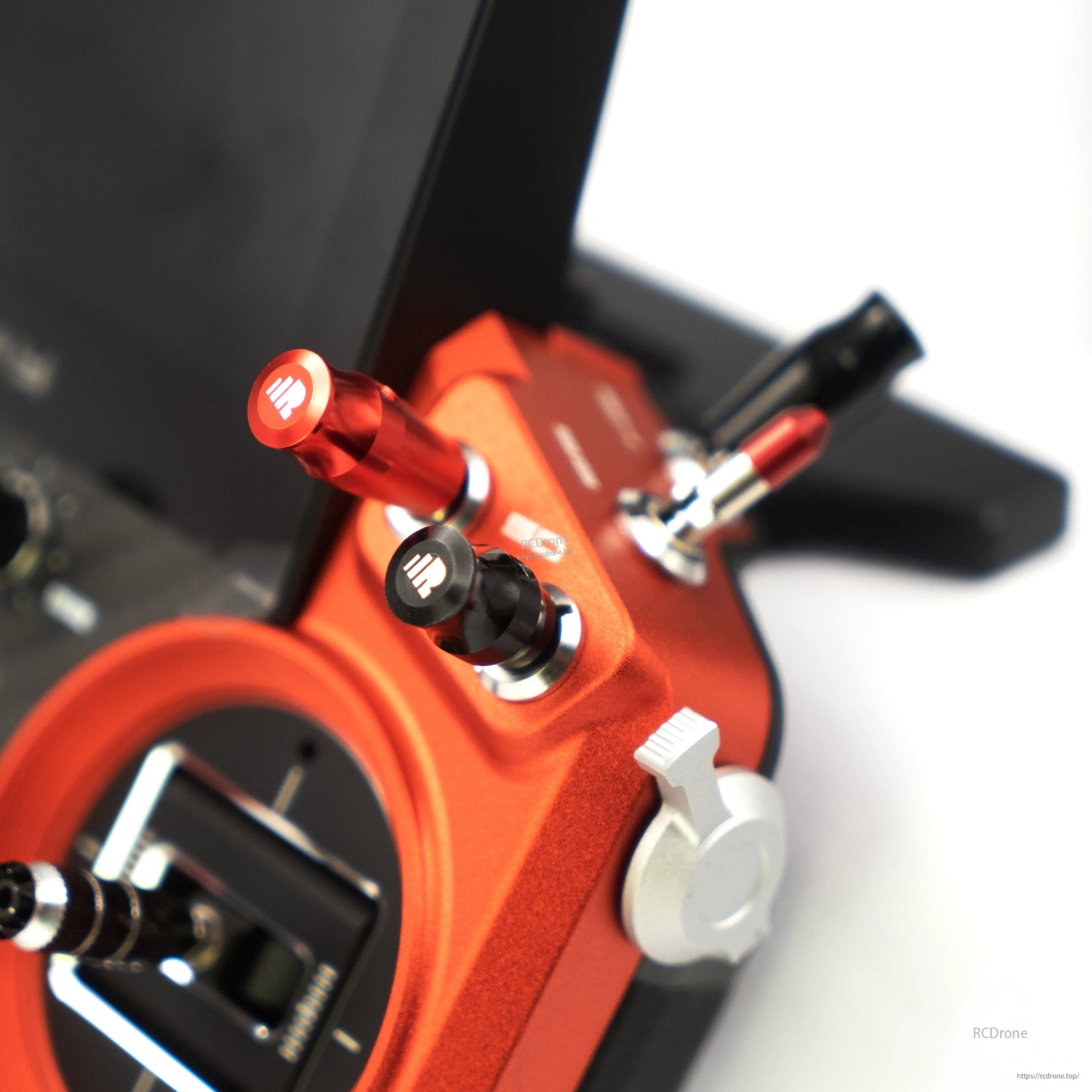

• Metal control caps: CNC metal switch caps (red & black); 2 knobs & 6 trims with all-CNC metal caps.
• Buttons: 6 quick-mode custom buttons (front) and 2 momentary buttons (rear).
• Chassis materials: CNC machined metal shell & carbon fiber center panel.

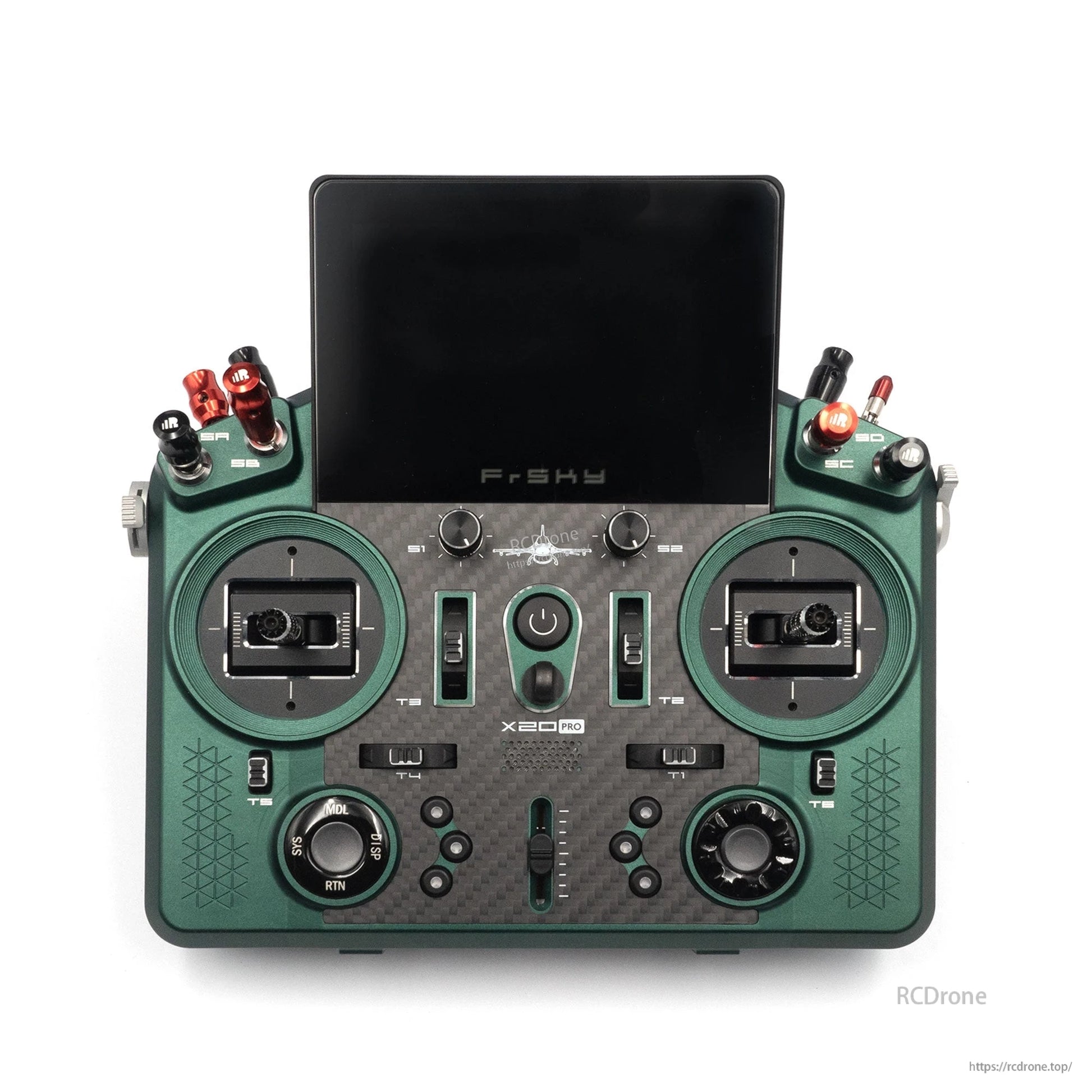

• Display: 800 x 480 outdoor high-brightness touchscreen (backlit touchable LCD).
• Storage: Built-in 8GB flash storage.
• Audio and alerts: Text to Speech (TTS), digital audio power amplifier, haptic vibration alerts and voice speech outputs.
• Sensors and training: Built-in 6-axis gyroscope sensor; high-speed PARA wireless training system.
• Wireless audio: Built-in audio wireless module (compatible with Bluetooth audio device).

X20 PRO AW Regular vs AW Plain

• X20 PRO AW Regular Version: Left-side multi-position CNC flaps slider lever; right-side angle-adjustable CNC extended slider lever; provides a 2-position self-locking switch.

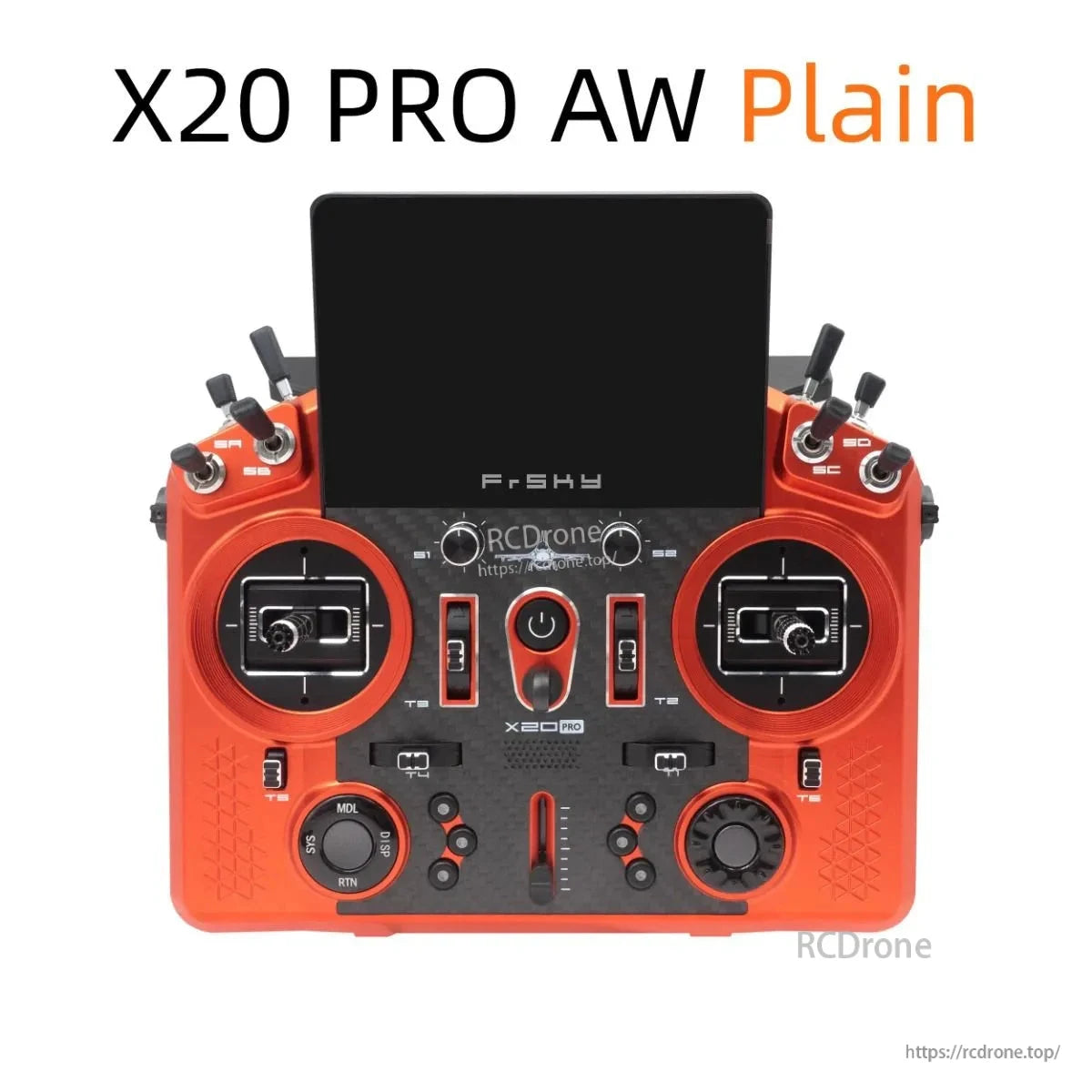

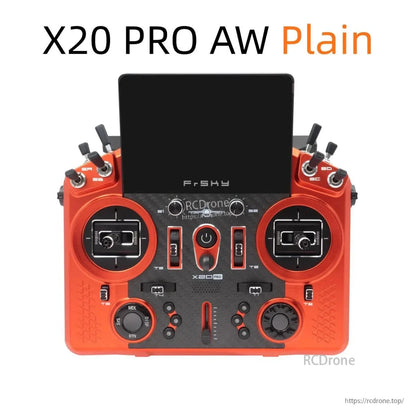

• X20 PRO AW Plain Version: Regular slider levers and switches with rubber caps; not equipped with the self-lock switch, the multi-position flap slider, or the angle-adjustable extended slider.

Specifications

For setup guidance and purchase assistance, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

AeroWing Edition upgrades focus on tactile haptic gimbal feedback, tool-adjustable MC20R gimbals, CNC sliders, and a more robust antenna handle for outdoor flying.
