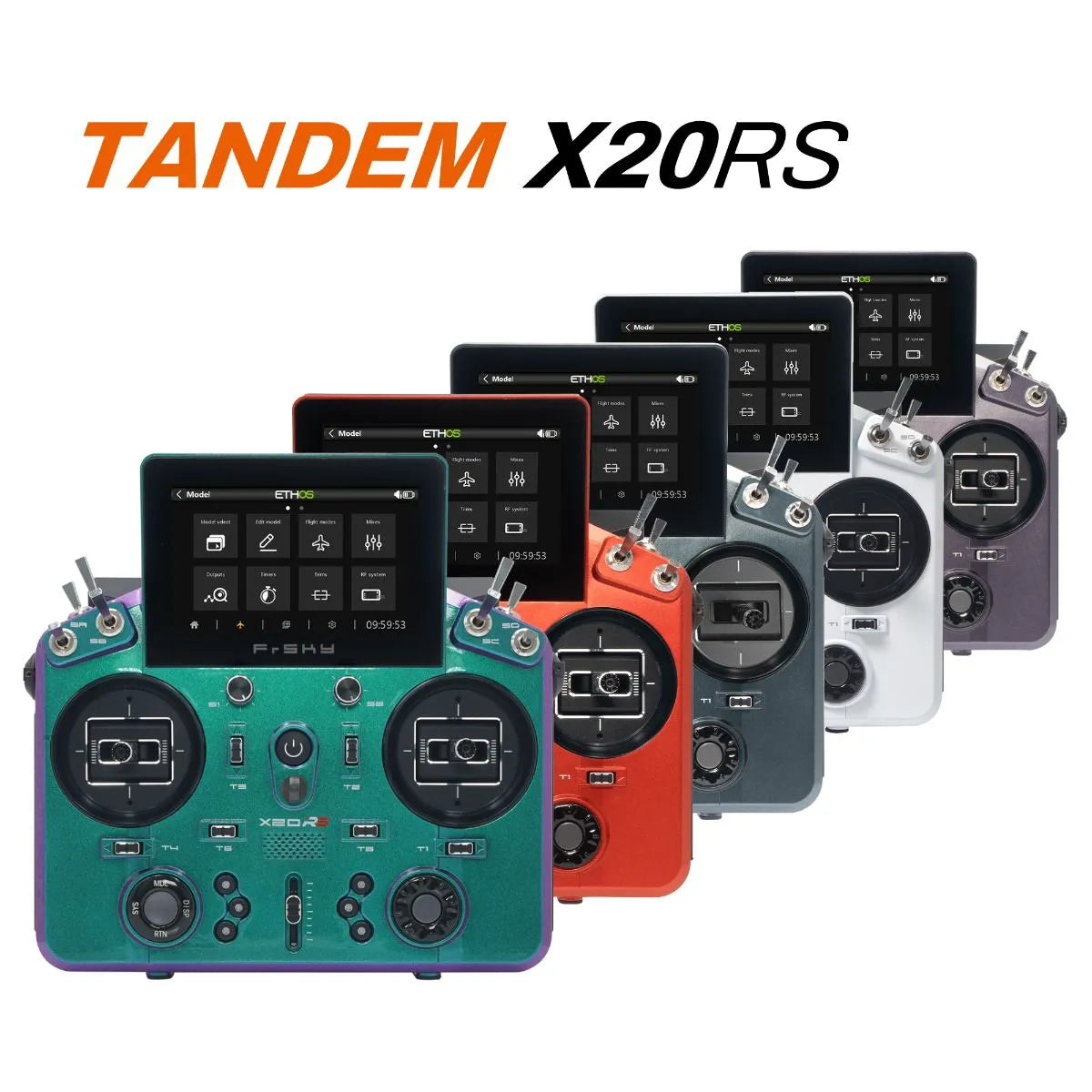

• FrSky TANDEM X20RS RC radio transmitter lineup showing multiple color options with large touchscreen

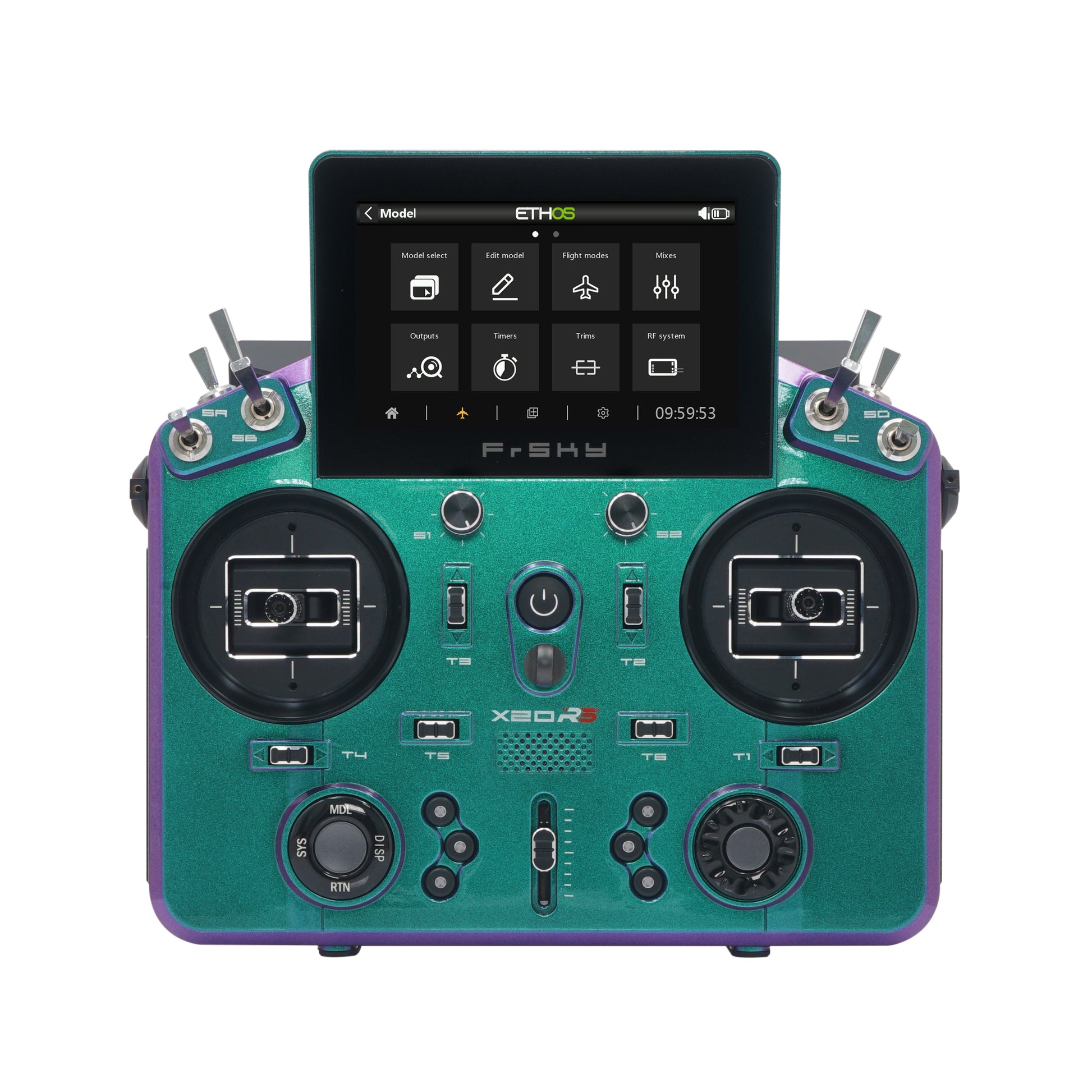

  • FrSky TANDEM X20RS RC radio transmitter front view in teal with touchscreen and dual gimbals

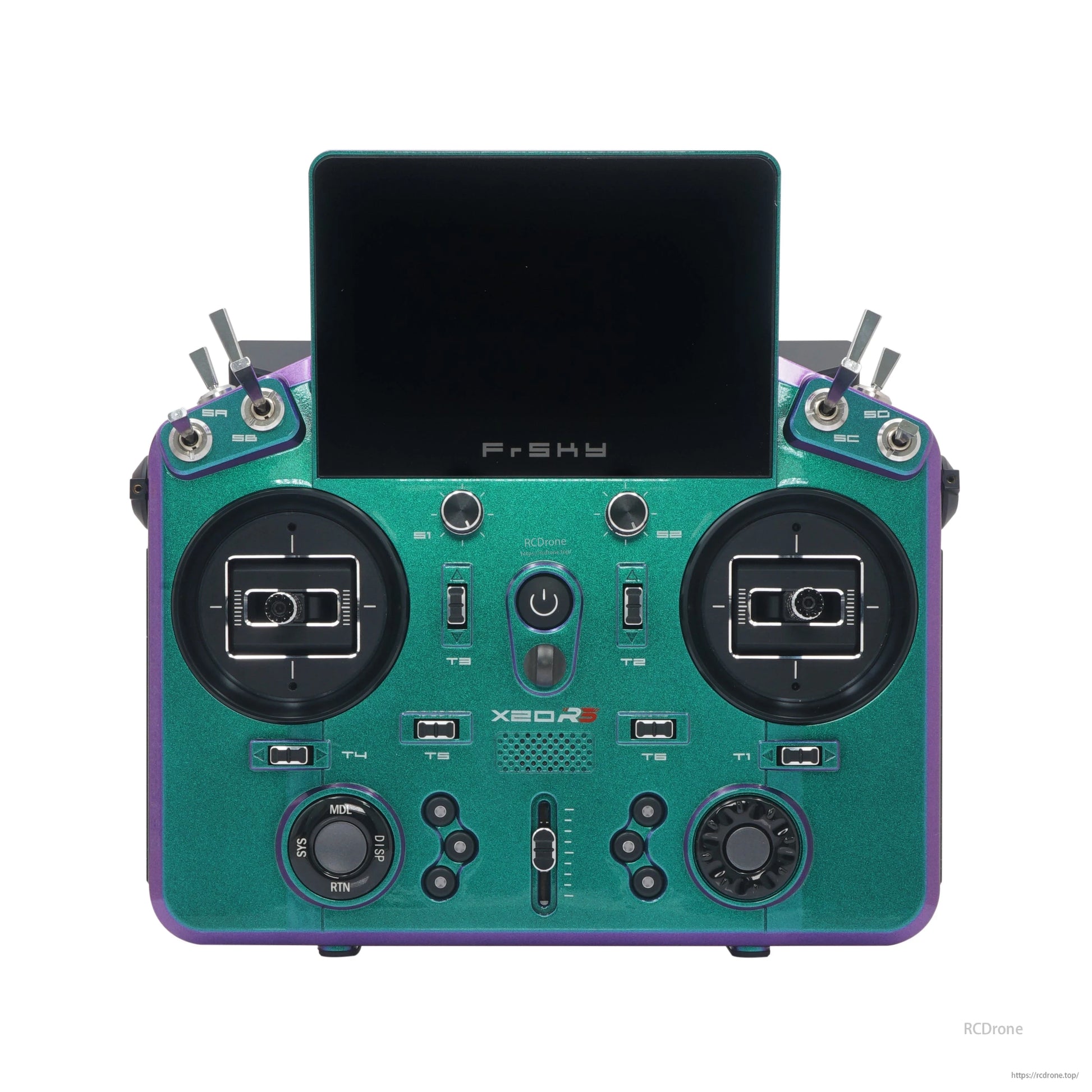

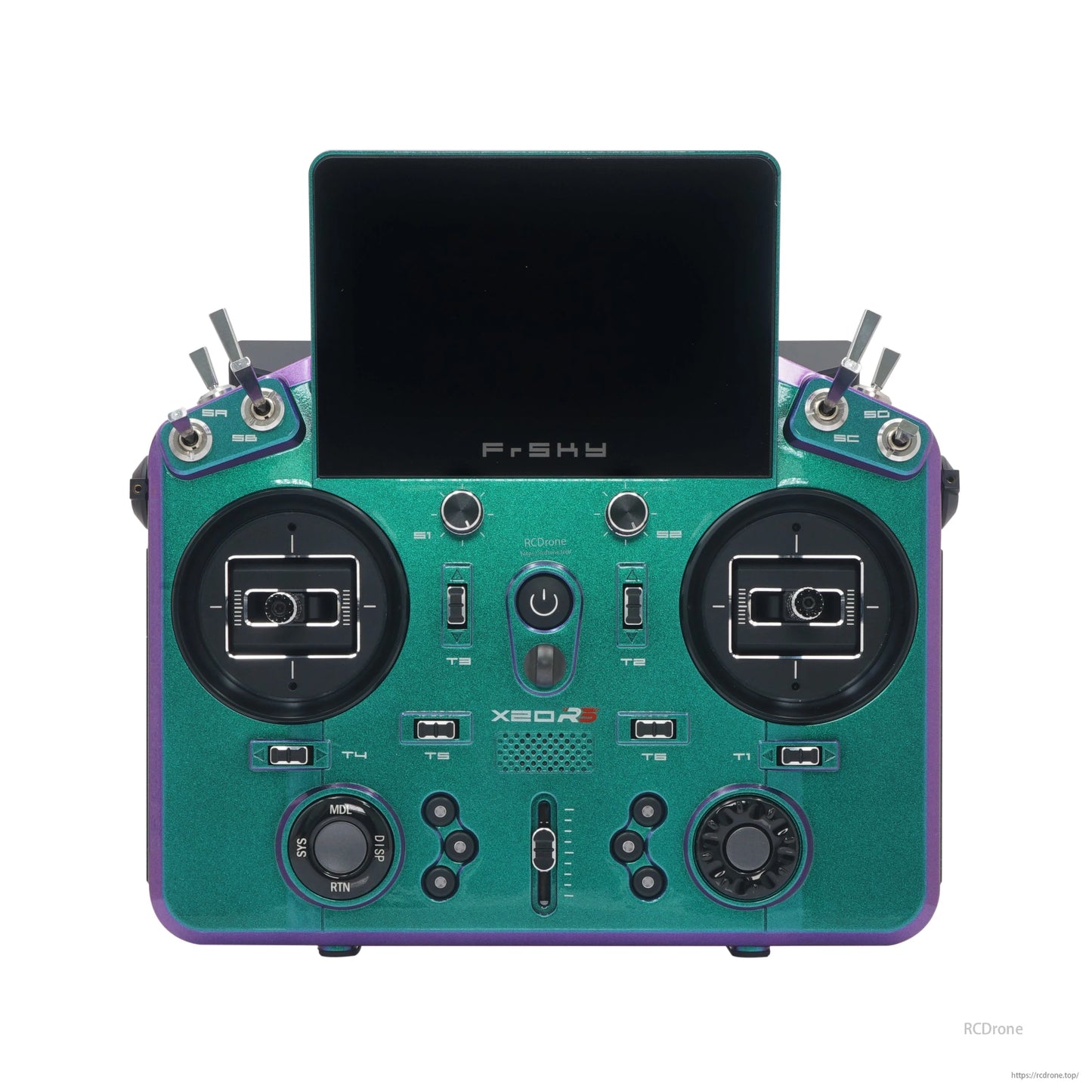

  • TANDEM X20RS transmitter front view with screen off, showing switches, dials, and dual gimbals

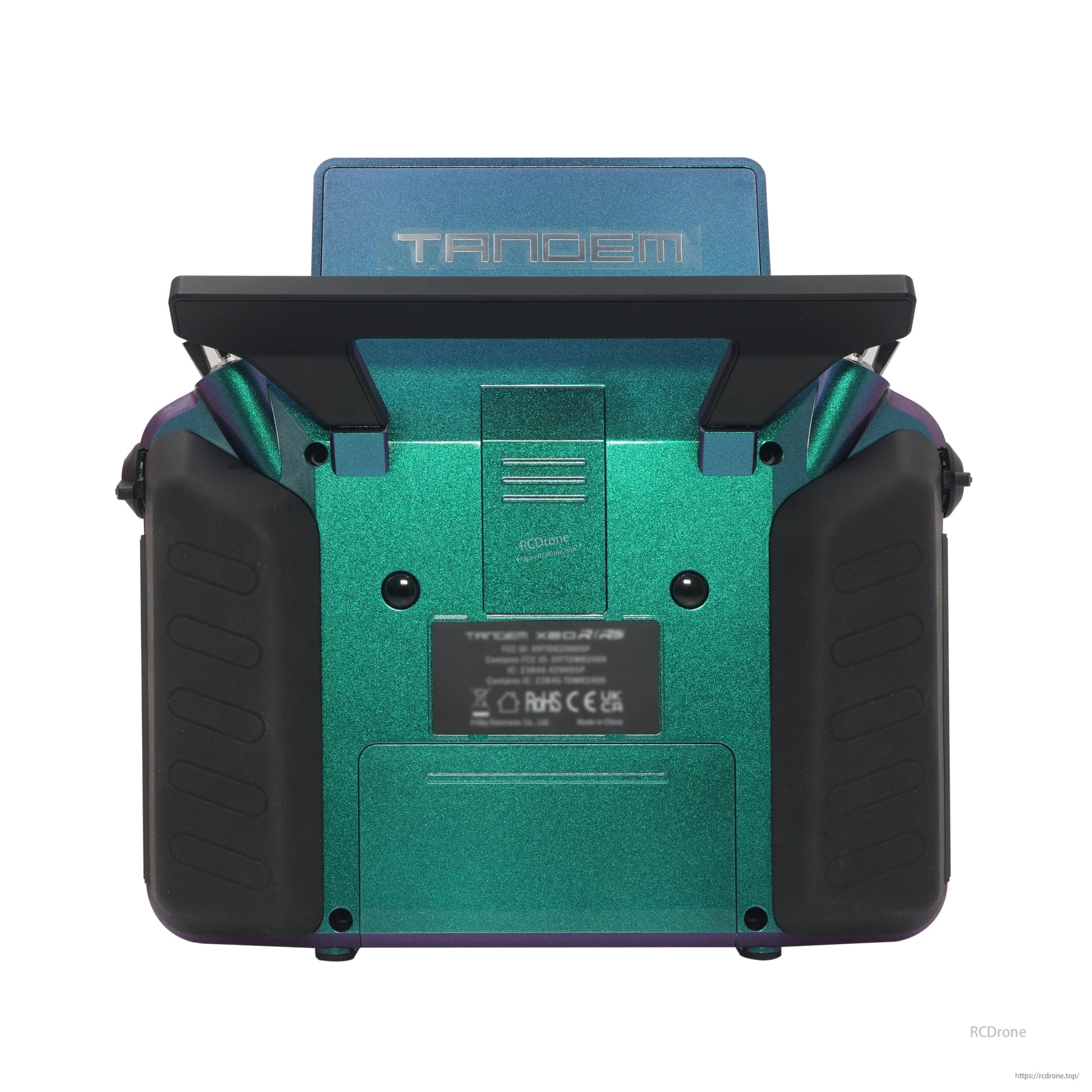

  • TANDEM X20RS transmitter rear view in teal showing hand grips and rear module/battery cover area

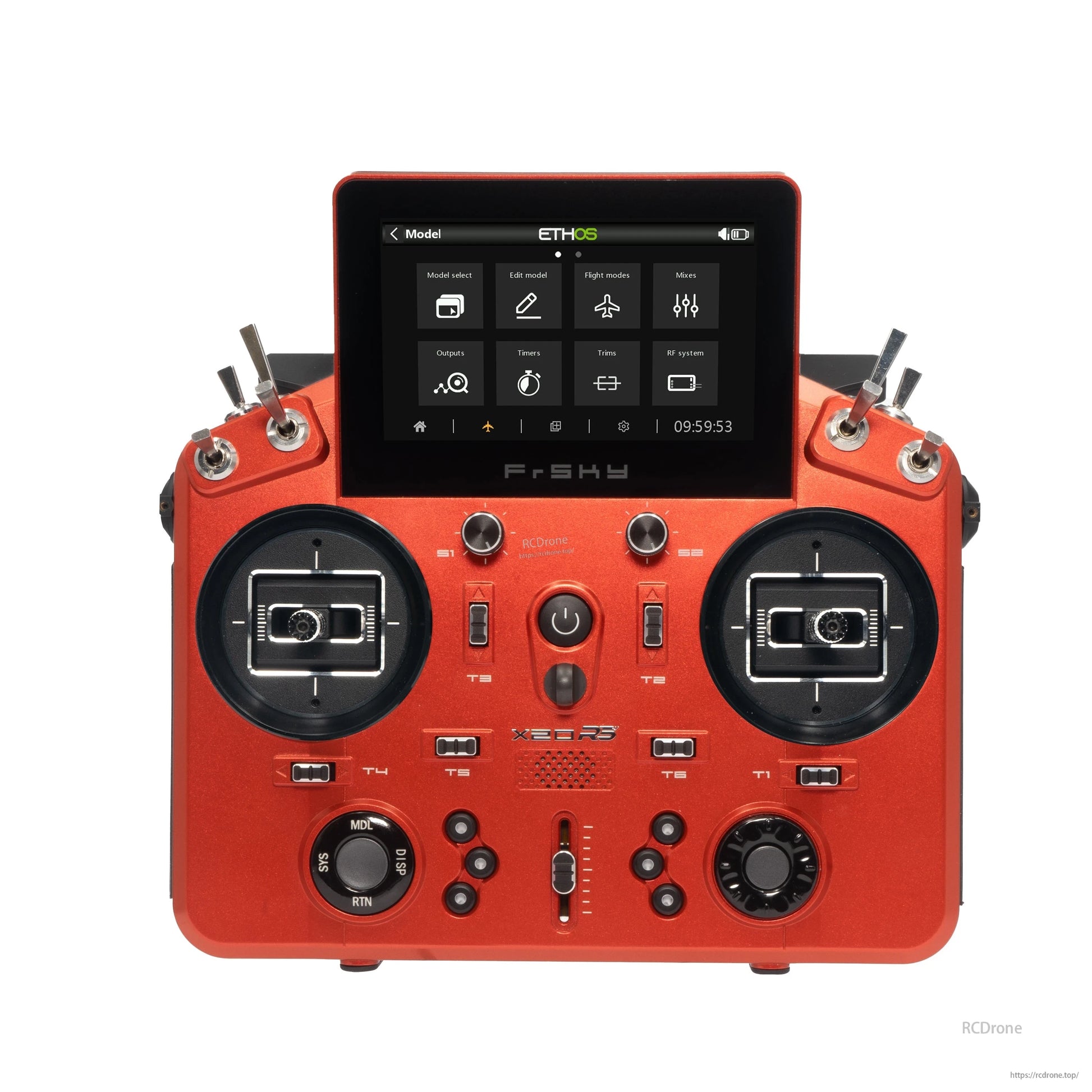

  • TANDEM X20RS transmitter front view in red with touchscreen interface and dual gimbals

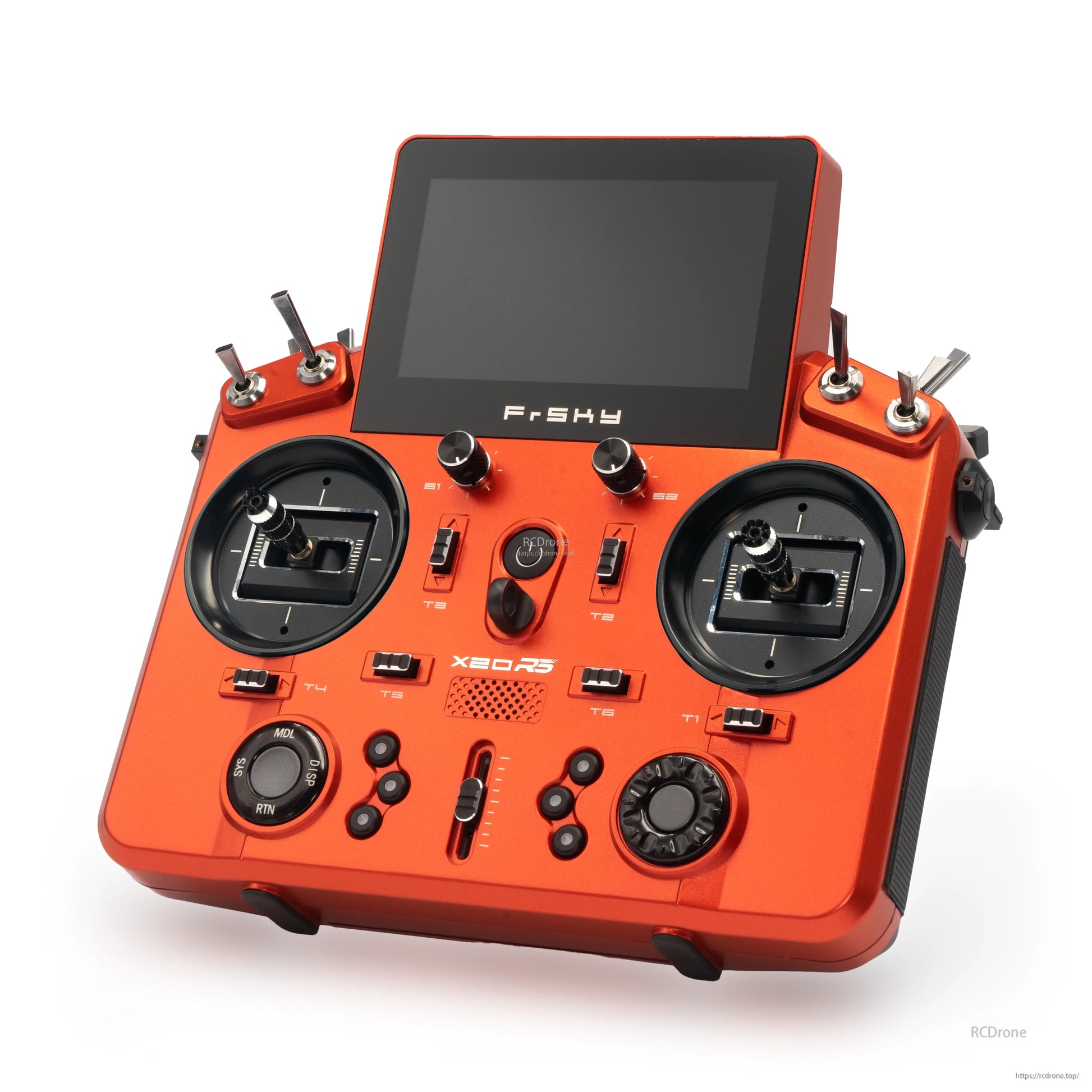

  • Red TANDEM X20RS transmitter angled view showing gimbal sticks, switches, and touchscreen

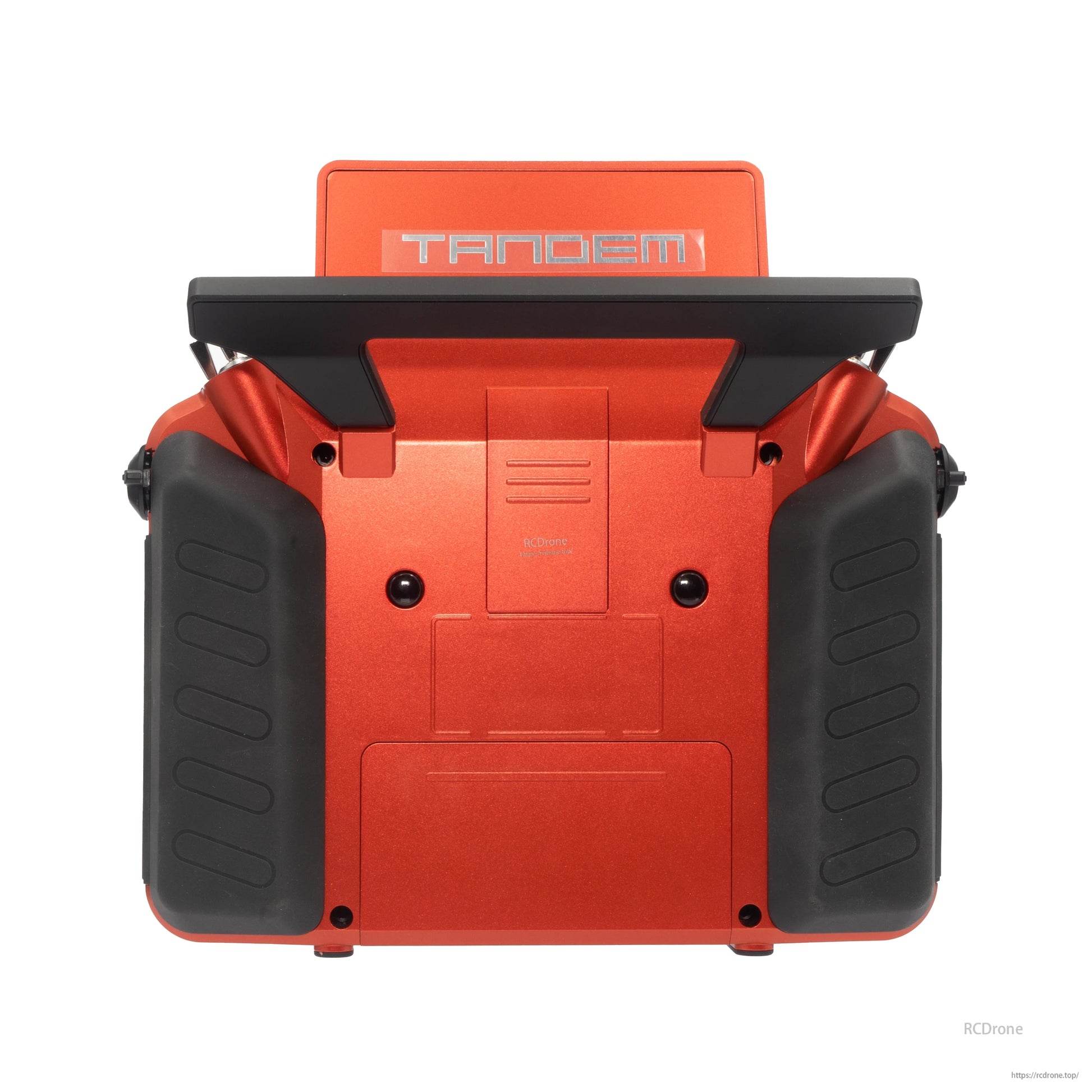

  • Red TANDEM X20RS transmitter rear view showing textured grips and back panel

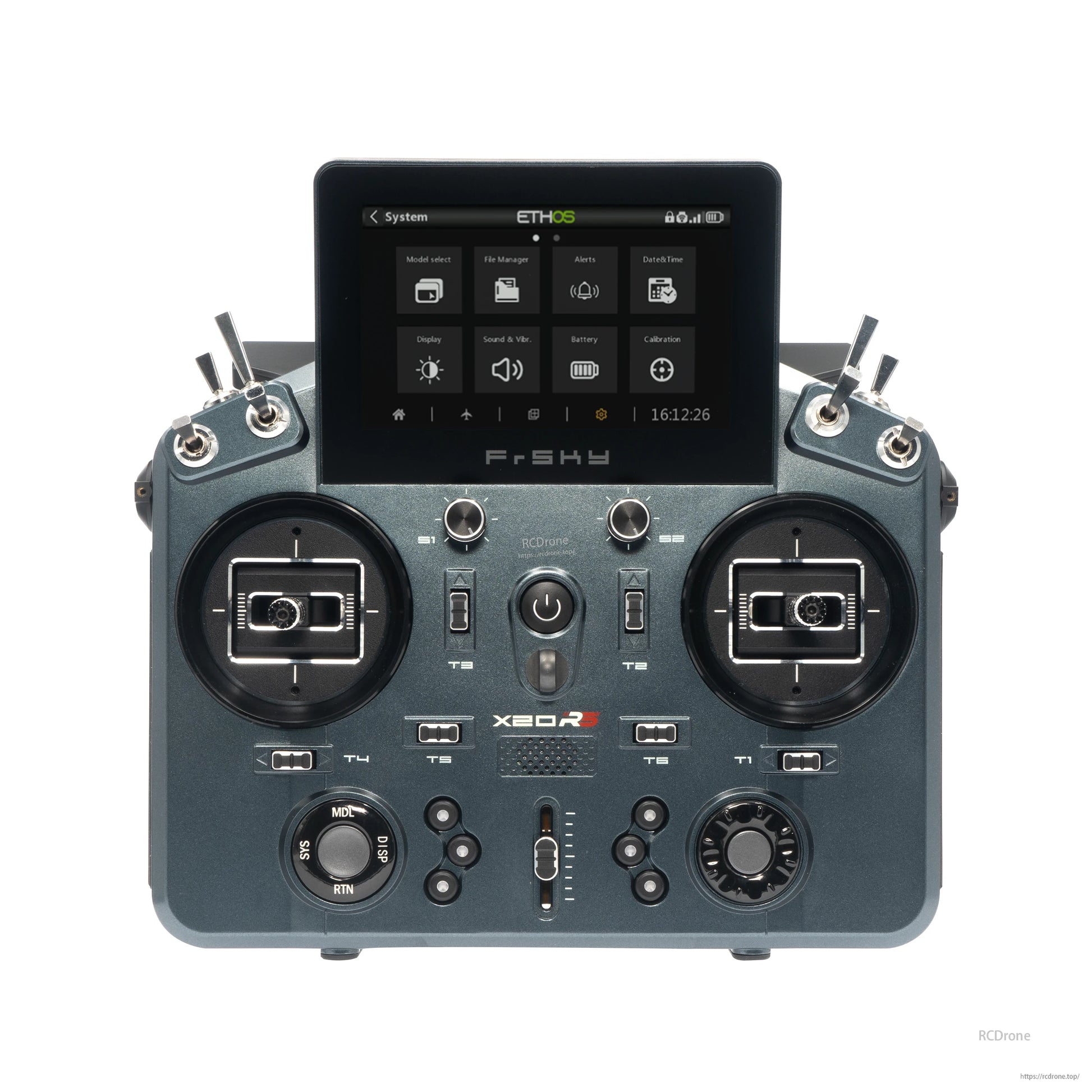

  • TANDEM X20RS transmitter front view in dark gray with touchscreen and full control layout
  • Dark gray TANDEM X20RS transmitter angled view highlighting gimbals, switches, and screen

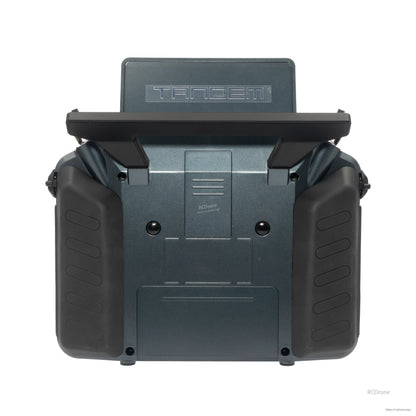

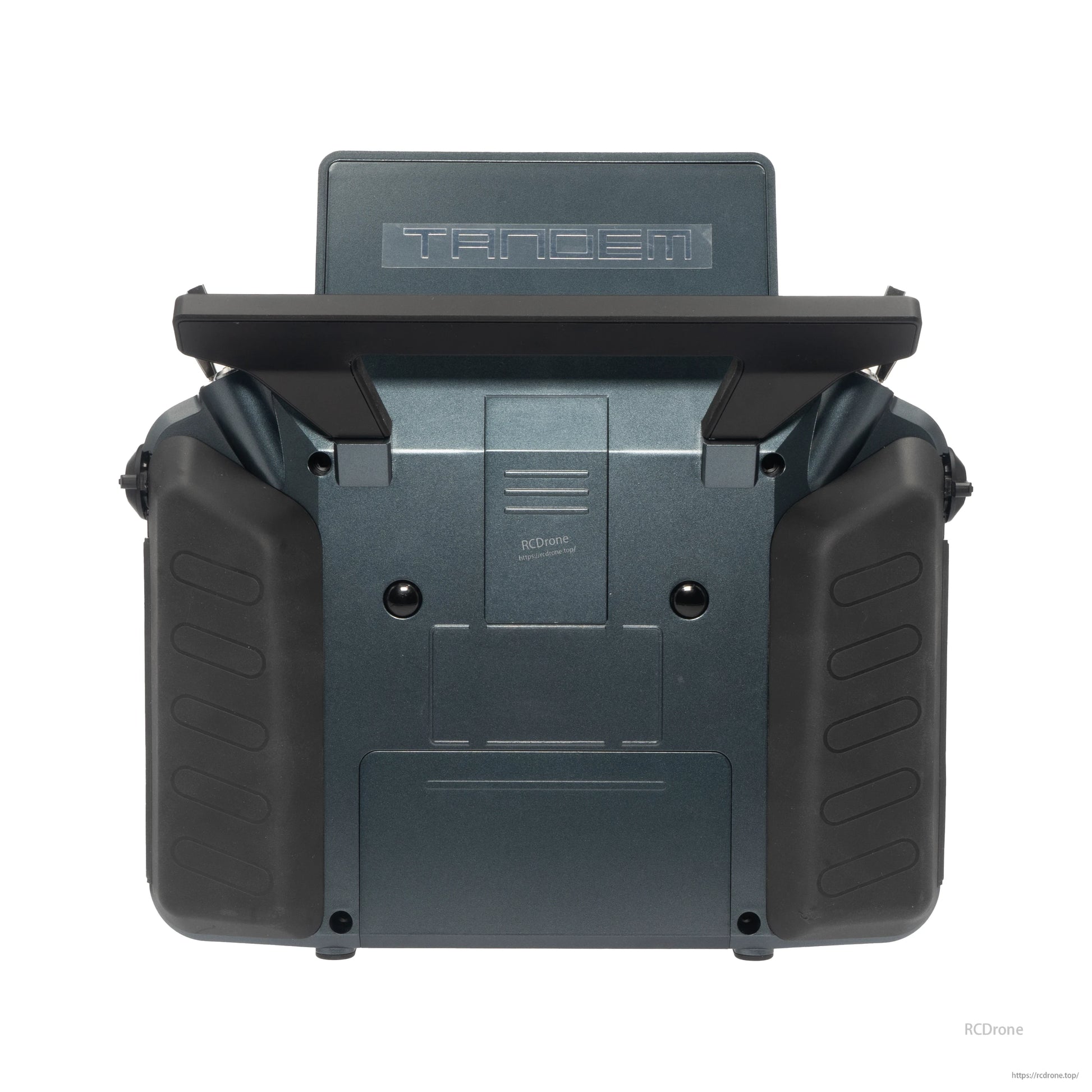

  • Dark gray TANDEM X20RS transmitter rear view with grips and rear housing details

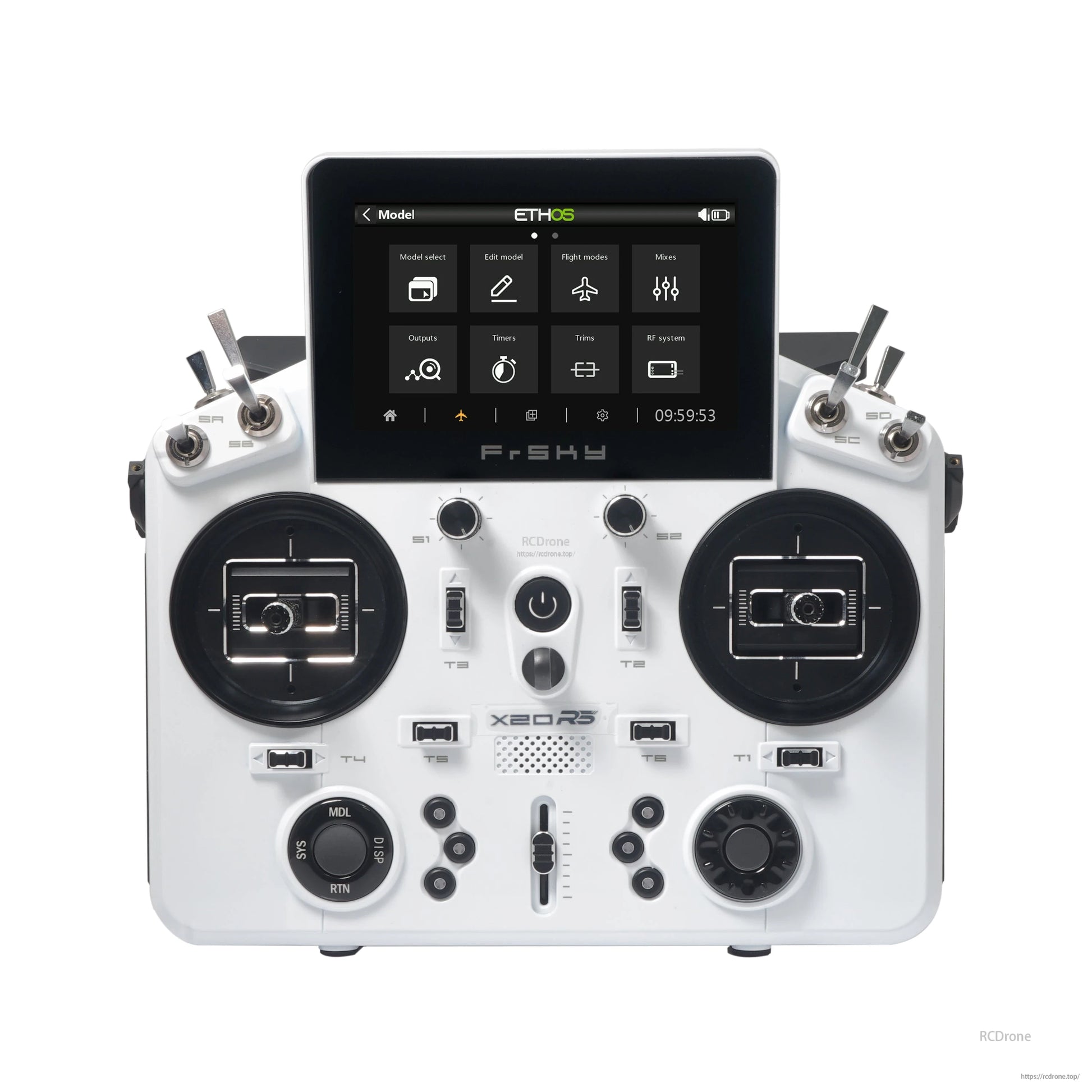

  • White TANDEM X20RS transmitter front view with touchscreen menus, dual gimbals, and switches

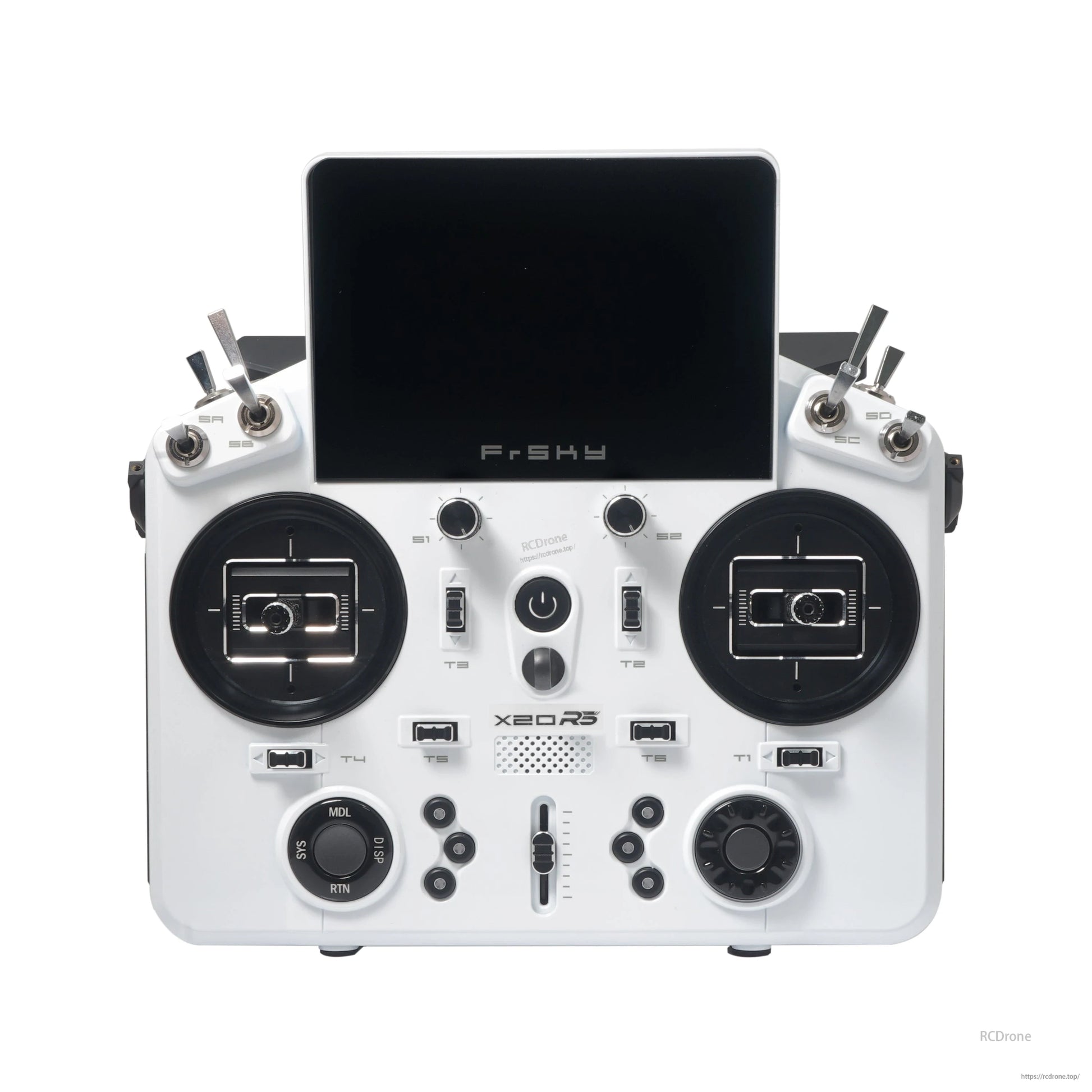

  • White TANDEM X20RS transmitter front view with screen off showing gimbals and control layout

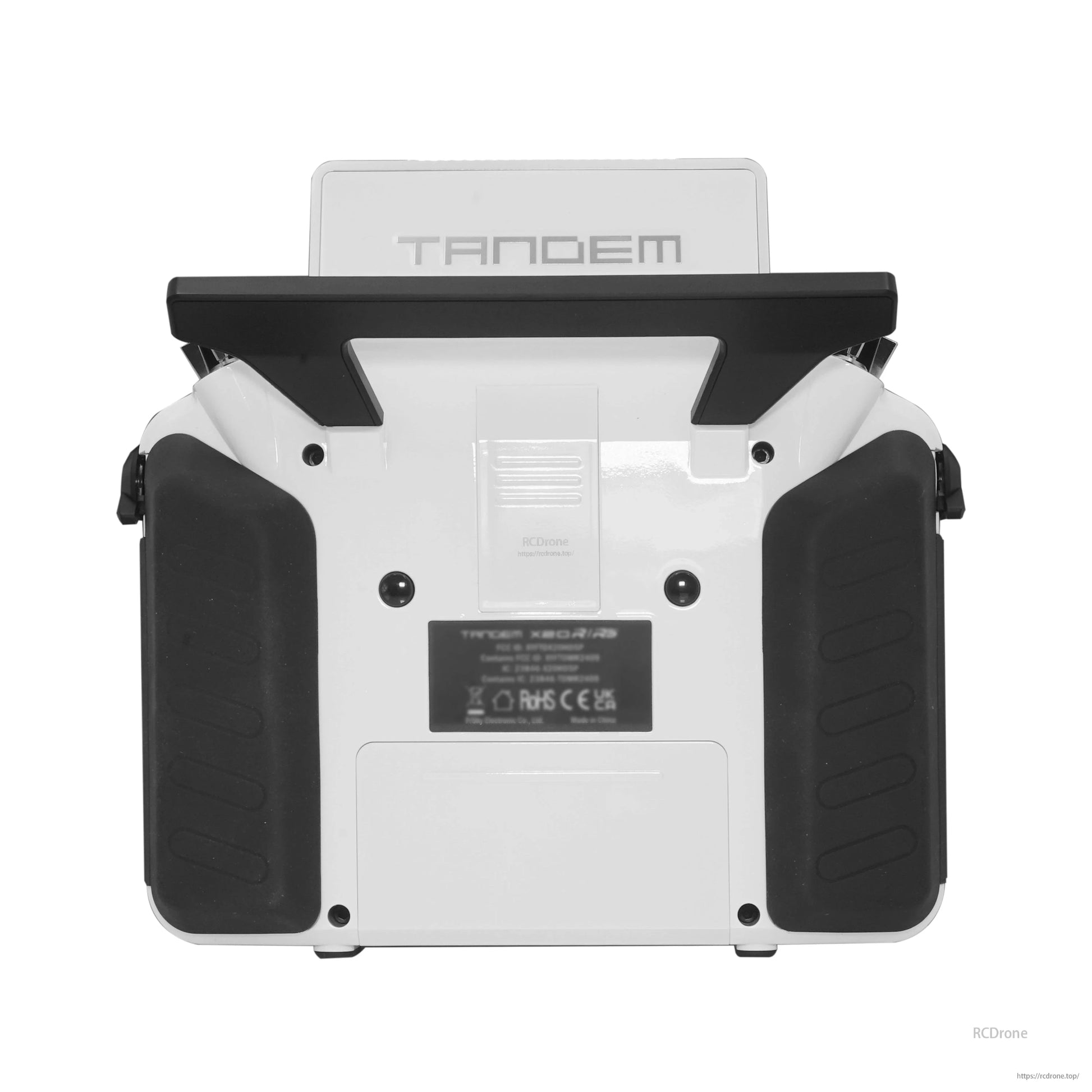

  • White TANDEM X20RS transmitter rear view showing grips, rear label area, and back panel

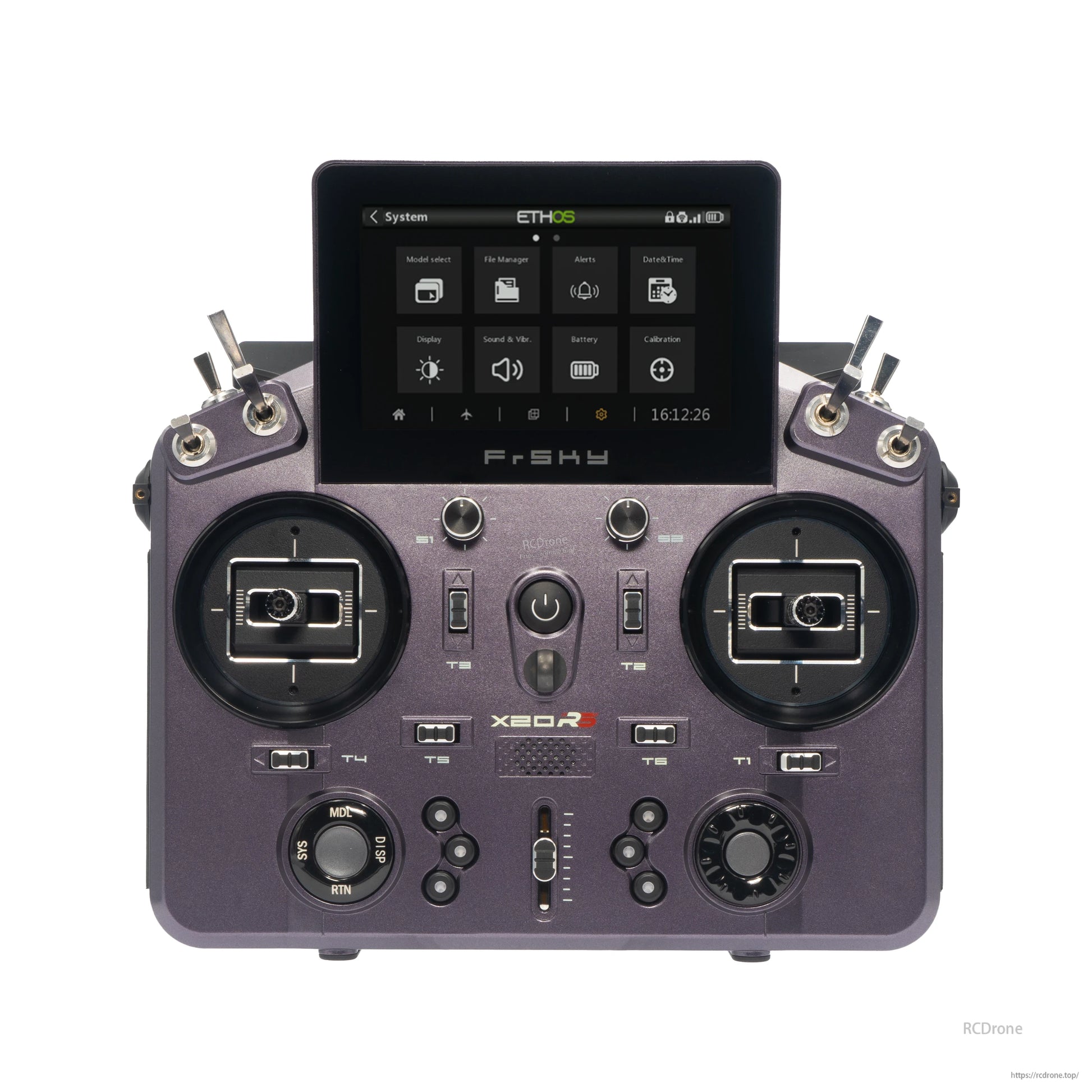

  • Purple TANDEM X20RS transmitter front view with touchscreen interface and dual gimbals

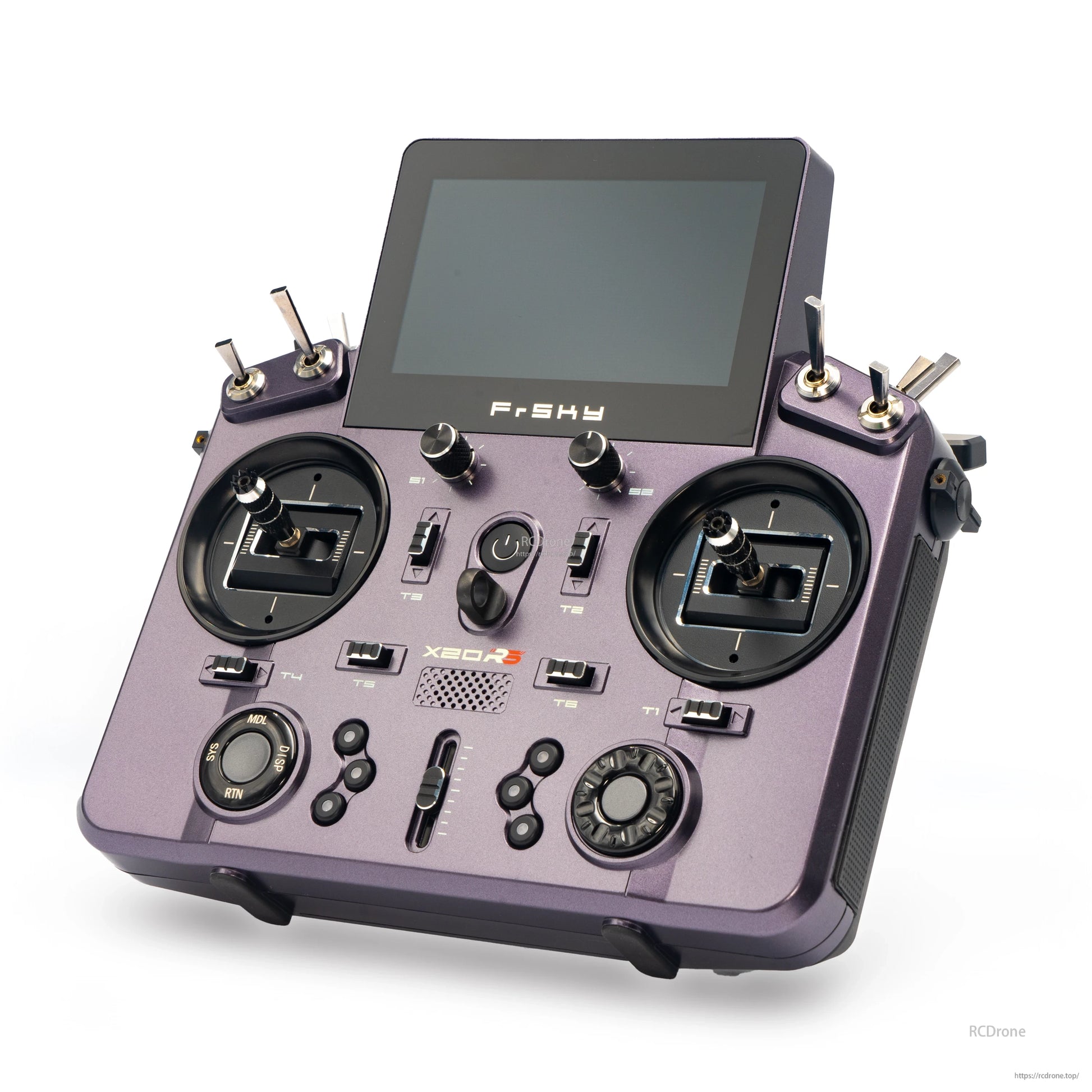

  • Purple TANDEM X20RS transmitter angled view showing gimbal sticks, switches, and touchscreen

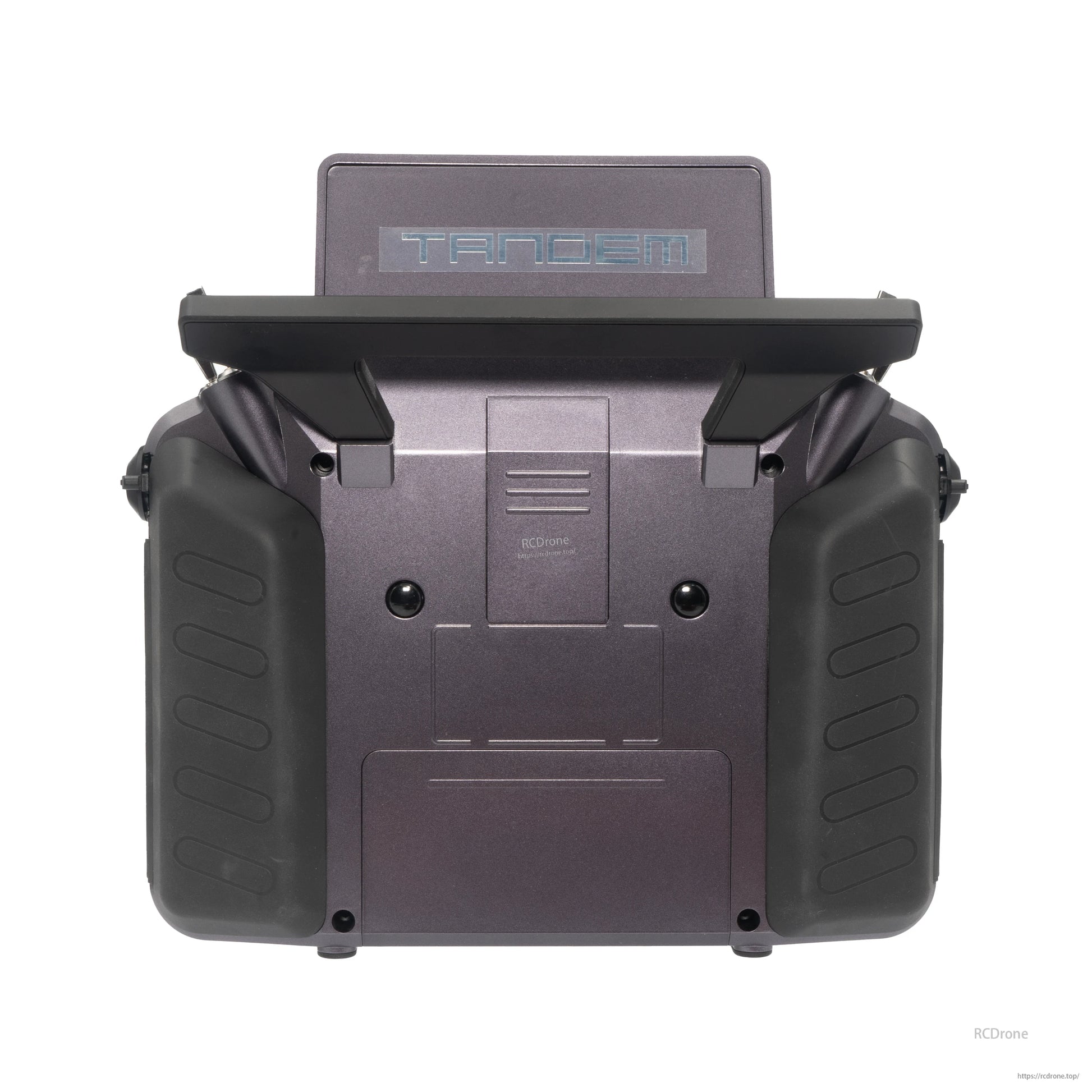

  • Purple TANDEM X20RS transmitter rear view showing textured grips and rear housing
1 17

FrSky TANDEM X20RS RC Radio Transmitter w/ MC20R 45-60° Adjustable Gimbals, TD-ISRM Pro 900M/2.4G

FrSky TANDEM X20RS RC Radio Transmitter w/ MC20R 45-60° Adjustable Gimbals, TD-ISRM Pro 900M/2.4G

FrSky

$913.60 USD
$913.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The FrSky TANDEM X20RS is an ETHOS-based RC radio transmitter featuring a built-in TD-ISRM Pro dual-band internal RF module (900M/2.4G) and MC20R CNC Hall-sensor gimbals with travel-angle adjustment for outdoor RC operation scenarios. It supports multiple RF modes/protocols, including TD, TW, ACCESS (2.4G and R9), and ACCST D16, and offers up to 24 channels.

Compared with the original X20 design, the X20R/X20RS form factor updates include a PRO-style bottom hand grip, an adjusted Lite-type external module bay for easier fitment of different module shapes, two extra trims, and adjustable-center side slider levers. Primary inputs (trim caps, center-slider caps, and knobs) use CNC metal caps.

For service and setup support, contact https://rcdrone.top/ or email support@rcdrone.top.

Key Features

  • Built-in TD-ISRM Pro dual-band internal RF module (900M/2.4G) with operating combinations including:
    – 900M/2.4G Dual Band TD Mode
    – Dual 2.4G TW Mode
    – ACCESS 2.4G & ACCESS R9 Modes
    – 2.4G ACCST D16 Mode
  • Dual 2.4G TW mode supports simultaneous operation under TW and ACCESS R9 modes with the same module; TW and ACCESS R9 receivers can be connected via SBUS IN/OUT for redundant backup
  • Upgraded robust antenna handle; includes two external antenna connectors for 2.4G and 900M antennas when working under LoRa modes
  • 800 x 480 outdoor high-brightness touchscreen
  • 2 angle-adjustable slider levers
  • 2 knobs; 4 standard trims plus 2 extra trims
  • 6 quick-mode custom buttons (front) and 2 momentary buttons (rear)
  • All knobs, trims, and central linear-slider with all-CNC metal caps
  • Built-in 8GB flash drive storage
  • Text to Speech (TTS) function (ENG & CHN language only)
  • Digital audio power amplifier
  • Built-in 6-axis gyroscope sensor
  • High-speed PARA wireless training system
  • Data transmission and recharge system via USB Type-C interface
  • Haptic vibration alerts and voice speech outputs
  • Dual-side haptic gimbal feedback (left/right vibration can be configured independently)
  • MC20R all-CNC high-precision Hall-sensor gimbals with 10 ball bearings, plus:
    – Easy travel adjustment to any desired position from 45° to 60°
    – 8° rotatable panel
    – Travel position adjustment via a 1.5mm hexagon screwdriver through the gimbal-panel adjustment hole (no radio casing disassembly required)

Specifications

Dimensions (L*W*H) 205*213*90mm
Weight 892g (battery excl.) / 1024g (battery incl.)
Operating system ETHOS
Internal RF module TD-ISRM Pro
Number of channels Up to 24
Built-in flash storage 8GB
Operating voltage range 6.5 ~ 8.4V (2S Li-battery)
Operating temperature -10°C to 60°C (14°F to 140°F)
Operating current 600mA @ 7.4V (typ.)
Charging current <=1A ±200mA
Recharge system For 2S Li-ion battery (USB Type-C interface)
USB adaptor voltage 5V + 0.2V
USB adaptor current >2.0A
Backlit touch LCD resolution 800*480
Receiver compatibility ACCST D16 & ACCESS & TD & TW receivers
External module bay Lite Type External Module Bay

Applications

  • RC pilots needing dual-band 900M/2.4G control and telemetry with compatible FrSky receivers (ACCST D16, ACCESS, TD, TW)
  • Outdoor operation scenarios requiring adjustable travel-angle gimbals and configurable haptic/voice alerts

Details

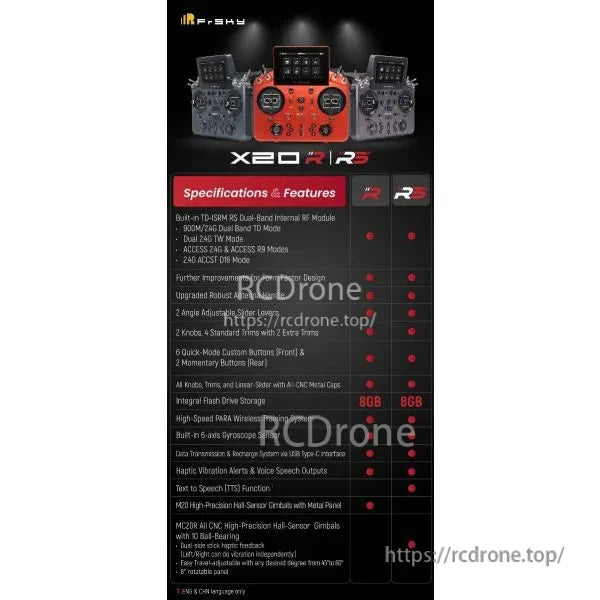

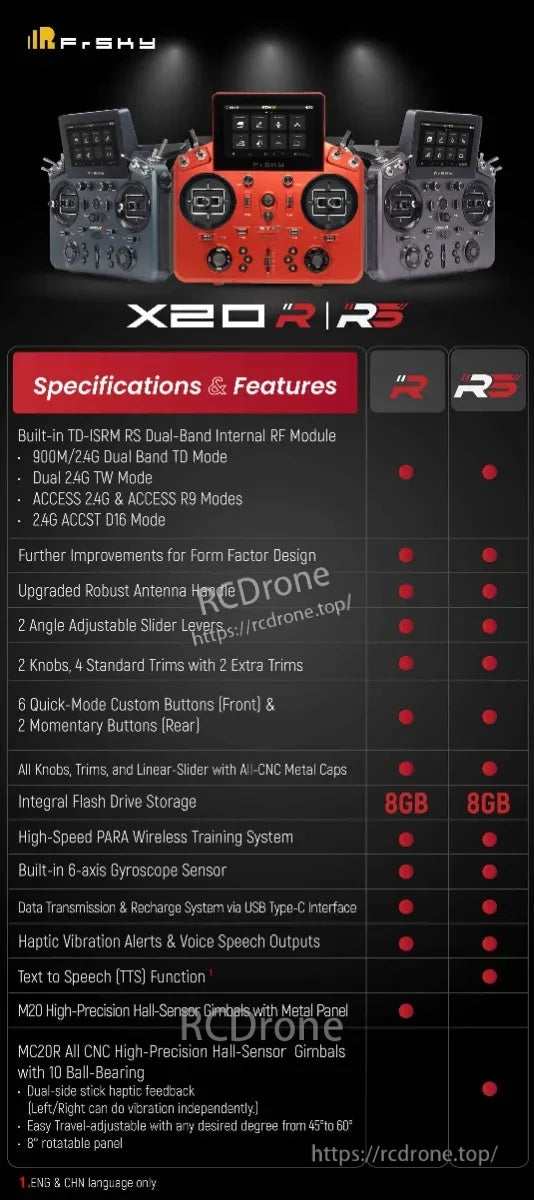

FrSky TANDEM X20RS RC radio transmitter features graphic with MC20R adjustable gimbals and TD-ISRM Pro 900M/2.4G

ETHOS-based TANDEM X20RS highlights include the TD-ISRM Pro dual-band 900M/2.4G module and MC20R CNC Hall-sensor gimbals with 45–60° travel adjustment.
