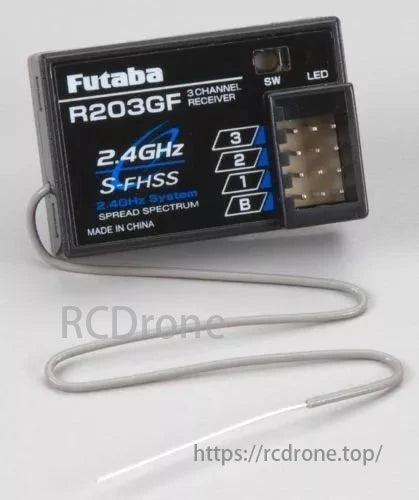

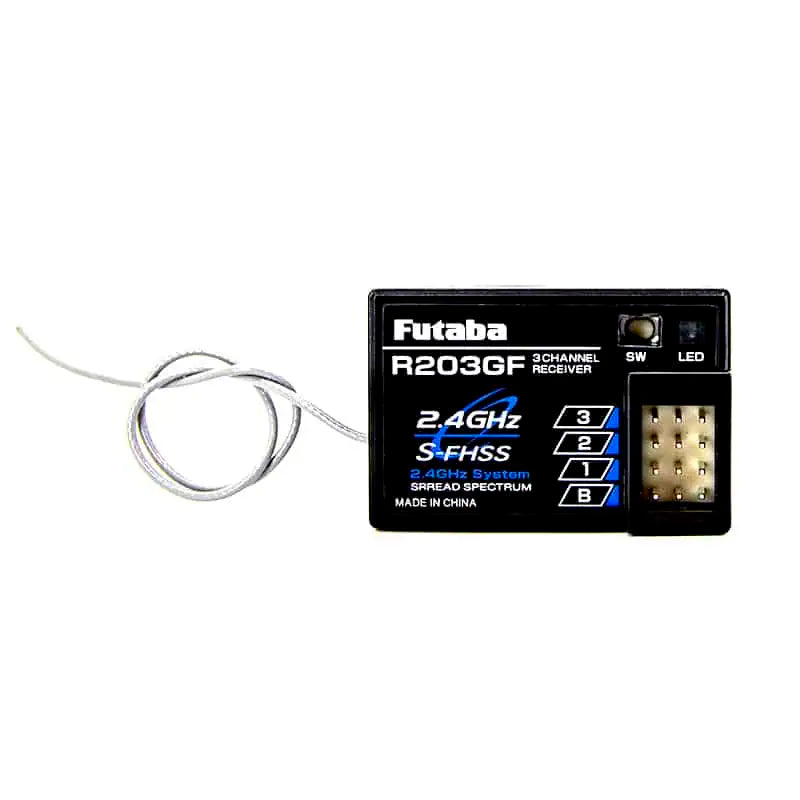

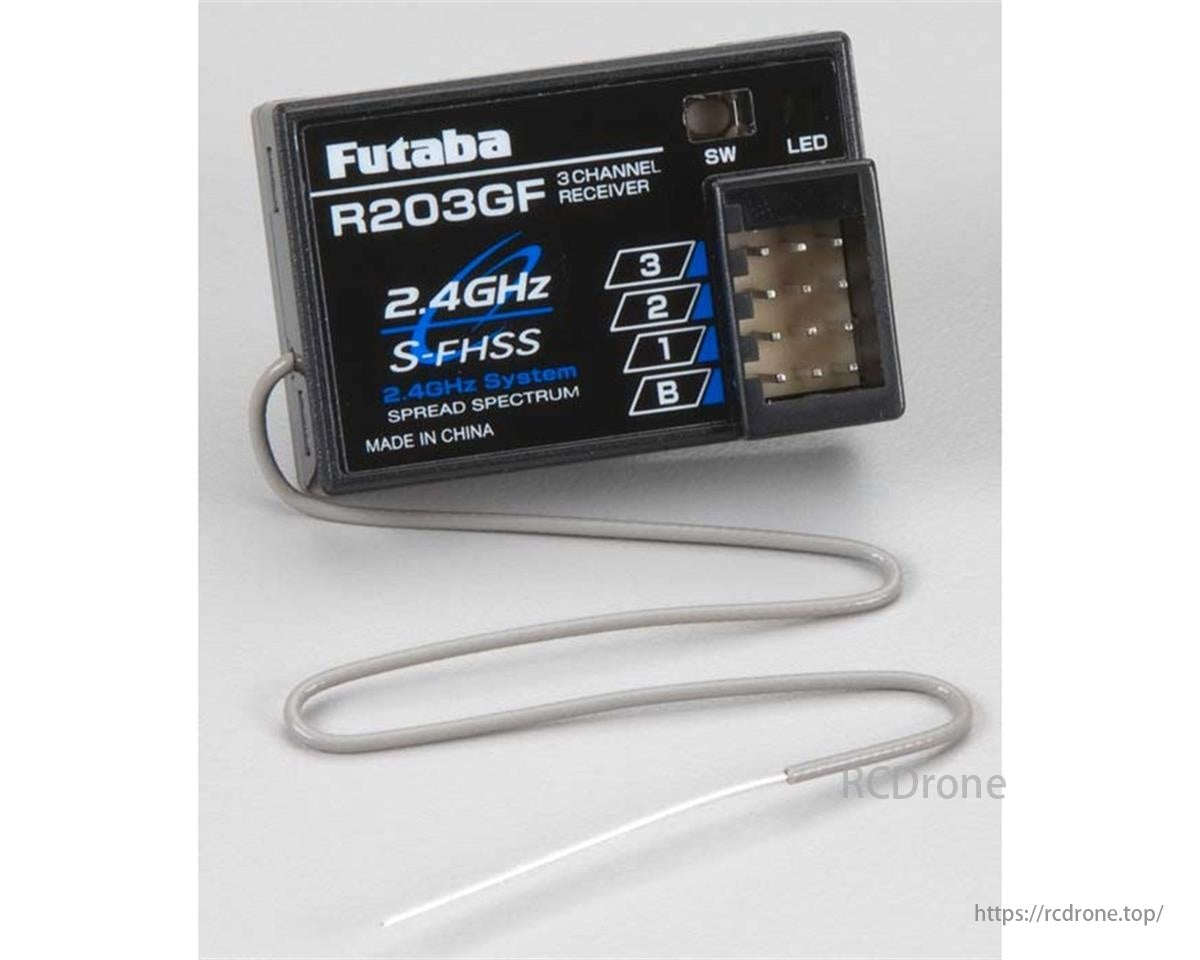

Futaba R203GF 3-Channel 2.4GHz S-FHSS Surface Receiver

Overview

The Futaba R203GF is a compact and lightweight 3-channel receiver designed for electric RC car models. Utilizing Futaba’s S-FHSS technology, it ensures reliable and interference-free 2.4GHz signal transmission for optimal performance.

Key Features

• 3 Channels: Controls steering, throttle, and one additional function.
• S-FHSS/FHSS Auto Detection: Automatically detects and adapts to S-FHSS or FHSS protocols.
• Pre-Vision™ Circuitry: Scans and corrects incoming data to prevent errors.
• Easy-Link™: Enables quick and secure pairing with compatible transmitters.
• Dual Mode Operation:
  • Normal Mode: 13.63ms frame rate, compatible with all servos.
  • High-Speed Mode: 6.8ms frame rate, supports digital servos and brushless ESCs.
• High Voltage Compatible: Operates on DC 4.8V-7.4V, suitable for high-voltage setups.
• Compact Size: Measures 39mm x 26mm x 10mm and weighs 8g, ideal for tight spaces in RC vehicles.
• Durable Design: Built to withstand the demands of surface modeling.

Specifications

• Model Number: 01102237-3
• Frequency: 2.4GHz
• Modulation: S-FHSS/FHSS (Auto Detection)
• Channels: 3
• Dimensions: 39mm x 26mm x 10mm (1.54 in x 1.02 in x 0.39 in)
• Weight: 8g (0.28 oz)
• Operating Voltage: DC 4.8V – 7.4V
• Connector: J (STND)
• Ports: 4
• PWM Outputs: 3
• Features: Pre-Vision™, Easy-Link™, S-FHSS, High-Speed Mode

Usage Notes:

• Compatibility: Only compatible with Futaba FHSS and S-FHSS transmitters. Not compatible with FASST, FASSTest, or T-FHSS systems.
• Servo Requirements: Use normal servos in normal mode and digital servos in high-speed mode to avoid performance issues.
