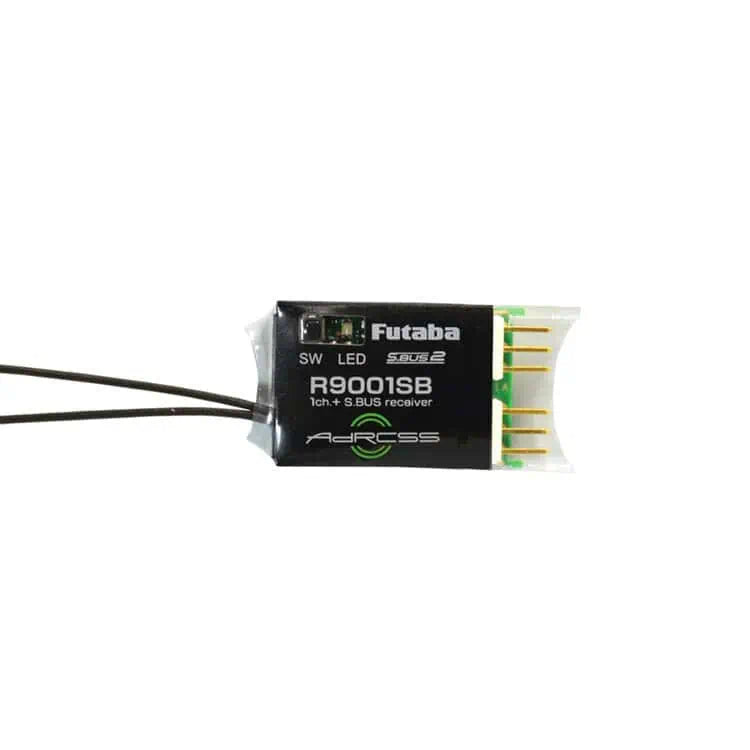

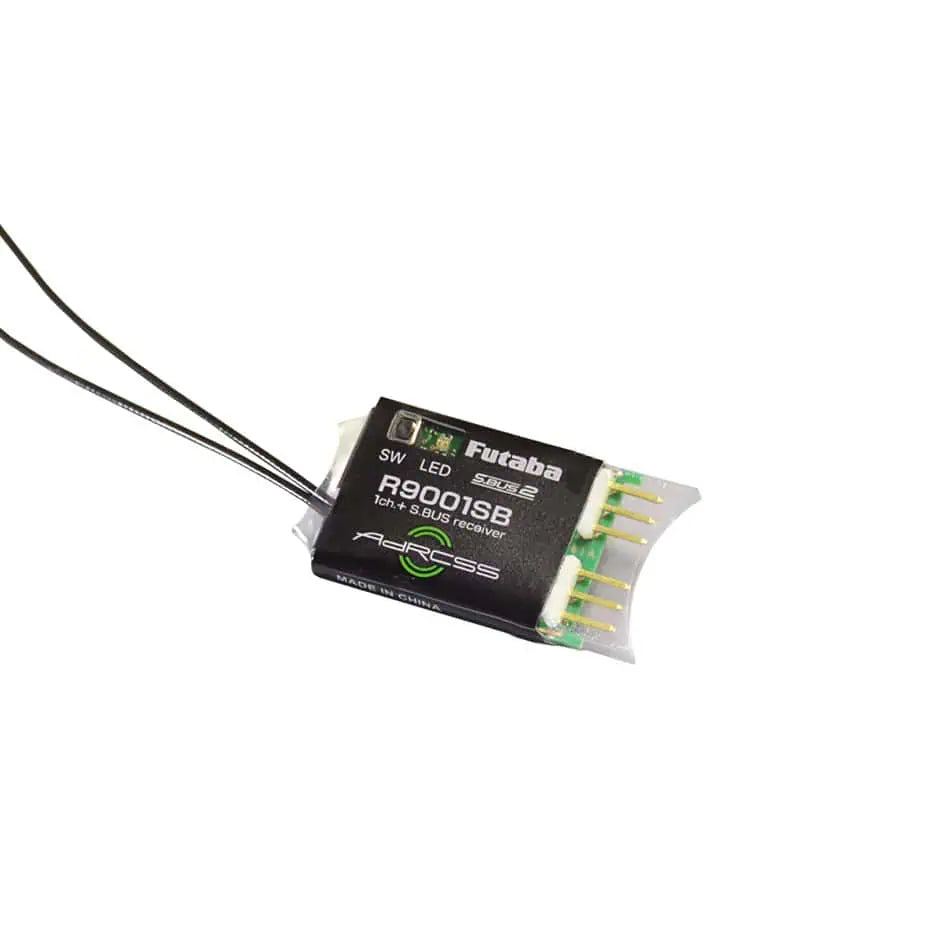

Futaba R9001SB 1Ch 900MHz System S.Bus port Air Receiver

Overview

The Futaba R9001SB is a compact and lightweight 1-channel air receiver designed for FPV racing and compatible with the TM-18 RF Module. It features dual antenna diversity for reliable signal reception and supports S.Bus communication for streamlined control.

Key Features

• 1 Channel: Simplifies control for essential functions.
• 900MHz Frequency: Ensures long-range and stable communication.
• S.Bus Port: Enables advanced servo control with reduced wiring.
• Dual Antenna Diversity: Enhances signal reliability and minimizes interference.
• Compact & Lightweight: Measures 21.1mm x 41.8mm x 5.3mm and weighs only 4.2g.
• Power Requirements: Operates on DC 4.8V-7.4V with a battery fail-safe voltage of 3.8V.

Specifications

• Frequency: 900MHz
• Channels: 1
• Dimensions: 21.1mm x 41.8mm x 5.3mm (0.83 in x 1.65 in x 0.21 in)
• Weight: 4.2g (0.15 oz)
• Operating Voltage: DC 4.8V-7.4V
• Compatible Systems: TM-18 RF Module
• Features: S.Bus, S-FHSS, Dual Antenna Diversity

Usage Notes:

• Compatibility: Designed exclusively for use with the Futaba TM-18 RF Module.
• Applications: Ideal for FPV racing and other high-performance aerial models.
