Description

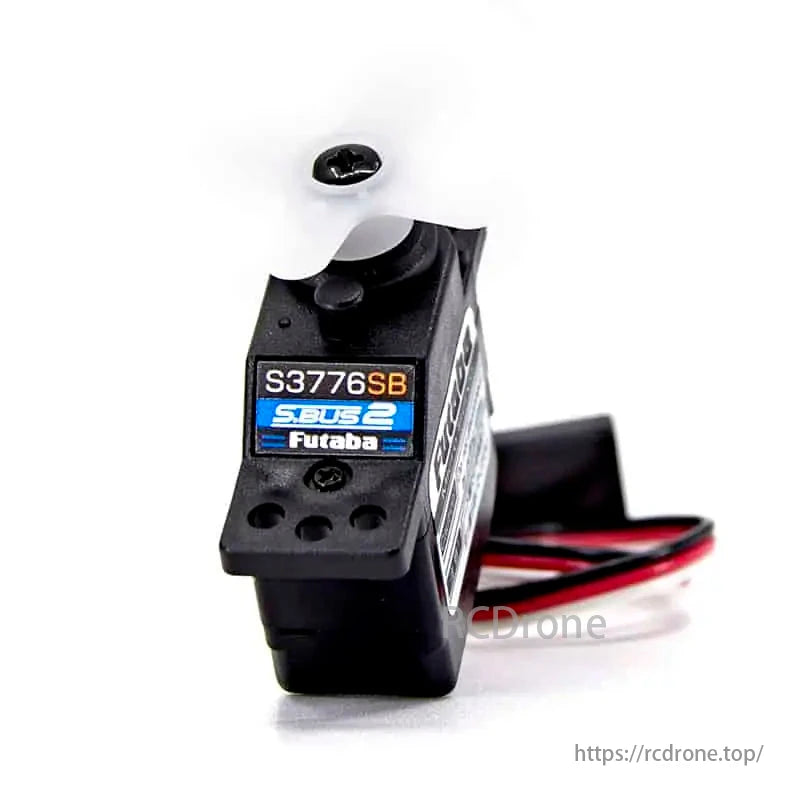

S3776SB– S.Bus Micro Air Servo

For Small Electric Powered Models (01102270-3)

SPEED:
0.13 sec/60°at 4.8V
0.11 sec/60° at 6.0V

TORQUE:
2.0 kgf/cm at 4.8V
27.8 ozf/in at 4.8V
2.4 kgf/cm at 6.0V
33.3 ozf/in at 6.0V

SIZE:
21.8 mm x 11 mm x 21.9 mm
0.86 in x 0.43 in x 0.86 in

WEIGHT:
10 g
0.35 oz

RATED VOLTAGE:
DC 4.8V-5.2V

OPERATING VOLTAGE:
DC 4.0V-6.0V

The S3776SB servo is a micro servo for small electronic powered models. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require high torque.
• Using supply voltage higher than 4.8V~5.2V or applying high loads to the servo will shorten the life.
• Always use the servo horn specifically designed for this micro servo. Futaba does not use conventional servo horns.
• Do not expose the servo to dust and water.
