GEPRC 1S 530mAh Batteries PH2.0 Plug Suitable For Tinygo Series Drone For RC FPV Quadcopter Freestyle Drone Accessories Parts Modular Battery

GEPRC 1S 530mAh Batteries PH2.0 Plug Suitable For Tinygo Series Drone For RC FPV Quadcopter Freestyle Drone Accessories Parts Modular Battery

GEPRC

Regular price $15.16 USD
Regular price $30.32 USD Sale price $15.16 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

135 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC 1S 530mAh Batteries PH2.0 Plug  SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Battery

Size: 1 inch

Remote Control Peripherals/Devices: Battery

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Batteries - LiPo

Quantity: 2

Origin: Mainland China

Model Number: GEPRC 1S 530mAh Batteries

Material: Composite Material

Four-wheel Drive Attributes: Battery

For Vehicle Type: Helicopters

Certification: FCC

Certification: WEEE

Certification: RoHS

Certification: CE

Brand Name: GEPRC

Introduction:

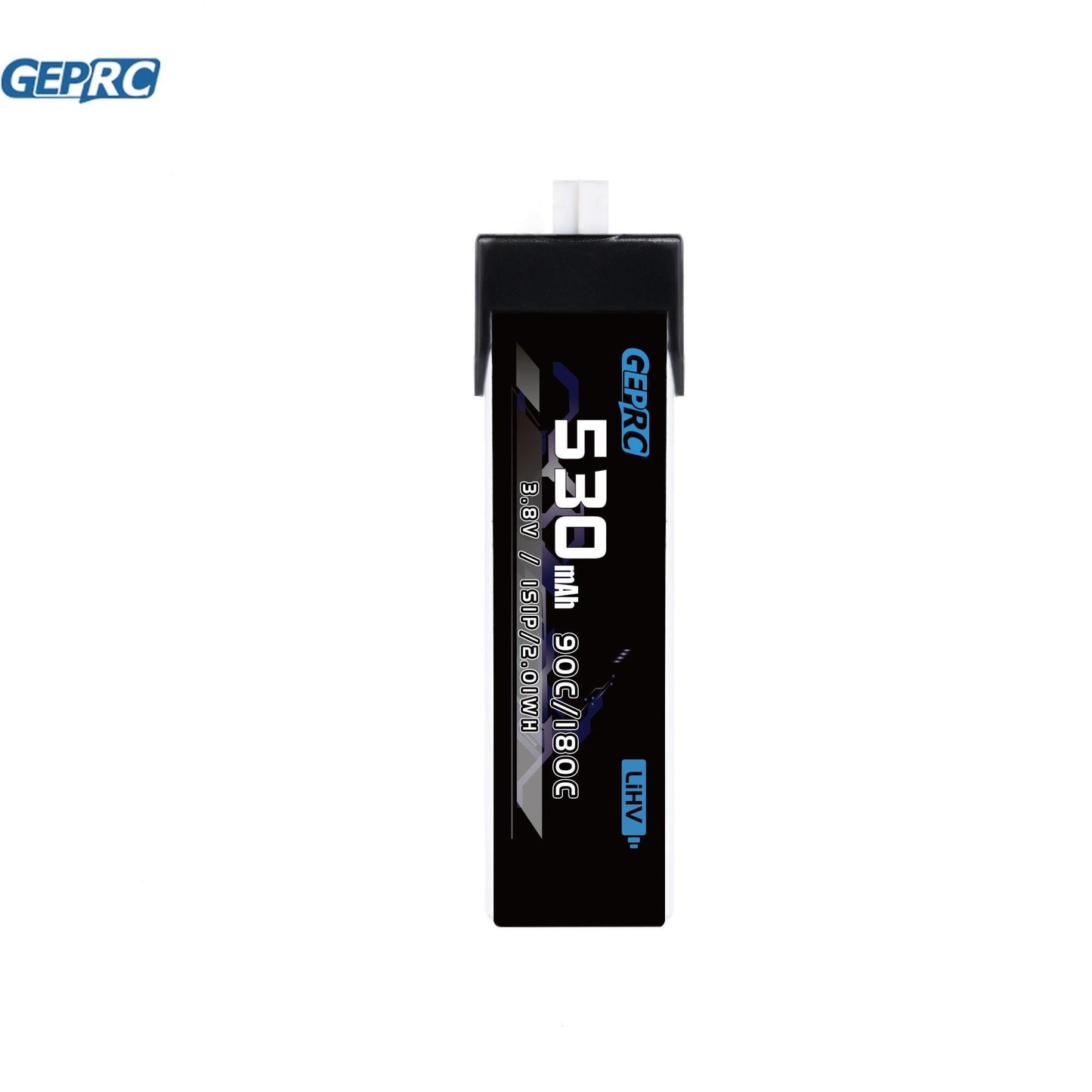

GEPRC 1S 530mah 3.8V LiHV High-voltage lithium battery is specially designed for Micro Indoor FPV, with small volume and high voltage characteristics. It plays a key role in reducing weight and increasing flight time of Micro Quadcopters. Using High-performance & Low resistance cell, it can discharge at 90C continuously, providing sufficient power for flight. GEPRC LiHV 1S battery's USB charging board is used for charging, It's extreme convenient and High-efficiency!

The full charge voltage of the battery is 4.35V, when the flight voltage drops to 3.6V, the battery needs to be charged in time!



Specifications:

  • Brand: GEPRC

  • Capacity: 530mAh

  • Voltage: 3.8V

  • Discharge rate: 90C

  • Plug: PH2.0

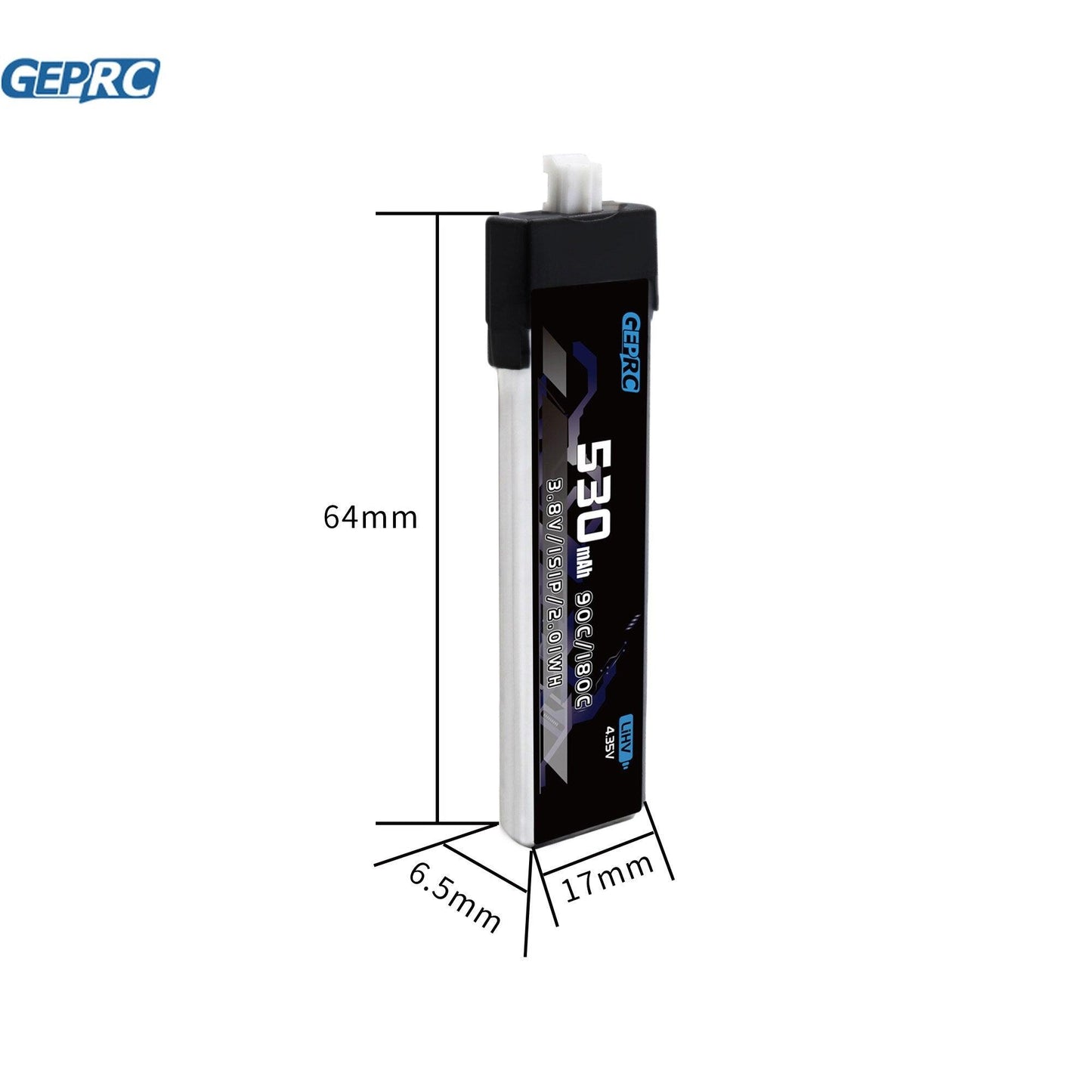

  • Size: 64mm * 17mm * 6.5mm

  • Weight: 17.4g



Warning:

  1. Please read the battery parameters and instructions in detail before use.

  2. Please don't charge the battery unattended.

  3. Do not overcharge (select the correct battery type before charging, the full charge voltage of single cell of LiPo battery is not more than 4.2V, and the full charge voltage of single cell of LiHV battery is not more than 4.35v).

  4. Do not over-discharge (the single-cell discharge voltage of LIPO and LiHV batteries cannot be lower than 3.5V, over-discharging will damage the battery and cause swelling).

  5. Don't place the battery close to open flames or fire sources.

  6. Keep the battery away from flammable materials when charging

  7. Please carefully check the battery voltage and capacity before charging and use

  8. It is forbidden to reverse the positive and negative poles of the battery (to avoid short circuit)

  9. Do not directly touch the leaking battery. If you accidentally touch the electrolyte, please wash it with clean water immediately. If it is serious, please consult a doctor immediately.

  10. Please dispose of the ruptured battery in time and do not reuse it

  11. If you need to store the battery for a long time, please maintain the battery voltage at a single-cell 3.80V-3.85V. Please ensure that a charge-discharge activation is performed within 3 months to maintain the stability of the battery.

  12. It is forbidden to disassemble and reassemble the battery or change the wiring (it is easy to cause short circuit and burning).

  13. If a collision occurs during use, please remove the battery. Check carefully whether the battery and connector are normal.

  14. Please charge at a temperature of 0-45℃ (make sure the charging environment is cool and ventilated, the battery will generate a certain amount of heat after use and during the charging process, and the battery that has just been used is allowed to stand and wait for the temperature to be below 45℃ before charging).

530MAh Stable performance Fine craftsmanship Green color environmental protection 8 8 5 1

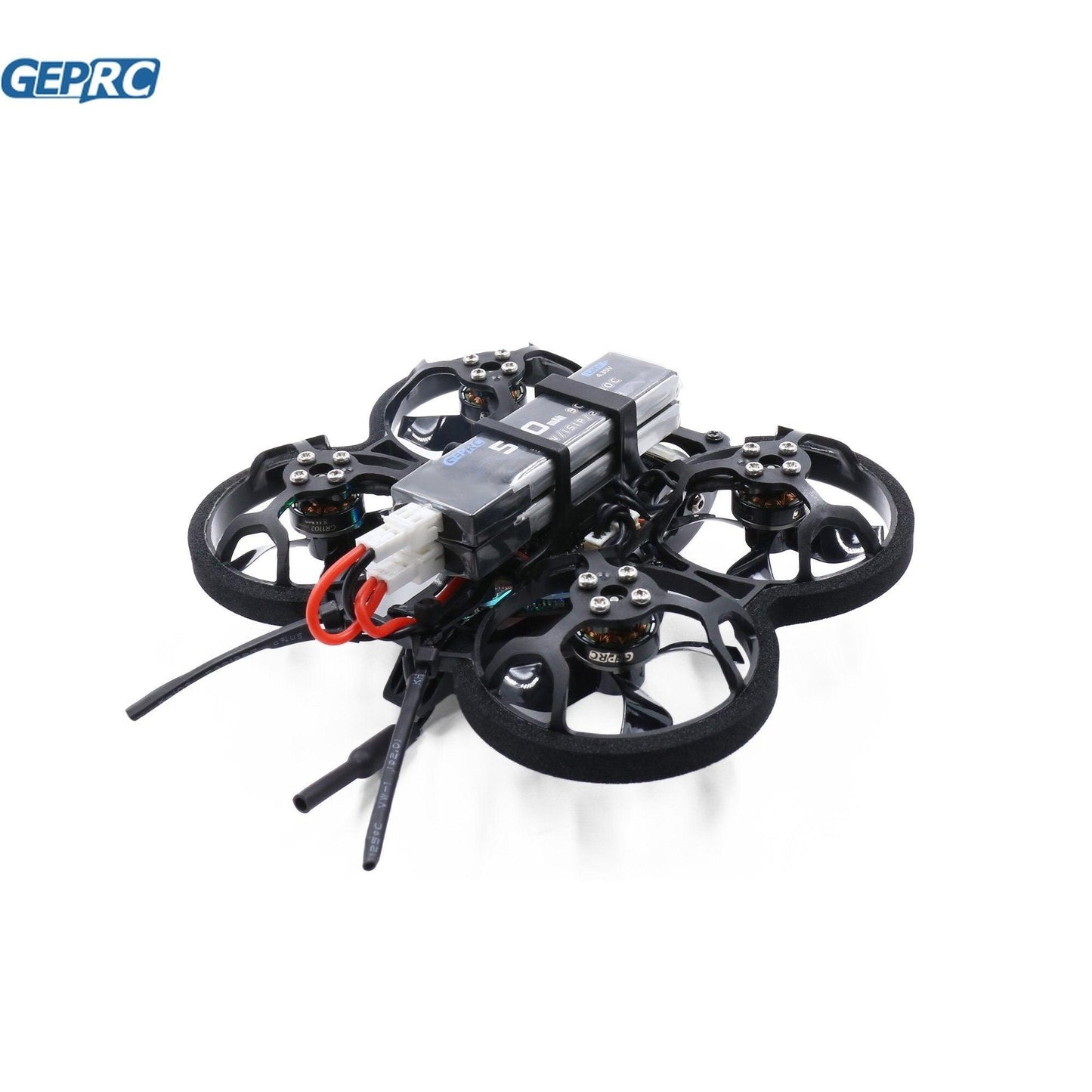

This battery pack features a 530mAh capacity, providing stable performance and fine craftsmanship. It comes with an environmentally friendly green color design and is suitable for use in Tinygo series drones, RC FPV quadcopters, and freestyle drones.

if it is serious, please consult a doctor GEPRC 1S 530mah 3.8V LiHV High-volt GEPRC 1S 530mAh Batterie GEPRC wwWgeprc.com Made In China 2(€ PCS GEPRO 530 goc/a8oc B.8v/
