GEPRC Cinelog35 V2 Analog FPV Drone SPECIFICATIONS
Warranty: 3 month
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 2K QHD,Other
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box,Camera,Operating Instructions
Origin: Mainland China
Operator Skill Level: Beginner,Intermediate,Expert
Model Number: Cinelog35 V2 Analog
Material: Carbon Fiber,Plastic,Metal
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5-8 minutes
Features: App-Controlled,FPV Capable,Other
Dimensions: 3inch
Controller Mode: MODE1,MODE2
Controller Battery: Not Include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount,Other
Brand Name: GEPRC
Aerial Photography: No
Summary
Gathering the experience and evolution of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.
CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.
The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading.
Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.
This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user's requirements for flying and filming various scenes indoors and outdoors. The user's satisfied voice is the motivation for us to move forward.
Changelog
May 8, 2023: CineLog35 V2 motor changed from SPEEDX2 2105.5-2150KV(6S) to SPEEDX2 2105.5-2650KV(6S).
CLI Dump for CineLog35 V2: https://geprc.com/downloads/cinelog35-v2/
Feature
-
New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
-
Adopts the GEP F722-45A AIO V2 high performance flight controller.
-
Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading
-
For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
-
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
-
Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
-
Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
-
Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.
Specifications
-
Model: Cinelog35 V2 Analog
-
Frame: GEP-CL35 V2
-

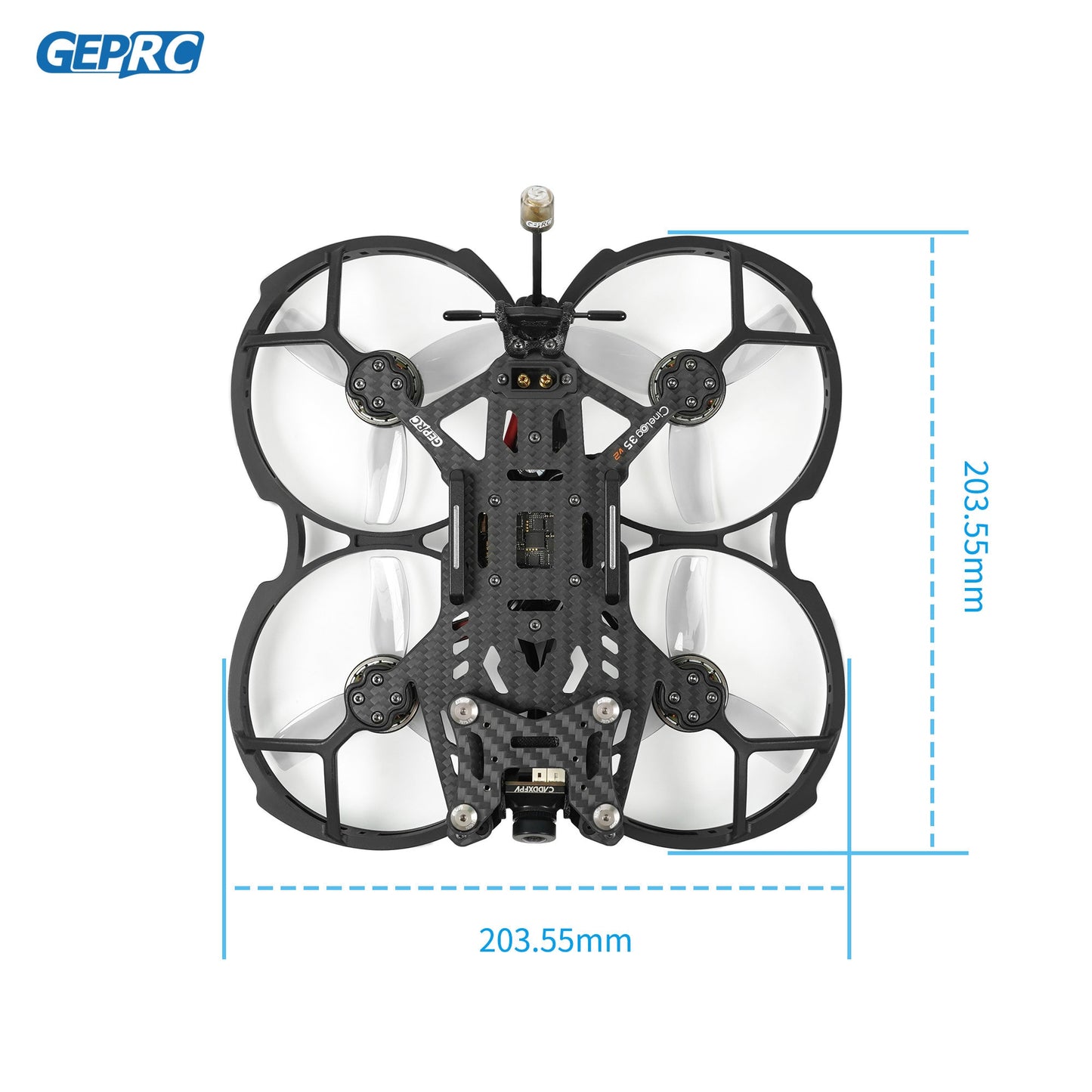

Wheelbase: 142mm
-
Gimbal Plate: 2.0mm
-
Top Plate: 3.5mm
-
Bottom Plate: 1.5mm
-
FC system:GEP-F722-45A AIO V2
-
MCU: STM32F722RET6
-
Gyro: ICM 42688-P
-
OSD: Betaflight OSD w/AT7456E chip
-
ESC: 8Bit 45A
-
VTX: GEPRC RAD 1W(UFL)
-
Camera: Caddx Ratel2
-
Antenna:GEPRC Peano 5.8 RHCP UFL
-
Motor: SPEEDX2 2105.5 2650KV (6S)
-
Propeller: HQProp D-T90MM
-

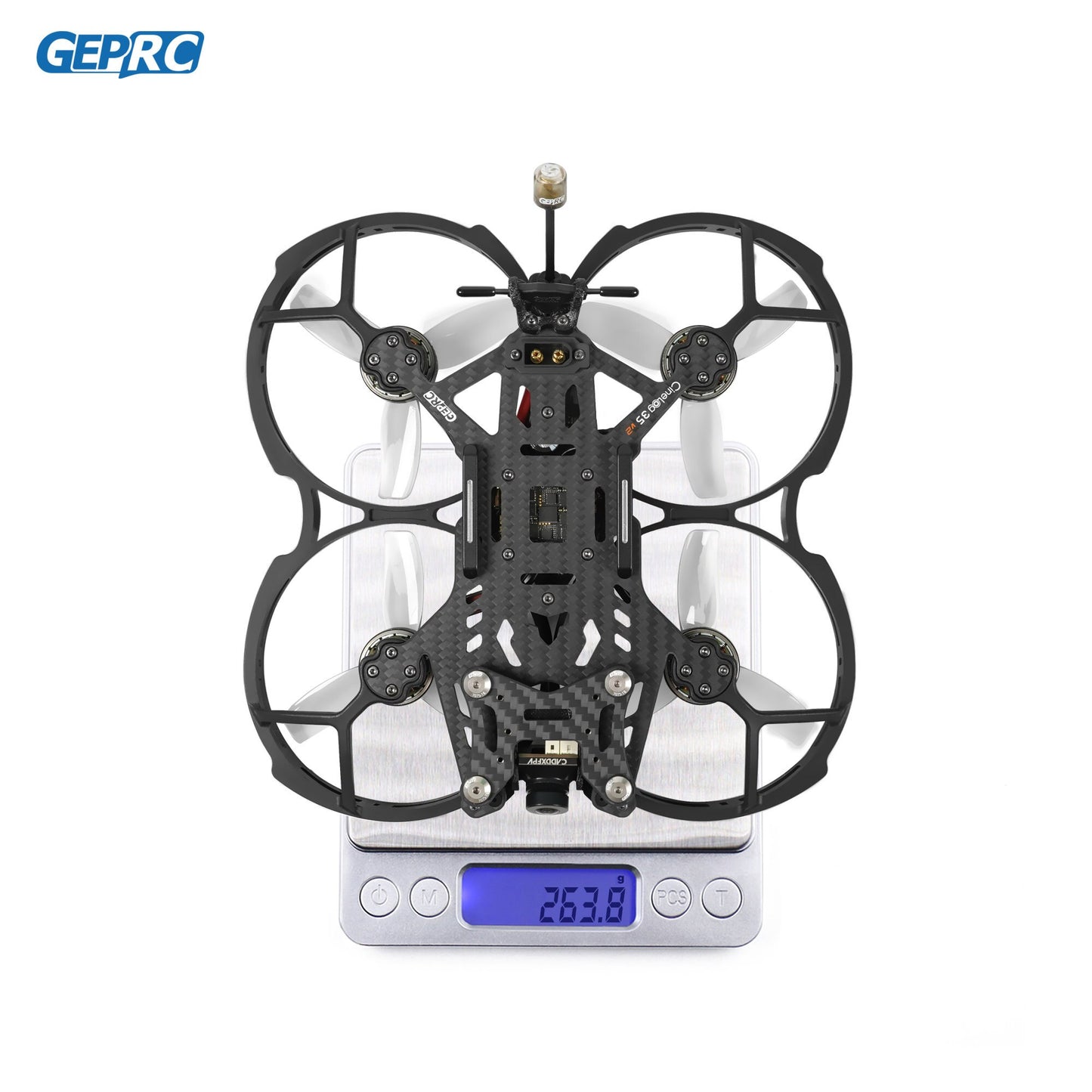

CineLog35 V2 Analog TBSNanoRX weight: 263.8g
-
Receiver: PNP, GEPRC ELRS2.4G, TBS Nano RX
-
Recommended battery:LiPo 1050mah-1300mah
-
Flight time:5′00″ -8′ 30″
Includes
1 x Cinelog35 V2 Analog
2 x HQProp D-T90MM(2 pairs)
2x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x plastic tweezers
1 x Antenna fixed tube (pair)
1 x Keychain
1 x Naked fixed Base
1 x Naked fixed Base
1 x Antenna fixed Base
Screw package includes:
2x cup head screws M2*18
2x round head screws with pad M2*5.5
1x round head screws M2*12
2x Rivet nut M2
4x round head screws M2*8
4x round head screws M2*7
4x round head screws M2*6
2x round head screws M2.5*6
2x hexagonal screw M1.6*8
1x Flange nuts M5
2x Press Rivet Nuts_Brass color M2*1.9-OD4.9
2x Iron nut M2
2x Iron nut M2
2x Camera lens shock absorbing rubber
GEPRC Cinelog 35 V2 03 Air Unit Bright Vision; Steady Forward hoq Compatible with FPV camera independent Optimized 2105.5 2650KV 03 Air unit damping gimbal memory card and USB ports connector method motor 49 battery battery fixing mechanism motor
The camera features a bottom-mounted shock absorption gimbal that effectively resolves the resonance issue between the camera's IMU, providing an excellent anti-shake effect and delivering a clear and stunning visual experience.
The propeller guard and fuselage are optimized to enhance the overall structural integrity of the frame, increasing its resistance to impacts and ensuring greater durability.
The drone features improved memory card and USB port capabilities, allowing for seamless data reading and plug-and-play functionality, making it easy to use and operate.
The drone features a reliable and stable fusion battery connector that uses an XT60-E1 plug, allowing for easy one-handed operation and eliminating the hassle of powering on with traditional methods.
For optimal flight performance, move the battery forward when flying without a camera or using a naked camera configuration, which helps maintain the center of gravity. Conversely, when using a full-size camera, rotate the battery backwards to ensure proper balance and stability.
Adjust the camera height by loosening the screws on the camera mount. Once adjusted, tighten the screws to ensure a secure fit.
Equipped with GPS technology, this drone features an emergency rescue mode. In the event that the remote control signal is lost or disconnected, the drone will automatically switch to rescue mode, allowing for safe and controlled recovery.
This drone features a GEP-F722-45A AIO system, which includes a VTX 03 Air Unit Link Avatar V2 with 32GB storage capacity, a RAD 1W camera, and a Runcam Wasp Cinelog35 V2 HD camera module.
