Summary

The GEPRC team has newly developed a 2-inch frame: GEP-CL20. The 2-inch frame can be shuttled in a narrow space, and can be adapted to O3 VTX, and can also shoot shocking effects in a narrow space. The under-mounted gimbal can easily eliminate the high-frequency vibration and jello problems of the camera. Soft connection damping design of the camera gimbal and can also be mounted with a naked base, which supports the installation of Naked 8, Naked 10, Insta360 Go2 and compatible for DJI Action2 cameras.

The flight controller mouting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.

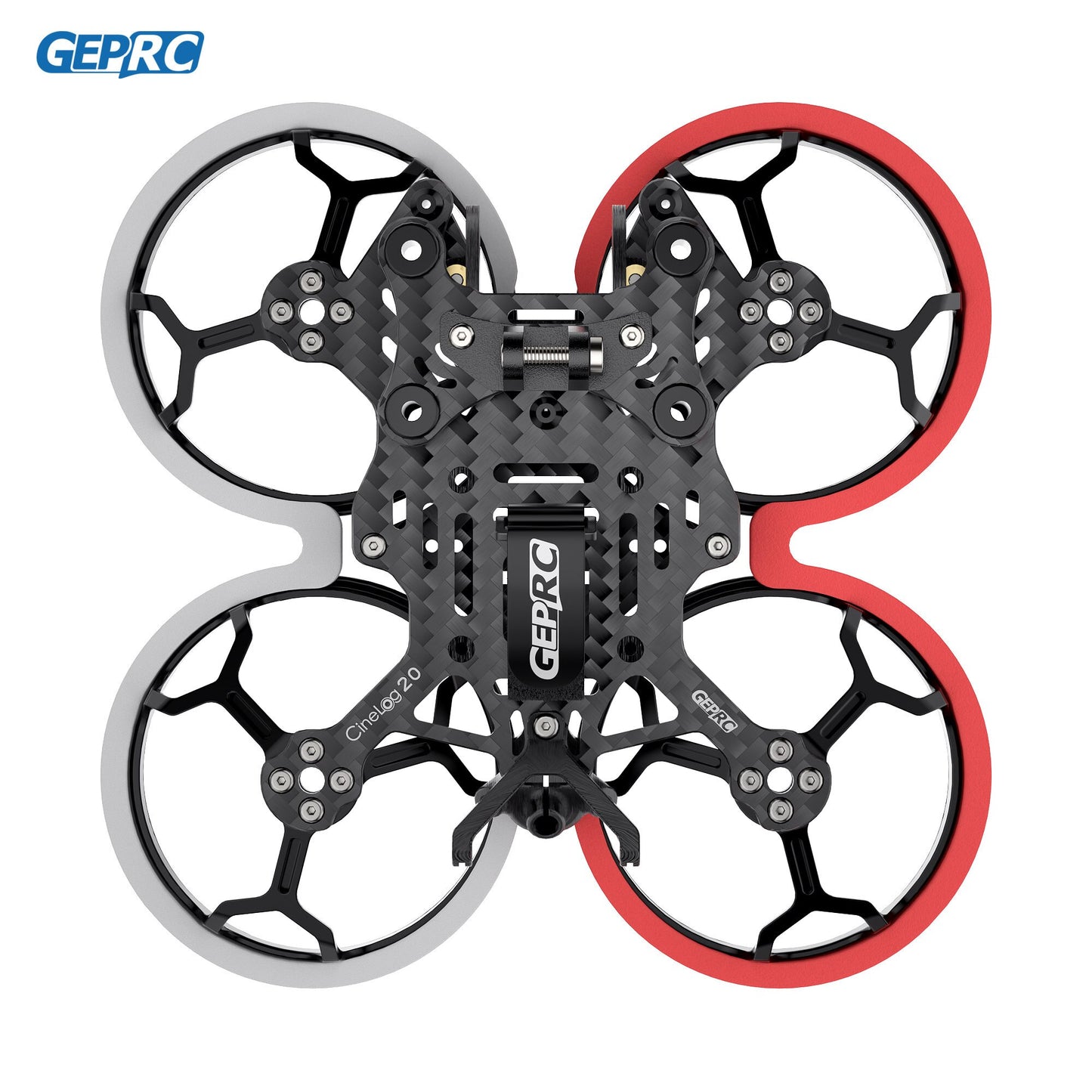

Specification

• Model: GEP-CL20

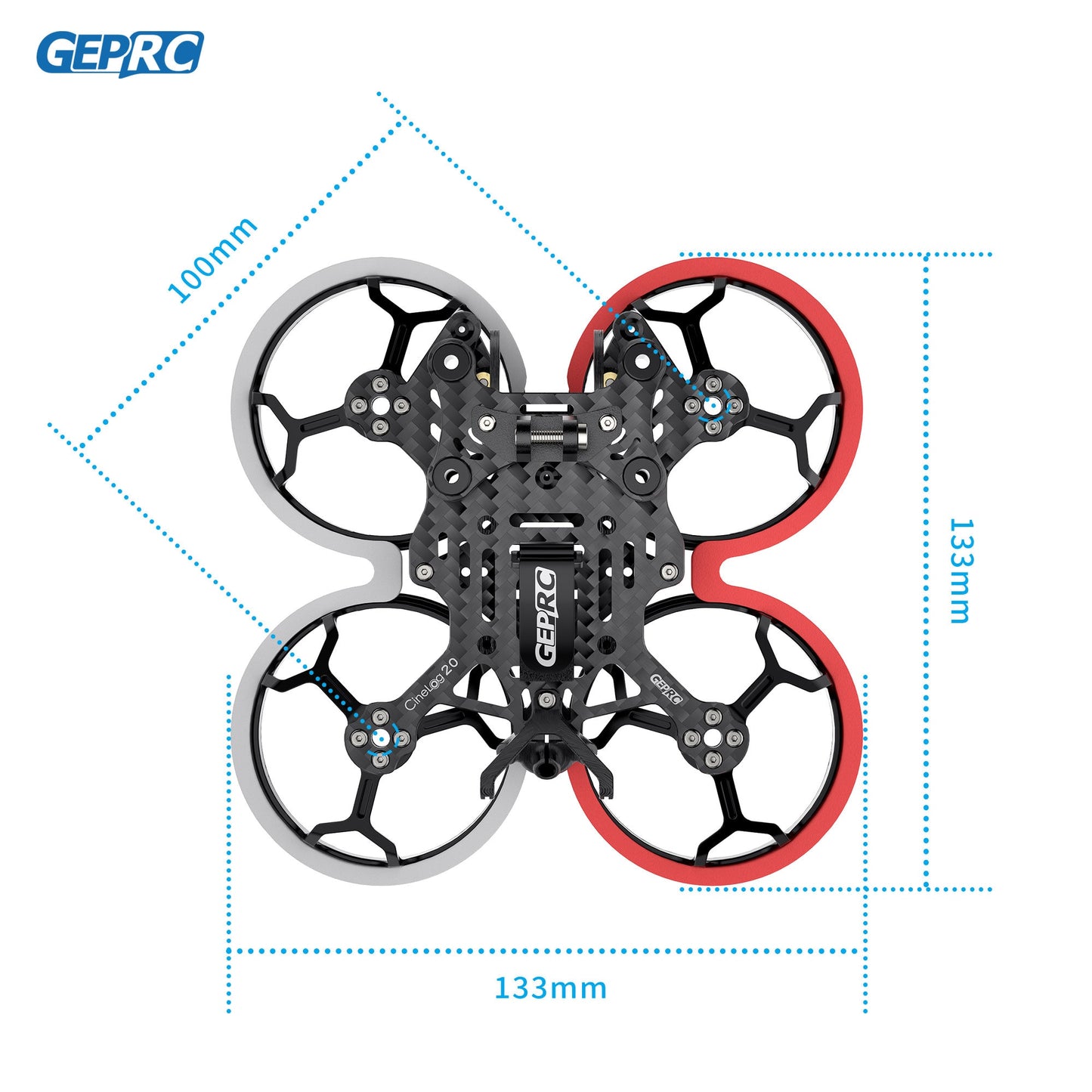

• Wheelbase: 100mm

• Main plate: 2.5mm

• Bottom plate: 1.5mm

• Camera gimbal plate: 2.0mm

• lens gimbal triangle plate : 1.5mm

• Motor plate gasket: 2.0mm

• FC mounting holes: 25.5mm x 25.5mm

• VTX mounting hole: 20mm x 20mm /25.5mm x 25.5mm

• Motor mounting hole: 9mm x9mm

• FPV camera spacing: 20mm

• Suitable propeller size: 2 inch propeller

• Weight: 53.4g

• Flight controller: GEP-F4-35A AIO (mounting hole: 25.5mm×25.5mm)

• Motor: 1303.5 (mounting hole: 9mm×9mm)

• ESC: 35A

• Propeller: 2 inch

• Recomended Battery: 4S 660mAh

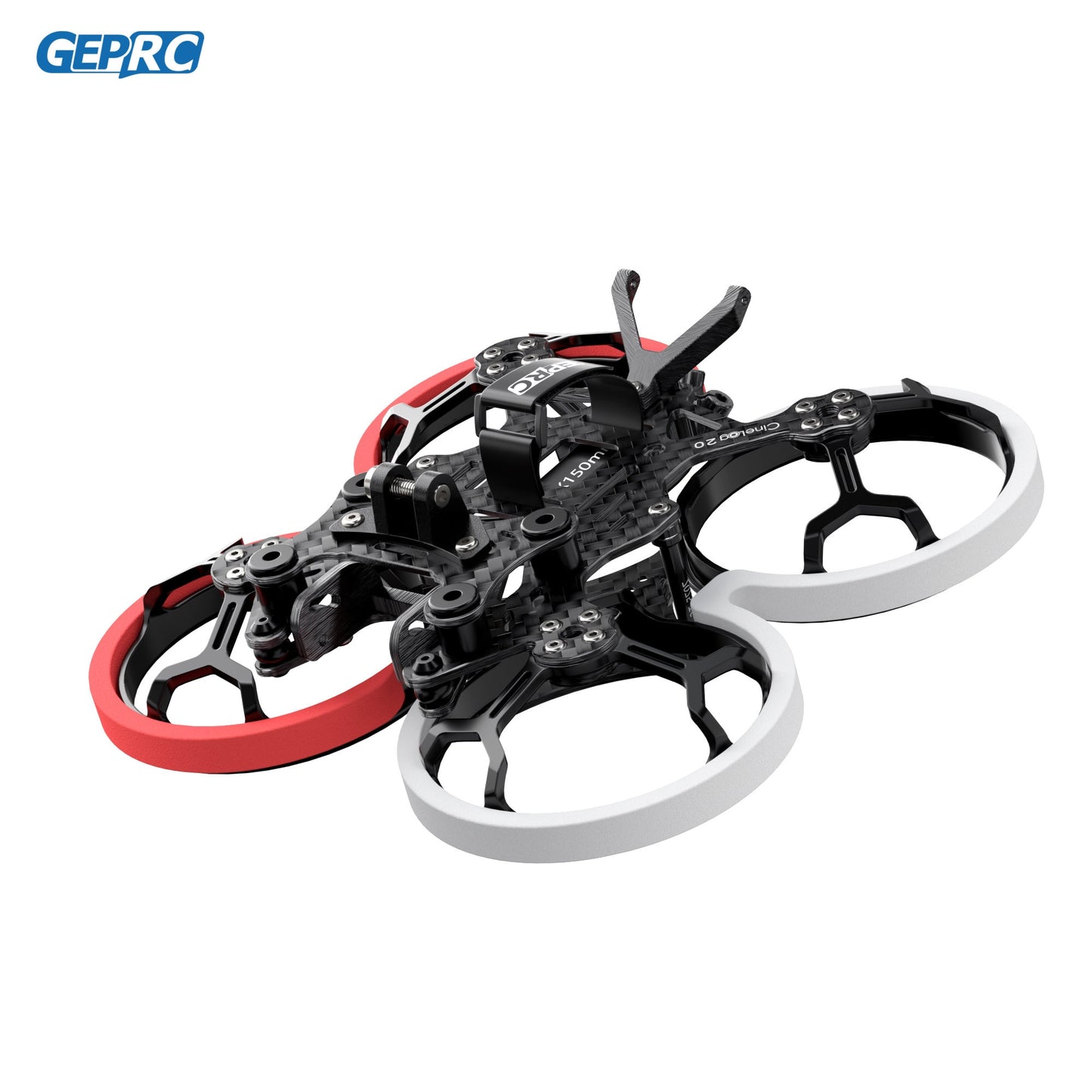

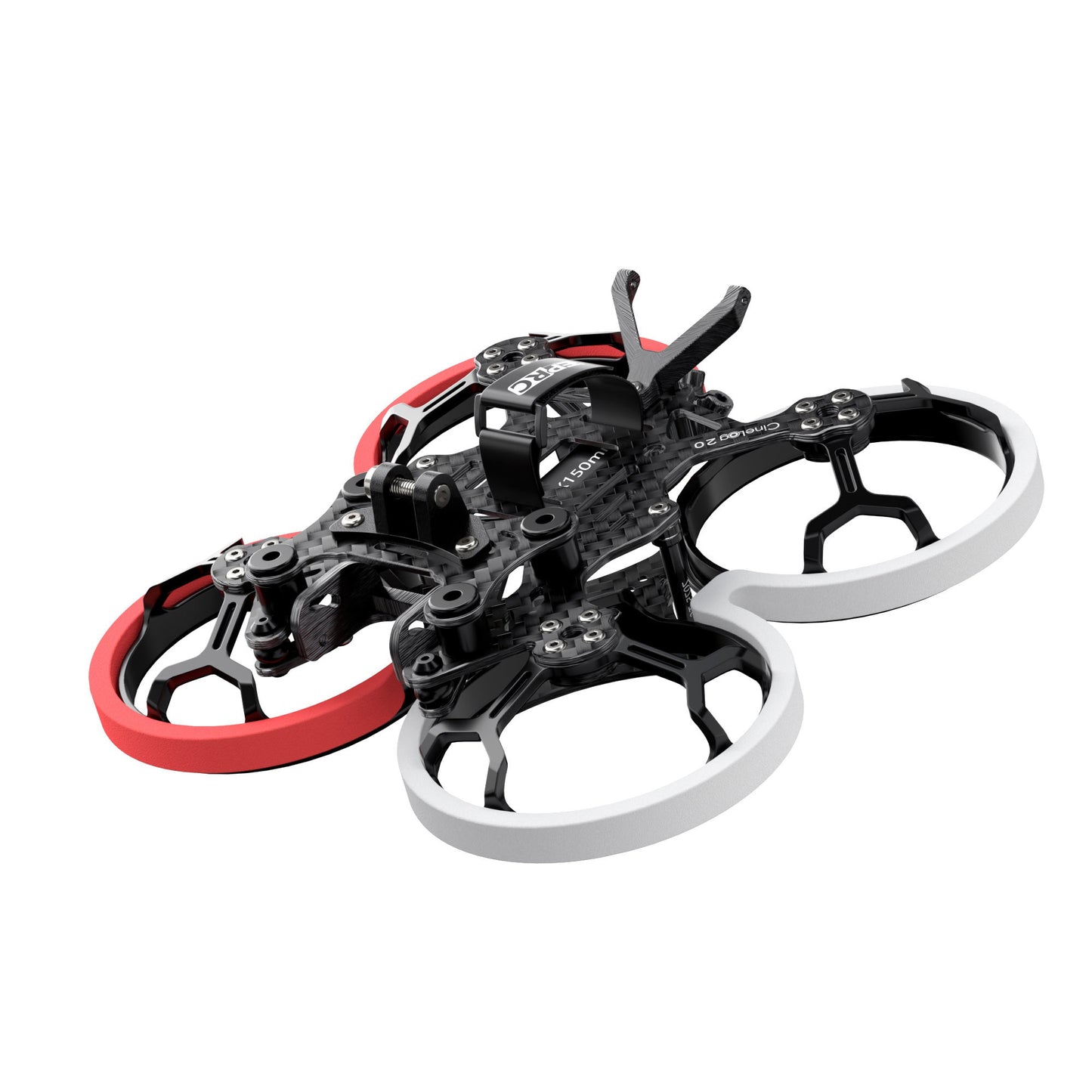

Feature

1. Combining aesthetics and engineering for compact design

2. Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image.

3. 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.

4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.

5. Design the outer EVA damping ring to effectively reduce the impact force.

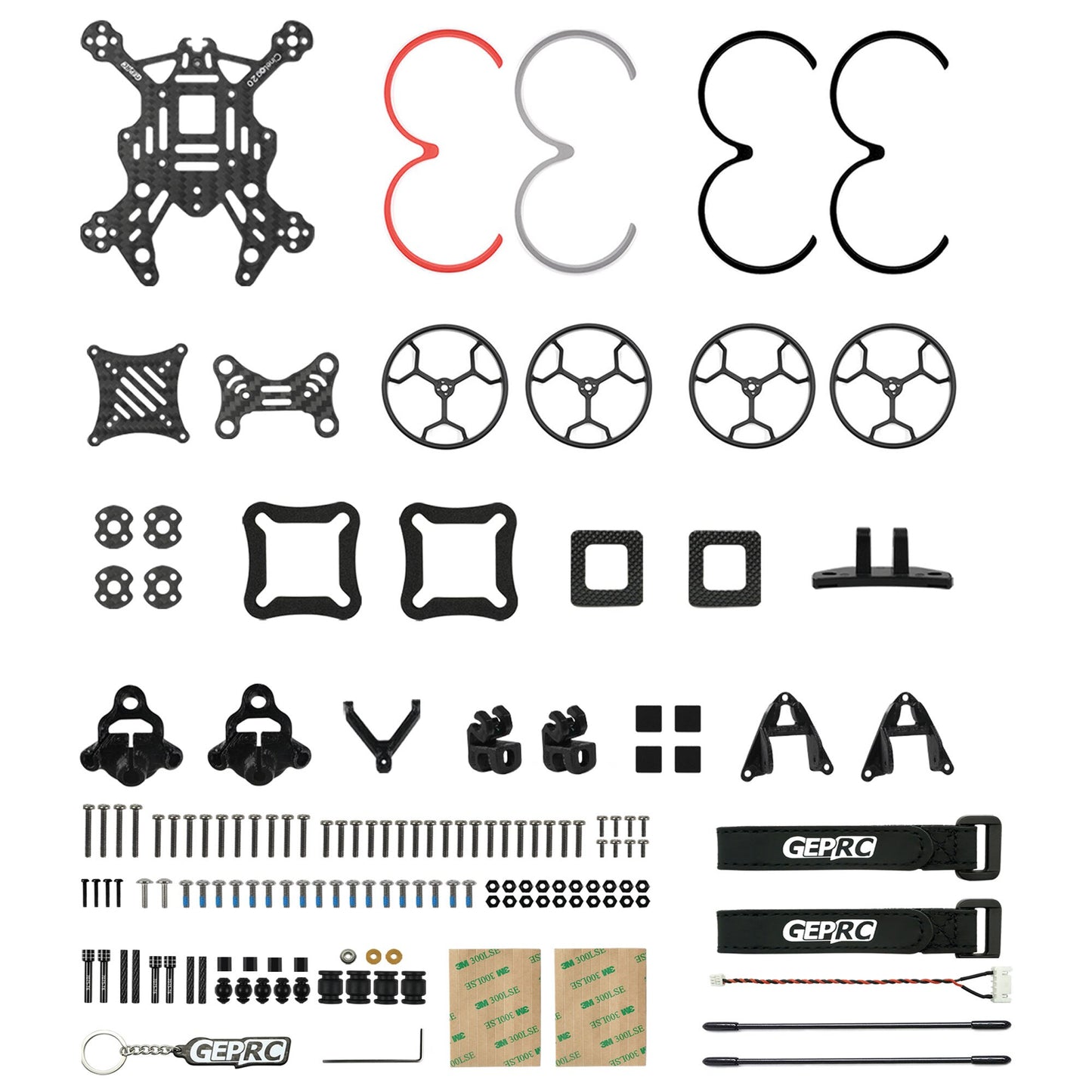

Includes

Plate:

1 x Main plate: 2.5mm

1 x Bottom plate: 1.5mm

1 x Camera gimbal plate: 2.0mm

1 x lens gimbal triangle plate : 1.5mm

1 x Motor plate gasket: 2.0mm

Screw package:

4 x M2*1.9-OD4.9 self-clinching nut-brass color M2

1 x 7075 Aluminum Column M23.528

1 x 7075 Aluminum Column M23.525

1 x Single-ended bright-edge aluminum column M23.528

1 x Single-ended bright-edge aluminum column M23.525

2 x Round head screw with pad M2*8

18 x Round head screw M2*8

4 x Round head screw M2*5

6 x Round head screw M2*4 X6

10 x Round head screw M2*12

4 x Round head screw M2*16

4 x Half-round head M1.6*8 X4

18 x Round head screw M2*7

10 x self-clinching nut M2

10 x Nylon nut M2

4 x Nylon column M2*5mm

4 x Camera head shock absorbing rubber ring

5 x Lens head vibration dampening rubber

4 x BEC silicone gasket

3D printed parts:

1 x VTX Antenna printout PJ000065 (large port)

1 x VTX Antenna printout GP105633 (small port)

1 x Receiver mount 3D printout (vertical)

1 x Receiver mount 3D printable (lying)

1 x TBS Antenna mount

1 x Lens printout (1 hole model)

1 x Lens printout (2 holes)

Injection molded parts:

4 x Propeller guard

Other accessories:

1 x Naked 8 base

1 x 4S Naked power cable (with balanced terminal head)

2 x Cinelog20 battery anti-slip pad (square)

2 x Cinelog20 tripod shock pad (square)

4 x EVA edge protection cotton CineLog20 protection cotton

2 x Receiver antenna wand 100mm

2 x Battery tie M15*150

1 x L-shaped screwdriver 1.5MM

2 x 3M double-sided adhesive

1 x Keychain

GEPRC Cinelogzo Smaller and lighter, mostly for indoor shooting 0l A Under-mounted camera Compatible with EVA damping Compatible with various Camera gimbal Pusher Design for vibration reduction 03 Air Unit protective cotton mounting holes of VTX soft connection 6o79ui3 8

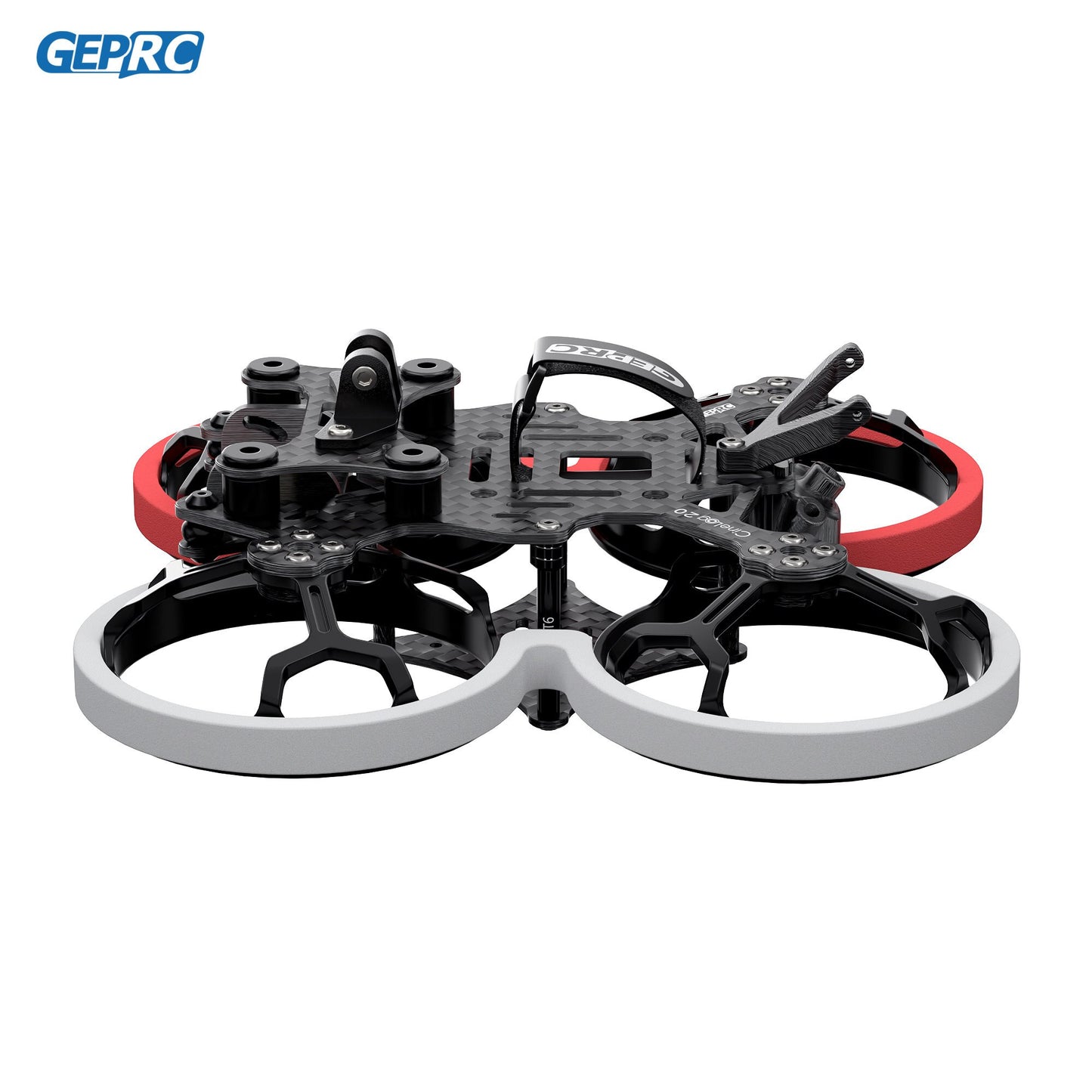

Optimized for smooth footage, this gimbal features shock-absorbing technology to minimize vibrations, ensuring stable and clear video captures even when flying at high speeds or encountering turbulence.

Featuring a pusher design, this propeller boasts improved flight efficiency and extended battery life compared to traditional normal motors.

The GEP-CL20 features aircraft-grade aluminum parts, including a robust fuselage constructed from high-strength 7075-T6 aluminum alloy, providing exceptional durability and solidity.

The GEP-CL20 features a high-toughness material injection-molded propeller guard, designed to provide safer flight by effectively preventing propeller collisions and reducing the risk of damage.
