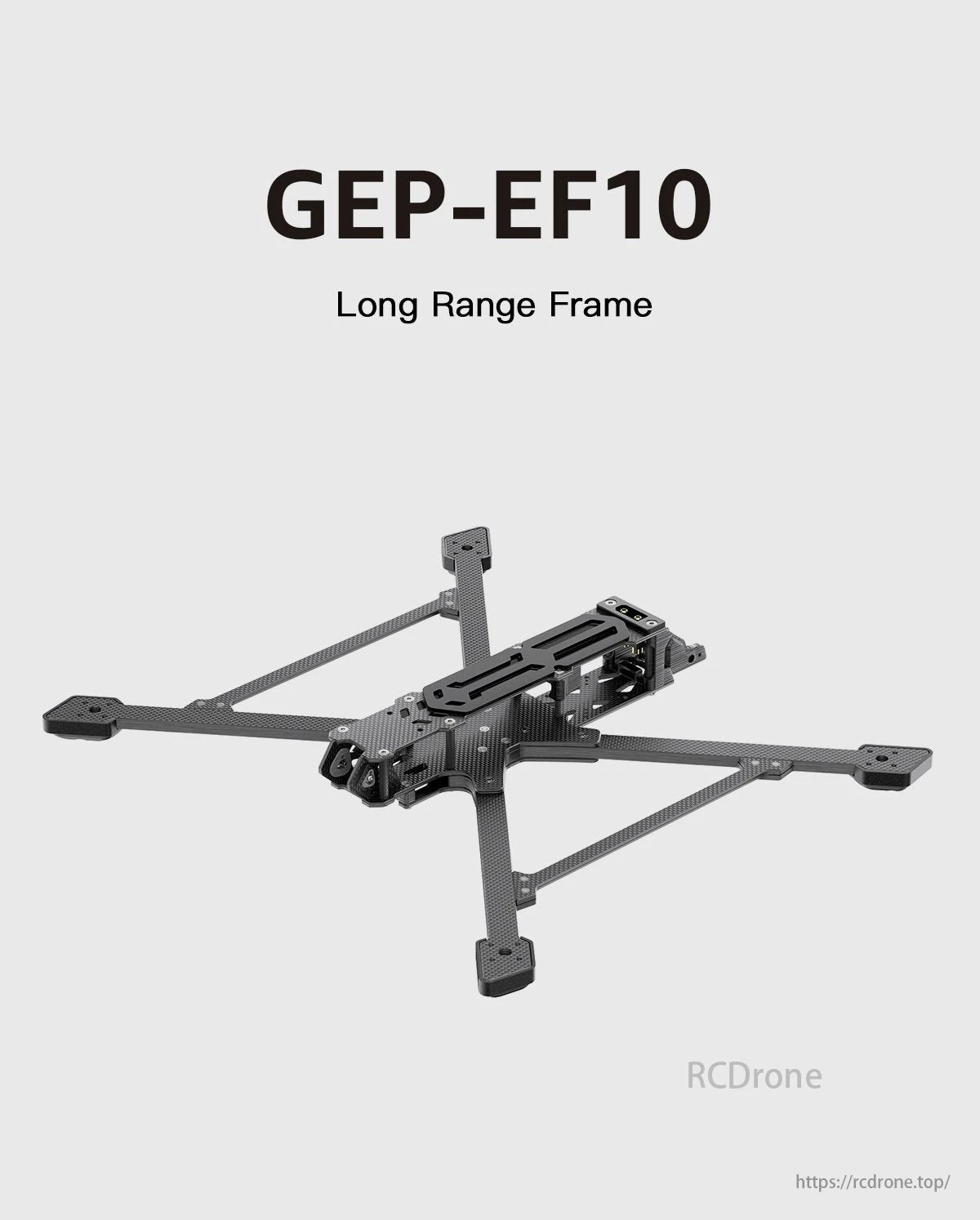

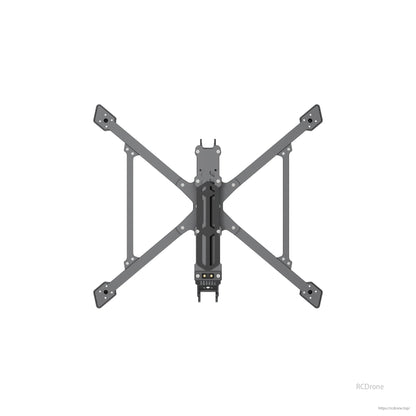

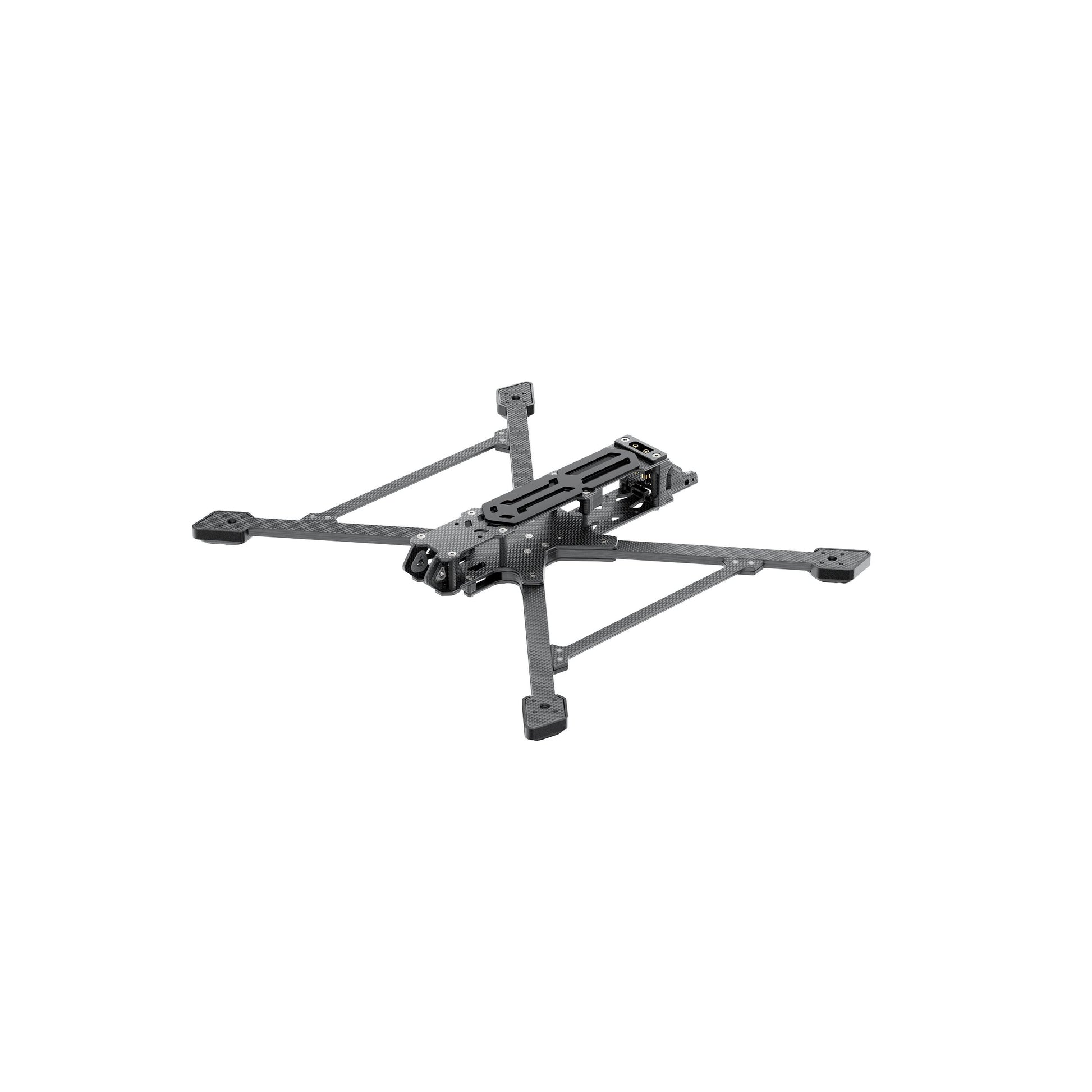

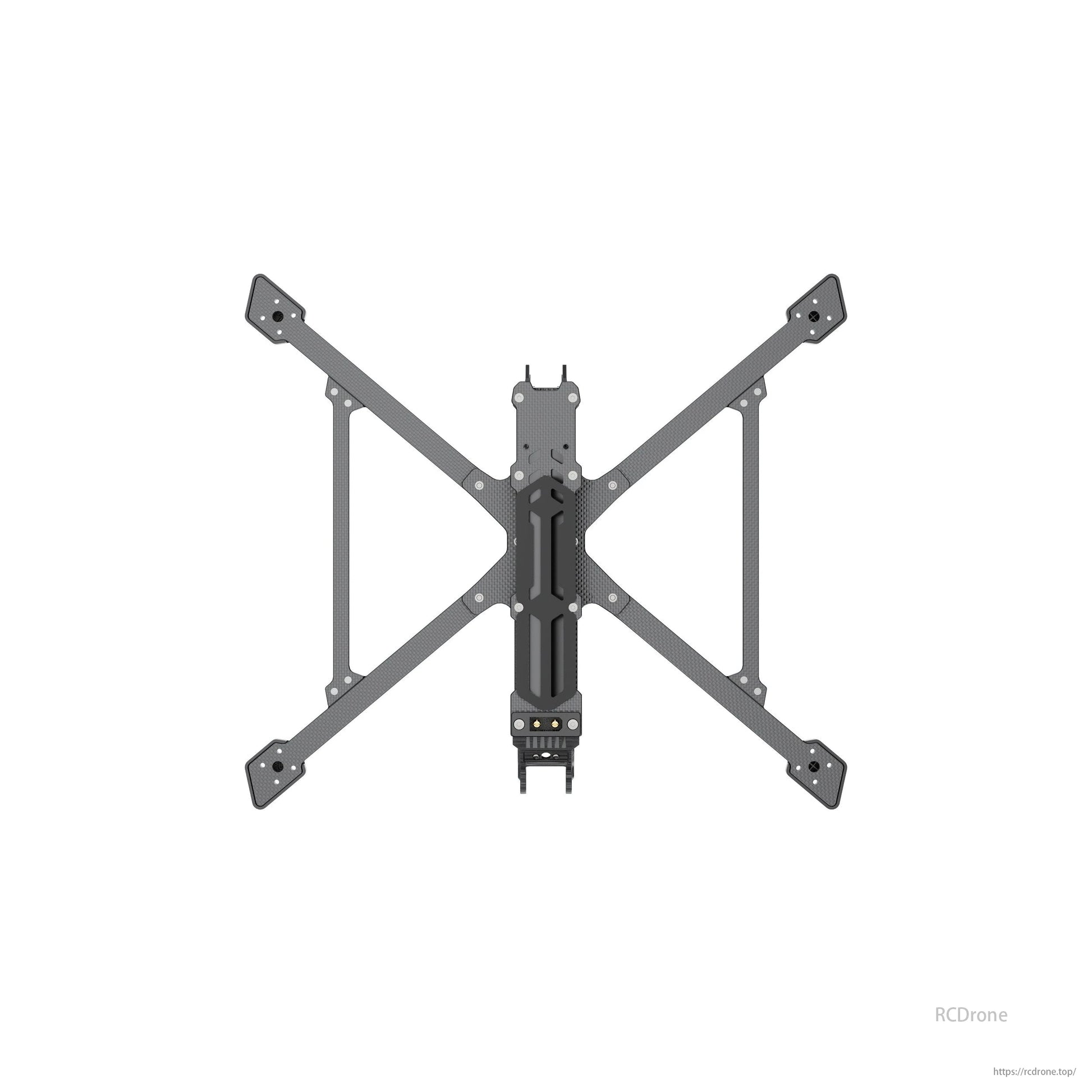

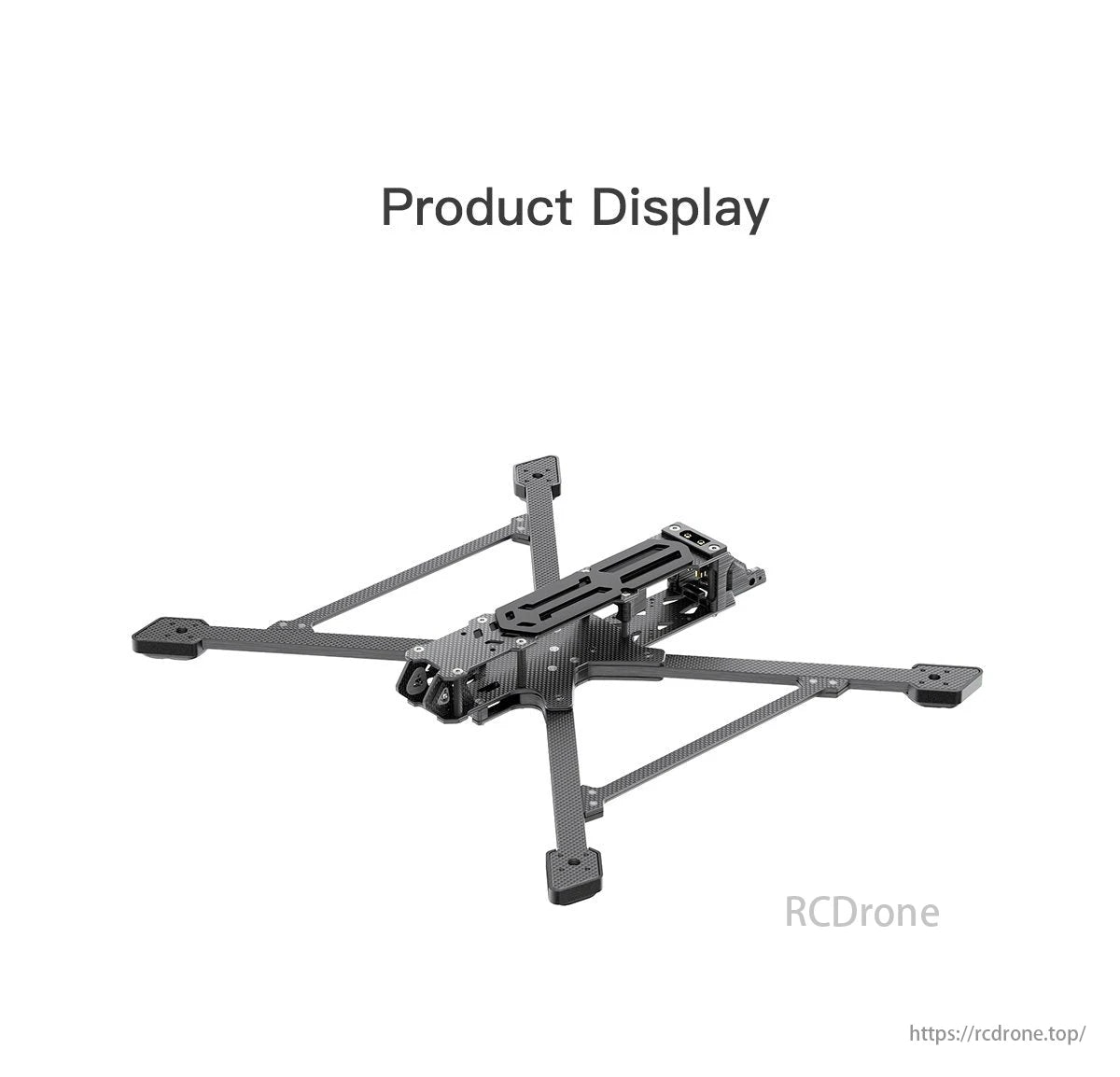

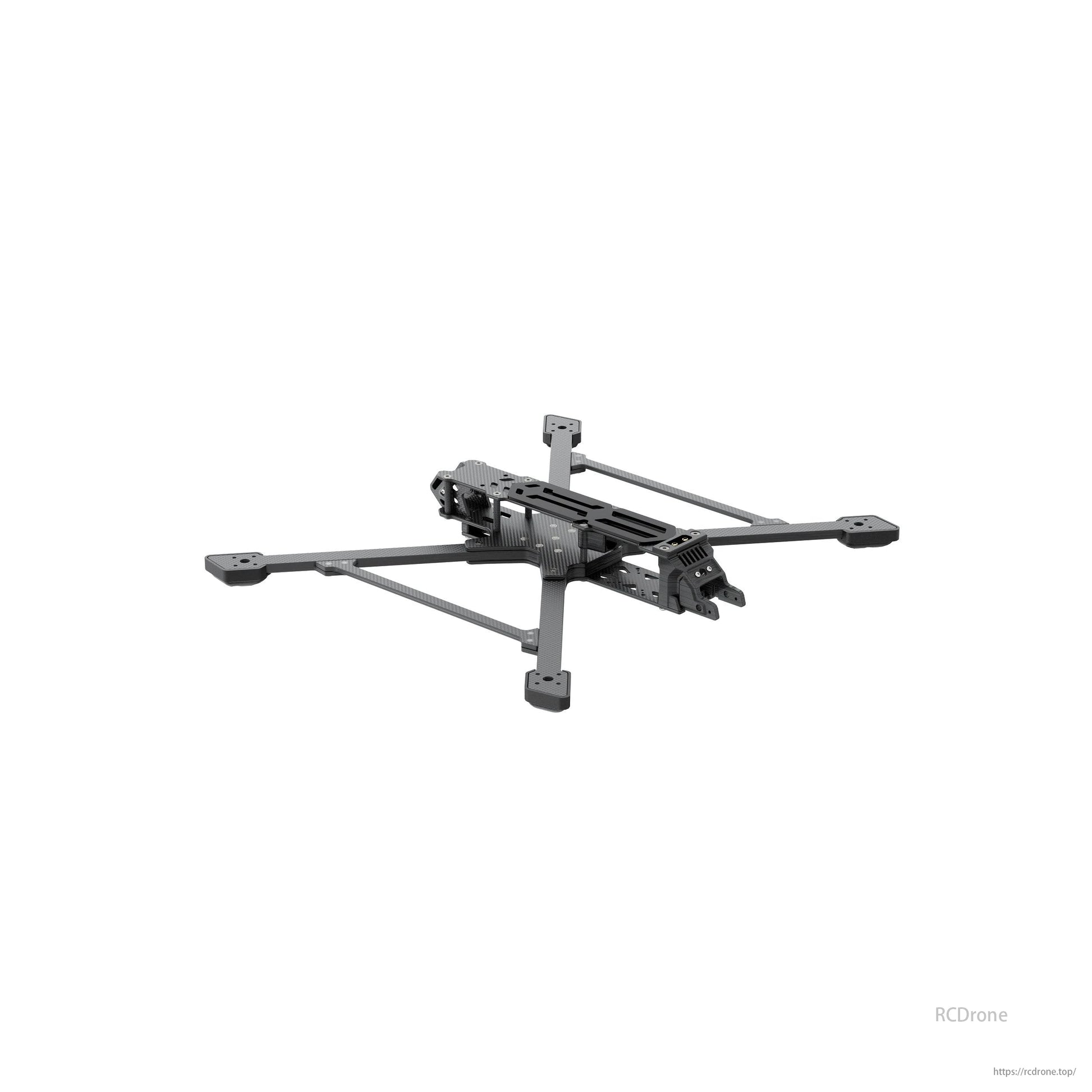

GEPRC GEP-EF10 430mm Wheelbase 10 Inch FPV Drone Frame

Feature

1.  The newly designed EF series has a strong and durable structure.
2.  High-strength 7mm drone arm and 3.5mm stiffener bar enhance endurance.
3. The wide X-shaped structure ensures stability and flexibility.
4. The new stationary-type power plug makes charging more convenient.

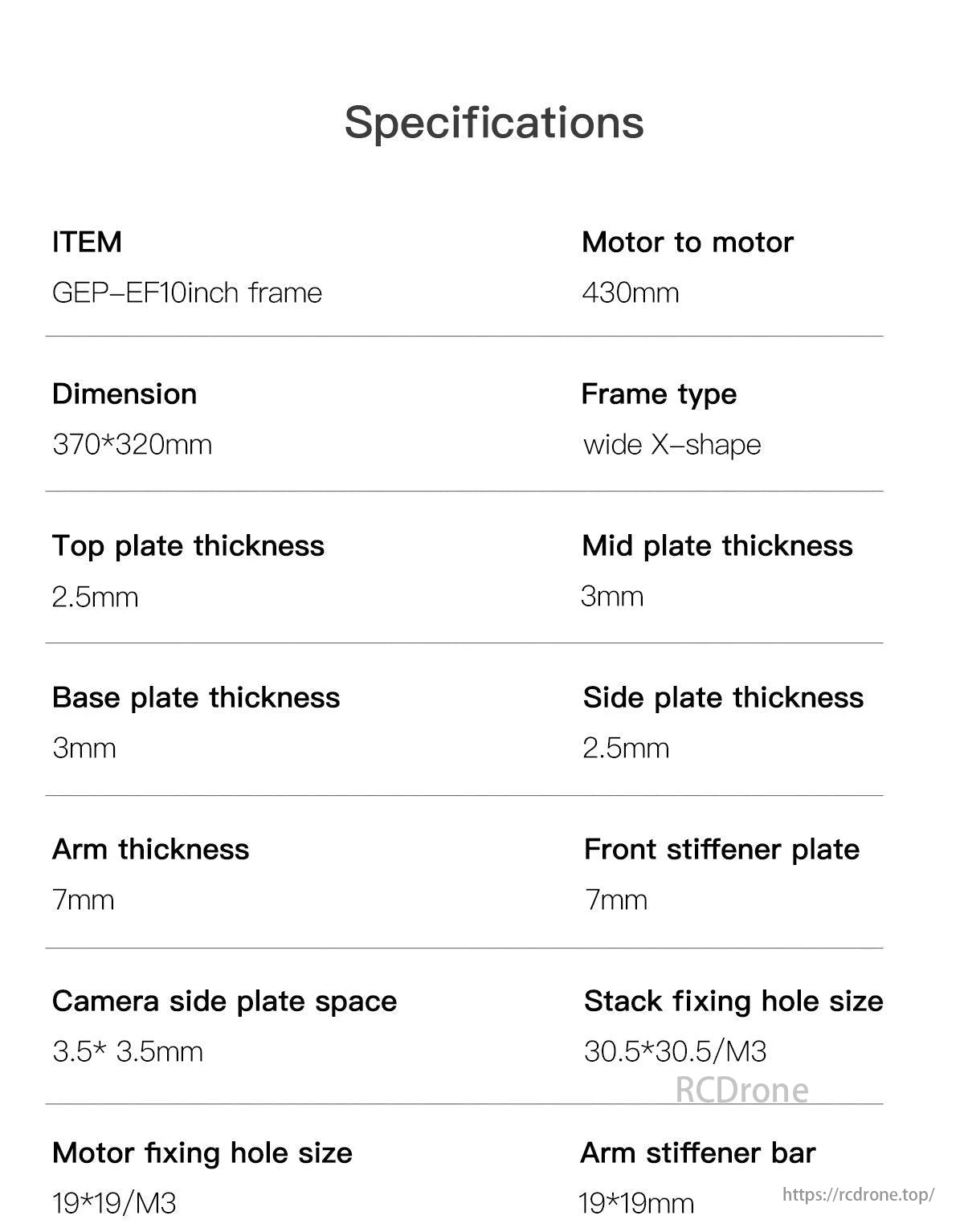

Specifications

• Item: GEP EF10-inch frame


• Motor to motor：430mm


• Dimension：370*320mm


• Frame type: Wide X-shape


• Top plate thickness：2.5mm


• Mid plate thickness：3mm


• Bottom plate thickness：3mm


• Side plate thickness：2.5mm


• Arm thickness：7mm


• Front stiffener plate：7mm


• Arm stiffener bar：3.5mm


• Stack fixing hole size：30.5*30.5/M3


• VTX fixing hole sizes：30.5*30.5/M3，25.5*25.5/M2，20*20/M3


• Motor fixing hole size：19*19/M3


• Camera side plate space：19*19mm

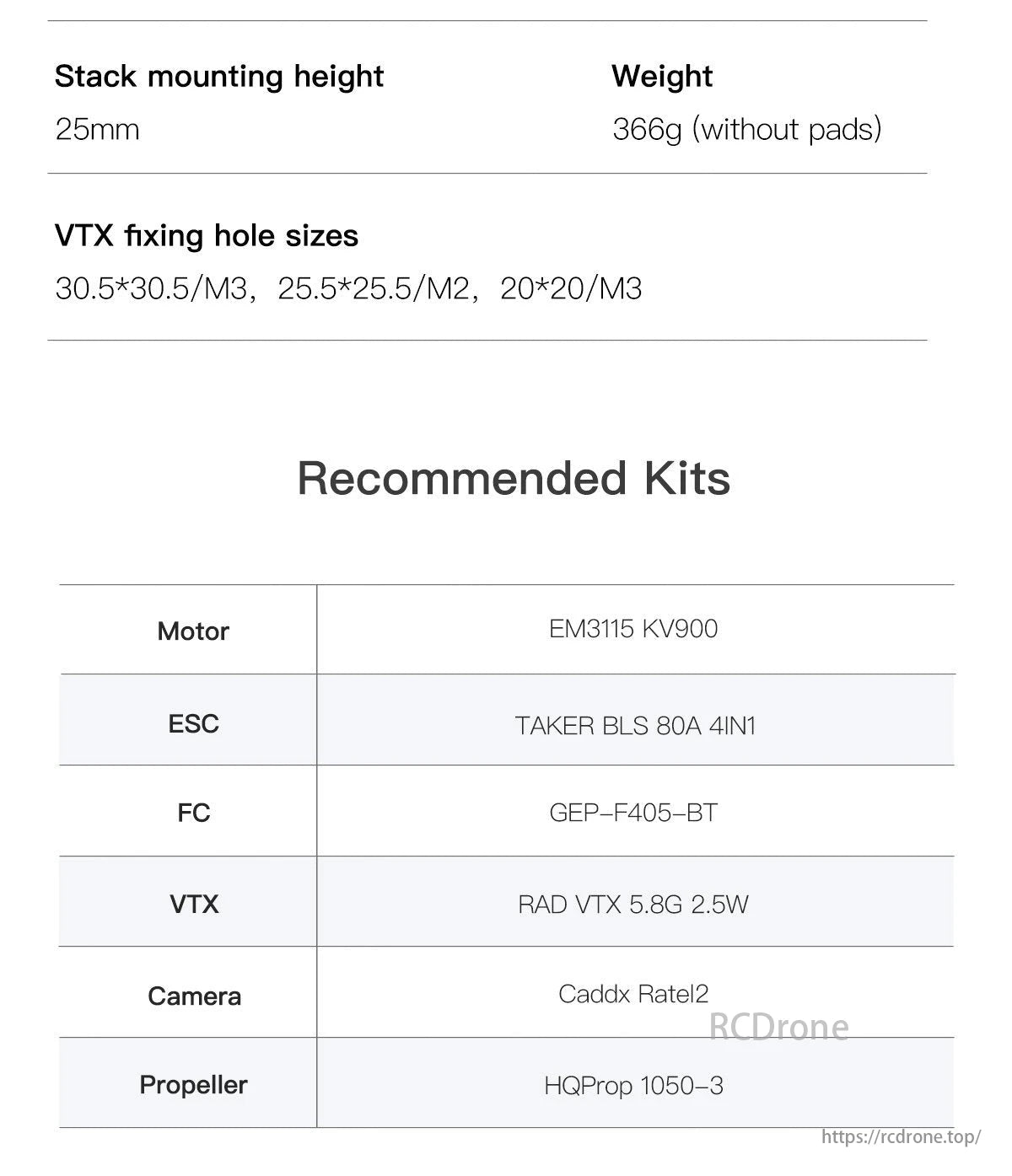

• Stack mounting height：25mm


• Weight：366g（without pads ）

Recommended Kits

Motor： EM3115 KV900

ESC： TAKER BLS 80A 4IN1

FC： GEP-F405-BT

VTX：RAD VTX 5.8G 2.5W

Camera : Caddx Ratel2

Propeller: HQProp 1050-3

Details

The specifications for the GEPRC GEP-EF10 430mm Wheelbase 10 Inch FPV Drone Frame are as follows: - **Motor to motor**: 430mm - **Frame type**: Wide X-shape - **Dimension**: 370*320mm - **Top plate thickness**: 2.5mm - **Mid plate thickness**: 3mm - **Base plate thickness**: 3mm - **Side plate thickness**: 2.5mm - **Arm thickness**: 7mm - **Front stiffener plate**: 7mm - **Camera side plate space**: 3.5*3.5mm - **Stack fixing hole size**: 30.5*30.5/M3 - **Motor fixing hole size**: 19*19/M3 - **Arm stiffener bar**: 19*19mm This frame is designed for high performance and durability, with precise measurements for optimal stability and compatibility with various components.

GEPRC GEP-EF10 is a 430mm wheelbase, 10-inch FPV drone frame. Key specs include a stack mounting height of 25mm and a weight of 366g (without pads). VTX fixing hole sizes are 30.5*30.5/M3, 25.5*25.5/M2, and 20*20/M3. Recommended components: EM3115 KV900 motors, TAKER BLS 80A 4IN1 ESC, GEP-F405-BT FC, RAD VTX 5.8G 2.5W, Caddx Ratel2 camera, and HQProp 1050-3 propellers. This frame is ideal for FPV racing or freestyle flying, focusing on performance and compatibility with top-tier components for an enhanced flight experience.

Quick-release arm with plug for easy disassembly and maintenance on GEPRC GEP-EF10 drone frame.

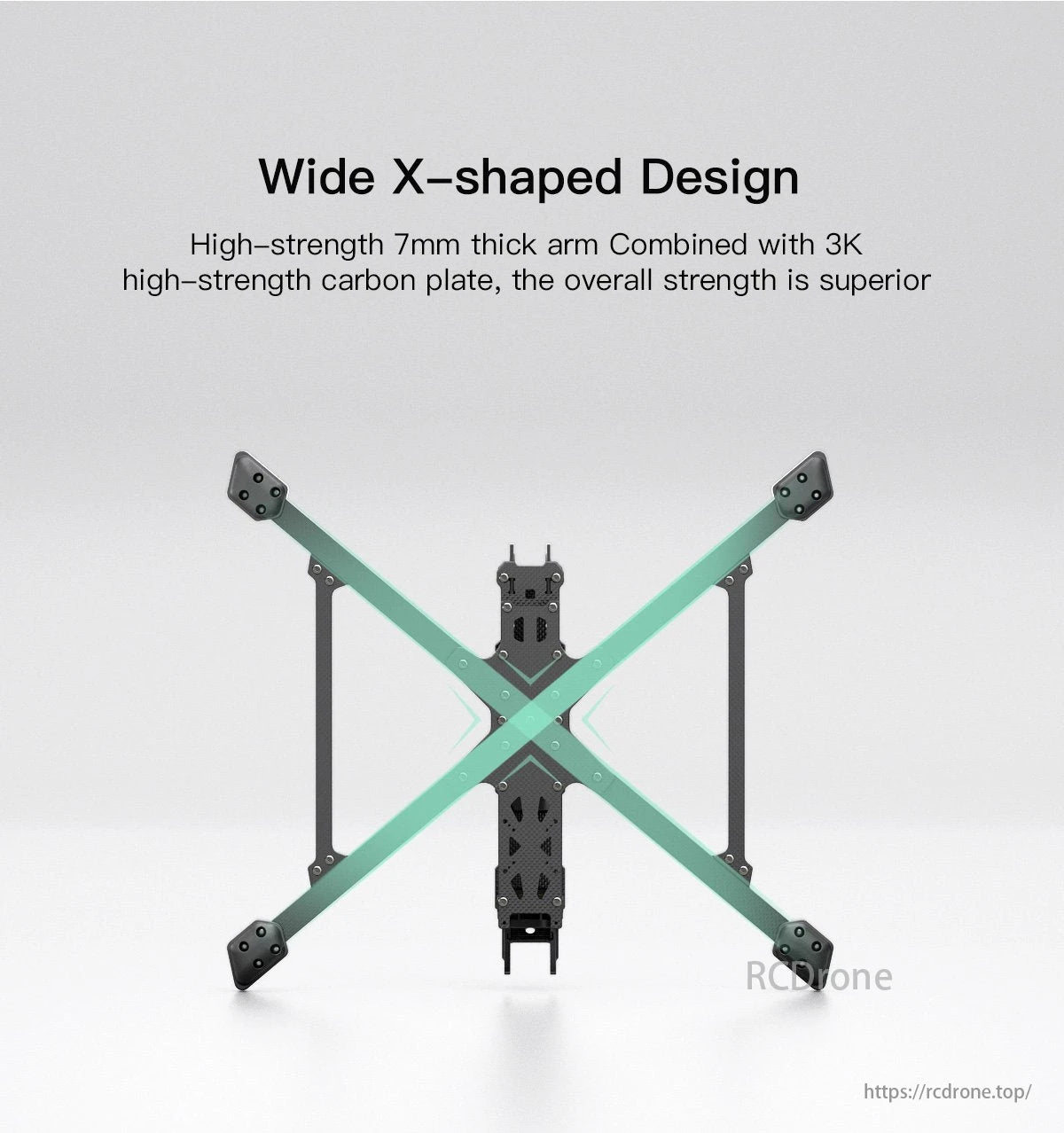

Wide X-shaped design with 7mm thick arms and 3K carbon plate for superior strength.
