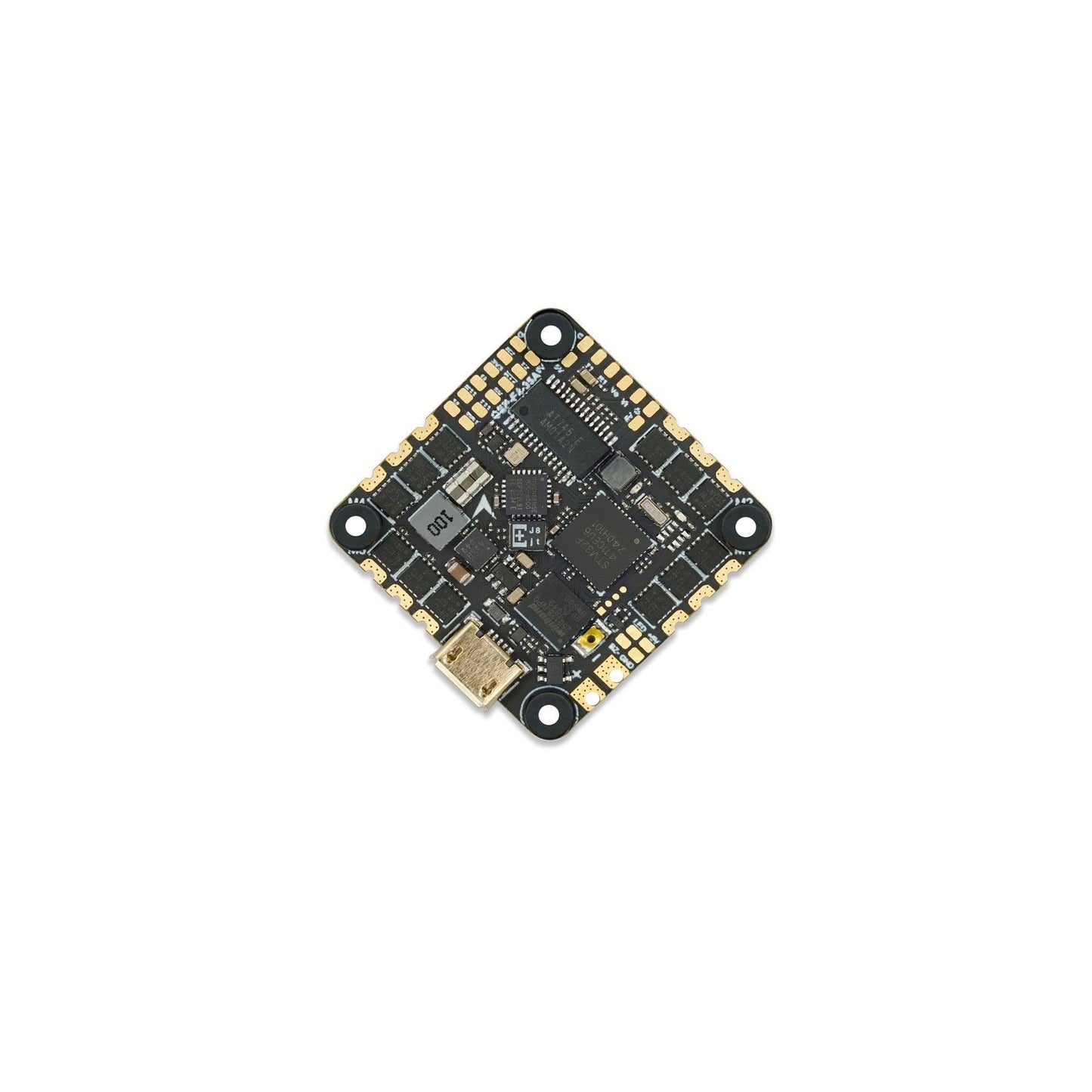

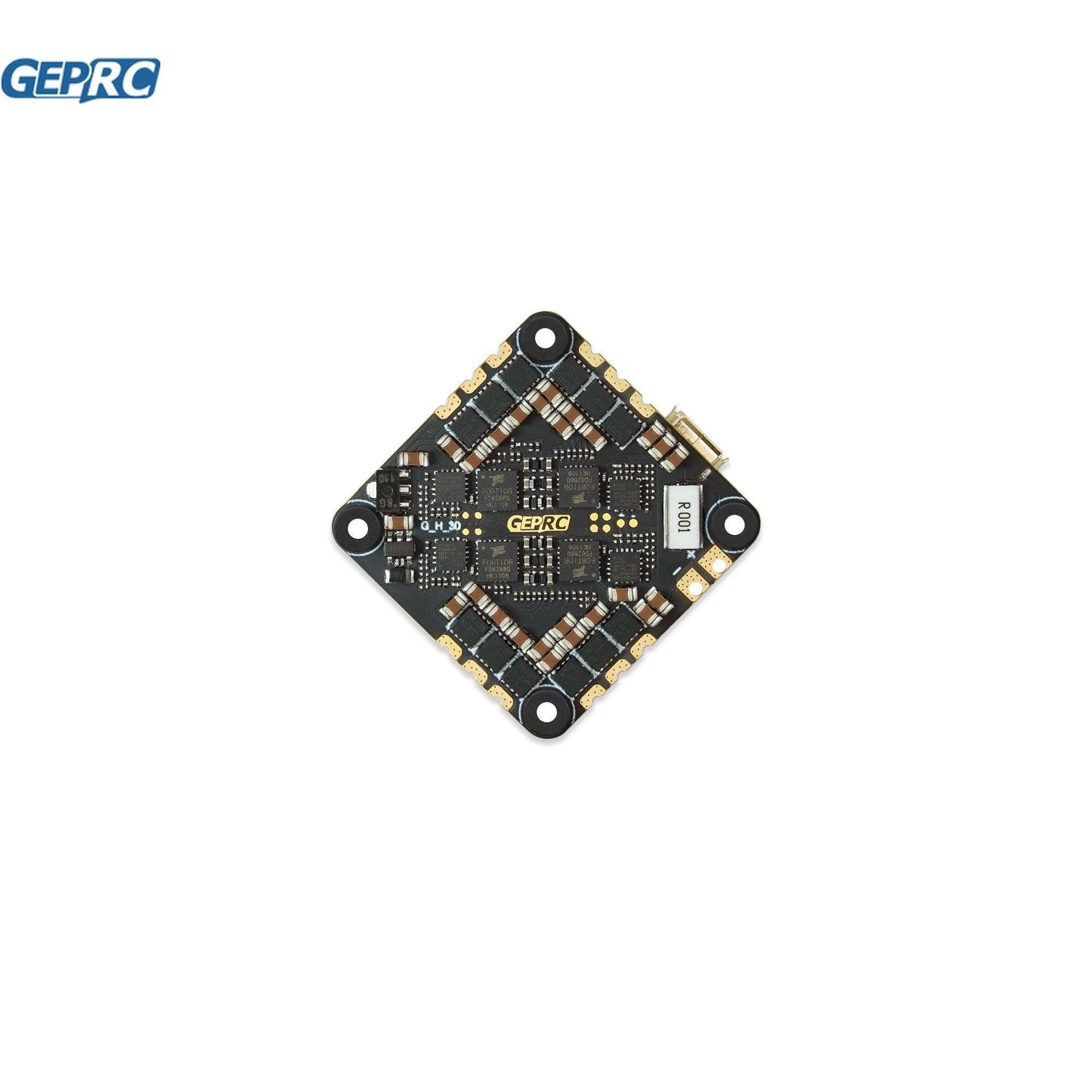

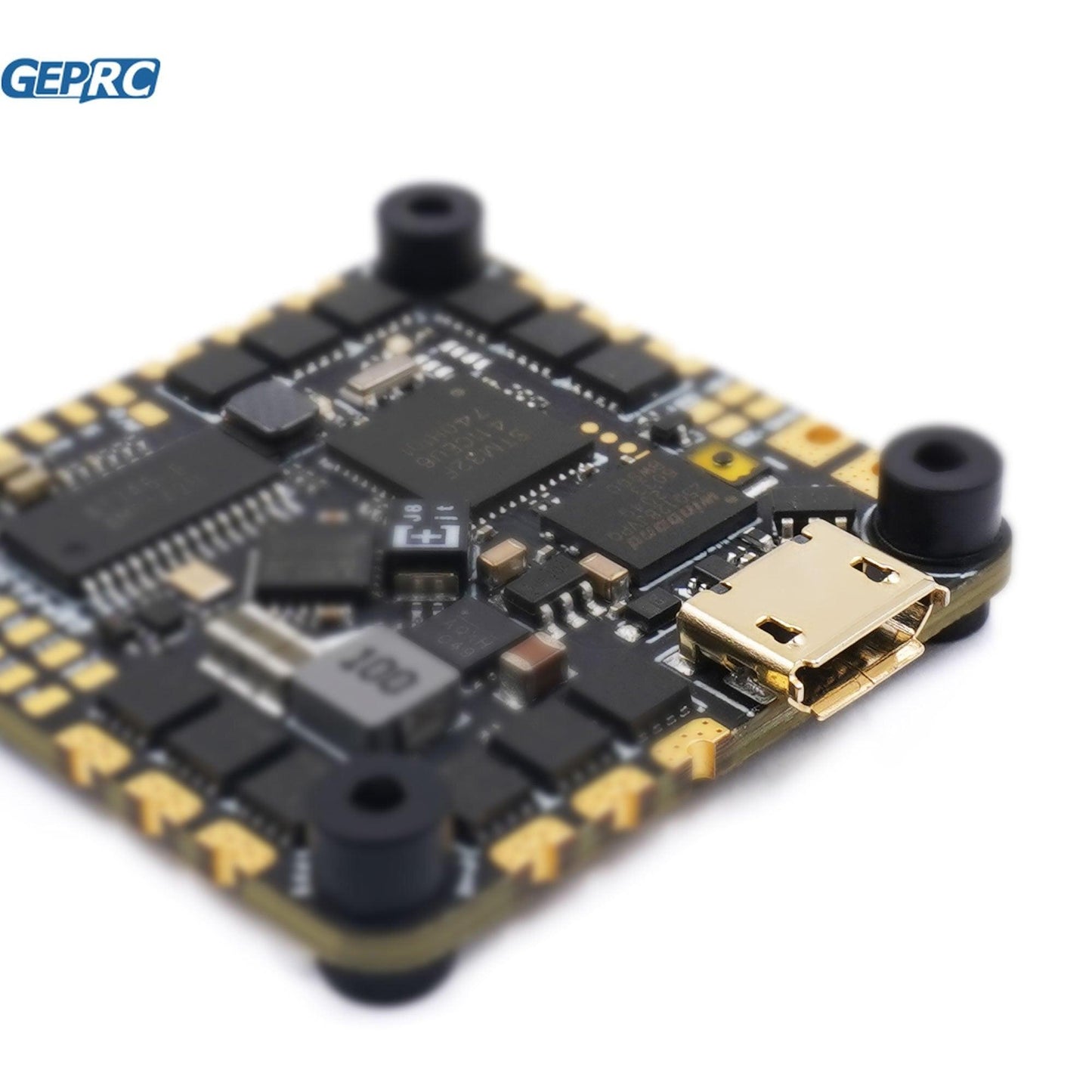

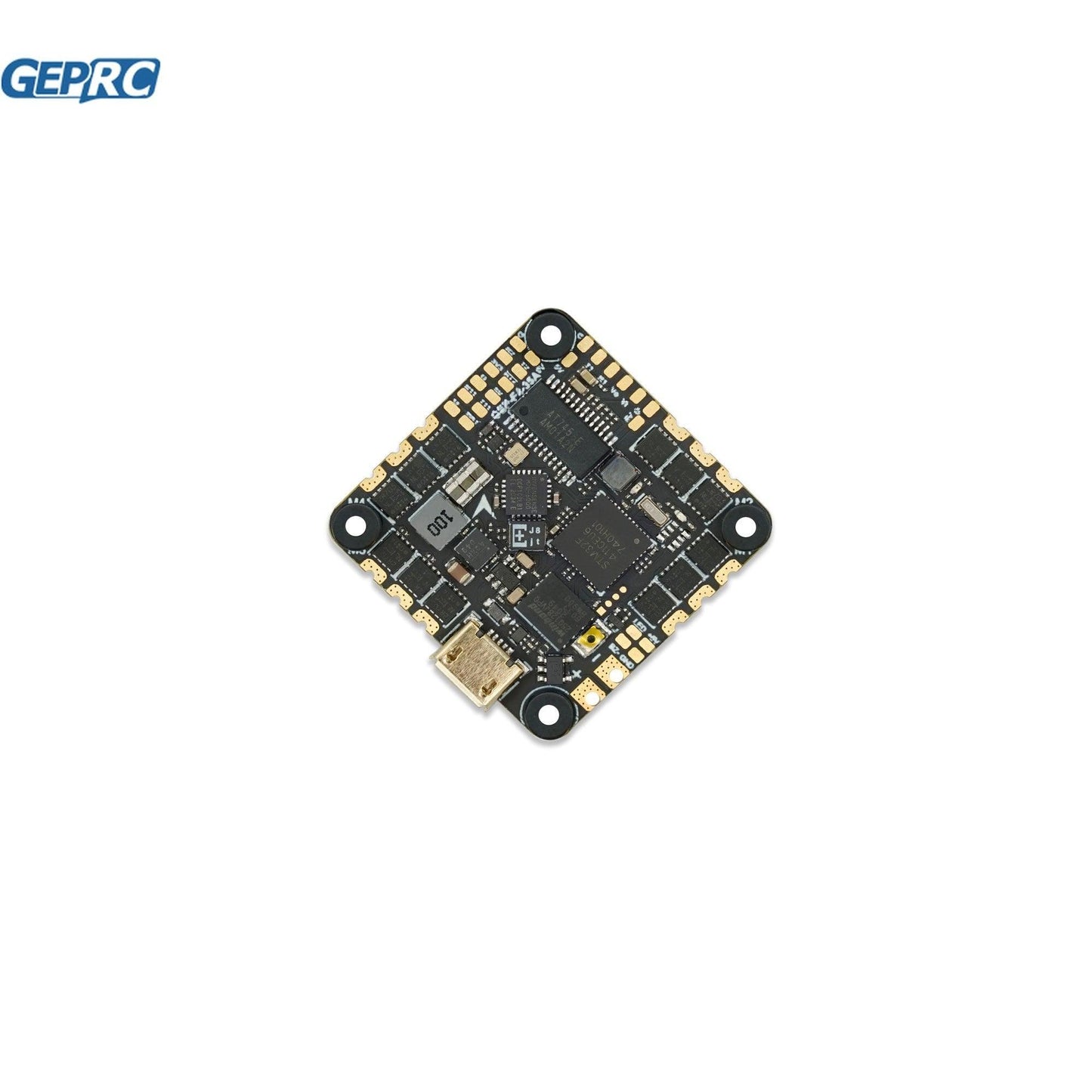

GEPRC GEP-F411-35A AIO - (F411 FC 35A 2-6S 8bits BLS ESC 26.5mm/M2) For DIY RC FPV Quadcopter Drone Replacement Accessories Parts

GEPRC GEP-F411-35A AIO - (F411 FC 35A 2-6S 8bits BLS ESC 26.5mm/M2) For DIY RC FPV Quadcopter Drone Replacement Accessories Parts

GEPRC

Regular price $115.60 USD
Regular price $173.40 USD Sale price $115.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

16 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC GEP-F411-35A AIO SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Accessories

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: GEP-35A-F411 AIO

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

Summary:

I am gald to introduce a new member of GEP FC AIO, GEP-F4-35A,it is released now.

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery.It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It’s 8.3g ultra light weight, and 26.5mm * 26.5mm mounting holes, suitable for most of the frames on the market.

Changelog:

June 14th,2022: Gyro updated to BMI270.

June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification:

  • Model: GEP-F411-35A  AIO

  • MCU: STM32F411

  • IMU: MPU6000 gyro/accelerometer(SPI)

  • Target: GEPRC_F411_AIO

  • OSD: Betaflight OSD w/ AT7456Ev

  • UART Ports: T1 R1 / T2 R2

  • Beep: YES

  • LED: YES

  • USB Connector: micro USB

  • ESC MCU: 8BB21F16G

  • Intergrated LC Filter

  • Continue Current: 35A

  • Burst Current: 40A(10s)

  • Input Voltage: 2~6S (LIPO Battery)

  • ESC Protocol: Dshot300/600,Oneshot,Multishot

  • Current meter: 210

  • Blackbox:16Mb

  • ESC Target: G_H_30 BLS

  • Size: 32x32mm Board

  • Mount Holes: 26.5×26.5mm,M2

  • Weight: 8.3g



Features:

  • BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.

  • Mainstream STM32F411 FC and runs stably.

  • MPU6000 gyroscope with 8K sampling frequency.

  • Rich external ports, it supports buzzer and LED light function.

  • 26.5mm * 26.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

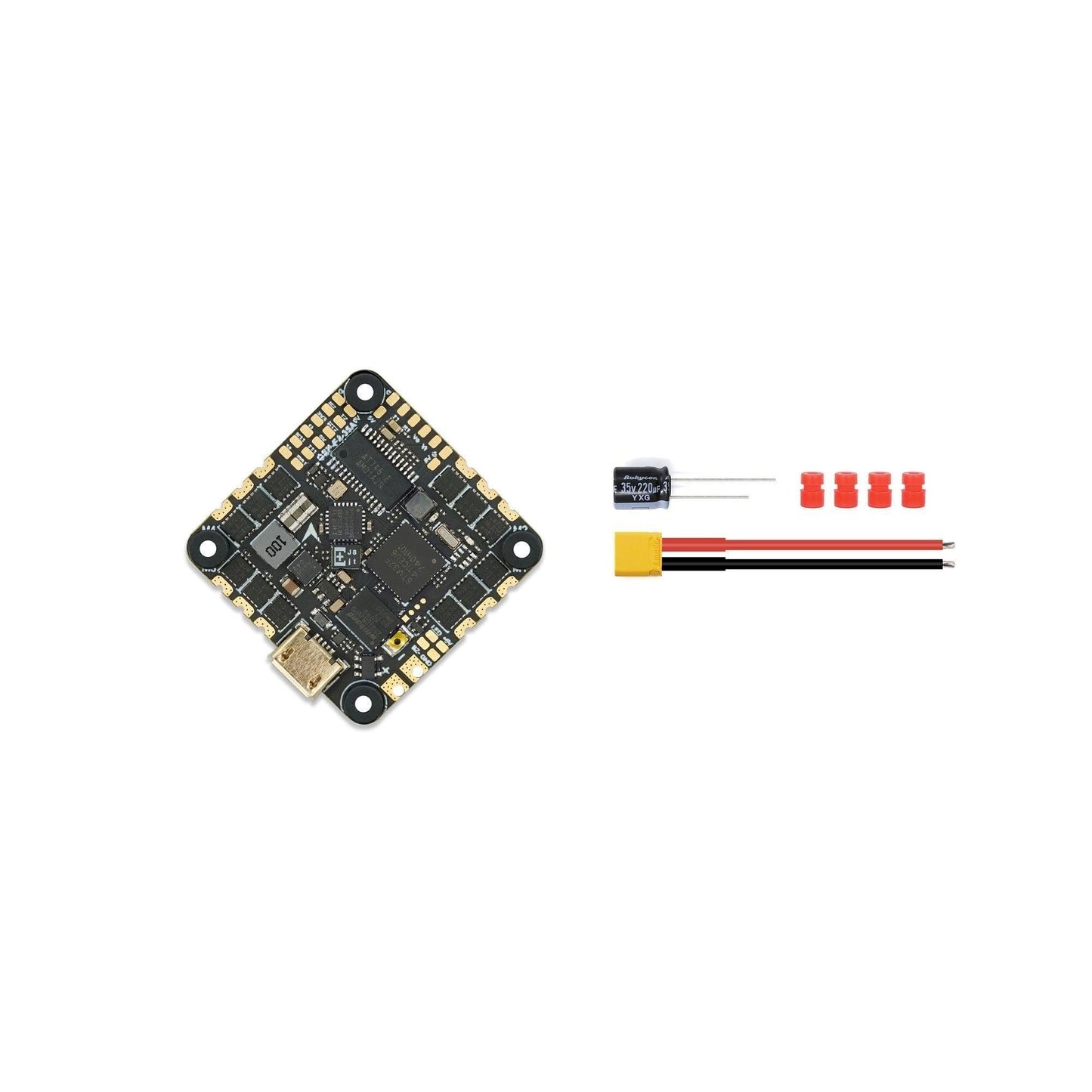

Include:

  • 1 x GEP-F4-35A-AIO

  • 1 x XT30-7CM-18AWG cables

  • 1 x 35V220UF capacitance

  • 8 x M2*6.5mm Damping rings



Manual:

-GEP-F4-35A-AIO-Manual-V2_0.pdf

GEPRC GEP-F411-35A AIO, rich external ports, it supports buzzer and LED light functionGEPRC GEP-F411-35A AIO, mounting holes and ultra light weight, suitabe for most of the frame on the market.GEPRC GEP-F411-35A AIO, x XT30-7CM-18AWG cables 1 x 35V220GEPRC GEP-F411-35A AIO, Mainstream STM32F411 FC and runs stablyGEPRC GEP-F411-35A AIO, mounting holes and ultra light weight, suitabe for most of the frame on the market.
