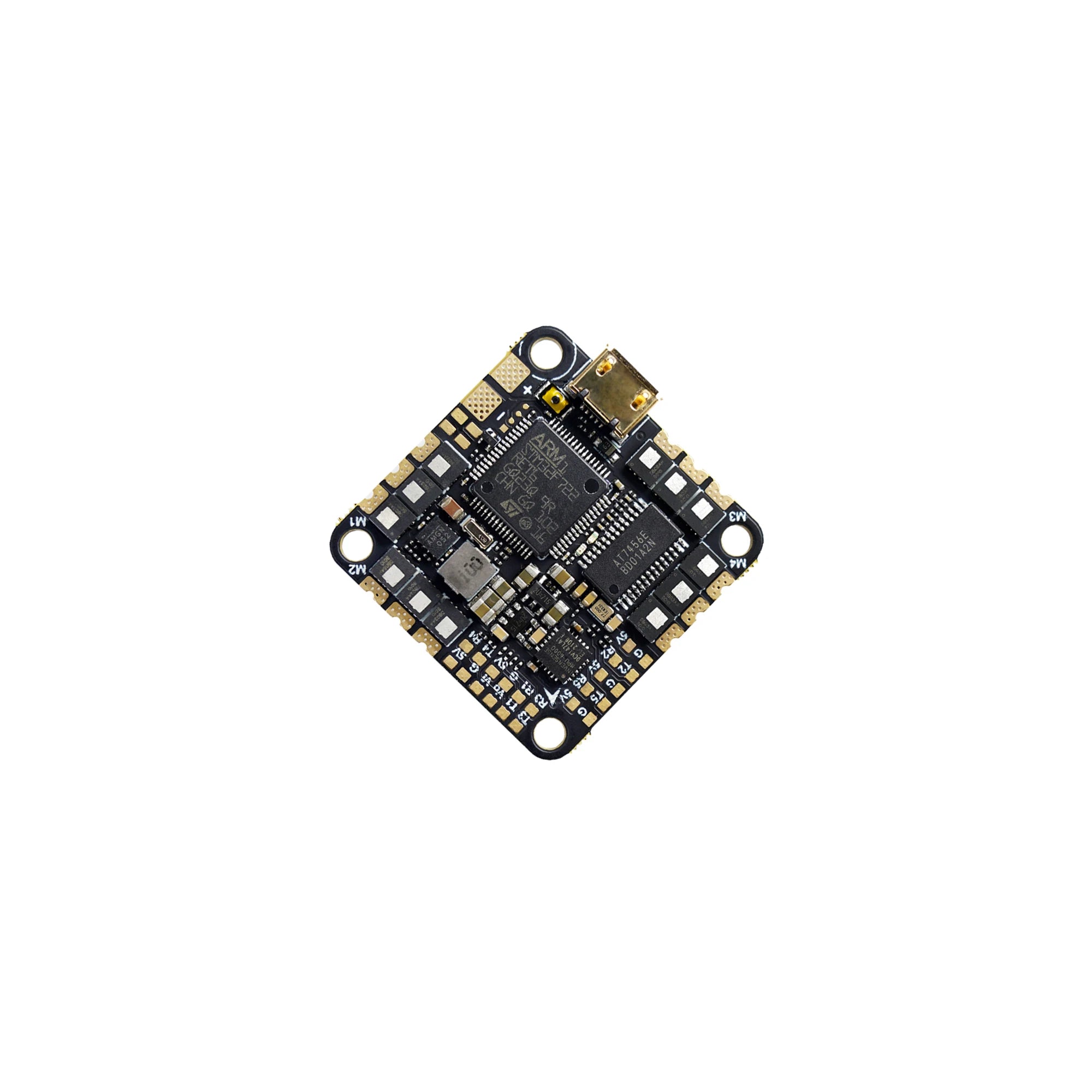

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO,it is released now.

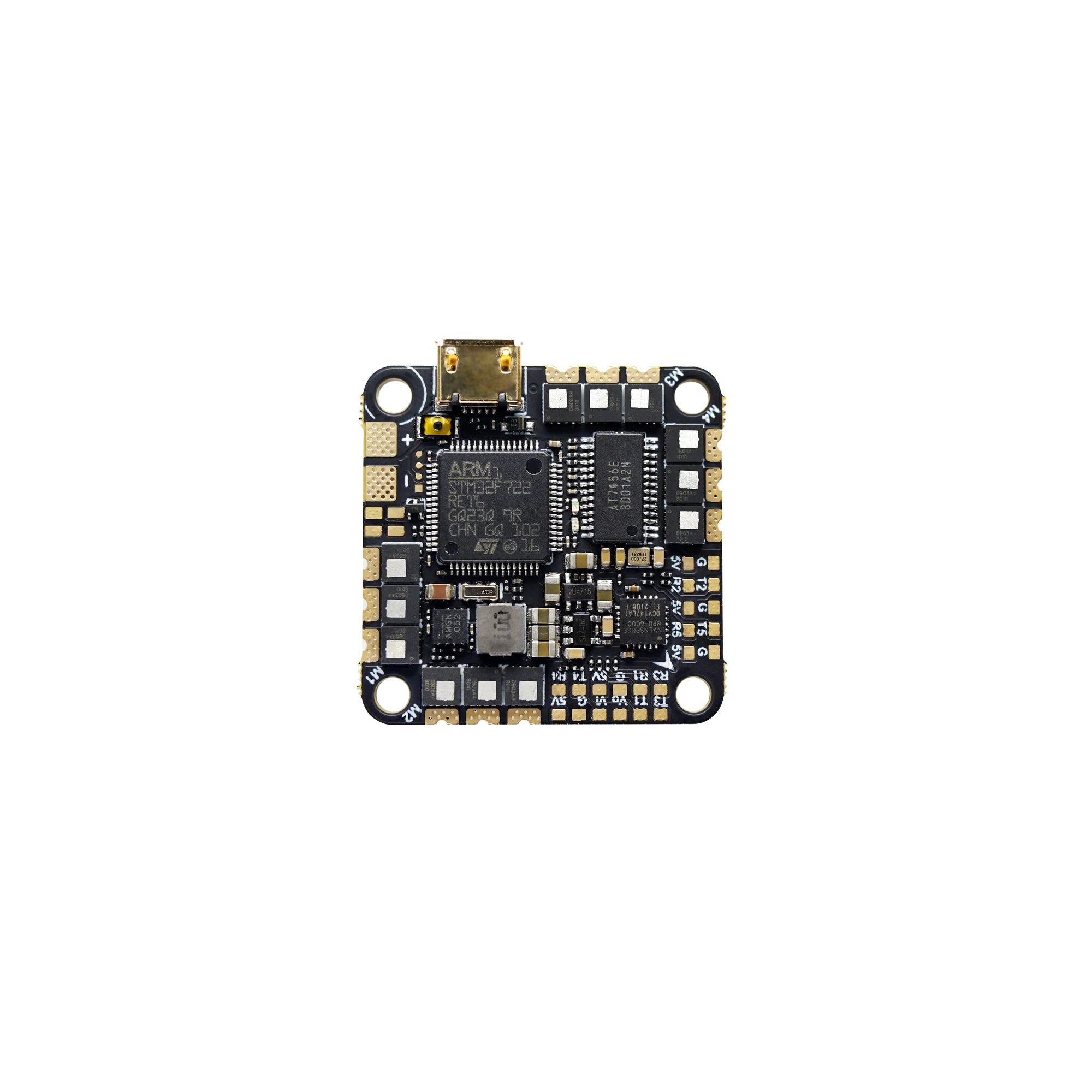

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

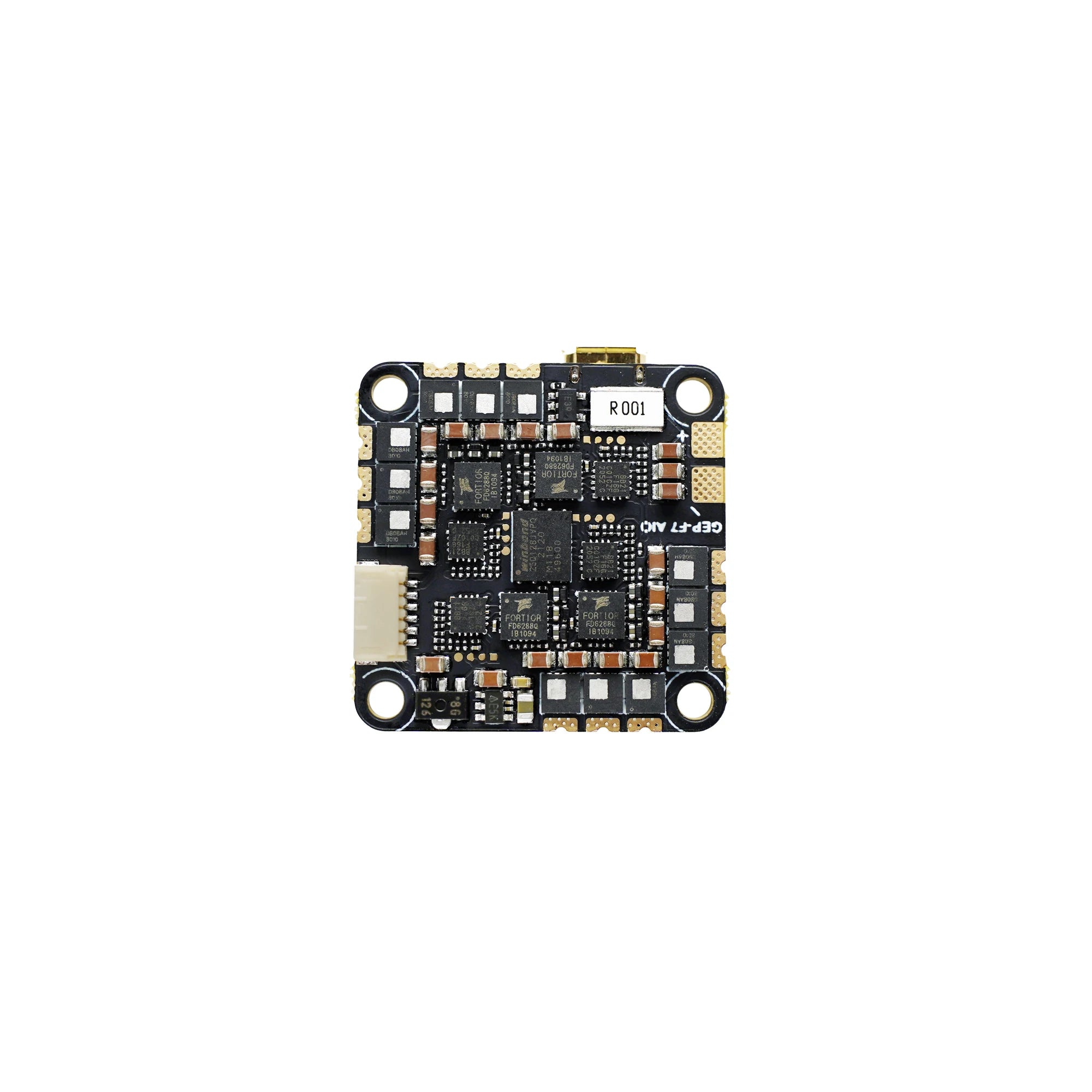

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 26.5mm * 26.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

Specification:

• Model Name:GEP-F722-45A AIO

• MCU:STM32F722

• IMU:MPU6000 gyro/accelerometer(SPI)

• Firmware target:GEPRC_F722_AIO

• OSD:Betaflight OSD w/ AT7456Ev

• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

• Beeper:YES

• LED:YES

• USB:Micro USB

• BEC output:5V@1A

• Intergrated LC Filter

• ESC MCU:8BB21F16G

• Continuous current:45A

• MAX current:55A (10s)

• Input:2~6S

• Supports:Dshot600,Oneshot,Multishot

• BlackBox: 16Mb

• Traget:G_H_30

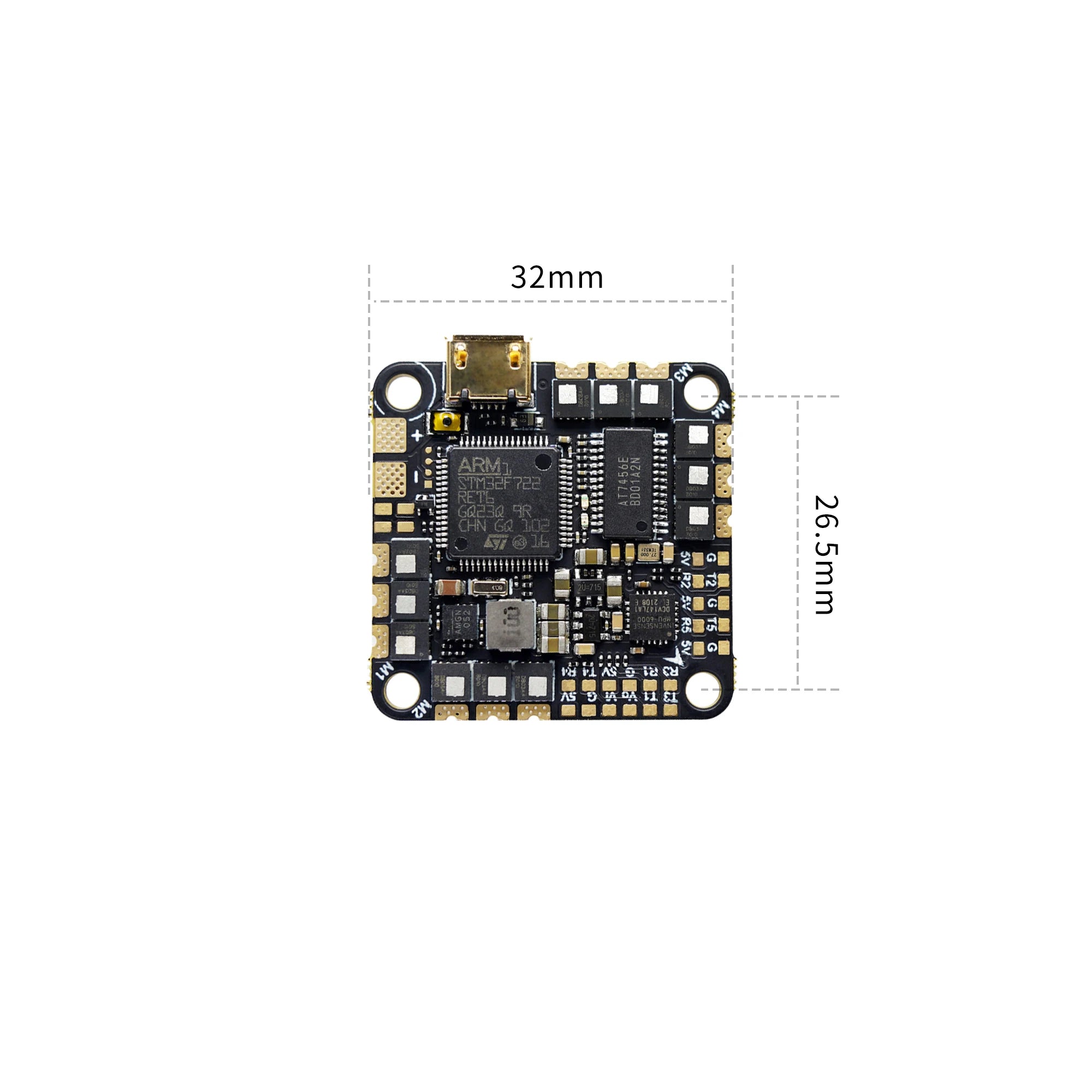

• Size:32x32mm Board

• Installing Hole:26.5×26.5mm,M2

• Weight:8.8g

Features:

• MCU:STM32F722,with strong performance and higher computing speed.

• It has 5 full UART ports, which can connect more external devices

• Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .

• The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.

• Support OSD parameter adjustment, buzzer, led and other functions.

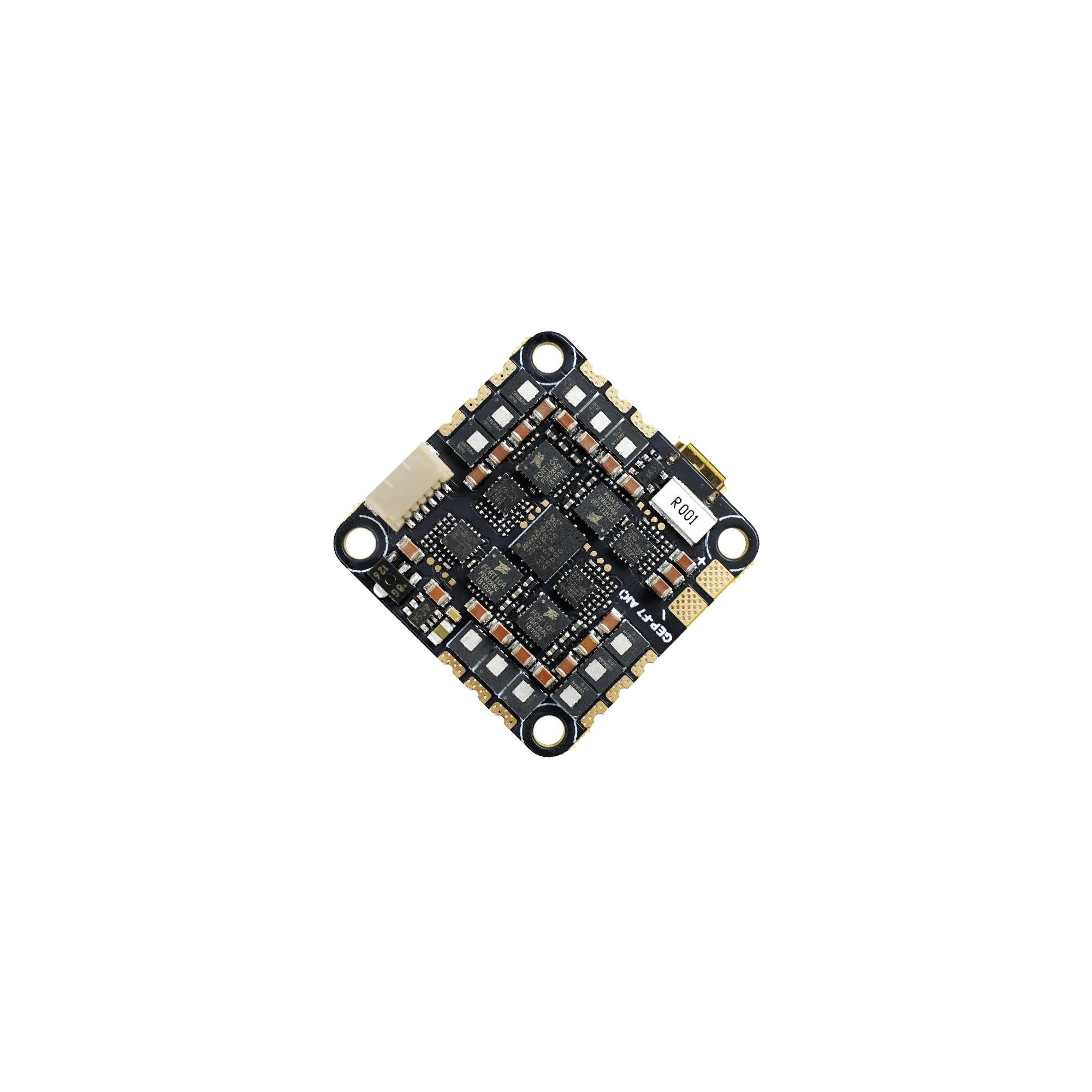

• 8g ultra light weight

• 5mm * 26.5mm mounting hole, suitable for most frames

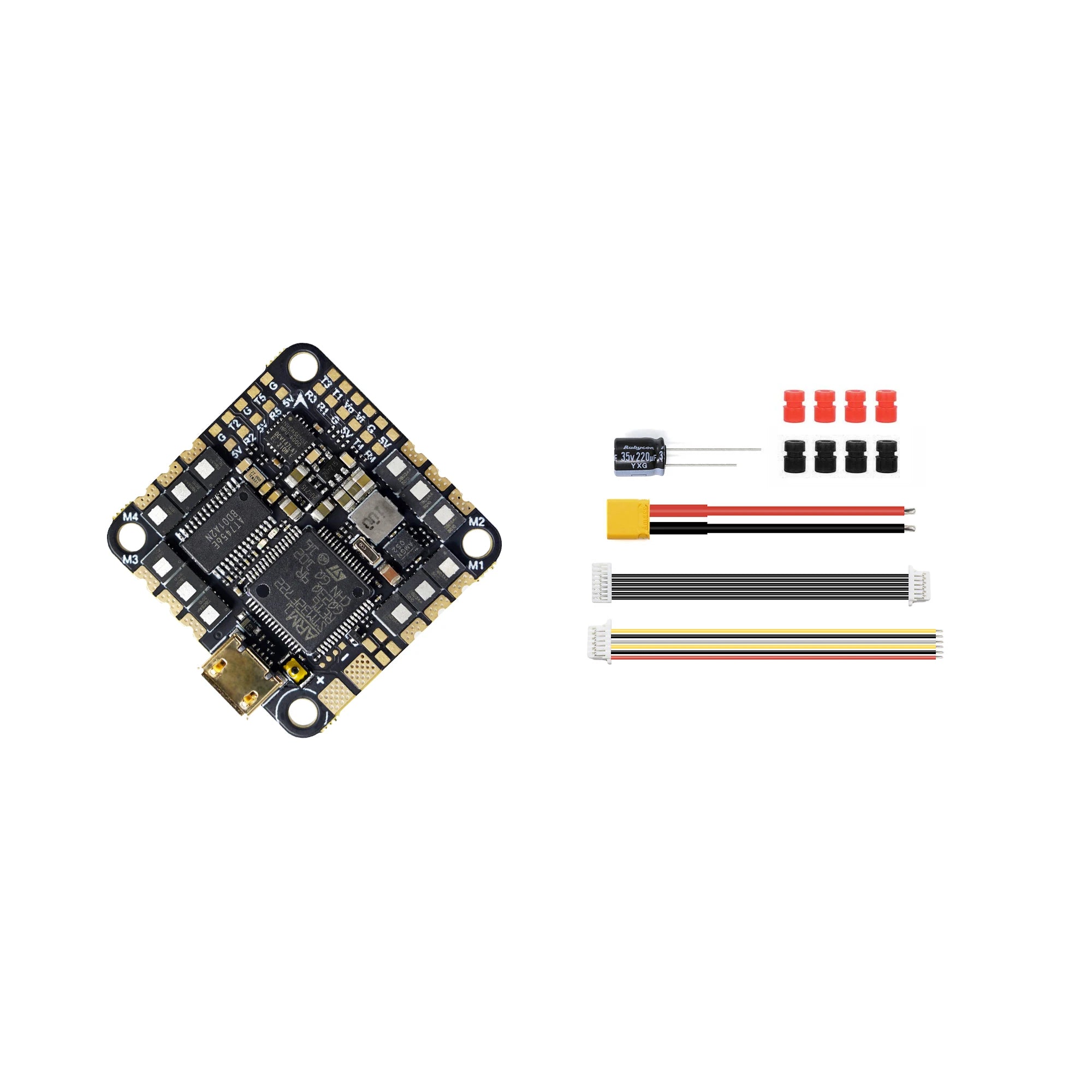

Include:

• 1 x GEP-F722-45A AIO

• 1 x XT30-7CM-18AWG Power cables

• 1 x 35V220UF capacitor

• 1 x SH1.0-6Pin to GH1.25-8Pin cables

• 8 x M2*6.5mm Damping rings

Manual:

F722-35A AIO USER MANUAL
