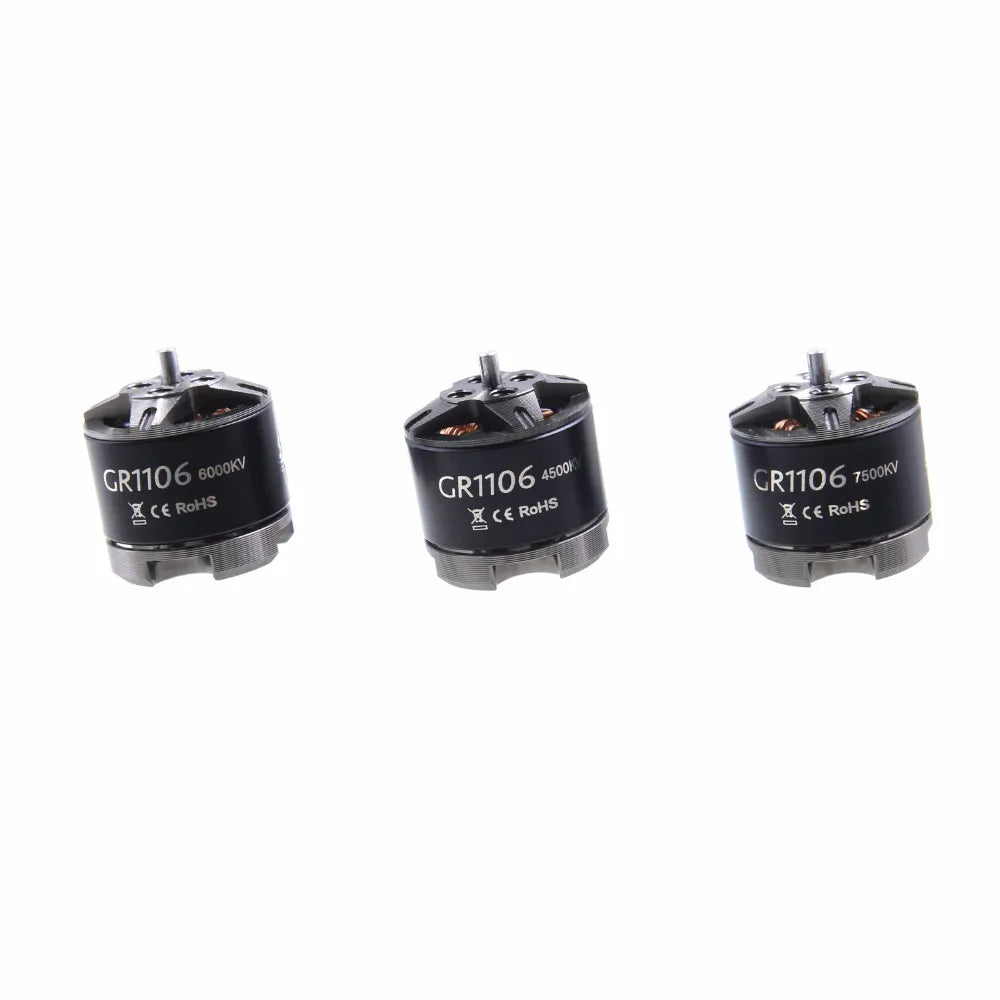

GEPRC GR1106 4500KV 6000KV 7500KV 2S–4S Small Brushless Motor for 2–3 Inch Micro FPV Whoop Racing Drone

The GEPRC GR1106 Brushless Motor is designed for high-performance micro FPV racing and whoop drones, offering a perfect balance of power, weight, and efficiency. Available in 4500KV, 6000KV, and 7500KV variants, this motor supports 2S to 4S LiPo batteries, making it versatile for various flight setups and propeller combinations from 1.9 to 3 inches.

Weighing only 7.1g, the GR1106 delivers up to 350g+ thrust and adopts NSK bearings, N50SH arc magnets, and 180°C high-temp copper wire, ensuring long-lasting performance and smooth power delivery even under full load.

🔧 KV Options & Recommendations:

💡 Key Features:

• KV Ratings: 4500KV / 6000KV / 7500KV

• Input Voltage: 2S–4S LiPo

• Max Continuous Power: 94W (7500KV) / 183W (6000KV) / 153W (4500KV)

• Peak Current (180s): Up to 15.27A

• Idle Current: As low as 0.6A

• Stator Size: 11×6mm

• Motor Dimensions: Φ14.2×14mm

• Shaft Diameter: 1.5mm

• Wire Length: 80mm

• Weight: 7.1g

• Mounting Pattern: 9×9mm (M2)

• Bearings: Japanese NSK

• Magnets: N50SH arc magnets

• Material: High-strength CNC aluminum

• Design: Dynamically balanced rotor with glue-secured wiring for durability

🔄 Performance Highlights:

• High thrust-to-weight ratio — Up to 350g+ thrust

• Smooth & efficient power output

• Perfect match for Gemfan GF2040×3 / GF2540×3 and DYS3030 props

• Ideal for micro racing builds, 2.5-inch toothpicks, and tight indoor tracks

📦 Package Includes:

• 1 × GEPRC GR1106 Brushless Motor (KV as selected)

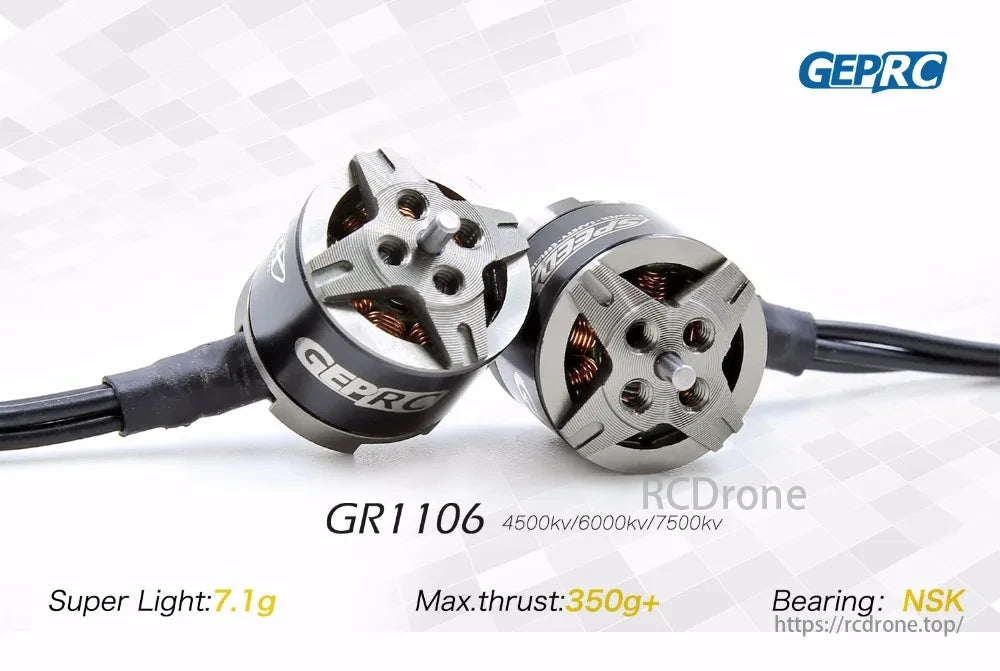

GEPRC GR1106 Motor: 4500/6000/7500kv, 7.1g weight, 350g+ thrust, NSK bearing.

GEPRC GR1106 Motor provides three KV options: 4500KV, 6000KV, and 7500KV. For 4500KV, use a 2-3-inch propeller with a 3~4S battery. The 6000KV version pairs best with a 2-2.5-inch propeller and 2~3S battery. With 7500KV, choose a 1.9~2.3-inch propeller and a 2S battery. These motors emphasize power, safety, and efficiency for diverse flight configurations. Each motor complies with RoHS standards and offers distinct KV ratings to ensure peak performance in various setups. This versatility makes the GR1106 suitable for multiple applications.

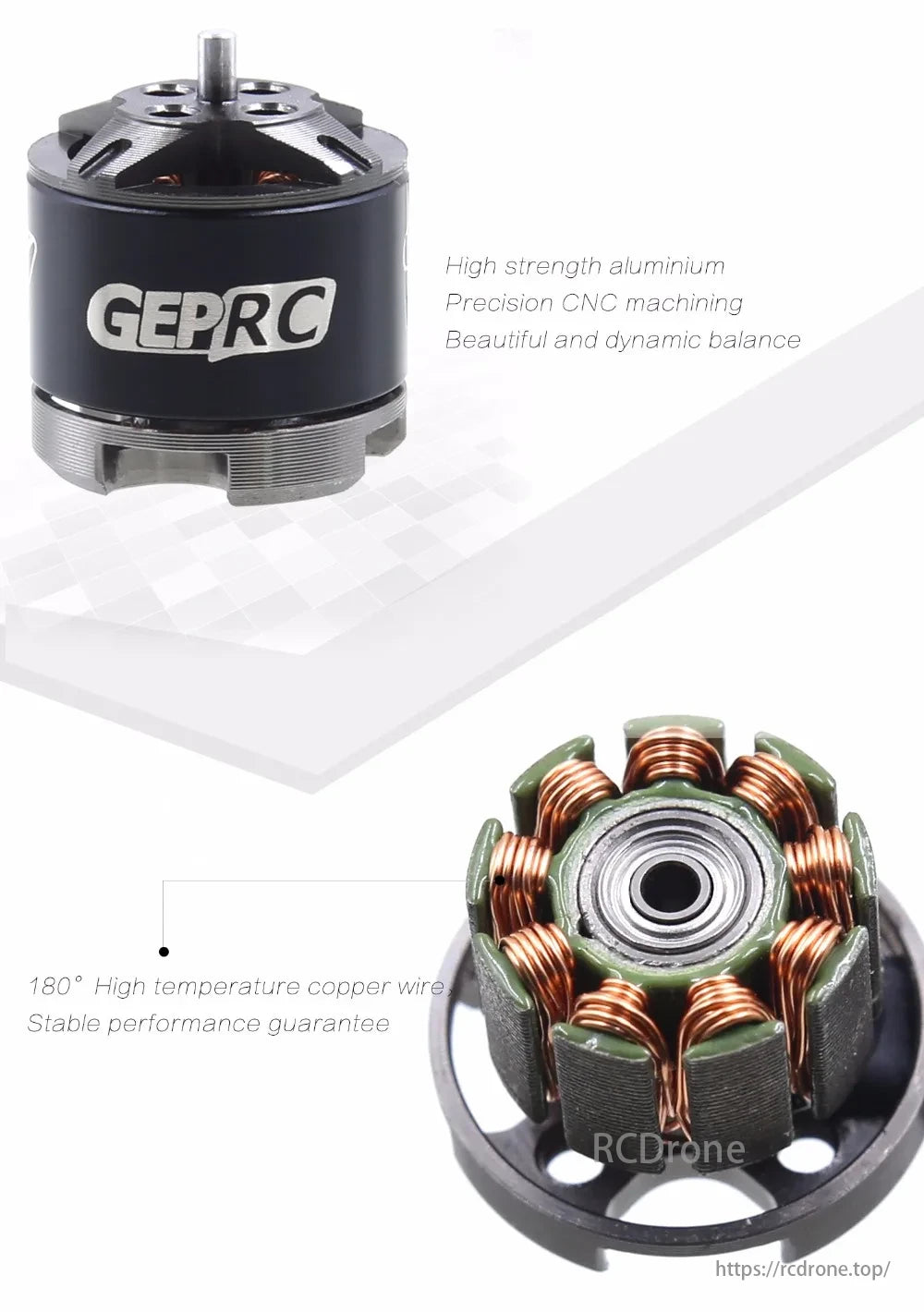

High-strength aluminum, precision CNC machining, dynamic balance, 180° high-temperature copper wire ensure stable performance.

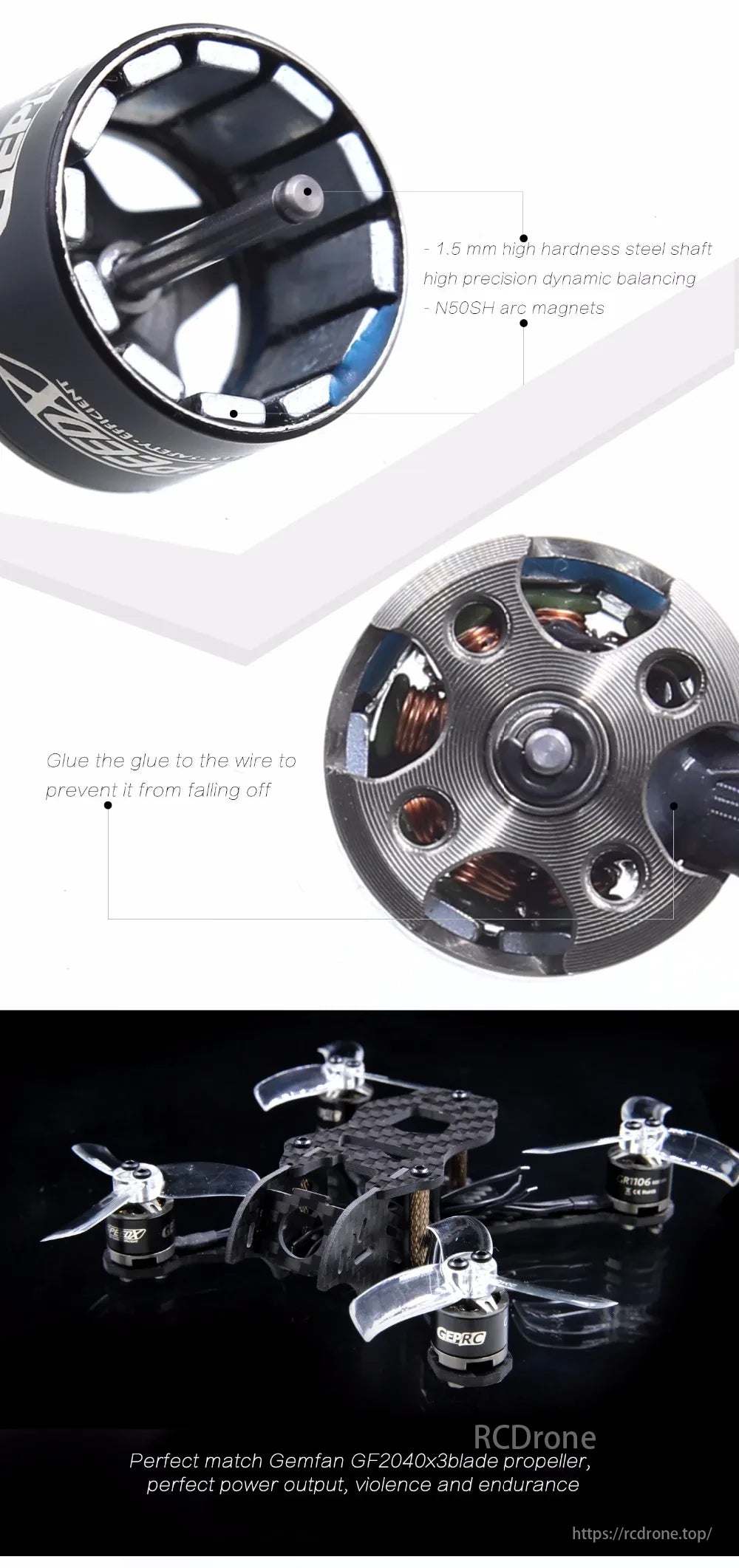

GR1106 Motor has a 1.5 mm steel shaft, N50SH magnets, balanced design, glued wires, and optimally matches Gemfan GF2040x3blade propeller.

GR1106 motor specs: KV 7500/6000/4500, 9N12P config, 11mm stator diameter, 6mm length, 1.5mm shaft. Max power 94W/183W/153W, max current 11.72A/15.27A/9.59A, weight 7.1g.

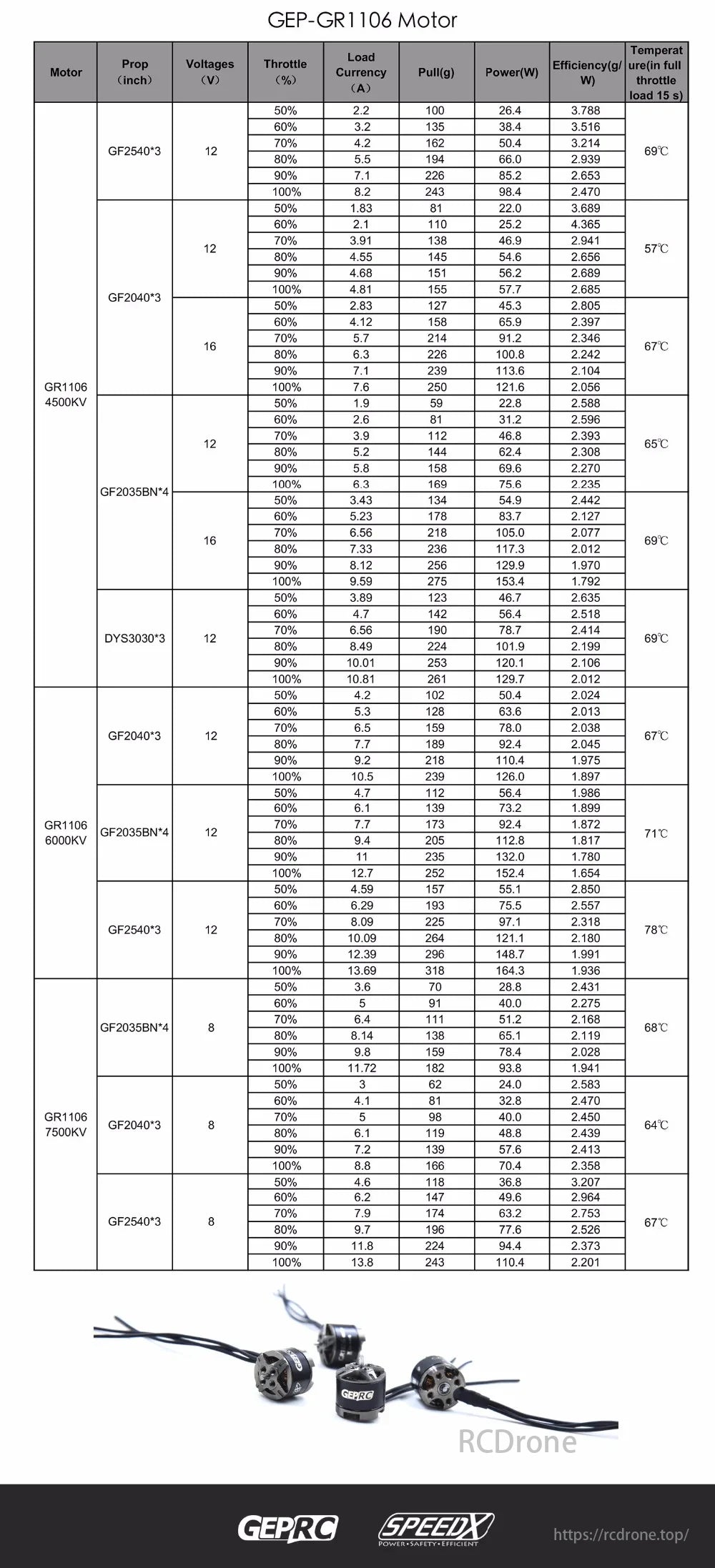

GEPRC GR1106 Motor specs: 4500KV, 6000KV, 7500KV variants. Includes voltage, throttle, load current, pull force, power, efficiency, and temperature data for various props. Detailed performance metrics for optimal use.
