Summary

Hello all FPV enthusiasts, in order to improve customer experience, the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based on u-blox M10 chip: GEP-M10nano, GEP-M10, GEP-M10-DQ.

GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. Using the M10 chip solution of u-blox company, it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.

Specifications

• Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ

• GPS chip: u-blox M10

• Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ: QMC5883L

• Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ:DPS310

• Input voltage: 3.3V-5V

• Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1

• Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning

• Channel: 72ch

• Navigation satellites: Up to 32 pieces

• Output protocol: GEP-M10nano: UART(ublox) / GEP-M10: UART(ublox) / GEP-M10-DQ: UART(ublox),I2C

• Baud rate: 115200bps

• Output Frequency: 10Hz

• Speed Accuracy: 0.05 m/s

• Horizontal positioning accuracy: 2D ACC1.5m(Weather)

• Timing accuracy: 30 ns

• Receiver sensitivity: Trace-162dBm, Capture-160dBm

• Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s

• Maximum acceleration: 4G

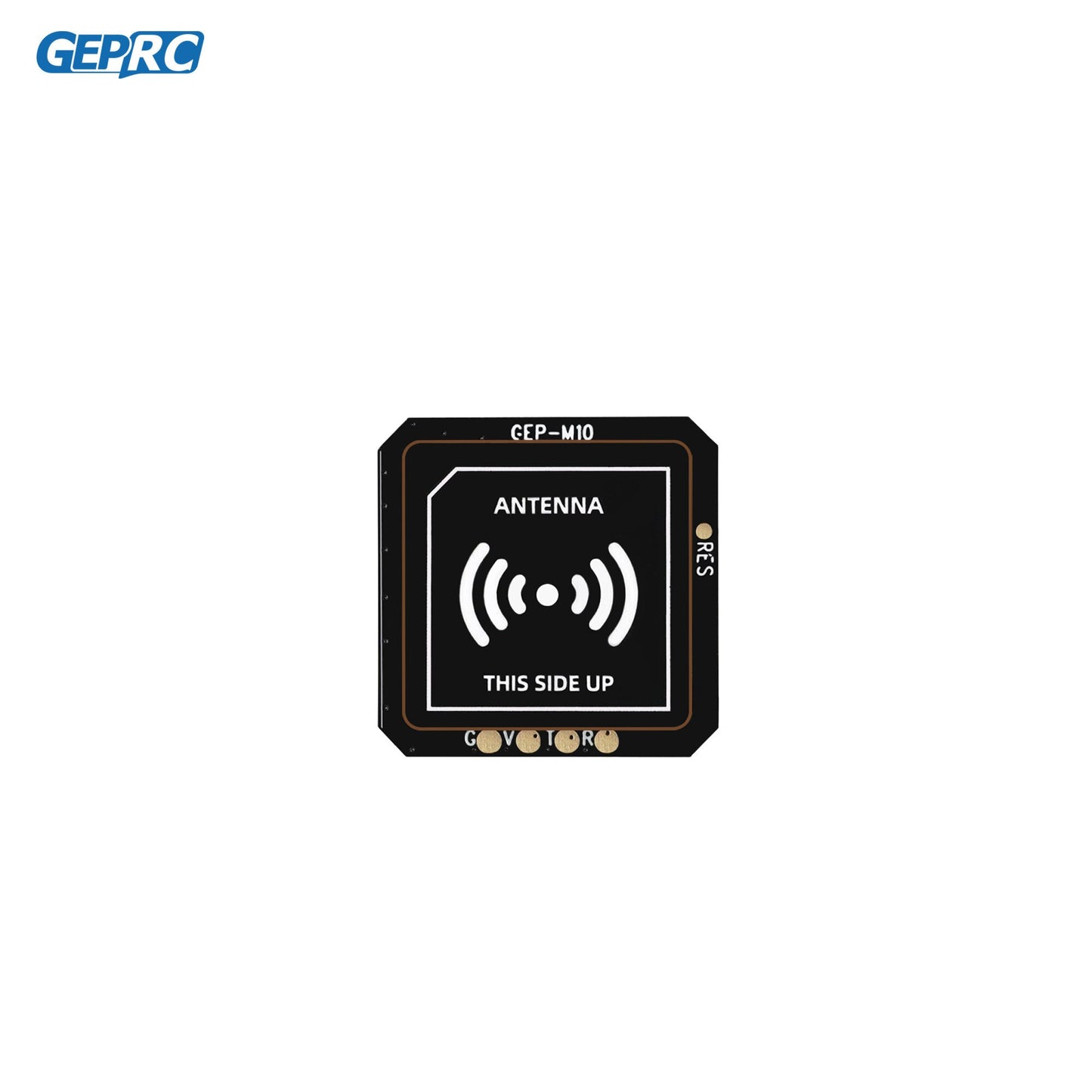

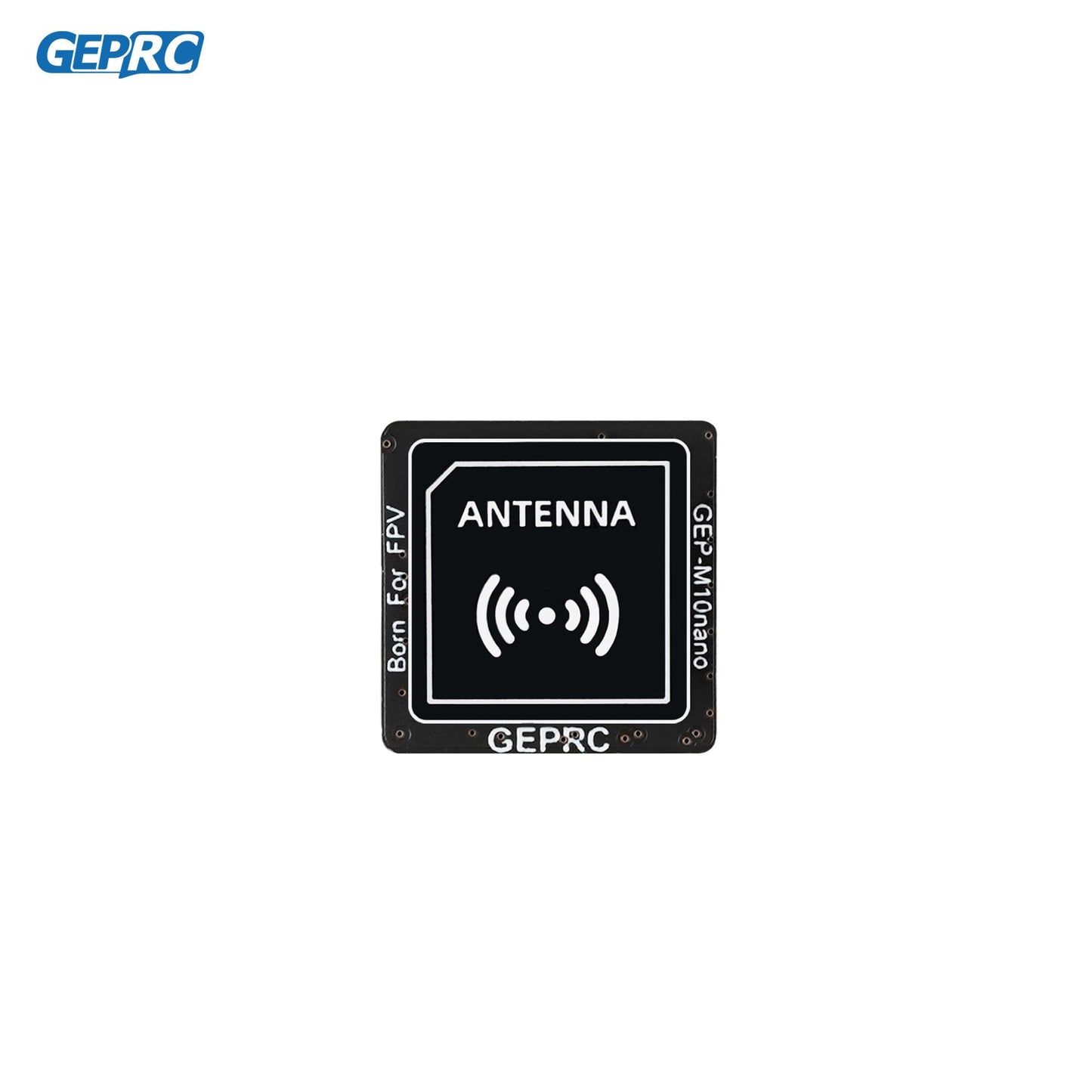

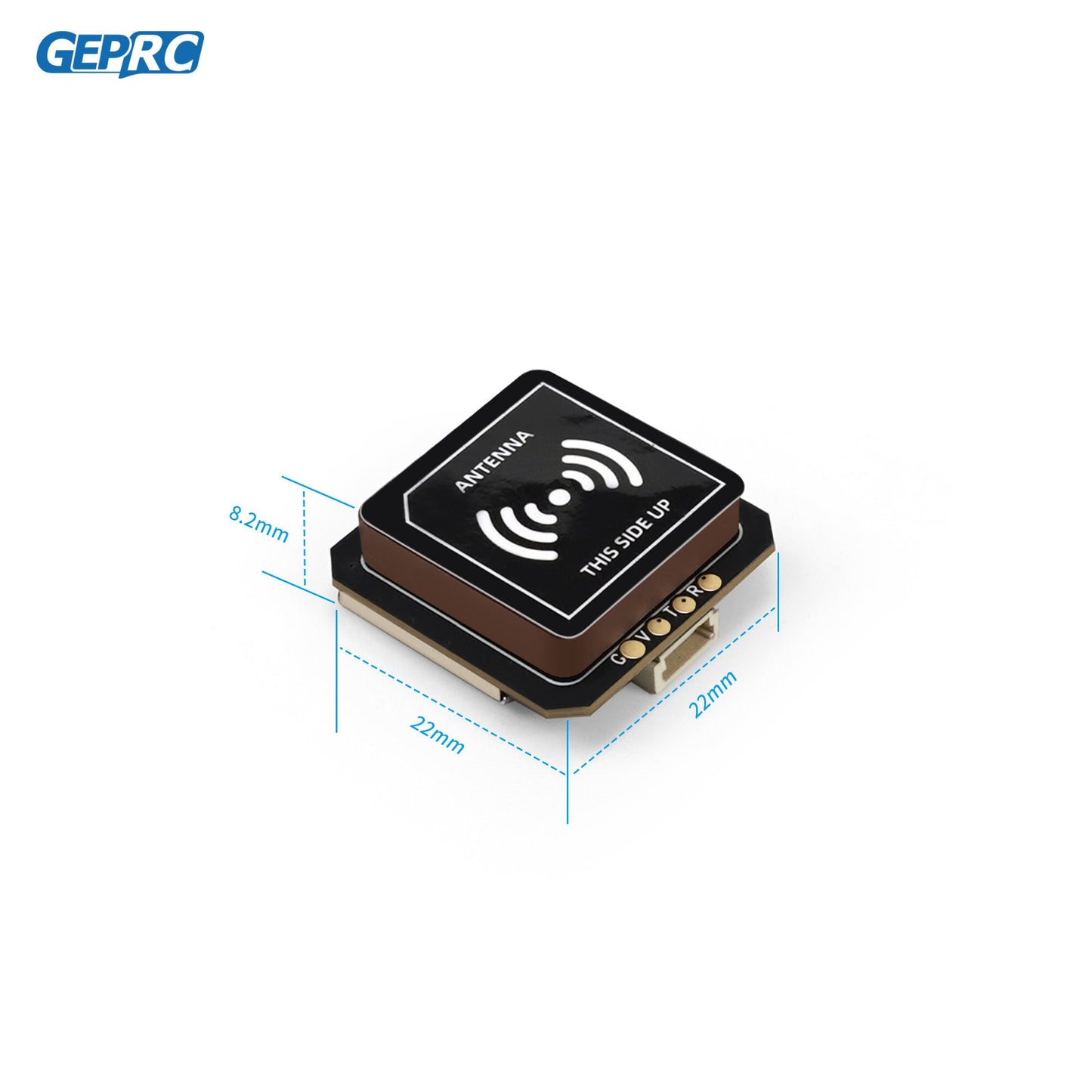

• Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm

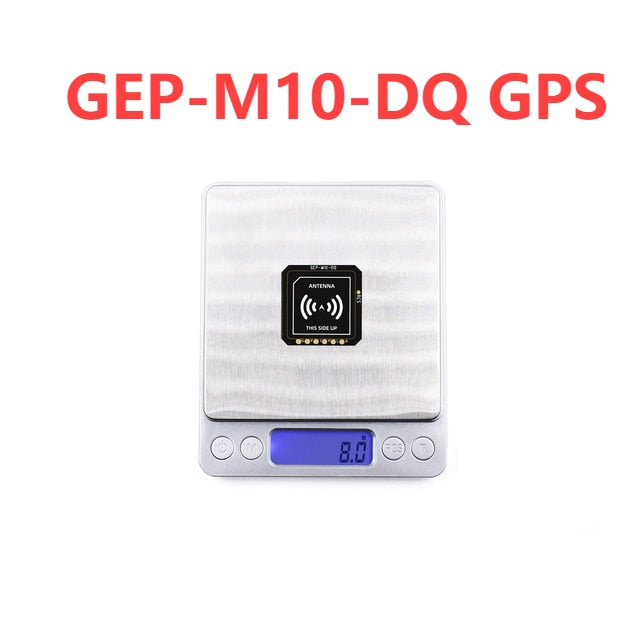

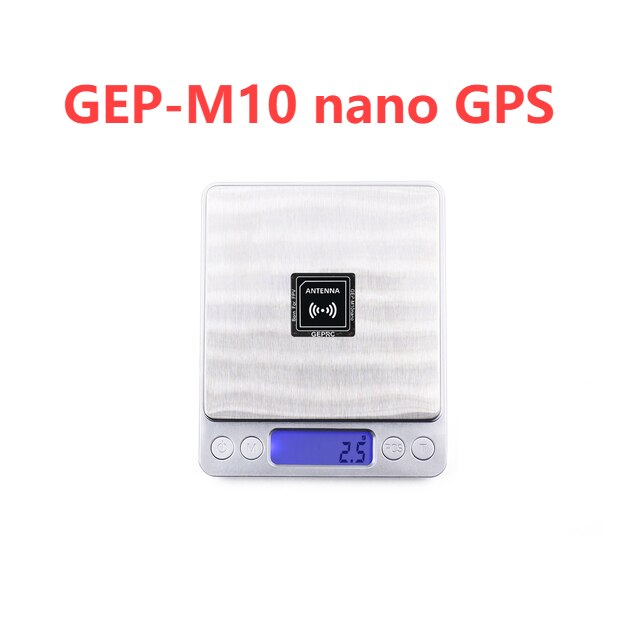

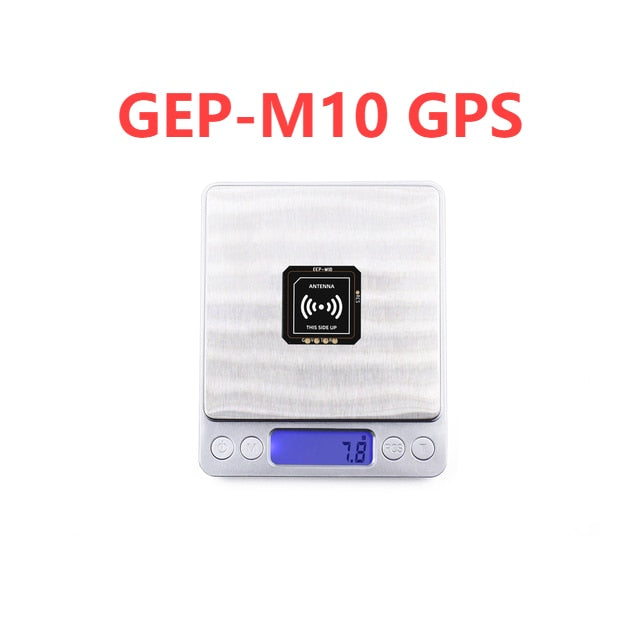

• Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g  / GEP-M10-DQ: 8.0g

Features

1. U-blox M10 series chip

2. Fast positioning speed

3. GPS+BDS+Galileo+QZSS+SBAS joint positioning

4. Up to 32 satellites

5. Stable connection quality

6. Unique appearance design

7. Small size and light weight

8. Built-in Flash chip and Farad capacitor

9. Onboard indicator light, easy to use

10. Integrated magnetometer+barometer,integrated module (GEP-M10-DQ)

Includes

1 x GPS module

1 x Terminal wire

1 x Instruction manual

1 x GEPRC sticker

1 x Heat shrink tubing

GEPRC's GEP-M10 series GPS module integrates the U-Blox M10 chip, QMC5883L magnetometer, DPS310 barometer, and FPV drone capabilities for fast positioning, stable connection, and high precision joint positioning.

The GEPRC GEP-M10 series GPS module provides multi-constellation joint positioning capabilities, combining signals from GPS, BDS, Galileo, QZSS, and SBAS for horizontal accuracy within 1.5 meters.

The GEPRC GEP-M10 series GPS module features an Ublox M10 chip, providing fast and accurate positioning capabilities with high-speed data transmission rates.

The integrated GPS module, GEP-M10-DQ, combines the QMC5883L magnetometer and DPS310 barometer for accurate azimuth pointing, enhanced sensitivity to altitude changes, and more stable flight performance.

The GEPRC GEP-M10 series GPS module is available in two compact sizes: 15x15mm and 22x22mm, making it suitable for various drone models. Its small form factor allows for easy integration into tight spaces.

The GEPRC GEP-M10 series GPS module features a compact design with dimensions of 15mm x 15mm, suitable for integration into various FPV drone models. Its pinout includes: GND, #5V, FC, SCL, SDA, and is compatible with the Ger-Nano format.

The GEPRC GEP-M10 series GPS module features specifications for the following models: GEP-MIOnano, GEP-M1O, and GEP-M1O-DQ, which are all based on the U-blox GPS chip.
