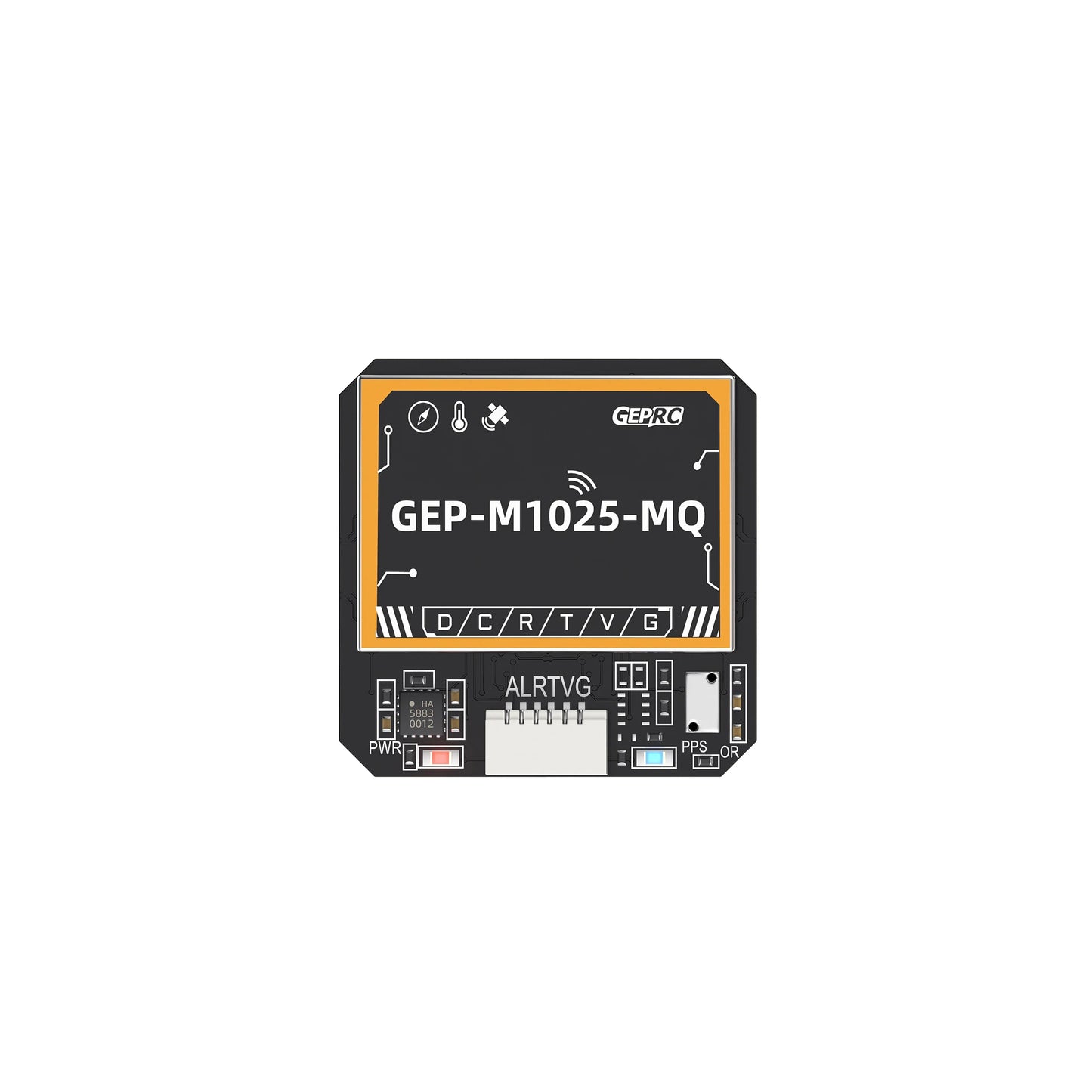

GEPRC GEP-M1025 Series - GPS Module M10050 Chip Multi Satellite Magnetometer Barometer Farad Capacitor Accurate for FPV Drone

GEPRC GEP-M1025 Series - GPS Module M10050 Chip Multi Satellite Magnetometer Barometer Farad Capacitor Accurate for FPV Drone

GEPRC

Regular price $23.18 USD
Regular price $32.45 USD Sale price $23.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

71 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC GEP-M1025 Series SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Transmitters

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: GEP-M1025 Series GPS Module

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws


GEPRC GEP-M1025 Series - GPS, GEPRC 039 GEP-M1025 1 8 series GPS modules 3

Summary

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on  M10050 chip and using 25*25mm antenna are now launched.

The GEP-M1025 series GPS positioning module uses  M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.


Feature

  1.  M10 series chip

  2. GPS+BDS+Galileo+QZSS+SBAS joint positioning

  3. Fast positioning speed,Up to 32 satellites

  4. Stable connection quality

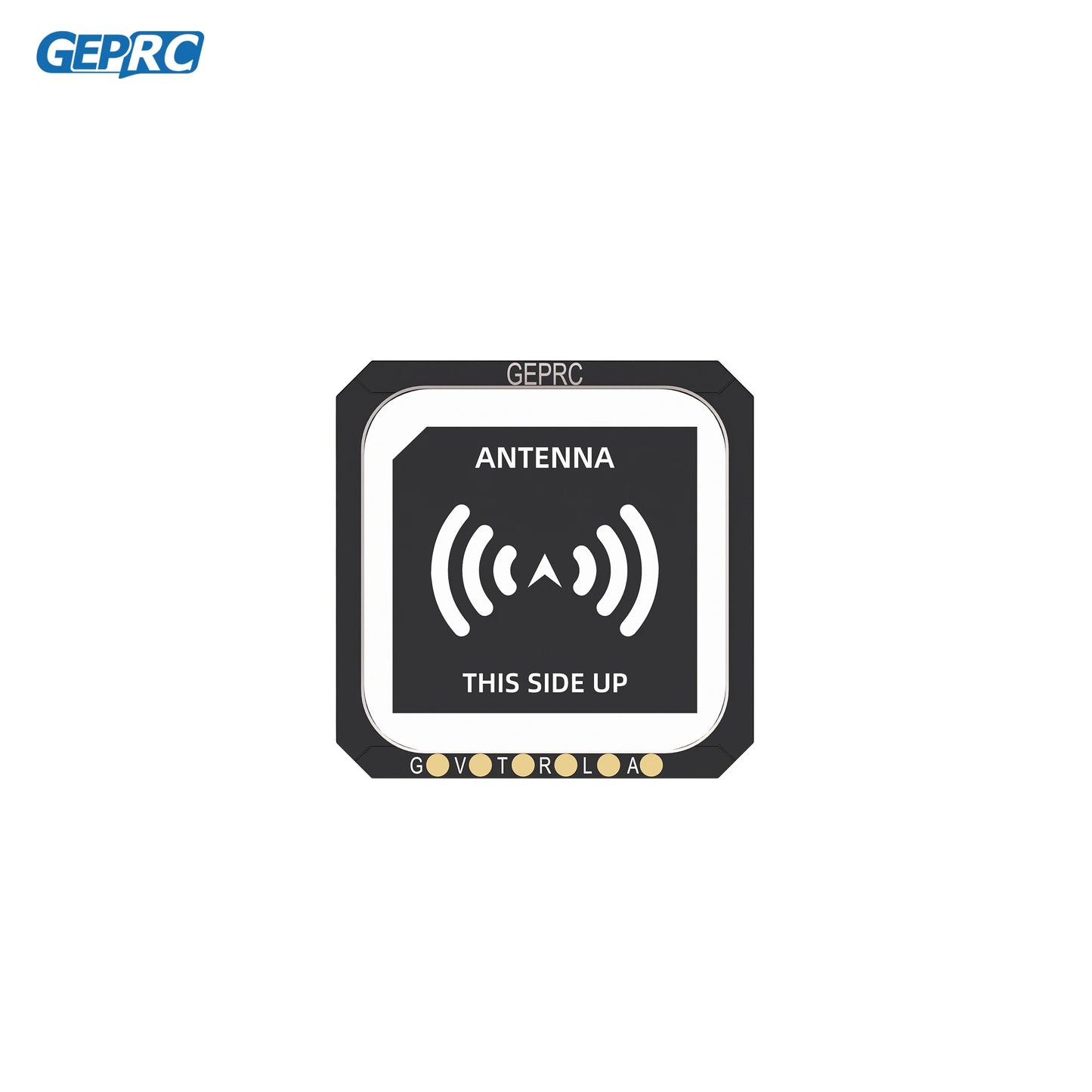

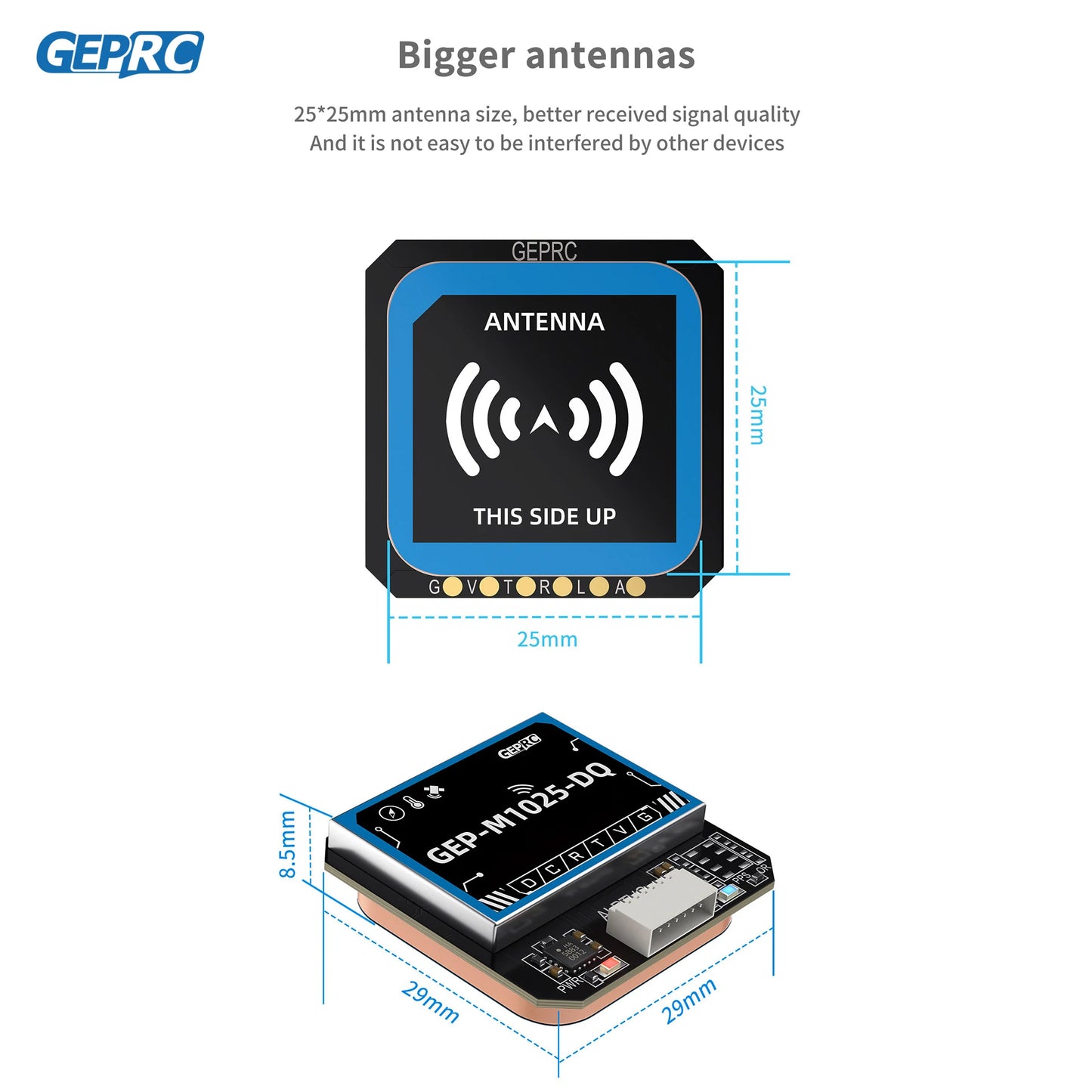

  5. 25*25mm antenna size, better signal receiving performance

  6. Built-in Flash chip and Farad capacitor

  7. Onboard indicator light, easy to use

  8. Optional integrated magnetometer+barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing

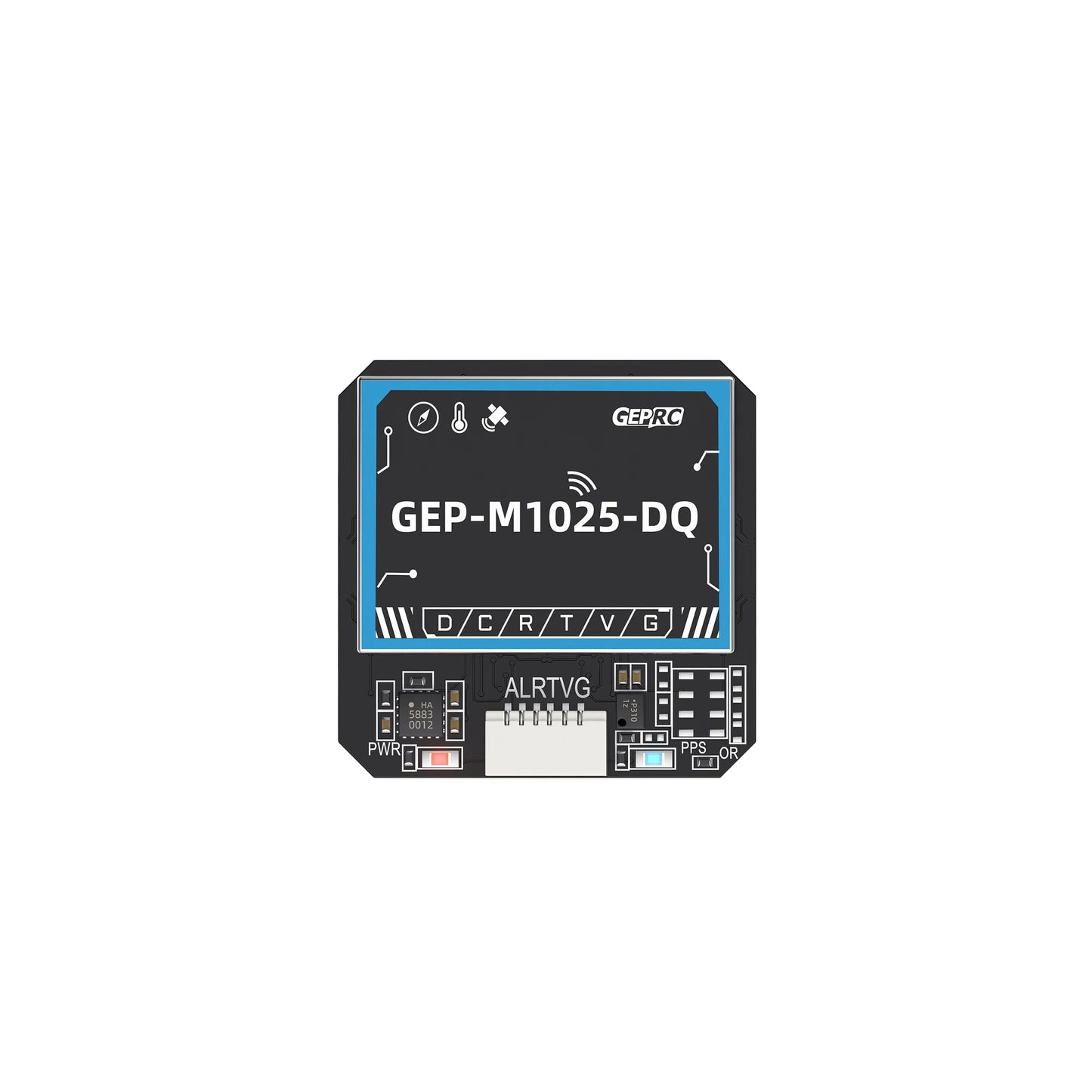

GEPRC GEP-M1025 Series - GPS, GPS modules GEPRG GEP-M1025-DQ DC GEPRC G

GEPRG GEP-M1025-DQ DC [GEPRC GEPRC ALRTVG PWR PPS GEP - M1025 R INC] [R alRTVG GEPRP PWRpPS PPS PWRE GEP M1O chip 25*25mm antenna Joint positioning IST8310/QMC5883L DPS3IO/MS5611 Mag Barossa/M1O Chip 25*75mm antenna

GEPRC GEP-M1025 Series - GPS, GPS+BDS+Galileo+QZSS+SBAS joint positioning

This GPS module features a 10th-generation M10050 chip that enables multi-satellite joint positioning via GPS, BDS, Galileo, QZSS, and SBAS systems.

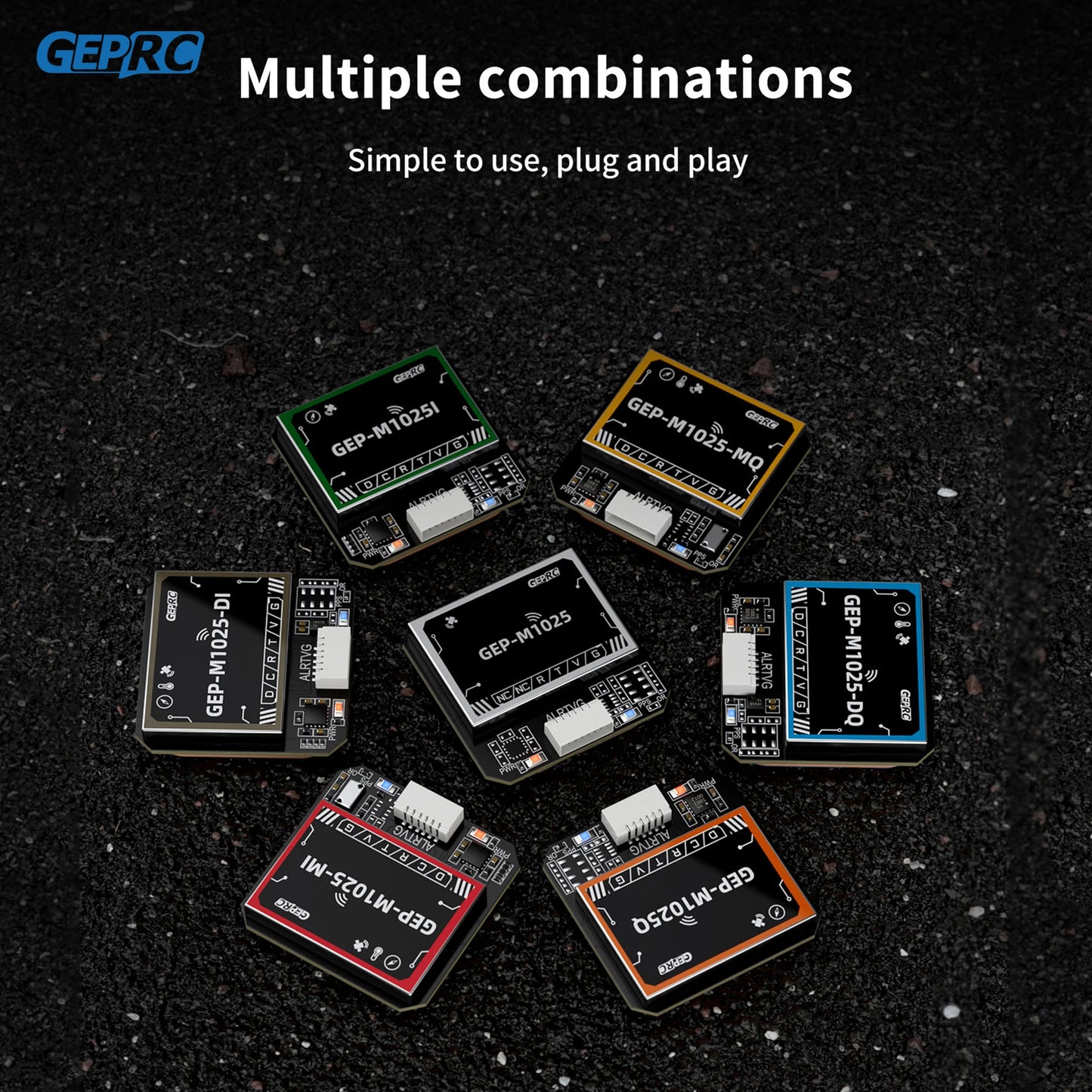

GEPRC GEP-M1025 Series - GPS, GEPRC GEP-M1025

This GPS module is easy to use and features plug-and-play functionality. It supports multiple combinations of satellite systems, including 7 satellites for positioning, 2 satellites for magnetometer readings, and 3 satellites for barometric pressure measurements. Additionally, it features a capacitor and Farad component for accurate performance in FPV drone applications.

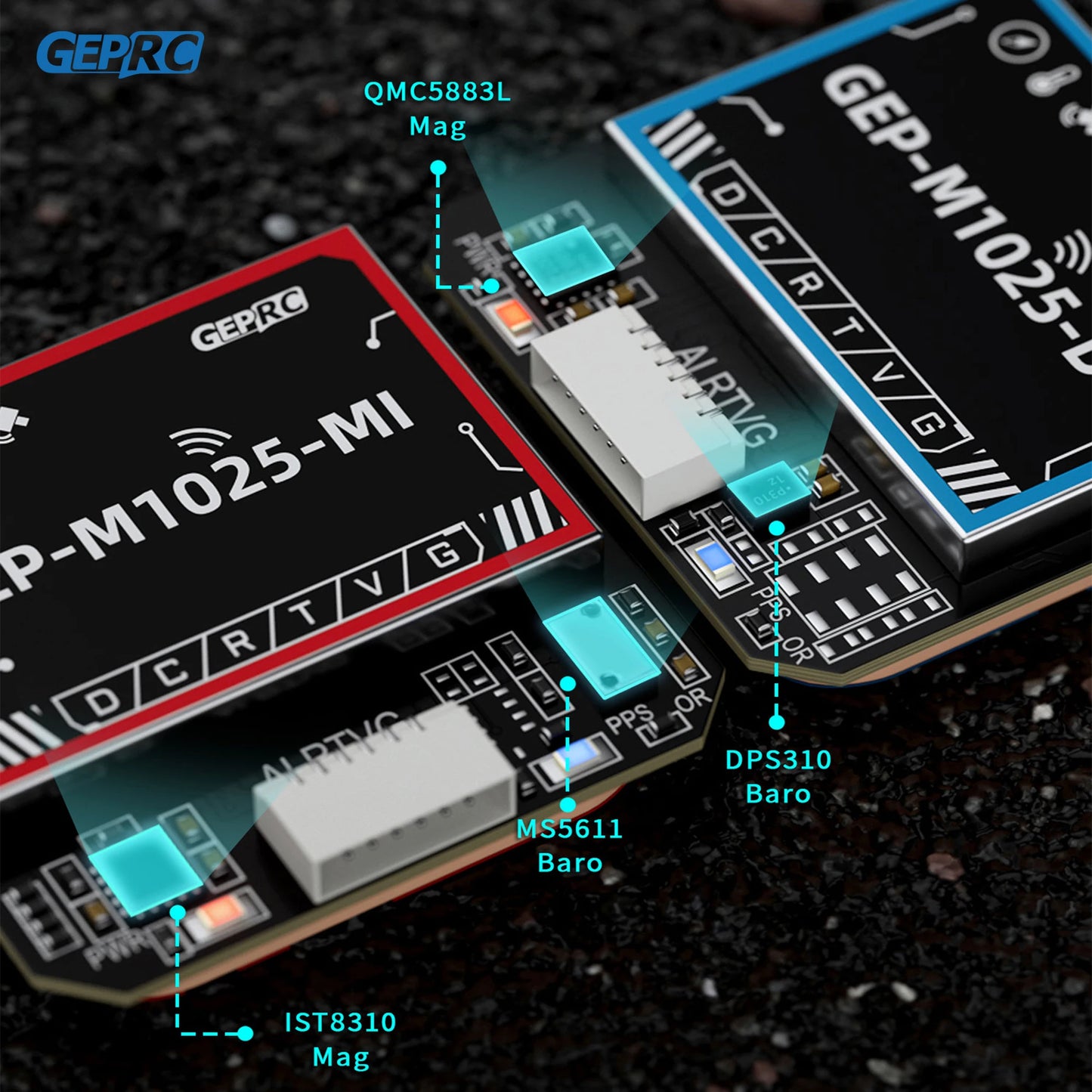

GEPRC GEP-M1025 Series - GPS, QMC5883L/IST8310 magnetometer and DPS31O/MS56

This GPS module features advanced sensors, including a QMC5883L magnetometer and an IST8310 or MS5611 barometer for precise measurements. With these options, users have more flexibility and customization possibilities.

GEPRC GEP-M1025 Series - GPS, the GEP-M1025 series of GPS products based on M10050 chip andGEPRC GEP-M1025 Series - GPS, GEPRC GEP-M1025

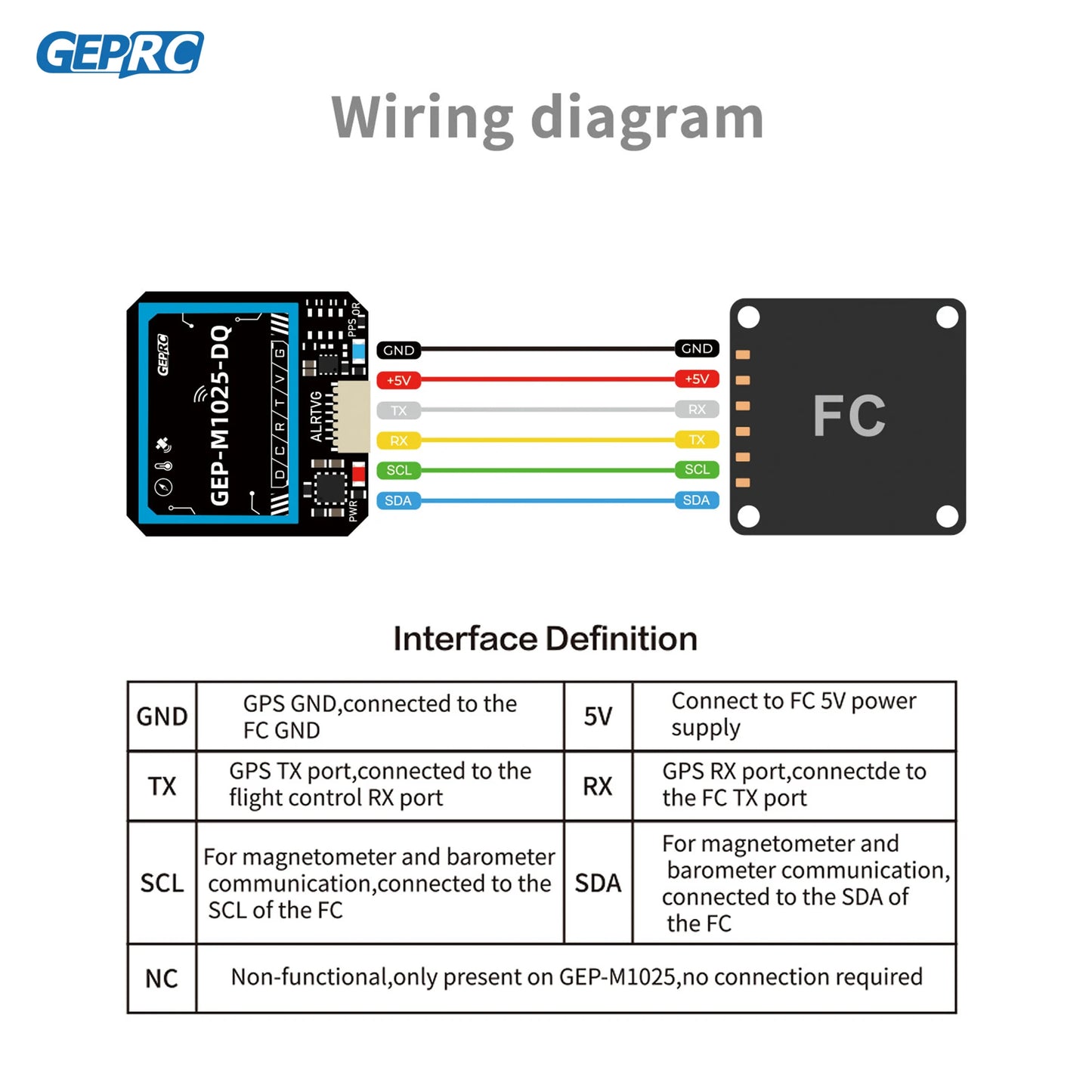

The interface definition for this GPS module includes: * Ground (GND) and +5V power connections * SV (supply voltage) connected to the FC (flight control) power supply * RX port connected to the FC TX port * SDA and SCL interfaces connected to the FC SDA and SCL respectively Note that there is also a Non-Functional (NC) pin present only on the GEP-M1025 model, but no connection is required.

GEPRC GEP-M1025 Series - GPS, ' : Output protocol UART,IZC (Baro,Mag) Bau

This GPS module features the following output protocol characteristics: * Output protocol: UART (with Baro and Mag data) * Baud rate: 115200bps * Output frequency: 10Hz * Speed accuracy: ±0.05m/s * Horizontal positioning accuracy: 2D ACCISm (weather) with an accuracy of [insert accuracy value] * Timing accuracy: 30ns * Receiver sensitivity: + Trace: -162dBm + Capture: -160dBm * Dynamic characteristics: + Maximum height: 5000m + Maximum speed: 500m/s * Size: 29x [insert size value] Note that the maximum acceleration is also 46g.

GEPRC GEP-M1025 Series - GPS, Mag&Baro Parameters QMC5883L IST8310 DPS31GEPRC GEP-M1025 Series - GPS, QMC5883: 0° flip, IST8310: CW 90°GEPRC GEP-M1025 Series - GPS, GEPRC GEP-M1025-MQ DJc/Rfi/GEPRC GEP-M1025 Series - GPS, Optional QMC5883L/IST8310 magnetometer and DPS310/MS
