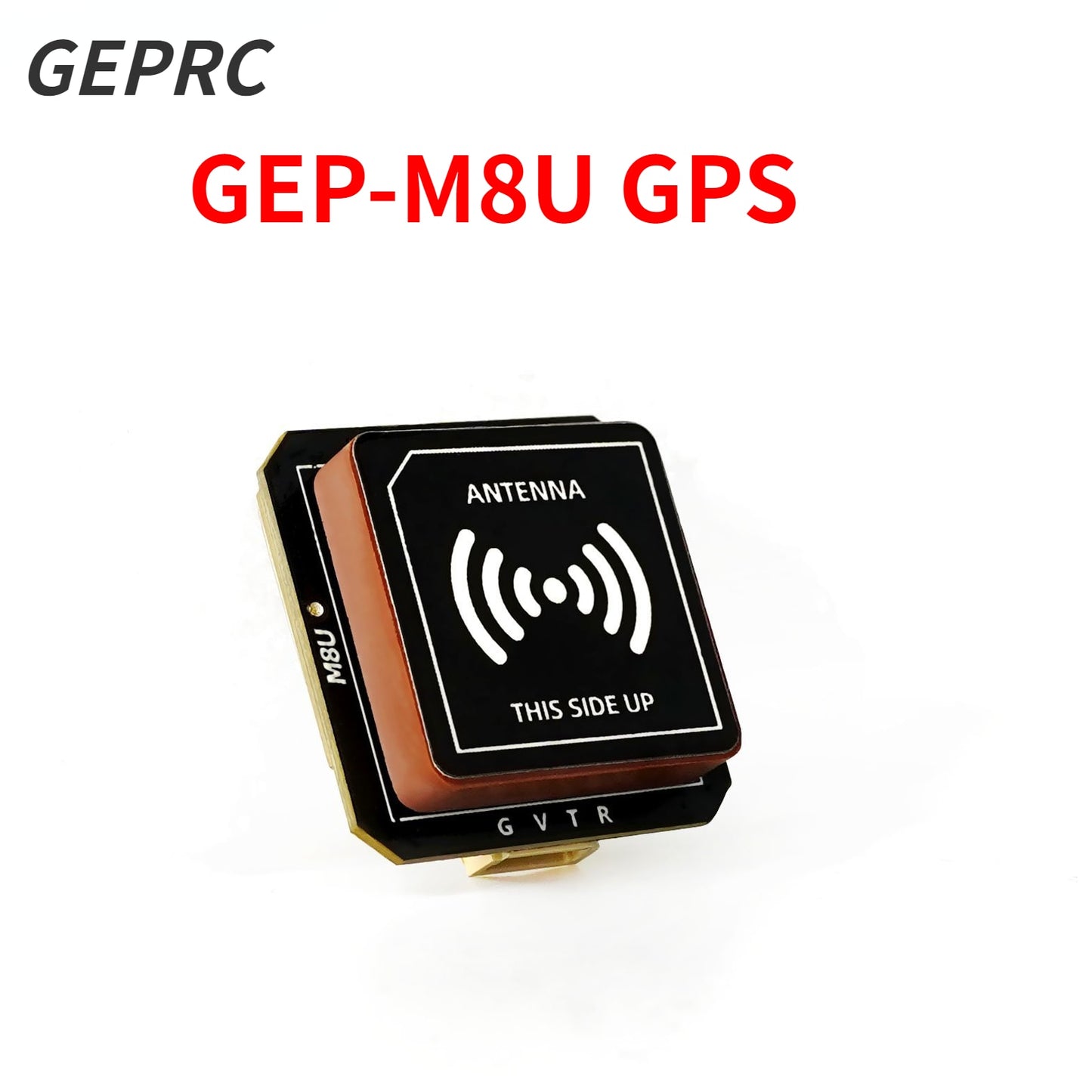

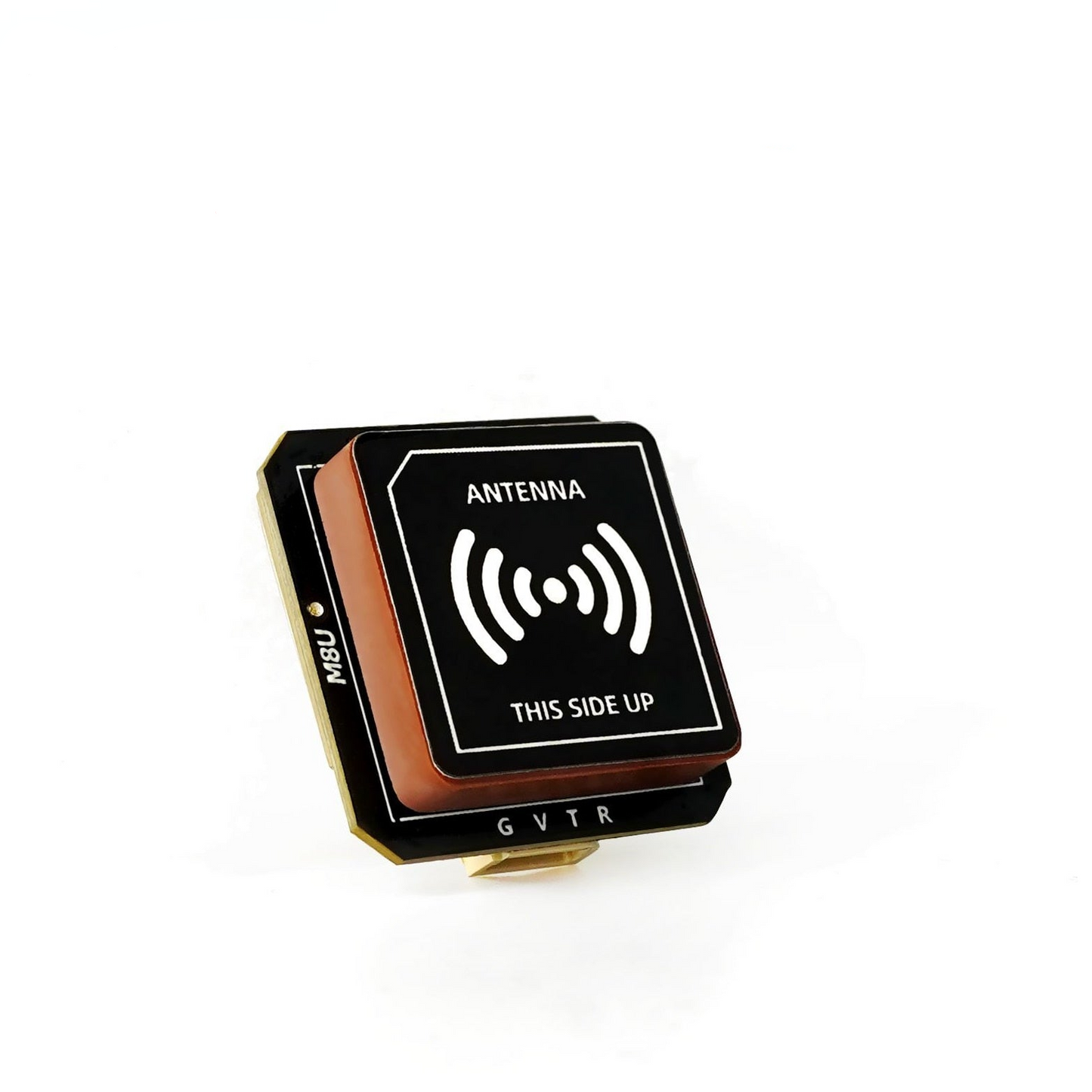

GEPRC GEP-M8U GPS Module - Integrate BDS GLONASS Module SH1.0-4Pin and Farad Capacitor for FPV Drone

GEPRC GEP-M8U GPS Module - Integrate BDS GLONASS Module SH1.0-4Pin and Farad Capacitor for FPV Drone

GEPRC

Regular price $25.35 USD
Regular price $43.09 USD Sale price $25.35 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

57 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC GEP-M8U GPS Module SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Technical parameters: KV1100

Size: 1 inch

Remote Control Peripherals/Devices: Starter

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: GEP-M8U GPS Module

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Certification: CE,EAC,UL

Brand Name: KINGMODEL

GEPRC GEP-M8U GPS, GEPRC GEP-M8U ANTENIA ThIS SIDE UP

Summary

Hello FPV fans, GEPRC team has developed a GPS module to upgrade the user experience.

GEP-M8U GPS module features as small size, light weight, fast positioning and stable connection. Suitable for FPV, fixed-wing and other products.

Specifications

  • Model: GEP-M8U GPS module

  • Input Voltage: 3.3V-5V

  • Receiving Format: GPS, GLONASS, BDS(Choose GLONASS or BDS)

  • Channel: 72ch

  • Compass: None

  • Baud Rate: 115200bps

  • Output Connector: SH1.0-4P

  • Communication Protocol: UART

  • Output Protocol: UBLOX

  • Output Frequency: 10Hz

  • Speed Accuracy: 0.05 m / s

  • Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M

  • Timing Accuracy: 30 ns

  • Receiving Sensitivity: Trace -162dBm, Capture-160dBm

  • Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s

  • Max Acceleration: 4G

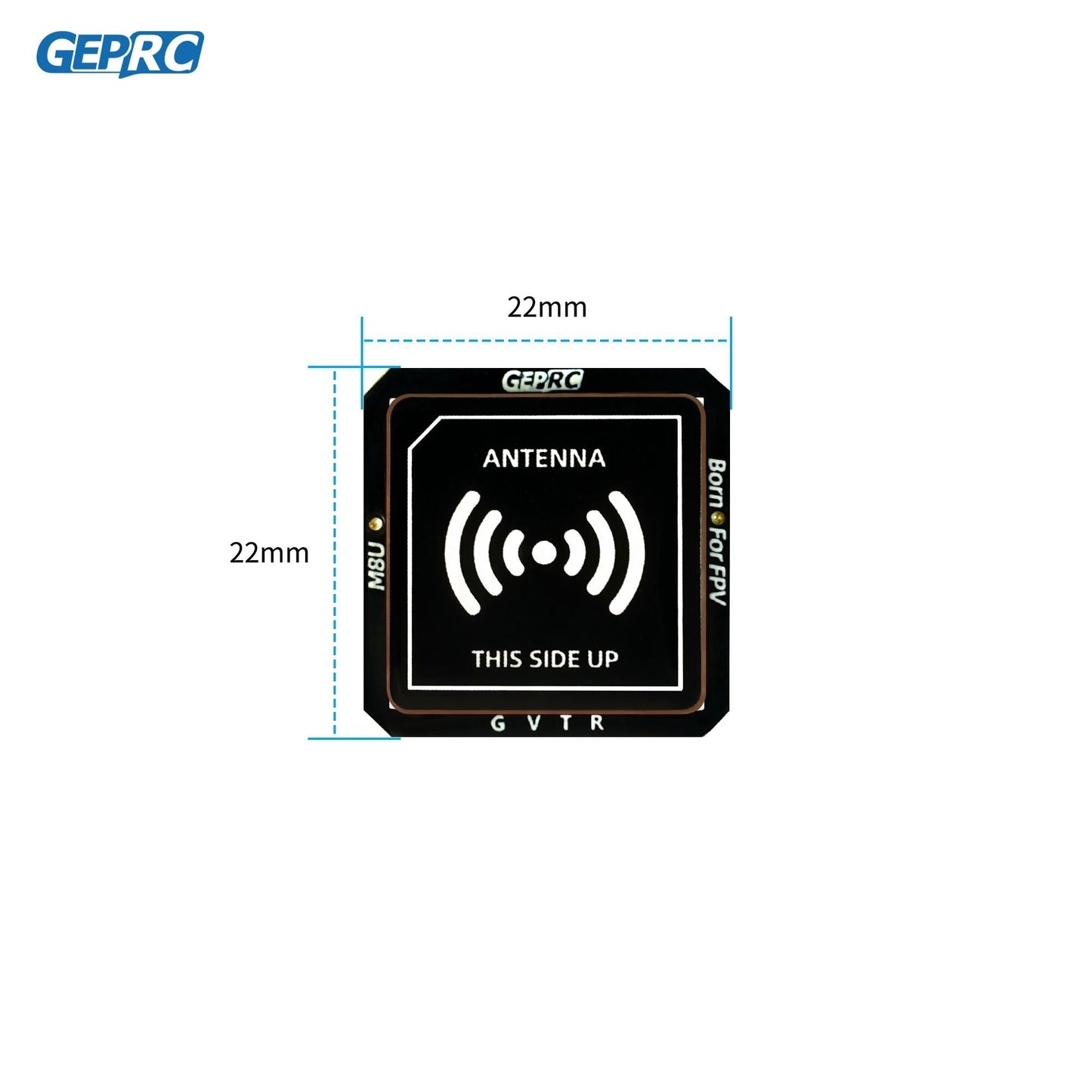

  • Size: 22mm x 22mm x 8mm

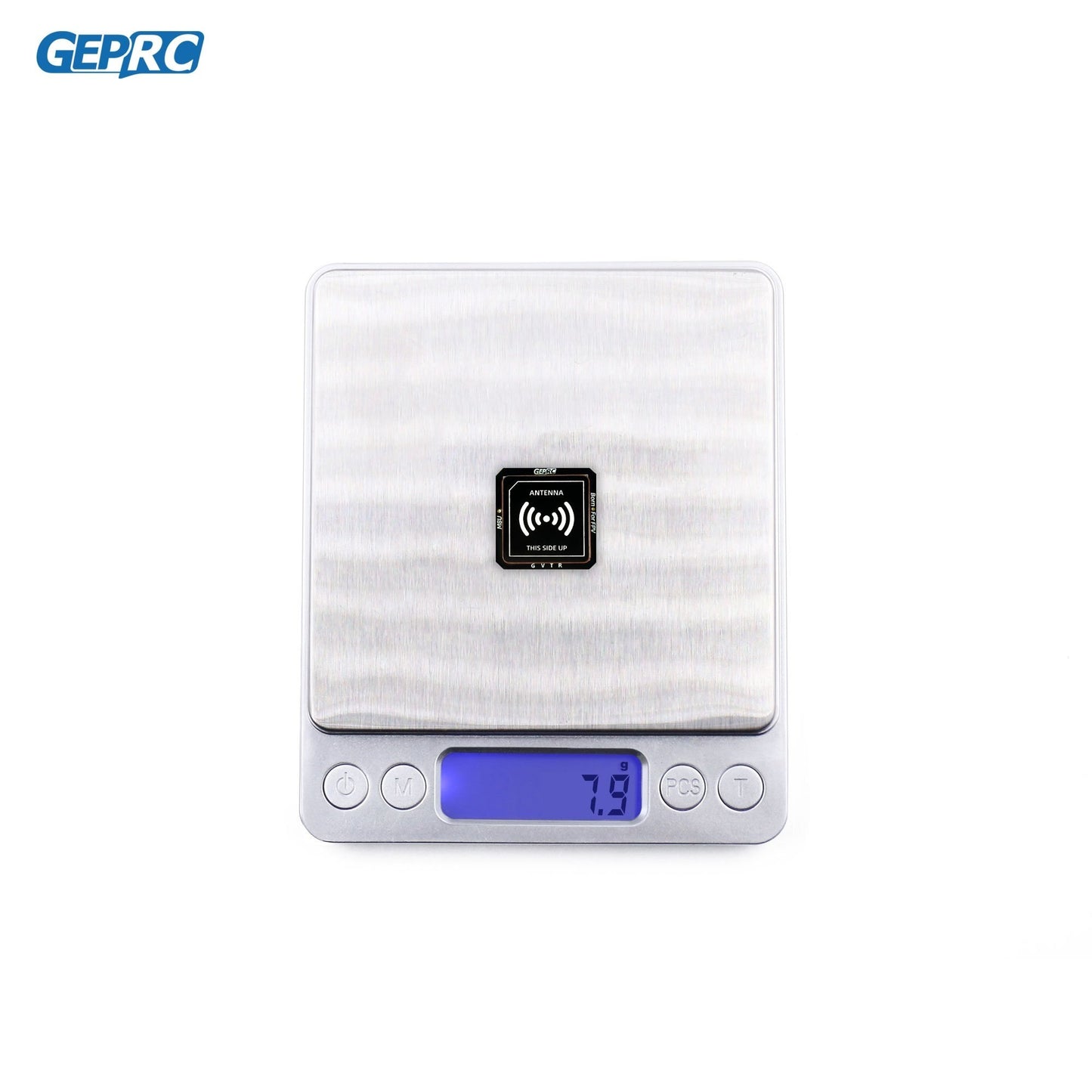

  • Weight: 7.9g

Feature

1. Fast positioning speed

2. Stable connection

3. Unique appearance design

4. Small size and light weight

5. SH1.0-4Pin terminal design, no soldering required.

6. On-board PPS positioning and power indicator, easy to use.

Includes

1 x GEP-M8U GPS module

1 x SH1.0-4Pin terminal cable

1 x GPS user manual

GEPRC GEP-M8U GPS, GEPRC GEP-M8U

GEPRC GEP-M8U UP N 7 22mm 7.9g 3.3-5V V V Rapid Positioning Stable connection Small size Light weight Dual Mode Wide power input Reception

 GEPRC GEP-M8U GPS, Rapid Positioning Adopt ublox 8 generation chip, fast positioning speed and accurate positioning

The module employs Ublox's 8th-generation chip for rapid and precise positioning, featuring both fast acquisition times and high accuracy.

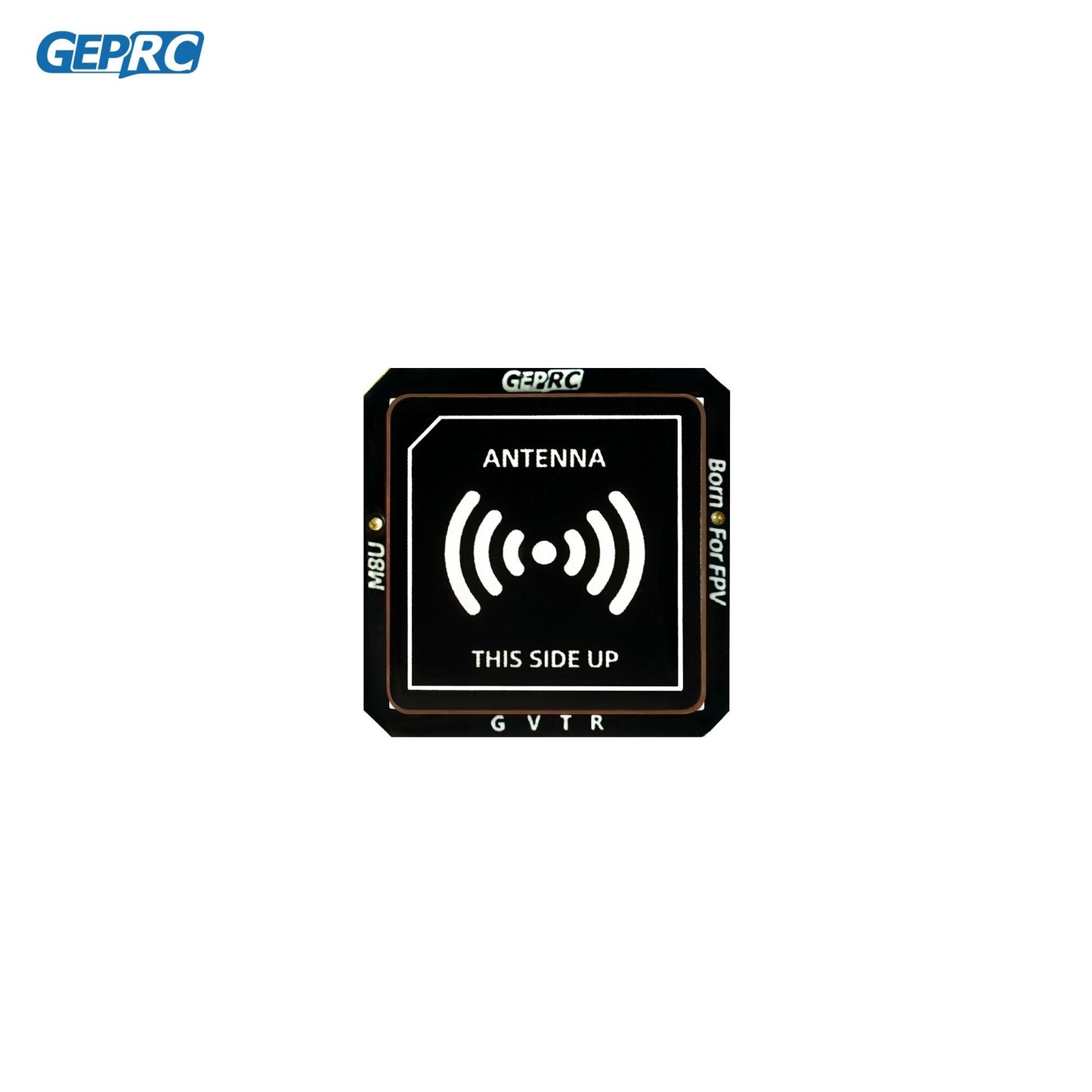

GEPRC GEP-M8U GPS, Stable Connection Right circularly polarized ceramic antenna with strong signal and low power consumption

The module features a right-circularly polarized ceramic antenna for stable connectivity, offering strong signal reception and low power consumption.

 GEPRC GEP-M8U GPS, Dual-mode Reception, Accurate Position GPS+GLONASS/GPS

The module offers dual-mode reception capabilities, providing accurate positioning through GPS/GLONASS or GPS/BDS satellite constellations with a precision level of approximately 2.5 meters.

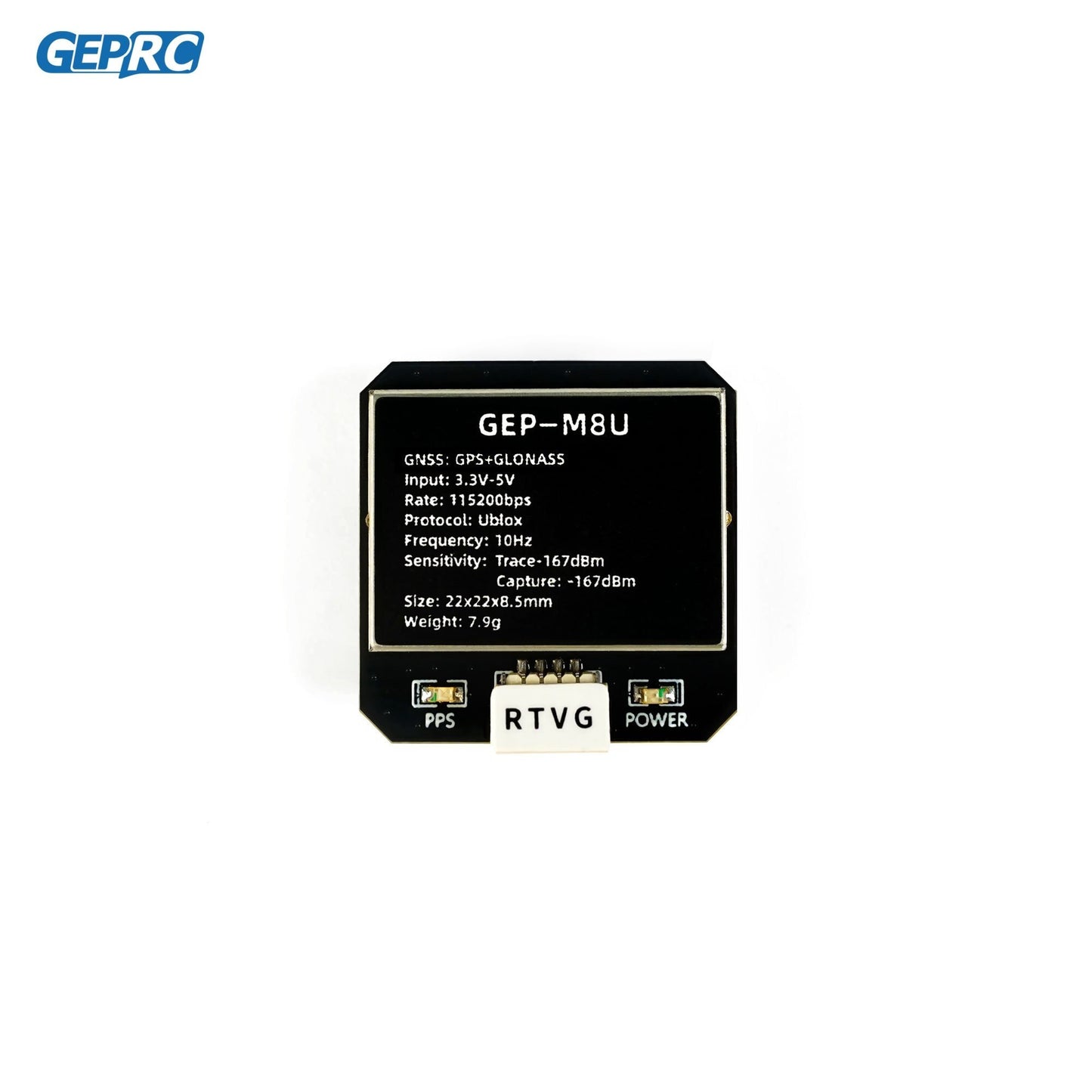

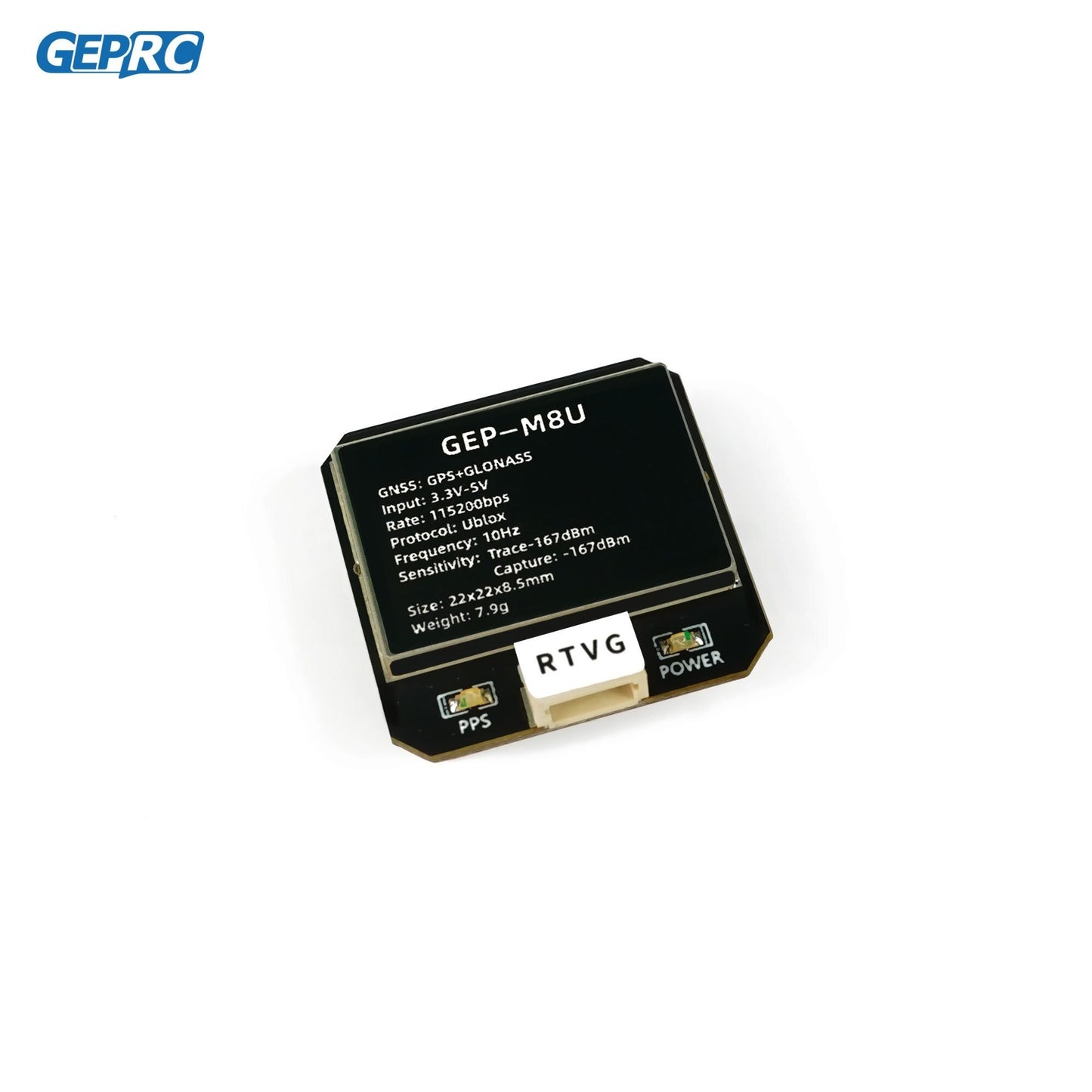

 GEPRC GEP-M8U GPS Module - Integrate BDS GLO GEPRC GEP-M8U GPS Module SPECIFICATIONS Wheelbase GEPRC GEP-M8U GPS, GPS+BDS Input: 3.3V-SV Rate: 115200bps Protocol

The GEP-M8U GNSS module supports input protocols for GPS+BDS, with specifications including: * Input voltage: 3.3V * Serial data rate: 115,200 bps * Protocol: U-blox * Frequency: 1 Hz * Capture sensitivity: -167 dBm * Dimensions: 22x22x8.5 mm (length x width x height) * Weight: 7.9 g The module also features a power indicator and real-time GPS status monitoring through an RTVG (real-time voltage gauge) and PFs (power flags).

 GEPRC GEP-M8U GPS, Indicator Light PPS (BULE) Normal Light Off Always On Positioning Success Flash

The module features a power indicator with multiple states: * A steady blue light (PPS) indicates normal operation. * The light is off when the device is not in use or experiencing an error. * If positioning is successful, the light flashes continuously to indicate a successful connection.

 GEPRC GEP-M8U GPS, SH1.0-4Pin terminal design, no soldering required GEPRC GEP-M8U GPS, GEPRC GEP-M8U

Note: The antenna is labeled

 GEPRC GEP-M8U GPS, GEPRC GEP-M8U

Note: The antenna should be installed with the

 GEPRC GEP-M8U GPS, Includes 1 x GEP-M8U GPS module x SH1.0-4Pin GEPRC GEP-M8U GPS, GEPRC GEP-M8U Rapid Positioning Stable Connection Dua Hode

Product Contents: GEPRC GEP-M8U GPS Module Rapid Positioning: Quickly and accurately acquire your location Stable Connection: Enjoy reliable and consistent connectivity Dual Mode Reception: Supports GPS+GLONASS and GPS+BDS constellations 3.3V-5V Power Supply: Compatible with a wide range of power sources Package Includes: * 1 x GEP-M8U GPS Module * 1 x User Manual * 1 x SHI.0-4Pin cable
