GEPRC GEP-TC18 O4 HD 87mm Wheelbase 1.8 Inch FPV Drone Frame

Features

1. Dampening Silicone for steady, shake-free footage with O4.

2. 7075 aluminum camera mount for superior durability.

3. Integrated rear design with reserved room for buzzer and dual antennas.

4. 2mm thick arms for durability and sturdiness.

Specifications

• Model: GEP-TC 18 O4 frame
• Wheelbase: 87mm
• Dimension: 100*90mm
• Frame Type: Wide X
• Top Plate: 1.5mm
• Bottom Plate: 2mm
• FC Mounting Hole: 25.5*25.5/M2
• VTX Mounting Hole:  25.5*25.5/M2
• Motor Mounting Hole: 6.6*6.6/M1.4
• Camera Side Plate Gap: 14*14mm
• Stack Mounting Height: 12mm
• Weight: 15g

Recommended Accessories

Motor: 0802-1002

FC: TAKER F411-12A-E 1~2S AIO FC

VTX: DJI O4 Air Unit digital VTX

Propeller: HQprop 45mm

Details

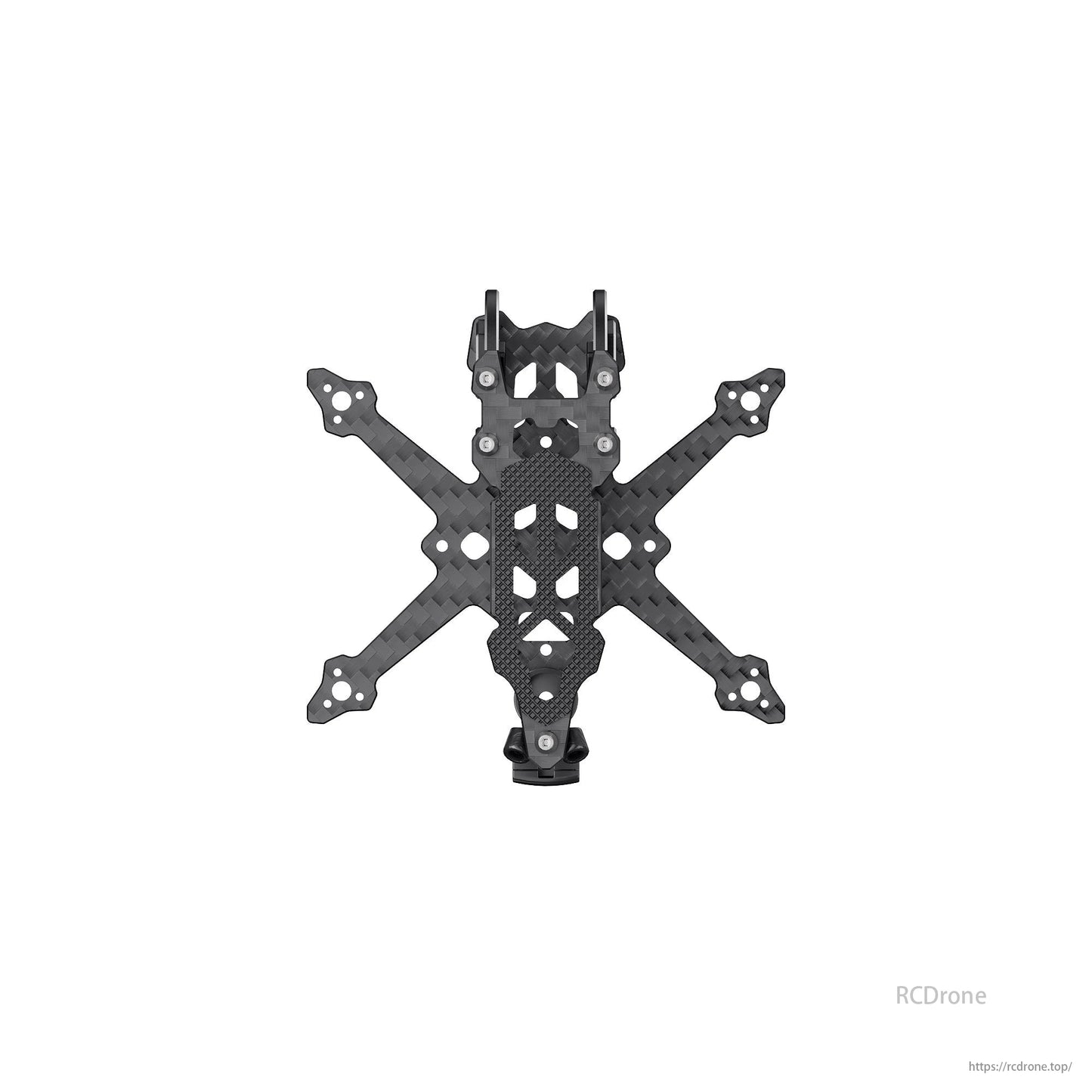

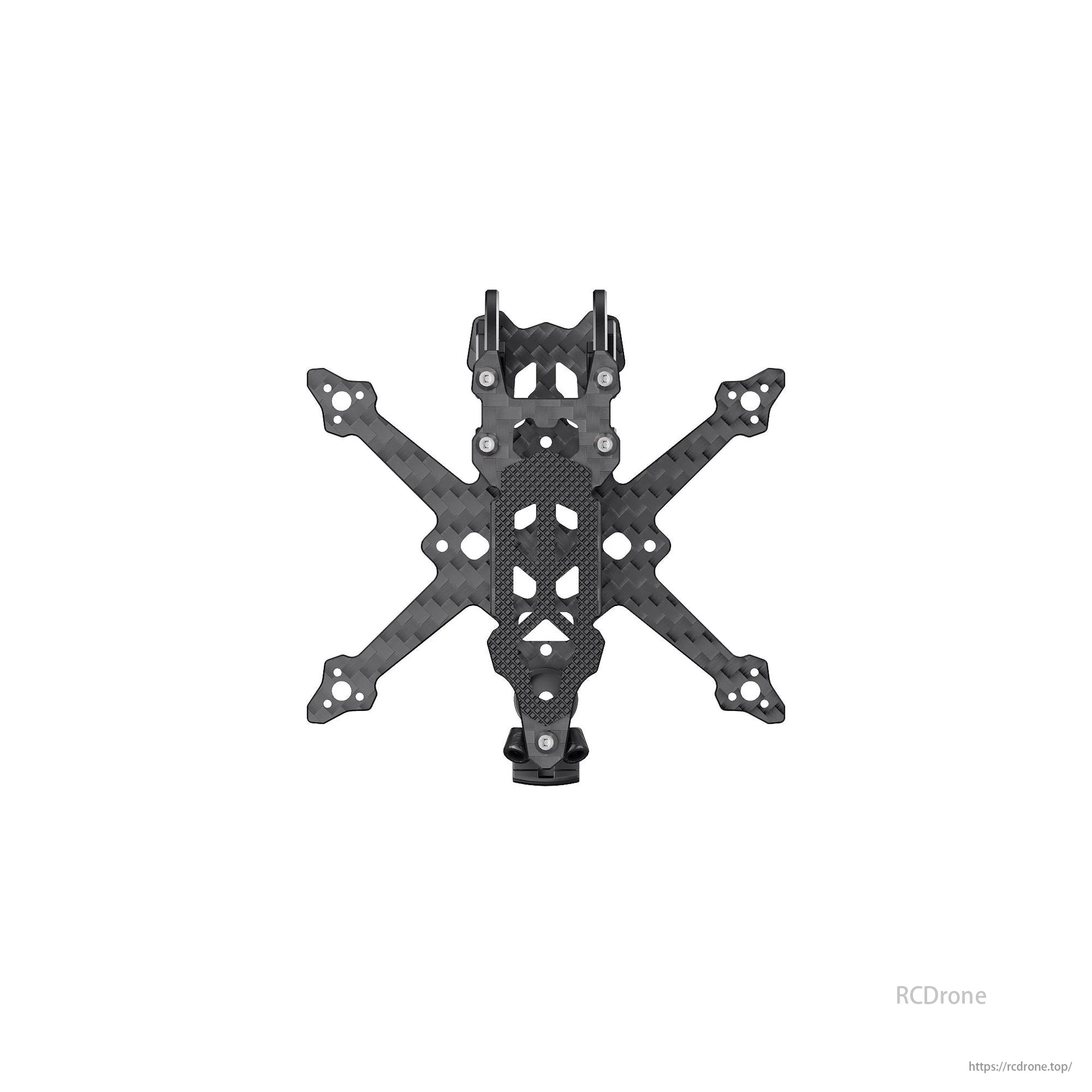

GEPRC GEP-TC18 O4 HD FPV drone frame with 87mm wheelbase, wide X design, 1.5mm top/2mm bottom plates. Supports FC, VTX, motors. Weighs 15g. Fits 0802-1002 motor, HQprop 45mm, DJI O4 Air Unit, TAKER F411-12A-E FC. Compact, versatile build.

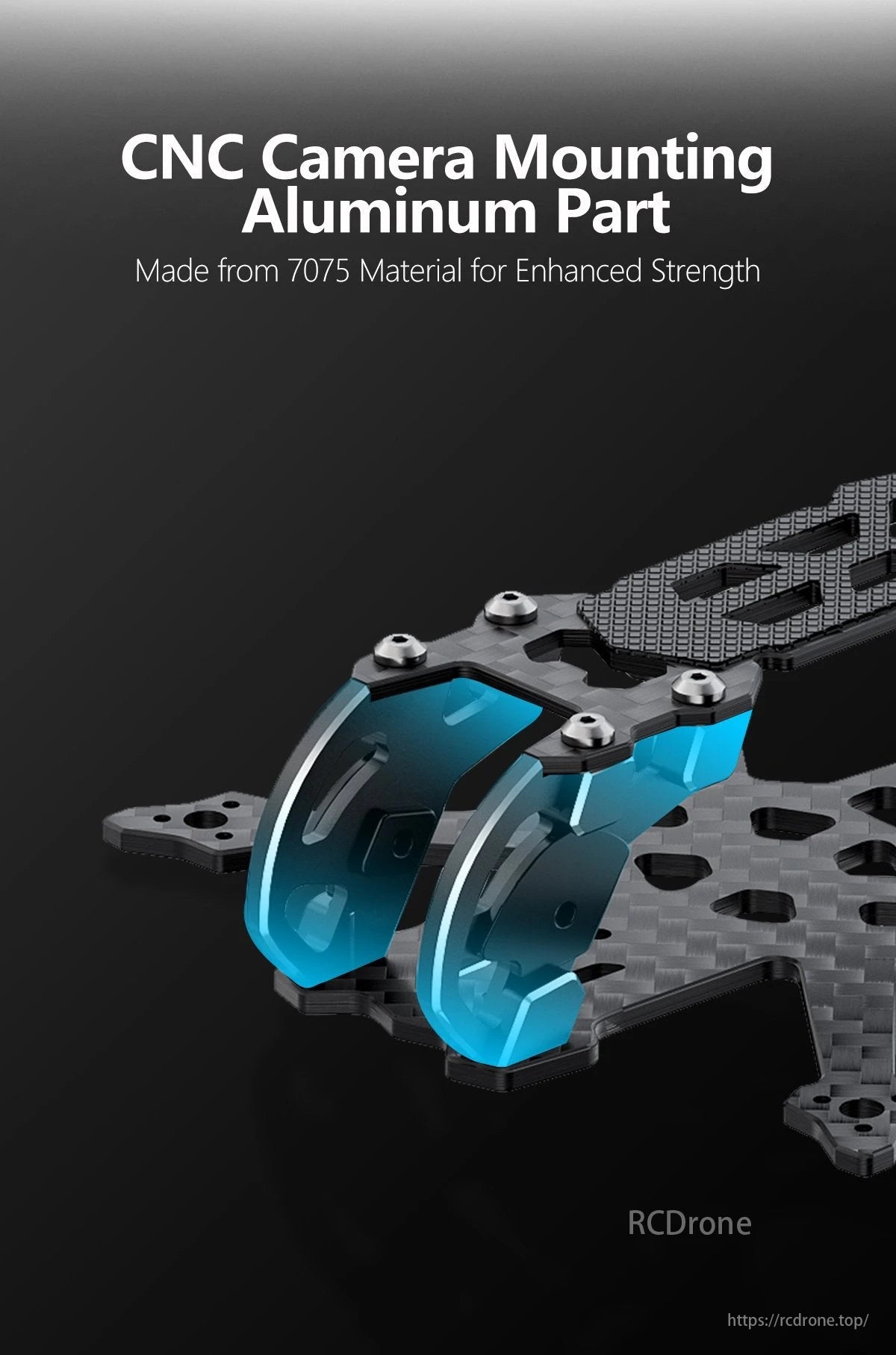

CNC Camera Mounting Aluminum Part made from 7075 material for enhanced strength.

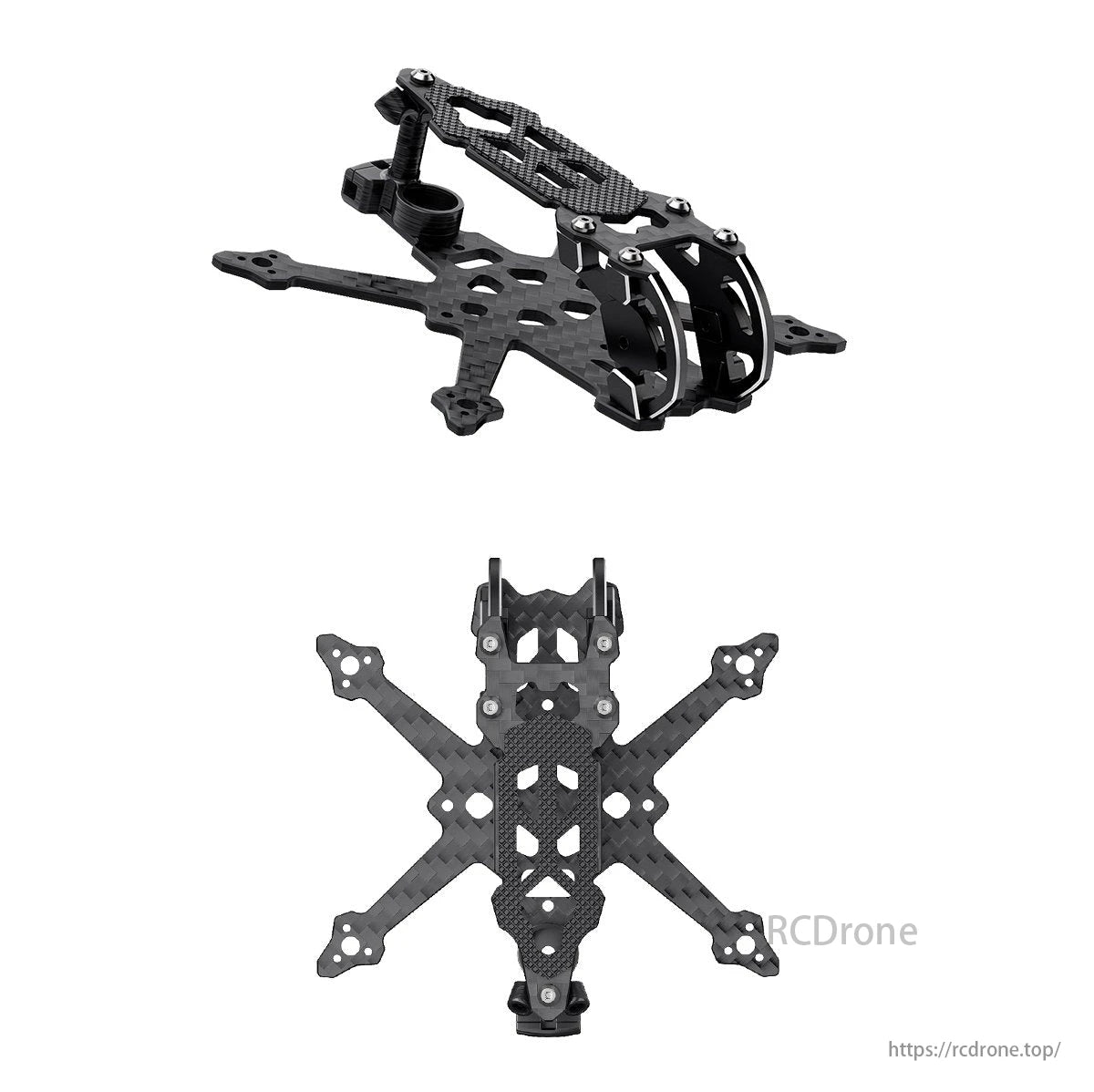

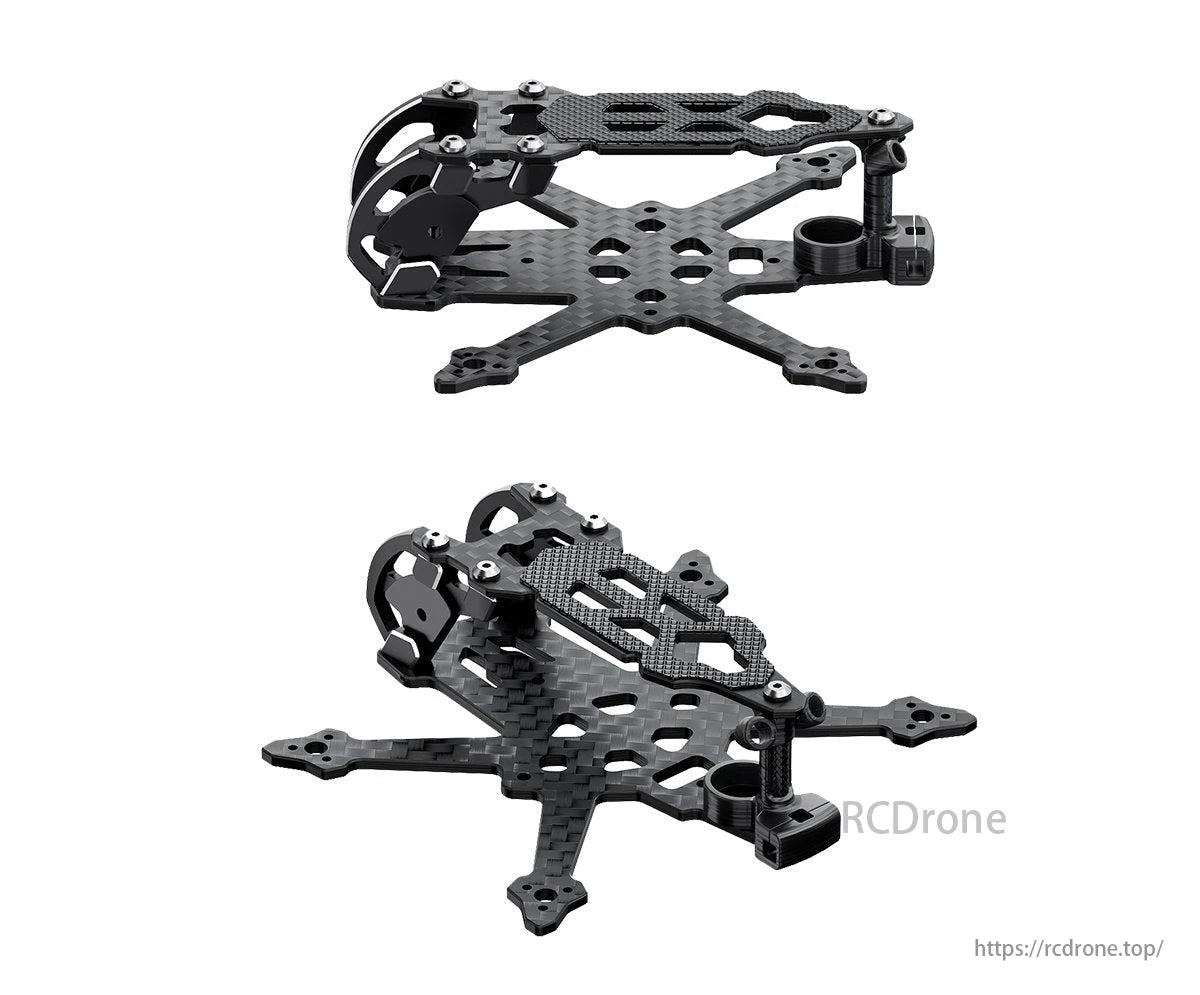

GEPRC GEP-TC18 O4 HD frame with integrated parts, buzzer space, and dual VTX antennas.

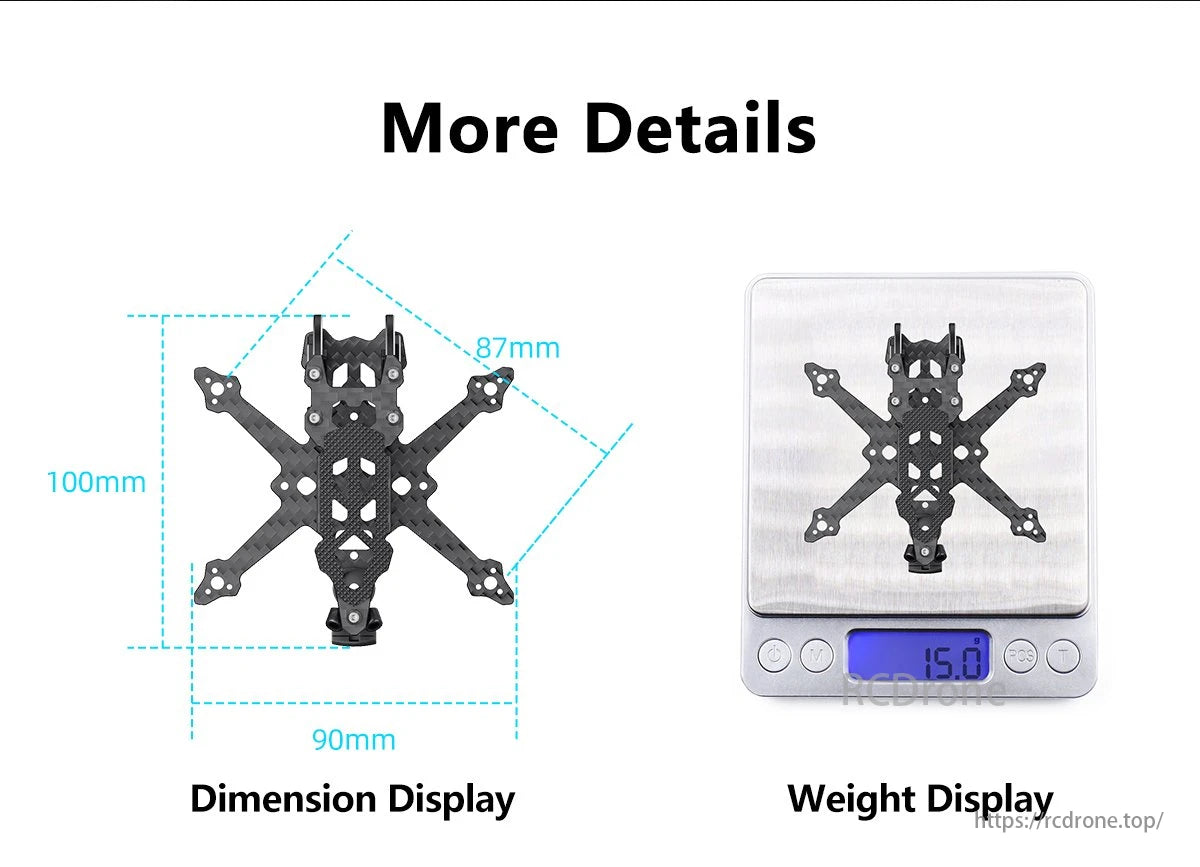

Dimensions and weight of GEPRC GEP-TC18 drone frame: 100mm x 90mm, 15.0 grams.
