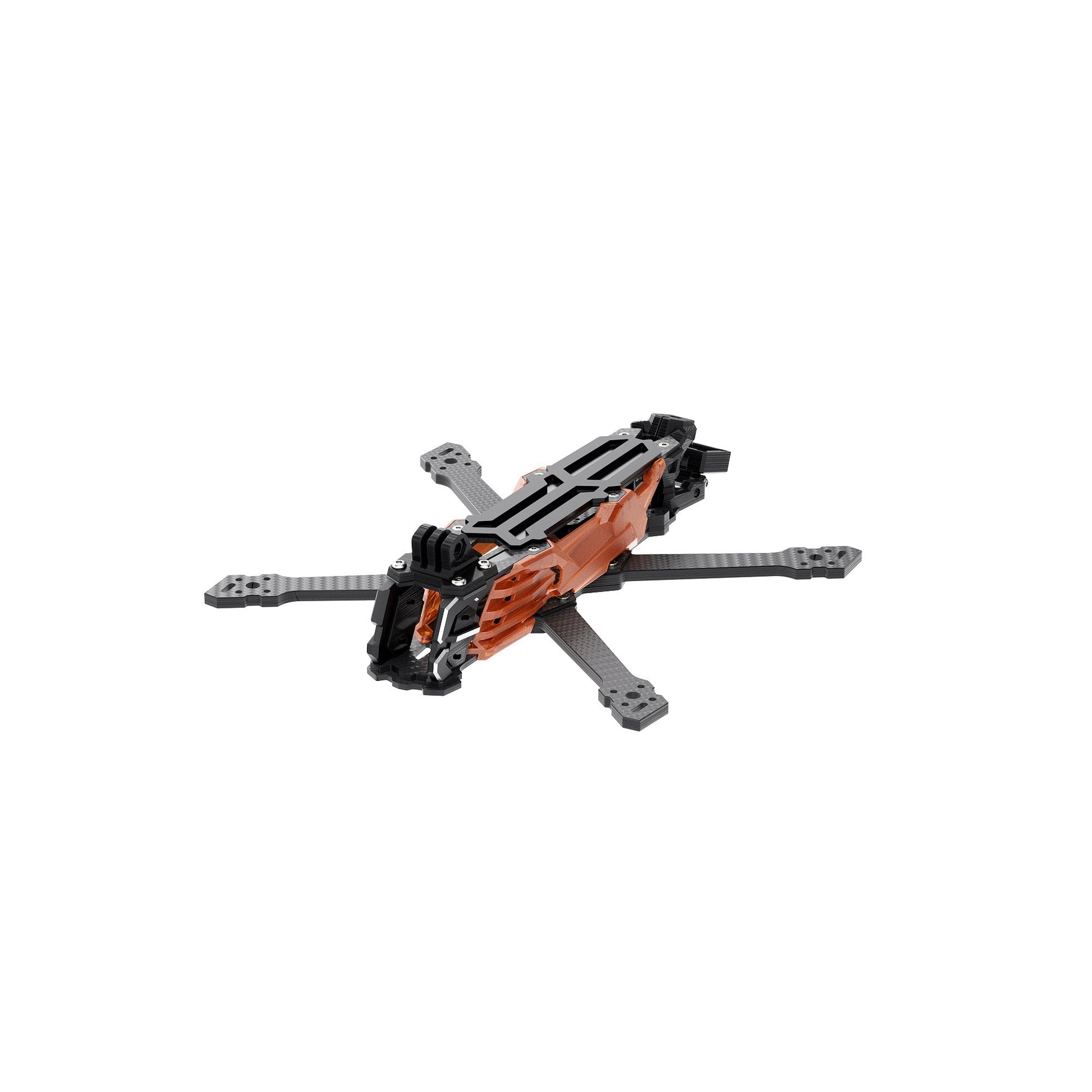

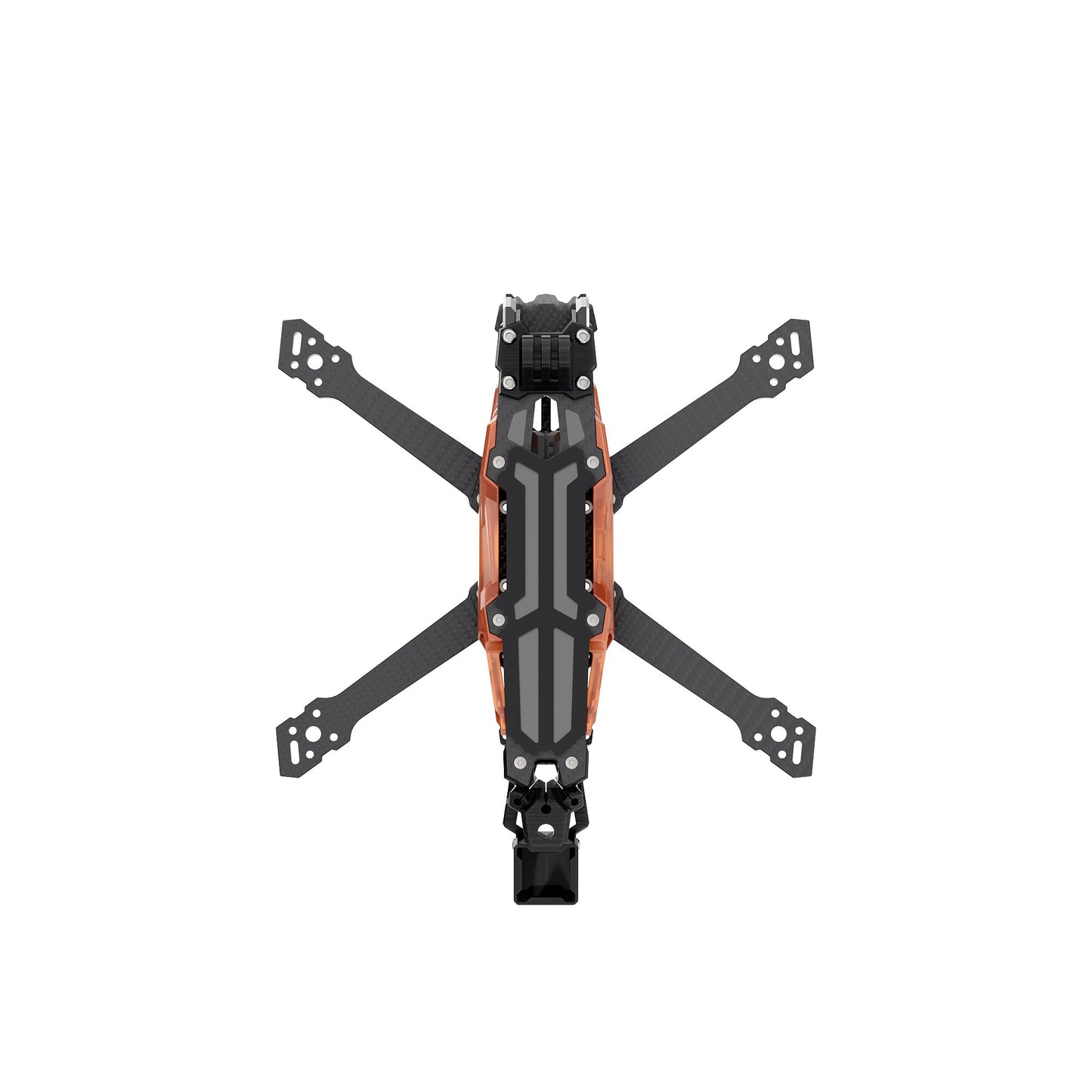

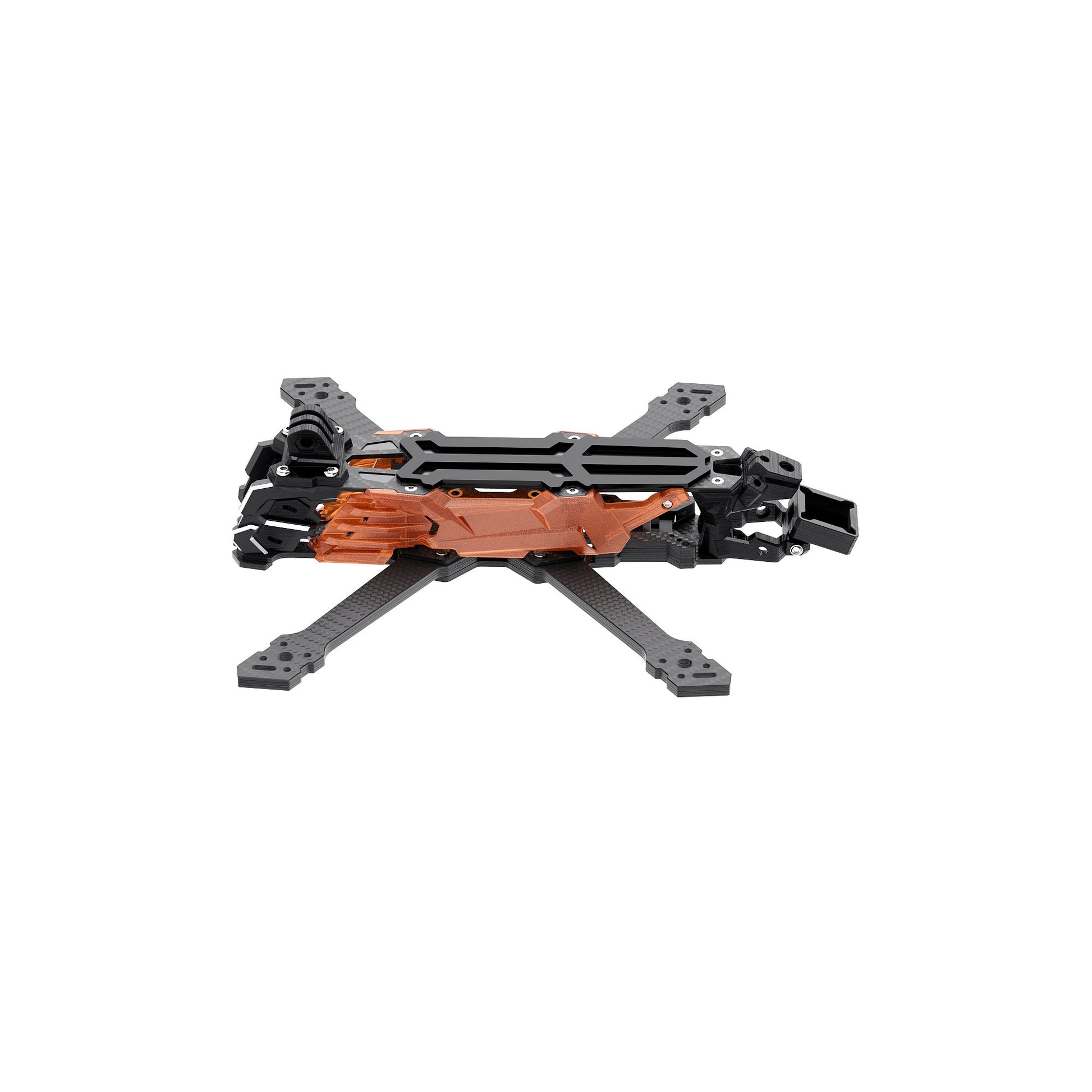

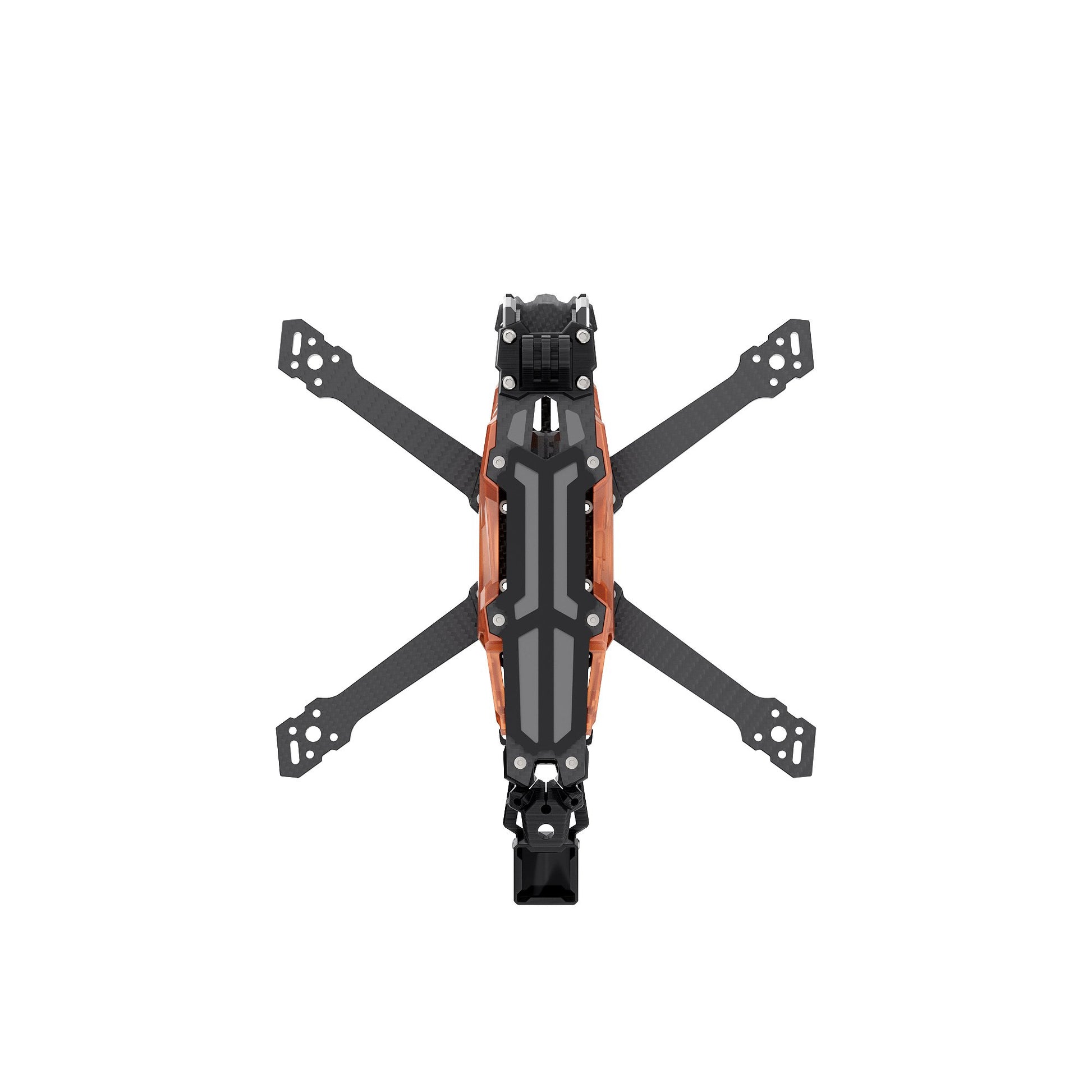

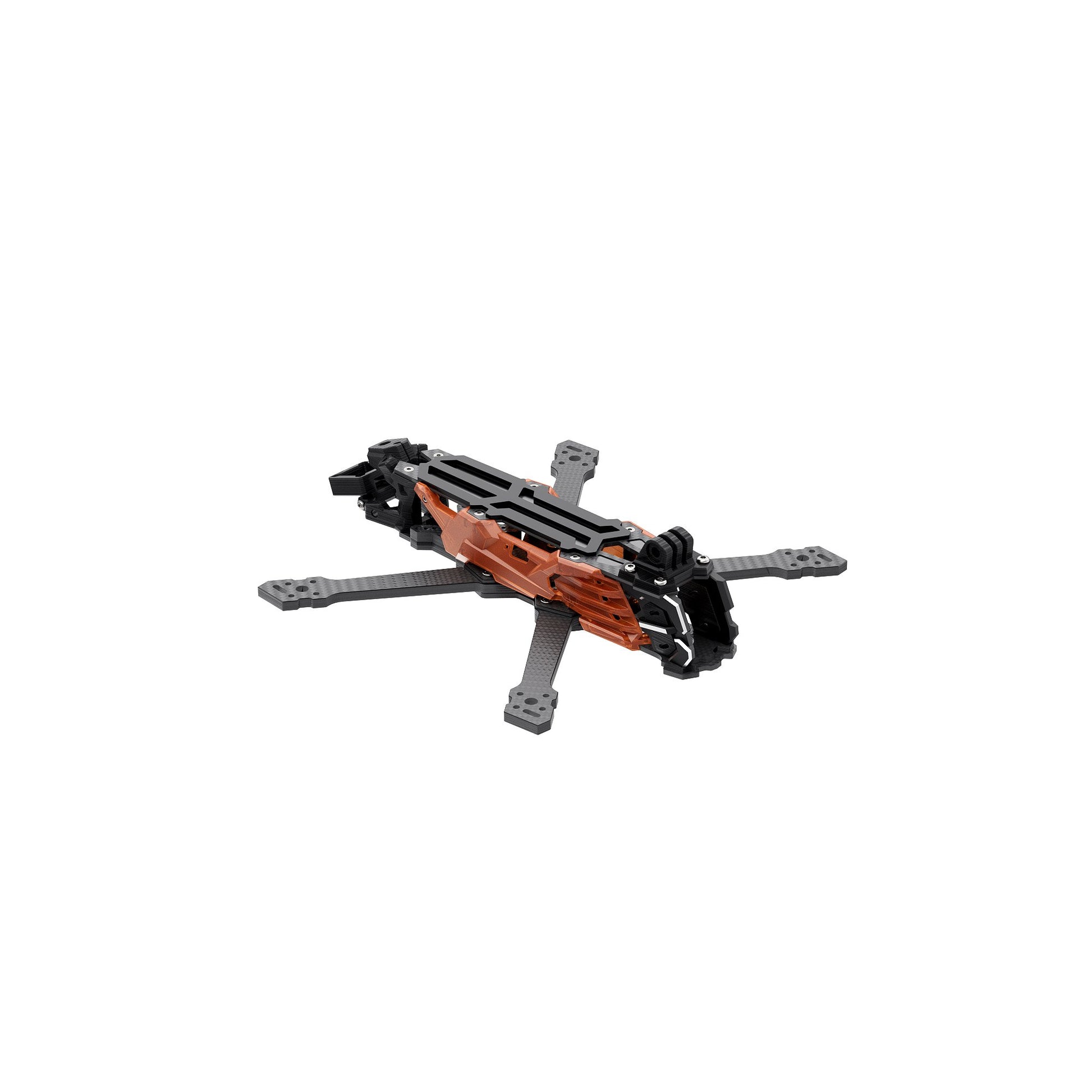

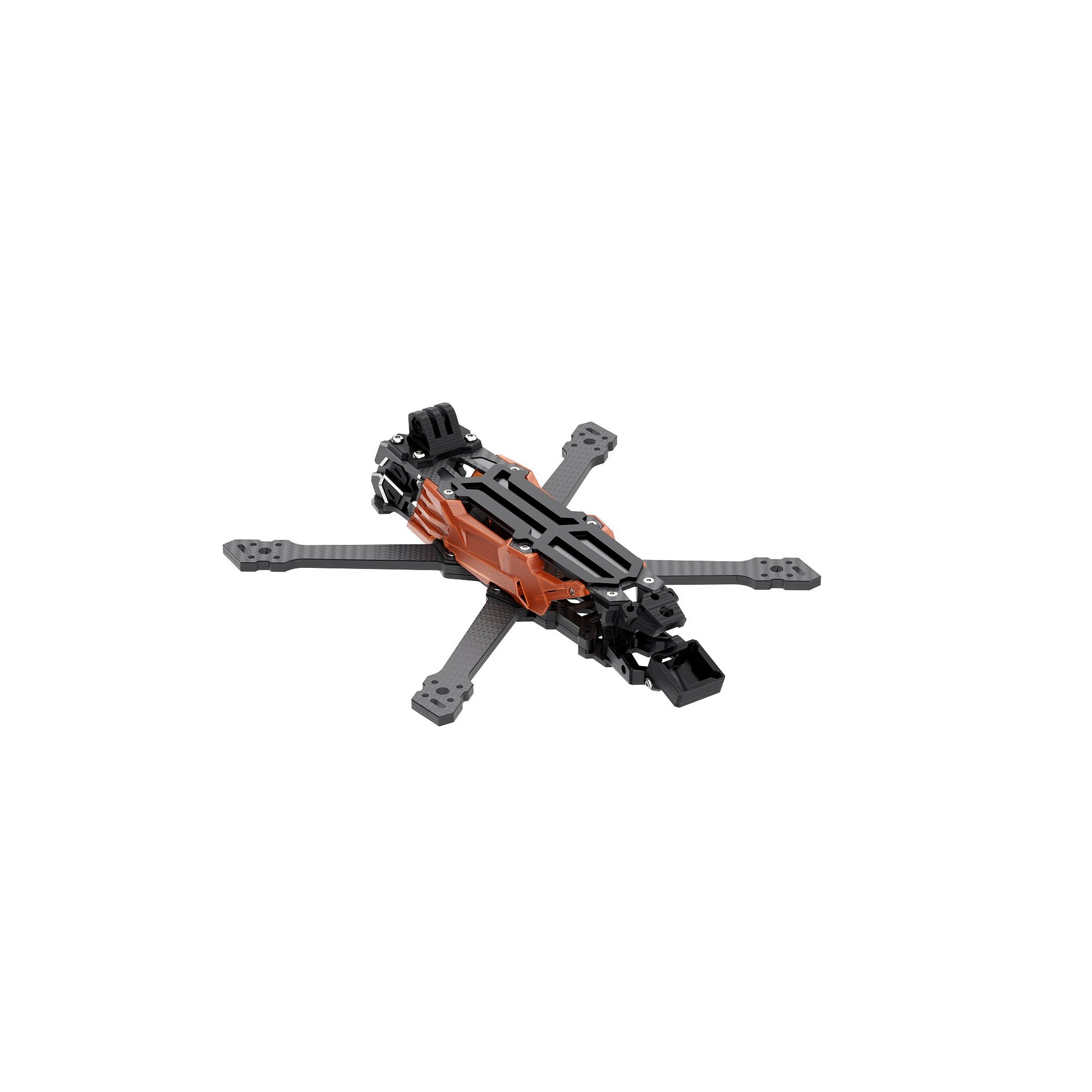

GEPRC GEP-Vapor-X5 O4 Pro 230mm Wheelbase 5 Inch FPV Drone Frame

Summary

The GEPRC team presents the Vapor O4 Pro frame, designed specifically for the DJI O4 Air Unit Pro.
With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bold, sharp look, enhancing the frame’s stylish design. Made from high-strength carbon fiber, it’s lightweight yet durable, ensuring top-notch performance in any flight.
With its XH structure, the GEP-Vapor-X O4 Pro frame offers superior stability and precise handling.

Features

1. 5mm wide carbon fiber arms for better rigidity and durability.

2. Dual protection with camera guard side panels and a front lip design for better impact resistance.

3. Quick-release design for easy repairs and maintenance.

4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.

5. New mech-inspired side panels with a bold, sharp design.

6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

X5 Specifications

• Model: GEP-Vapor-X5 O4 Pro Frame
• Wheelbase: 230mm
• Top Plate Thickness: 2.0mm
• Middle Plate Thickness: 2.0mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
• Motor Mounting Hole Size: 16x16mm
• Camera Mounting Hole Size: 19mm / 20mm
• Recommended Propeller: 5-inch
• Weight: 206±5g

X5 Includes

1 x GEP-Vapor-X5 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench

Product list for GEPRC GEP-Vapor-X5 O4 Pro includes carbon fiber parts, screws, bolts, straps, tools, and 230mm wheelbase for 5-inch FPV drone frame.
