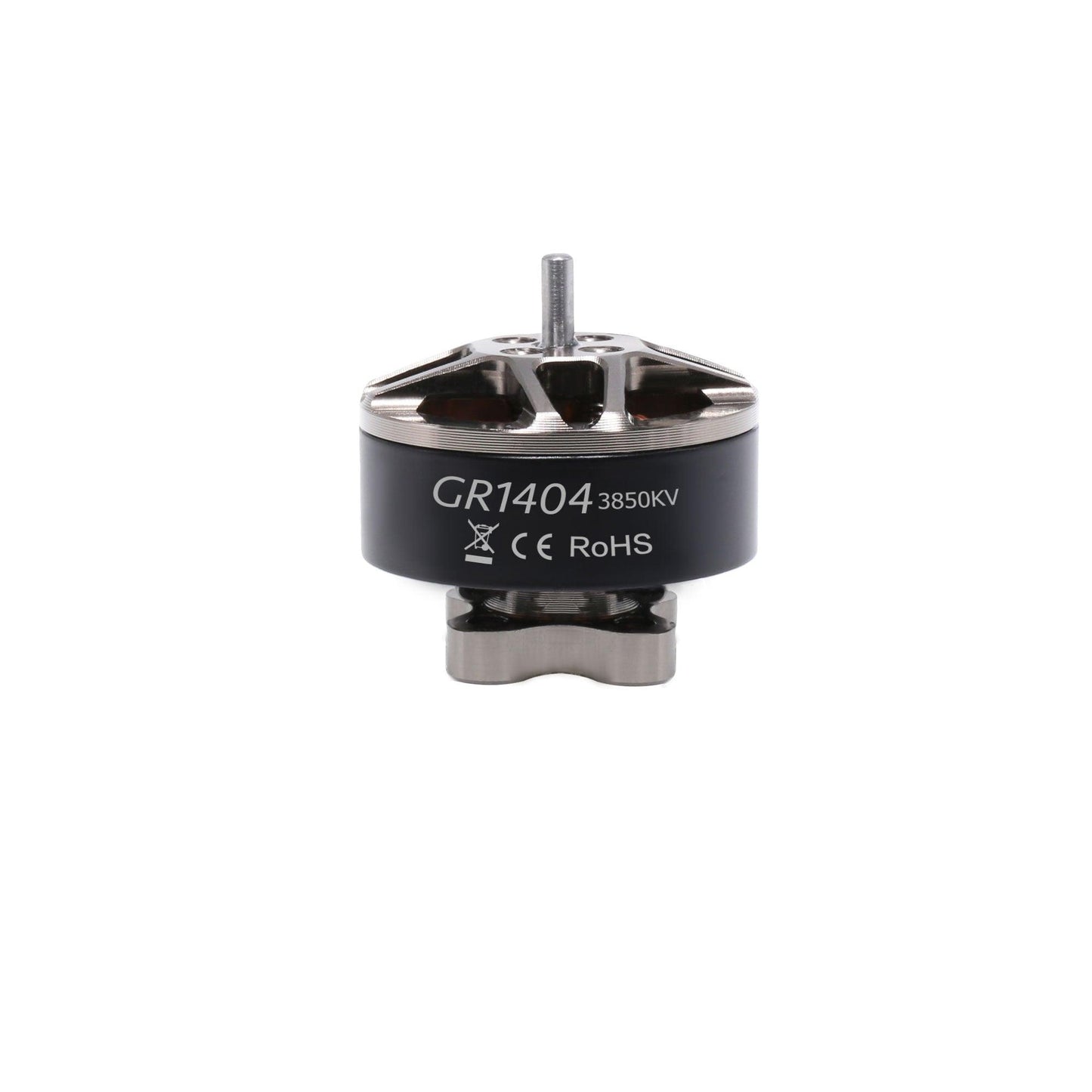

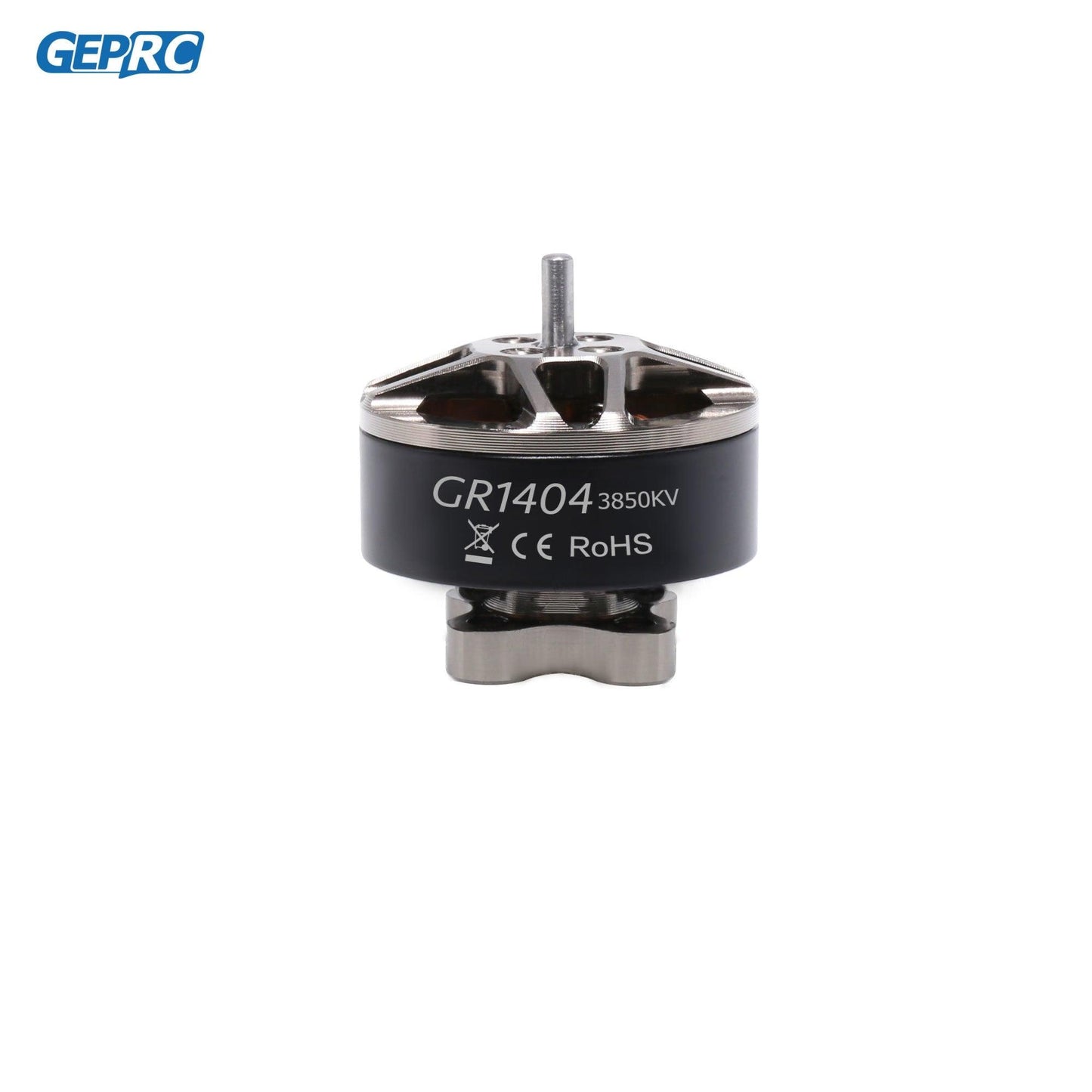

GEPRC GR1404 3850kv Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: GP103657

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Certification: CE

Brand Name: GEPRC

Technical Datas:

• Item:GR1404

• KV: 3850

• Configuration: 9N12P

• Stator Diamter:14mm

• Stator Length:4mm

• Shaft Diameter: 1.5mm

• Motor Dimensions: Φ18.3 * 14.5mm

• The hole position of motor:9mm

• Weight: 9.8g

• Idlecurrent@8V(A) ≤0.51

• No.of Cells(Lipo): 2~4S

• Max Continuous Power(180S): 214

• Internal Resistance: 0.213mΩ

• Max Current(180S): 13.38A
