Overview:

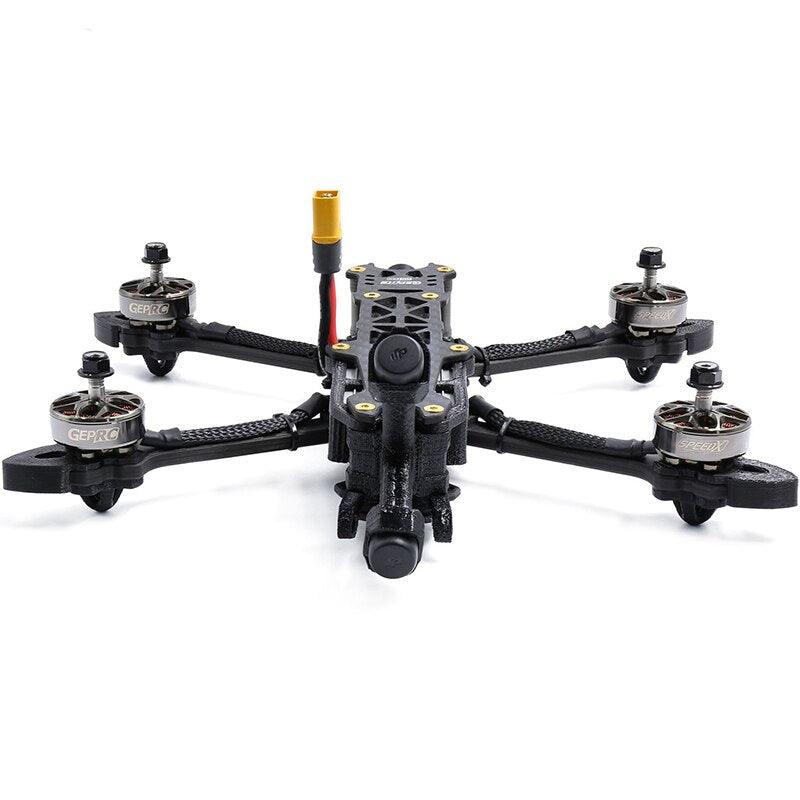

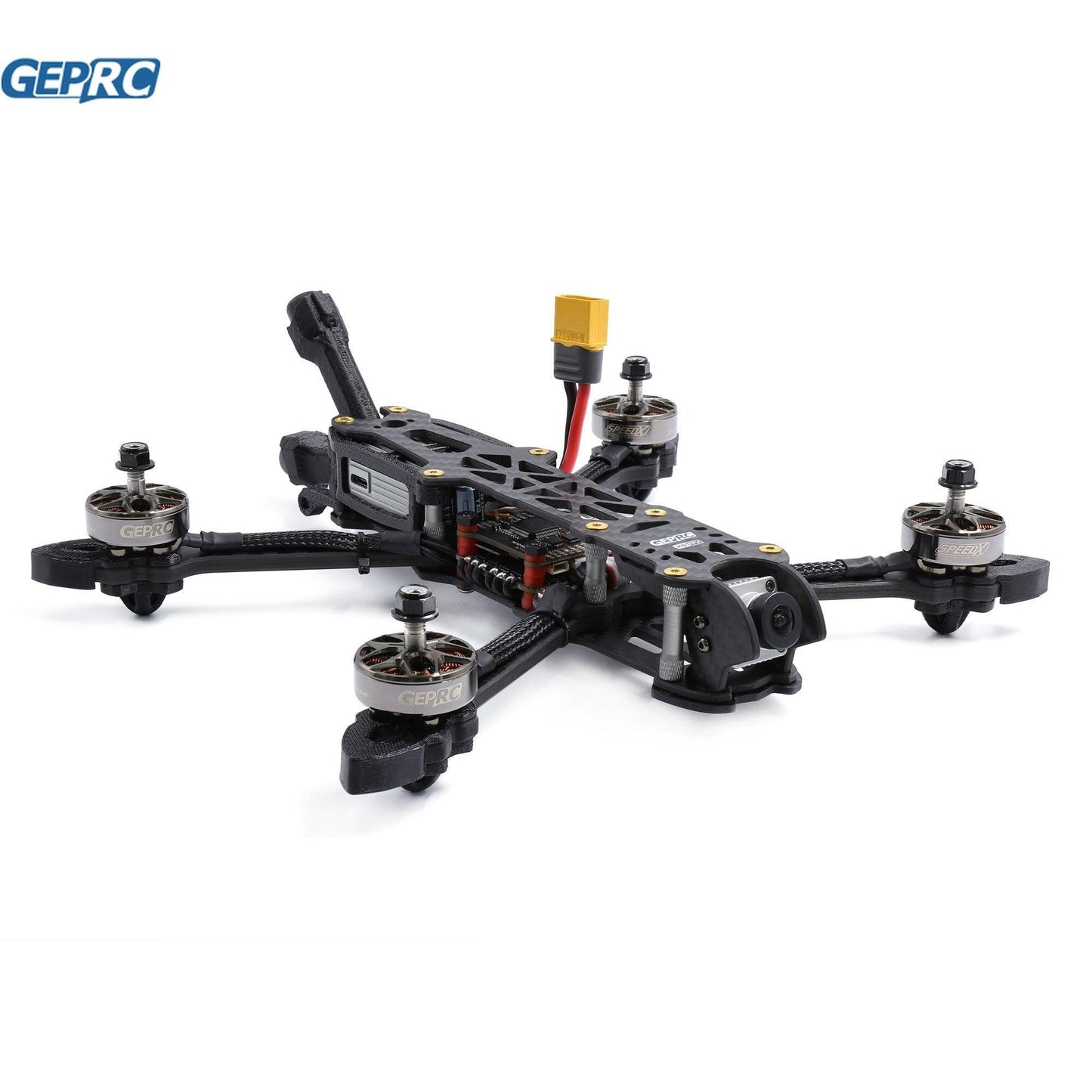

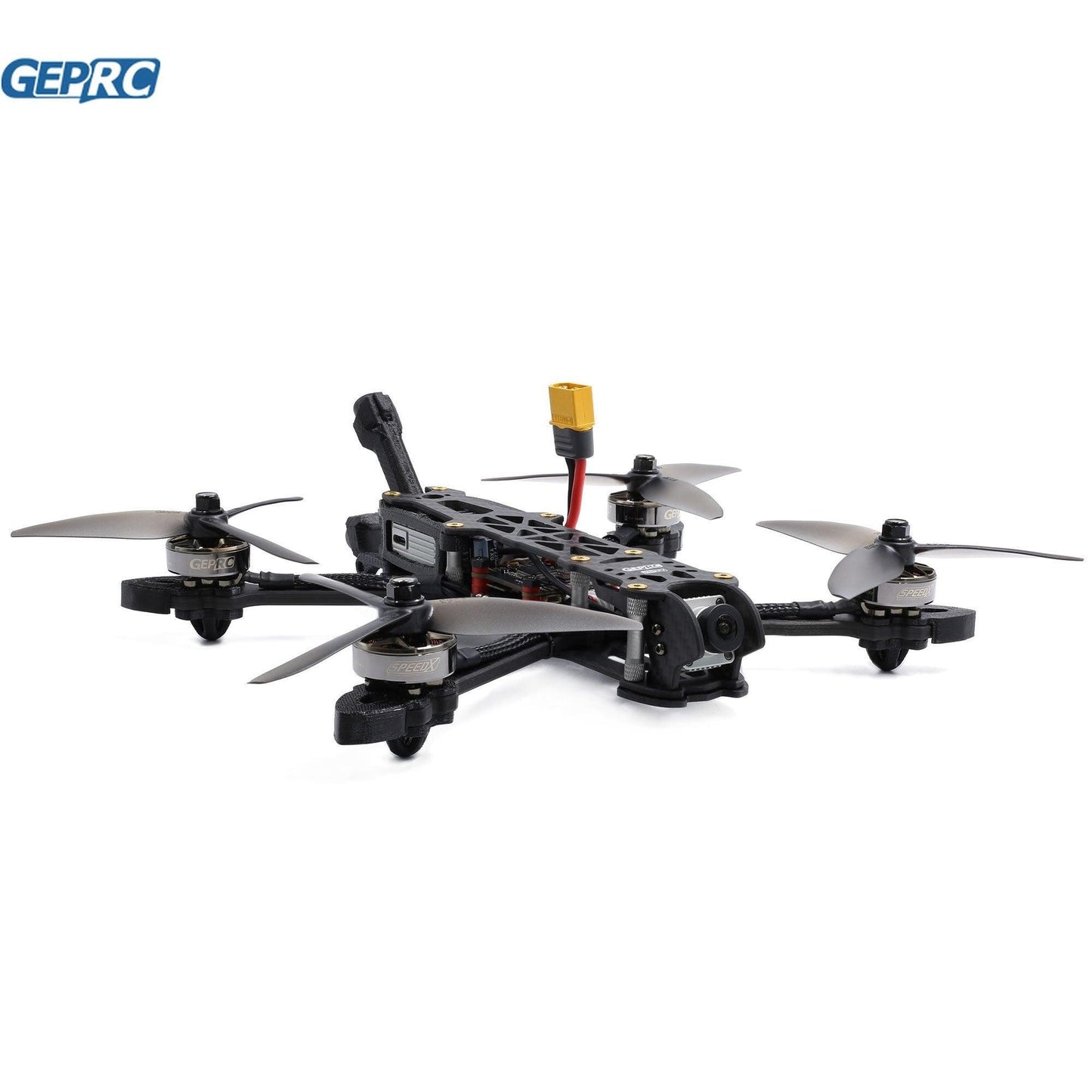

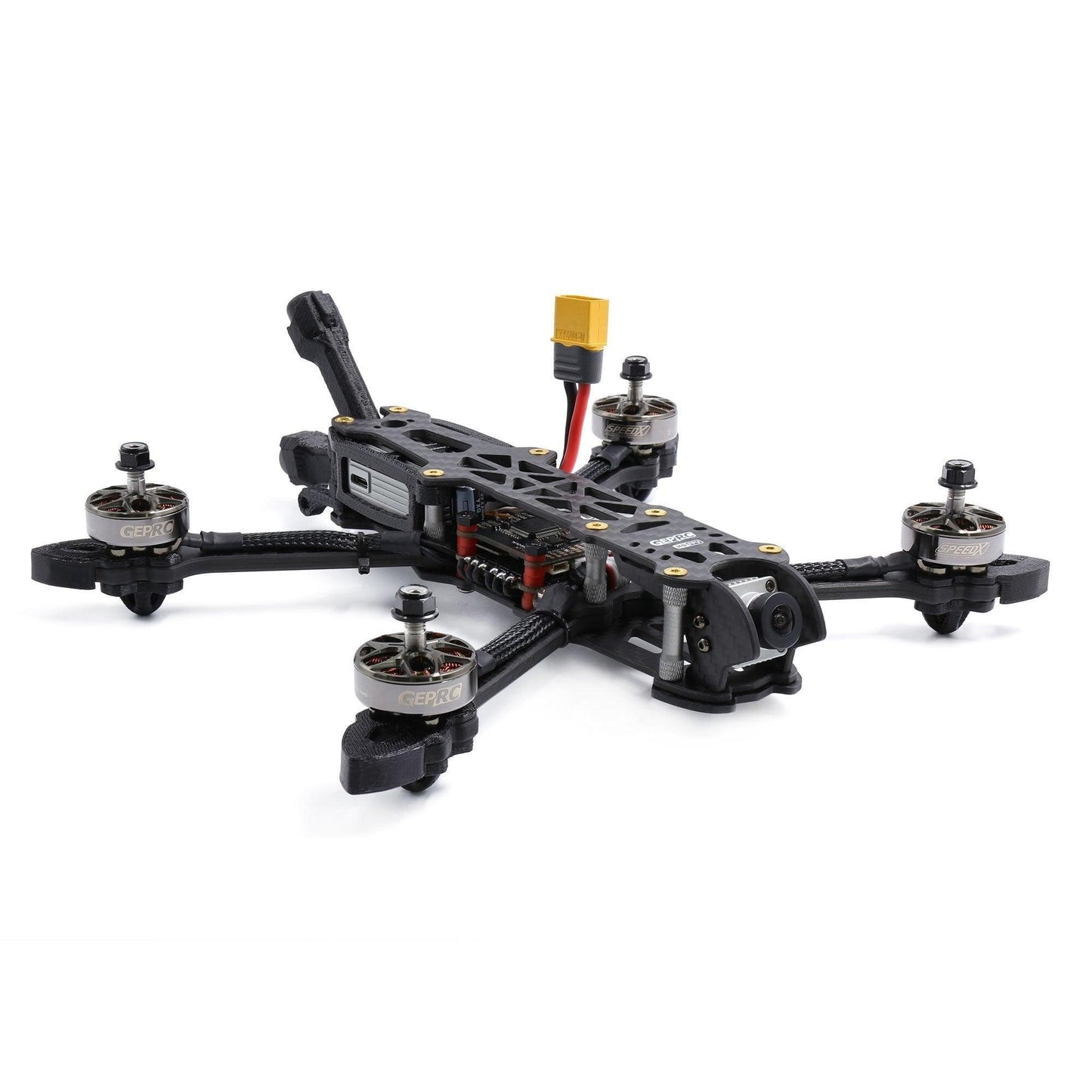

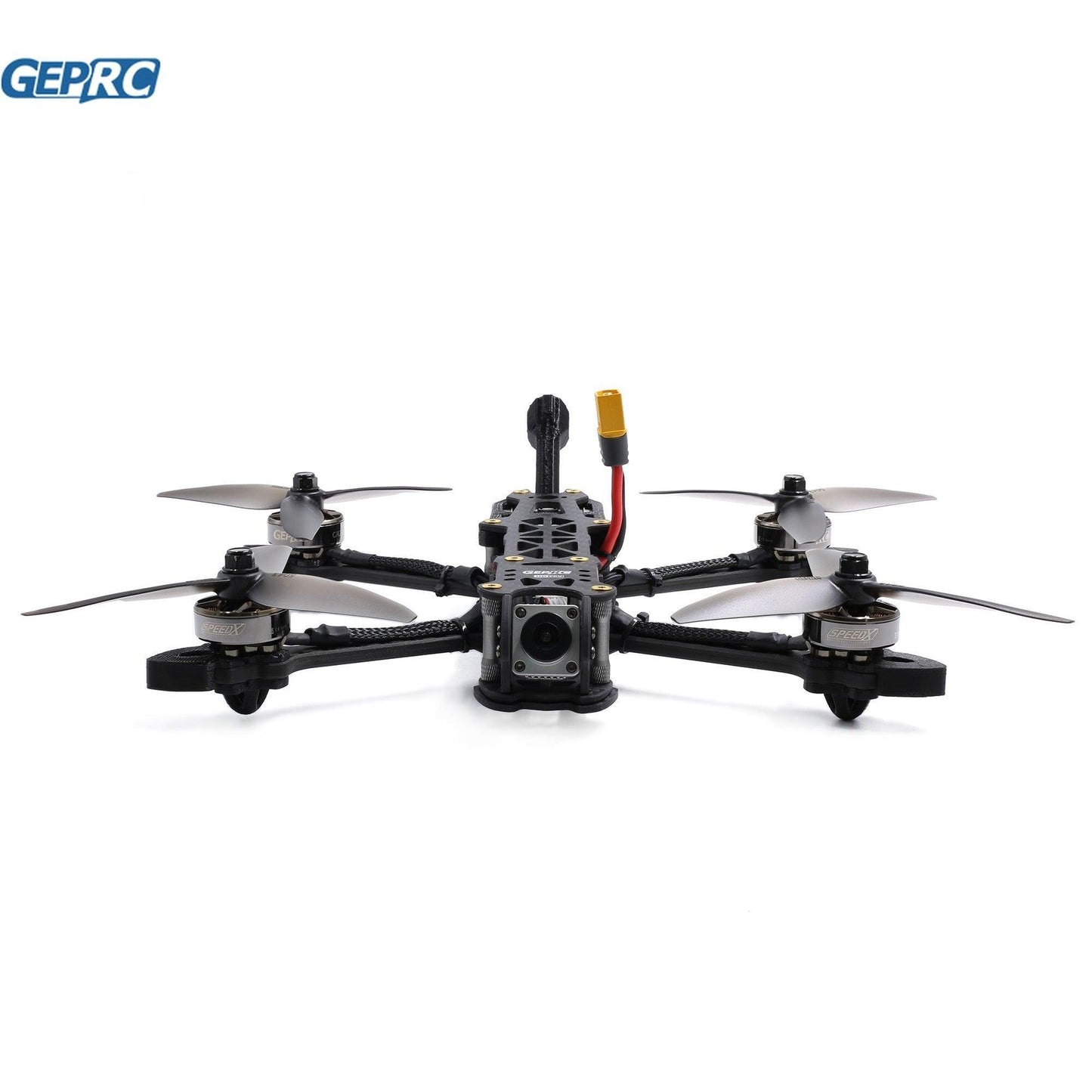

MARK4 HD5 is newly designed DJI FPV HD Quadcopter.DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

Features:

No Propellers in the view.
Perfect for DJI FPV HD
Full 3K Carbon Fiber
720p 120fps FPV
System:GEP-F722-BT
Build-In: BlueTooth wireless adapter
Black Box: 32Mb onboard flash memory.
Full Soft Mounted FC System: Provides a clean operating environment for gyro.
Exquisite Assembly Process: Eliminate any potential installation problems.
Weight:400g without battery

Specifications:

Frame:MARK4 HD5 Frame kits

Full 3K Carbon Fiber
Motor to motor:224mm
Size:138*176mm
Mounting Holes: 30.5*30.5mm/20*20mm
Arms plate : 5mm
Side plate : 2.5mm
Top plate : 2.5mm
Bottom plate : 2.5mm
Protect plate : 2mm

Power System:

4S Battery:
Motors: GR2306.5 2450KV
Battery:4S 1300~1550mAh


6S Battery:
Motors: GR2306.5 1850KV
Battery:6S 1050~1300mAh

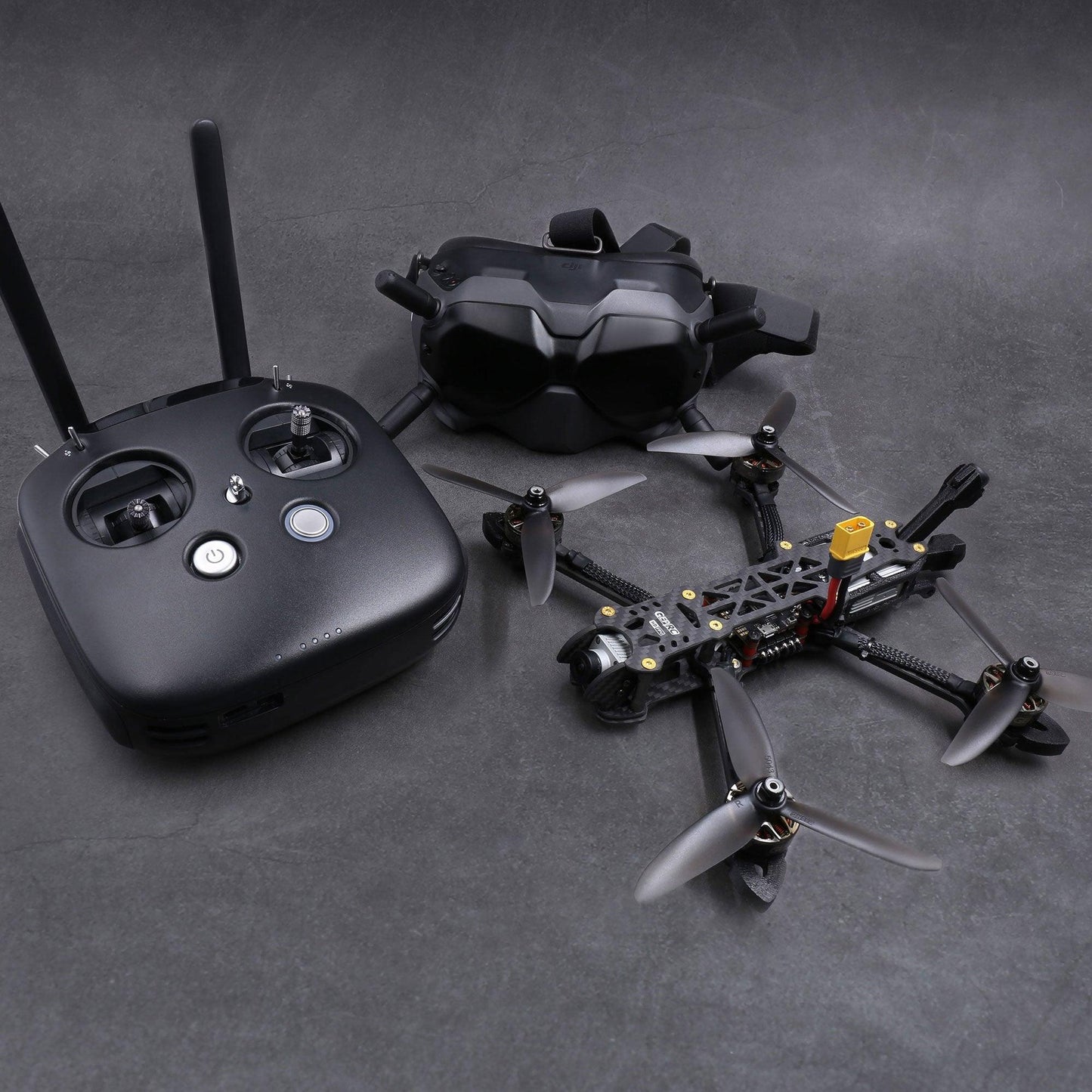

FPV SYSTEM : DJI FPV Air Unit

Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km

Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)

I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2" CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm

Electronic System(SPAN-F7-BT-HD):

F722 DUAL ICM20689 FLIGHT CONTROLLER:

MCU: STM32F722RET6
IMU: 2x ICM20689(SPI)
Build-In: BlueTooth wireless adapter (SpeedyBee APP)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro:BMP280
BEC Output: 5V@2A / 9V@2A
Integrated LC Filter
Firmware target: EXF722DUAL
Size: 36x36mm board, φ4mm with Grommets φ3mm
Power input: 3-6S LiPo
5x UART
8x Motor outputs

BLHELI_32 50A ESC 4IN1:

MCU: STM32FO51K86(32bit 48mHz)
Continuous Current: 50A
Peak Current: 55A (5S)
Current sensor: YES
Telemetry:Supported
Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
Firmware Version:GEPRC-BL32-4IN1
Input Voltage: 3-6S Lipo

BLHELISUITE DOWNLOAD:

HTTP://WWW.MEDIAFIRE.COM/FILE/HKLN8FCAIF5S9L8/BLHELISUITE32_32616A.ZIP/FILE

SpeedyBee App Download

Android:
https://play.google.com/store/apps/details?id=com.runcam.android.runcambf

iPhone:
https://apps.apple.com/us/app/speedybee-app/id1150315028

Flight Controller Firmware(EXF722DUAL):
https://github.com/betaflight/betaflight/releases

Include:

1x MARK4 HD5 Quadcopter
