GEPRC MATEN 5.8G 2.5W VTX for FPV Drone – 72CH, 2500mW Output, IRC Tramp, MMCX, 7-36V Input

Overview

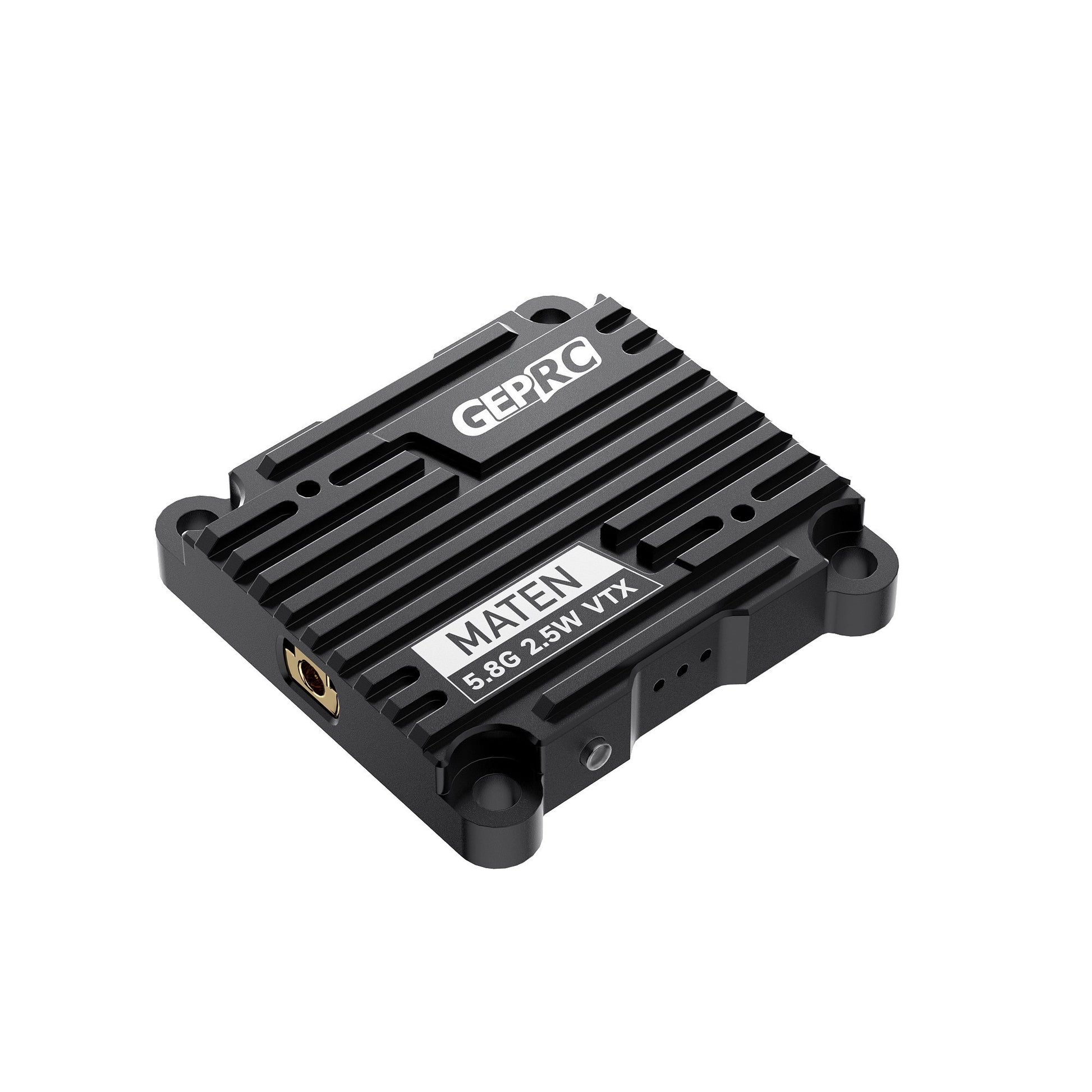

The GEPRC MATEN 5.8G 2.5W VTX is a high-power analog video transmitter tailored for long-range FPV drone applications, offering up to 2500mW output with excellent signal penetration and stability. With five selectable power levels and IRC Tramp protocol support, pilots can adjust video settings on the fly through Betaflight OSD.

Its CNC-machined aluminum alloy shell enhances both durability and thermal performance. Designed with a wide input voltage range (7–36V) and temperature protection, the MATEN 2.5W ensures consistent operation even under demanding conditions. It comes with a built-in microphone, real-time audio transmission, and supports 72 channels across the 5.8GHz band.

Key Features

• Adjustable output levels: 25mW / 200mW / 600mW / 1600mW / 2500mW / Pit mode

• Wide voltage input: 7–36V (2–8S LiPo) compatible

• Aluminum CNC housing for enhanced cooling and impact resistance

• IRC Tramp protocol support for OSD parameter control

• Built-in temperature protection prevents overheating

• Real-time onboard audio via integrated microphone

• 72 channel support across the 5.8GHz band

• MMCX antenna connector, SH1.0 6-pin cable interface

• Mounting pattern: 30.5 × 30.5mm (M3) standard flight stack size

• Compact form factor with lightweight design (18g)

Specifications

Package Includes

• 1 × MATEN 5.8G 2.5W VTX

• 1 × MMCX Copper Tube Antenna

• 1 × MMCX to SMA Adapter

• 1 × SH1.0 6P Connection Cable

• 5 × M3*7 Screws

• 5 × M3*8 Screws

• 5 × M3*10 Hex Screws

• 5 × M3*5 Isolation Columns

• 5 × M3 Nylon Nuts

• 1 × Product Manual

Usage Notes

• Always install the antenna before powering on

• Ensure proper airflow or install a cooling fan for high-power use

• The 5V output is for camera or fan only – do not connect battery or main input to this port

• For best performance, mount away from heat sources or RF interference sources

Details

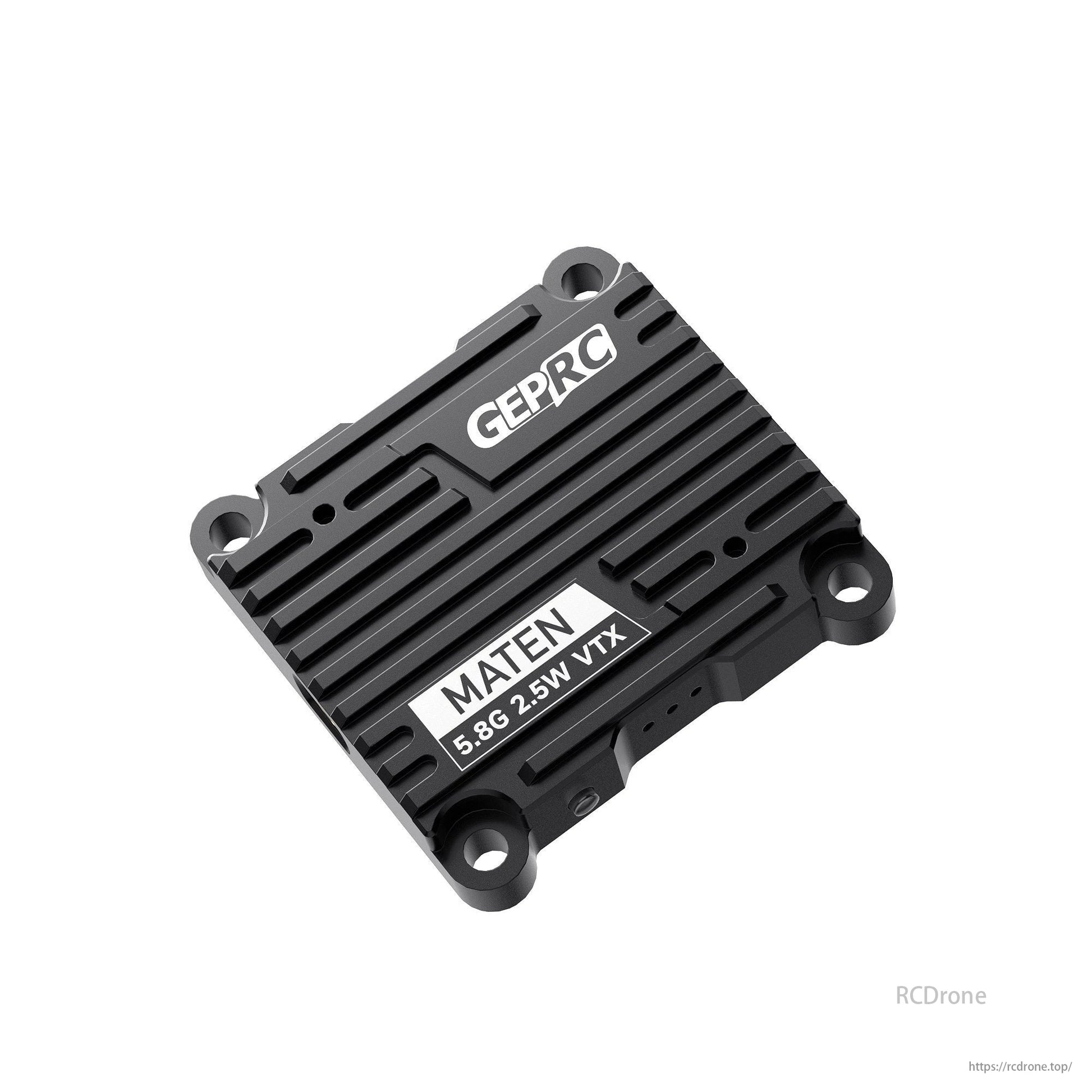

Geprc Maten 5.8GHz VTX with high power and long range capabilities for efficient transmission

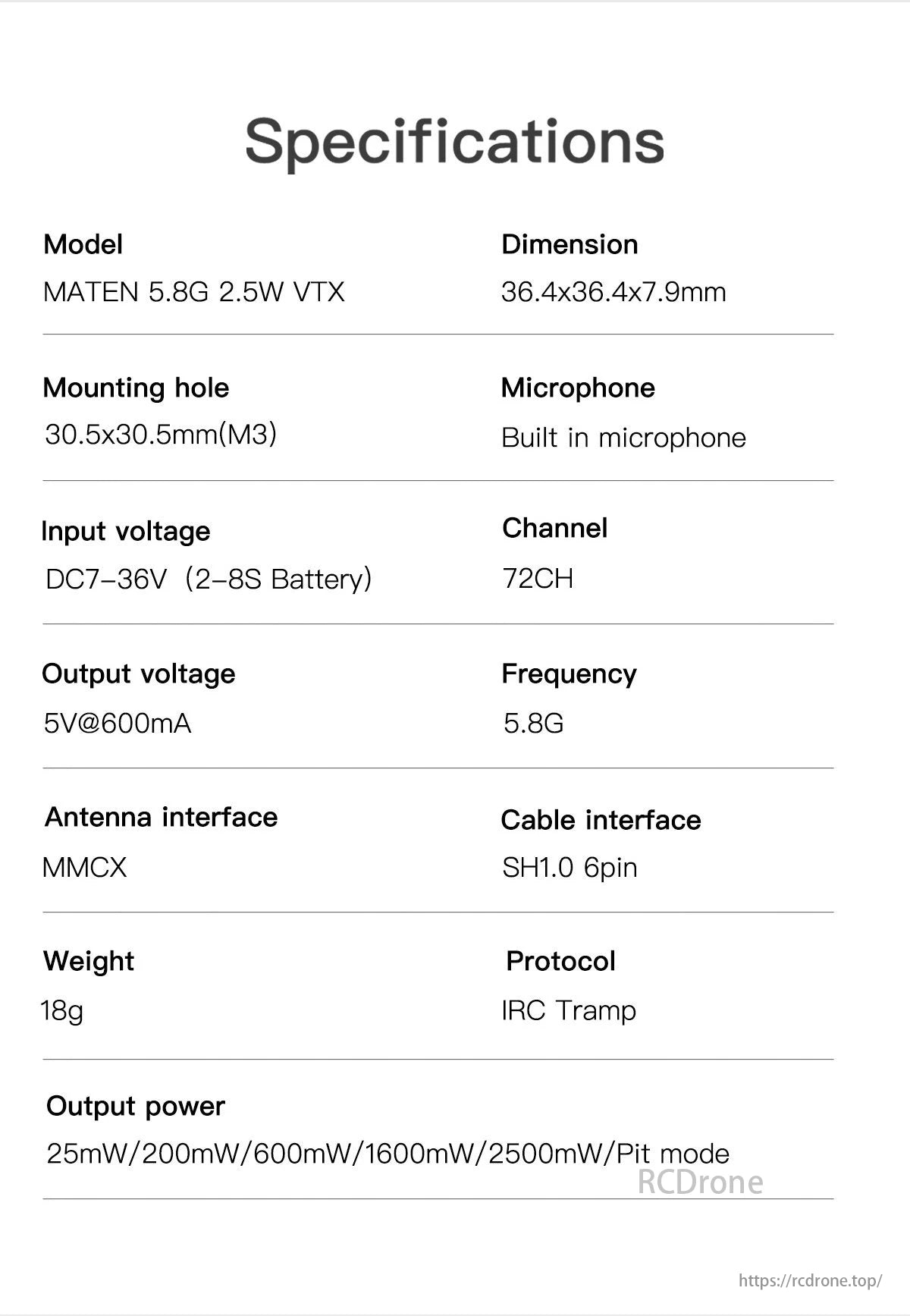

This product features a MATEN 5.8G model with dimensions of 36.4x36.4x7.9mm and a mounting hole size of 30.5x30.5mm (M3). It has a built-in microphone and supports frequencies up to 6oomA on the 5.8G antenna interface. The product weighs 18g and uses an IRC Tramp protocol. The input voltage range is DC7-36V, compatible with 2-8S batteries.

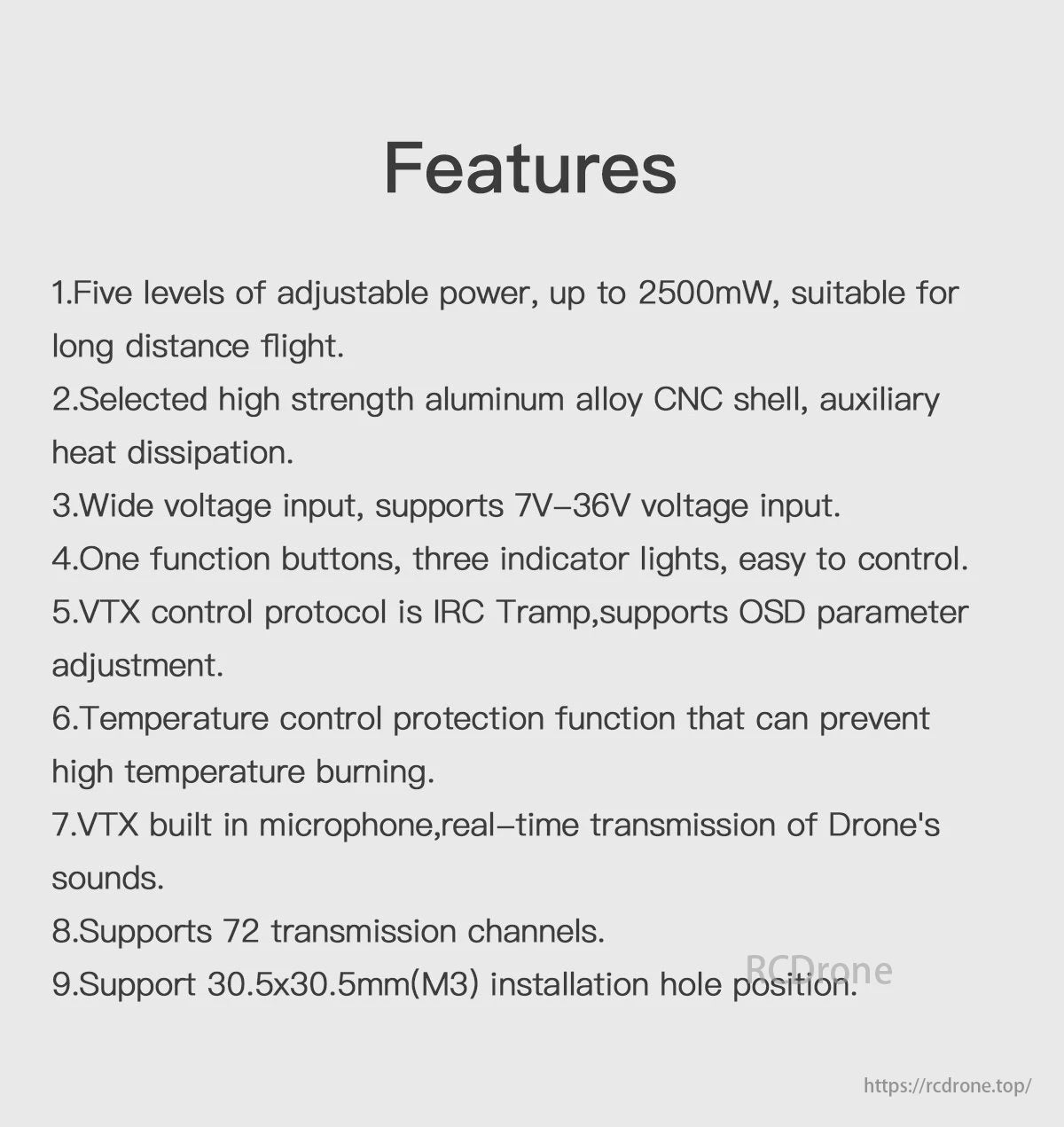

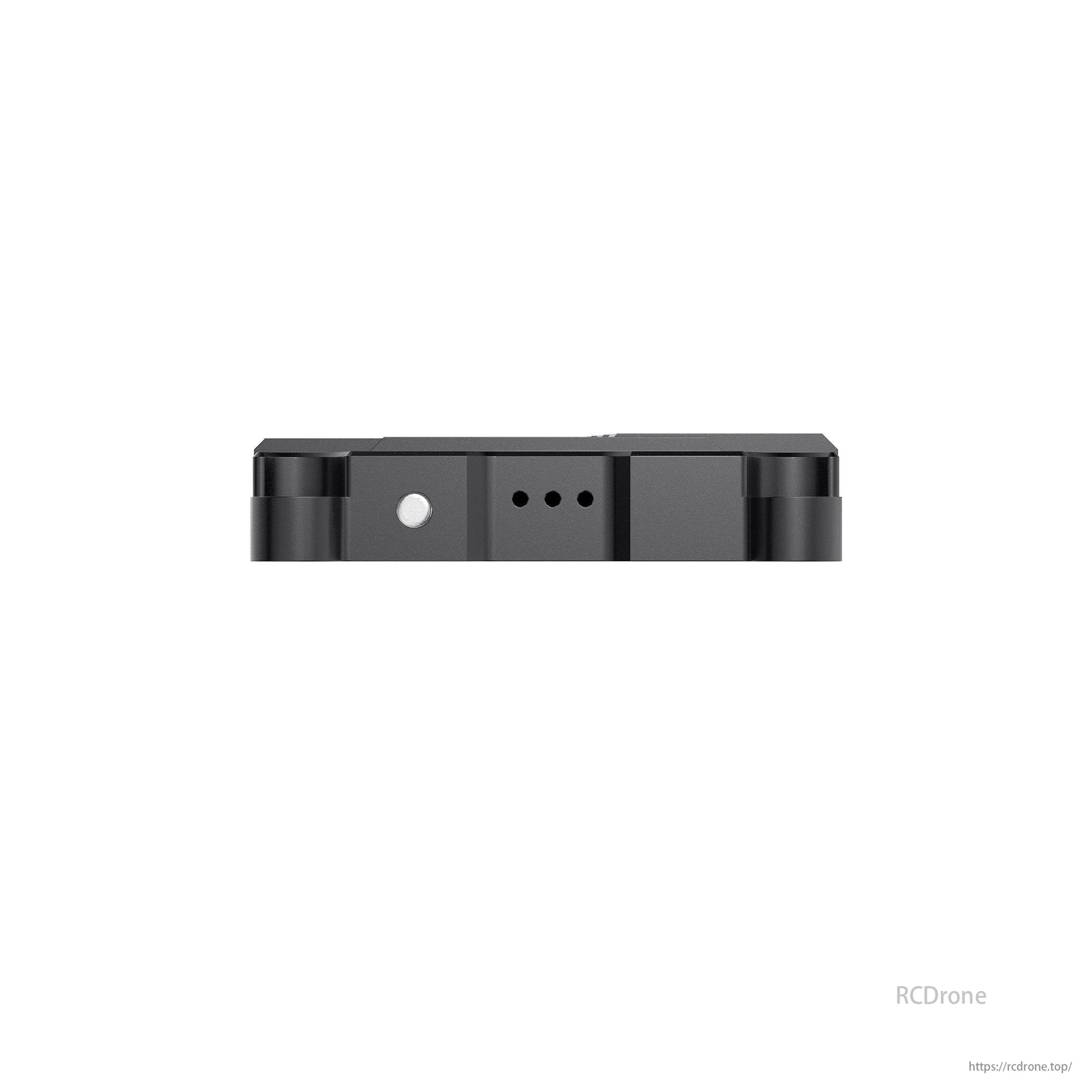

This product features five adjustable power levels up to 2500mW, ideal for long-distance flights. The aluminum alloy CNC shell provides effective heat dissipation. It has a wide voltage input range of 7V-36V and one function button with three indicator lights for easy control. The VTX uses IRC Tramp protocol and supports OSD parameter adjustment. Temperature protection prevents high temperatures from causing damage. A built-in microphone transmits real-time audio. It supports 72 transmission channels and has a 30.5x30.5mm M3 installation hole position.

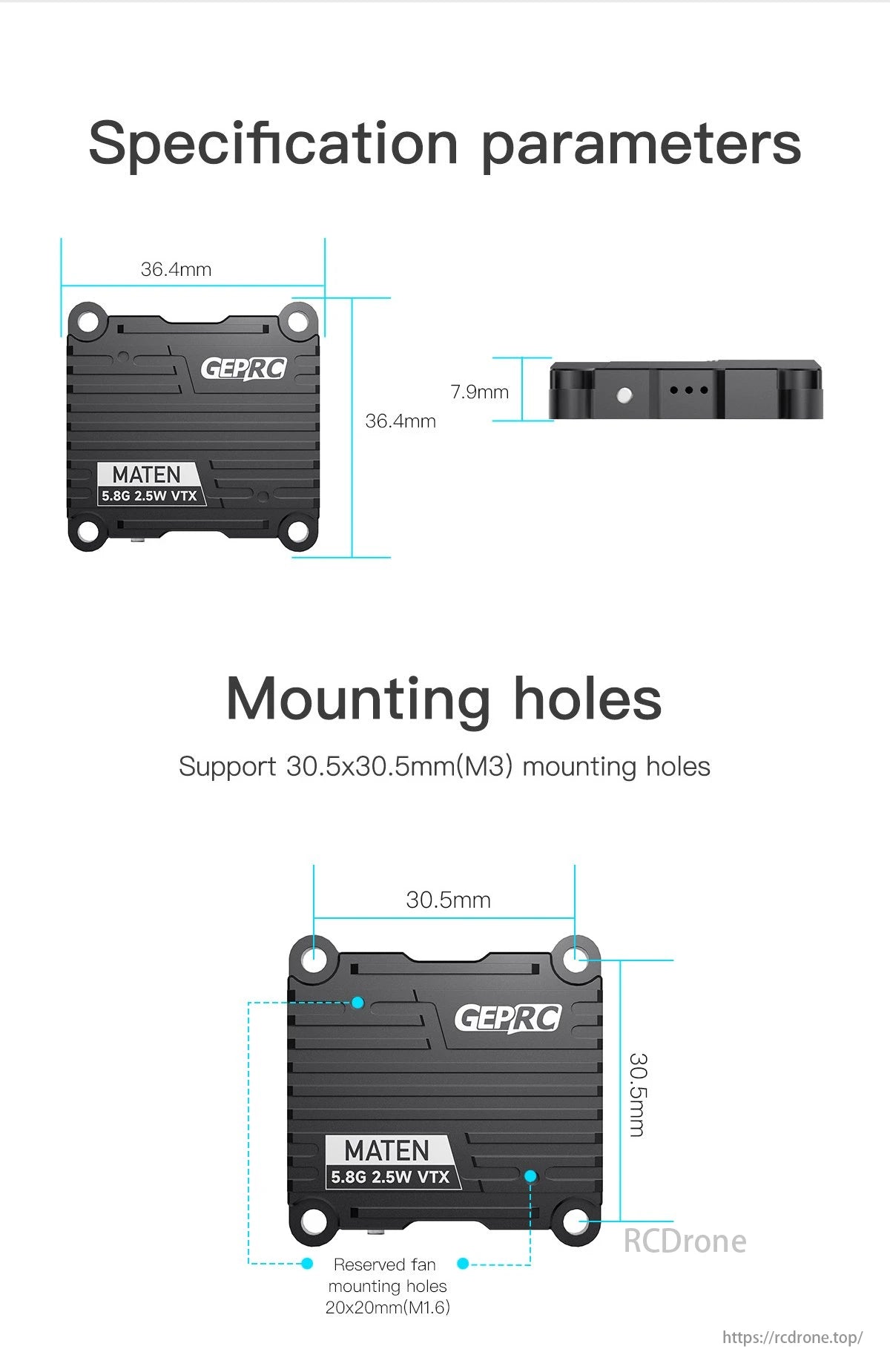

GEPRC product specifications: 36.4mm dimensions, 7.9mm MATEN size, 5.8G frequency, 2.5W VTX power, and mounting holes for M3 screws. Additional features include reserved fan mounting holes of 20x20mm (M1.6).

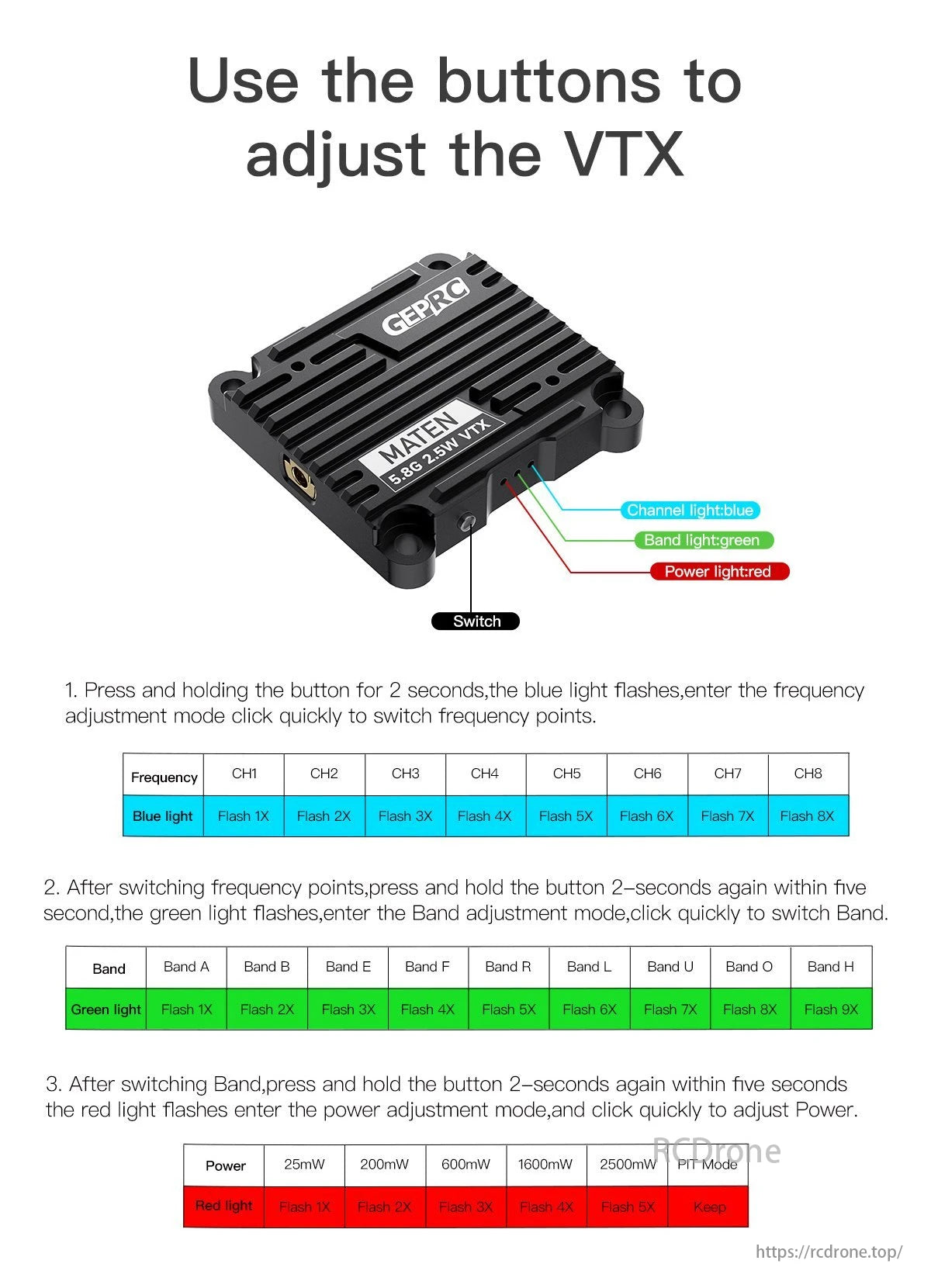

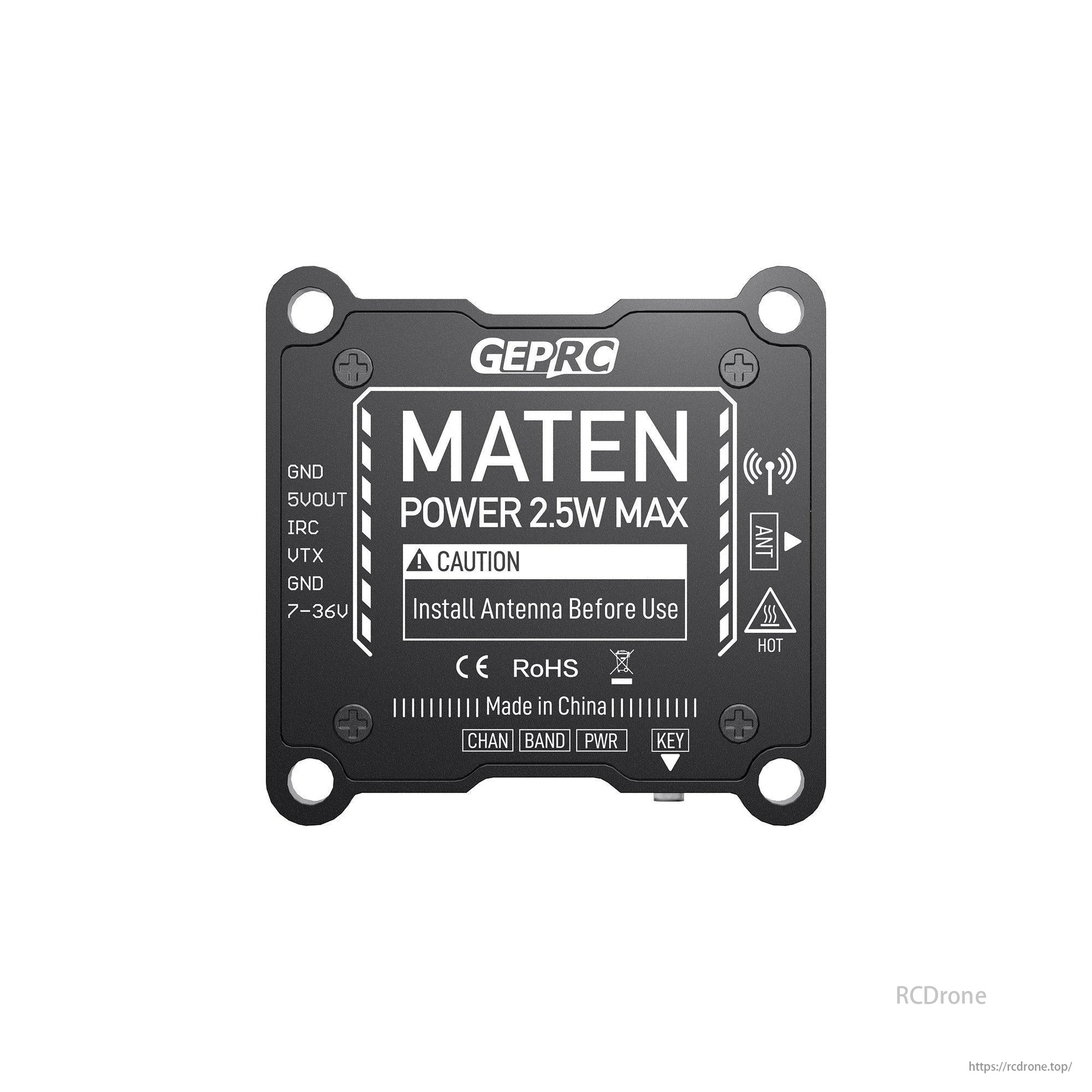

GEPRC MATEN 5.8G 2.5W VTX: Adjust frequency, band, and power using buttons. Blue light for frequency, green for band, red for power. Flashing lights indicate settings. Instructions for quick adjustments included.

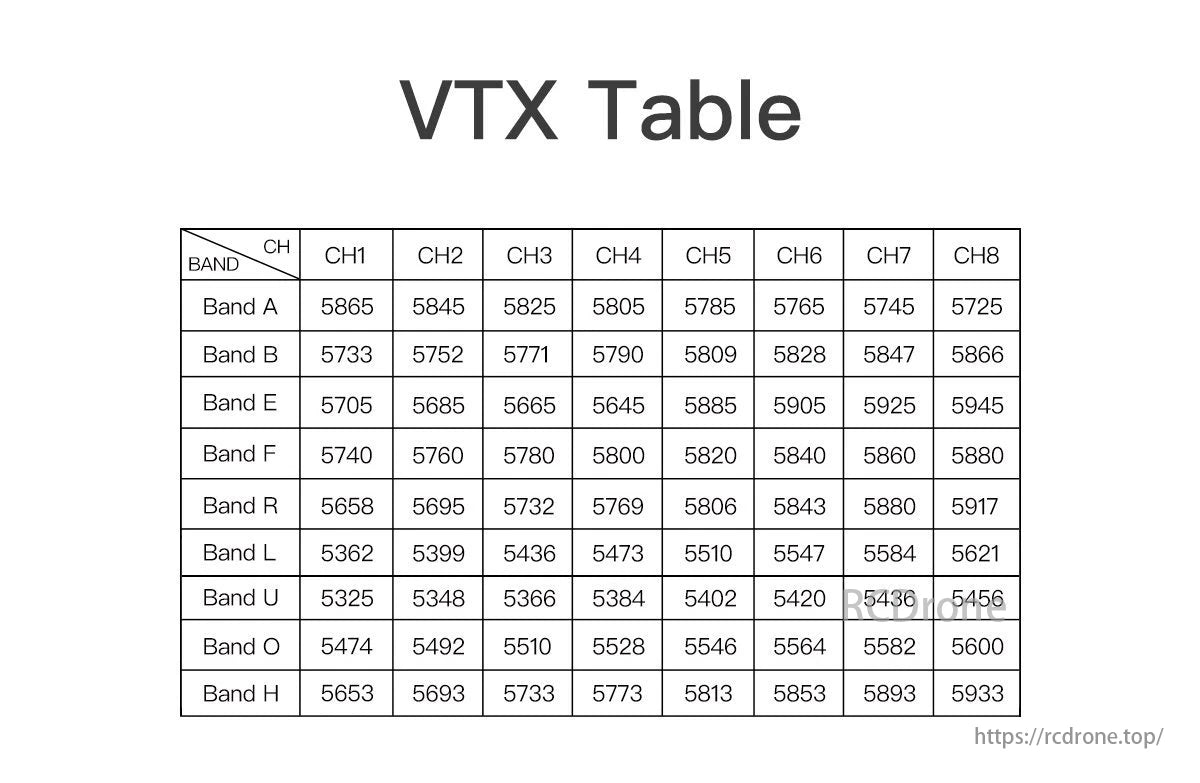

VTX Table features Bands A, B, E, F, R and U with respective frequency ranges: Band A (5865-5725), Band B (5733-5866), etc. Additional bands include 0 and H.

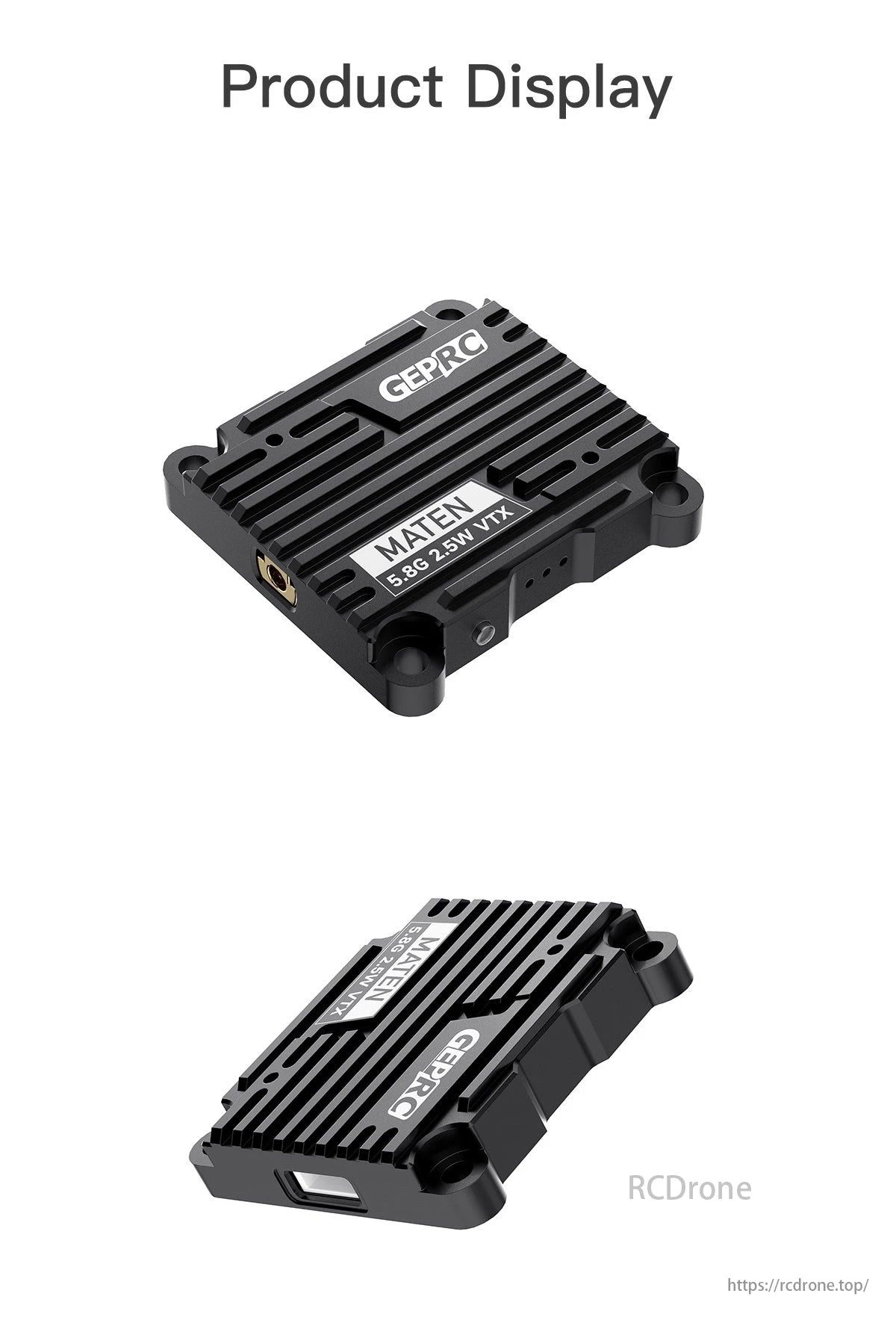

GE Pro Maten VTX is a product display with specifications of 5.8GHz frequency, 2.5 watts power, and range of up to 38 feet.

G1 RC antenna installation requires careful consideration before usage.

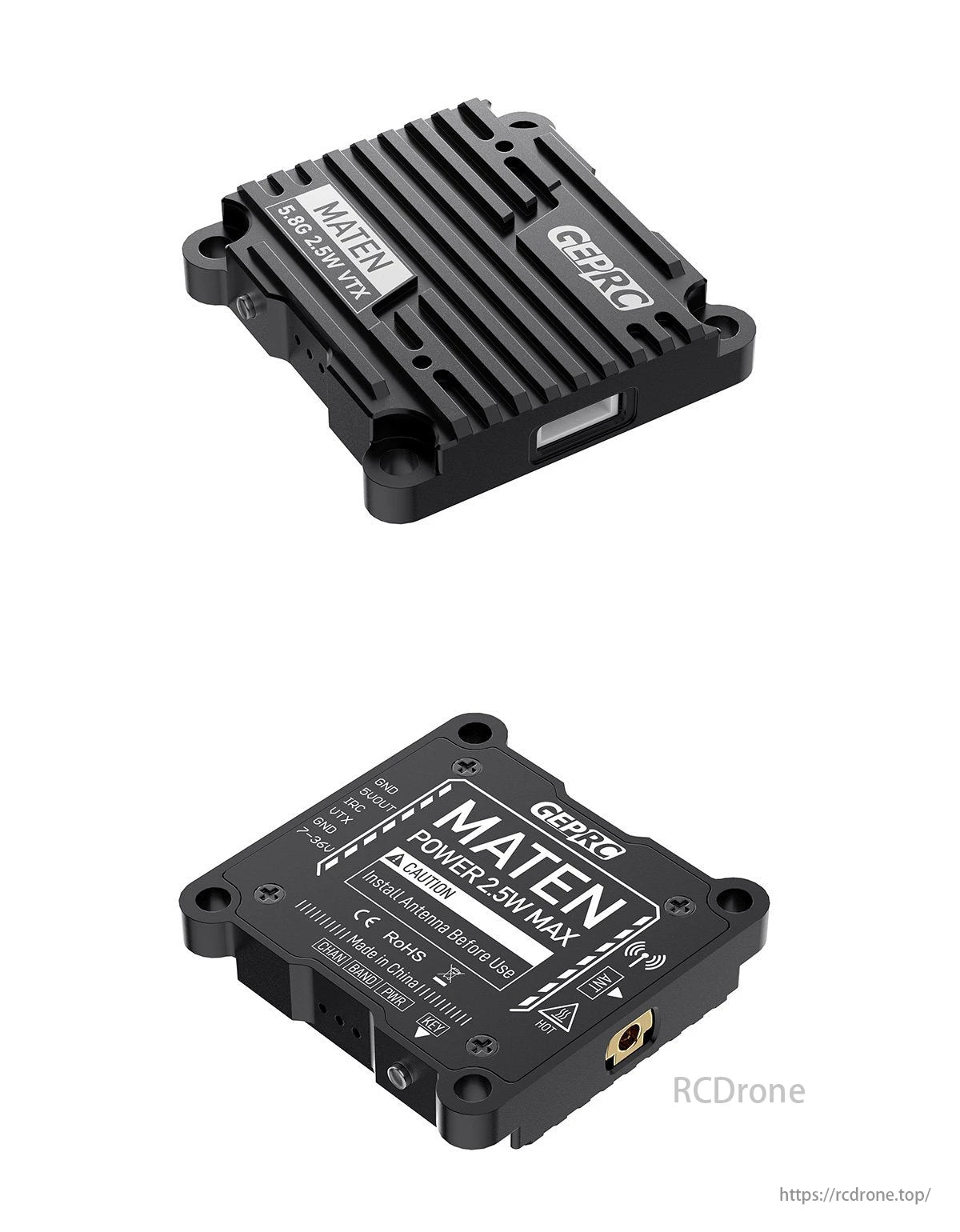

GEPRC Maten VTX is a high-performance module with 2.5 watts of power and a frequency of 5.8 gigahertz, ideal for drones and other aerial applications.

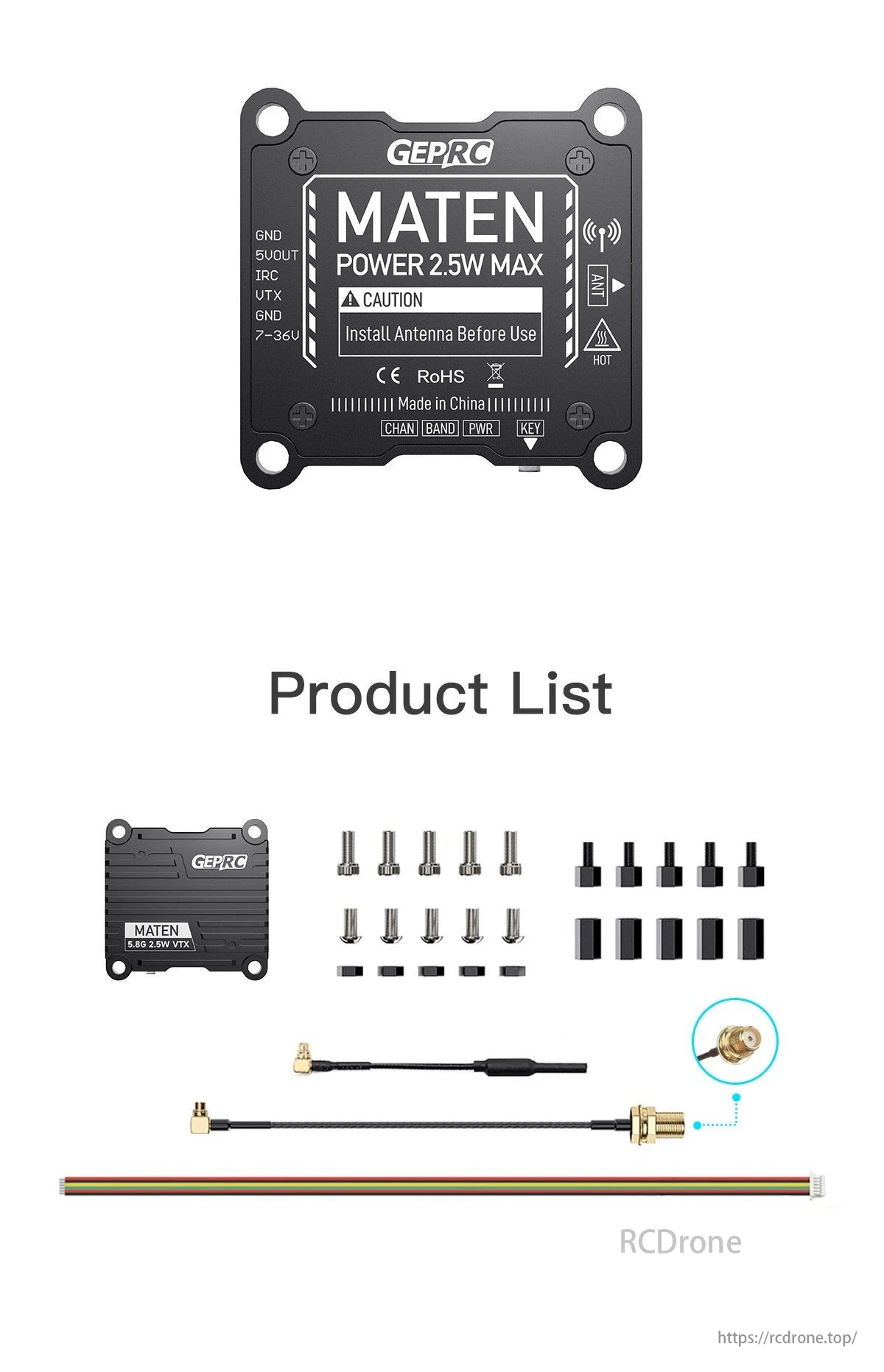

MATEN 5.8G 2.5W VTX product list includes main unit, screws, rubber pads, antenna cable, power cable. Install antenna before use. Made in China.
